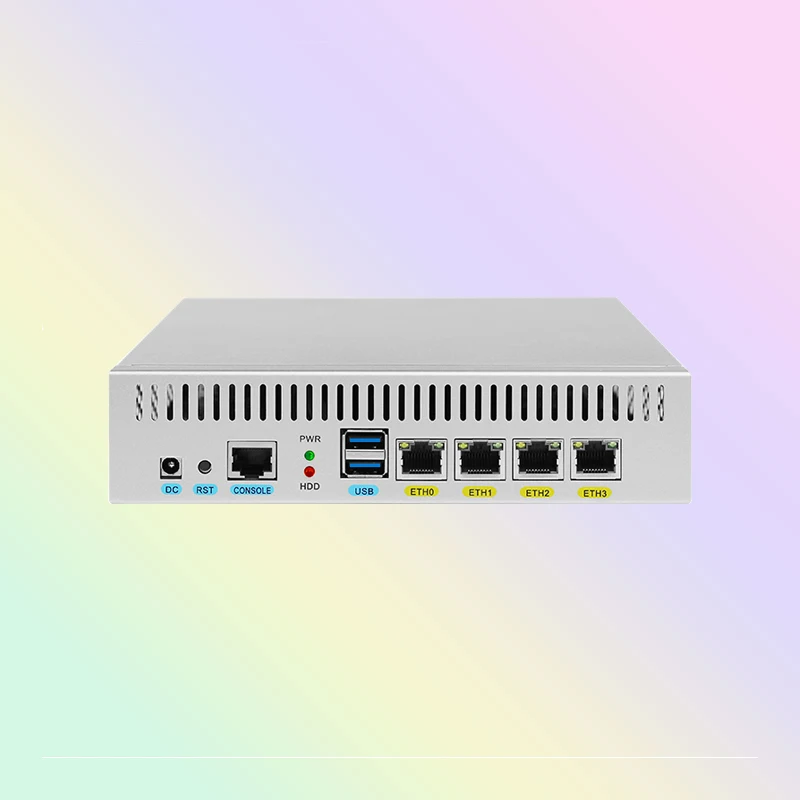

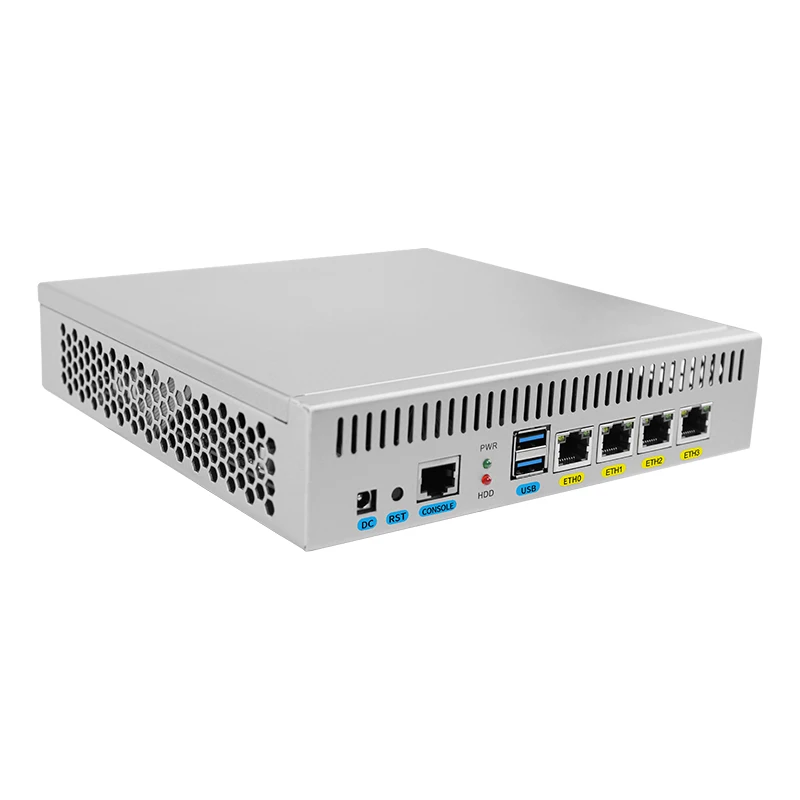

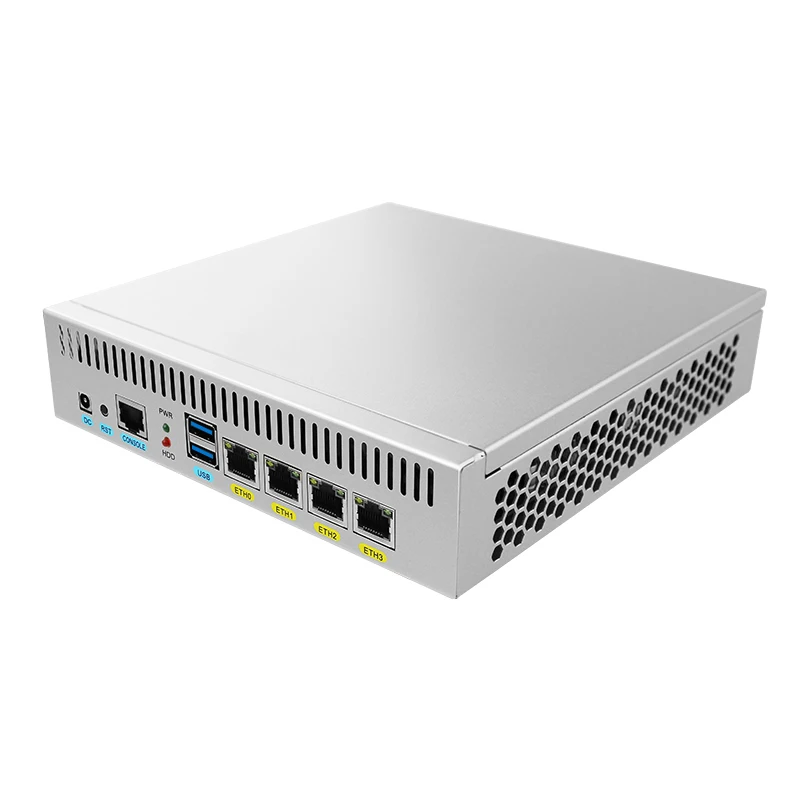

Guanfeng J4125 4G 5G DDR4 mSATA 4 i225 2.5GB Lan HD MI VGA Rackmount Network Device Industrial Firewall Appliance With Sim Card
- Category: >>>
- Supplier: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Share on (1600944679017):
Product Overview
Description
For other combinations of RAM and SSD, please be free to consult us
Products Description

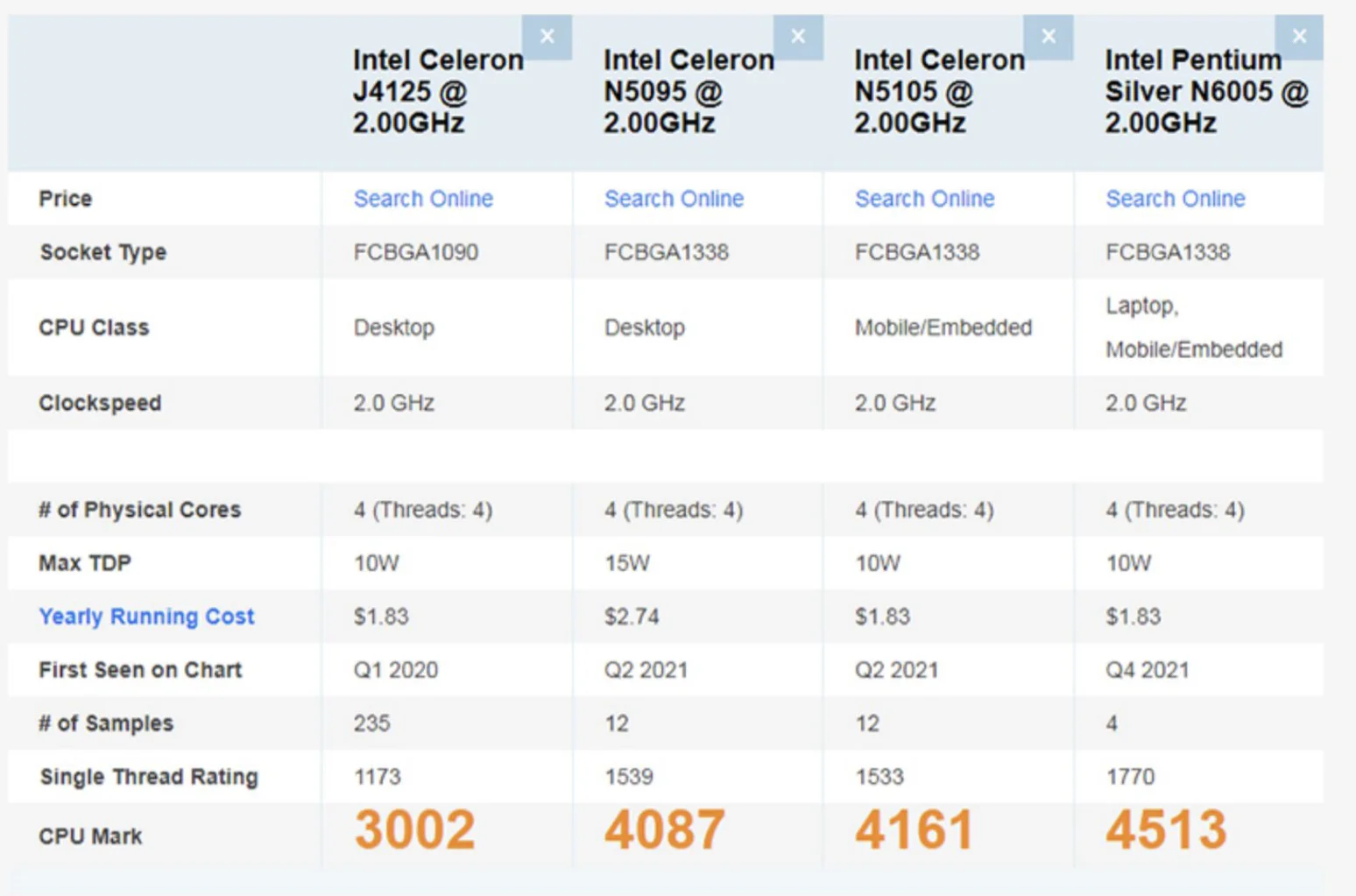

Detailed Processor parameter Link:
https://www.intel.com/content/www/us/en/products/sku/197305/intel-celeron-processor-j4125-4m-cache-up-to-2-70-ghz/specifications.html?wapkw=j4125
https://www.intel.com/content/www/us/en/products/sku/197305/intel-celeron-processor-j4125-4m-cache-up-to-2-70-ghz/specifications.html?wapkw=j4125
Product Highlight
- Support 4G Module and 5G module
- 1*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- Support Storage: 1*mSATA + 1*SATA + 1*2.5 inch HDD
- Support 1xHD-MI+1xVGA dual display
- 2*SIM slot, 2xMini PCIE , support WiFi (WIFI supports either 2.4G or 5g band) , 4G, 5G
- The WIFI module we use is MTK7921, which supports WI-FI 4 (802.11n) and WIFI6
- RS232 and RS485 serial socket on the motherboard can be customized
- The Volt of the GPIO socket is 3.3V
Brand | Guanfeng | ||||||
Processor | Integrated Intel ®Celeron J4125 2.0GHz Quad-Core Processor, TDP 10W | ||||||
Compatible with the Intel ® Gemini Lake-R full-range CPU | |||||||
Memory | 1 * SODIMM slot, support single channel 2400MHz DDR4 memory, up to 16GB | ||||||
Display | Integrated Intel ®UHD Graphics 600 core graphics card | ||||||

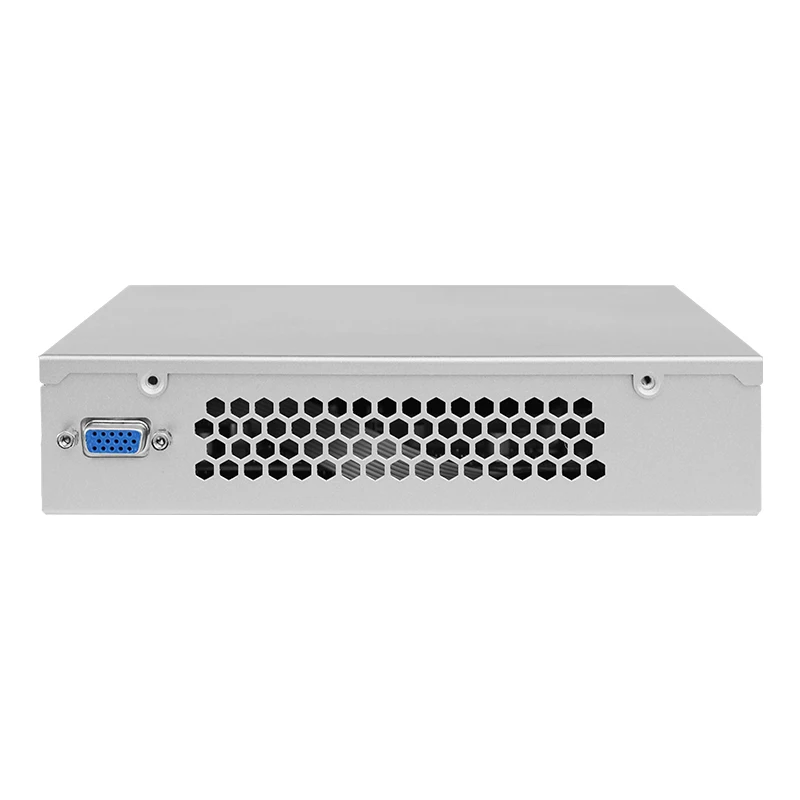

1 * VGA interface, 1 * HDMI interface (optional) | |||||||
Network | |||||||
Storage | 1 * MSATA 3.0 | ||||||
1 * SATA3.0 | |||||||
1 * 2.5-inch SATA3.0 hard disk interface | |||||||
Extension | 1 * Mini-PCIe slot (WIFI/4G, supporting half-card and long-card, and network 4 function is invalid when WIFI support is required) | ||||||
1* M.2 Slot (5G is supported, note that network 3 is invalid when WIFI support is required) | |||||||
4 * 2.5 Gigabit network interface | |||||||
2 * USB3.0 standard interface | |||||||
1 * RS232 serial port of the CISCO standard | |||||||
1 * Power-on button | |||||||
1 * Clear the CMOS button (optional) | |||||||
1 * Hard disk / power indicator lamp | |||||||
1 * 12V DC power input interface | |||||||
Front I / O interface | 1 * HDMI interface (optional) | ||||||
2 * USB 2.0 interface (optional, and the built-in USB2.0 2 * 4Pin interface is optional for two) | |||||||
4 * Network indicator light | |||||||
1 * Hard disk / power indicator lamp | |||||||
1 * JVGA Interface 1 * 12Pin | |||||||
1 * USB 2.0 vertical standard interface (optional 2 USB2.0 interfaces 2 * 5Pin) | |||||||
2 * USB 2.0 Interface 2 * 5Pin | |||||||
1 * COM interface 2 * 5Pin (optional) | |||||||
2 * RS485 Interface 2 * 3Pin (optional, COM3, COM4 and RS485 support) | |||||||
1 * Network indicator lamp interface 2 * 8Pin | |||||||
1 * Hard disk power supply interface 1 * 4Pin | |||||||
1 * 4pin ATX power interface (12V input / output power interface) | |||||||
1 * Front panel switch button and indicator light connector 2 * 5Pin | |||||||
Fan interface | No fan cooling design, reserved 1 * 4pin CPU fan interface, reserved 1 * 4pin system fan interface | ||||||
GPIO | Support for the 4-way input and output GPIO | ||||||
BIOS | 64Mb Flash ROM | ||||||
Watchdog | Support for hardware reset function (level 256,0-255 seconds) | ||||||
Operating System | Windows 10 / Linux / ROS / IKUAI | ||||||
Power Supply | Power supply with DC 12V 5% power supply | ||||||
Working Temperature | 60℃～-20℃ | ||||||
Storage Temperature | -20℃～70℃ | ||||||
Working Humidity | 5% -95% Relative humidity, no condensation | ||||||
F&Q
A: 1 year. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about
30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less,
cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q: Does the NIC support Pfsense 2.6.0?
A: i211 and i225 NIC can work with pfsense 2.6.0 perfectly. We also have i226 version for sale but from the feedback of manyoverseas customers, i226 seems to be unstable for pfsense 2.6.0. So I recommend you to take this point into consideration before placing orders
1. Laser Carving
Well, normally laser carving is free for my loving you~ but if you can click the subscription and follow our store, it would be so kind of you XD~
However, there are still one point you might pay attention to which is the color of the laser logo is fixed to silver white (please check the example on the left)
However, there are still one point you might pay attention to which is the color of the laser logo is fixed to silver white (please check the example on the left)
2. UV Coating and Silk Screen Painting
And if you need colorful logo, we also have solutions for you.
UV coating, comparatively speaking, is the cheaper method. 60USD one time charge for 10 unit or less order; It can be free for more than 10 units orders. It will take 2-3 days
Silk Screen, the exact cost depends on the complexity of your logo and design. Why not kick our service staff and ask for a more detailed answer. We are online all the time
3. Package Customization
Moreover, if you wanna design your own personal brand package, we can also achieve that for you, which only cost you lifetime one time charge 200USD .
The size, location of the logo all can be your choice. Refer to the picture on the right, it can be seen what it looks like
If you have any question, like what I said before, please be free to contact our service staff. We are always here for you
