StrongFirst SMD 20Mhz 18pF 10ppm 3225 crystal quartz
- Category: >>>
- Supplier: Shenzhen Strong Electronics Technology Limited
Share on (1600944711323):
Product Overview
Description
Product Description

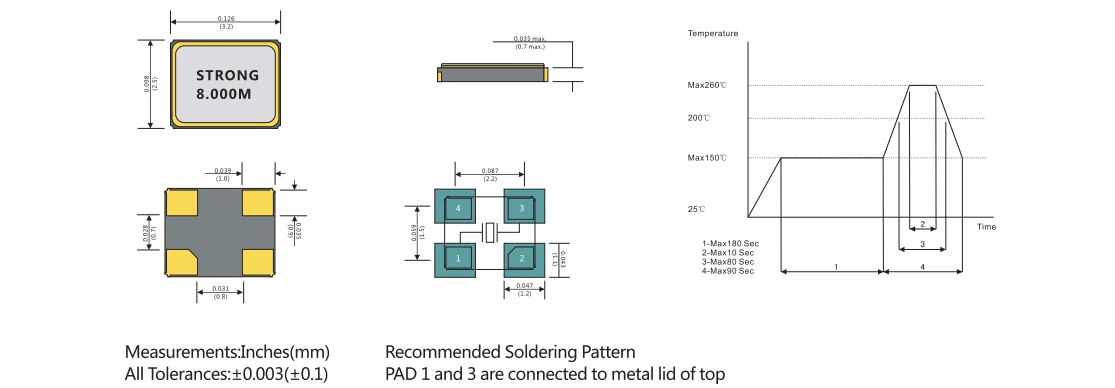

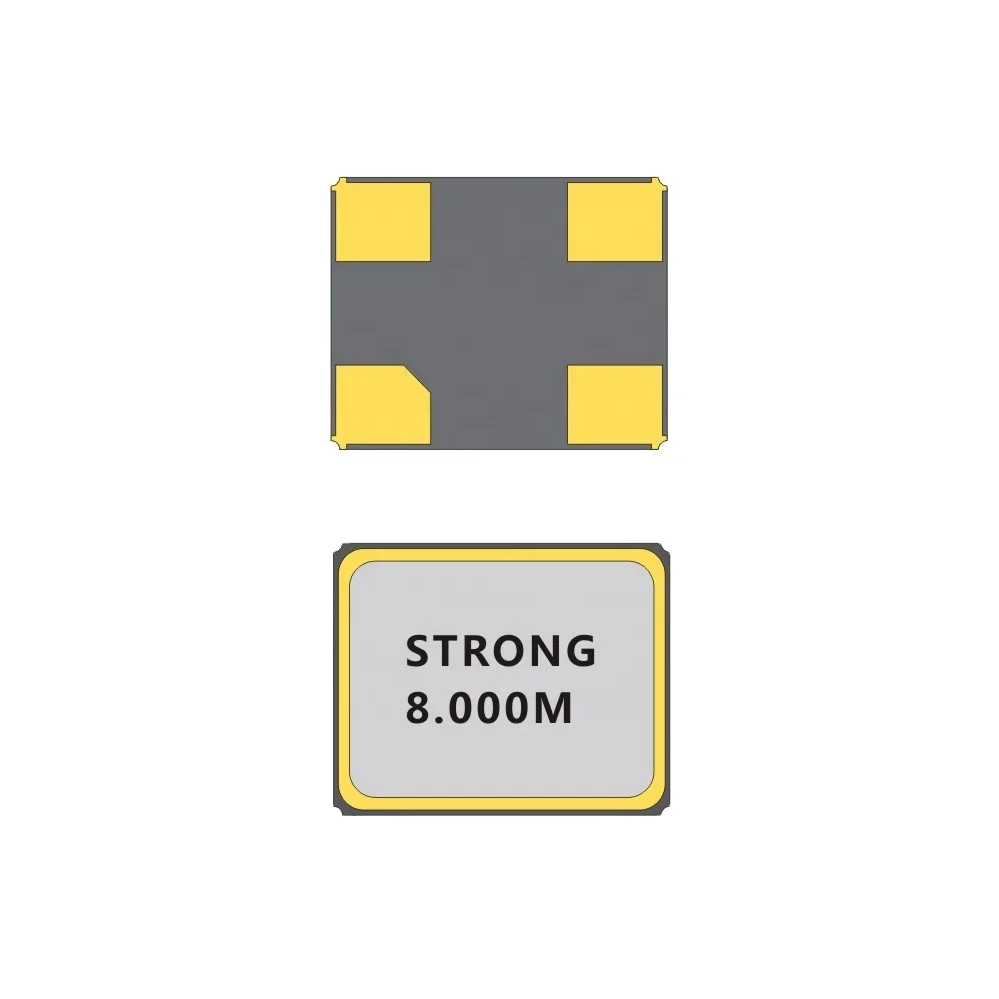

Type | SMD 3.2*2.5*0.7mm |
Freq. range :Fundamental\\3rd | 8.0~66.0MHz\\60.0~156.25MHZ |
Vibration mode | AT cut , Fundamental , 3rd |
Frequency tolerance (at 25C) | -/+10ppm，-/+30ppm,or specify |
Equivalent series resistance | See table No.1 |
Frequency stability over operating temperature range | -/+10ppm，-/+30ppm,or specify |
Operating temperature rangeStorageTemperature Range | -10~ +60C,or specify |
Drive Level | 200uW Max. |
Shunt capacitance | 3.0pF Max. |
Load capacitance | 8pF,12pF, or specify |
Aging | -/+2ppm/year，-/+5ppm/year |

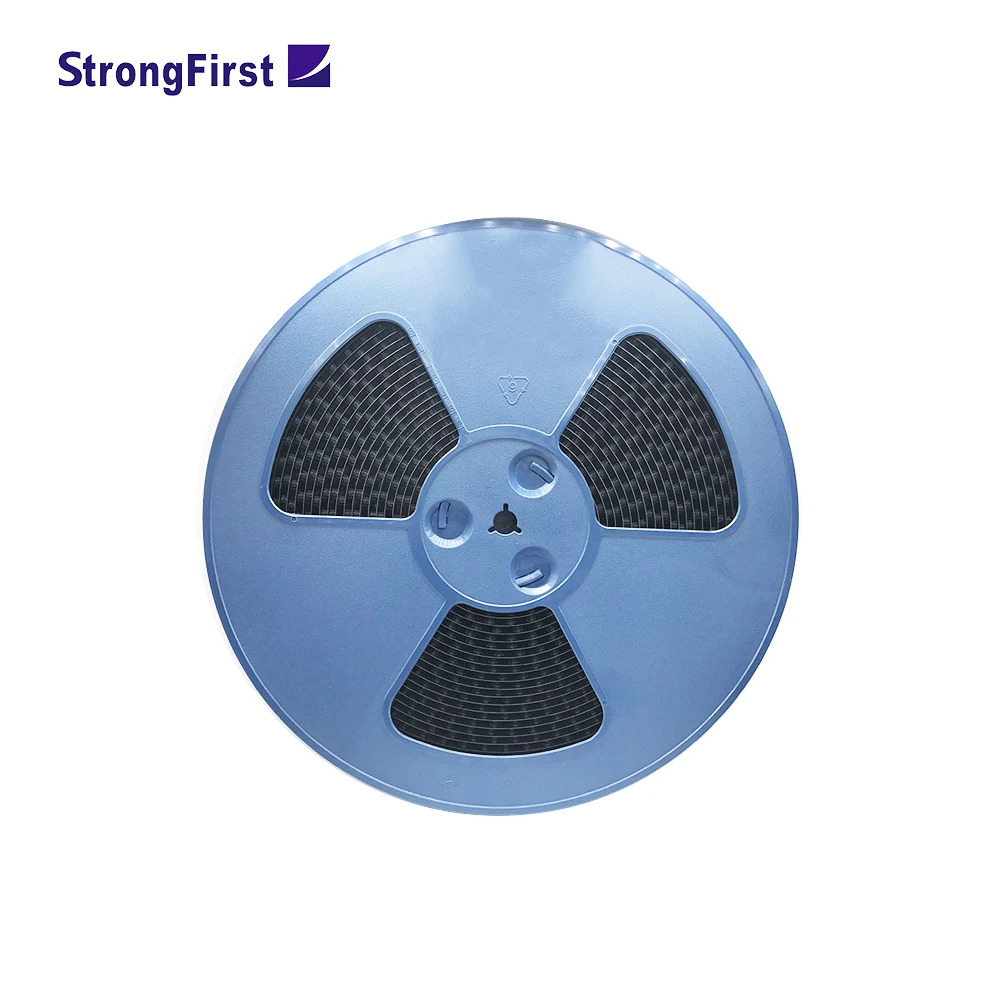

Min.Packing | 3,000pcs/Reel |
Equivalent series resistance(ESR) Table No.1 | ||||||||||||||||||
Frequency | 8.0~9.9MHz | 10.0~10.9MHz | 11.011.9MHz | 12.0~12.9MHz | 13.0~15.9MHz | 16.0~20.9MHz | 21.0~29.9MHz | 30.0~80.0MHz | 60.0~156.25MHz | |||||||||
Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | 3rd | |||||||||
ESR | 800 ohms Max. | 250 ohms Max | 150 ohms Max. | 100 ohms Max. | 80 ohms Max. | 70 ohms Max. | 60 ohms Max. | 50 ohms Max. | 100 ohms Max. | |||||||||
EXHIBITION
Our Distributors
Packing & Delivery
FAQ
1. who are we?1.我们是谁？
We are based in Guangdong, China, start from 2010,sell to Western Europe(30.00%),North America(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),Southeast Asia(9.00%),Domestic Market(6.00%),Eastern Asia(5.00%). There are total about 301-500 people in our office.我们的总部设在中国广东，从2010年开始，销售西欧（30.00%），北美（10.00%），南欧（10.00%），北方（10.00%），东欧（10.00%），南美（10.00%），东南亚（9.00%），国内市场（6.00%），东亚（5.00%）。我们的办公室总共有301-500人。
2. how can we guarantee quality?2.如何保证质量？
Always a pre-production sample before mass production;在批量生产之前，始终要有一个预生产样品;
Always final Inspection before shipment;始终在装运前进行最终检验;
3.what can you buy from us?3.你能从我们这里买到什么？

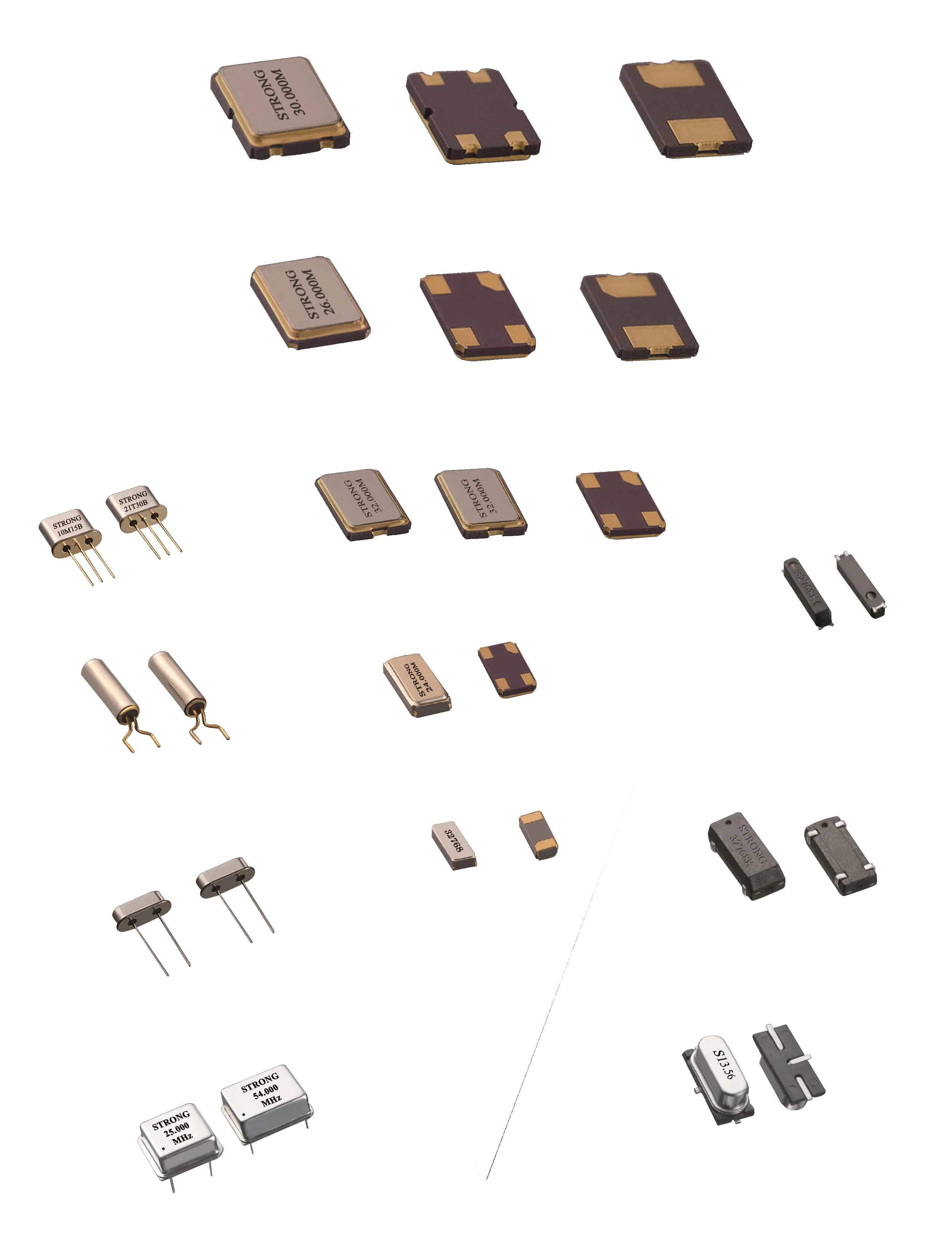

Quartz Crystal Unit,Crystal oscillator,LTCC multilayer Filter,SAW Filter,Ceramic resonator石英晶体单元、晶体振荡器、LTCC多层滤波器、声表面波滤波器、陶瓷谐振器
