5 Axis 3 Axis Cnc Gantry Type Milling Machinery Cnc Gantry type Machining Center BR3018
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600944727478):
Product Overview
Description

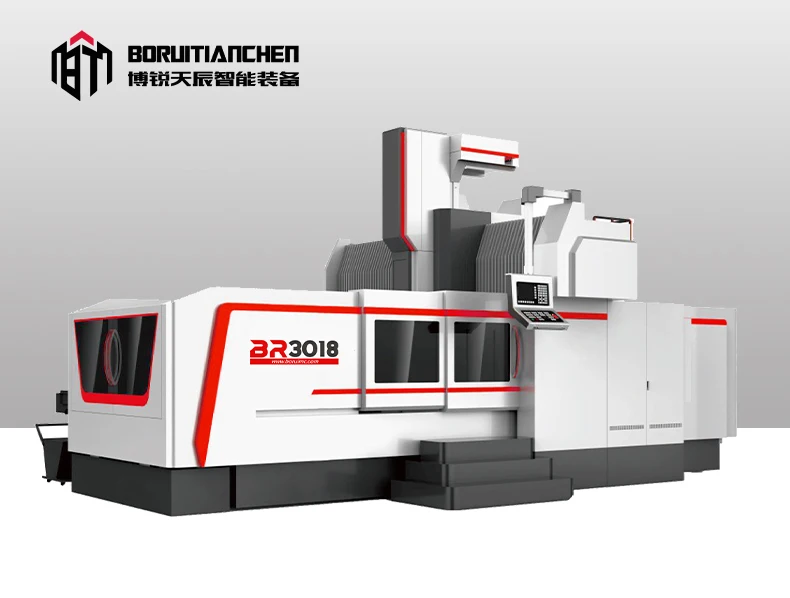

5 Axis 3 Axis Cnc Gantry Type Milling Machinery Cnc Gantry-type Machining Center BR3018
Product Description
BR3018 Gantry machining center is mainly suitable for parts processing in aviation, aerospace, automobile, military, energy,information, mold and other industries. It is aimed at processing small and medium-sized complex parts of ferrous and non-ferrous metals. It has the characteristics of high precision, high speed, high flexibility and environmental protection. Its performance indicators and accuracy indicators are in full compliance with national standards. The products are modularly designed and can be serialized and customized according to market demand. Its good performance-price ratio is the best choice for customers at home and abroad.
Product Parameters
Specifications | BR-3018 | |||
Control system | ||||
Software | FANUC 0I MF PLUS 1pcs | |||
Monitor：Chinese and English display dual screen | 10.4″color screen/10″color screen | |||
CF card interface、handheld portable operating system | ||||
Working travel | ||||
X-axis | 3200 | mm | ||
Y-axis | 1900 | mm | ||
Z-axis | 750 | mm | ||
Spindle nose to table | 150~900 | mm | ||

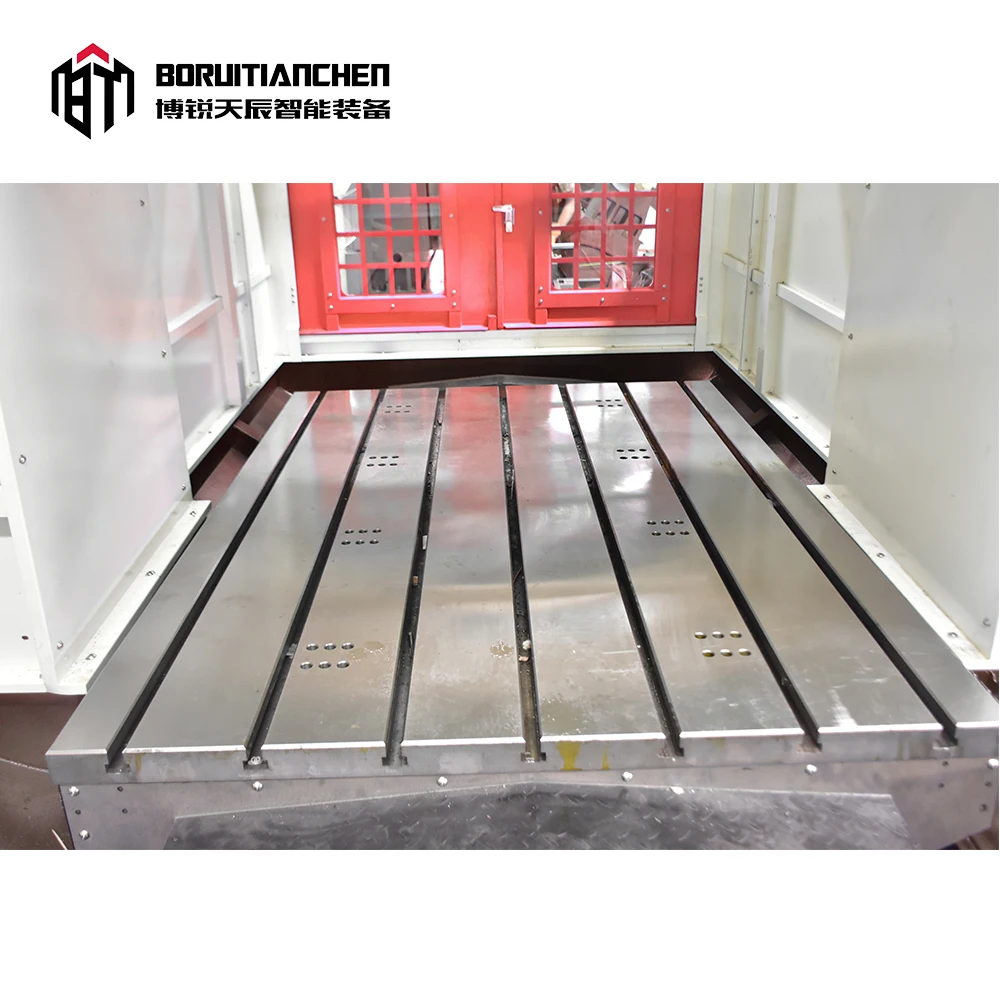

Worktable | ||||
Table size | 3000X1500 | mm | ||
Max. loading capacity | 8 | T | ||
Size of T-slot | 22x200x7 | mm | ||
Spindle | ||||
Spindle speed | 8000 | rpm | ||
Spindle taper | BT50 | |||
Spindle motor | 22/26 | KW | ||
Spindle torque | 286 | N.m | ||
Spindle at both ends | 6 | Pcs | ||
Slide way | ||||
X-axis 2 guide | 55x2 roller P grade | mm | ||
Y-axis 2 guide | 55x2 roller P grade | mm | ||
Z-axis T-shaped ram | Hard way | mm | ||
Driving screw | ||||
Ball screw accuracy | C3 grade | |||
Ball screw diameter x.y.z | 63/50/50 | mm | ||
Three-axis lead | 10/12 | mm | ||
Motor connection | Direct | |||
Number of bearings at both ends | 6/6/6 | Pcs | ||
Three-axis motor | ||||
x zaxis motor | 7KW | N.m | ||
y zaxis motor | 7KW | N.m | ||
z zaxis motor (nitrogen balance) | 7KW (Brake ) | N.m | ||
Feed rate | ||||
x axis rapid feed rate | 12000 | mm/min | ||
Y axis rapid feed rate | 12000 | mm/min | ||
Z axis rapid feed rate | 10000 | mm/min | ||
Three-axis cutting feed rate | 0-10000 | mm/min | ||
Tool (Optional) | ||||
Max. tool length | 300 | mm | ||
Max. tool dia | Ø300 (adjacent empty knife) | mm | ||
Max. tool weight | 18 | kg | ||
Tool specification | BT50 | |||
Tool change time | 2.5 | second | ||
Factory precision(total excursion ) | ||||
Positioning | 0.010／1000 | mm | ||
Repeat positioning | 0.006／1000 | mm | ||
Least input increment | 0.001 | mm | ||
Other | ||||
Power Capacity | 55 | KVA | ||
Net weight | 23 | t | ||
Packing dimensions(L x W x H) | 8200x3300x3500 | mm | ||
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
