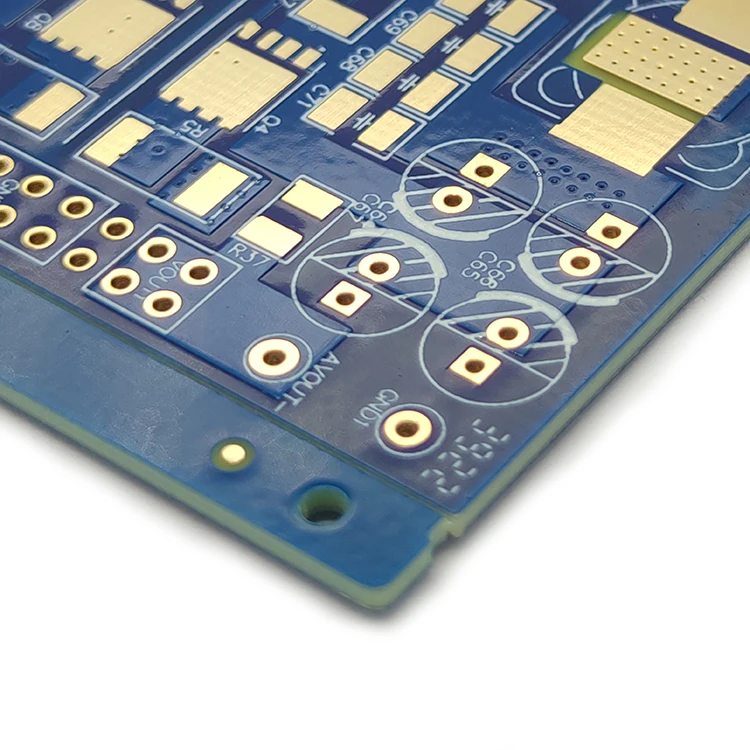

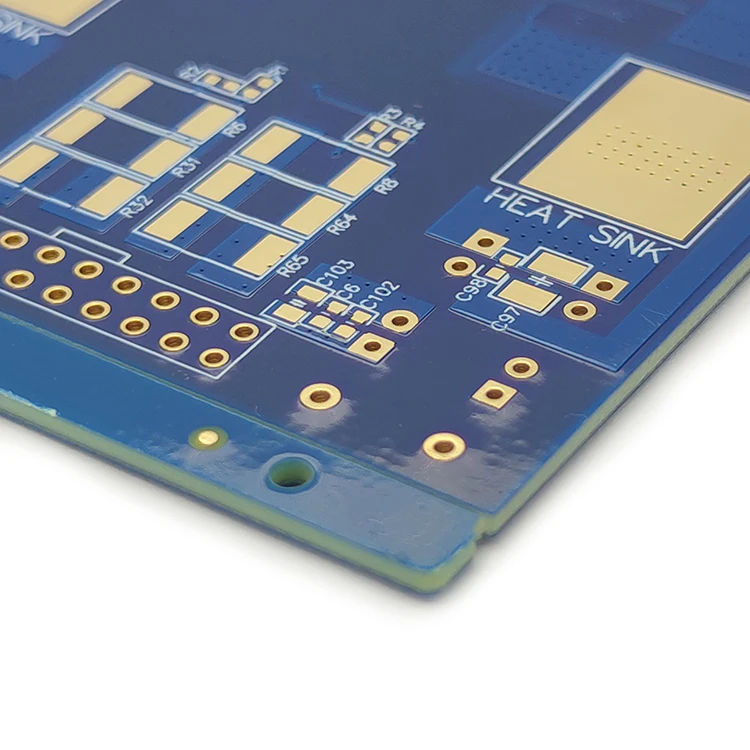

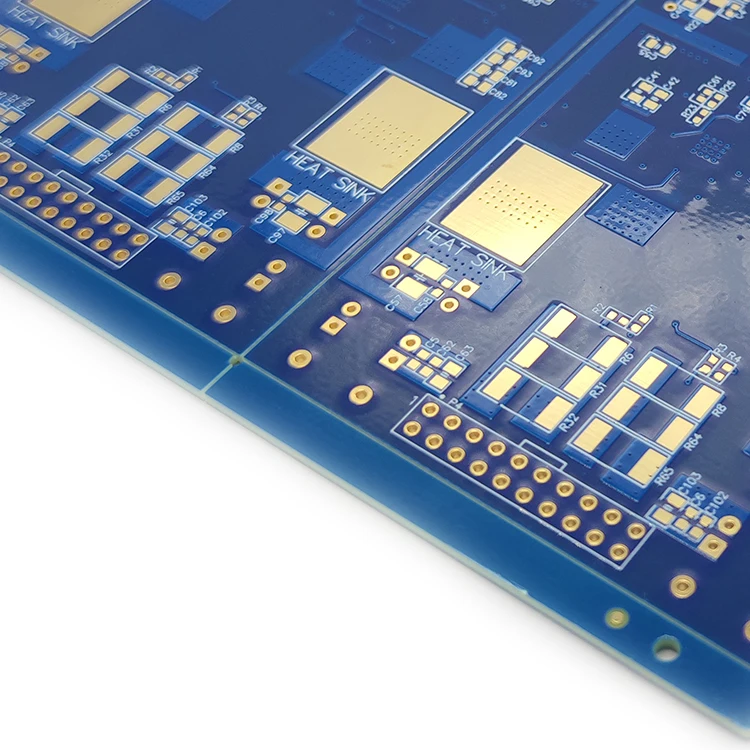

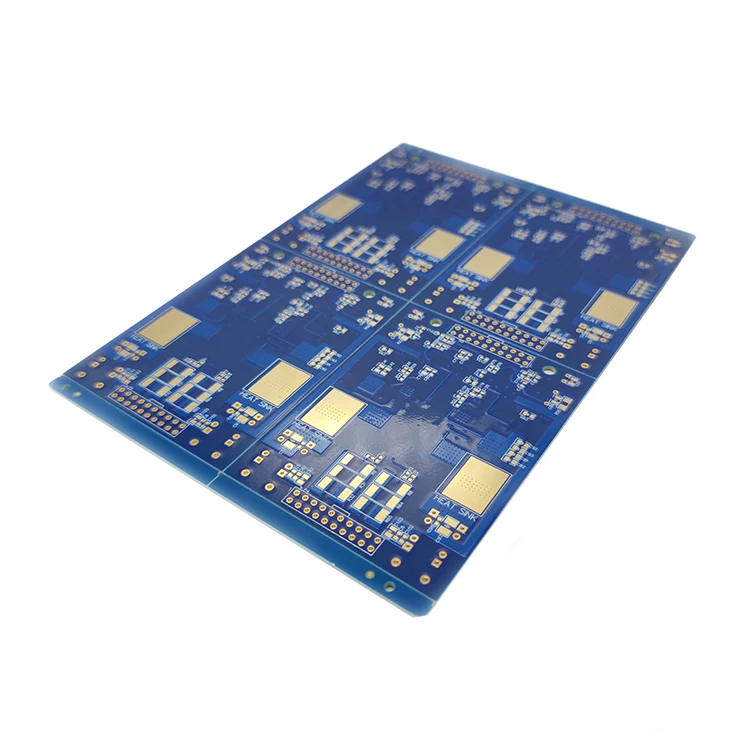

Cihina Custom pcb factory pcba Design and assembly Electronic for impedance controlled board iphone motherboard 94v0 pcb board
- Category: >>>
- Supplier: Shenzhen Diancheng Circuit Board Co. Ltd.
Share on (1600944735212):
Product Overview
Description
Our Capability
Video Description
Products Description
Our products used in various fields such as consumer electronics, industrial control, telecommunication, computer and medical. We do not only offer the simple Fr4 PCB but also Alu PCB, Ceramic ALN and AL2O3, metal and copper base PCB, Rigid-flex board, heavy copper and etc.
Layer | 1-8Lsyers |
Board Thickness | 0.8-1.6mm |
Copper Thickness | 0.5-2oz |
Min. Hole Size | 0.1-6.5mm |
Min. Line Spacing | 0.2mm |
Min. Line Width | 3mil |
Board thickness tolerance | ±10% |
MOQ | 5pcs |
Thermal Conductivity | 1.0, 2.0,3.0 w/m.k |
Substrates Material | Aluminum, FR4, cem-1 KB |
Product name | Customized PCB Supplier Adapter PCB |
Surface Finishing | HALS/HALS OSP etc |
Package | Vaccum package |
PCB Lead Time | ||||
Layer | Quick Turn/ Usual Time | Mass Production | ||
2L | 24hours /4 days | 8-10 days | ||
4L | 48hours /5 days | 10-12 days | ||
6L | 72hours /6 days | 12-14 days | ||
8L | 72hours /7 days | 16-18 days | ||
10L | 96hours /8 days | 18-20 days | ||
Company Introduction
In 2011 , Diancheng Circuit was founded as a PCB manufacturer in Shenzhen . After more than 10 years , the company has developed into a one-stop service platform that provides comprehensive PCB Layout ,PCB Fabrication ,PCB Assembly , and Component Purchasing services . We are trusted by some of the big companies, includingCHERY, Vivo , mindary , Haier , Midea-Smart .
Our objective has always been to provide the best solutions to make your job easier and improve your margin of profit.
Production process
PCB production
Cutting
Drilling
PTH
Circuit Transfer
AOI
Solder Resist
Routing and V-Cut
Electrical Testing
Product packaging
PCBA production
Solder Paste Printing
Surface Mounting
Reflow Soldering
AOI
Wave Soldering
ICT Testing
PRODUCT SHOWS

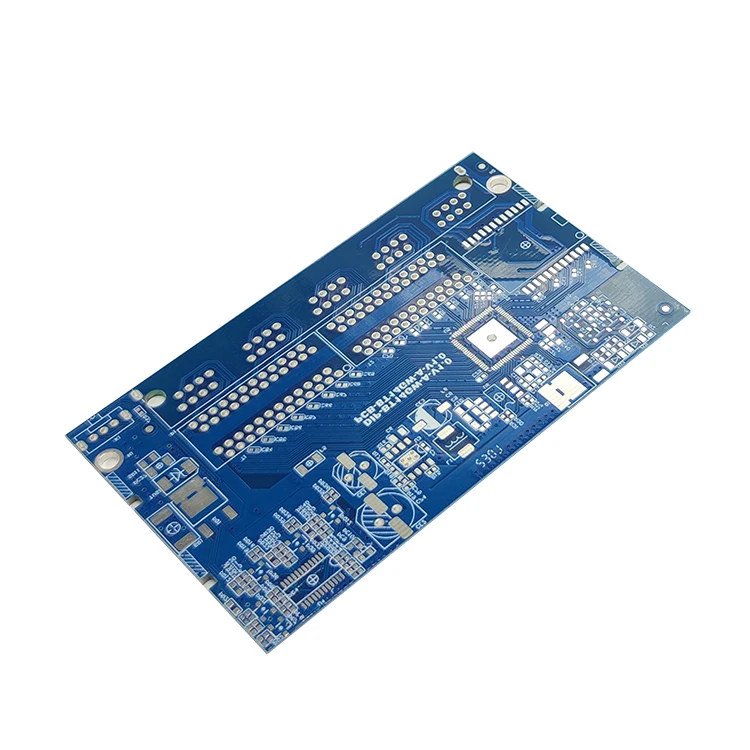

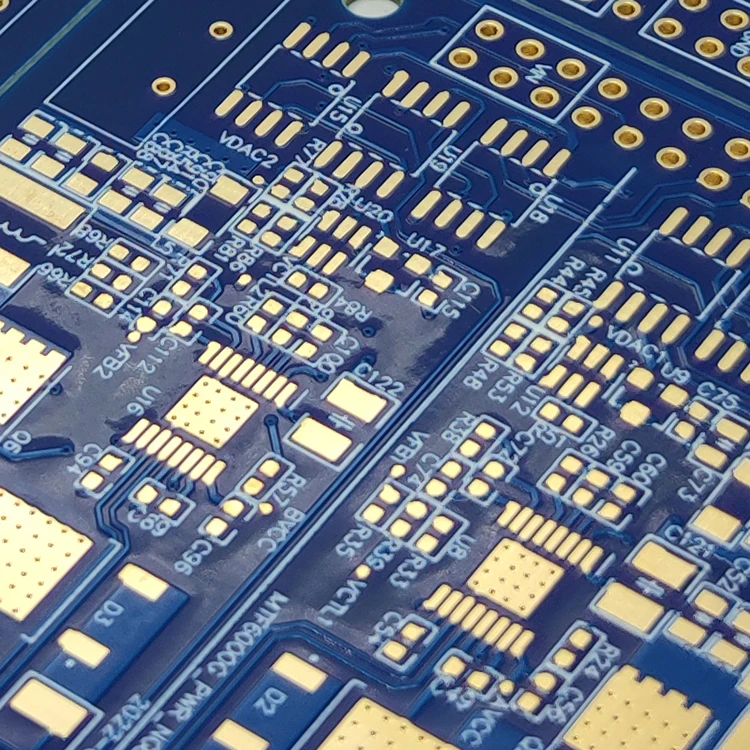

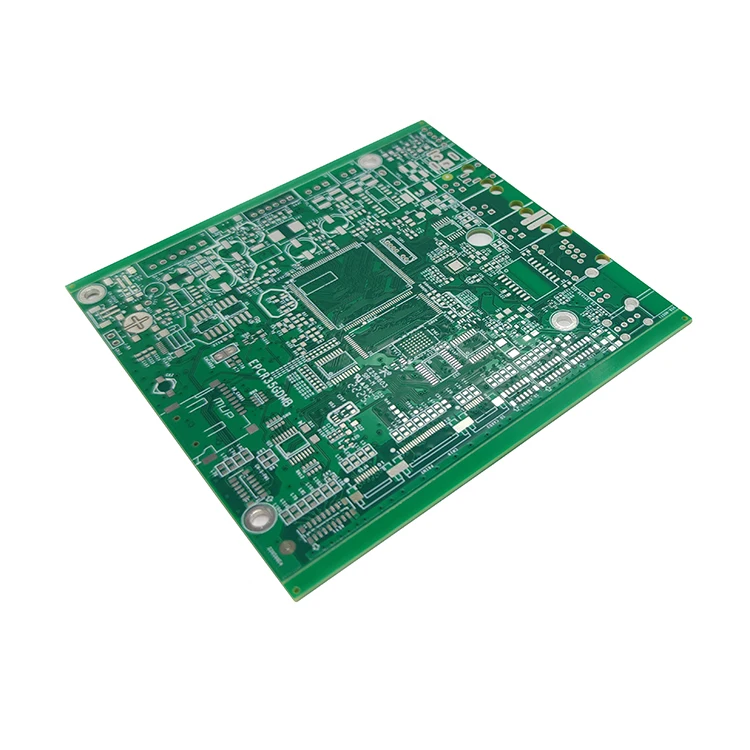

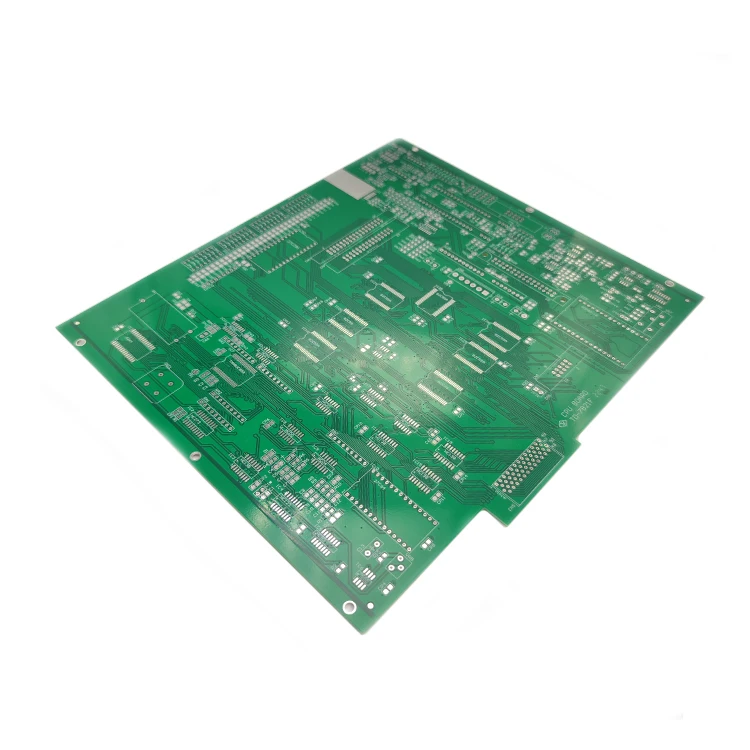

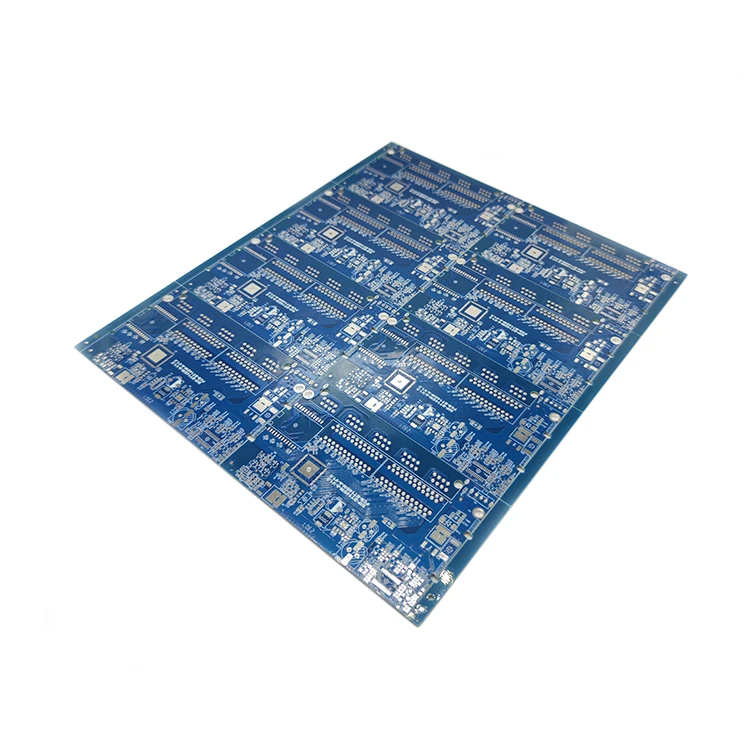

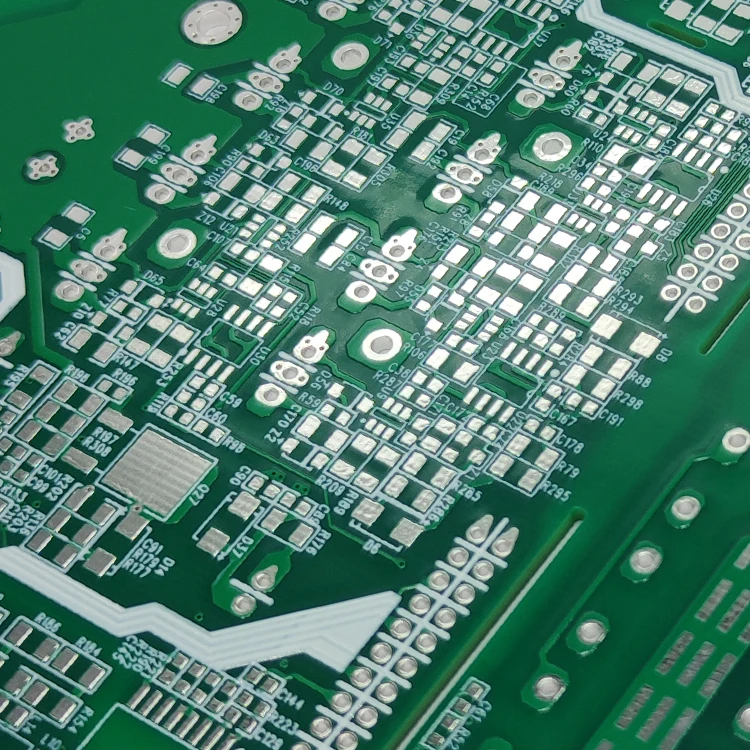

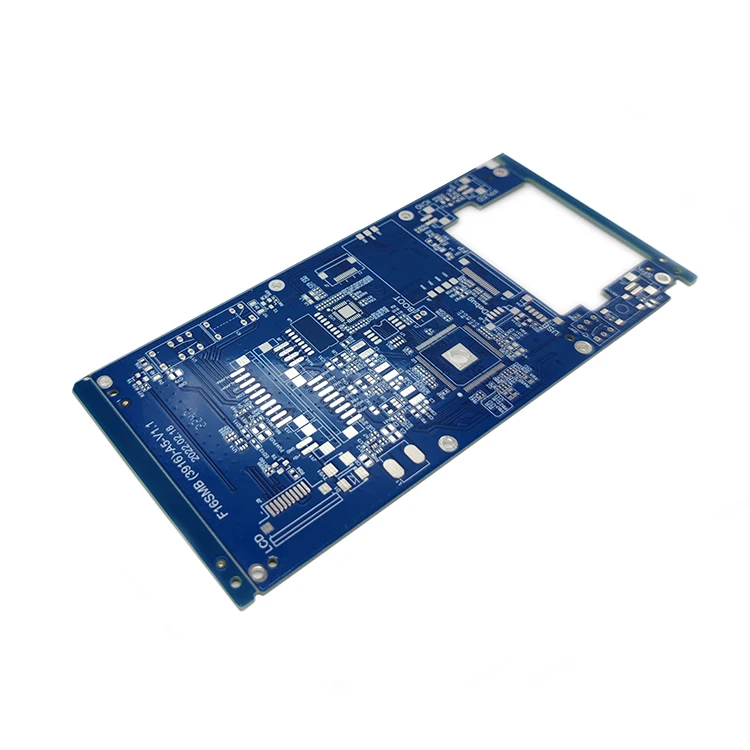

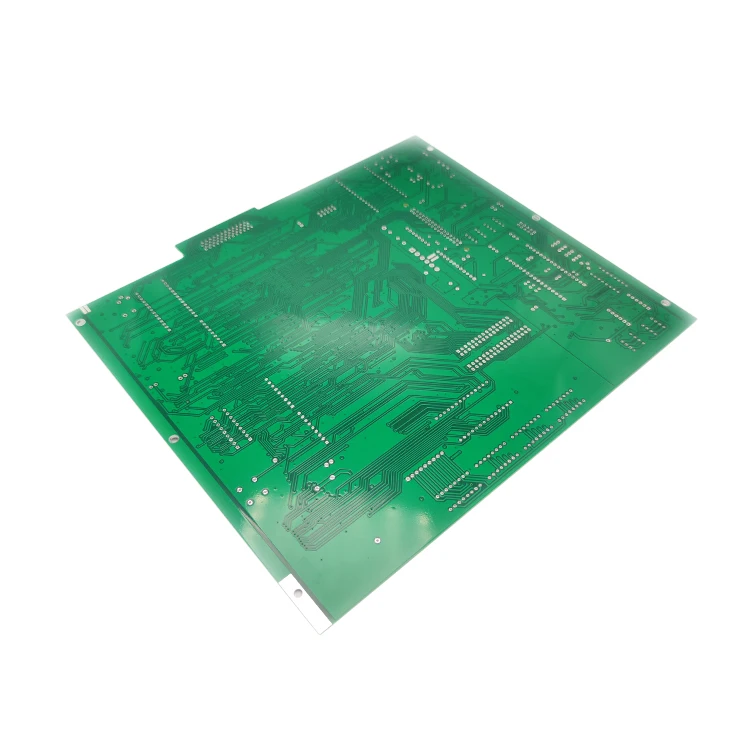

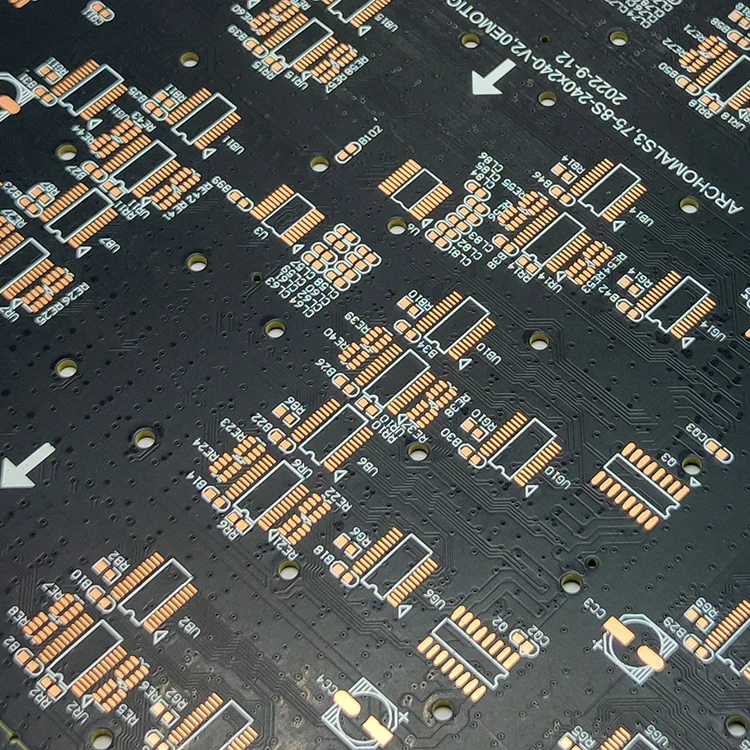

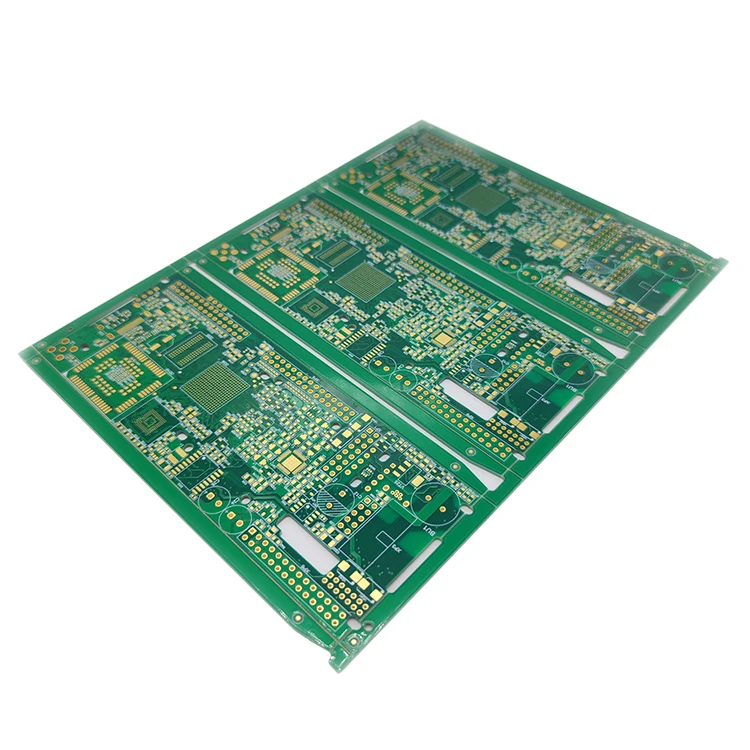

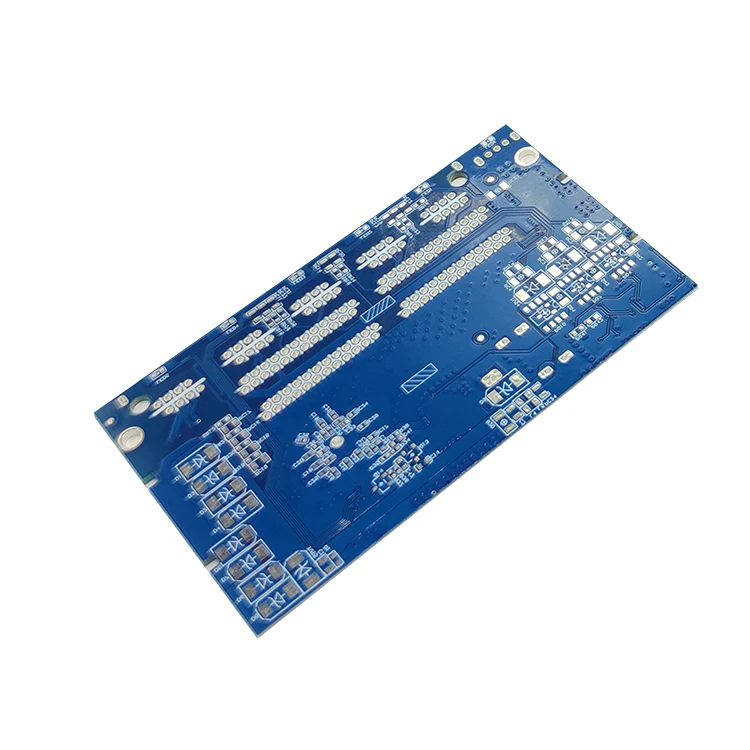

Multilayer board
Application Field
PCB Board we have produced are mainly used in the Industrial Control, Medical Treatment, Automobile area. All the products must meet ISO9001 CE etc. certification with high quality sodering for wires and no fingerprint.
Certifications
Packing&Shipping
FAQ
Q1: Are you a factory or trade company?
A: Yes, we are the factory, we have our own PCB manufacturing & Assembly factory
Q2. What file formats do you accept for production?
Gerber file：CAM350 RS274XBOM: Excel(PDF, WORD, TXT)
PCB file: Protel 99SE, P-CAD 2001 PCB
Q3. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q4:How long will we get the quotation after providing pcb gerber file, completed bom list,part datasheet and PNP file?
A: The quotation will be sent in 2work days, for some special components, you also could recommend supplier to us.
Q5:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
Q6:How long does it take for PCB quote?
Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
