Product Overview
Description
Products Description

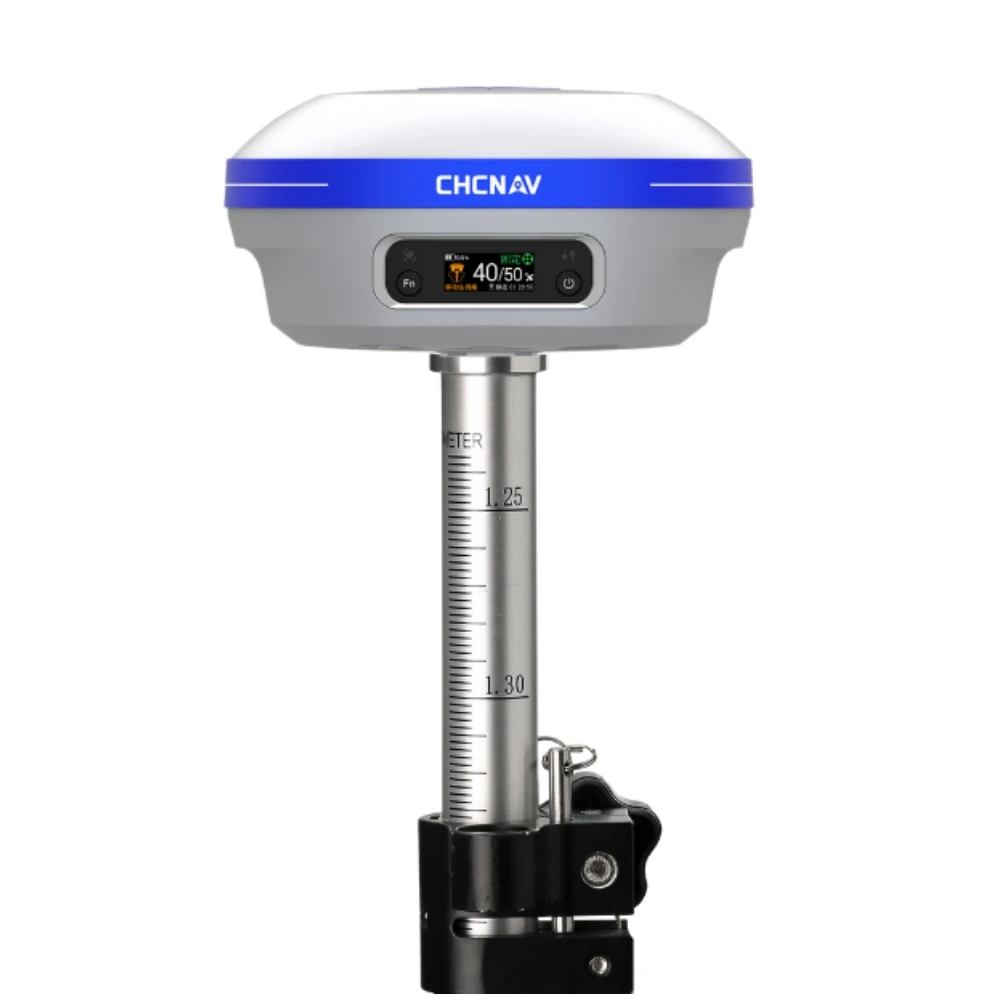

GPS i83 GNSS/X7 1408 Channel i-Star Technology Surveying Instrument chc i83 rtk
*Powered by 1408-channel GNSS and iStar technology
The i83 GNSS smart antenna delivers centimeter precision in seconds and maintains reliable fixed RTK accuracy even in typically
challenging environments. Its quick-start feature gets you up and running within 30 seconds of powering up the receiver, making
point collection faster than ever as you move from place to place. The third-generation high-gain antenna increases GNSS satellite
signals tracking efficiency by up to 30% and provides accurate, survey-grade positioning when using GPS, Glonass, BeiDou, Galileo,
and QZSS constellations. The integrated iStar technology ensures optimal GNSS RTK surveying in all GNSS survey applications.
*18 hours on single charge to ensure operation when you need it
The i83 GNSS ultra-low-power SoC (System-on-Chip) electronic design and smart power management dramatically improve GNSS survey
time span and eliminate the need for spare or external batteries. Up to 18 hours of autonomous work are achieved when operated as
a GNSS RTK network rover and up to 9 hours as an RTK base station. i83 GNSS charges from a power bank or a standard USB-C charger.
No matter where or when the GNSS surveys are carried out, the i83 GNSS' magnesium alloy body is shock-, dust- and waterproof to
ensure uninterrupted performance, even in the most demanding job site conditions.
*Unrivaled universal GNSS receiver
i83 GNSS has all the connectivity features a surveyor needs to complete any GNSS surveying project scenario. Built-in Wi-Fi,
Bluetooth, and NFC technologies provide a seamless connection to field data controllers and tablets. Integrated 4G and UHF modems
enable any GNSS surveying mode, from RTK Networks NTRIP connections to UHF base- rover configuration. GNSS RTK corrections are

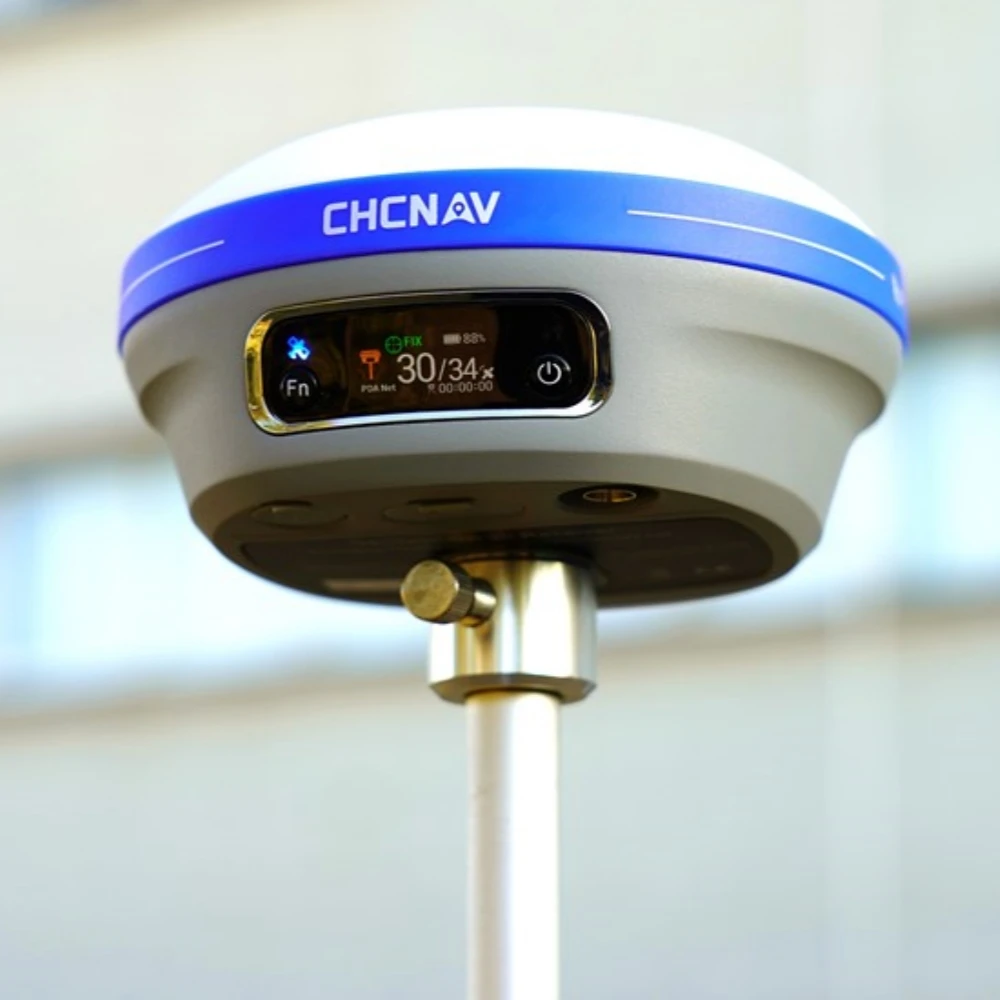

accessed or broadcasted continuously for accurate positioning in all circumstances. The high-resolution color display provides a
clear view of the i83 GNSS status. Whether it is set up as a UHF RTK base station, recording raw data for further GNSS
post-processing, or simply being used as a UHF or 4G network rover, it provides the full control of survey operations.

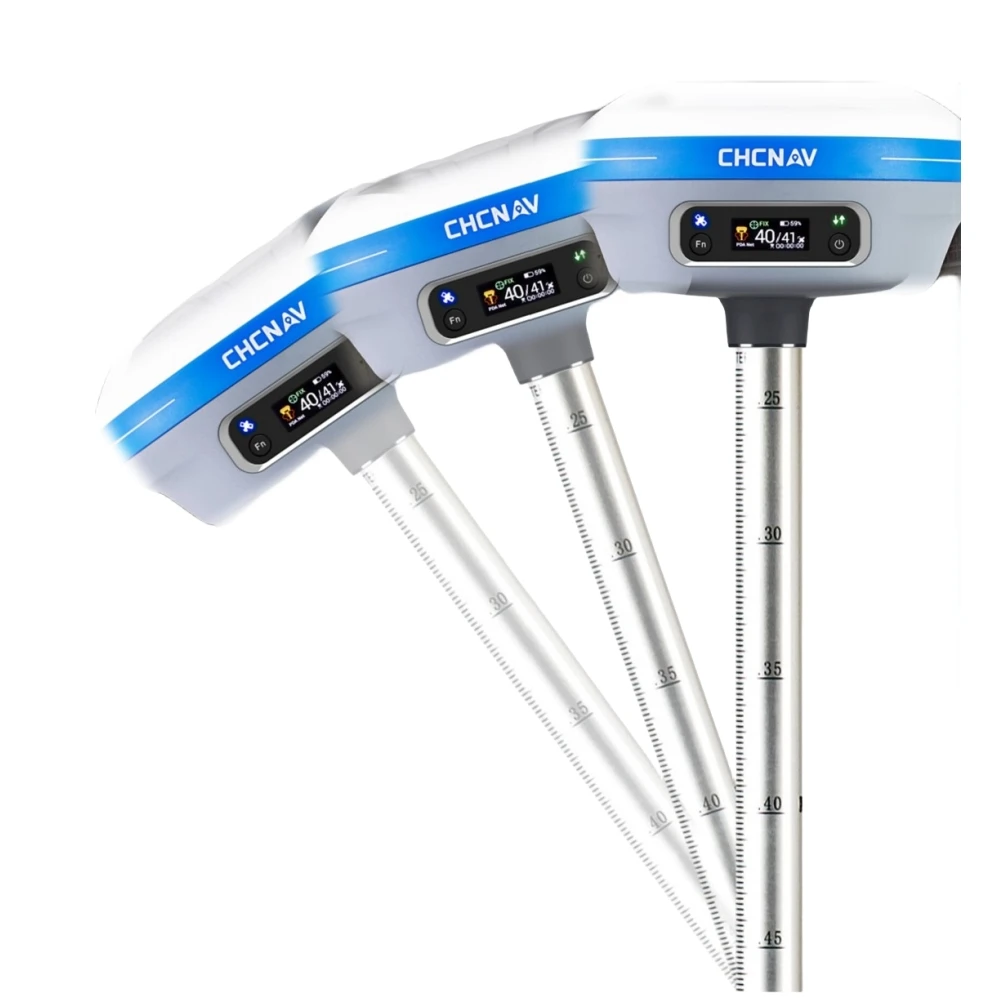

*Efficient IMU-RTK survey made easy
The i83 GNSS built-in IMU for automatic pole tilt compensation boosts surveying, engineering, and mapping speed and efficiency by
up to 30%. Real-time, interference-free initialization of the 200 Hz inertial module is achieved in just 5 seconds and ensures
3-centimeter accuracy over a pole tilt range of up to 30 degrees. Measuring and staking out with the i83 GNSS is fast, easy, and
highly productive, whether you are an engineer, site foreman, or surveyor
Specification
CHCNAV latest Road AI GNSS 1408 Channels CHC i83 X7 RTK Receiver | ||||
GNSS Performance | Channels | 1408 channels | ||
GPS | L1 C/A, L2C, L2P, L5 | |||
GLONASS | L1, L2 | |||
Galileo | E1, E5a, E5b, E6* | |||
BeiDou | B1I, B2I, B3I, B1C, B2a, B2b* | |||
SBAS | L1 | |||
QZSS | L1, L2, L5, L6* | |||
GNSS Accuracies | Real time kinematics (RTK) | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS Initialization time: < 10 s Initialization reliability: > 99.9% | ||
Post -processing kinematics (PPK) | Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS | |||
Post - processing static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |||
Code differential | Horizontal: 0.4 m RMS Vertical: 0.8 m RMS | |||
Autonomous | Horizontal:1.5 m RMS Vertical: 2.5 m RMS | |||
Positioning rate | Up to 10 Hz | |||
Time to first fix | Coldstart: < 45 s Hot start: < 10 s Signal re-acquisition: < 1 s | |||
RTK tilt - compensation | Additional horizontal pole-tilt uncertainty typically less than 10 mm +0.7 mm/°tilt | |||
Hardware | Size (L x W x H) | Φ152 mm*78 mm | ||
Weight | 1.15kg (2.54Ib) | |||
Environment | Operating:-40°C to +65°C (-40°F to +149°F) Storage: -40°C to +75°C (-40°F to +167°F） | |||
Humidity | 100% condensation | |||
Ingress protection | IP67waterproof and dustproof, protected from temporary immersionto depth of 1 m | |||
Shock | Survive a 2-meter pole drop | |||
Tilt sensor | Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances. E-Bubble leveling | |||
Front panel | 1.1'' OLED Color Display 2 LED, 2 physical buttons | |||
Communication | SIM Card Type | Nano-SIM card | ||
Network modem | Integrated4G modem LTE(FDD):B1,B2,B3,B4,B5,B7,B8,B20 DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8 EDGE/GPRS/GSM 850/900/1800/1900MHz | |||
Wi-Fi | 802.11 b/g/n, access point mode | |||

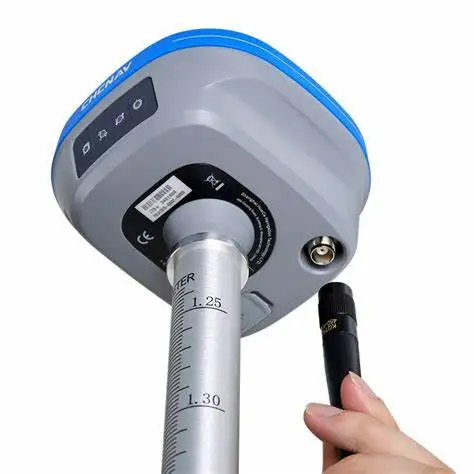

Ports | 1 x 7-pin LEMO port (external power, RS- 232) 1 x USB Type-C port (data download, firmware update) 1 x UHF antenna port (TNC female) | |||
UHF radio | Standard InternalRx/Tx: 410 - 470 MHz TransmitPower: 0.5 W to 2 W Protocol: CHC, Transparent, TT450,3AS Link rate: 9600 bps to 19200 bps Range:Typical 3 kmto 5 km | |||
Data formats | RTCM2.x, RTCM3.x, CMR input / output HCN,HRC,RINEX2.11, 3.02 NMEA0183 output NTRIP Client,NTRIP Caster | |||
Data storage | 8 GB internal memory | |||
Electrical | Power consumption | 4.5 W (depending on user settings) | ||
Li-ion battery capacity | Built-in non-removable battery 9,600 mAh, 7.4 V | |||
Operating time on internal battery | UHF/ 4G RTK Rover: up to 18 h UHF RTK Base: up to 9.5 h Static: up to 18 h | |||
External power input | 9V DC to 28 V DC | |||
Controller | model | HCE600 | ||
network | 4G All Netcom (Mobile Unicom Telecom 2G/3G/4G) | |||
operating system | Android 10 | |||
CPU | Eight-core 2.0Ghz processor | |||
LCD screen | 5.5'' HD display | |||
Battery | 14 hours of battery life | |||
Waterproof and dustproof | Full function button | |||
input method | IP68 | |||

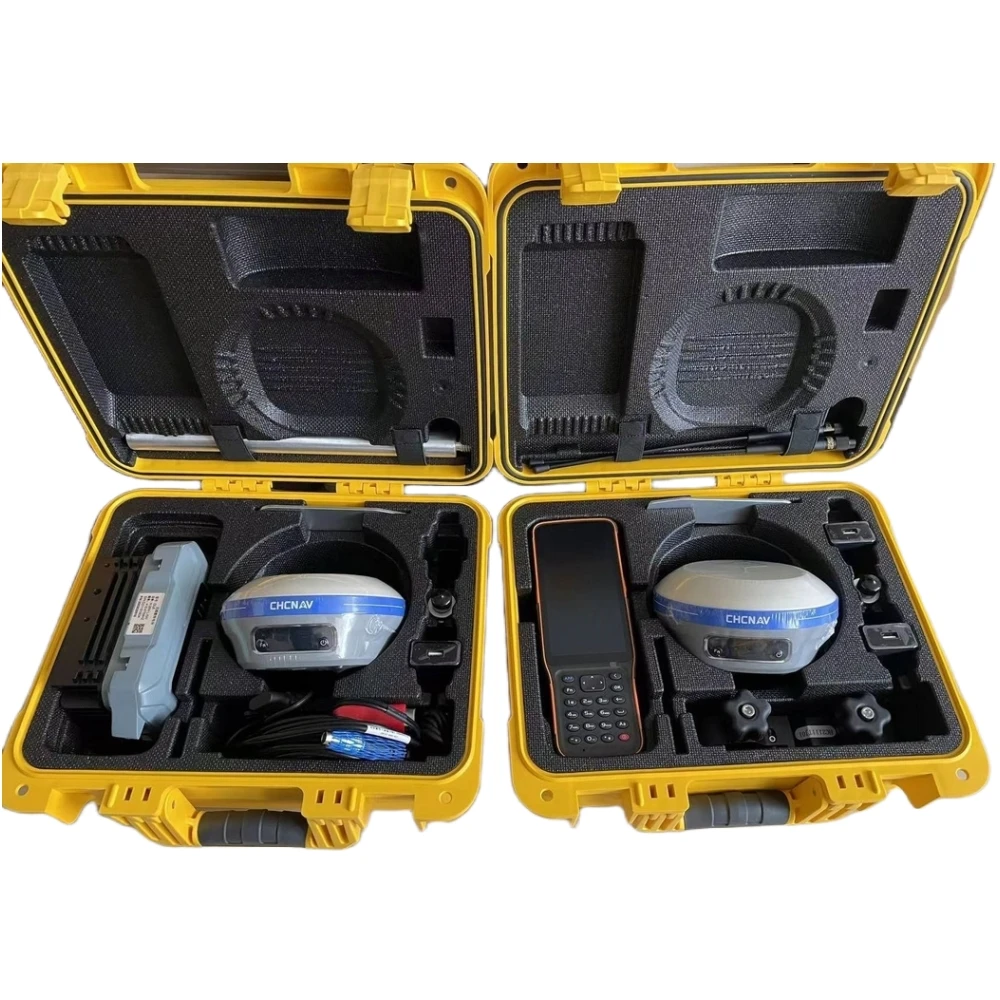

Packages
