Factory Price Cell PIR Rigid Heat Insulation Board Roof Polyisocyanurate Insulation Board for Wall Insulation

Product Overview

Description

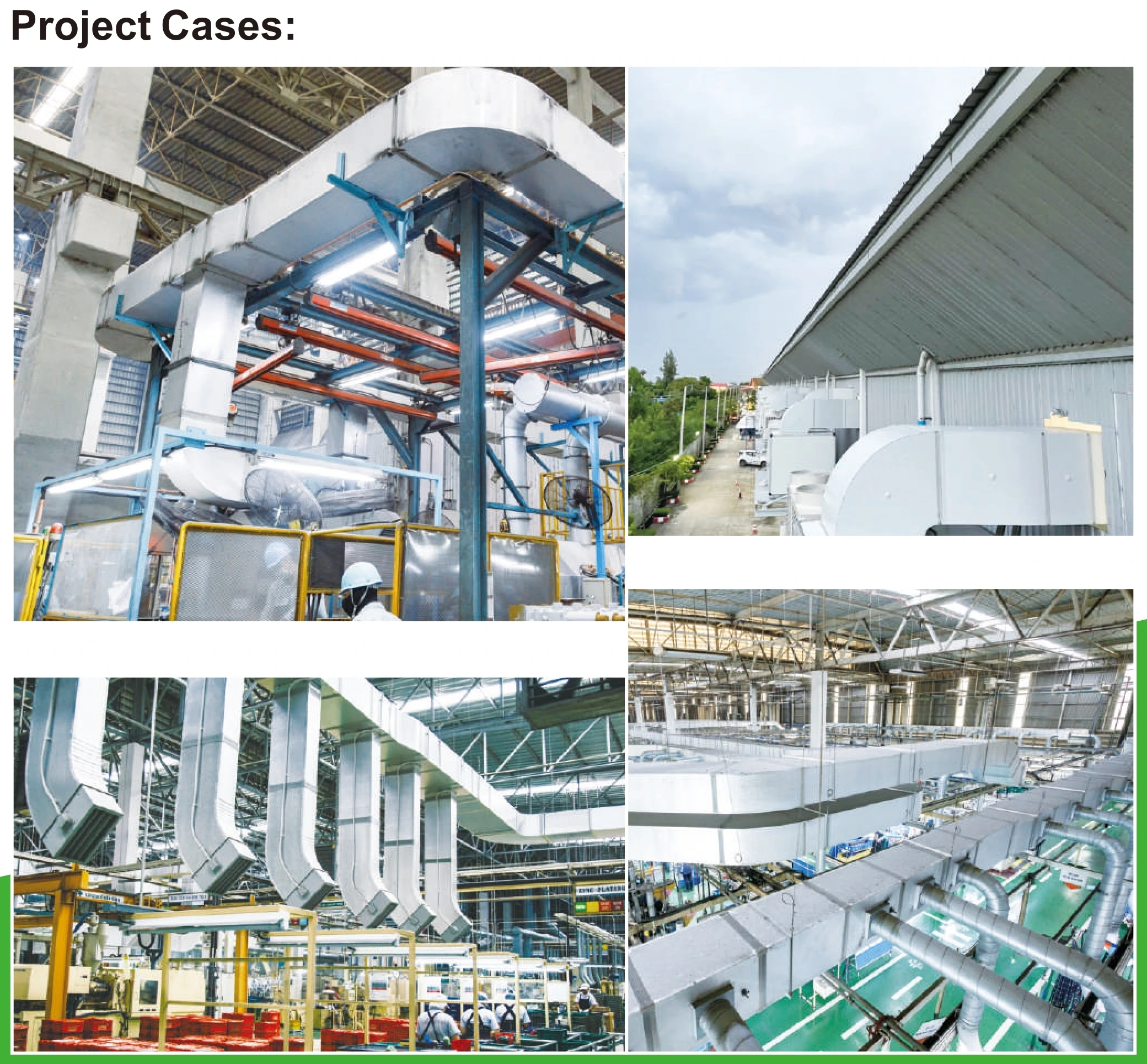

Compared with traditional galvanized Iron ( steel metal) ductwork, HVAC PIR Insulated Foam Board have offers a high performance, light weight and robust system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on.









Technical Data:



Property	Standard	Specification
Standard Width		600/1200mm
Thickness		10-140mm
Foam Density	ASTM D1622/D1622M-14	35-40kg/m³
CFCs and HCFCs	Headspace GC/MS	Free
Thermal Conductivity	ASTM C518-17	<=0.024W/m.K
Fire Rating	BS 476 Part 6&7	Class 0
Compressive Strength	ASTM D1621-16	>=0.15Mpa
Tensile Bond Strength	DB34/T 3826-2021	>=0.15Mpa
Water Absorption by Volume	ASTM C209-15	<3%
Dimensional Stability	DB34/T 3826-2021	70℃ 48h<=1.5% -30℃ 48h<=1.0%
Service Temperature		-30℃ - 120℃

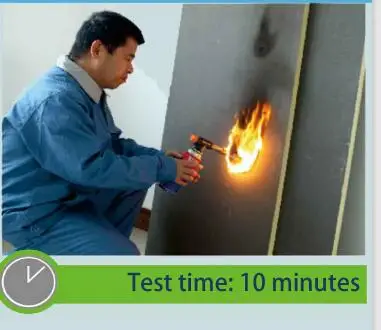

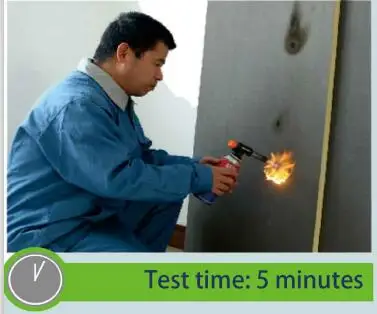

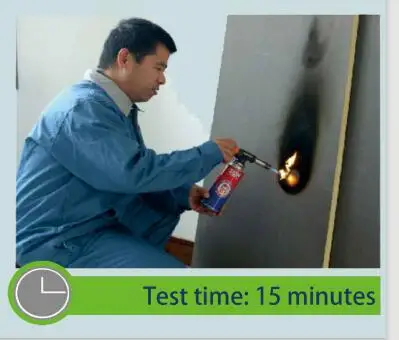

Buring Comparison Test



We make the test of GFI PIR Foam Insulation Board fireproof composite board under the direct combustion of the 1300℃ flametorch for each period of time. During the entire experiment, the GFI PIR Foam Insulation Board did not buring through and did not drip water. Prevent flame spread and heat conduction, no burning phenomenon.







Performance Advantage





Fire Performance:

         It has the excellent performance of small capacity, low thermal conductivity, high closed cell rate and corrosion resistance, and achieves composite A class fire performance.



Thermal Insulation Performance:

       It has excellent thermal insulation performance, the lowest thermal conductivity (<=0.024W/m.K) among organic thermal insulation materials, and an ideal thermal insulation product to achieve the goal of 75% energy saving in China.



Weather Resistance:

       Superior wind load resistance, after more than 6 months of weather resistance test, the performance is stable, can be the same life as the building.



Dimensional Stability:

        The compressive strength reaches more than 200KP, and the plate has good temperature resistance and no deformation.



Environmental Protection and Energy Saving:

        Fluorine-free foaming, no harmful substances prohibited or restricted by the state,. It is environmental friendly, can make a serving of over 20% on oprating cost over a 30 years life.

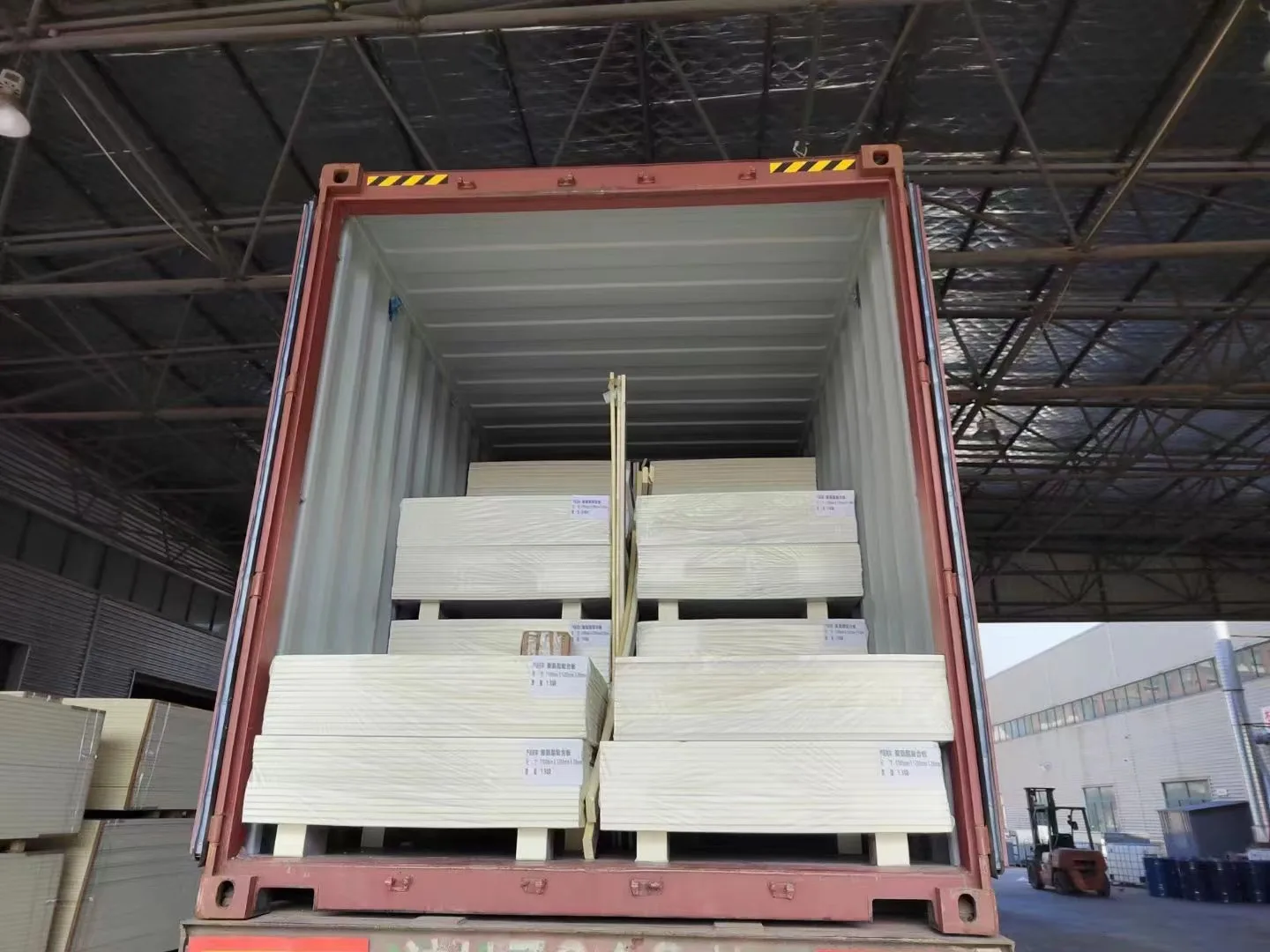

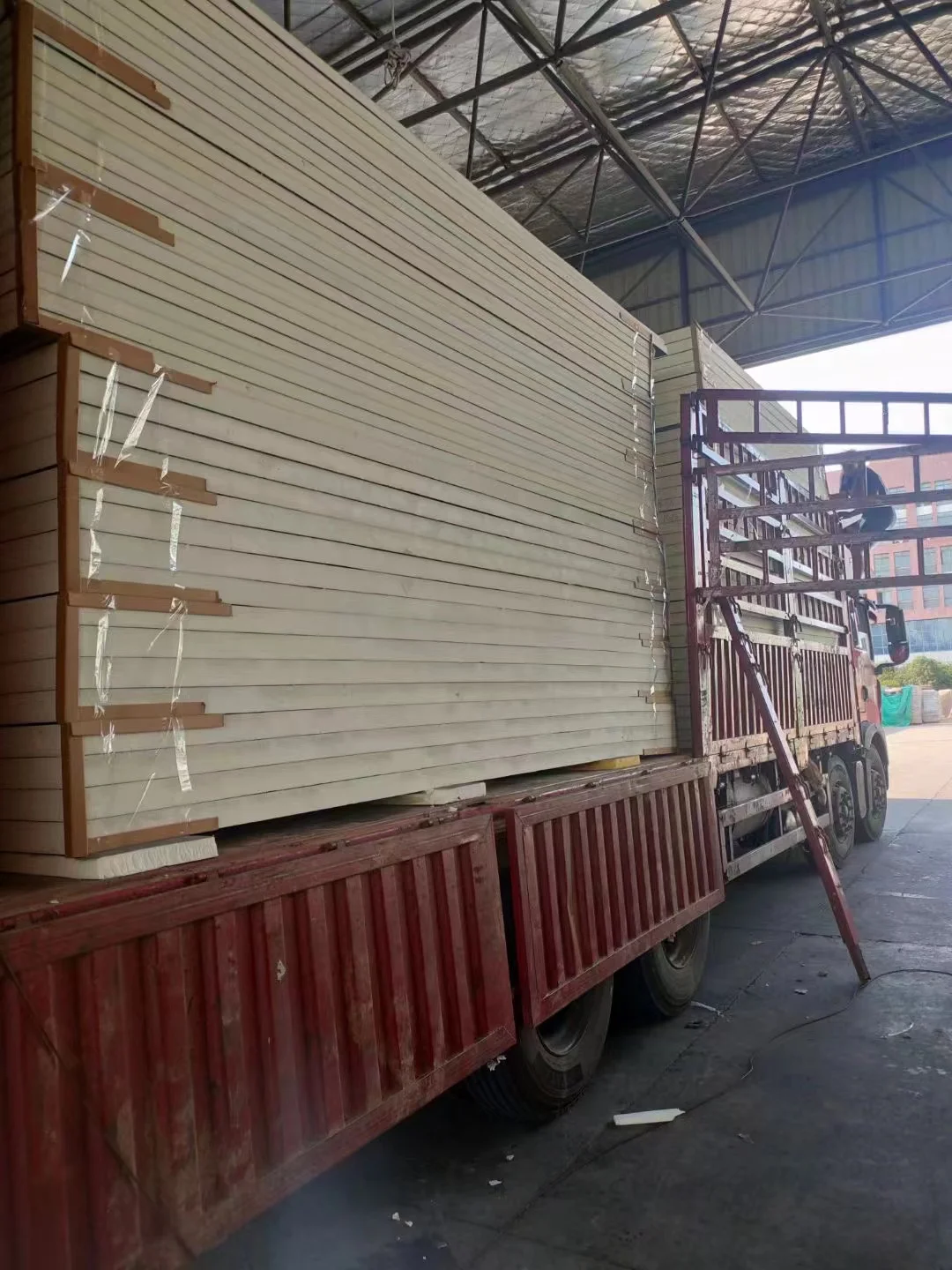

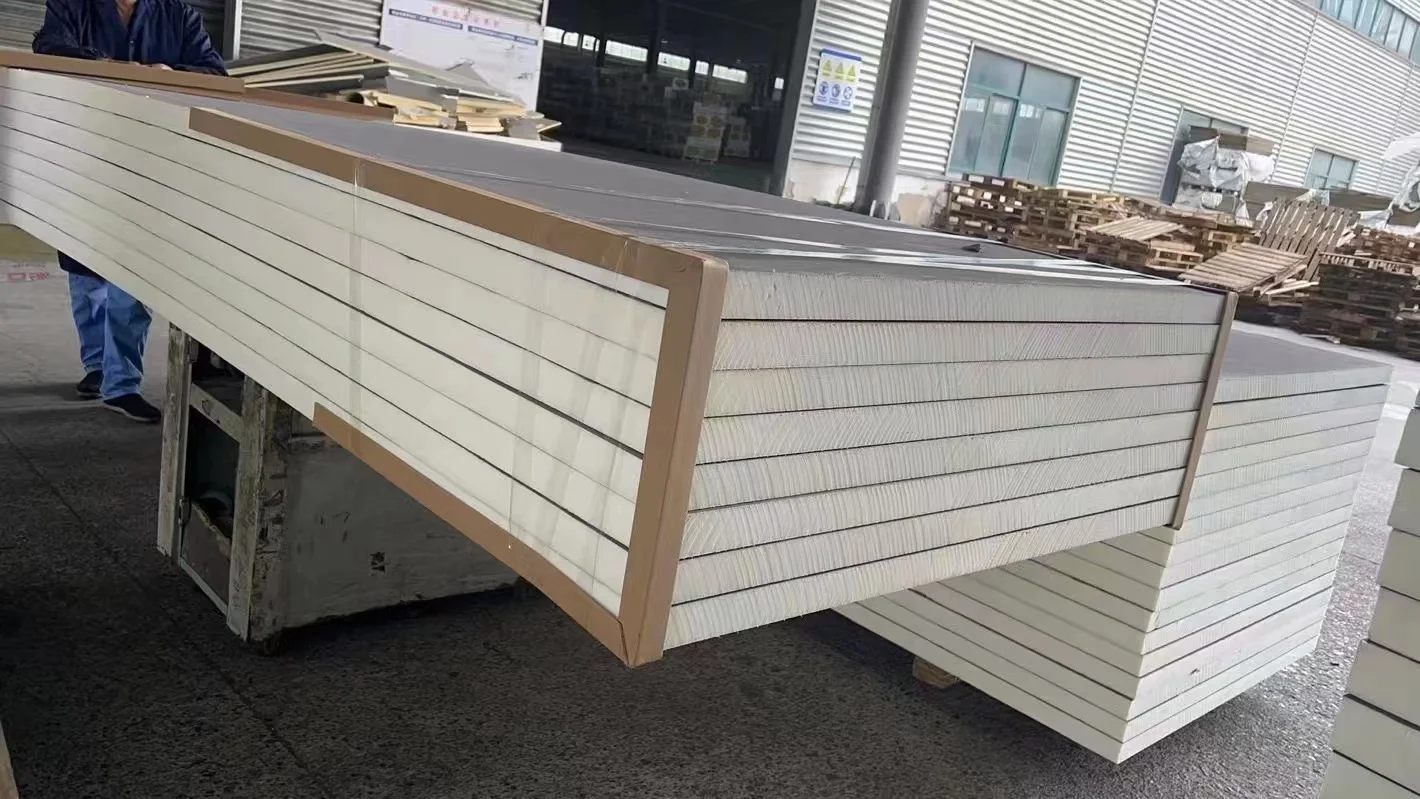

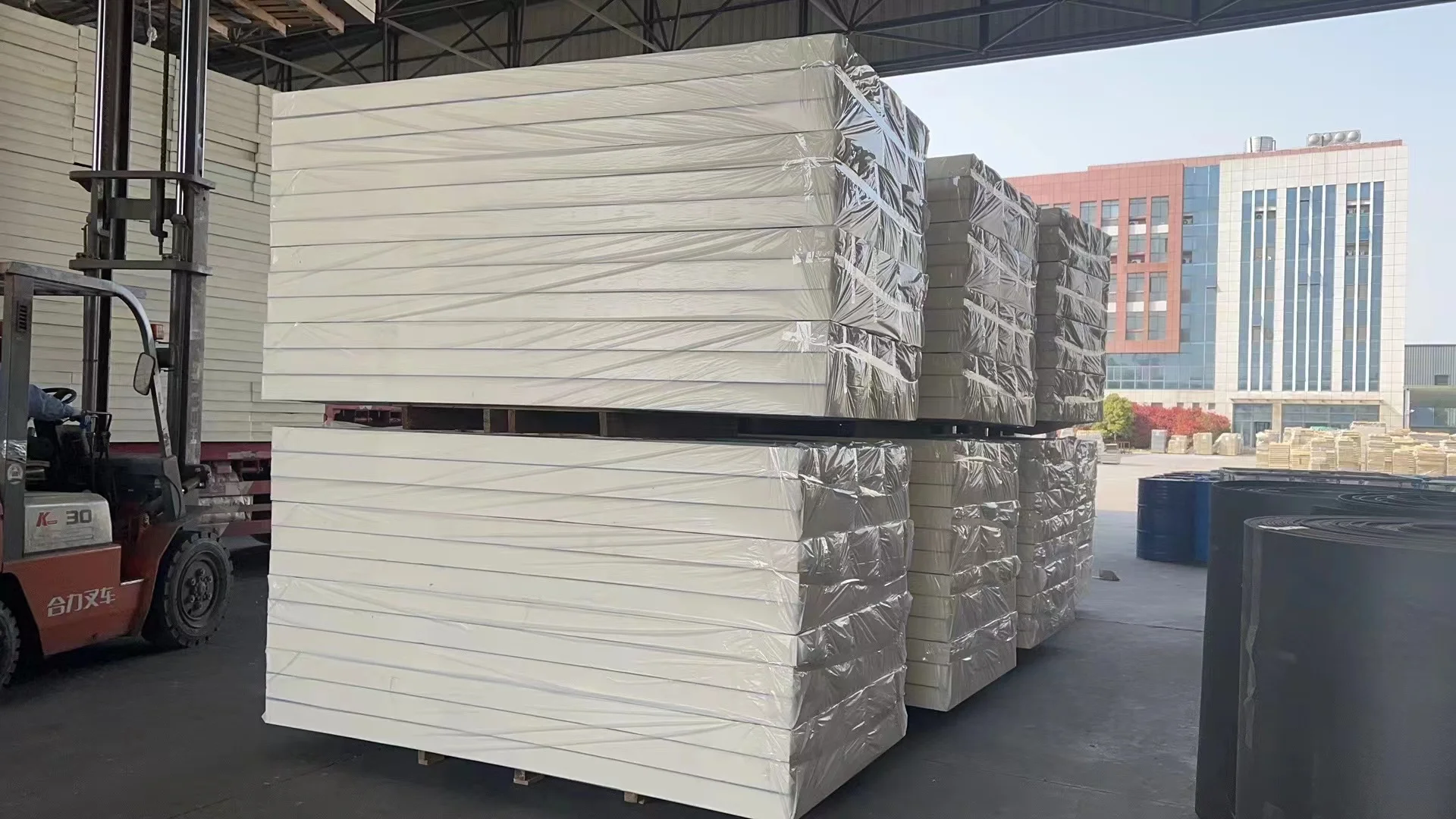

20mm PIR Foam Insulation Board is packed by plastic film or carton, 10 sheets per package. The quantity of one container can be loaded depends on the size and thickness that customer required. Here are some examples of our normal specification:
40'HQ container: 3950×1200×20 mm, 660 sheets                                                                                                                          2950×1200×20 mm, 880 sheets

20'GP container: 3950×1200×20 mm, 200 sheets                                                                                                                           2900×1200×20 mm, 400 sheets











If you need more info, please feel free to contact us:
