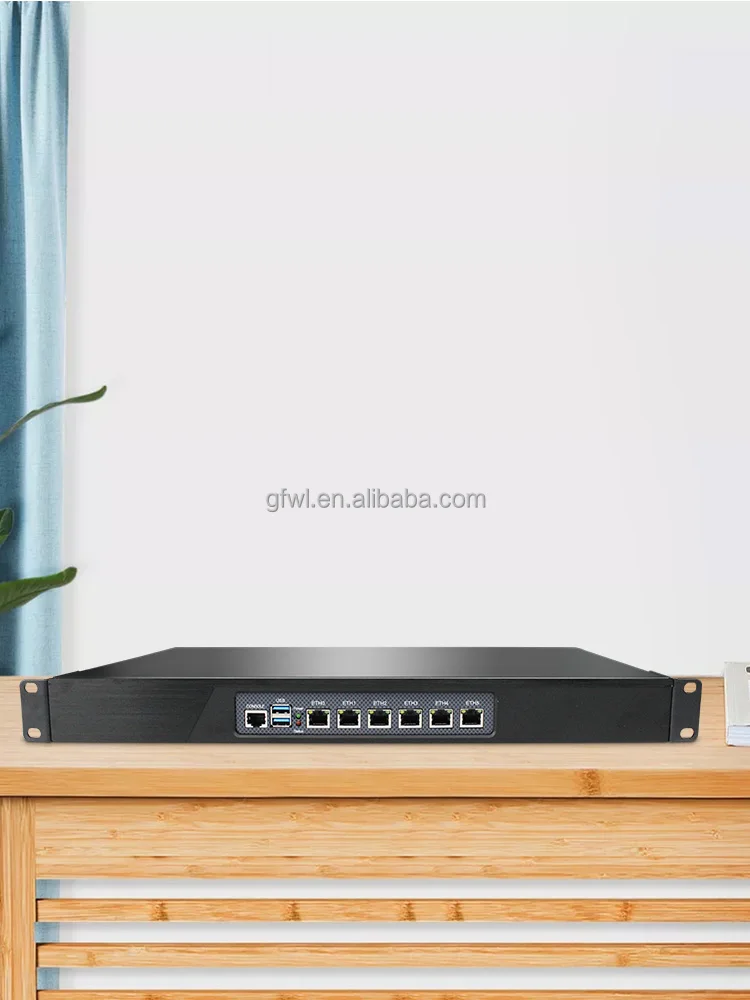

Guanfeng N5105 1U 6 i225 2.5G Lan Soft Router Barebone Linux X86 Security Enterprises Hardware Wifi Firewall Router Appliance
- Category: >>>
- Supplier: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Share on (1600944794558):
Product Overview
Description
For other combinations of RAM and SSD, please be free to consult us
Customization Services
free.
* MOQ: No MOQ Limitation
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* MOQ: 50 units
* Free remote testing
5. Package customization
* MOQ: 100 units
* Free
6. Motherboards customization
* Please contact us for more details
Laser Print Sample
Products Description
Detailed Processor parameter Link:
https://www.intel.com/content/www/us/en/products/sku/212328/intel-celeron-processor-n5105-4m-cache-up-to-2-90-ghz/specifications.html?wapkw=n5105
https://www.intel.com/content/www/us/en/products/sku/212328/intel-celeron-processor-n5105-4m-cache-up-to-2-90-ghz/specifications.html?wapkw=n5105
Product Highlight
- 6*Intel i226 2.5G RJ45 Ethernet Controllers, 2*USB3.0.
- 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- 1*mSATA
- Support 1 x VGA
- 2*Mini PCIE Extension slots, support WiFi and 4G/5G module at the same time.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
- 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- 1*mSATA
- Support 1 x VGA
- 2*Mini PCIE Extension slots, support WiFi and 4G/5G module at the same time.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
Brand | Guanfeng | ||||||
CPU | Onboard Intel ® Core ™ N5105, FCBGA1338, 4 core 4 threads, 2.00GHz Base Frequency, 4MB Cache cache, TDP15W | ||||||
Memory | 2 x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V) Memory type DDR4, with a maximum of 16GB support | ||||||
Storage | |||||||
1 M-SATA, Solid-state disk interface | |||||||
Extended Bus | 2 MINI PCIE interfaces (MPCIE2 only supports USB signal 4G module) | ||||||
Network Cards | 6 x Onboard Intel i226 network card chip | ||||||

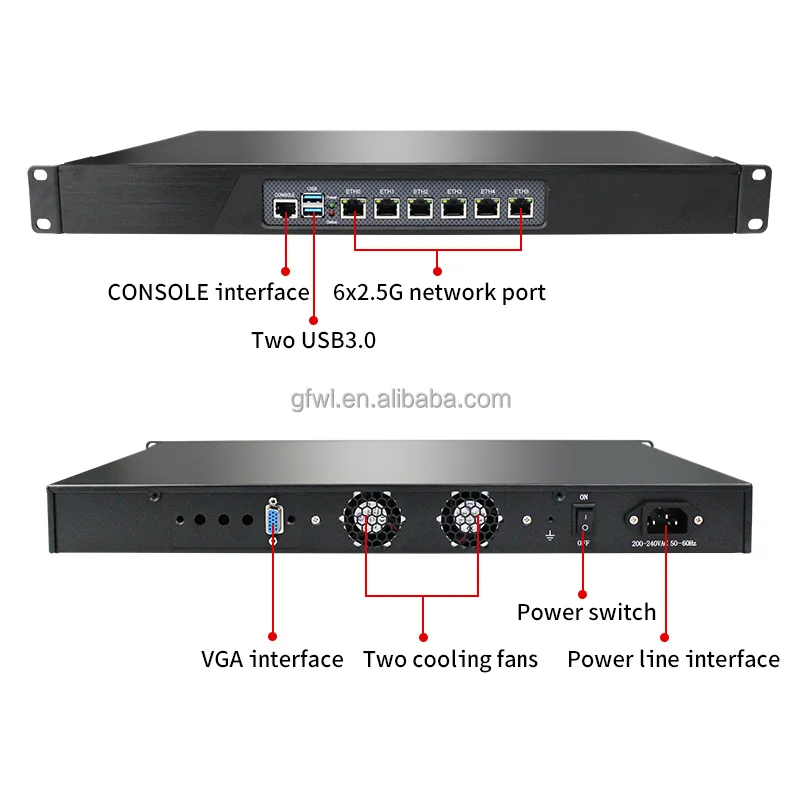

Backplane I/O | 1*DC_IN power supply interface | 1*LED lamp | |||||
1*double-layer USB3.0 interface | 6*LAN interface | ||||||
1*reset button | 1*switch button | ||||||
1*RJ45 COM port | |||||||
Onboard I/O | 1*VGA interface | 1*JHDMI interface | |||||
1*KM mouse / keyboard interface | 1*DC power supply 4Pin interface | ||||||
2*USB2.0 pin (external 4*USB2.0 interface) | 1*COM interface (9pin) RS232 | ||||||
1*CPU fan supply outlet | 1*system fan supply socket | ||||||
1*SIM card slot | |||||||
Power Supply | DC _IN 12V | ||||||
Working Temperature | -20~55 ℃ | ||||||
Dimension of motherboard | 180mm x 220mm | ||||||
Ambient Temperature | 5~90℃ Relative humidity, no condensation | ||||||
Certifications
FAQ
Q: How many months warranty? Tks you.
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packing and Delivery
Length (cm) | Width (cm) | Height (cm) | |
Small Box (1 unit) | 23 | 18 | 13 |
Medium Box (5 units) | 47 | 34 | 21 |
Large Box (10 units) | 62 | 43 | 20 |
