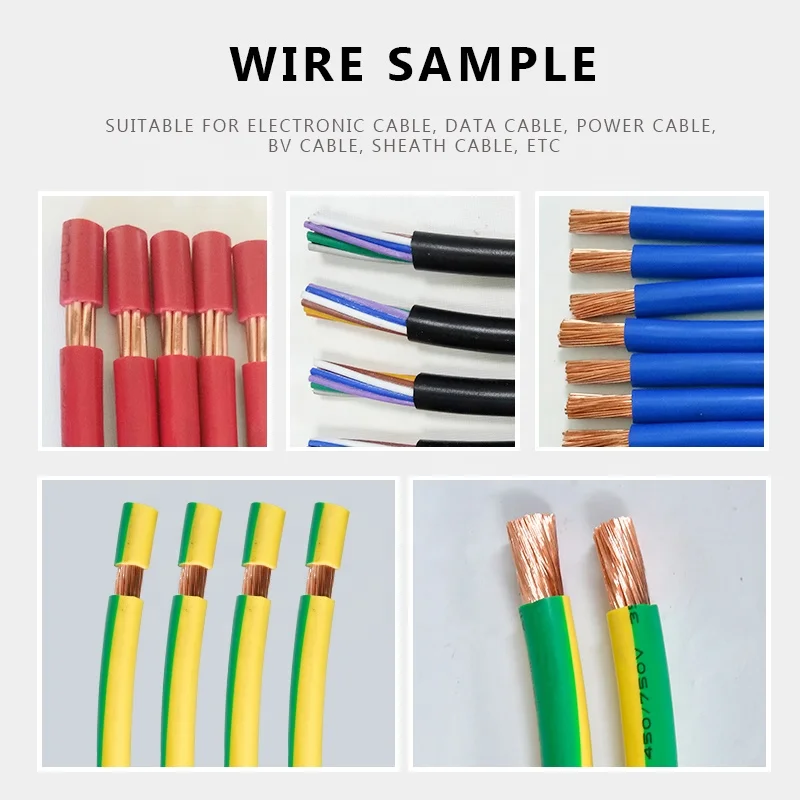

EW 05G 1500 2500 pcs/h 12 Roller Driving Automatic Cutting And Stripping Machine Suitable For BV Cable/Sheath Cable
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600944802290):
Product Overview
Description
Products Description

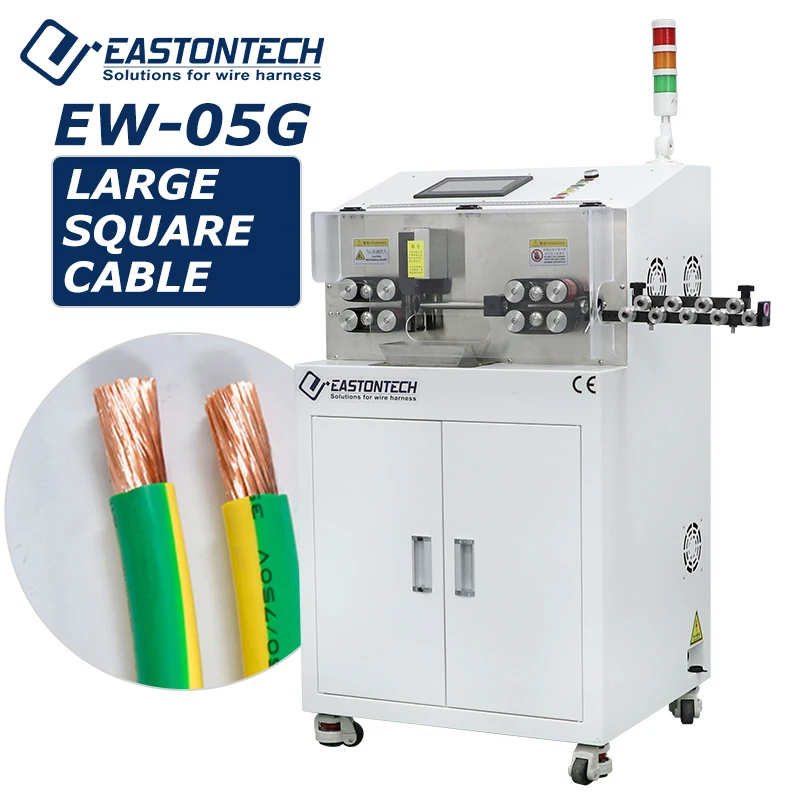

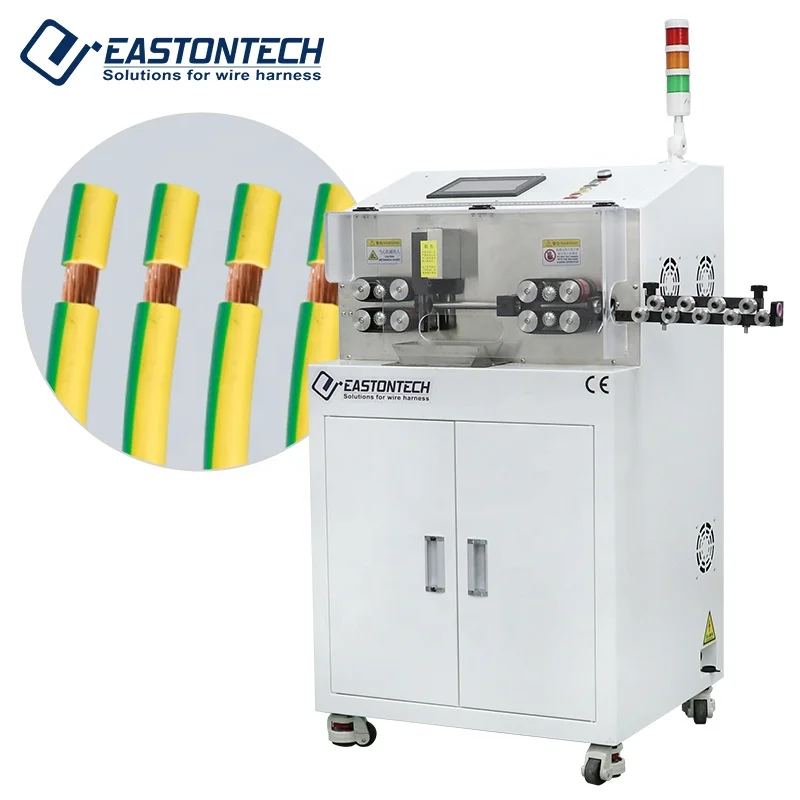

EW-05G Wire Cutting & Stripping Machine (1.5- 50 mm2) .
The EW-05G is a servo motor driving machine for high production performance (up to 2500 pcs./h!)
for 1.5-50 mm² wires.
√ Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
√ Memory capacity of 200 programs with specific 3-layer stripping program for shield cable.
√ Optional middle strip module, slit module.

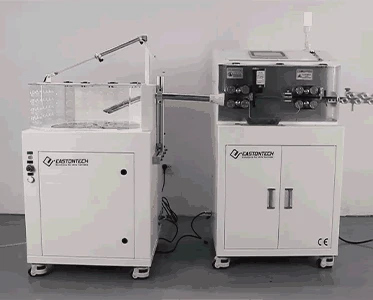

√ Optional pre-feeder, stacker and coiler.
Features:

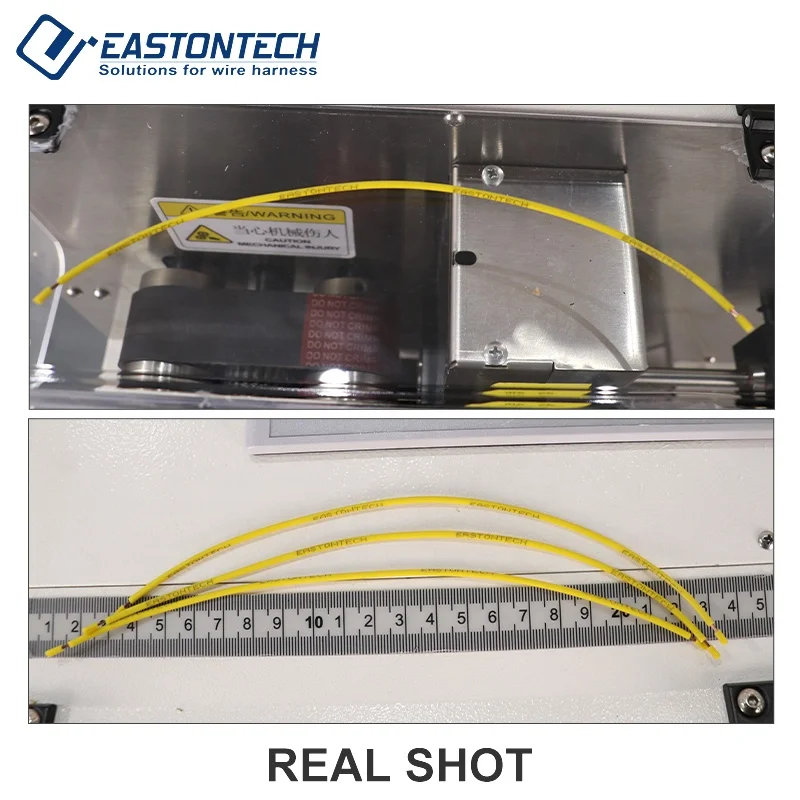

√ 12-roller servo motor driving with belts feeding. Strong feeding force, highly precise feed length as per program set with 0.1mm increment and no scratch mark on wire insulation/jacket guarantee.
√ Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
√ Memory capacity of 200 programs with specific 3-layer stripping program for shield cable.
√ Optional middle strip module, slit module.
√ Optional pre-feeder, stacker and coiler.
Product Paramenters
Model | EW-05G |
Stripping capability | 3-layer stripping for shield cable |
Wire material | Wide range of industrial wires |
Conductor cross-section | 1.5 - 50 mm² |
Cutting length | 1 - 100,000 mm |
Cutting length tolerance | < 0.002 * L |

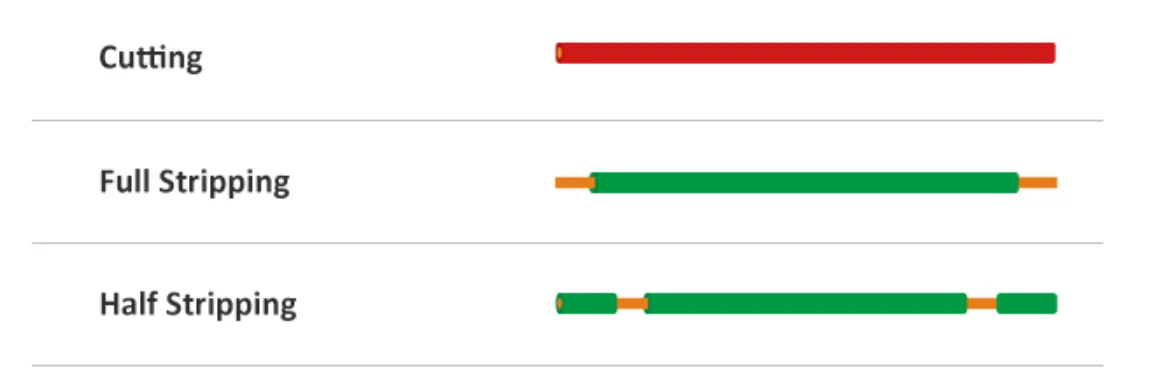

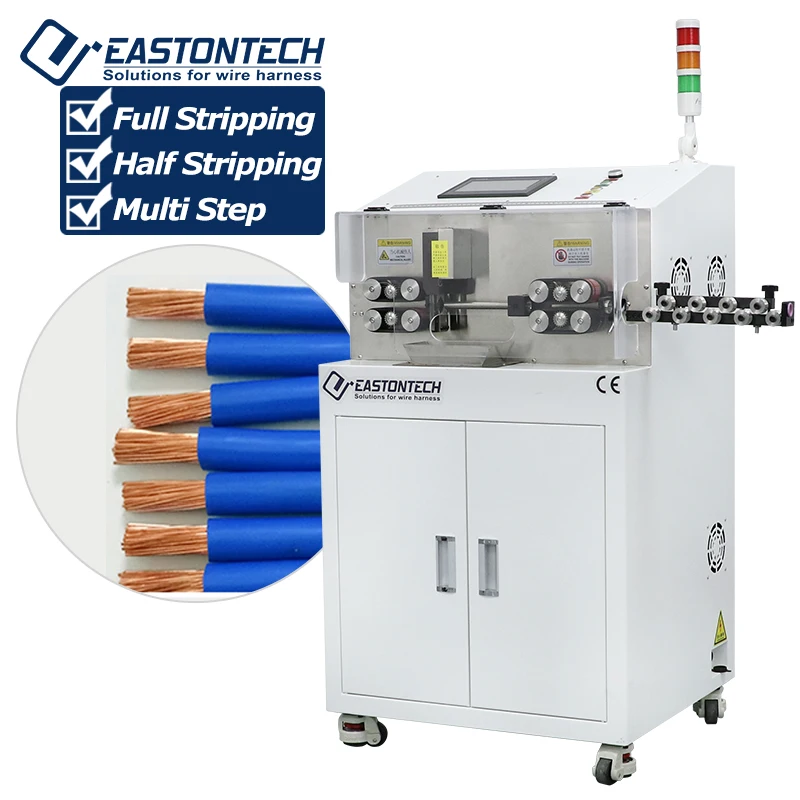

Stripping length (side I) | Full strip: 0 - 250 mm Half strip: no limit |
Stripping length (side II) | Full strip: 0 - 150 mm Half strip: no limit |
Slitting function | Optional |
Maximum guide tube diameter | 17 mm |
Driving mode | 12-roller servo motor driving with belts feeding |
Display mode | 7-inch touch screen |
Memory capacity | 200 programs |
Blade material | High speed steel |
Productivity | 1500 - 2500 pcs./h |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 800 W |
Weight | 105 kg |
Dimension | 650 * 550 * 1100 mm |
Details Images
Programmable Roller Gap
Setup on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.

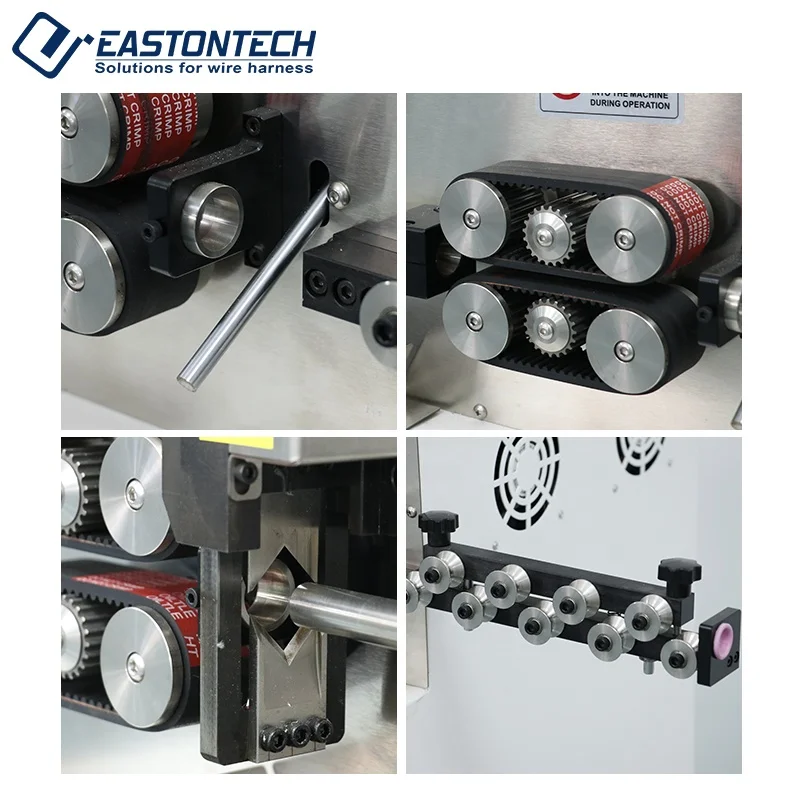

12-Roller Driving
Strong feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
Servo Motor
Powered by servo motor, the productivity is maximized to 1500 - 2500 pcs./h.

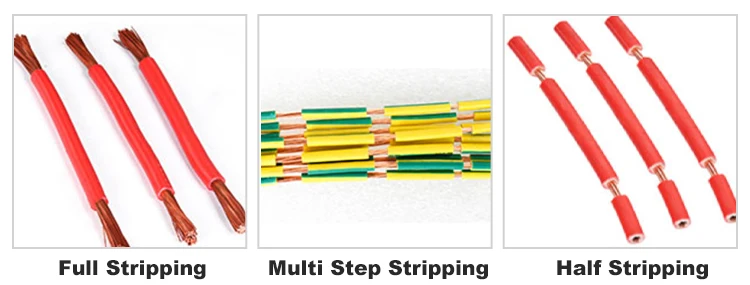

Specific 3-Layer Stripping Program
Specifically designed for multi-layer shield cable stripping with max. 3 stripping steps.
Various Safety Guarantee
■ Auto-stop function when safety guard is open.
■ Emergency stop button to stop machine at once
■ Auto-shut off when the short circuit occurs.
■ Intelligent alarm to report errors.
■ Auto-stop function when wire is used out.
■ Emergency stop button to stop machine at once
■ Auto-shut off when the short circuit occurs.
■ Intelligent alarm to report errors.
Recommend Products
A. Small One Core Stripping Machine
EW-10MT
0.03-2.08mm2 (32-14AWG)
Semi-Automatic Pneumatic Stripping Machine
EW-02A
0.1-4.5 mm² (32-11AWG)
Automatic Wire Cutting Stripping Machine
EW-02C+
0.1-4.5mm²
Automatic Wire Cutting Stripping Machine
A. One Core Wire Stripping Samples
B. Large One Core Stripping Machine
EW-3120
10-240mm2
Automatic Wire Cutting and Stripping Machine
EW-3125
120mm²
Automatic Wire Cutting and Stripping Machine
EW-3145
4-18mm OD
Automatic BV Wire Cutting Stripping With Winding
B. Large One Core Stripping Samples
C. Multi-Core Wire Stripping Machine
EW-05F+
4 - 30 mm2
Mutil-Conductor Cable Cuting &
Strpping Machine Within 11Cores
Strpping Machine Within 11Cores
EW-3030
1-10mm
Automatic Wire Cutting and Stripping Machine
EW-05H-2
10- 150 mm2
Automatic BV Wire Cutting Stripping With Winding

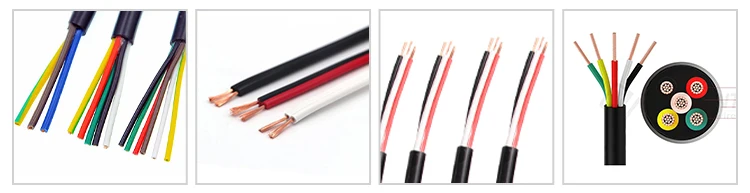

C. Multi-Core Wire Stripping Samples

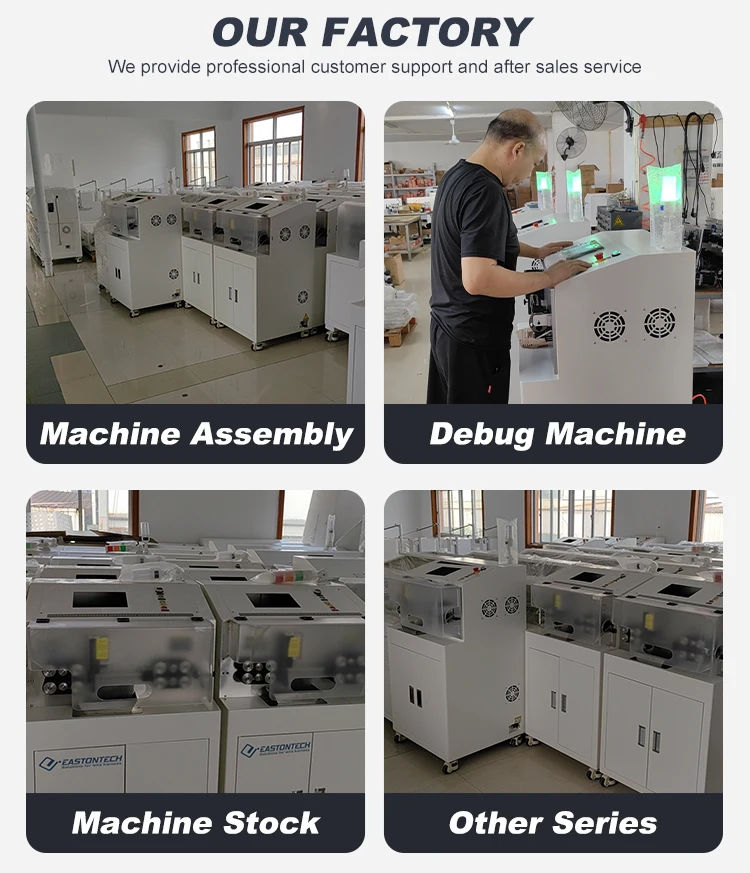

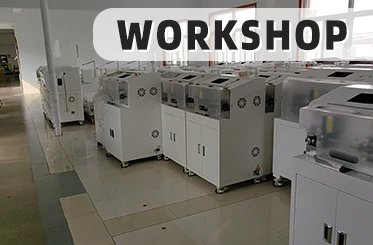

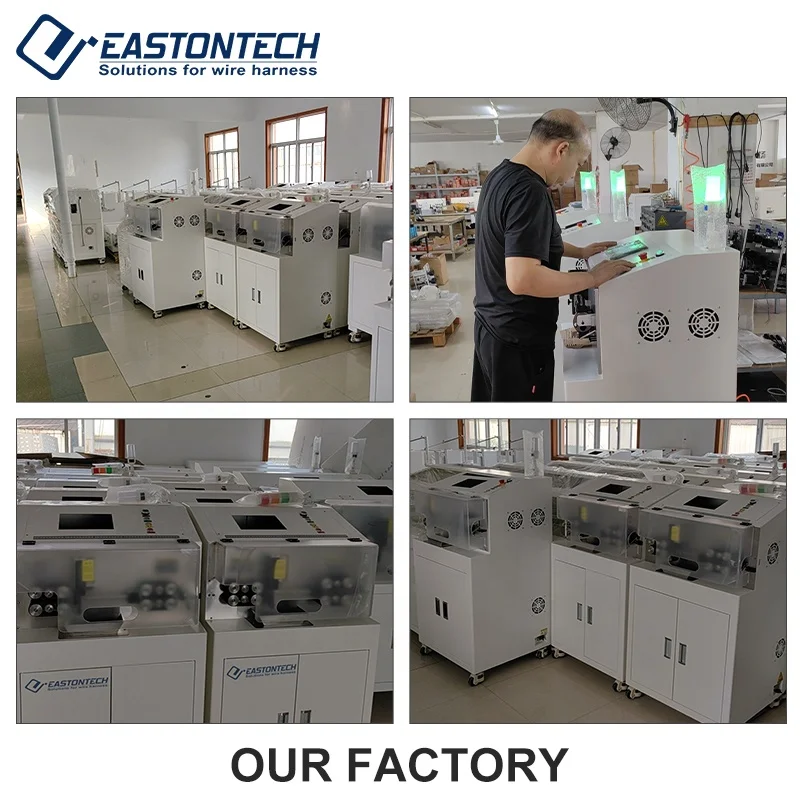

Company Profile
