High carbon steel wire straight line wire drawing machine for spring, pc steel wire, steel wire rope and steel cord
- Category: >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (1600944803117):
Product Overview
Description
Product Description

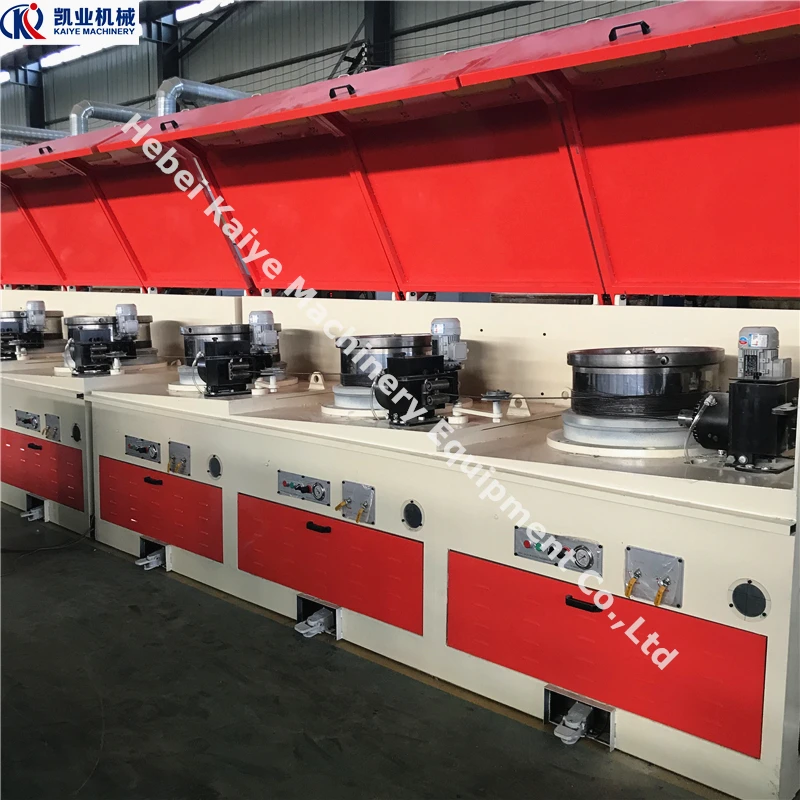

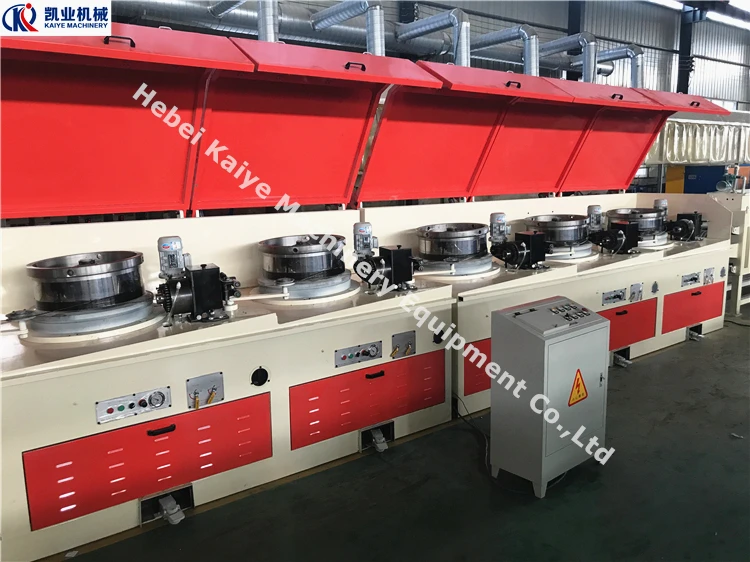

Automatic high speed high carbon wire drawing machine
(KY-LZ-560/7)
(1) Introduction:
The high carbon wire straight line wire drawing machine is different from the ordinary wire drawing machine, it adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawing products. It is suitable for drawing various metal wires with diameter less than 12 mm.
(2) Production Process
High carbon wire raw material High pay-off frame/Hydraulic wire pay off Shelling and Rust removal Wire rod sand belt polishing machine Online boron coating and drying machine LZ7/560 straight line Wire Drawing Machine Tension device Wire take-up machine
Mechanical Advantage
Main functions:
(1)Accurate meter counting with an error of 0.1%; (2)Fixed length automatic deceleration and stop; (3)Disconnection detection and automatic shutdown; (4)Positive and negative inching and left-right linkage of any drum; (5)Display of various fault information and processing information; (6)Various motion information monitoring.
Specification
Model | LZ400 | LZ560 | LZ600 | LZ800 |
Capstan diameter | 400mm | 560mm | 600mm | 800mm |
Drawing dies | 9 | 9 | 9 | 9 |
Inlet wire diameter | 2.5-4.5 mm | 5.5-6.5 mm | 6.5-8.0 mm | 8.0-10.0 mm |
Outlet wire diameter | 0.8-1.4 mm | 1.6-2.0 mm | 2.0-3.0 mm | 2.8-3.5 mm |
Drawing speed | 10-16 m/s | 8-12 m/s | 6-12 m/s | 6-10 m/s |
Total reduction rate | 90.32% | 90.53% | 90.53% | 90.53% |
Motor power | 11-15 kw | 30-37 kw | 30-37 kw | 37-75 kw |
Detailed description

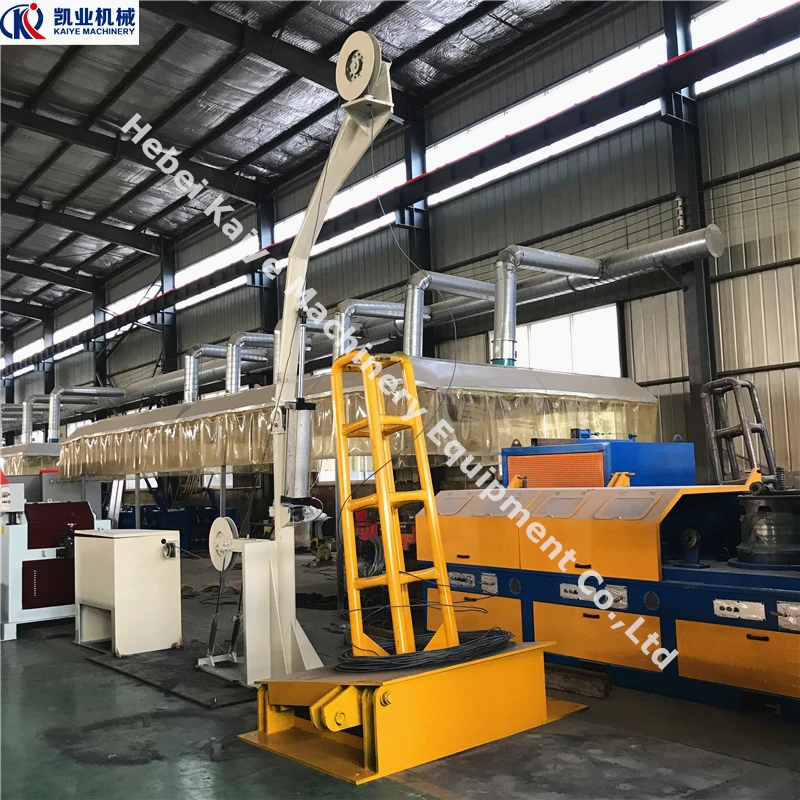

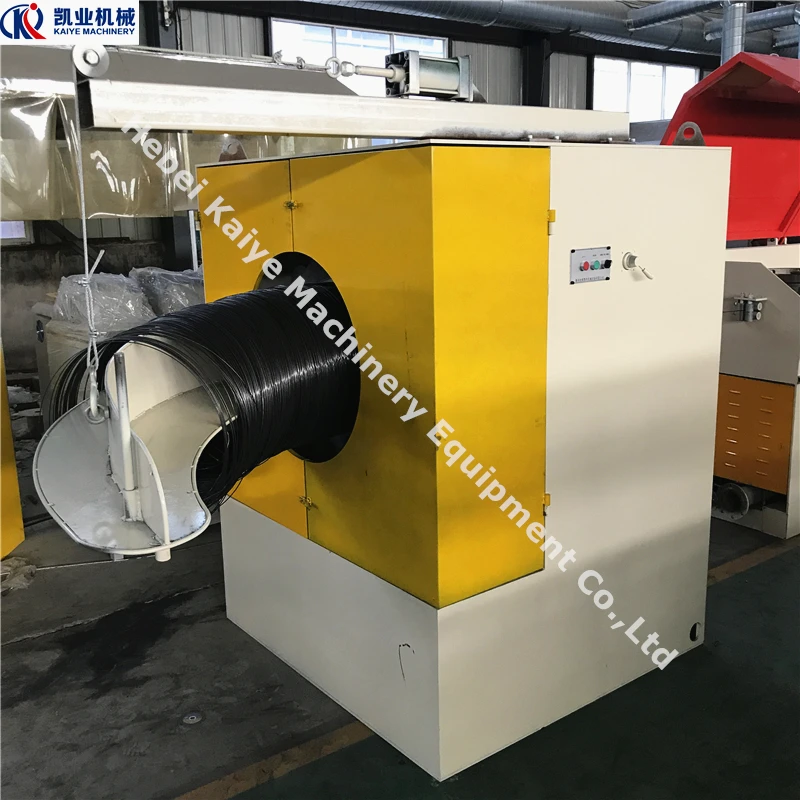

(1)Wire Pay off system
Wire pay off system usually is pneumatic lifting pulley, convenient wire threading.
Customers can choose hydraulic wire pay off systems or ordinary wire pay off systems.

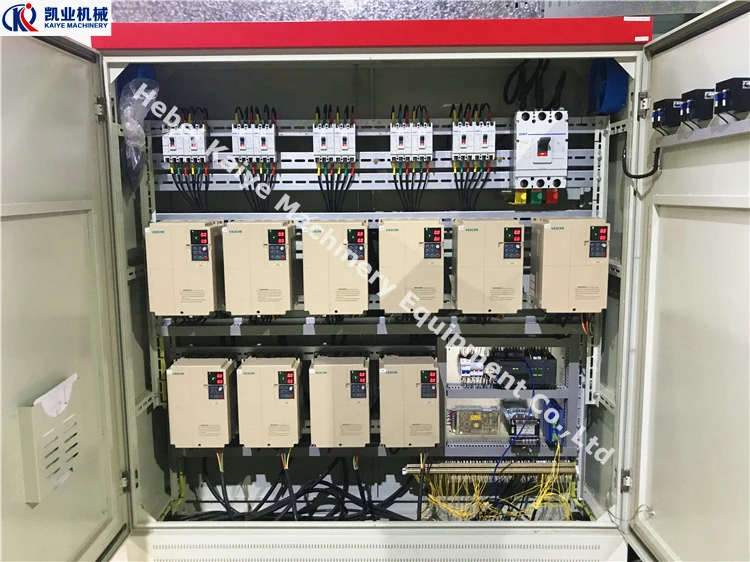

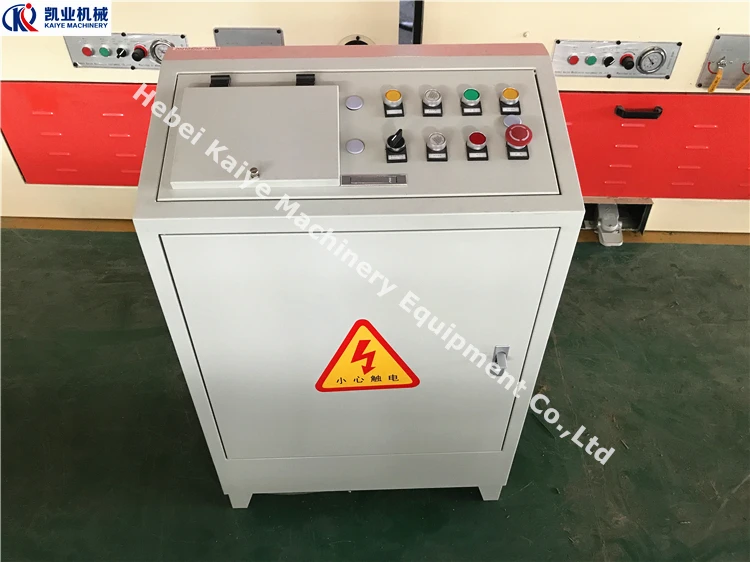

(2)Control cabinet
High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.

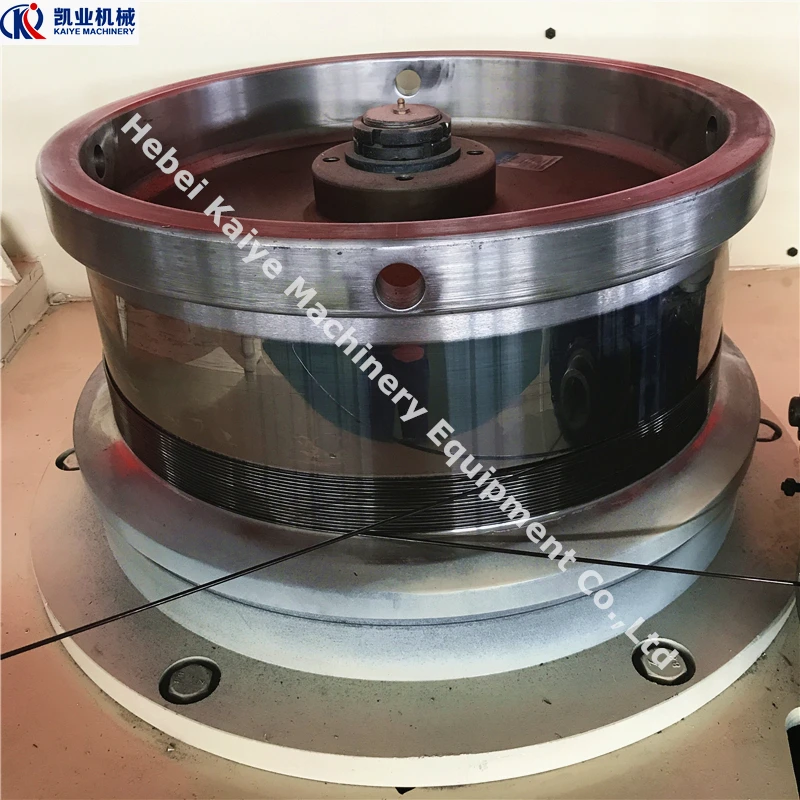

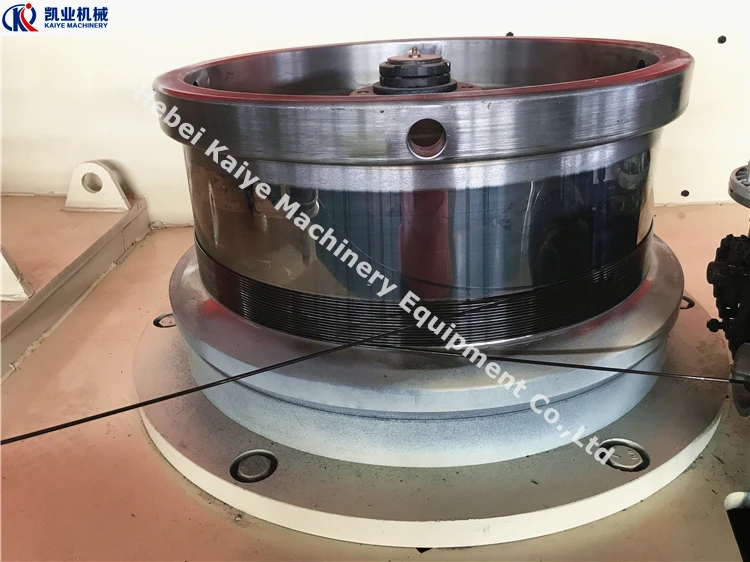

(3)Capstan.
Capstan uses special materials to spray tungsten carbide on the surface and increase the height and thickness. The drum base adopts narrow slot design to effectively prevent rust and impurities from entering the drum.

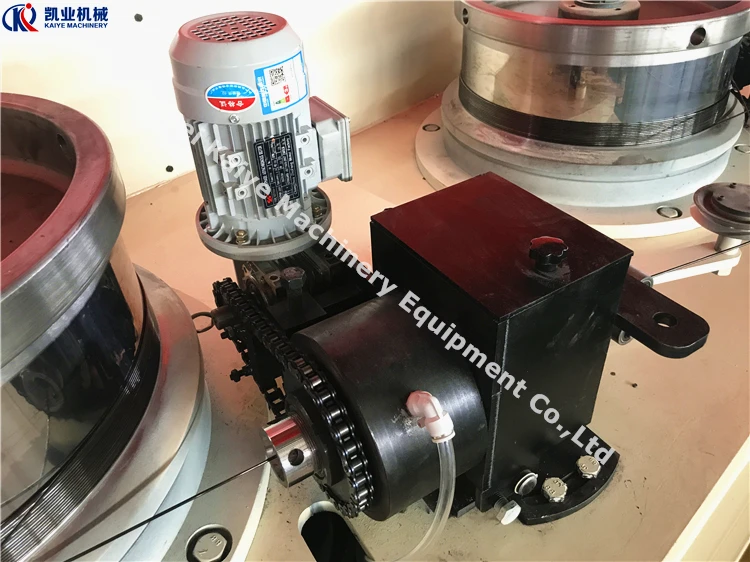

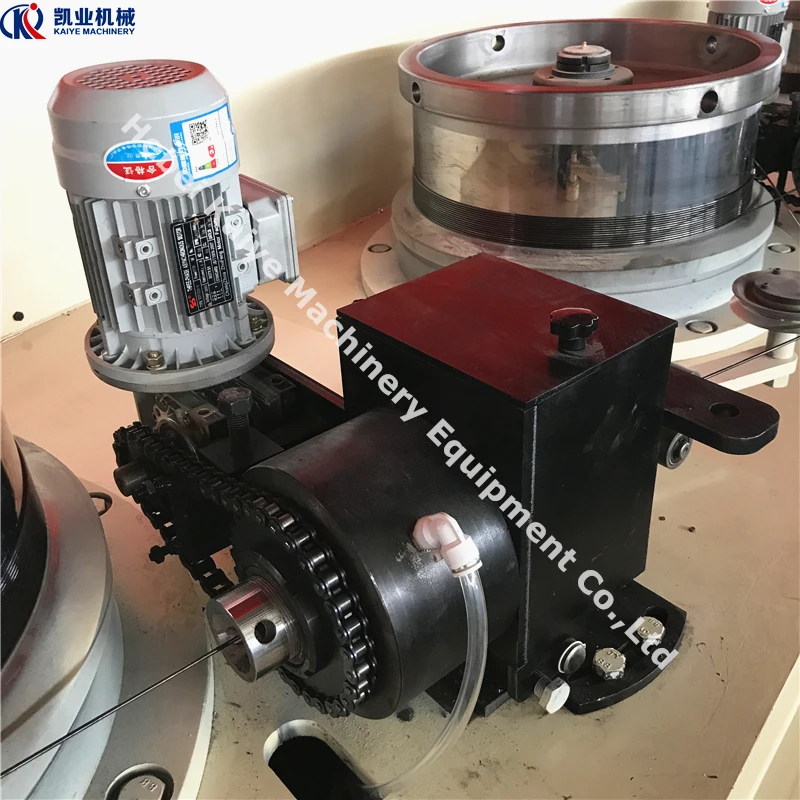

(4)Rotary die box.
The whole set of machinery uses a rotating die box, which can make it easier for the wire drawing powder to adhere to the surface of the wire rod. Improve the quality of wire rod finished products.

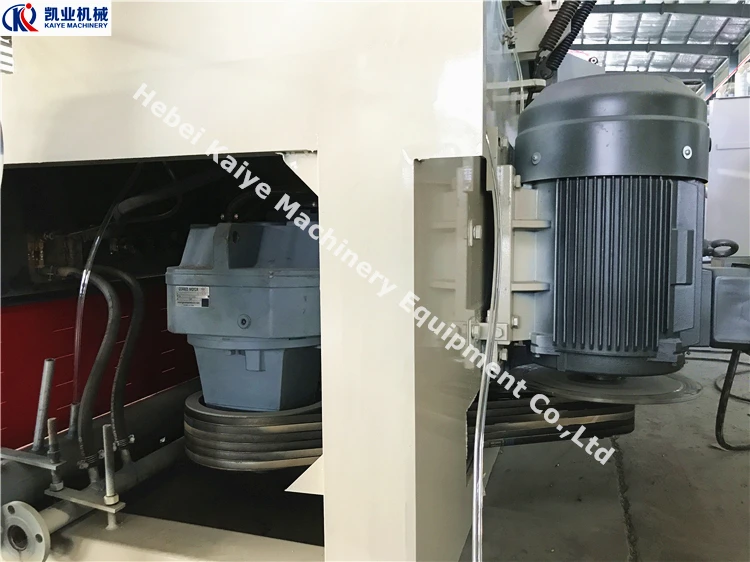

(5)Gear box.
The mechanical transmission system adopts the direct connection between the gearbox and the motor, which can greatly reduce the noise, improve the reliability of operation and increase the transmission power. Save electricity.
(6)Inverter.
The machine is equipped with frequency converter, and the energy-saving effect is very obvious. It is very convenient to adjust the speed.
The frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection and so on.
Optional Equipment
(1)Production Process
High carbon wire raw material High pay-off frame/Hydraulic wire pay off Shelling and Rust removal Wire rod sand belt polishing machine Online boron coating and drying machine LZ7/560 straight line Wire Drawing Machine Tension device Wire take-up machine
High carbon wire raw material High pay-off frame/Hydraulic wire pay off Shelling and Rust removal Wire rod sand belt polishing machine Online boron coating and drying machine LZ7/560 straight line Wire Drawing Machine Tension device Wire take-up machine
Wire Pay off system

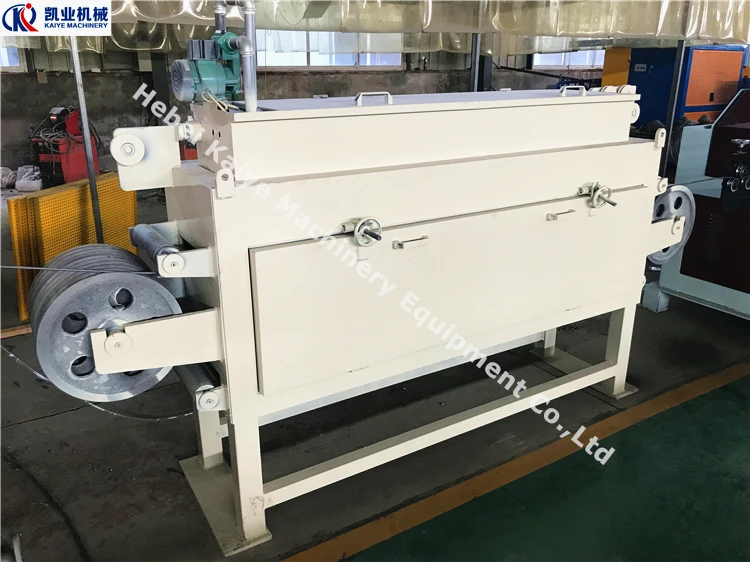

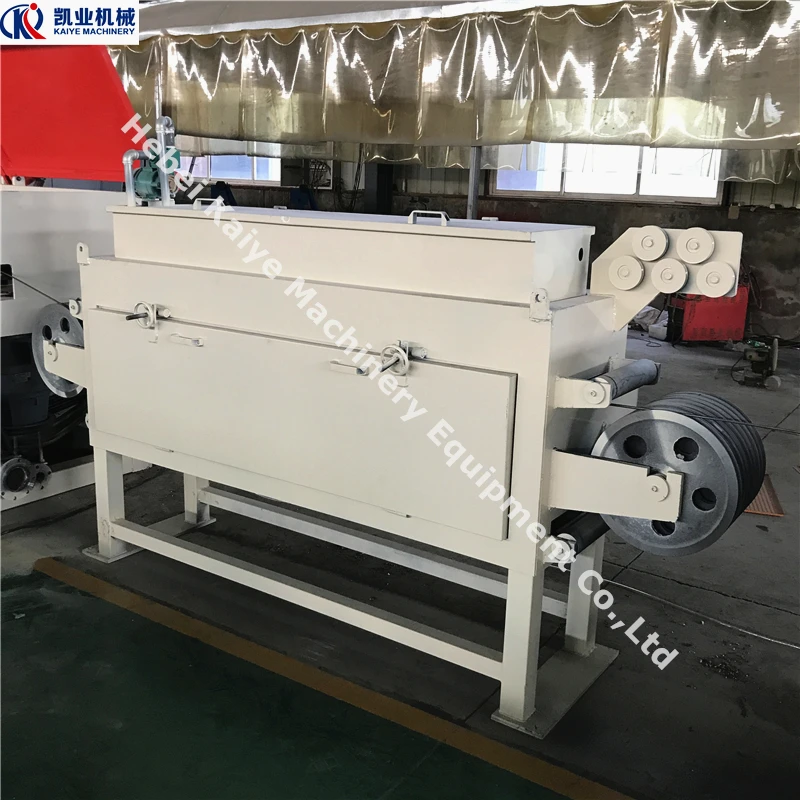

Shelling and Rust removal
Wire rod sand belt polishing machine
Online boron coating and drying machine

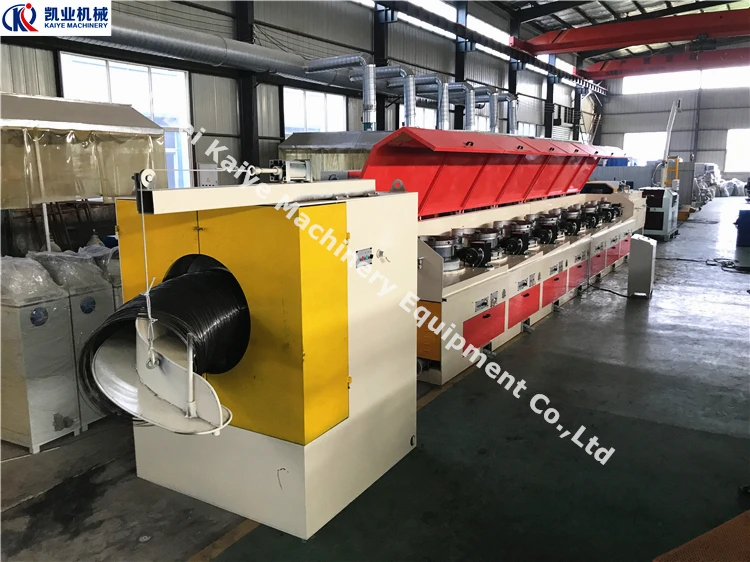

Straight line Wire Drawing Machine
Trunk wire take-up system or Spool wire take-up system

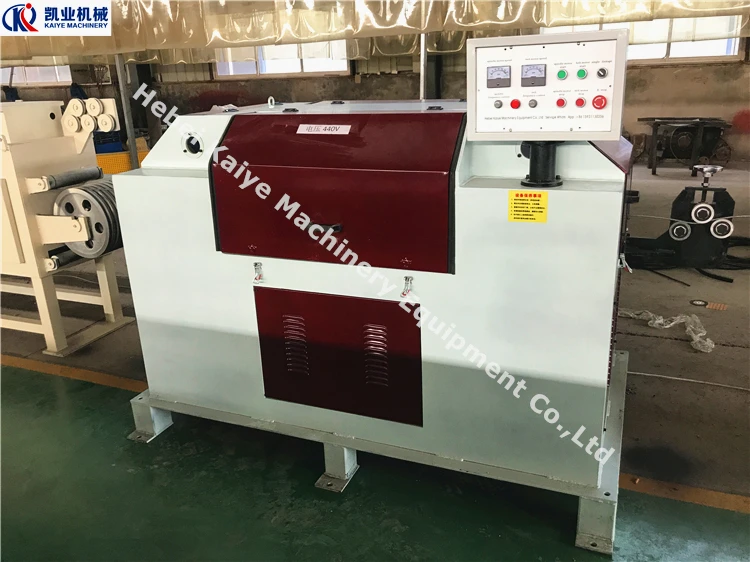

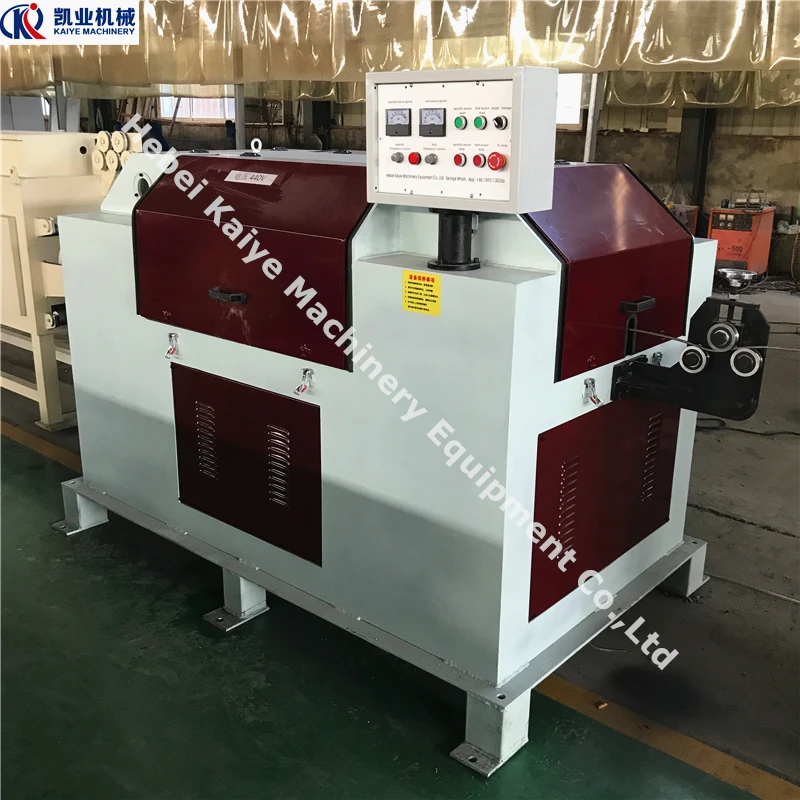

Wire rod sand belt polishing machine
The steel wire is polished with high-speed abrasive belt to make the derusting effect better. It is conducive to boron coating and drawing process. It is suitable for high quality drawing process.
Online boron coating and drying machine
Borax film can be attached to the surface of high carbon steel wire after boron coating and drying treatment, which is conducive to the adhesion of wire drawing powder and improve the drawing effect of steel wire.
Company Profile
Factory History
Hebei Kaiye Machinery Equipment Co., Ltd., founded in 2002, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery.
Our company has been developing smoothly and quickly and now we have more than 150 employees.We can provide high quality machinery and excellent service.

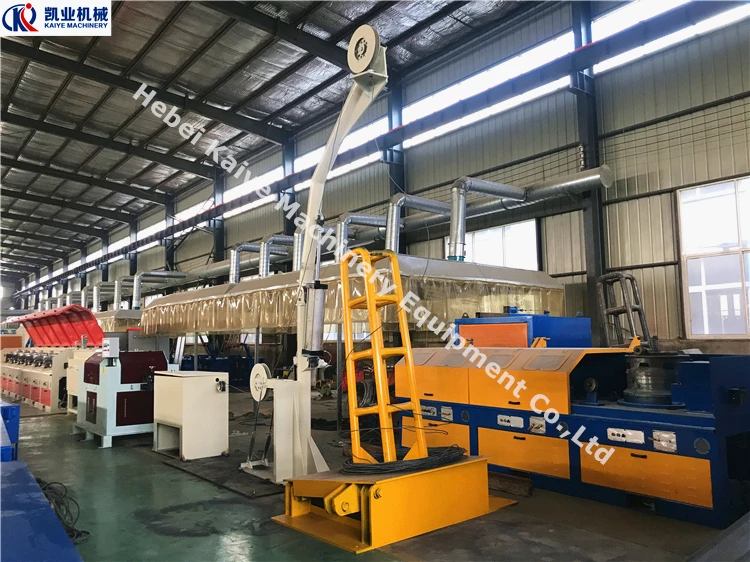

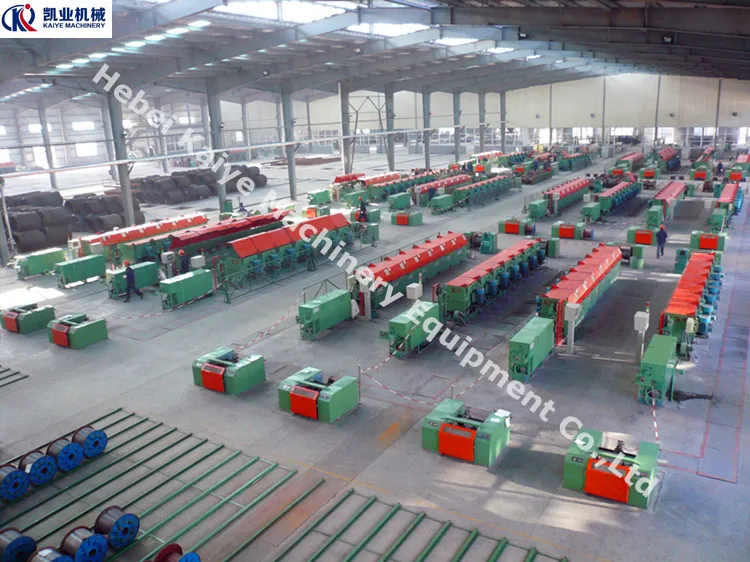

Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.
Our main products: straight line wire drawing machine,Pulley wire drawing machine,wet drawing machine,Copper wire drawing machine,Stainless steel wire drawing machine,Galvanized wire production line,Wire winding machine,And other wire drawing supporting machinery and accessories.
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Customer and Market
Factory Customer and Friends from all over the world Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
FAQ
Product Application The Straight line wire drawing machine is the important process of producing the steel wire. Such as: High carbon steel wire (PC wire, wire rope, spring wire, steel cord, hose wire, bead wire, saw wire ) Low carbon steel wire (Mesh, fence, nail, steel fiber, welding wire, construction) Alloy wire
FAQ Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products more than 18 years.
Q: Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q: How about the delivery? A: We promise that we provide wire machine, mold, brushed powder machine test operation service in the workshop, and then delivery.
Q: How long is the delivery time?
A: Delivery Time: 30-60 days after the advance payment.According to your specific requirements for the machine.
Q: How do you guarantee your machine's quality when producing?
A: Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factory before shipment ,all the parts are in good condition.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
