corrugated fluting testliner paper plant mill kraft roll paper making machine factory price


Product Description


Two Types Machine

1. Cylinder Mould Type
Cylinder mould/mesh drum type kraft/flutting/corrugated paper machine is suitable for small output machine. If you have special requires about it, we can OEM as for your needs.




2. Fourdrinier Type
Fourdrinier kraft/craft paper machine is suitable for big capacity such as 50 TPD or more. The quality of finished paper is the best




Specification


Raw material
Waste paper, virgin pulp
Output paper
Kraft paper, test liner paper, fluting paper , white top paper ;
capacity
150 ton per day (24 hours);
Net paper width
1092-3600 mm
Paper grammage
80-200 g/m2
working speed
180-400 m/min
Width of wire
4600mm
Drive&control system
Alternating current ,frequency conversion, speed control, section drive

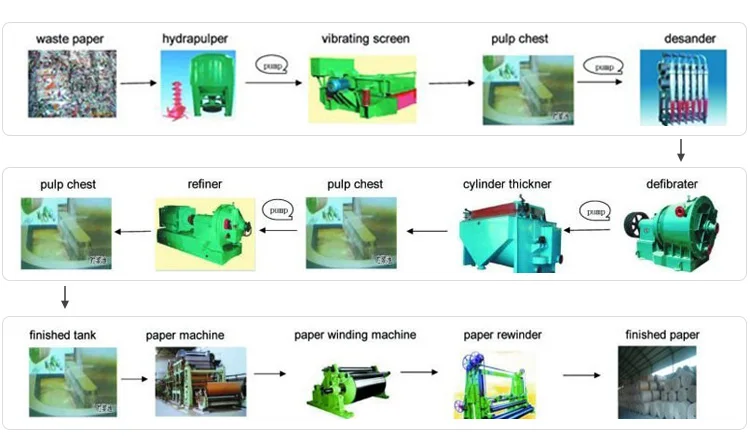

Kraft Paper Pulp Making Process




Raw material

Waste paper, virgin pulp, wood, OCC etc.

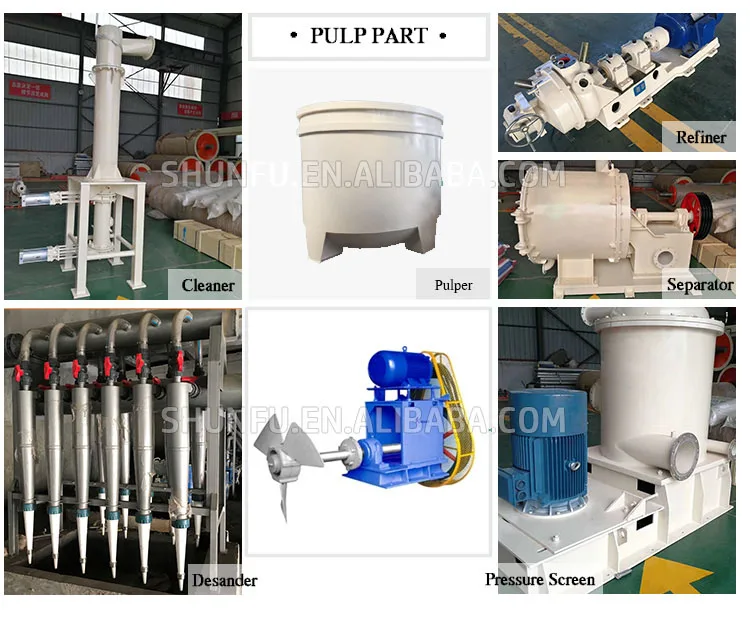

Pulp Making Machinery

Hydrapulper, vibrating screen, disc refiner, bleaching machine, propeller, desander, pulp pump.

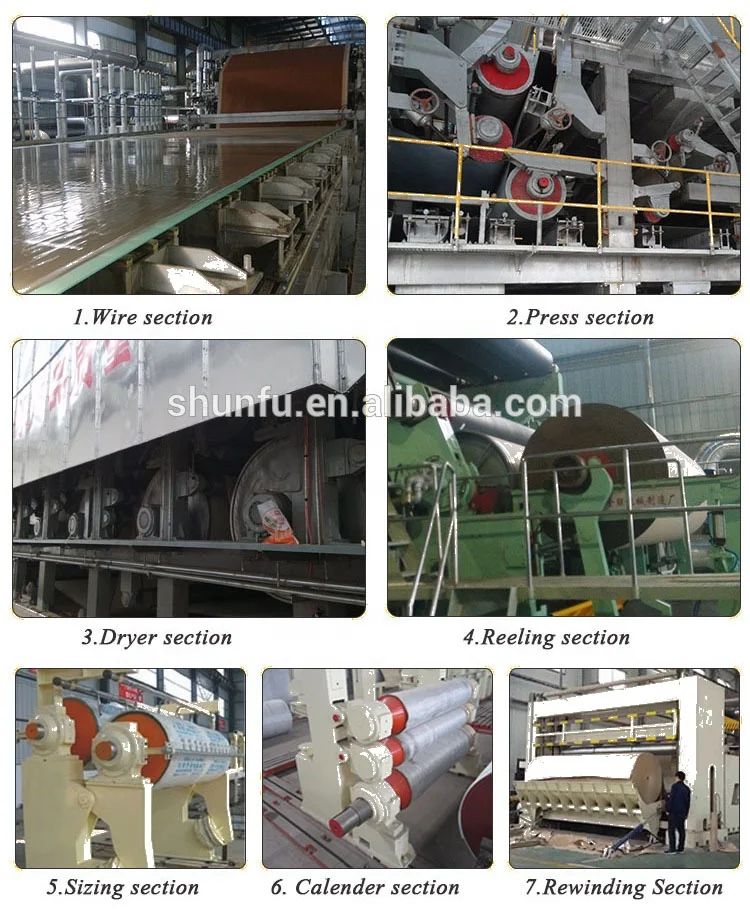

Host Part

Paper machine is consist of headbox, wire section, press section, front drying section, oblique surface sizing machine, back drying section, calender section, reel section.

1. Headbox: two sets of open headbox, corresponding to top layer, bottom layer, and by controlling the gas pressure in the headbox to control and stabilize the sizing of the pulp.
2. Forming section: Double layer include top layer and bottom layer, The main components are consist of breast roll , forming board, dewatering board, vacuum box, composite roll, suction couch roll, wire drive roll, wire guiding roll and paper machine framework.Top layer and bottom layer are all equipped with one forming wire respectively




3. Press section: including First press, second press.The first press is K-type composite press with vacuum suction roll, which also equipped with one rubber coated metal roller, one vacuum press roll and one stone roll.The second press is MG press with upper & lower rubber coated metal rolls and upper & lower felts. The two press are all equipped with wire guiding roll and felt suction box. These two press are pressurized by the hydraulic cylinder pressure.
4. Front drying section: Φ1500/Φ1800 dryer, drove in group and equipped with wire guiding roll , dry wire and closed gas hood.


Finished Paper Product Sample

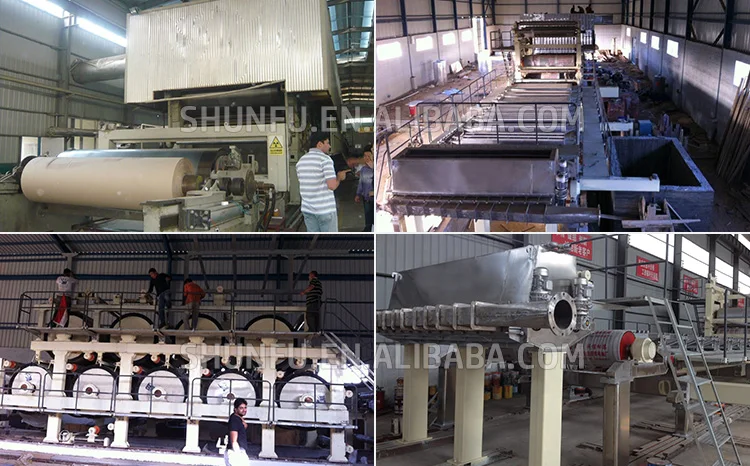

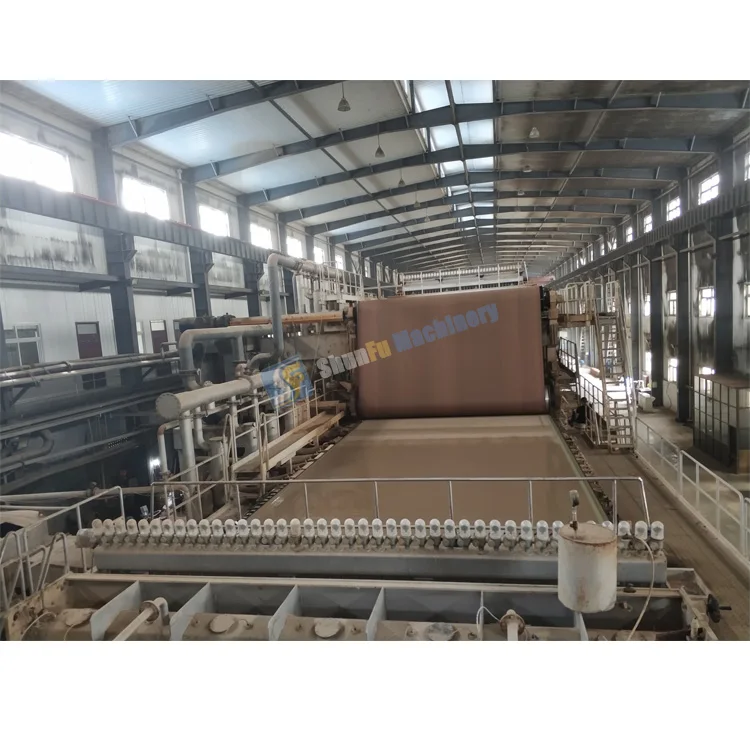

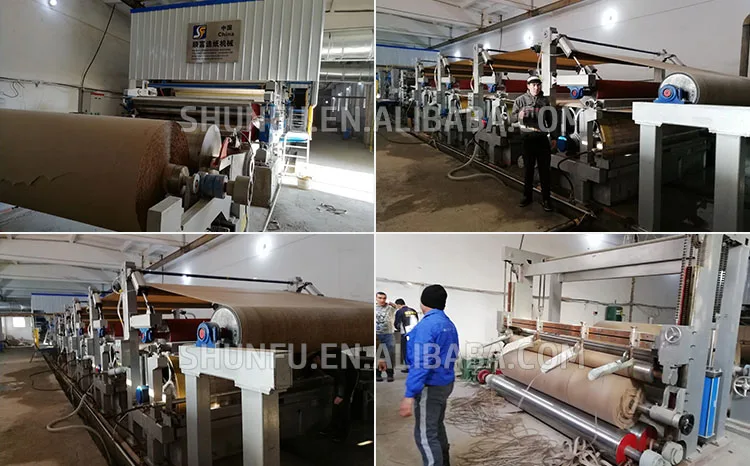

Installation Site

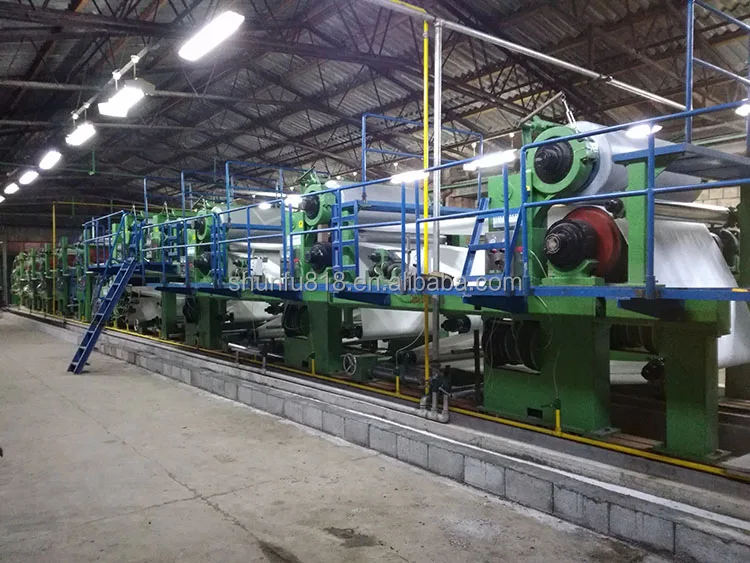

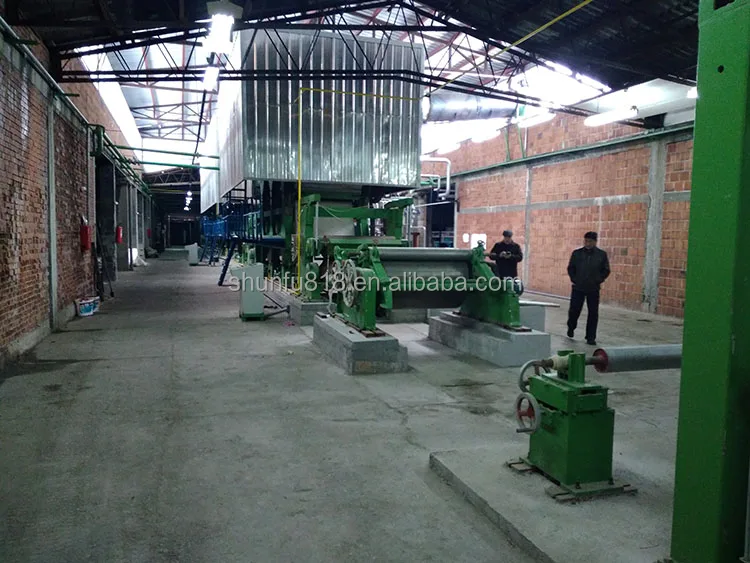

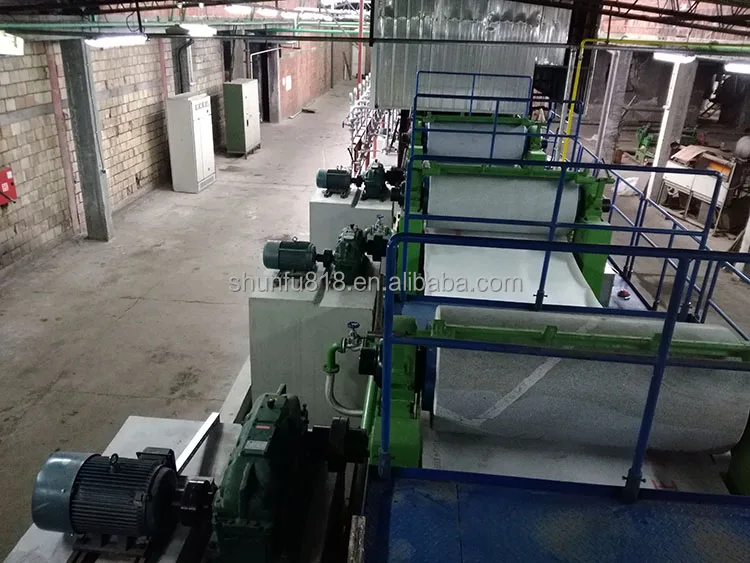

1092mm Multi cylinder fourdrinier 25tpd kraft paper machine for Serbia customer







2650mm Multi cylinder fourdrinier 27tpd kraft paper machine for Syria customer






Recommend Machines




Company Profile




CERTIFICATION




CUSTOMERS VISITS




Packing & Delivery






FAQ


Q1: Does your factory provide installation services?

A1: Yes, we can arrange engineers to go to your country to provide installation services. During this period,
the isolation costs of engineers need to be paid by you. It is the most important to ensure the safety of engineers

Q2: We are new one in this fields, can you give some recommendation for us?

A2: Of course, Such as toilet paper machine. The smallest capacity is 787and 1092 model. The capacity is 1-2ton/day. It's best suited for customers who are just starting out and don't have a lot of budgets. It is also possible to start with small scale, expand the market and then expand production.

Q3: How about the quality of the machine? What are your guarantees?

A3: First of all, our machines have a one-year warranty. Second, our products have passed CE, SGS, ISO certification. And we have stable customers in Uzbekistan, Nigeria, Uganda, South Africa, Tajikistan, Kazakhstan and more than 20 other countries.

Q4: Your machine price is high, is there any discount?

A4: Our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. Our  marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
