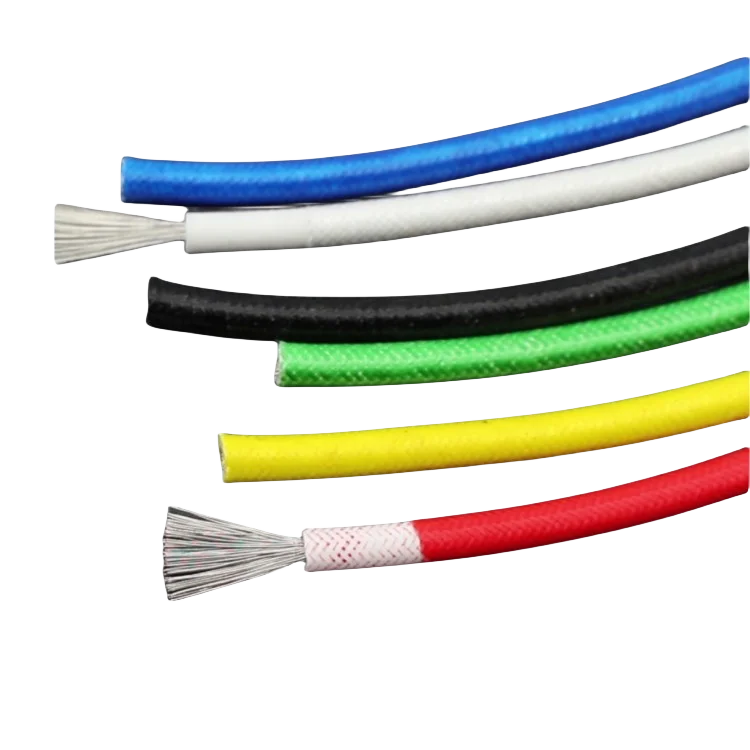

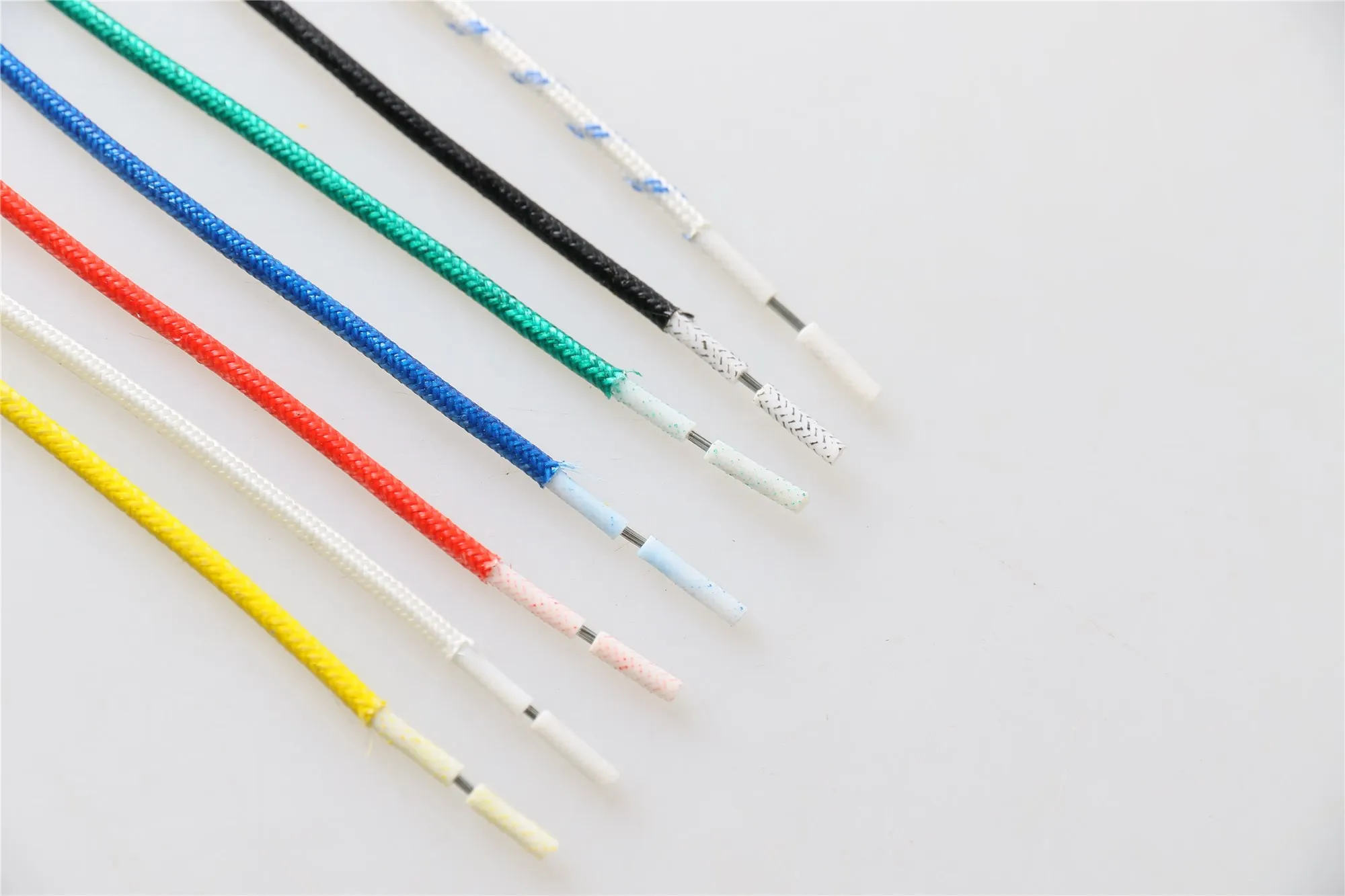

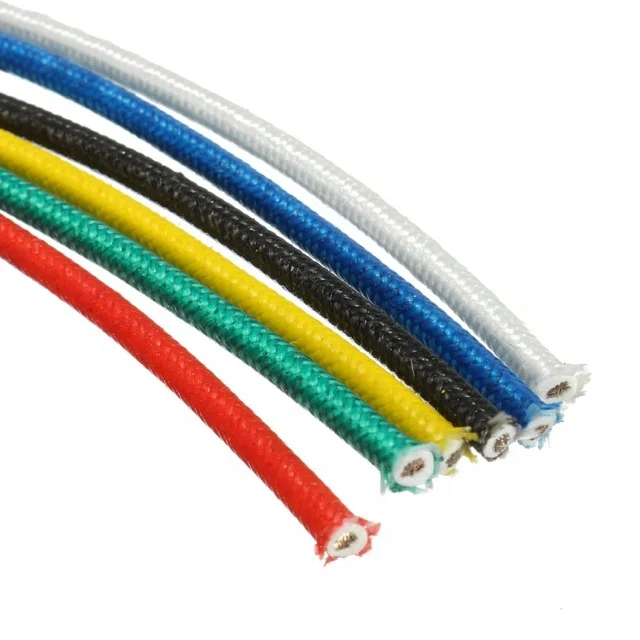

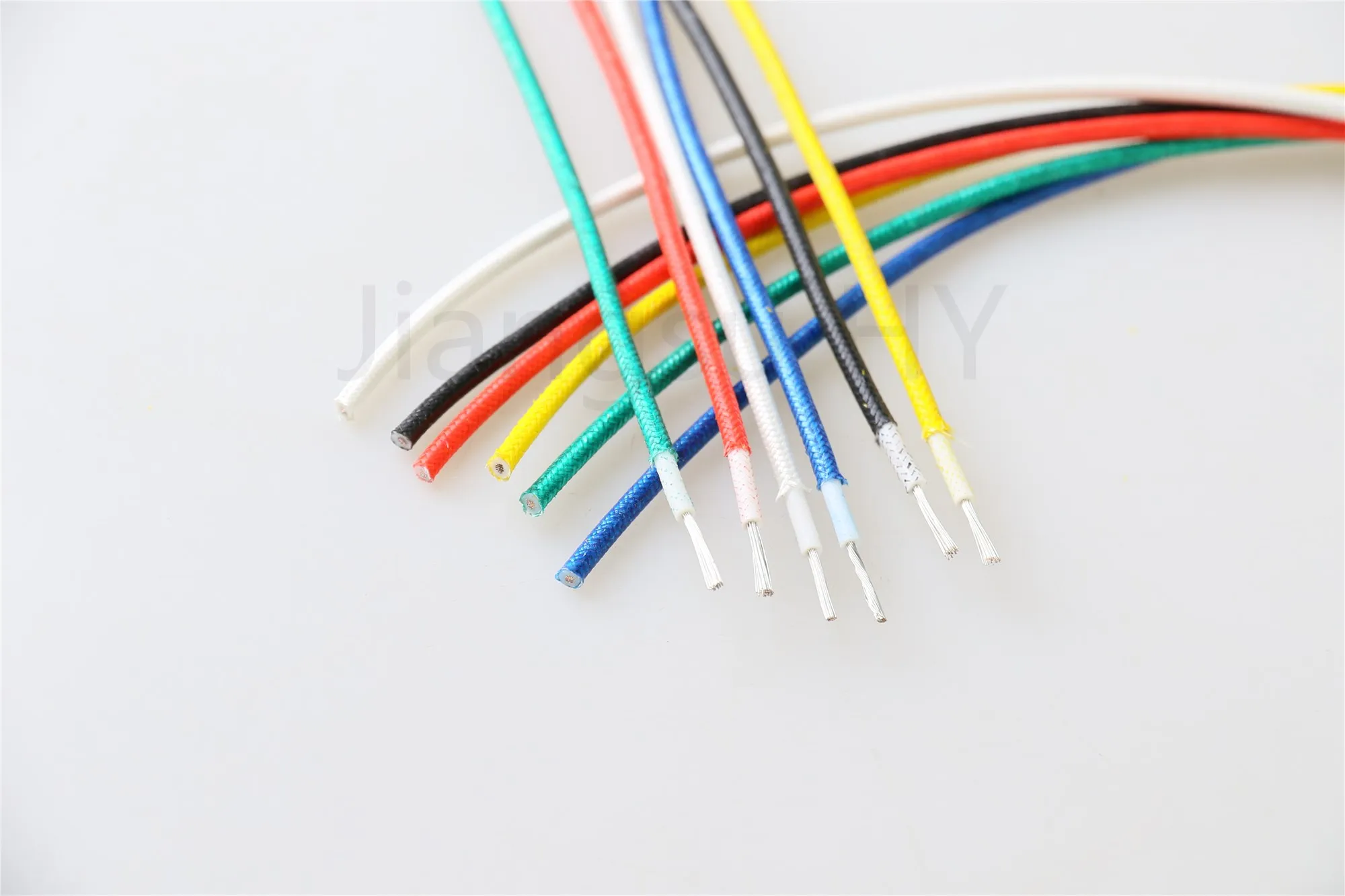

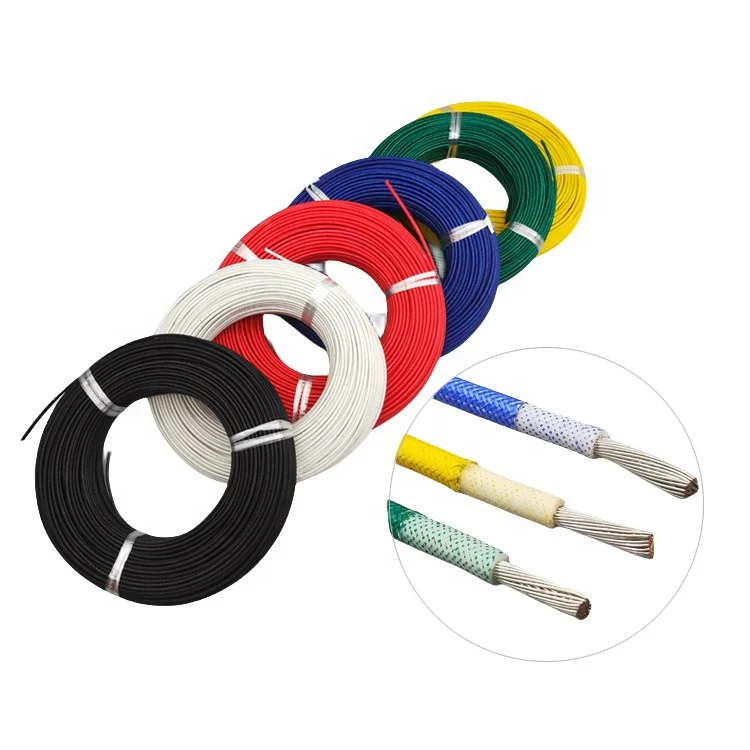

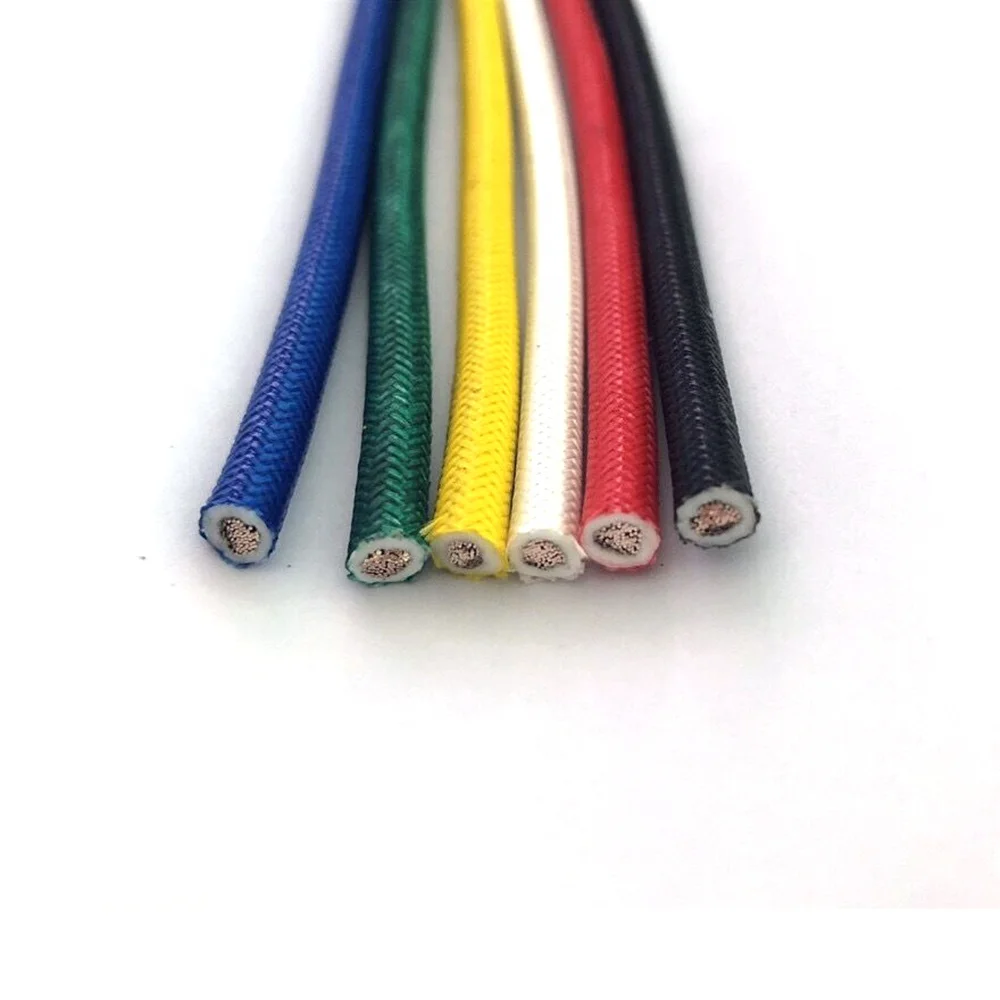

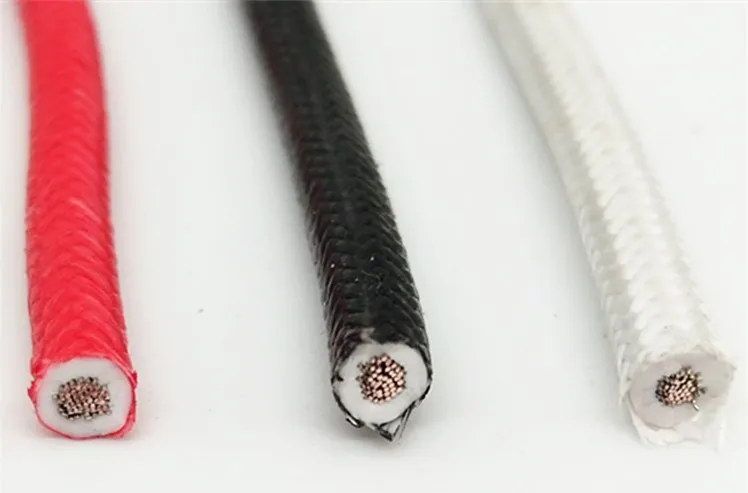

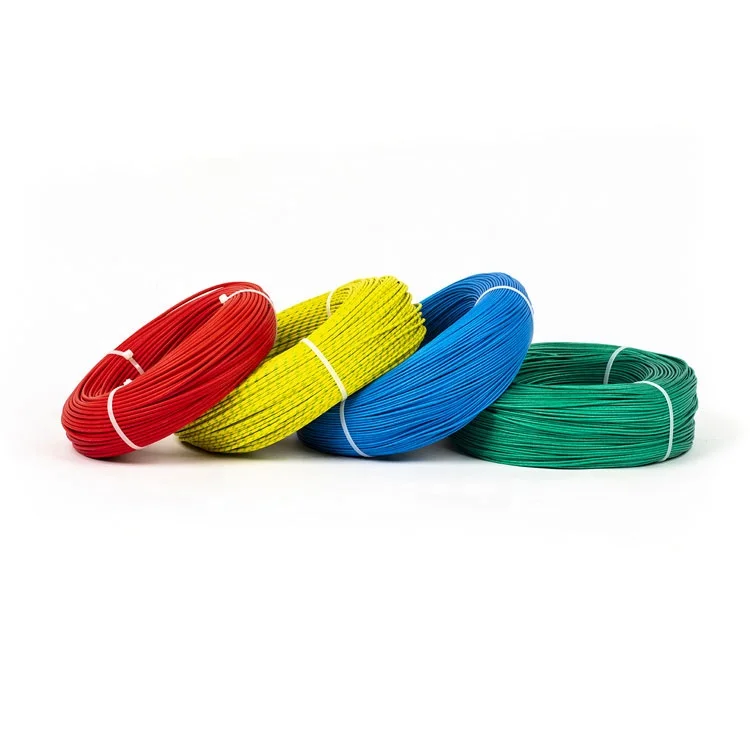

High temperature wire fiberglass insulated silicone wire with tin-coated copper filaments Electrical Harnesses Wire

Fiberglass Silicone Wire is widely apply in home appliance, headlamp, mechanical and electrical machine etc.
It has extremely temperature resistance, super-soft , anti-acid, anti-oil, antisepsis and easy to install with small size and slippery surface.

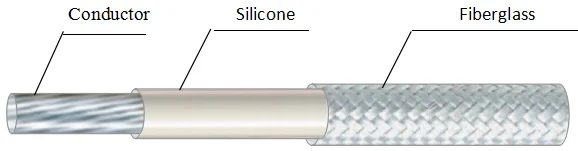

Composition
1.Conductor:tinned copper or bare copper
2.Insulator:Silicone rubber,fiberglass braid





Description

1. Nominal Voltage: 300V

2. Temperature Range: -60°C to +200°C

3.Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Transparent-Yellow/green,etc



Feature

1.\tHigh temperature resistance , insulation

2.\tFire retardant, corrosion resistance, aging resistance High temperature resistance

3.\tHigh strength, high modulus

4.\tAnti-static, smooth appearance

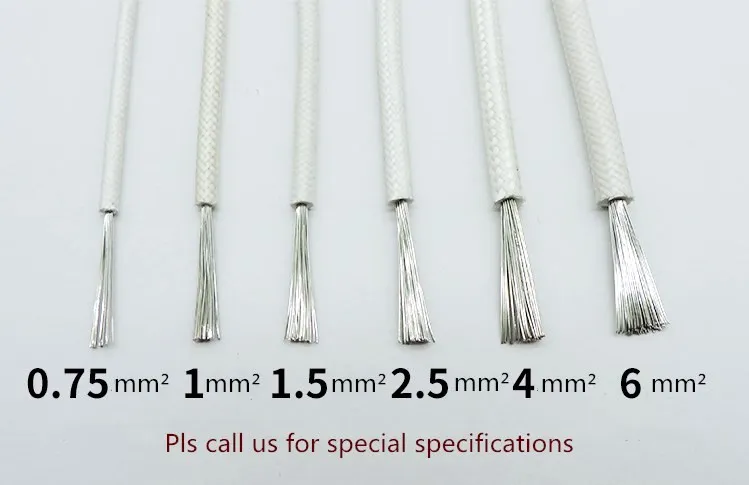

Product Parameter


Spec
Conductor
Insulation Thinkness
fiberglass
Thinkness
Wire Diameter
 Max
Resistance 200C
Structure
Diameter
Nominal
Diameter
mm
mm
mm
mm
mm
mm
mm
Ω/KM
0.3
17/0.15
0.7
0.5
1.7
0.15
2.0
71.2
0.4
23/0.15
0.8
0.5
1.8
0.15
2.1
49.6
0.5
28/0.15
0.95
0.5
1.95
0.15
2.25
40.1
0.75
24/0.20
1.15
0.5
2.15
0.20
2.55
26.7
1.0
32/0.20
1.34
0.5
2.35
0.20
2.75
20.0
1.25
40/0.20
1.5
0.6
2.7
0.20
3.1
15.9
1.5
30/0.25
1.6
0.6
2.8
0.20
3.3
13.7
2.0
41/0.25
1.9
0.6
3.1
0.20
3.5
9.9
2.5
49/0.25
2.0
0.6
3.2
0.20
3.6
8.2
4.0
56/0.30
2.7
0.65
4.0
0.25
4.5
5.09
6.0
84/0.30
3.3
0.7
4.7
0.25
5.2
3.39
10.0
84/0.40
4.6
0.8
6.2
0.25
6.9
1.95
16.0
126/0.40
5.8
0.9
7.6
0.25
8.1
1.24
25.0
196/0.40
7.3
1.0
9.3
0.30
9.9
0.795
35.0
276/0.40
8.6
1.1
10.8
0.30
11.4
0.565
50.0
396/0.40
10.7
1.2
13.1
0.30
13.7
0.393
70.0
360/0.50
12.4
1.2
14.8
0.30
15.4
0.277
95.0
475/0.50
14.5
1.4
17.3
0.35
18.0
0.21
120.0
608/0.50
16.0
1.6
19.2
0.35
19.9
0.164
150.0
756/0.50
18.0
1.8
21.6
0.35
22.3
0.132
185.0
925/0.50
20.0
2.0
24.0
0.40
24.8
0.108
240.0
1221/0.50
23.0
2.2
27.4
0.40
28.2
0.0817
300.0
1517/0.50
26.0
2.4
30.8
0.40
31.8
0.0654






Silicone rubber insulation wire

PFA/FEP/PTFE insulation wire

Mica-glass insulated fire resistant wire



Pure nickel high temperature wire

High voltage silicone wire

Silicone power cable

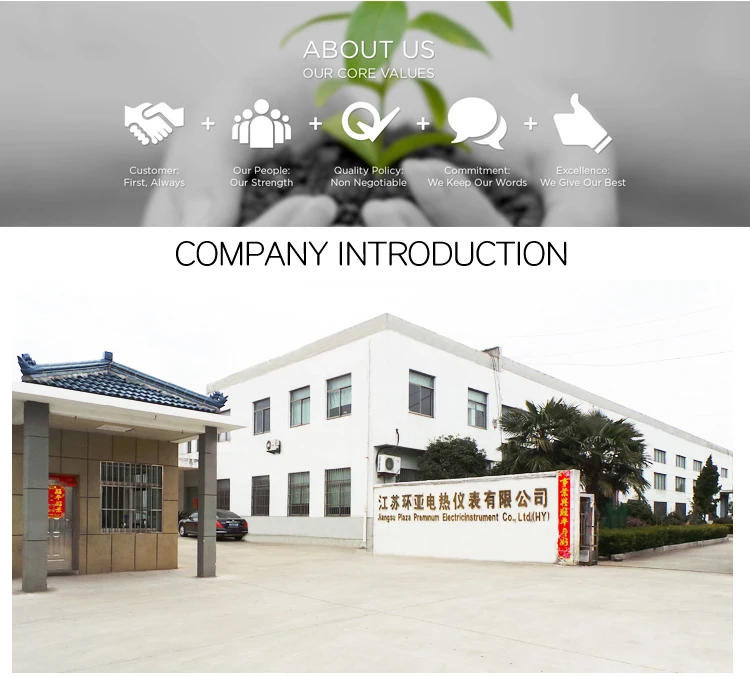

Jiangsu Plaza Premium Electric Instrument Co.,Ltd. was established by Mr. Baifa Ye in 1986. We have employed 160 workers and our factory covers 3,000 square meters. With the total assets reaching 2 million US dollars, we own modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance to price and are salable to worldwide markets. Now we are selling products to North and South America, Southeast Asia, and Western Europe.Quality first and user uppermost" is the most important one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands.
