L2 Webrtc 200ms low latency POE USB TF recoding 4K H264 H265 HDMI 1080 60fps Video Encoder
- Category: >>>
- Supplier: Shenzhen Haiwei Vision Technology Co. Ltd.
Share on (1600944833245):
Product Overview
Description
Related Products

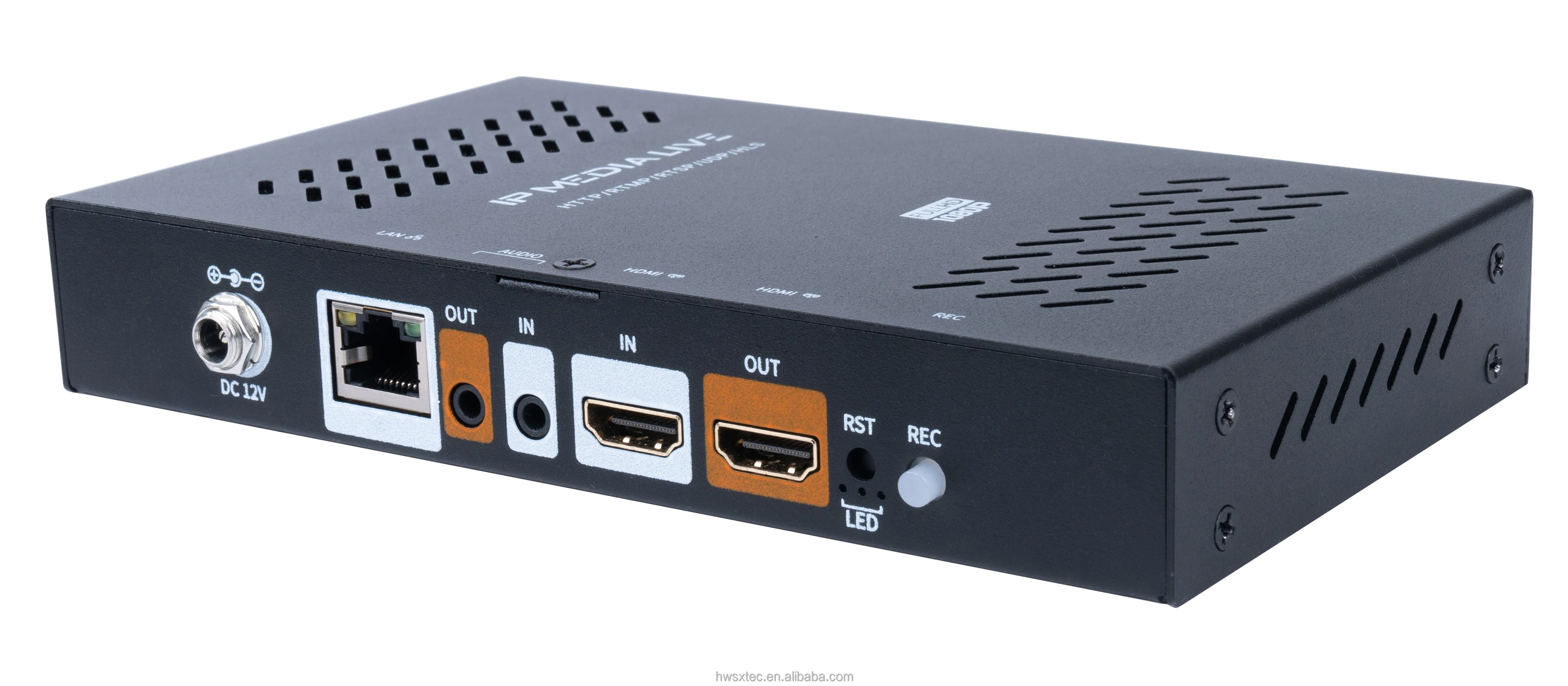

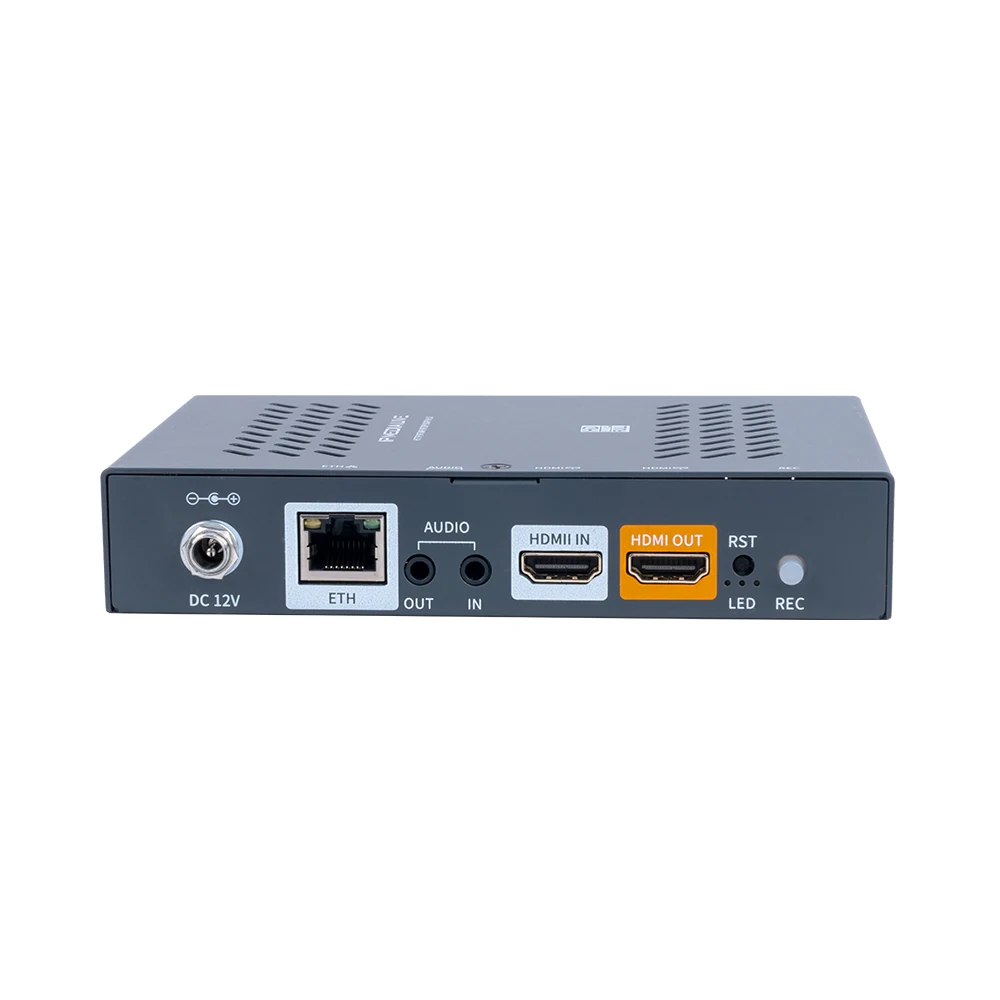

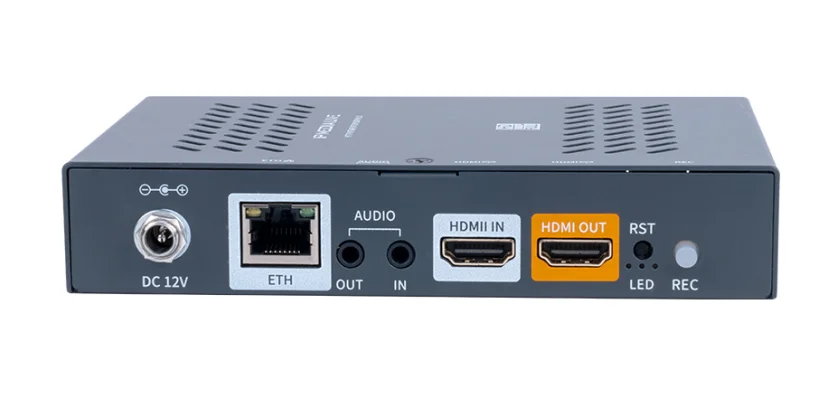

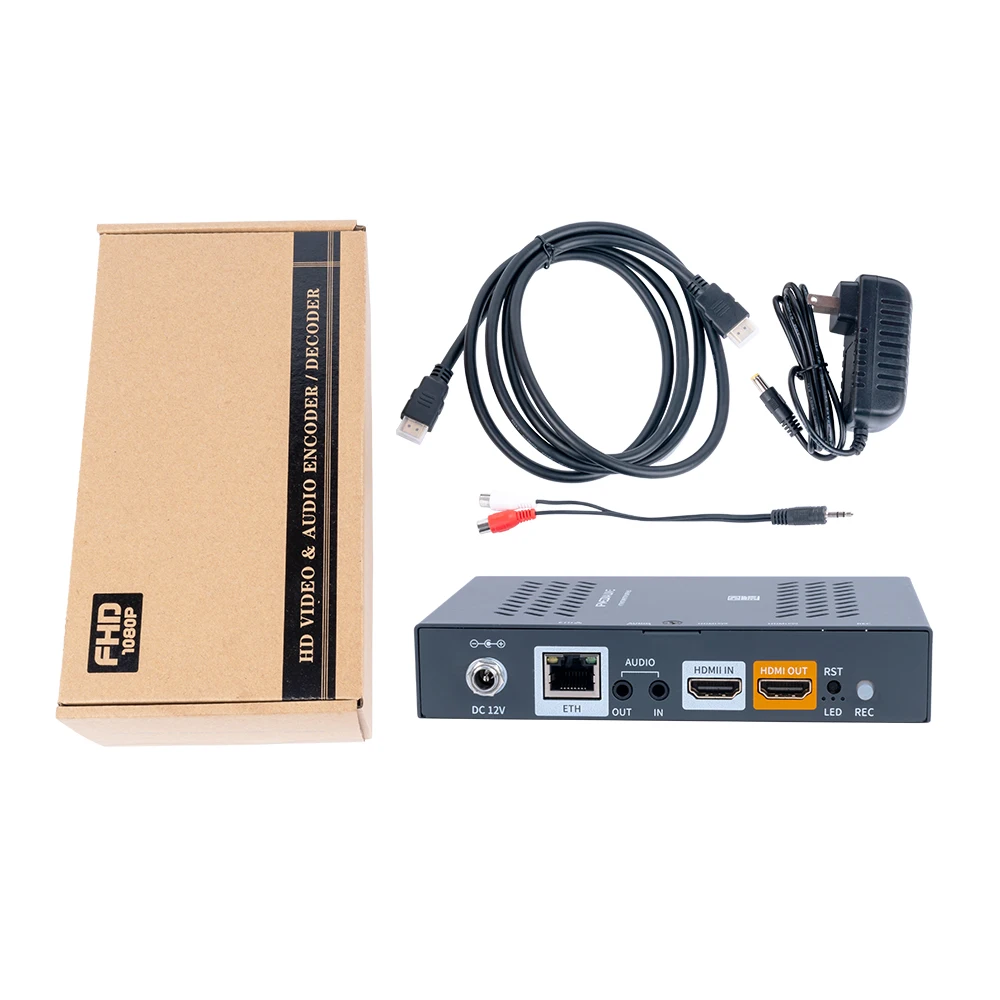

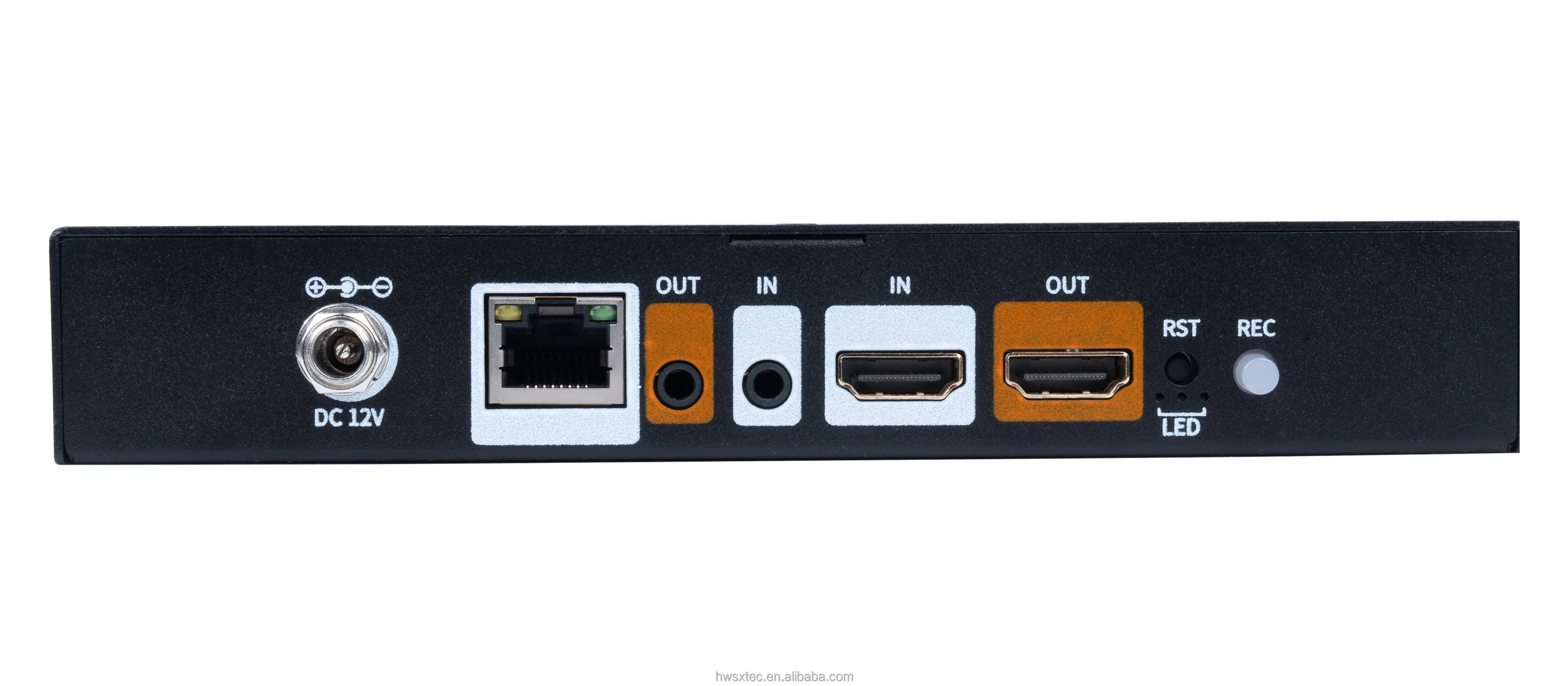

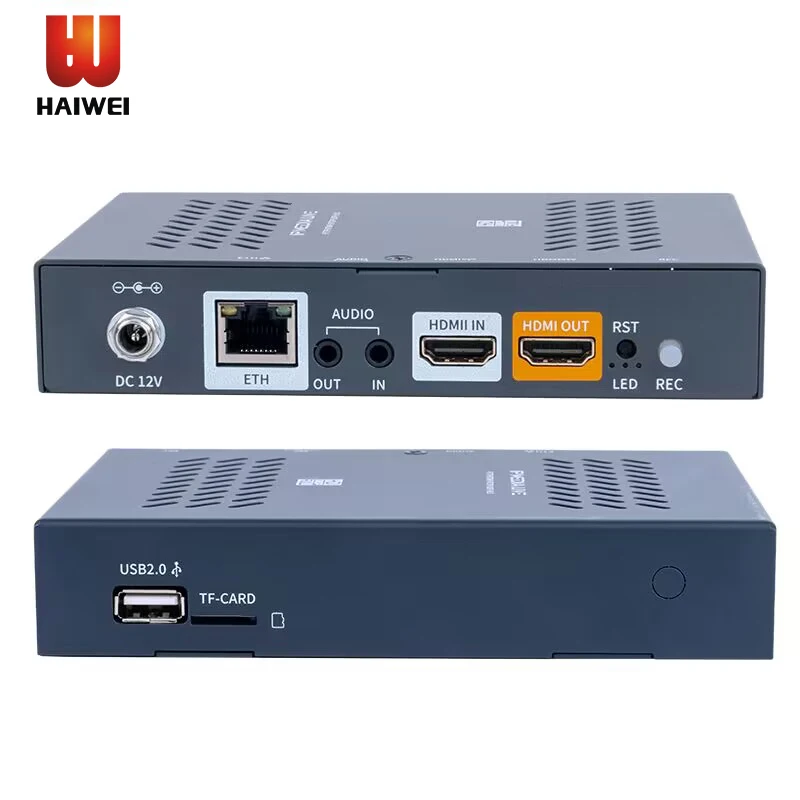

Ports(left to right)
1,DC12V
2,100/1000M LAN
3,Audio output
4,Audio Input
5,HDMI Input
6,HDMI loop out and HDMI decoding output
7,RST:reset button ;LED working status

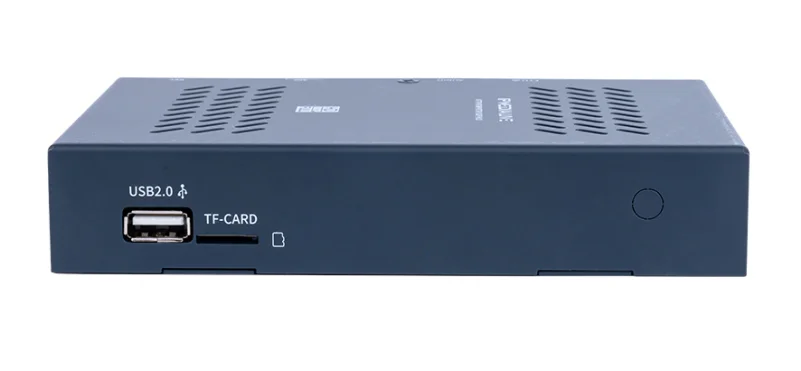

8,REC:recording button

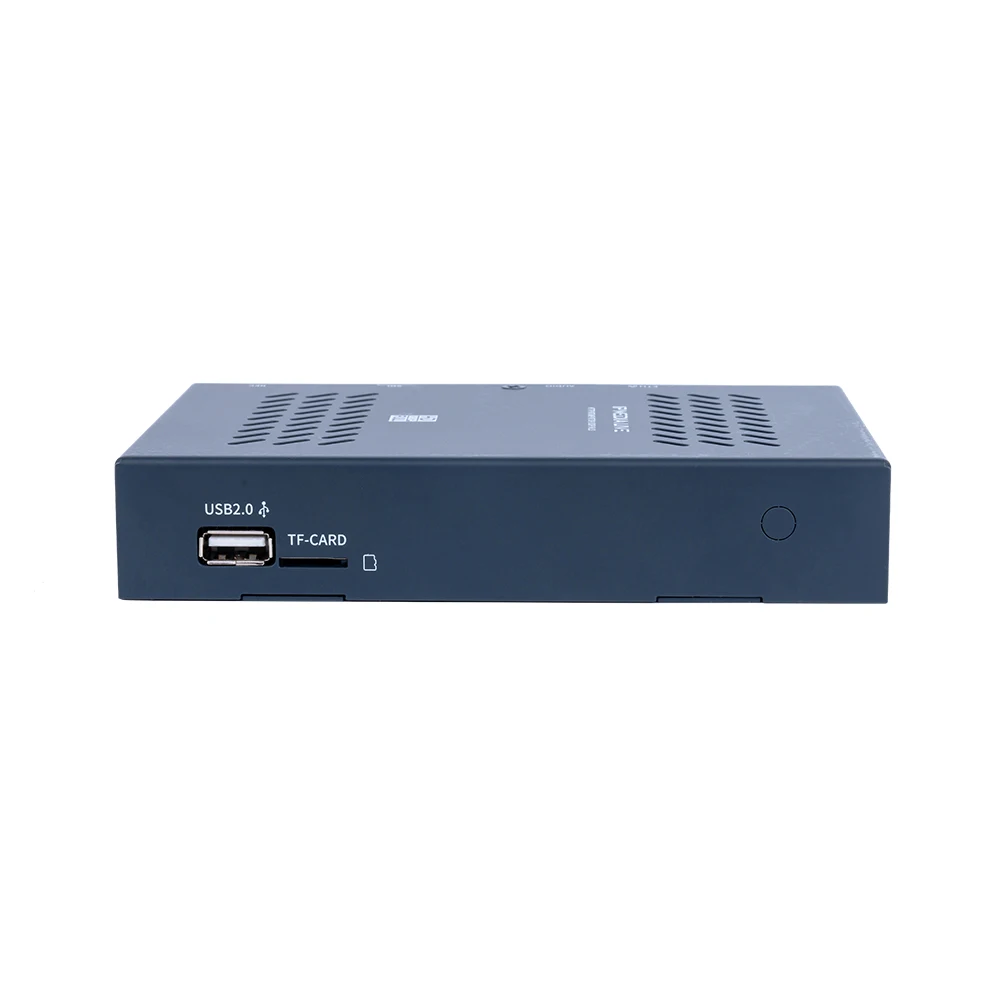

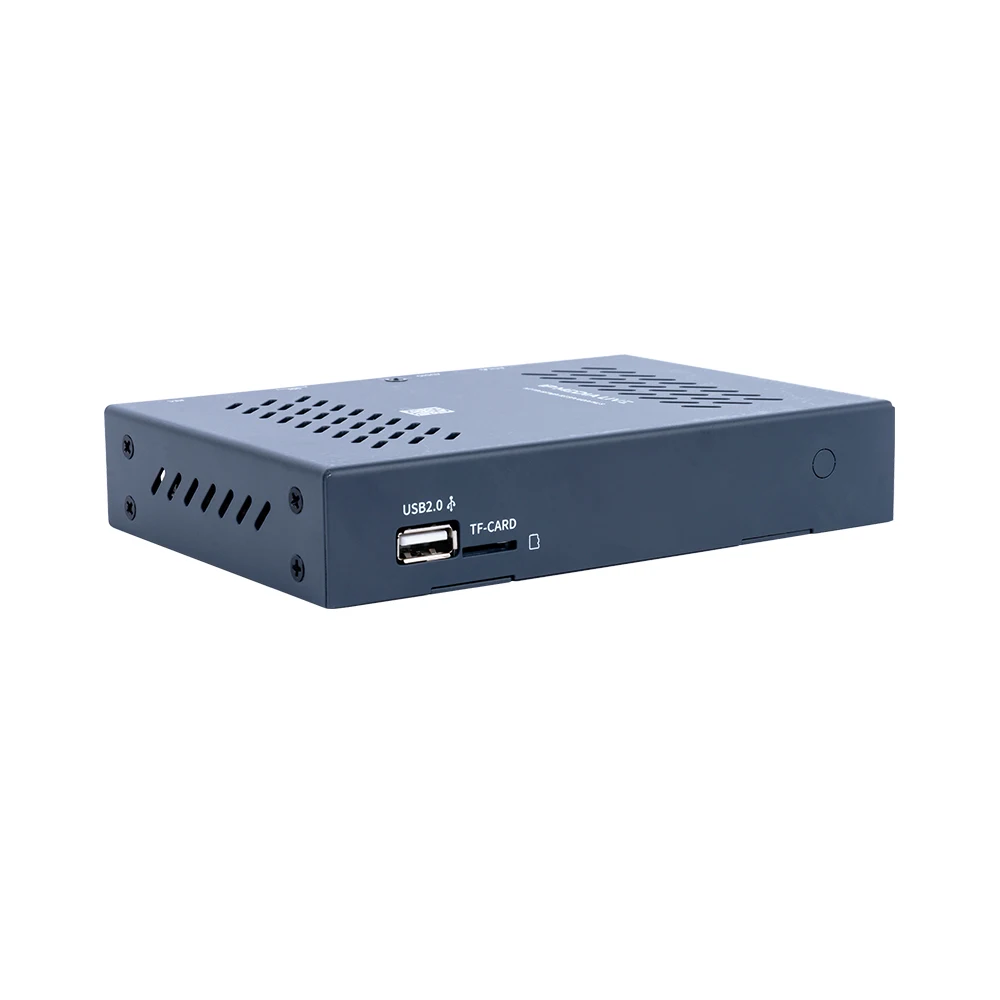

9,USB2.0
10,TF card recording
Items | Version 1：L2 4K 30FPS H.265/H.264 HDMI Video Encoder with HDMI loop Out Version 2：WEBRTC L2 4K 30FPS H.265/H.264 HDMI Video Encoder with HDMI loop Out | ||||
Input | 1* HDMI, 1* 3.5mm Audio | ||||
Output | 1* IP, 1* HDMI,1*Audio | ||||
Recode | TF card/USB recoding | ||||
Stream | 2 streams output at the same time | 3840*2160,1920*1080 | |||
Video | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc. | |||
Coding standard | H.265 MAIN PROFILE H.264 BASELINE PROFILEH.264 MAIN PROFILE H.264 HIGH PROFILE | ||||
Coding level | Level 1, Level 2, Level 3, Level 4, Level 5 (the higher the level, the greater the stream volatility) | ||||
Output resolution | 1920*1080、1280*720、960*540、850*480、720*576、720*480、640*480、640*320、320*180 | ||||
Video bit rate | CBR/VBR bit rate control, 16KBIT/S~20MBIT/S | ||||
video frame rate | 5- 60fps | ||||
OSD | Word, Picture | ||||
Audio | Input | 1* HDMI with audio in，1* 3.5mm independent audio | |||
Audio coding | AAC/MP3/G.711 | ||||
Audio bit rate | 64Kb/s~384Kb/s | ||||
Sampling Rate | 32000、44100、48000 etc. | ||||
IP Output | 1* RJ 100M/1000M adaptive Ethernet port，TS standard stream，four-stream，O NVIF protocol | ||||
System | Network protocol | Support HTTP、RTSP、RTMP（S）、UDP、Multicast、Unicast、SRT、Onv if、HLS | |||
Configuration management | Support WEB configuration | ||||
Other | power supply | 12V~2A | |||
Power consumption | ＜5W | ||||
size | 150mm x 102mm x 28mm(L*W*H) | ||||
Operating temperature | -20℃+ 60℃ | ||||
Working humidity | <90%，no condensation | ||||
weight | 0.35KG | ||||
What is WEBRTC?
Low latency WebRTC
About 200ms latency
Real-time communication for the web
With WebRTC, you can add real-time communication capabilities to your application that works on top of an open standard. It supports video, voice, and generic data to be sent between peers, allowing developers to build powerful voice- and video-communication solutions. The technology is available on all modern browsers as well as on native clients for all major platforms. The technologies behind WebRTC are implemented as an open web standard and available as regular JavaScript APIs in all major browsers. For native clients, like Android and iOS applications.
Support App control encoder
About 200ms latency
Real-time communication for the web
With WebRTC, you can add real-time communication capabilities to your application that works on top of an open standard. It supports video, voice, and generic data to be sent between peers, allowing developers to build powerful voice- and video-communication solutions. The technology is available on all modern browsers as well as on native clients for all major platforms. The technologies behind WebRTC are implemented as an open web standard and available as regular JavaScript APIs in all major browsers. For native clients, like Android and iOS applications.
Support App control encoder

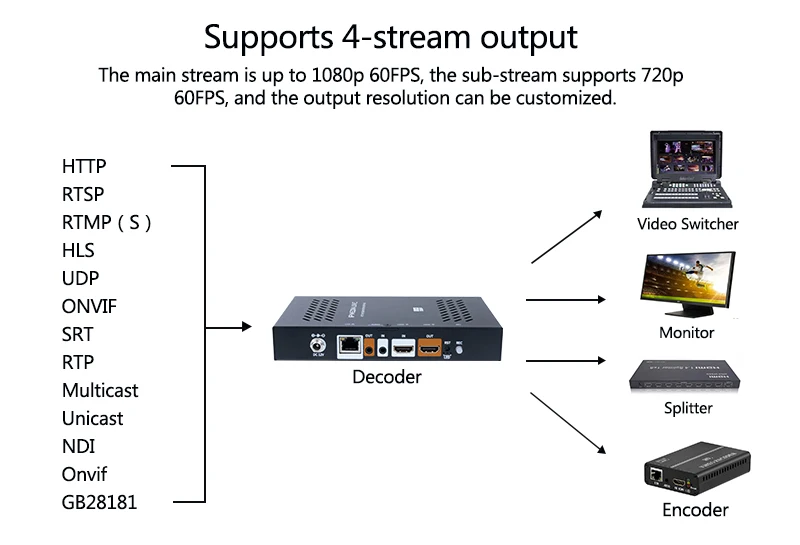

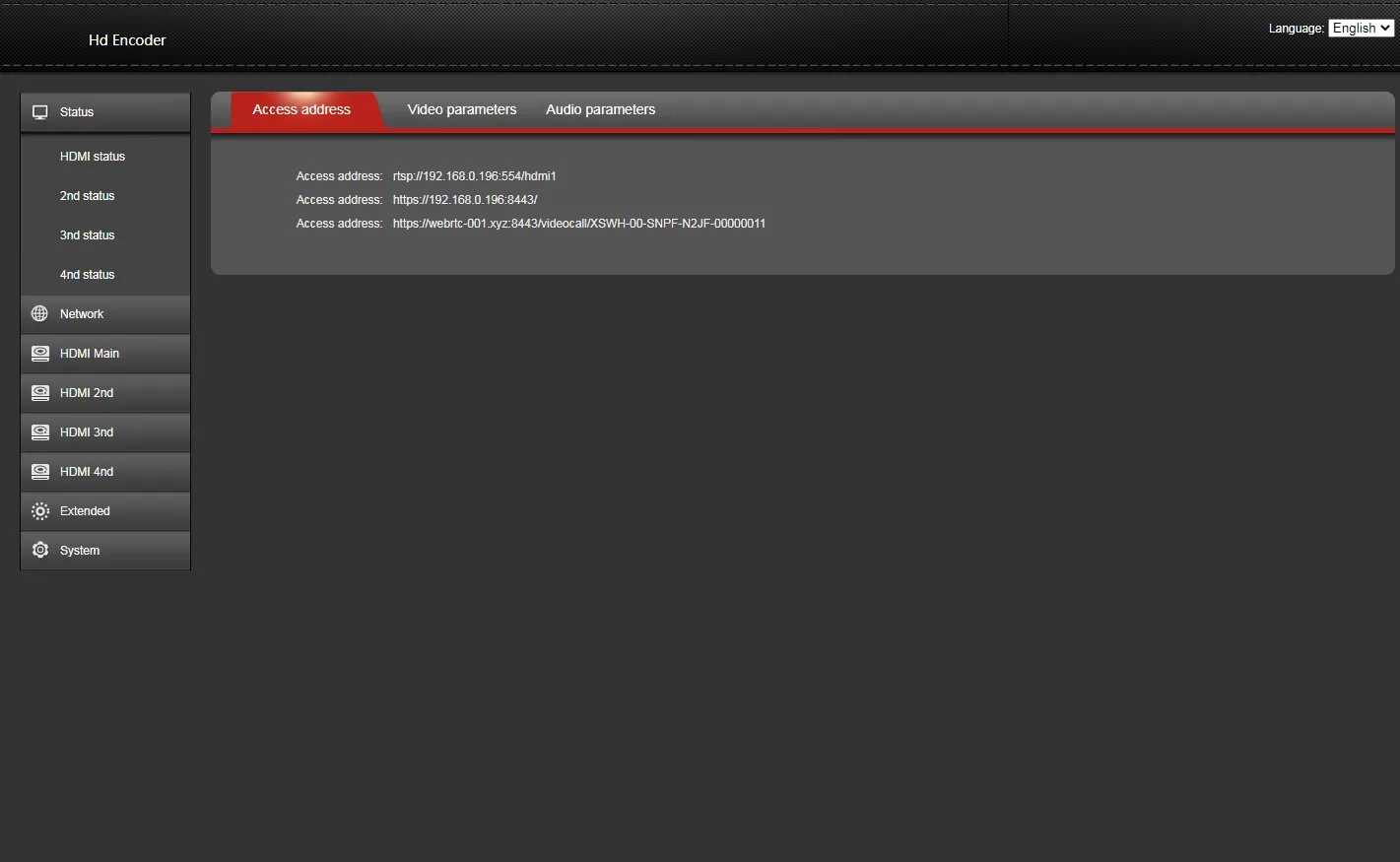

4 streams
HDMI main,2nd,3nd,4nd setting
Audio setting
RTMP+HLS
HDMI loop out
record

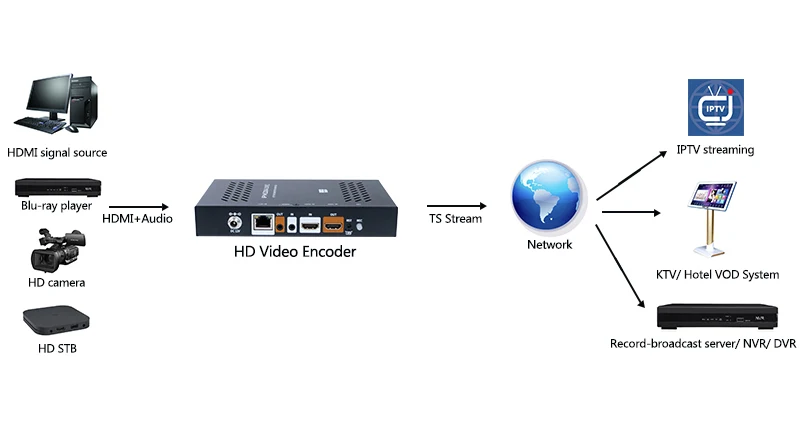

Connection Schematic Diagram
Application
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
