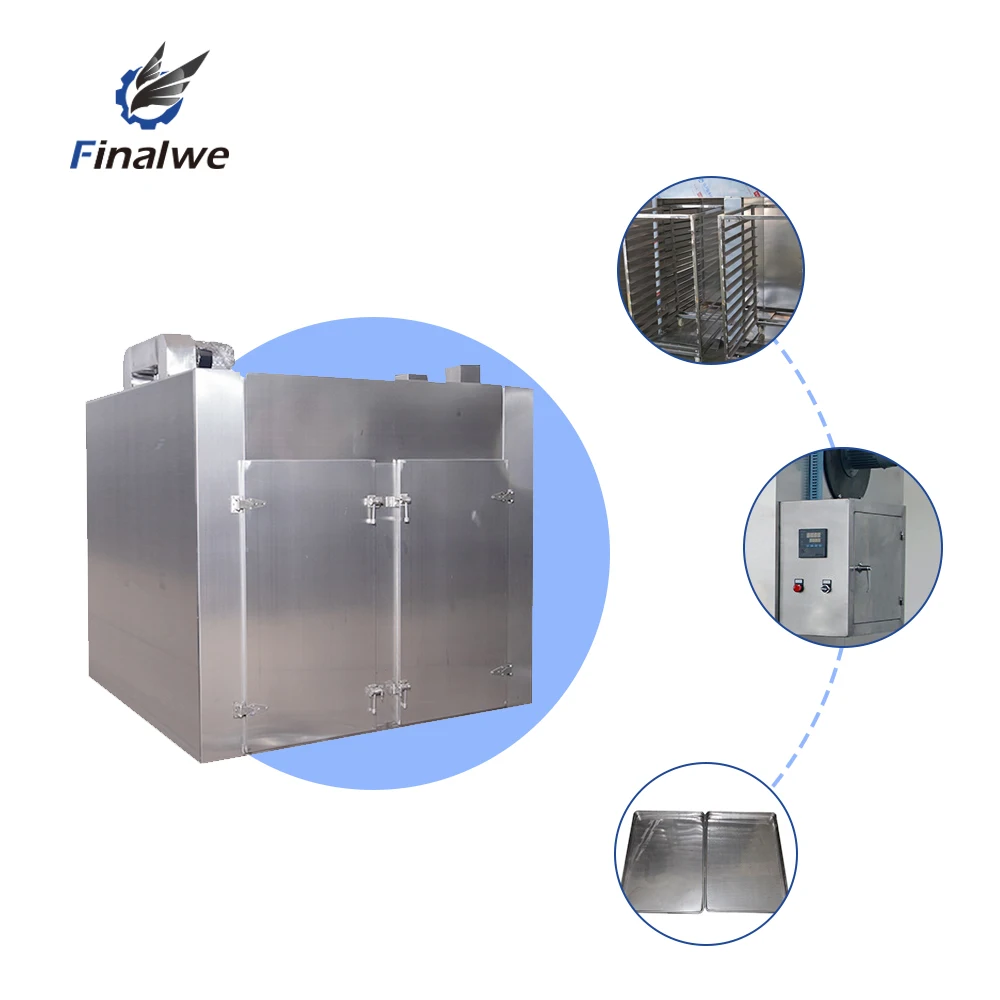

Fruit Drying Fluid Bed dryer wall mounted dryer Drying Equipment Dryer Oven
- Category: >>>
- Supplier: Sinoped Technology (shenyang) Co. Ltd.
Share on (1600944913328):
Product Overview
Description
Product Description

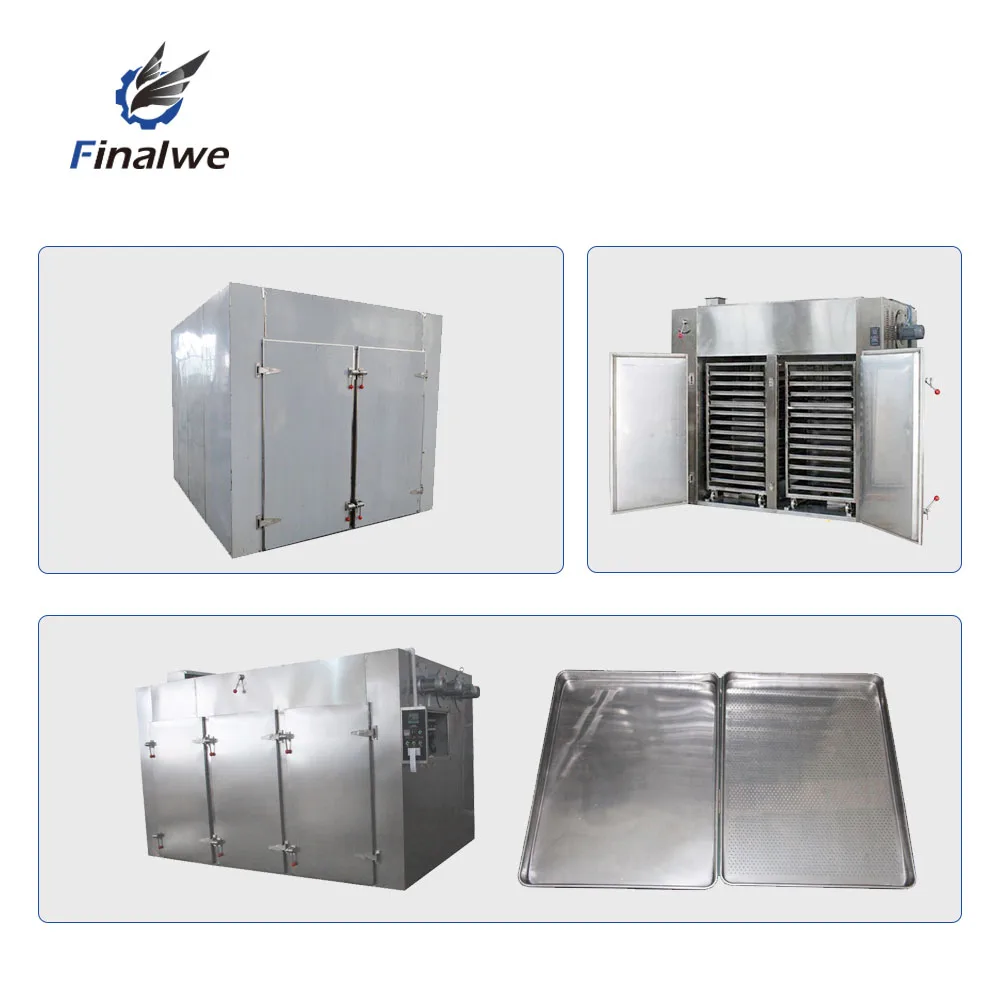

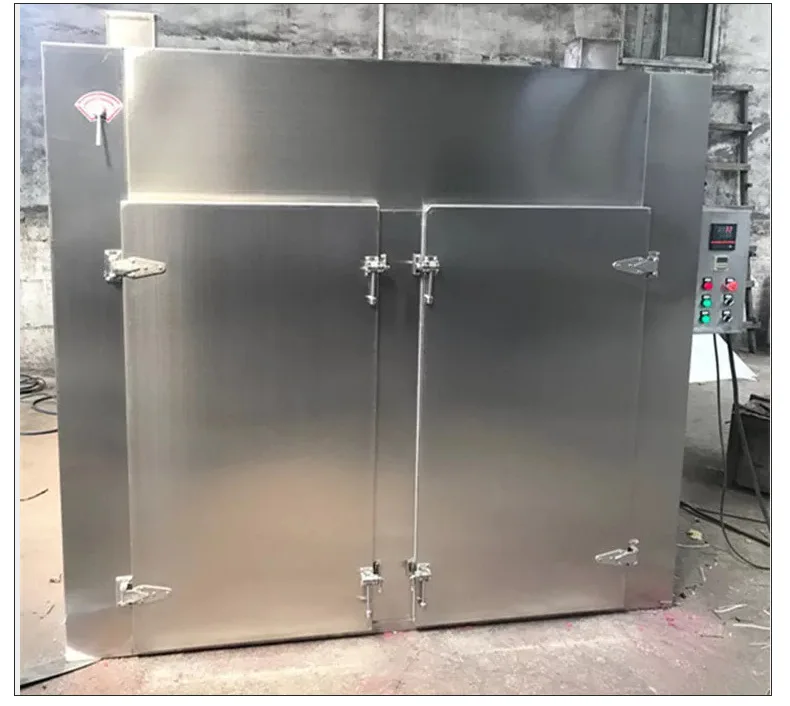

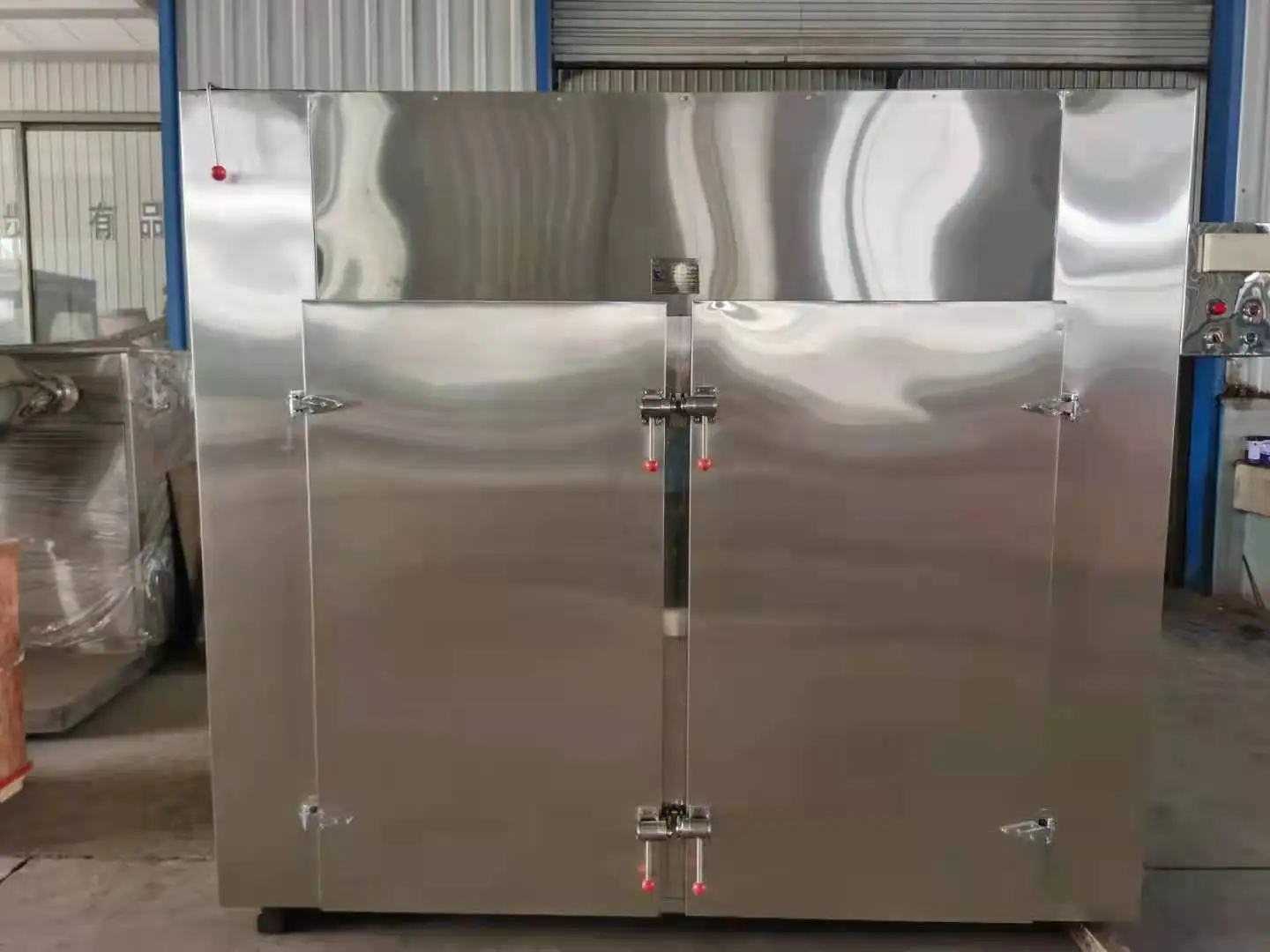

RXH series hot air circulation oven is widely used in food, chemical and other industries for heating drying or dehumidification of materials.
The working principle of this machine is to use steam or electric heater to heat the air, and then the heated air circulates and dries the material. The temperature difference in the box is small and dry evenly.
Equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system, the whole circulation system is completely closed.
The working principle of this machine is to use steam or electric heater to heat the air, and then the heated air circulates and dries the material. The temperature difference in the box is small and dry evenly.
Equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system, the whole circulation system is completely closed.
Feature

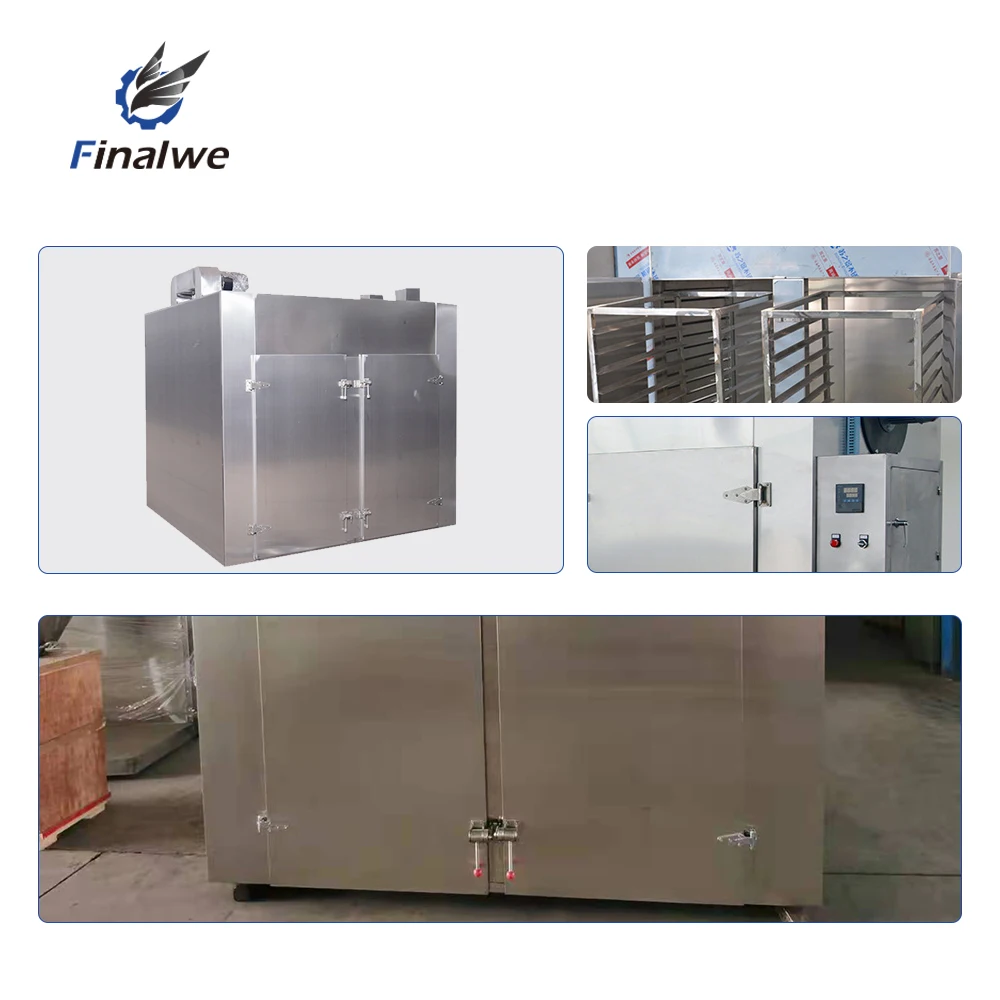

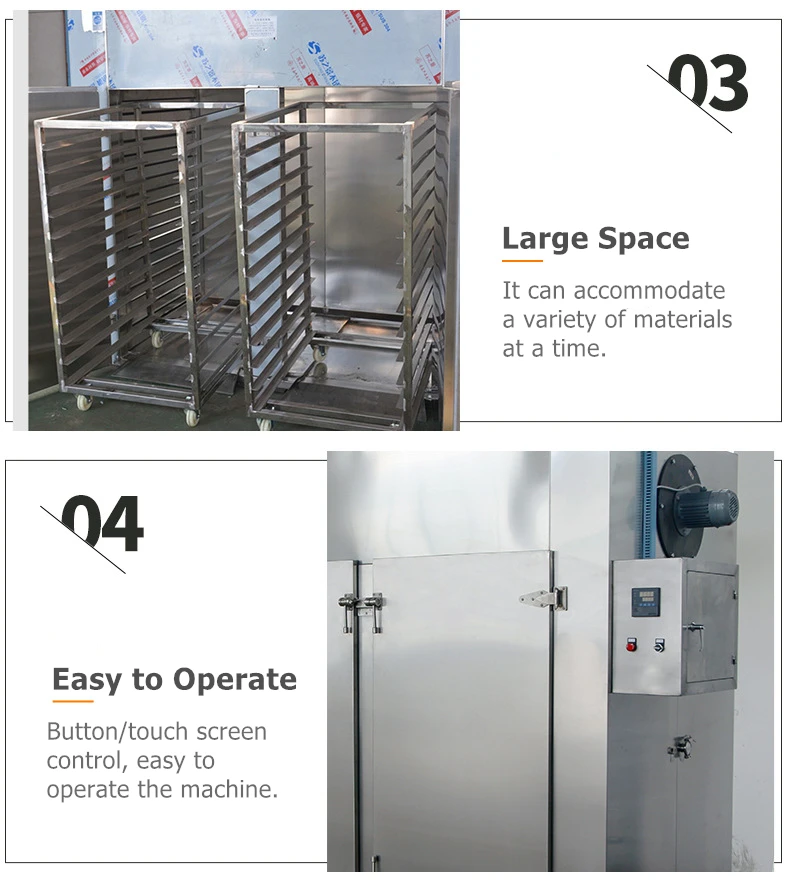

1. the control cabinet adopts button control (can also be made according to user requirements touch control), more convenient operation, prolong the service life. Most of the hot air circulates in the box, with high thermal efficiency and energy saving.
2. the use of forced ventilation, the box is equipped with adjustable air distribution plate, material drying uniform, heat source can use steam, hot water, electricity, far infrared, a wide range of choices.
3. the machine has low noise, balanced operation, automatic temperature control, convenient installation and maintenance. Applicable to a wide range of drying materials, is a general drying equipment.
2. the use of forced ventilation, the box is equipped with adjustable air distribution plate, material drying uniform, heat source can use steam, hot water, electricity, far infrared, a wide range of choices.
3. the machine has low noise, balanced operation, automatic temperature control, convenient installation and maintenance. Applicable to a wide range of drying materials, is a general drying equipment.
Specification

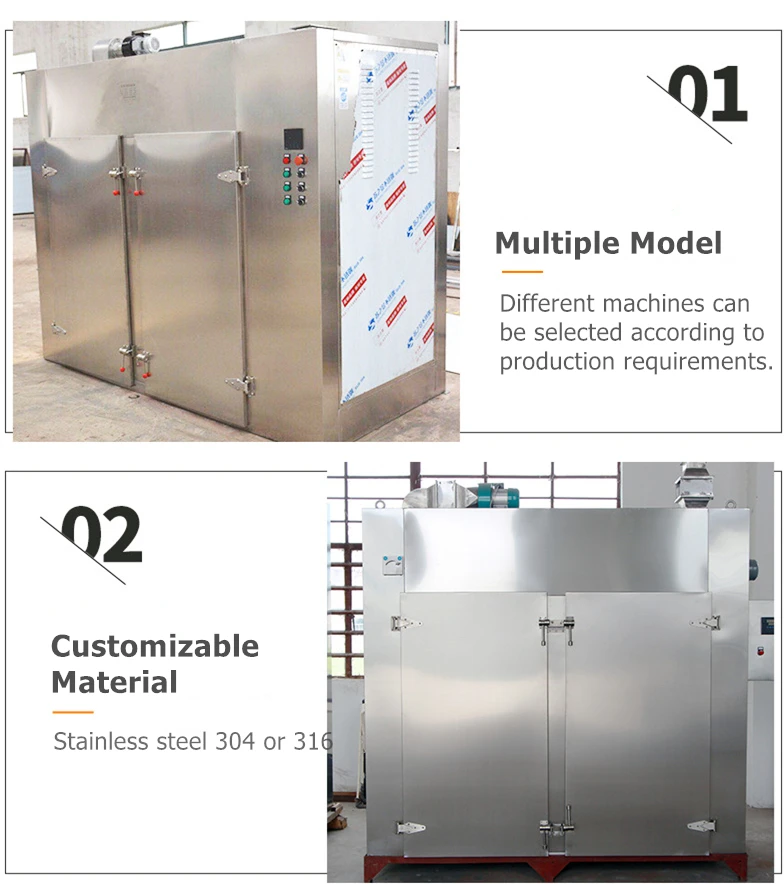

Industry standard model | RXH-5-C | RXH-14-C | RXH-27-C | RXH-41-C | RXH-54-C |
Old model | CT-0 | CT-C-I | CT-C-II | CT-C-III | CT-C-IV |
Drying quantity/time(kg) | 25 | 100 | 200 | 300 | 400 |
Power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
Steam consumption(kg/h) | 5 | 18 | 36 | 54 | 72 |
Air volume (m³/h) | 3400 | 3400 | 6900 | 10350 | 13800 |
Temperature difference | ±2°C | ±2°C | ±2°C | ±2°C | ±2°C |

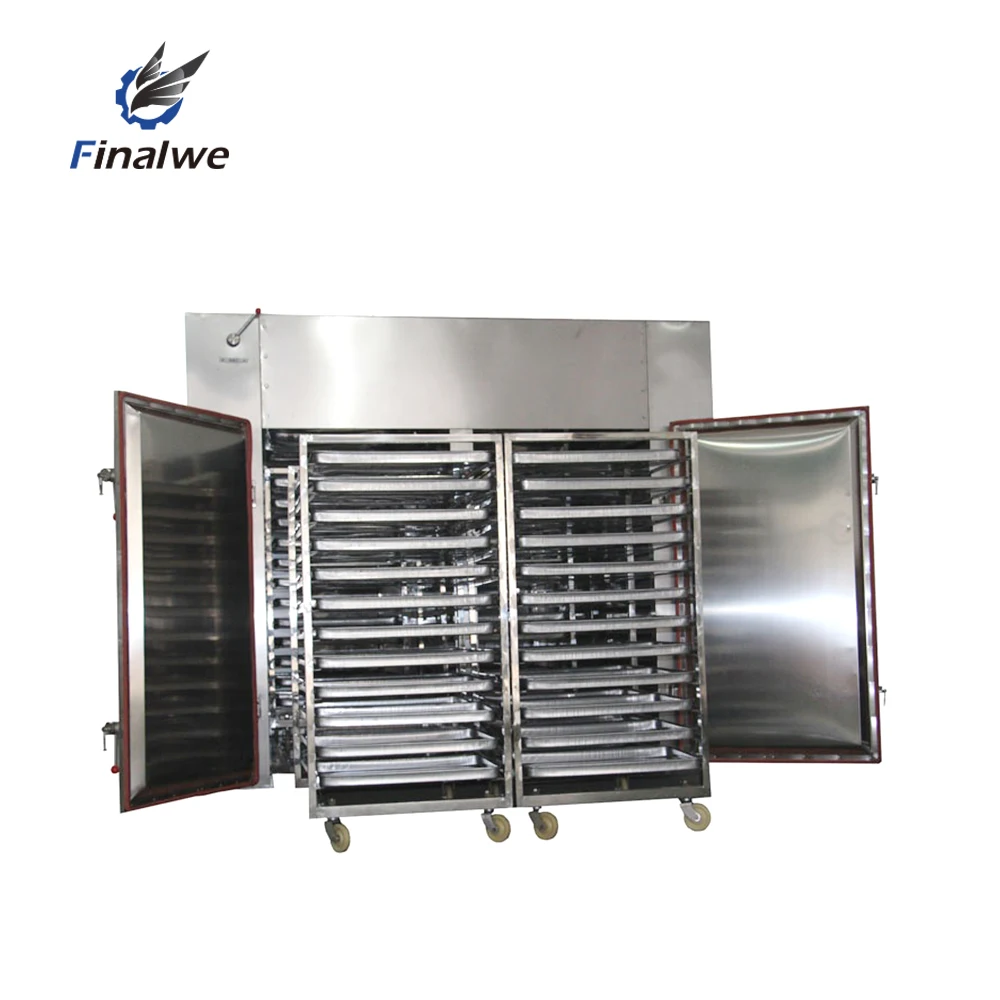

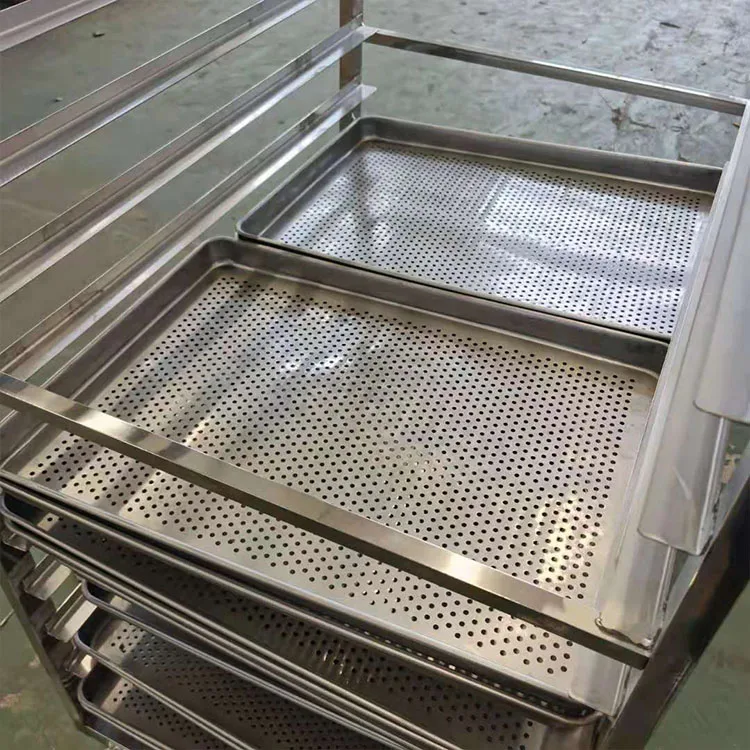

Tray | 24 | 48 | 96 | 144 | 192 |
Size(mm) | 1550×1000×2290 | 2300×1200×2300 | 2300×2200×2300 | 2300×3200×2300 | 4460×2200×2290 |

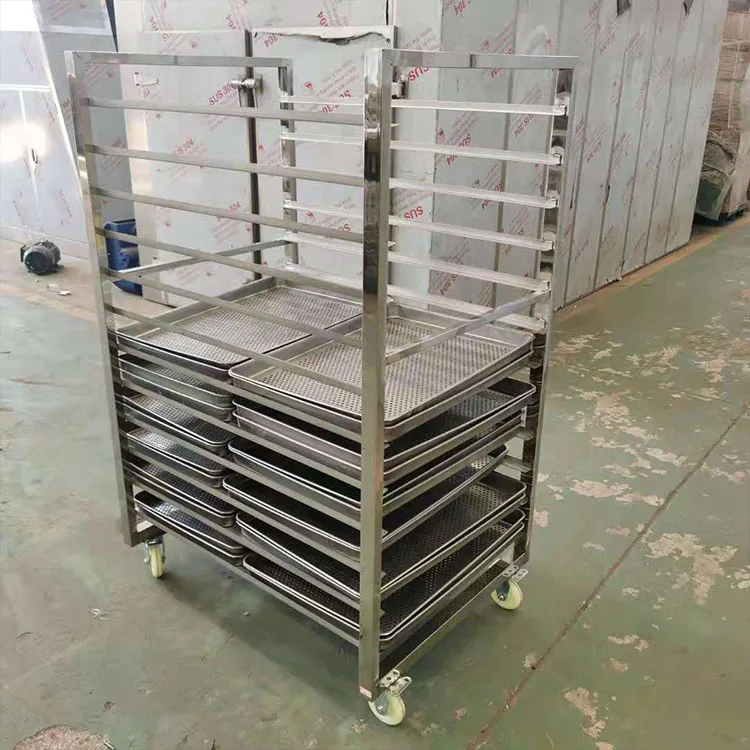

Note | 1 door 1 cart | 2 door 2 cart | 2 door 4 cart | 3 door 6 cart | 4 door 8 cart |
Net weight (kg) | 600 | 1000 | 1600 | 2200 | 2900 |
Gross weight(kg） | 850 | 1350 | 1350 | 2750 | 3700 |
