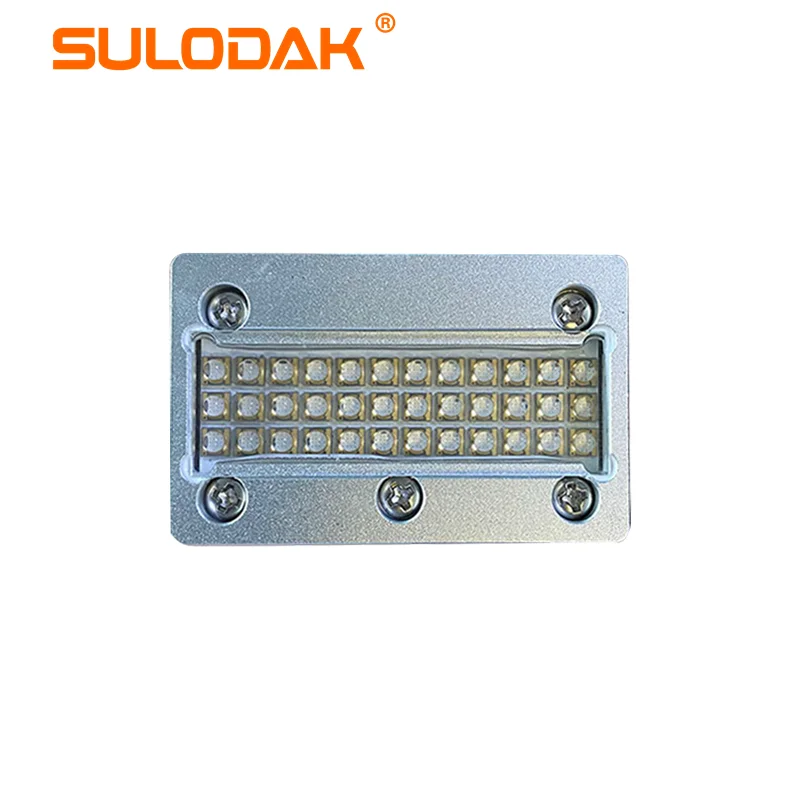

LED UV Curing Lamp Water Cooling System Print Heads for UV Printer Flatbed Printing with Chiller Lamp Size 50*15MM 18 80 1 50
- Category: >>>
- Supplier: Sulodak (Shenzhen) Technology Co. Ltd.
Share on (1600945103783):
Product Overview
Description
Product Paramenters

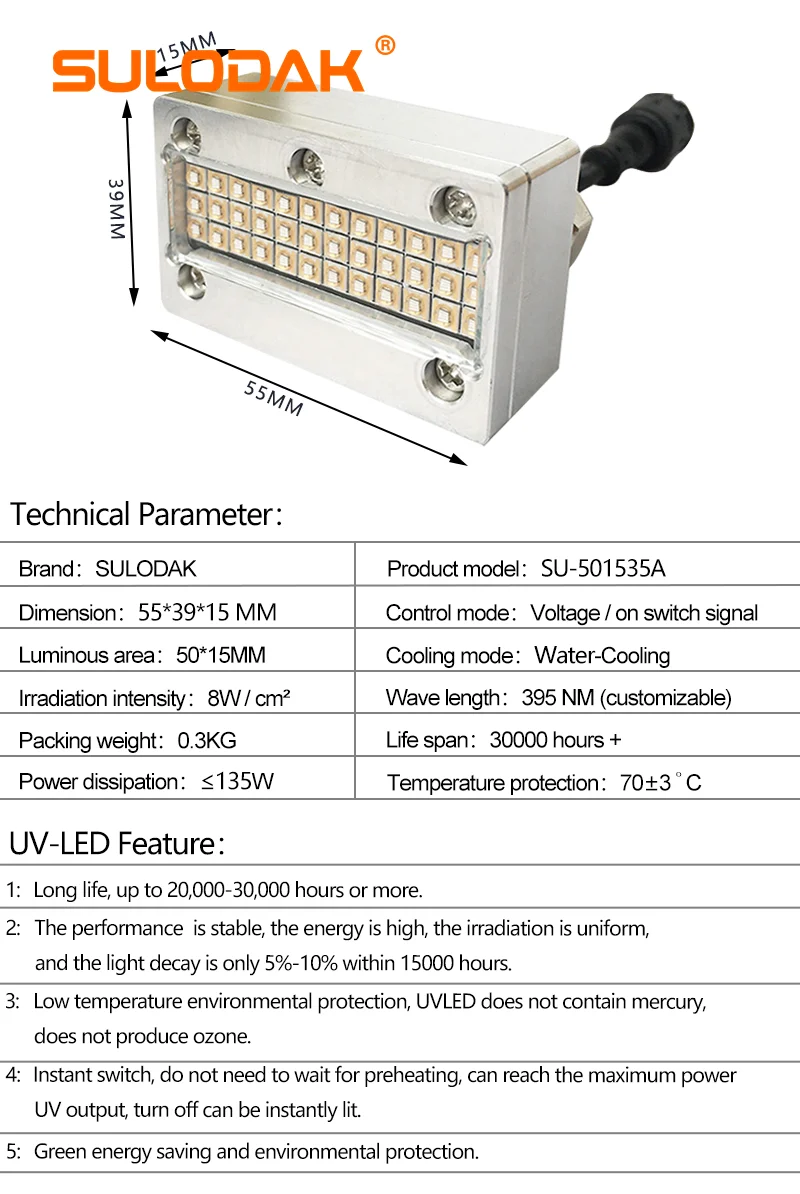

Model : | SU-501535A-GY | Brand : | SULODAK | |||

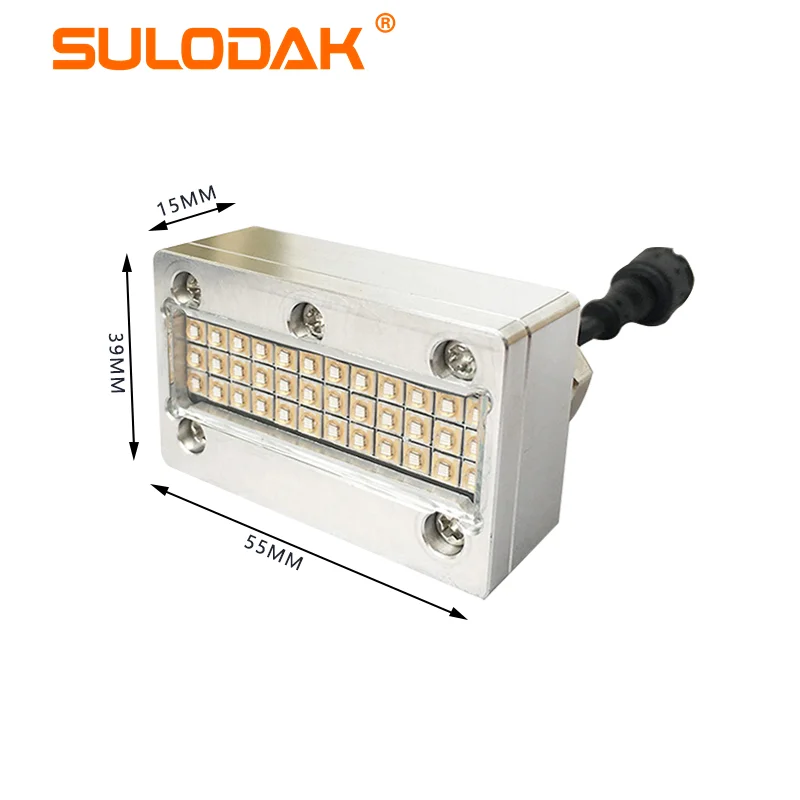

Size : | 55*39*15MM | Power : | 135 W | |||
Irradiation Area : | 50*15 MM2 | Irradiance : | 12W/cm2 | |||
Wavelength : | 395 NM (ODM) | Life : | 30000 H+ | |||
Control : | I/O ; DC 5-32V | Smart Protection : | > 75 °C | |||
Cooling Method : | Water | Drive Power | Constant Current Power Supply | |||
Feature : | High Power | Application : | UV Ink Curing | |||
UV printer field: Ricoh; Epson; Konica; Toshiba; Kyocera; SEIKO; Xaar Prinhead; Nozzle supporting LED UV varnish curing lamp; Epson 6090 6045, A3 A4 UV Printer; Kyocera, Ricoh G5/G6; Konica 1024i; Seiko 1020 multi-row printhead; Epson TX800 XP600 Nozzle; Belt guide machine UVLED ink drying; Large 5m/3.2m Industrial UV Roll Printing Machine; Applicable models of UV flatbed printer: 1325, 2513, 2030, 1513, 1015, 1512, 1612, 3220, 1513; UV inkjet printer field: Online inkjet printer LED UV ink curing lamp; Ricoh G5 G6 UV coding pre-curing; UV LED digital printing drying curing lamp; | ||||||
Details Images
Production Process
First Step
UV Chip Package LED Module
Solid Crystal Station
Wire Bonding Station
Appearance Inspection
Inspection Test
Aging Test
Second Step
Assembly of UV LED Light Source
Installation of UV LED Modules
Welding of UV LED Modules
Appearance Inspection
Assembling The Cooling Water Tank
Aging Test
Third Step
Pack and Store

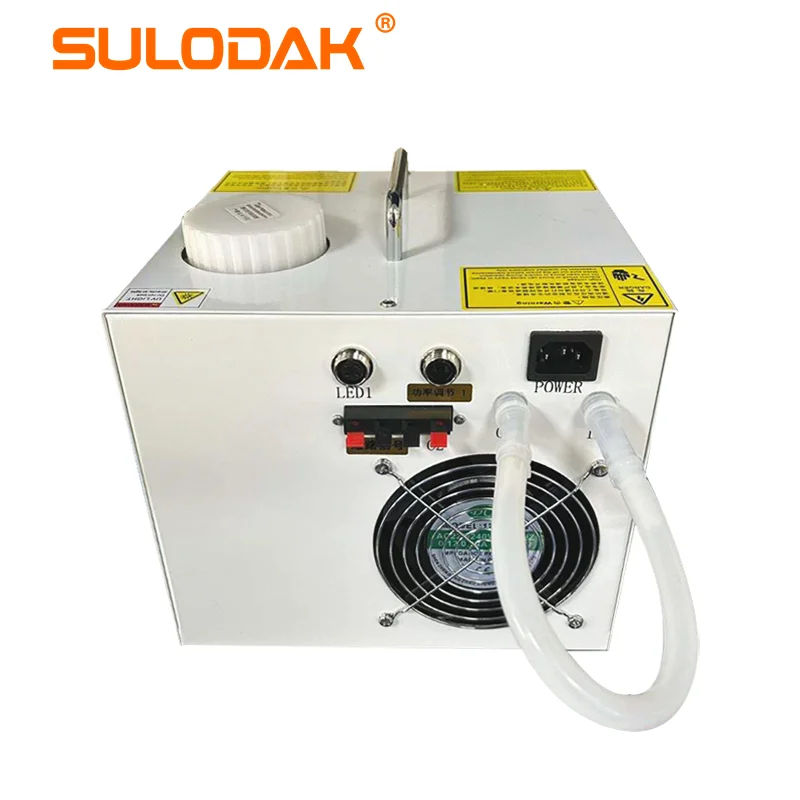

Compressor Cooling Water Tank
Intelligent Control Water Tank
Control Electrical Box
Packing Inspection
Package Carton
Company Profile
Sulun Dianke (Shenzhen) Technology Co., Ltd. is a high-tech enterprise integrating the development, manufacturing, sales and service of uvled light curing equipment. It covers an area of 2,000 square meters and is located in Shenzhen, the city of modern technology dreams.
Cooperative Company
Customer Application Photos
Professional UV LED systems for every application
UV Flatbed Printing
UV Screen Printing
UV Collimated Light Source
LCD Screen Combo
Fluorescent Detection
PVC Drop Plastic
UV Quick Inkjet Printer
PCB Green Oil Curing
UV Oven
UV Rotary Machine
UV Exposure Machine
UVC Sterilization
Product packaging
Single UV LED Light Source Packaging
The Packaging Weight of Each Model Of UV LED Light Is Different. For Details, Please Contact Us.
Step 1: Light Up Inspection Before Shipment
Step 2: Hydrostatic Testing Before Shipment
Step 3: Checklist
Step 4: Pack Into Carton
Step 5: Box Sealing

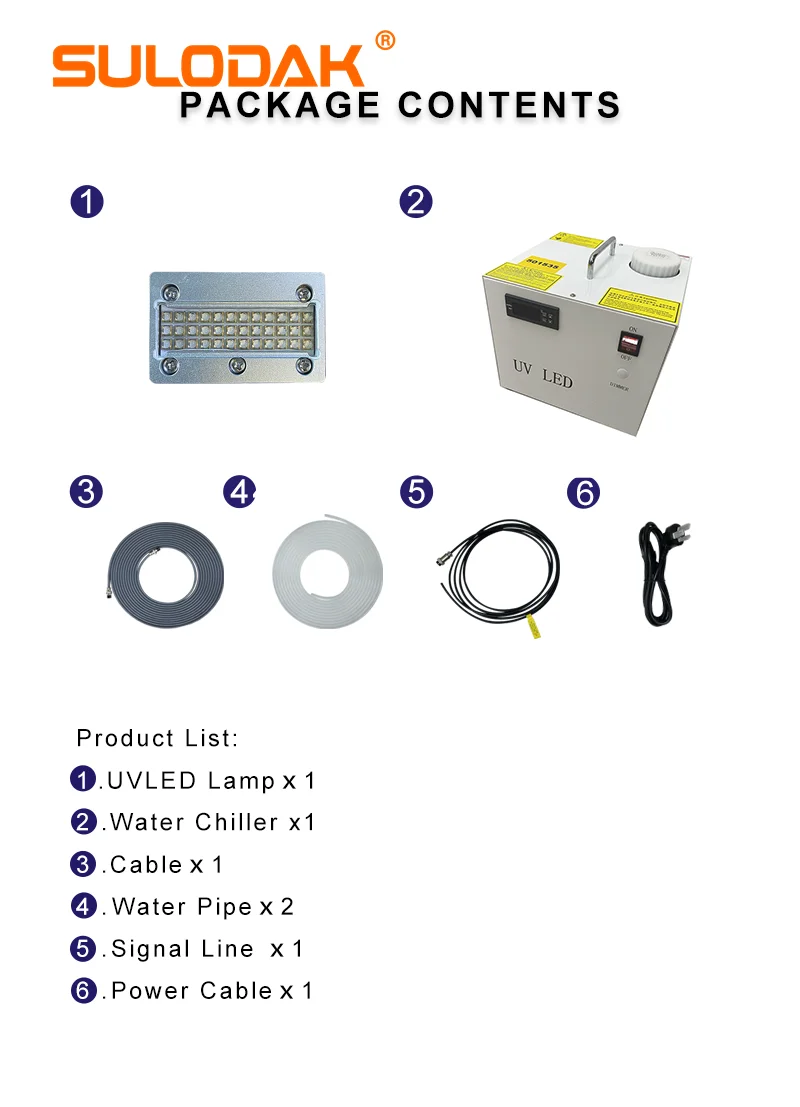

Complete UV LED Curing System Packaging
The Packaging Weight of Each Model Of UV LED Light Is Different. For Details, Please Contact Us.
Step 1: Do Final Inspection Before Shipment
Step 2: Checklist Before Packing
Step 3: Pack Into Carton
Step 4: Box Sealing
Step 5: Waiting for Transport
Why Choose Us
1.Covers an area of 2,000 square meters!
2.10 years' experiences!
3.Strength R&D Center
4.High product quality and low price!
5.Low MOQ!
6.Fast shipping!
7.Short delivery time!\t
FAQ
Q1. Are you a factory?
A:Yes! We are factory in Shenzhen. We have been producing UV LED products for six years.
A:Yes! We are factory in Shenzhen. We have been producing UV LED products for six years.
Q2. What's the wavelength of the UV LED lamp?
A: The wavelength of UV LED lamp usually are 365-405nm.The wavelength for inkjet printer is 395nm, 385/395nm for printing machine, 365nm for UV glue.
A: The wavelength of UV LED lamp usually are 365-405nm.The wavelength for inkjet printer is 395nm, 385/395nm for printing machine, 365nm for UV glue.
Q3. What's your LED chip?
A: We use are Korea LG, Taiwna Epileds, Japan Seoul,Nichia about the LED chip brand
A: We use are Korea LG, Taiwna Epileds, Japan Seoul,Nichia about the LED chip brand
Q4. What's the materials of the lamp and lens?
A: The materials of lamp is Aluminum,and the lens are quartz.
A: The materials of lamp is Aluminum,and the lens are quartz.
Q5.What's the cooling way?
A: Most of UVLED are water cooling. We also have several hot selling air cooling UVLED, more air cooling UV LED are on the way.
A: Most of UVLED are water cooling. We also have several hot selling air cooling UVLED, more air cooling UV LED are on the way.
Q6. What’s the lifespan of UV LED?
A: The lifespan of the LED chip is 20,000 hours in theory. If you take care it during the usage, it usually can be used 3-5years. Sulodak’s initial customers have been used the UV LED for 5 years.
A: The lifespan of the LED chip is 20,000 hours in theory. If you take care it during the usage, it usually can be used 3-5years. Sulodak’s initial customers have been used the UV LED for 5 years.
Q7. What’s the warranty?
A: All of products can warranty for one year, if any parts damaged in warranty, we can supply the parts for free, but you need send back the UV LED lamp and power supply or water chiller, other parts no need send back.
A: All of products can warranty for one year, if any parts damaged in warranty, we can supply the parts for free, but you need send back the UV LED lamp and power supply or water chiller, other parts no need send back.
Q8. Can we customize the product?
A:Yes! We can producing the products according to your requirements
A:Yes! We can producing the products according to your requirements
Q9. What is your usual payment terms for orders?
A:Alibaba Trade Assurance Order. T/T, PAYPAL, WESTERN UNION, BANK TRANSFER VISA/MASTERCARD etc. More payment terms could be provided.
A:Alibaba Trade Assurance Order. T/T, PAYPAL, WESTERN UNION, BANK TRANSFER VISA/MASTERCARD etc. More payment terms could be provided.
Q10. How long does it take for my order to be shipped?
A:It usually takes 1-3 days, depending on the quantity. Most of the regular models are in stock and will be shipped within 1-3 days, and customized products will be shipped within 7-15 working days.
A:It usually takes 1-3 days, depending on the quantity. Most of the regular models are in stock and will be shipped within 1-3 days, and customized products will be shipped within 7-15 working days.
Q11. Can I get a discount?
A:Yes, you can. I will give you want price if your quantity is more or you have a special situation . Cooperation is first, price is second.
A:Yes, you can. I will give you want price if your quantity is more or you have a special situation . Cooperation is first, price is second.
