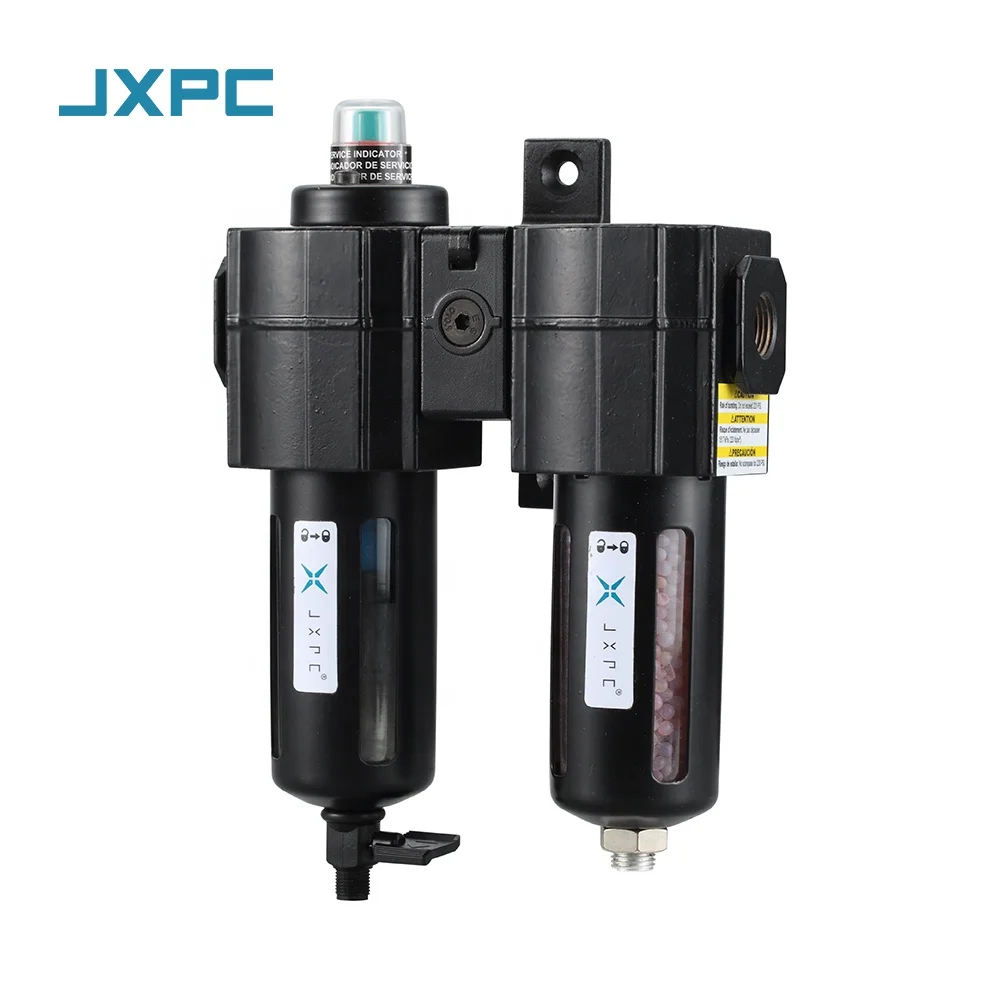

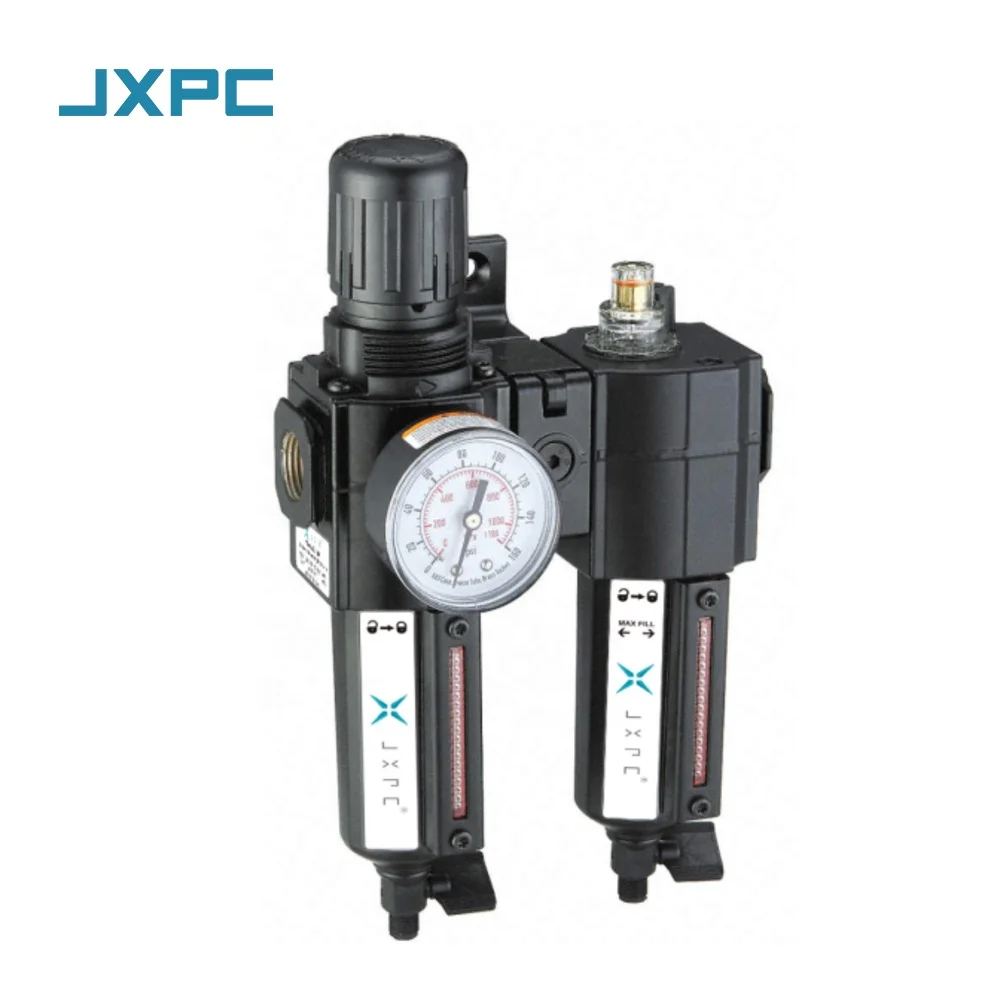

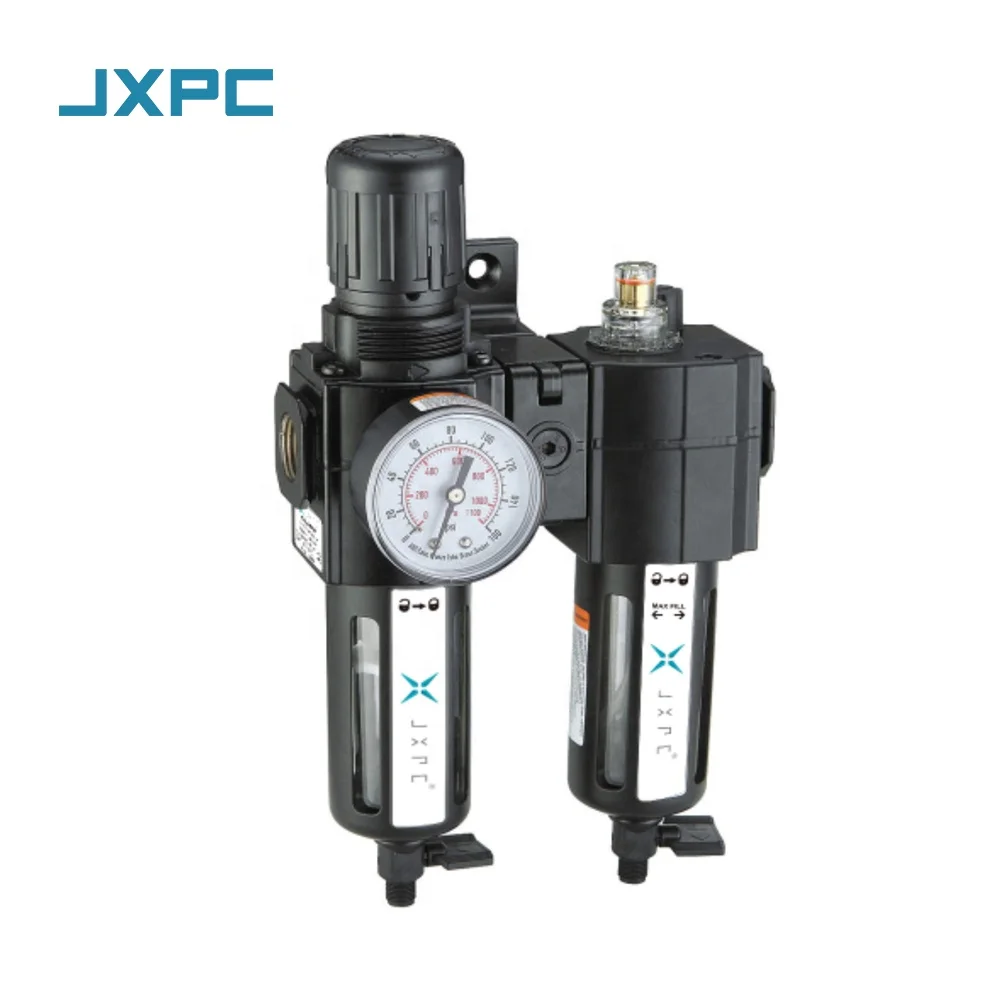

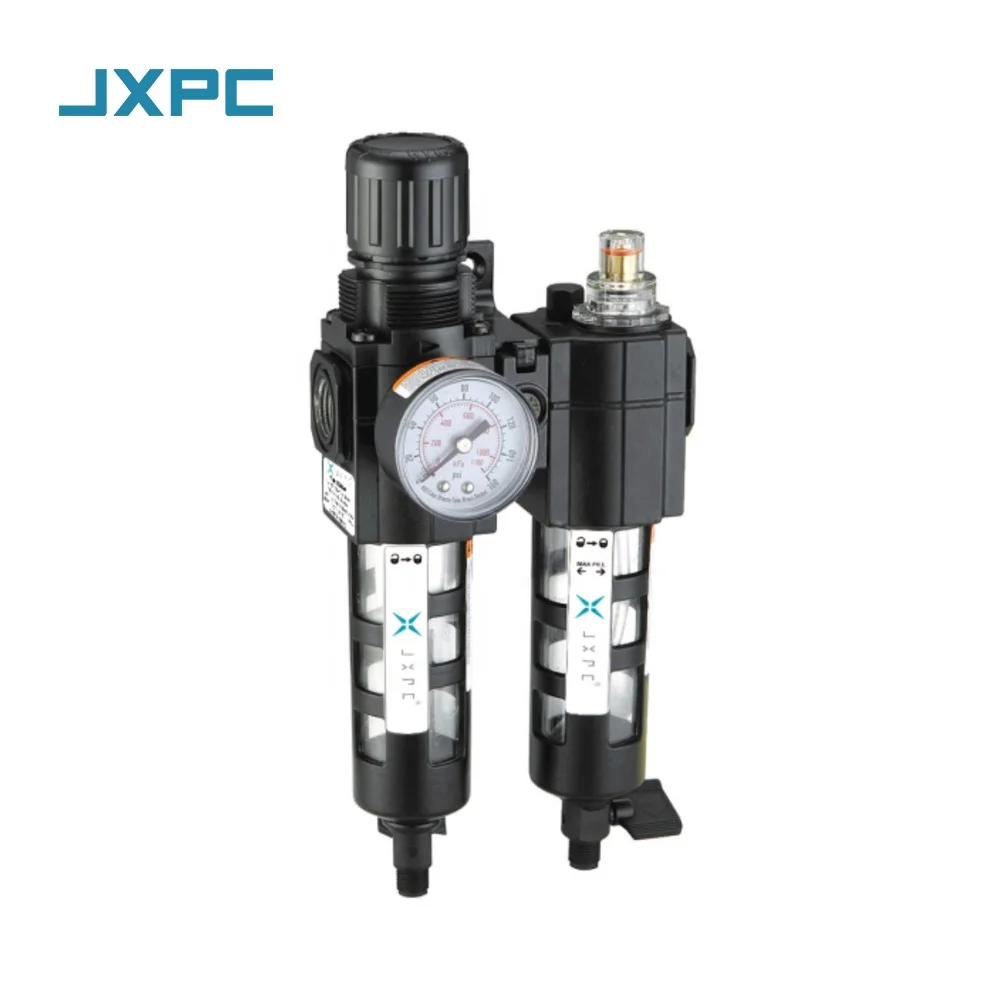

JXPC Modular Type Plastic Bowl Air Compressor Filter Regulator and Lubricator Unit
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.Ningbo Ltd.
Share on (1600945113643):
Product Overview
Description
Product Description
Technical data:
Max.working pressure:10bar/150psi
Adjusting pressure range:0.5-10 bar/5-150pis
Temperature:5-80
Plastic or metal bowl optional
5um and 40um filter element optional
micro mist can inject the oil mist up to 15 meters
Modular design
Pressure up to 17 bar
auto drain optional
| Specification for Metal Cup | 4Z Series FRL Unit | |||||||
| Compact | Intermediate | Standard | ||||||
| Model Type | 2FRL25M-02 | 2FRL25M-03 | 2FRL30M-02 | 2FRL30M-03 | 2FRL30M-04 | 2FRL40M-03 | 2FRL40M-04 | 2FRL40M-05 |
| Medium | Compressed Air | |||||||
| Filter Precision | 40UM(5UM) | |||||||
| Pressure Adjusting Range | 0.05-1MPa(5PSI-150PSI) | |||||||
| Max. Working Pressure | 1.7MPa(250psi) | |||||||
| Working Temperature | 5-80 | |||||||
| Filter Bowl Capacity | 120 | 125 | 245 | |||||
| Oil Cup Capacity | 80 | 85 | 155 | |||||
| Flow Rate(cfm) | 51 | 51 | 60 | 60 | 60 | 114 | 192 | 186 |
| Weight(KG) | 1.4 | 1.4 | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 |
| Port Size(NPT) | 1/4 | 3/8 | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 3/4 |
| Container Cup Material | Metal cup,zinc alloy | Metal cup,aluminum die-casting | ||||||

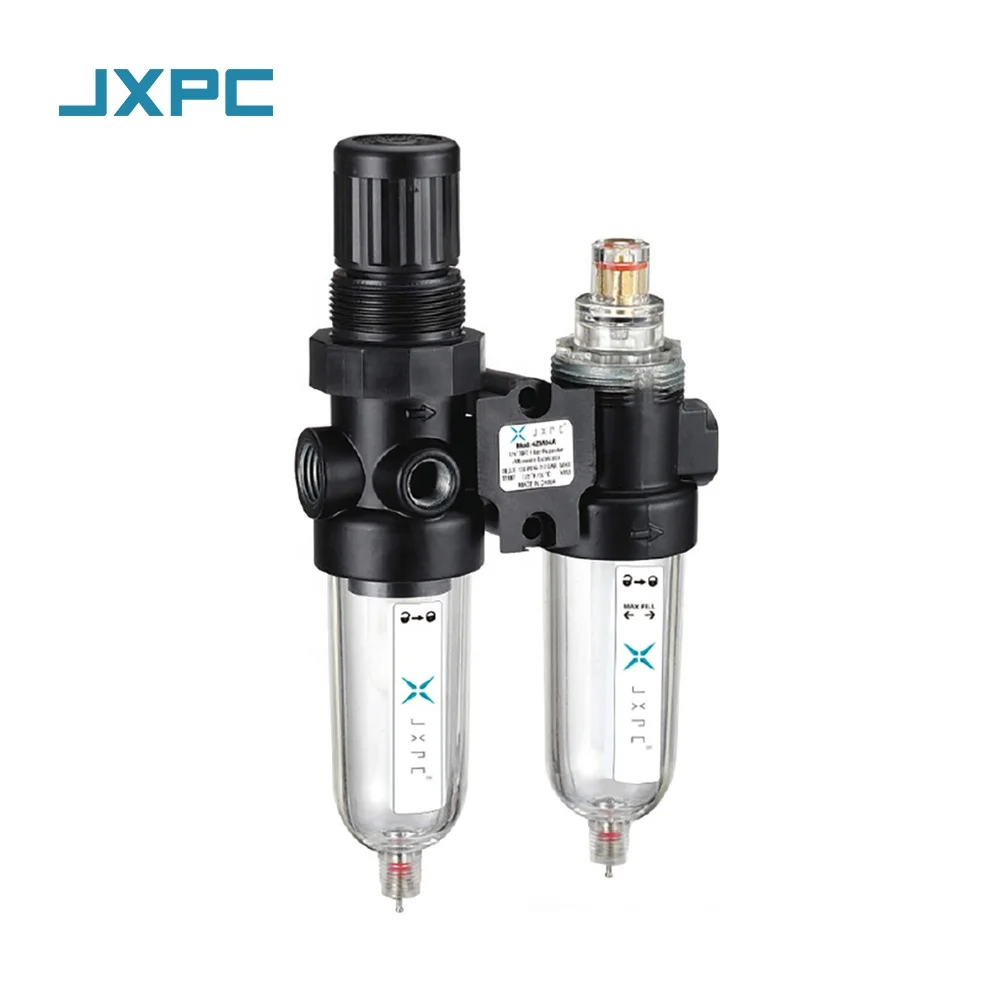

| Specification for Polycarbonate Cup | 4Z Series Filter & Regulator | |||||||
| Minature | Compact | Intermediate | Standard | |||||
| Model Type | 2FRL20C-02 | 2FRL25C-02 | 2FRL25C-03 | 2FRL30C-02 | 2FRL30C-03 | 2FRL30C-04 | 2FRL40C-03 | |
| Medium | Compressed Air | |||||||
| Filter Precision | 40UM(5UM) | |||||||
| Pressure Adjusting Range | 0.85MPa(125PSI) | |||||||
| Max. Working Pressure | 1MPa(150psi) | |||||||
| Working Temperature | 5-50 | |||||||
| Filter Bowl Capacity | 40 | 75 | 120 | 230 | ||||
| Oil Cup Capacity | 20 | 45 | 80 | 150 | ||||
| Flow Rate(cfm) | 10 80 | 51 | 51 | 60 | 60 | 60 | 114 | |
| Weight(KG) | 0.48 1.3 | 1.3 | 1.3 | 1.5 | 1.5 | 1.5 | 2 | |
| Container Cup Material | water cup,polycarbonate | |||||||

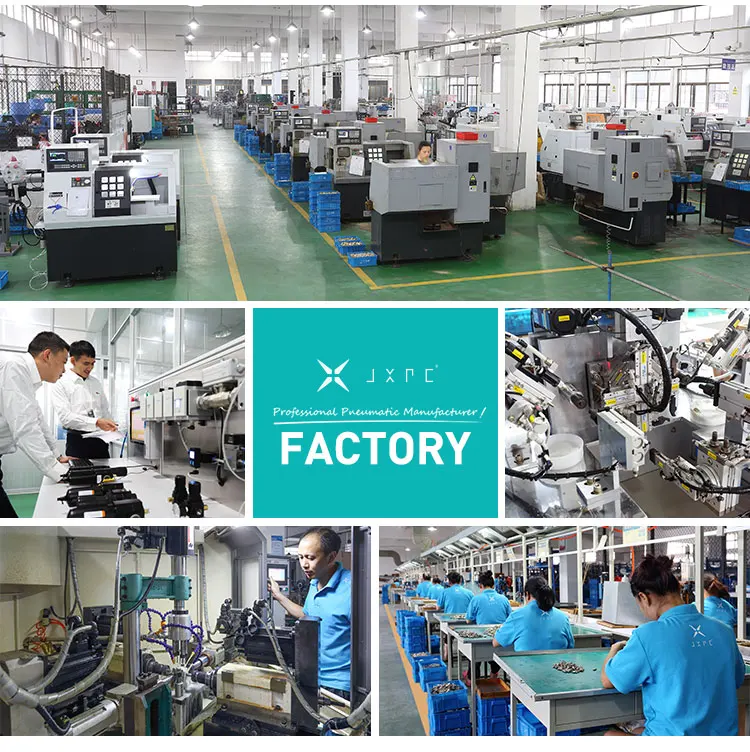

Company Information
