Stationary dock leveler for logistics park exquisite container load ramp hydraulic ramp lift
- Category: >>>
- Supplier: Shandong Chufeng Heavy Industry Machinery Co. Ltd.
Share on (1600945134501):
Product Overview
Description
Related Products
Product Description

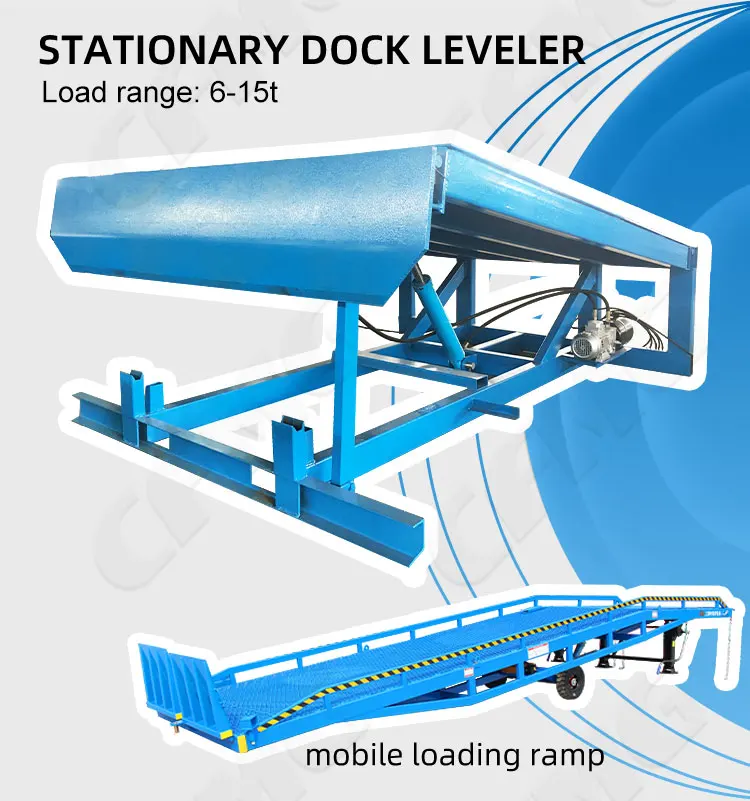

CFMG hydraulic stationary dock leveler is a special auxiliary equipment used for loading and unloading of goods.Its height can be adjusted with the different heights of lorries.Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person for operating. The equipment can help enterprise reduce so much labor force,improve work efficiency and speed up the rate of goods flow, so as to achieve greater economic results.

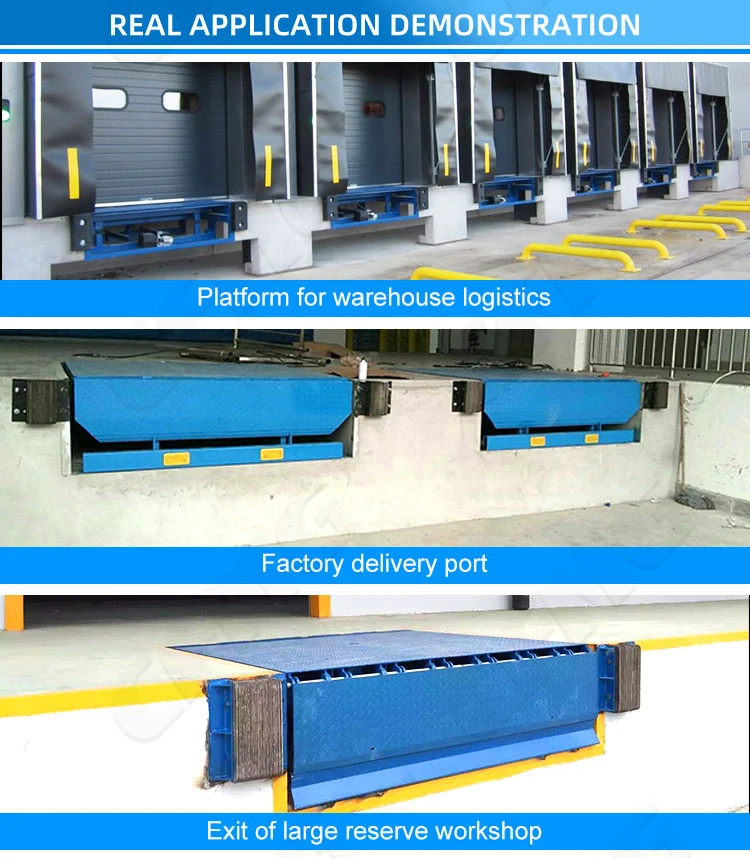

Applications:

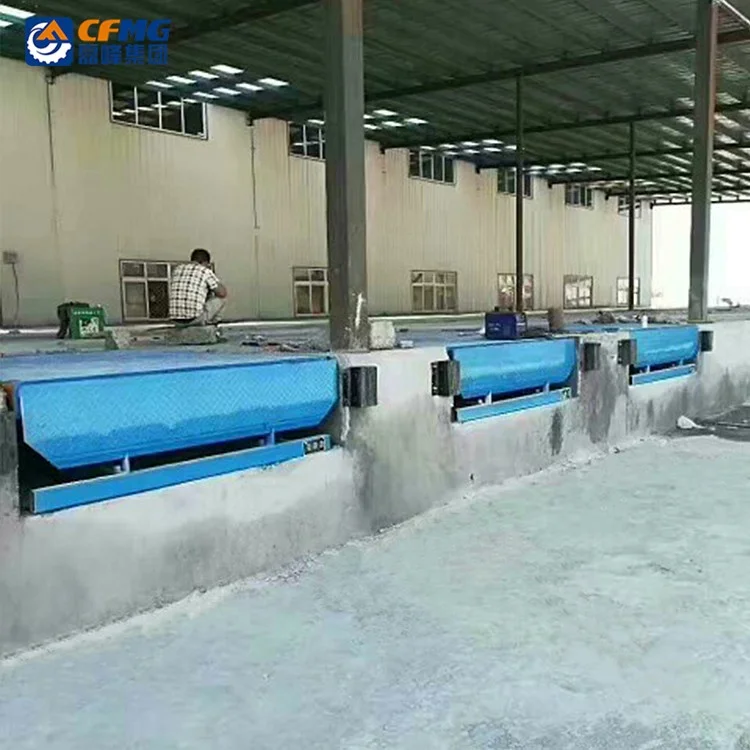

Warehouse, station, dock, logistics base, and other places where goods are handled frequently to or from vehicles.
Warehouse, station, dock, logistics base, and other places where goods are handled frequently to or from vehicles.
Stationary dock leveler | ||||||||||||
Model | table size (mm) | lip (mm) | up (mm) | down (mm) | pit size (mm) | weight (kg) | ||||||
DCQG6-0.7 | 2000*2500 | 400 | 300 | 200 | 2080*2540*600 | 750 | ||||||
DCQG8-0.7 | 2000*2500 | 400 | 300 | 200 | 2080*2540*600 | 850 | ||||||
DCQG10-0.7 | 2000*2500 | 400 | 300 | 200 | 2080*2540*600 | 950 | ||||||
DCQG12-0.7 | 2000*2500 | 400 | 300 | 200 | 2080*2540*600 | 1100 | ||||||

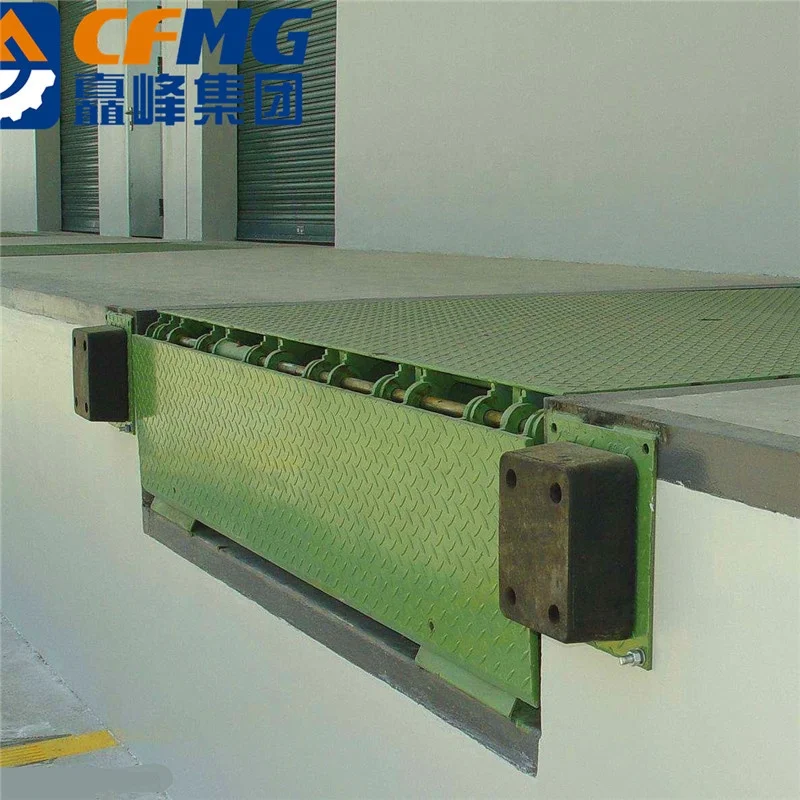

Hydraulic Loading Unloading Dock Leveler Lift container loading ramp loading platform is an optimal solution, which provide the pick-and-place operation and ensure fast loading and unloading. When activated, the leveler is lifted and the lip opens while turning. Next, the platform is lowered until it reaches the floor of the vehicle body.
The system is ready for operation. After the work is completed the leveler is lifted, the lip lowers and takes a vertical position, then the platform is returned its original position. Installation can be carried out by both, embedded and suspended installing methods.

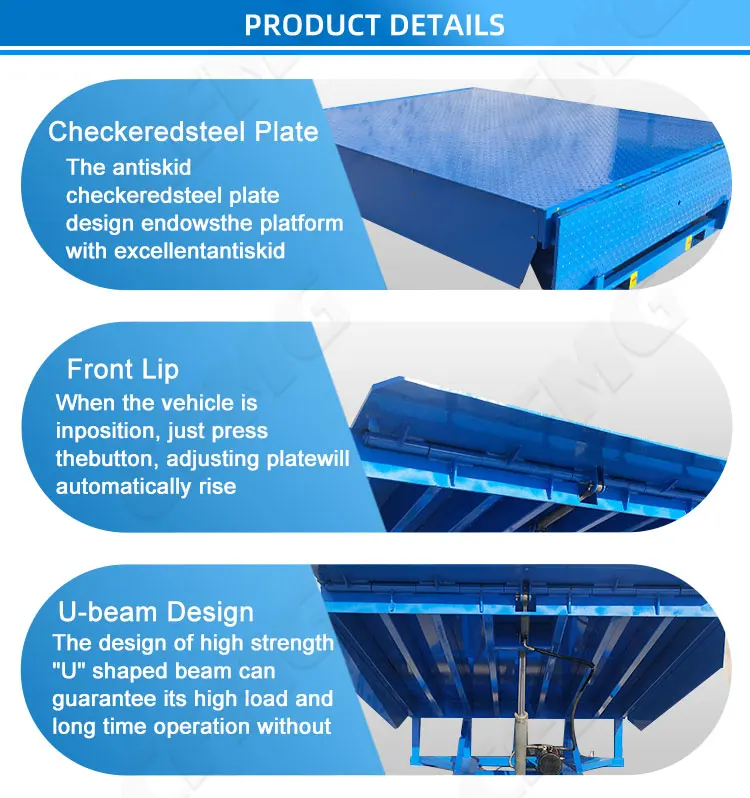

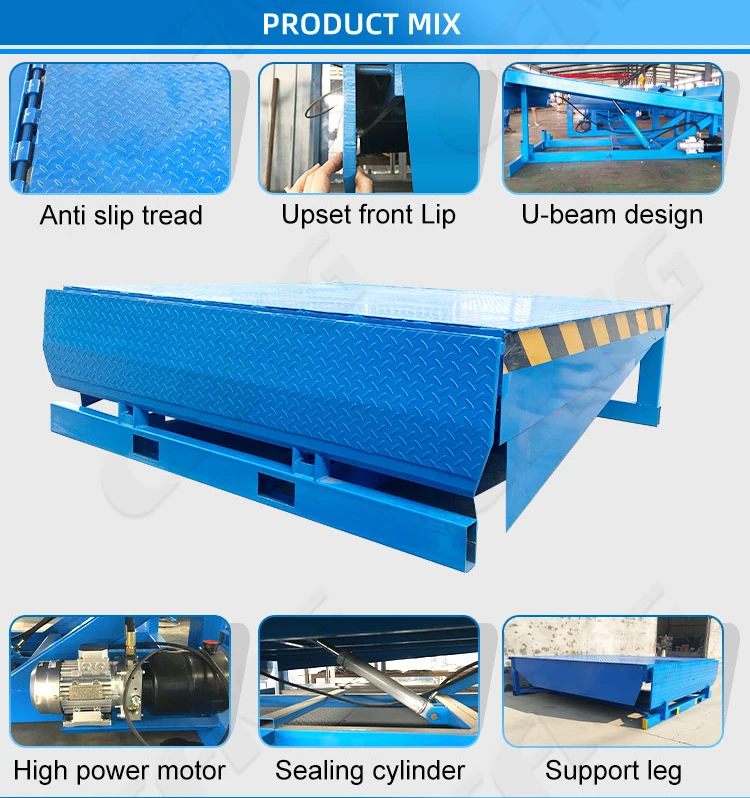

Main Future
1.All-hydraulic drive, easy operation
2.Lip plate is connected to the ramp with long axis, high-strength and reliable
3.Imported sealing part to guarantee good sealing performance of hydraulic system
4.Modular hydraulic station with good sealing quality
5.High strength "U"-shape design to ensure big load capacity without deformation
6.Skirt board is designed to prevent damage of toes
7.Supporting bar is arranged for internal maintenance
2.Lip plate is connected to the ramp with long axis, high-strength and reliable
3.Imported sealing part to guarantee good sealing performance of hydraulic system
4.Modular hydraulic station with good sealing quality
5.High strength "U"-shape design to ensure big load capacity without deformation
6.Skirt board is designed to prevent damage of toes
7.Supporting bar is arranged for internal maintenance

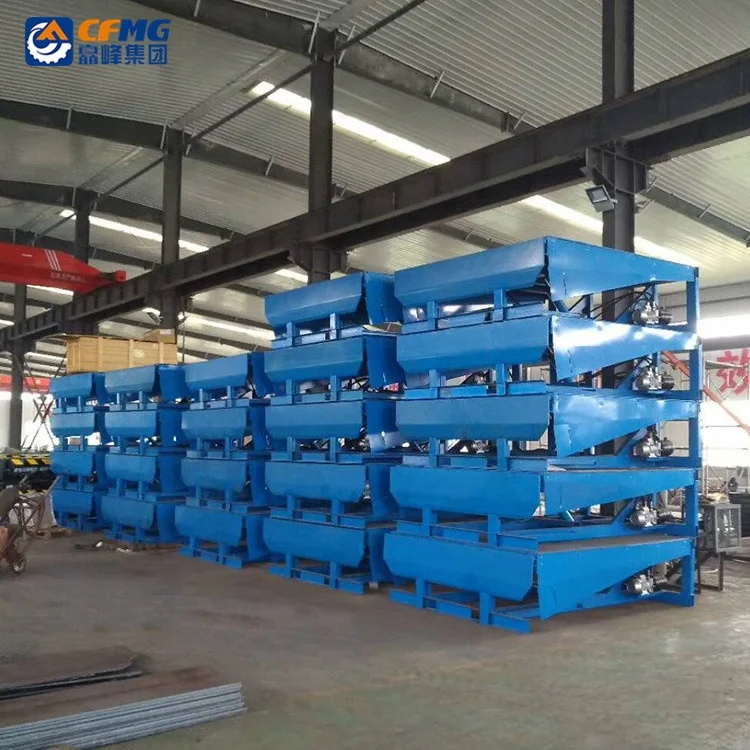

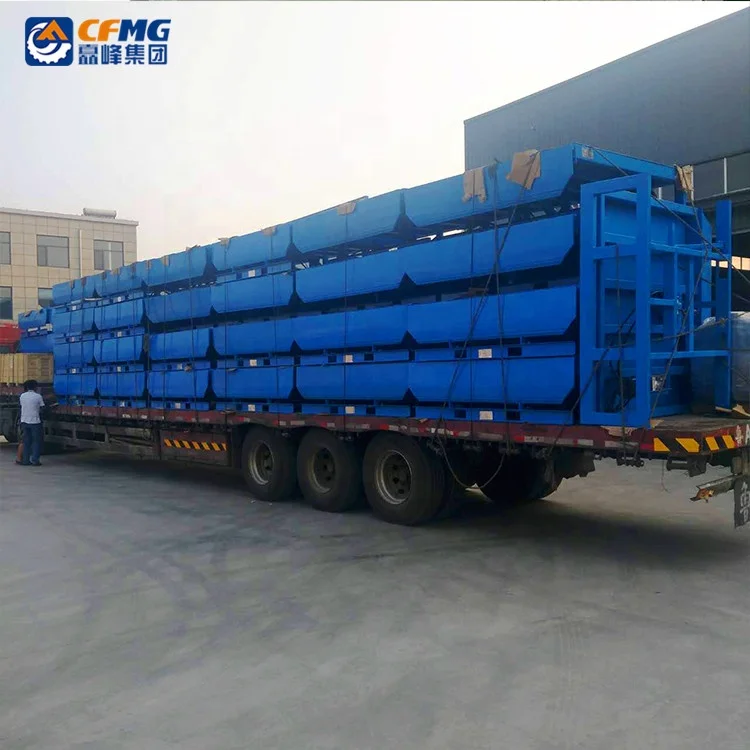

Packing & Delivery
Our Company

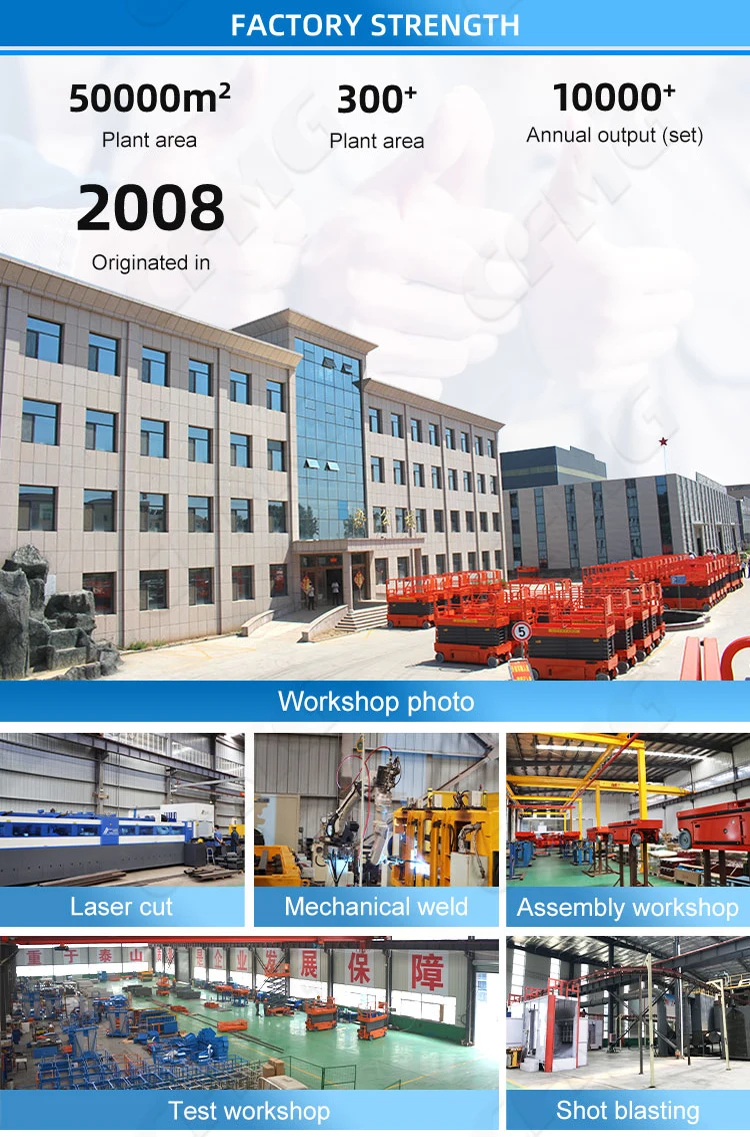

Shandong Chufeng Heavy Industry Machinery Group Co., Ltd
Shandong Chufeng Heavy Industry Machinery Group Co., Ltd is an integration of industry which specializes in aerial work platform and auto parking system design and customized manufacturing.
CFMG is a manufacturer which owns a variety of CNC machining equipment such as bench drilling machine,vertical milling machine,three-dimension radial drilling machine,CNC machines for angle & H beam.
Competitive Advantages :
1. the biggest manufacturer in North China with 25,000 square meters plant area
2. 1 years guaranteed, the first & only one in Chinese AWP industry
3. 80% of spare parts are imported
4. Absolute advantage in price & quality
5. More than 10 years experience on AWP & parking system production
6. Largest scale of production including all kinds of aerial work platform & parking system
7. OEM accepted
8. Great technical support from famous institutes & colleges to constantly generate new models
FAQ
Q: Are you original manufacturer?
A: Yes, we CFMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms terms can we work?
A: We CFMG are a professional and international company, accept all Incoterms terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 15-20 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 10 days.
A: Yes, we CFMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms terms can we work?
A: We CFMG are a professional and international company, accept all Incoterms terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 15-20 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 10 days.
