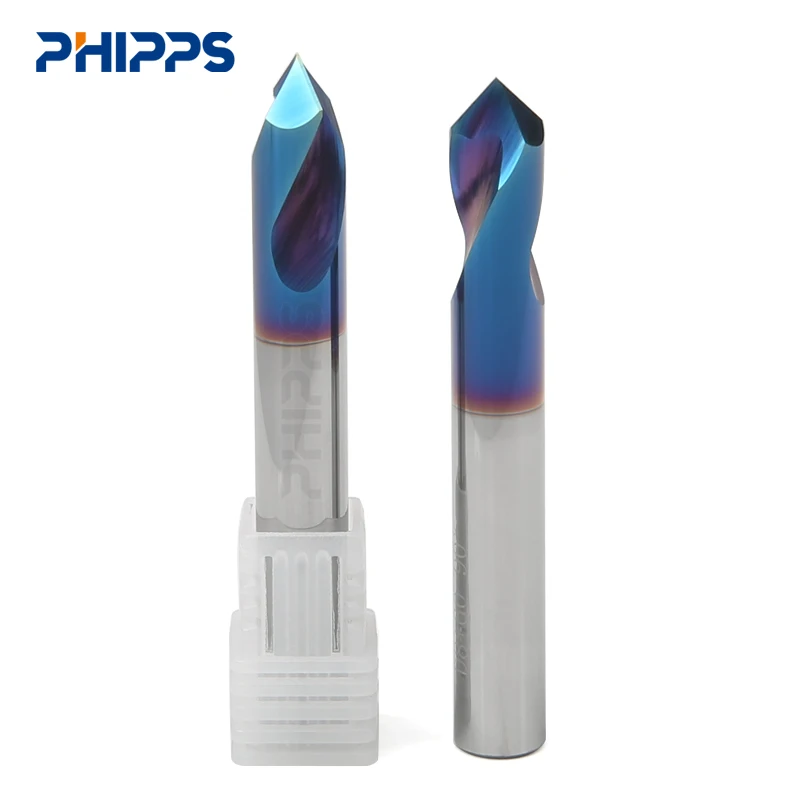

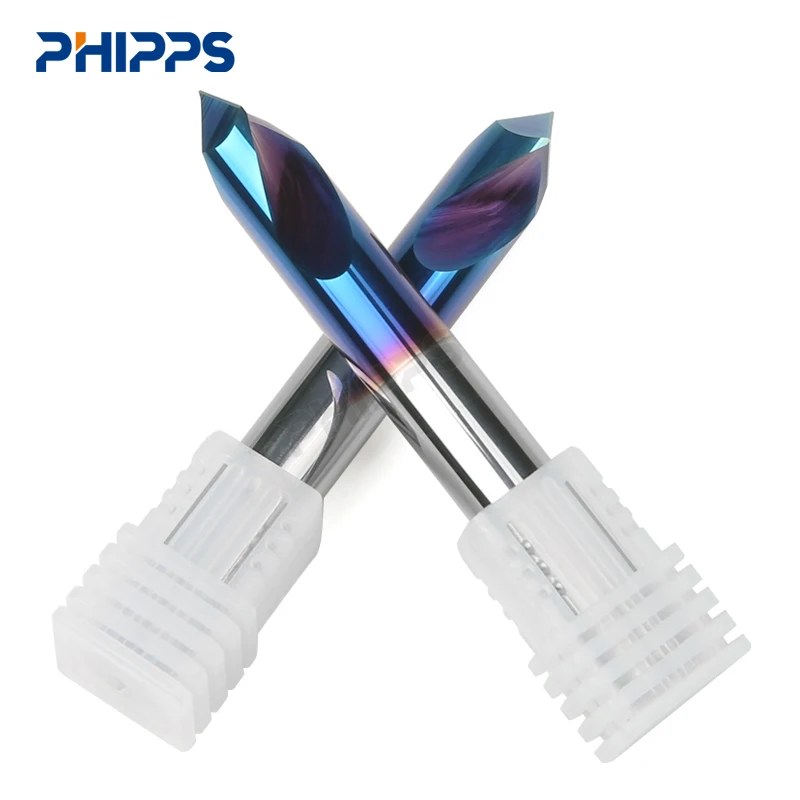

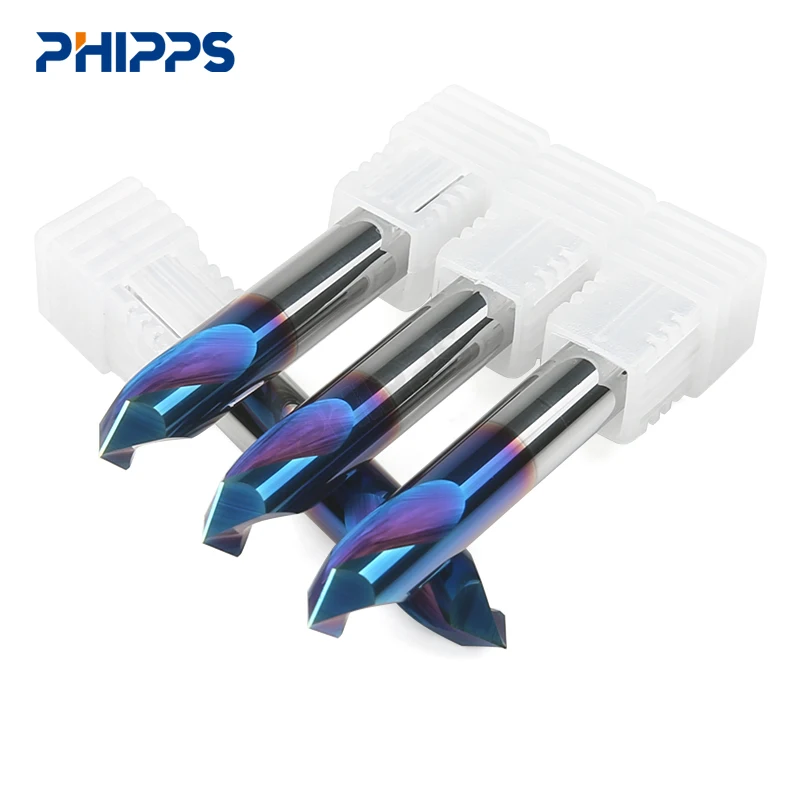

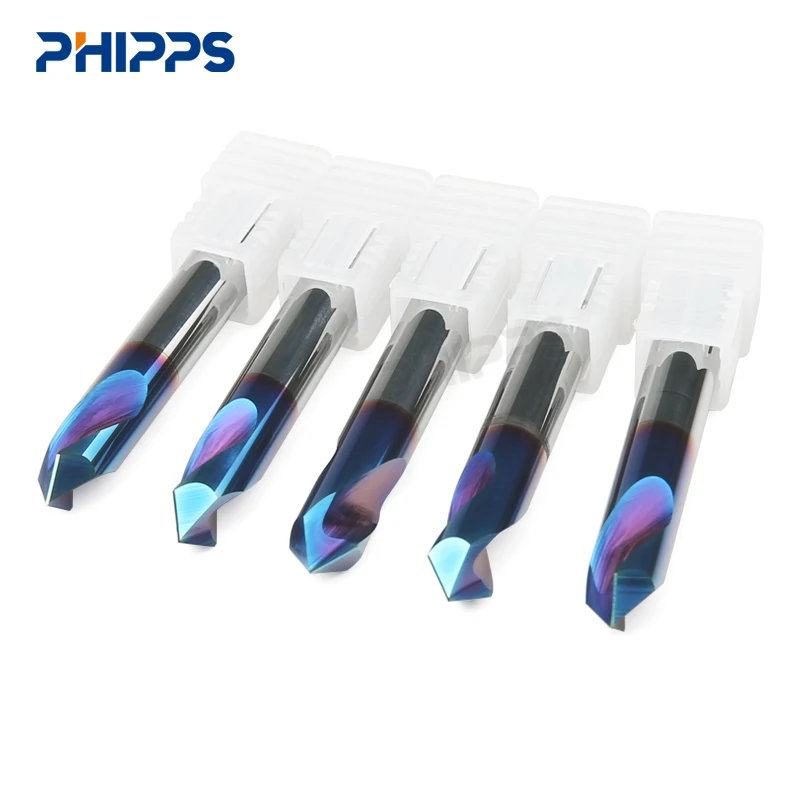

HRC 65 two flute 6mm CNC milling tools NC spot drill metal cutting tungsten carbide drill bits for metal drilling
- Category: >>>
- Supplier: Shenzhen Phipps Technology Co. Ltd.
Share on (1600945207490):
Product Overview
Description
Product Paramenters
Chinese HRC65 2mm 3mm 6mm 12mm 4 flute solid carbide corner radius end mills cutter CNC milling cutter for steel
Product Name | HRC65 Solid carbide corner radius end mills for steel |
Material | 100% raw material |
Coating | AlTiN, TiAlN, TiSiN, AlTiSiN, TiN |
Flutes | 2F/3F/4F/Customized |
Features | Low Coefficient Of Thermal Expansion |
Tolerance | ±0.01mm |
HRC | HRC45/55/60/65 |
Machine Type | CNC Milling Machine, Engraving machine, High speed machine |
Flutes | 2F/3F/4F |
Specification | D12*45*d12*100L-4F |
High quality carbide rod
All cutting materials are from international famous brands, high hardness, long tool life.
HRC | Grade | Helix Angle | Co Content (%) | Grain Size （UM） | Bending Strength (N/mm2) | Application |
HRC45 | YG10X | 35° | 10% | 0.8 | 2800 | General steel |
HRC55 | ZK30UF | 35° | 10% | 0.6 | 3000 | General steel, Cast iron |
HRC60 | ZK40SF | 35°/45° | 12% | 0.4-0.5 | ≥3800 | High hard material, Mould steel, Cast iron, etc |
HRC65 | GU25UF | 45° | 12% | 0.4 | 4000 | Titanium alloy, high temperature alloy matertial, etc |
Excellent Coating
Good coating can improve tools life and production effiency, and we provide professional suggestions according to your cutting requirements.
Coating | Hardness(HV) | Thickness(UM) | Firction Coefficient | Oxidation Temp.(°C) | Color |
AlTiN | 3500 | 2.5-3 | 0.3 | 850°C | Black |
TiAlN | 2800 | 2.5-3 | 0.3 | 900°C | Violet |
TiSiN | 3600 | 3 | 0.45 | 1100°C | Copper |
AlTiSiN | 3900 | 4 | 0.4 | 1200°C | Blue |
TiN | 2500 | 2.5-3 | 0.5 | 600°C | Gold |
The key cutting products we selling as below: | ||||
Products Description

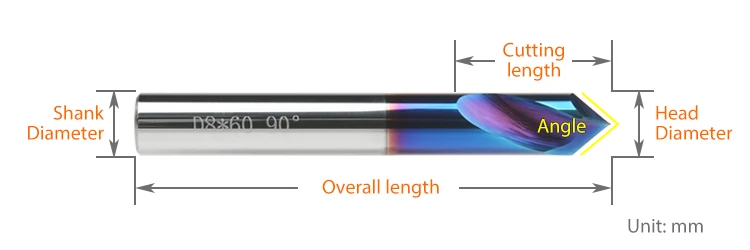

Specification | Head Dia. | Cutting Length | Shank Dia. | Overall length | Angle |
3*6*3*50 | 3 | 6 | 3 | 50 | 60°/90°/120° |
3*6*3*75 | 3 | 6 | 3 | 75 | 60°/90°/120° |
3*6*3*100 | 3 | 6 | 3 | 100 | 60°/90°/120° |
2*4*4*50 | 2 | 4 | 4 | 50 | 60°/90°/120° |
3*6*4*50 | 3 | 6 | 4 | 50 | 60°/90°/120° |
4*8*4*50 | 4 | 8 | 4 | 50 | 60°/90°/120° |
4*8*4*75 | 4 | 8 | 4 | 75 | 60°/90°/120° |
4*8*4*100 | 4 | 8 | 4 | 100 | 60°/90°/120° |
5*10*5*50 | 5 | 10 | 5 | 50 | 60°/90°/120° |
5**10*5*75 | 5 | 10 | 5 | 75 | 60°/90°/120° |
5*10*5*100 | 5 | 10 | 5 | 100 | 60°/90°/120° |
6*12*6*50 | 6 | 12 | 6 | 50 | 60°/90°/120° |
6*12*6*75 | 6 | 12 | 6 | 75 | 60°/90°/120° |
6*12*6*100 | 6 | 12 | 6 | 100 | 60°/90°/120° |
8*16*8*60 | 8 | 16 | 8 | 60 | 60°/90°/120° |
8*16*8*75 | 8 | 16 | 8 | 75 | 60°/90°/120° |
8*16*8*100 | 8 | 16 | 8 | 100 | 60°/90°/120° |
10*20*10*75 | 10 | 20 | 10 | 75 | 60°/90°/120° |
10*20*10*100 | 10 | 20 | 10 | 100 | 60°/90°/120° |
12*24*12*75 | 12 | 24 | 12 | 75 | 60°/90°/120° |
12*24*12*100 | 12 | 24 | 12 | 100 | 60°/90°/120° |
14*28*14*100 | 14 | 28 | 14 | 100 | 60°/90°/120° |
14*28*14*150 | 14 | 28 | 14 | 150 | 60°/90°/120° |
16*32*16*100 | 16 | 32 | 16 | 100 | 60°/90°/120° |
16*32*16*150 | 16 | 32 | 16 | 150 | 60°/90°/120° |
18*36*18*100 | 18 | 36 | 18 | 100 | 60°/90°/120° |
18*36*18*150 | 18 | 36 | 18 | 150 | 60°/90°/120° |
20*40*20*100 | 20 | 40 | 20 | 100 | 60°/90°/120° |
20*40*20*150 | 20 | 40 | 20 | 150 | 60°/90°/120° |

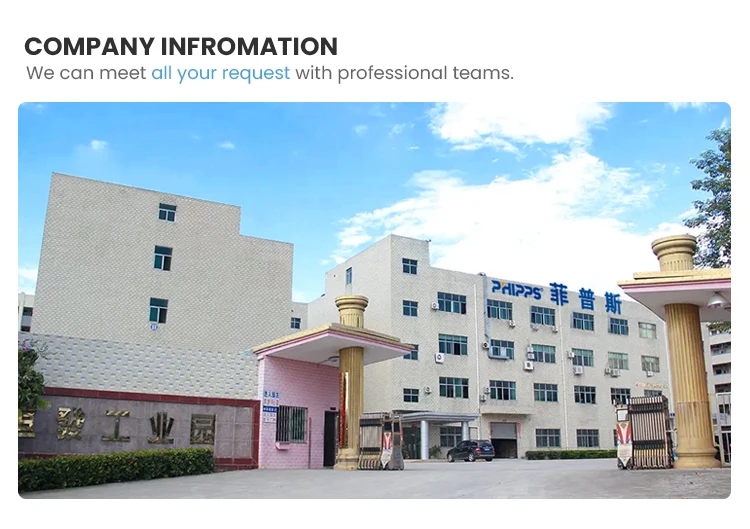

Company Information
COMPANY INFORMATION

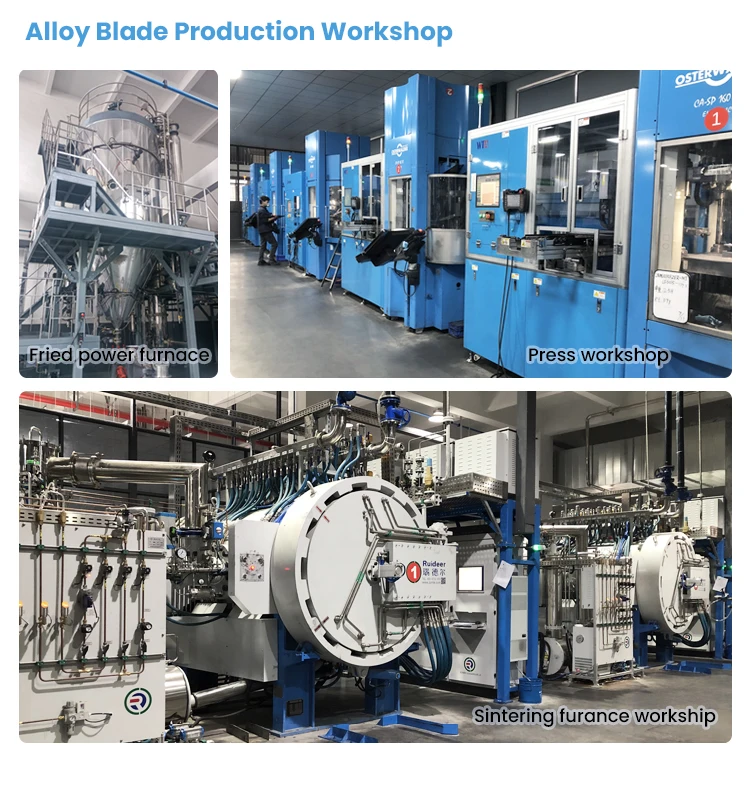

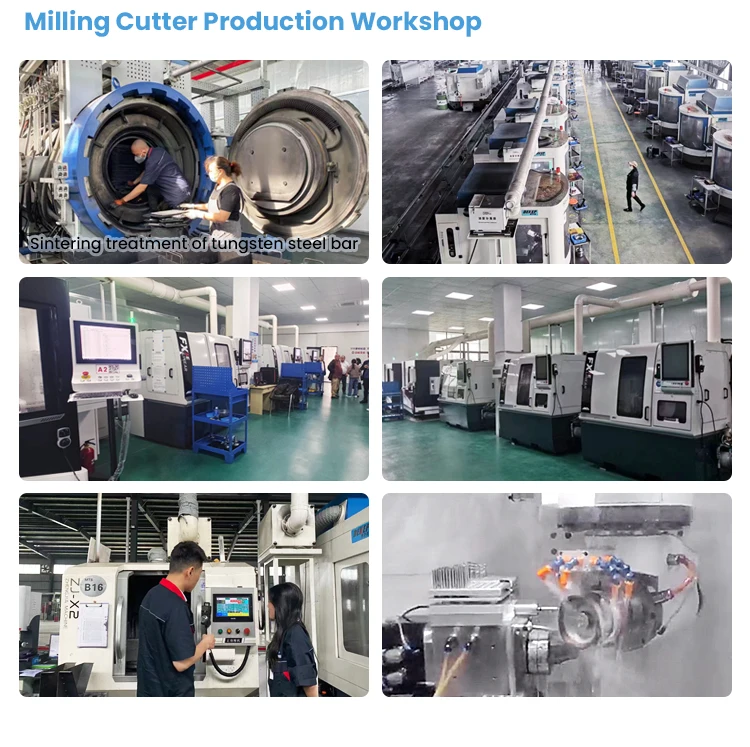

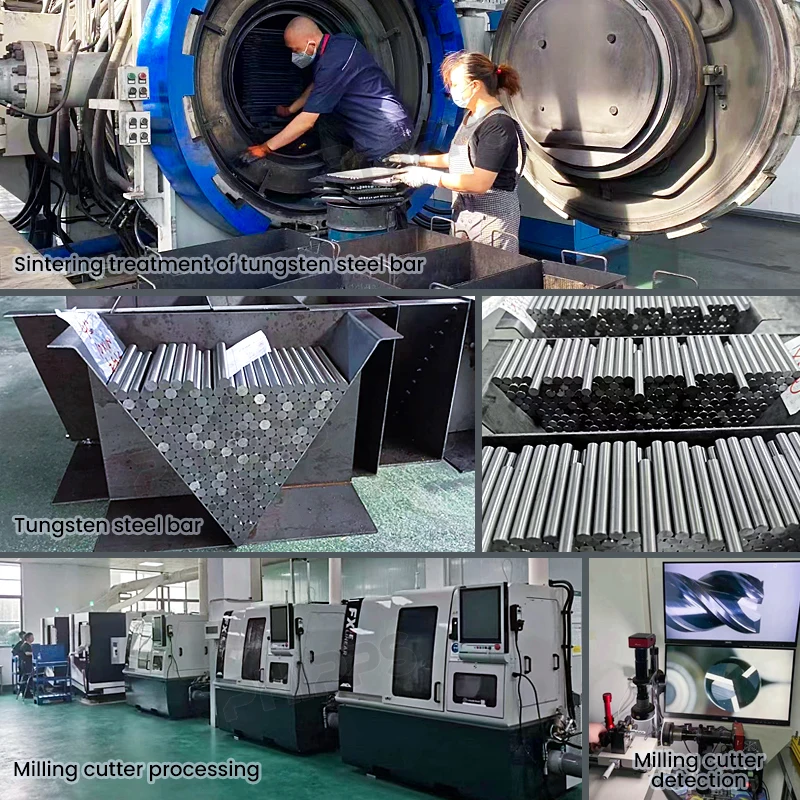

Shenzhen Phipps Technology Co.,Ltd. is a professional manufacturer of carbide engraving tools, focusing on high precision tungsten steel inserts, milling cutters, drill bits, engraving tools and various non-standard tools. For R&D, production, sales and technical services, the company has introduced 20 world-class CNC grinders, high-end testing equipment and manufacturing from Germany, Australia and Japan. The tool produced have the advantages of high precision, long life and high efficiency.
Package & Shipment
FAQ
1) Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 10 years experience in this field.
2) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3) Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
4) How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
5) How can I pay?
we accept paypal as the sample. if large amount need pay by western union or TT.
6) Whats your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So no MOQ.
