Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Accurate Results 1000w 1.5kw 2kw 3kw Cut 160mm Pipe Fiber Tube Laser Cutting Machine for Tubular Metal
- Category: >>>
- Supplier: Guohong Laser Technology (jiangsu) Co. Ltd.
Share on (1600945239155):
Product Overview
Description

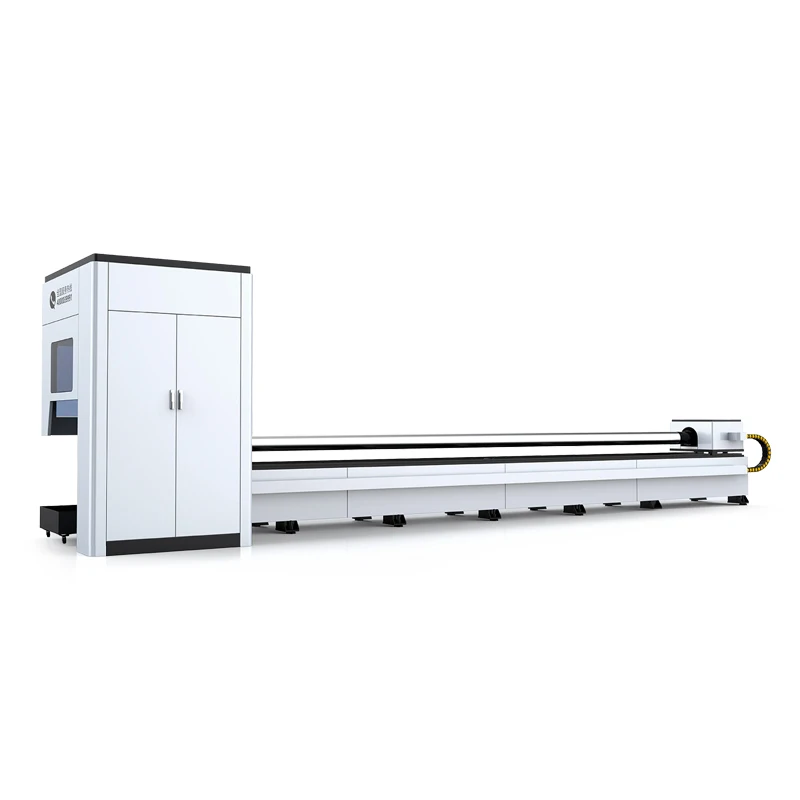

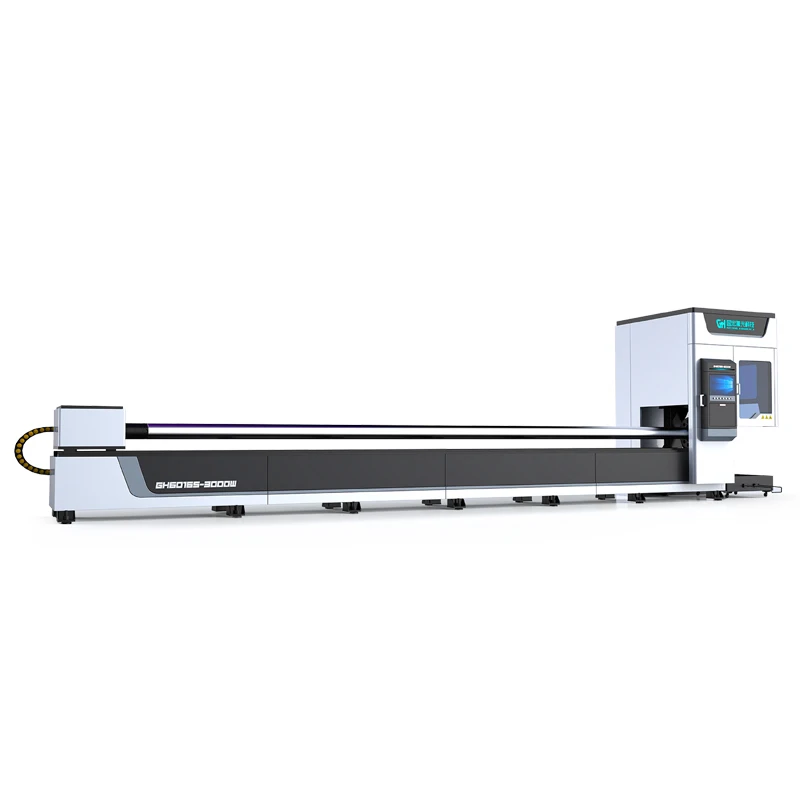

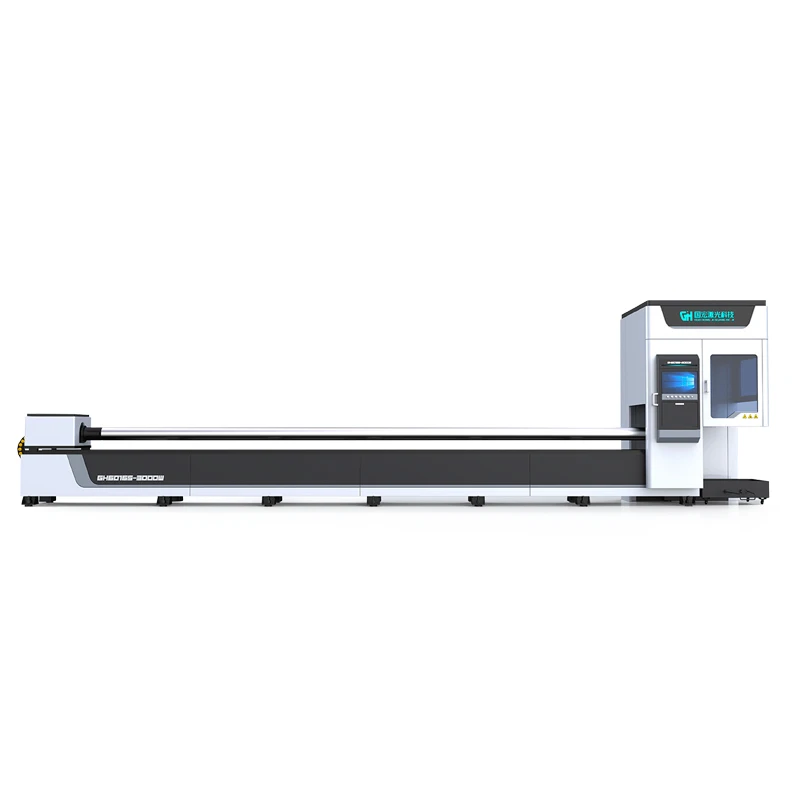

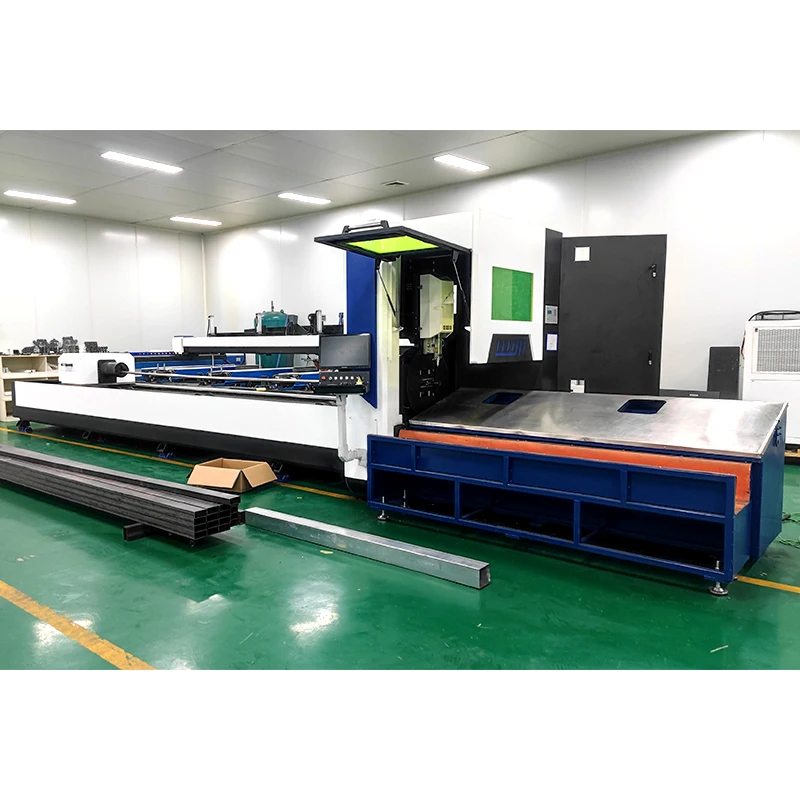

Accurate Results 1000w 1.5kw 2kw 3kw Cut 160mm Pipe Fiber Tube Laser Cutting Machine for Tubular Metal
High precision tube fiber laser cutting machine is specially designed for pipes, easy to operate. With the good cutting quality and cutting efficiency, the tube fiber laser cutter is widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries, and adapted to various special-shaped pipe materials such as: round pipe, square pipe, rectangular pipe, oval pipe, etc.
Machine model | GH-T220 |
Max processing length | 6000/9000/12000mm |
Chuck holding diameter | 10-120/220/350mm |
Max speed | 90r/min |
Max Movement Speed | 100m/min |
Accelerated speed | 1G |
Positioning accuracy | ±0.03mm |
Repeatability | ±0.02mm |
Laser power | 1000W-6000W |
Cutting materials: | Round tube, square tube, rectangular tube, channel steel, angle steel, etc. |
Other | Processing format and configuration can be customized |
Products Description
Fiber Laser Source
Raycus/MAX/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from1kw to 12kw, and more higher 15kw, 20kw, 30kw.
Professional pipe cutting system
It supports high-precision and high-efficiency cutting of square tubes, round tubes, racetrack-shaped, elliptical and other stretched tubes, as well as angle steel and channel steel.
Stable welding bed design
Good rigidity, high precision, no deformation during the life cycle: Welded aluminum collet chuck formed through high precision process. Good weight and good dynamic performance

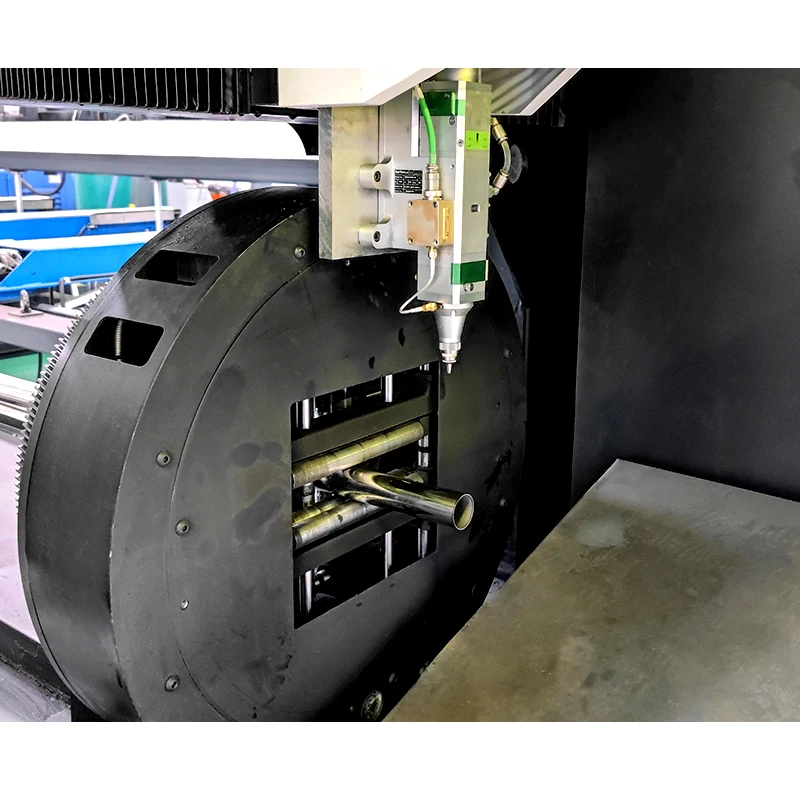

High precision chuck
Precise pneumatic double-acting chuck, with automatic center adjustment, high precision, low inertia, and heavy load-bearing functions.
Fiber laser cutting machine head
There is no need to manually adjust the focus, the software automatically adjusts the focus lens, and controls the height of the upper and lower, so as to realize the automatic perforation and cutting of plates with different thicknesses
Server Drive
The domestic high-end servo drive system is adopted, which is stable and reliable, with superior performance and excellent anti-interference ability, which greatly improves the performance of the equipment, with more precise control, higher output parameters, and better reliability and stability.
Sample Display
Company Profile
Guohong Laser
Guohong Laser Group is a large-scale laser cutting machine manufacturer integrating R&D, production and sales. It provides high-quality laser cutting machines, metal cutting machines, laser pipe cutting machines, and three-chuck automatic pipe cutting machines to the world,handheld laser welding machine, laser marking machine.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
Certificate
Certificate
We have CE, SGS certification, quality management certificate and multiple invention patent certificates, etc.
Exhibition Show
Quality Test
Packing and shipping
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
5. What's your favourite laser generator brand? laser generator as optional parts, different customer, different choose.
Please tell us, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
5. What's your favourite laser generator brand? laser generator as optional parts, different customer, different choose.
Please tell us, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
