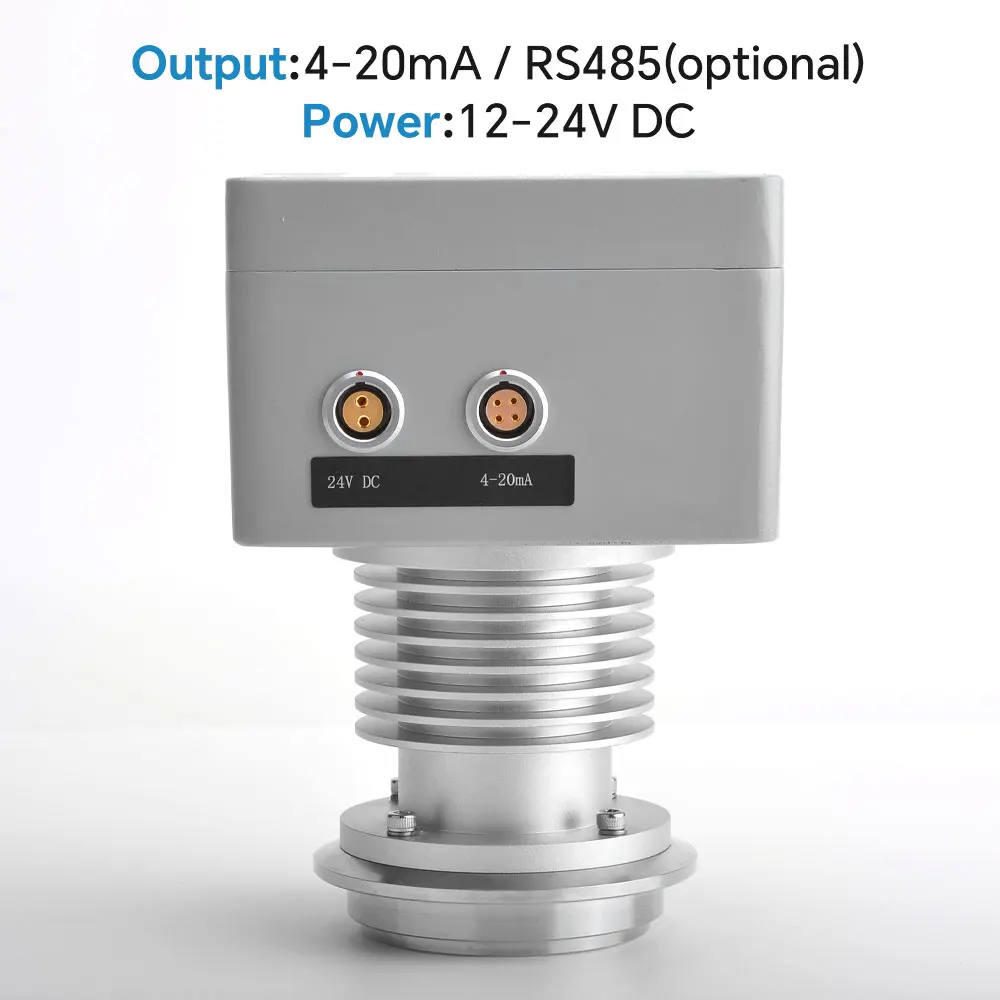

digital industrial inline process refractometer for concentrates and dilution of softdrinks
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1600945264789):
Product Overview
Description
Concentrates and dilution of softdrinks
Measure the concentration of blended softdrinks
Soft drinks are produced and consumed in large amounts all over the world. The main ingredients of soft drinks are concentrate, water, and sugar or sweetener – and sometimes carbon dioxide. The concentrate is the ingredient which determines the specific flavor of the beverage. Mixing in the soft drink blending process takes place in two different phases: First, the soft drink concentrate is mixed with sugar solution (about 60 Brix). This premixture is blended with water into a final solution. Before the product is ready to be bottled, the blended soft drink solution is led to a container where carbonation takes place. There are two forms of blending: batch process and continuous blending. In batch process, water and concentrate are mixed in large tanks. The stirrers in the tank ensure a homogenous blend. A more advanced technique is continuous blending. The product is normally blended to a Brix level slightly higher than the one of the final product. The final concentration is reached by injecting a small amount of water. Afterwards, the solution passes a static or dynamic mixer and is ready for the final concentration measurement just before bottling.
Using the CZ-B process refractometer in the blending process of softdrinks
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Feature
Product Paramenters
Model: | CZ-B |

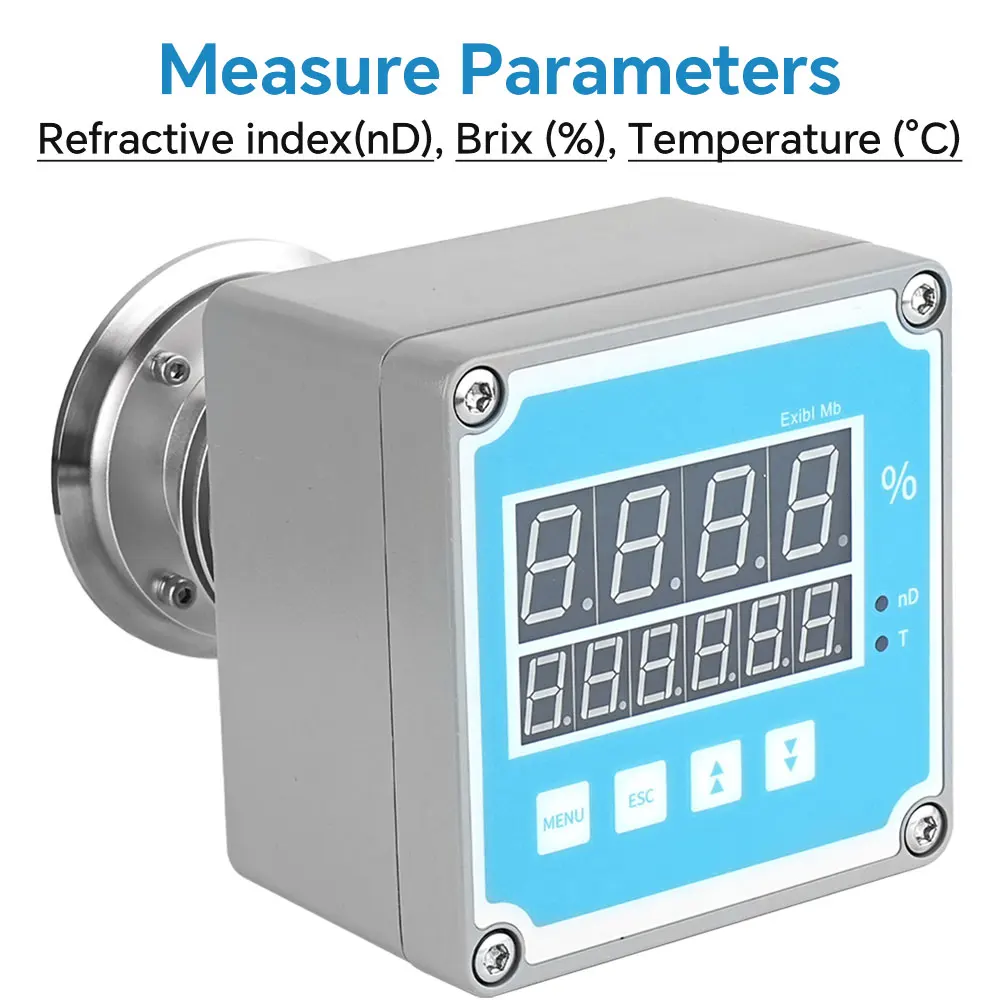

Measure Parameters: | Refractive index(nD), Brix (%), Temperature (° C) |

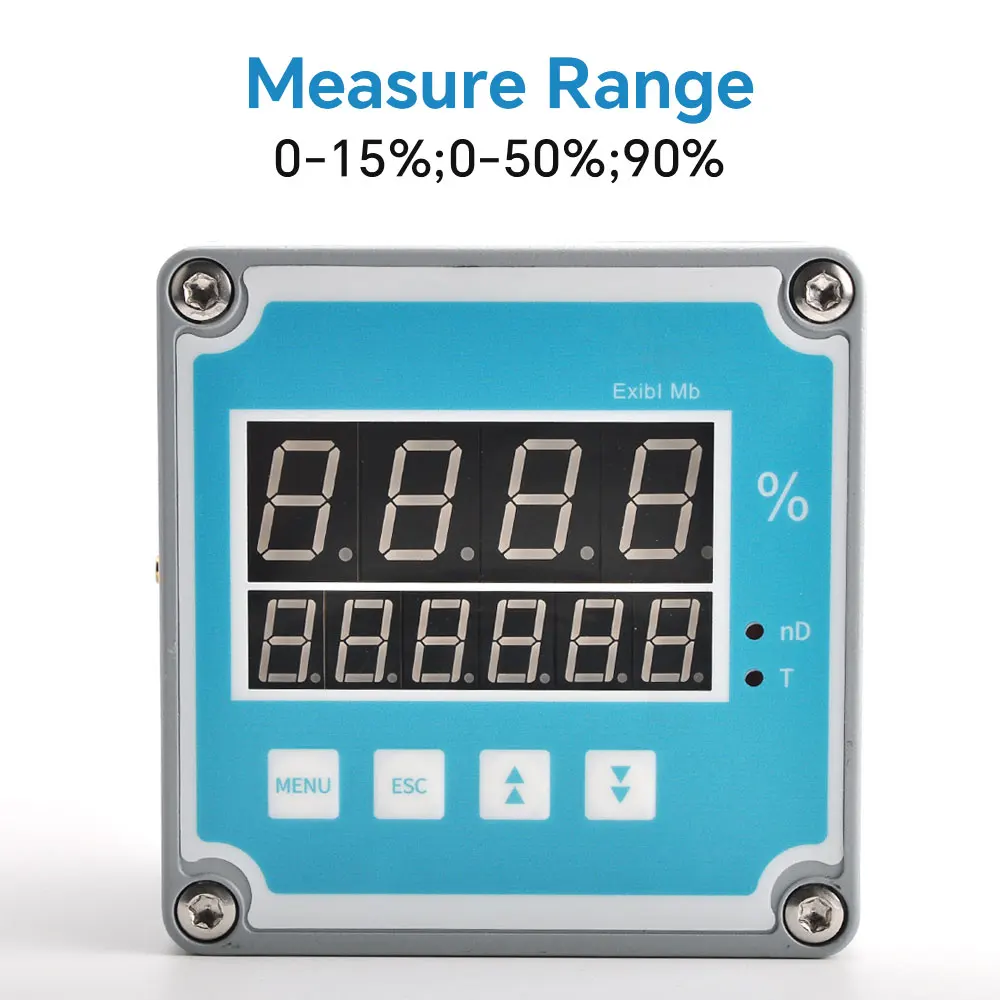

Measure range: | 0-15% ,0-50% , 90% |
Min Resolution Ratio: | Brix: 0.1% ( Range for 15% , 0-50%) |
Brix: 0.5% ( Range for 90% ) | |
Measurement Accuracy: | Brix:±0.1%, |
Brix:±0.3% (standard) | |
Measurement Temperature: | 0-85° C (Automatic Temperature Compensation) |
Operating current: | ≤200mA |

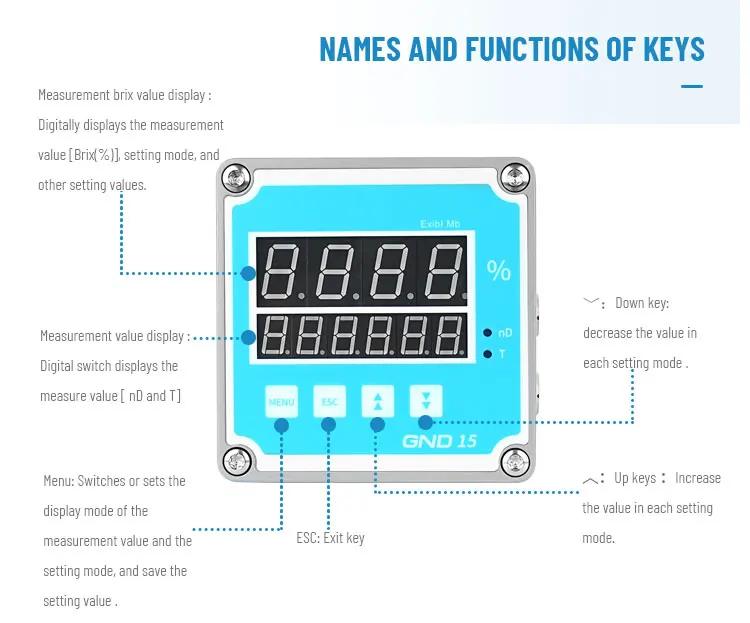

Display menu: | Refractive index(nD) , Brix(%), Temperature (° C) |
Output : | 4-20mA , 4-20mA+ RS485 optional |
Power: | 12-24V DC |

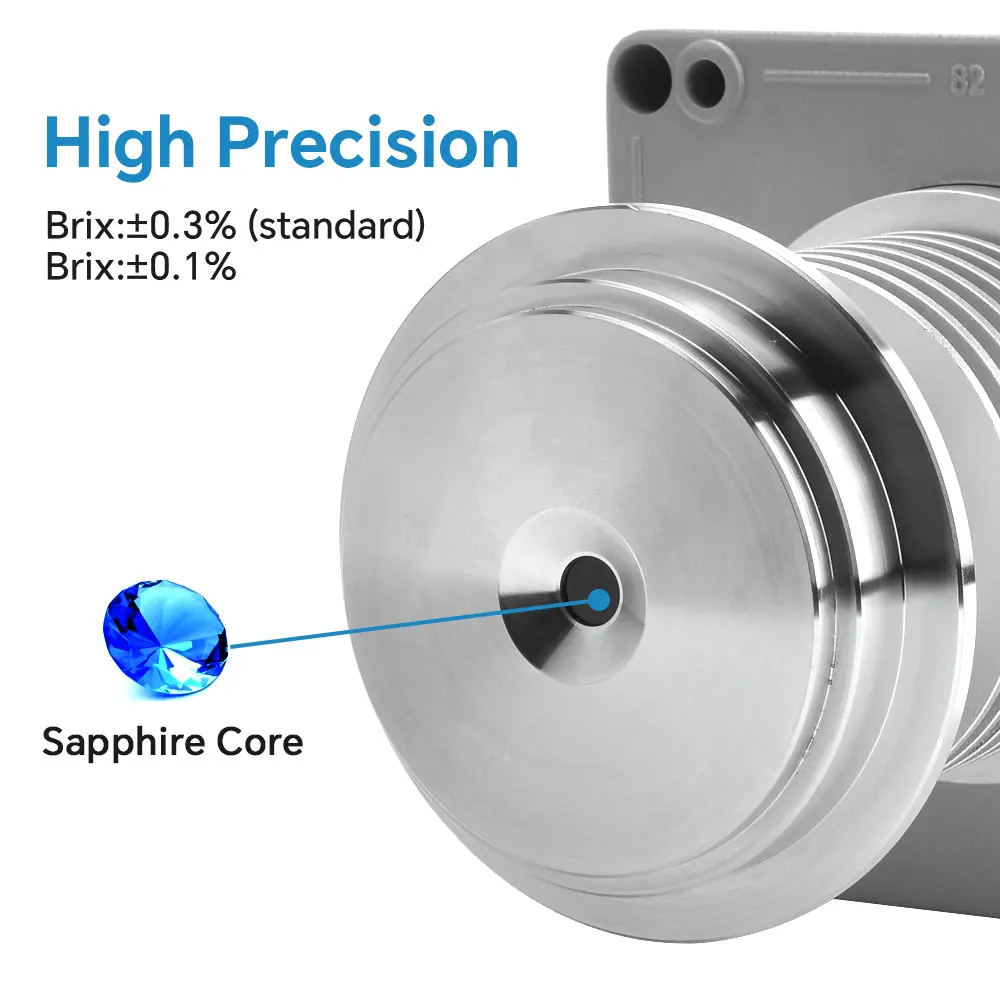

Wetted parts material: | Prism: sapphire, Prism stage: SS304 , SS316L (can be customized) |
Optical source: | LED(the wave length approximate to D line) |
Max Pressure: | 1MPa |
Environment Temperature: | 0-40° C |
Protection grade: | IP67 |
Instrument Size: | 175mm*120mm*120mm |
Process connection: | 3” tri-clamp , other size supply free adaptor |
High and low limit settings: | Buttons can be set |
Recorder output cable: | 2M ,3M ,5M,10M optional |
Temperature sensor: | Thin film platinum sensor |
