1/8'',1/4 '',3/8 '',1/2'',3/4'',1'' NPT Stainless Steel Mini Ball Valve for All Pure Water


Features:
1. 1000 PSI/PN63
2. Reduce Port
3. Investment Casting
4. Blow-out Proof Stem
5. Sanitary Design
5. PED97/23/EC(CE0036) Approved
6. Casting Approved AD2000-W0
7. Thread: ASME B1.20.1 BS21.0, DIN2999/259, ISO228-1, JIS B203, ISO7/1
8. Inspection Testing: API598, EN12266

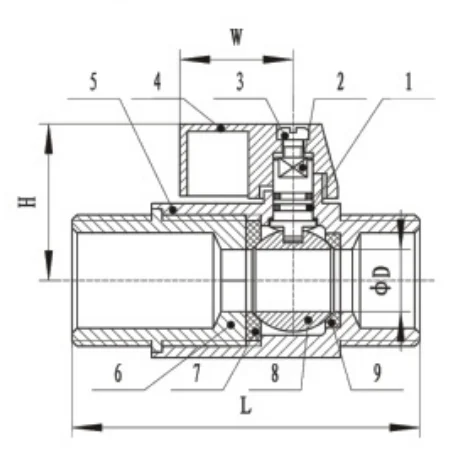

Material List:


ITEM
Designation
Material
1
O-ring
NBR
2
Stem
SUS304
3
Bolt
SUS304
4
Lever
Aluminium Alloy (CF8)
5
Body
CF8/CF8M
6
Cap
CF8/CF8M
7
A Ball Seat (a)
RPTFE
8
Ball
CF8/CF8M
9
B Ball Seat (b)
RPTFE


Dimension Table:


Item Size
1/8’’
1/4’’
3/8’’
1/2’’
3/4''
1''
D
7
7
7
9.2
12.5
15
H
26.5
26.5
26.5
28.3
31.5
34
W
22.8
22.8
22.8
22.8
22.8
22.8
L
50
50
50
58
71.5
83

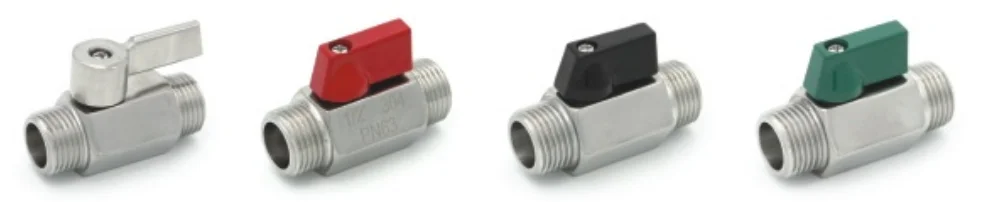

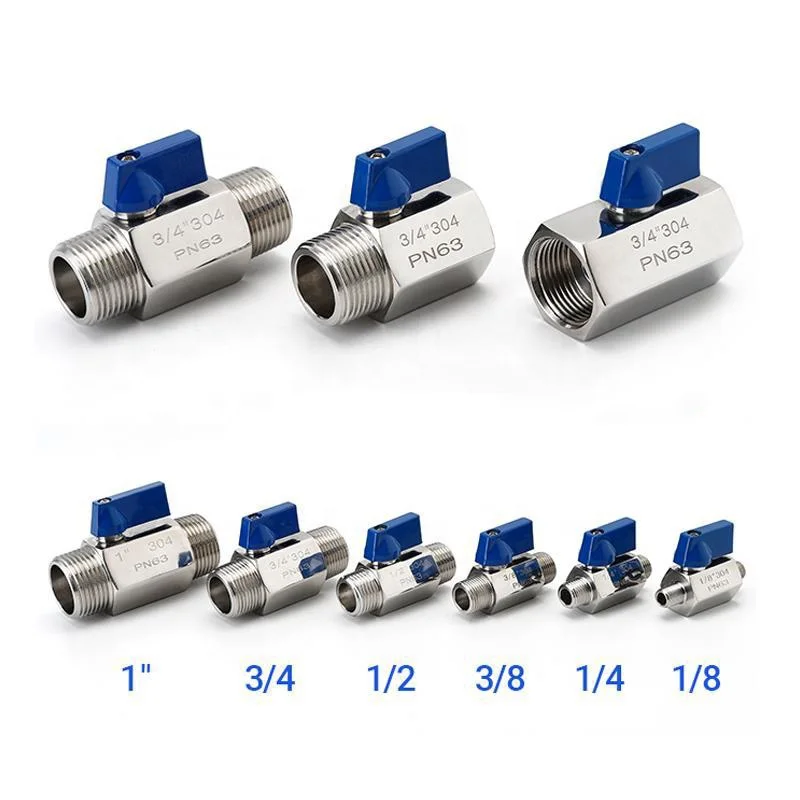

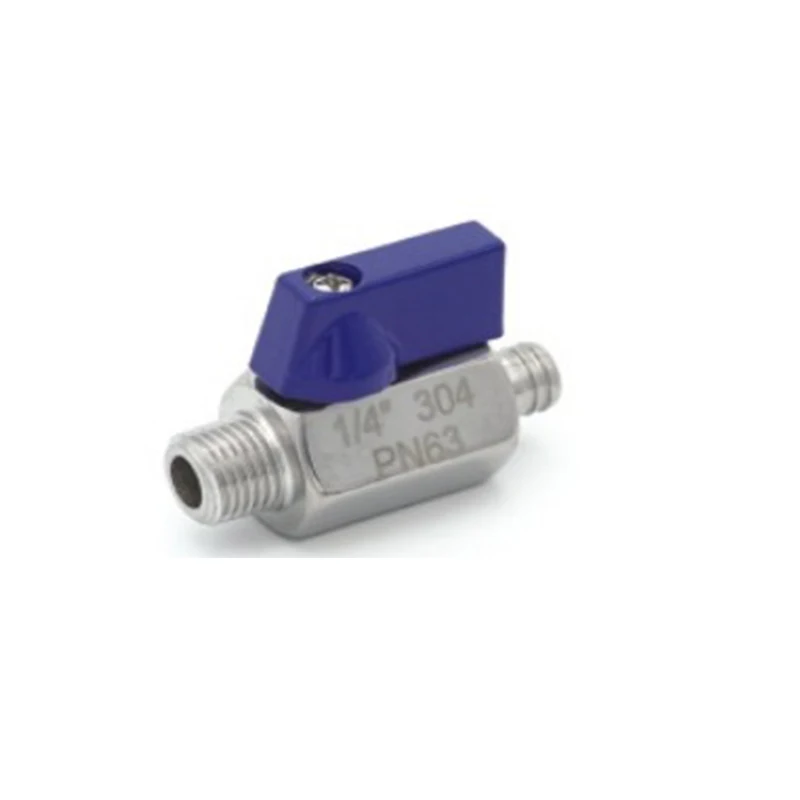

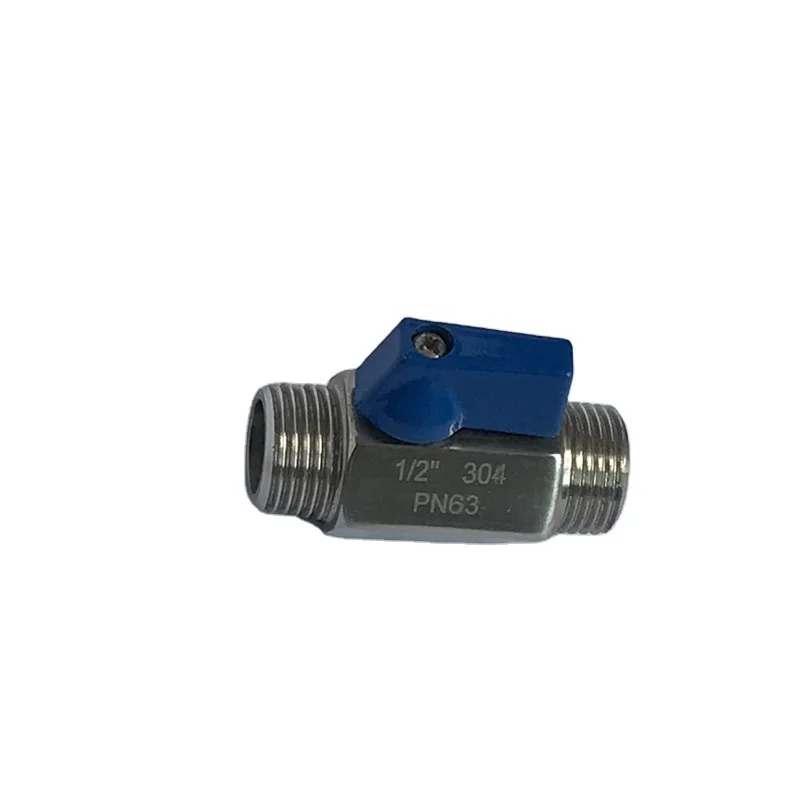

Photo Show:
