N type high efficiency pv module HJT panels 460w 450w 455w 445w 435w all black in stock
- Category: >>>
- Supplier: Sunrover Power Co. Ltd.
Share on (1600945294684):
Product Overview
Description
Products Description
Specification
Specifications | ||||||||||
Module Type | SUN430-DE21M | SUN435-DE21M | SUN440-DE21M | SUN445-DE21M | SUN450-DE21M | |||||
STC | STC | STC | STC | STC | ||||||
Maximum Power(Pmax) | 435Wp | 440Wp | 445Wp | 425Wp | 450wp | |||||
Maximum Power Voltage (vmp) | 32.59V | 32.81V | 33.02V | 32.18V | 33.24V | |||||
Maximum Power Current (lmp) | 13.354 | 13,47A | 13.48A | 13.214 | 13.56A | |||||
Open-circuit Voltage (Voc) | 39.16V | 39.38V | 39.59V | 38.75V | 39.81V | |||||
Short-circuit Current (lsc) | 13.804 | 13.86A | 13.934 | 13.664 | 14.01A | |||||
Module Efficiency STC (%) | 21.77% | 22.02% | 22.27% | 21.27% | 22.52% | |||||
Operating Temperature ('C) | ‘-40℃-+85℃’ | |||||||||
Maximum system voltage | 1000/1500V DC(IEC) | |||||||||
Maximum series fuse rating | 25A | |||||||||
Power tolerance | 0.3% | |||||||||
Temperature coefficients of Pmax | ‘-0.290%℃’ | |||||||||
Temperature coefficients of Voc | ‘-0.250%℃’ | |||||||||
Temperature coefficients of Isc | 0.045%℃ | |||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
STC:1000w/ irradiance.25℃ cell temperture AM1.5 NOCT:Irradiance at 800w/ f Ambient temperature 20℃,wind speed 1m/s | ||||||||||
Packing & Delivery
Type | Pallet | 40HQ |
SUN425-445 DE21M(13) | 36 pcs | 936 pcs |

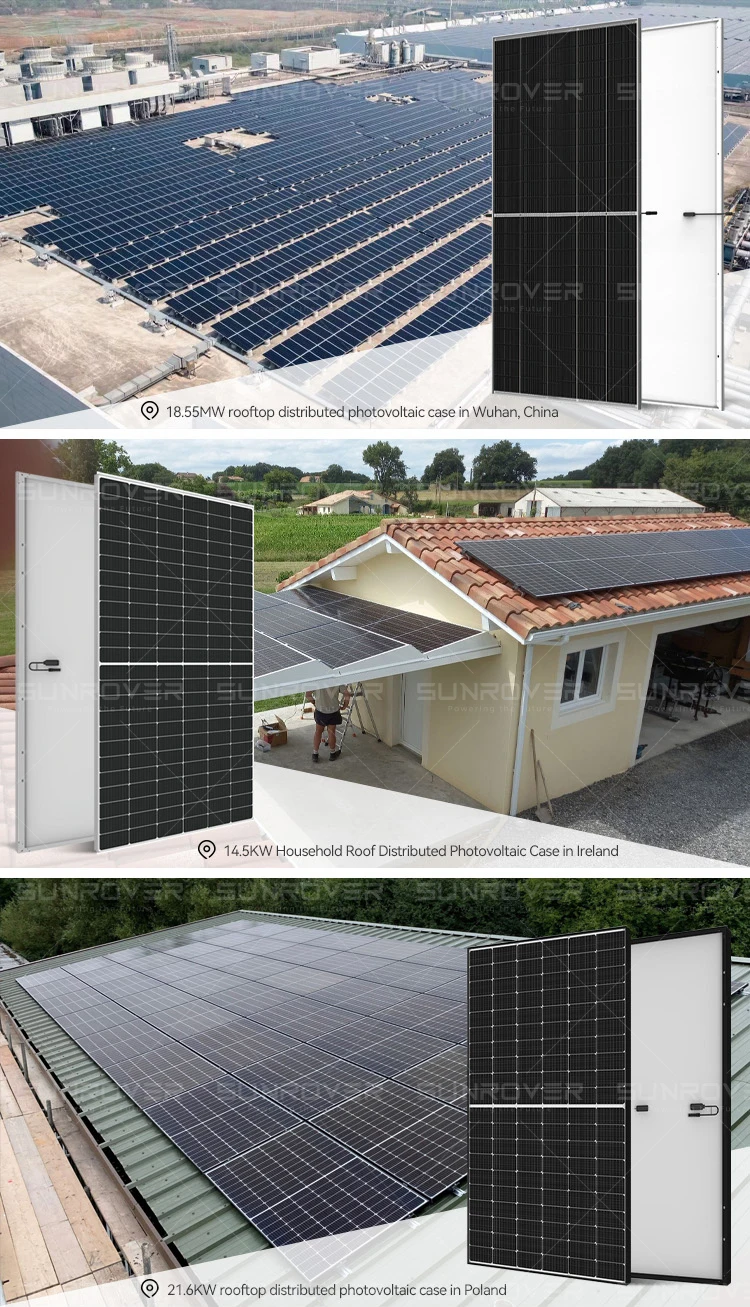

Poject Case
