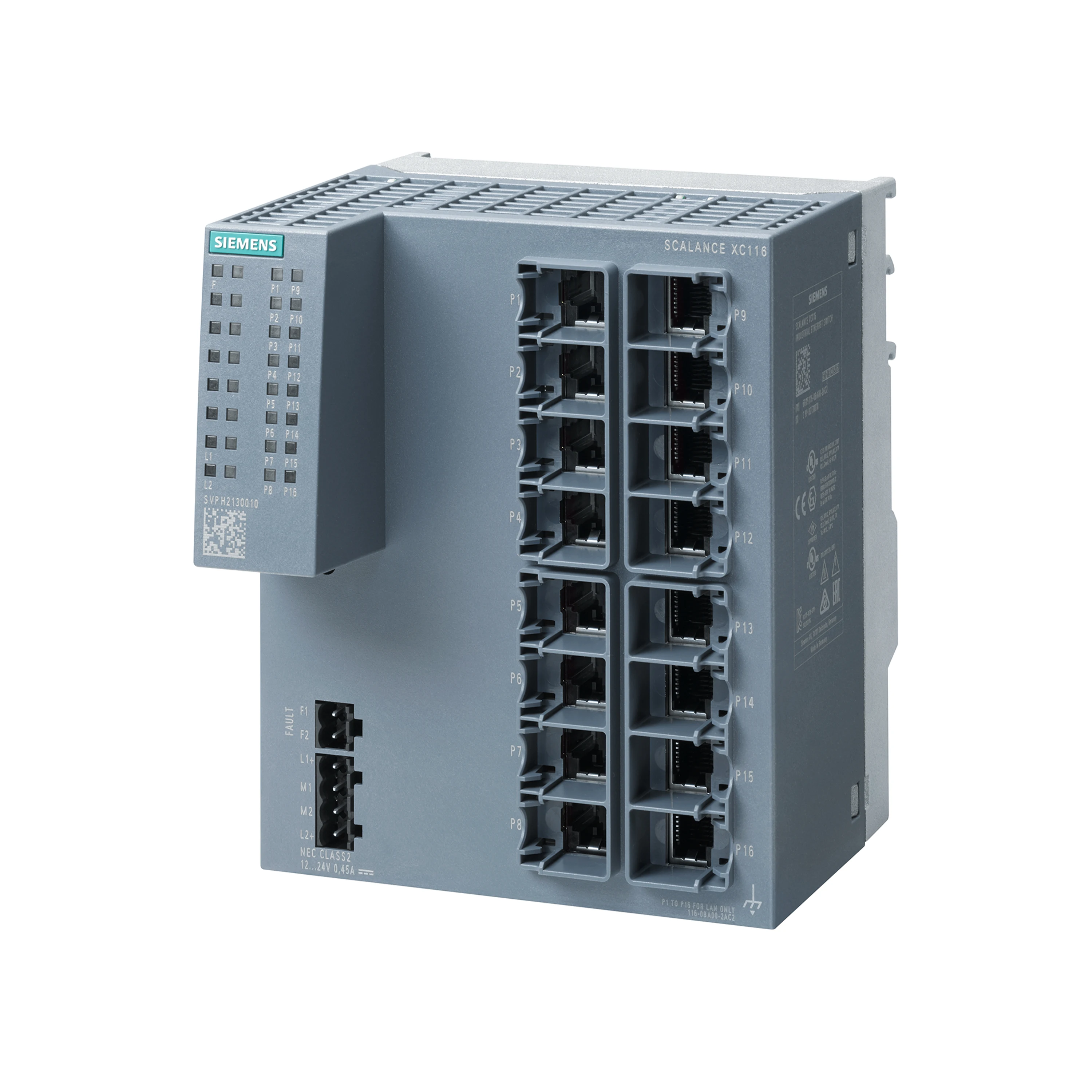

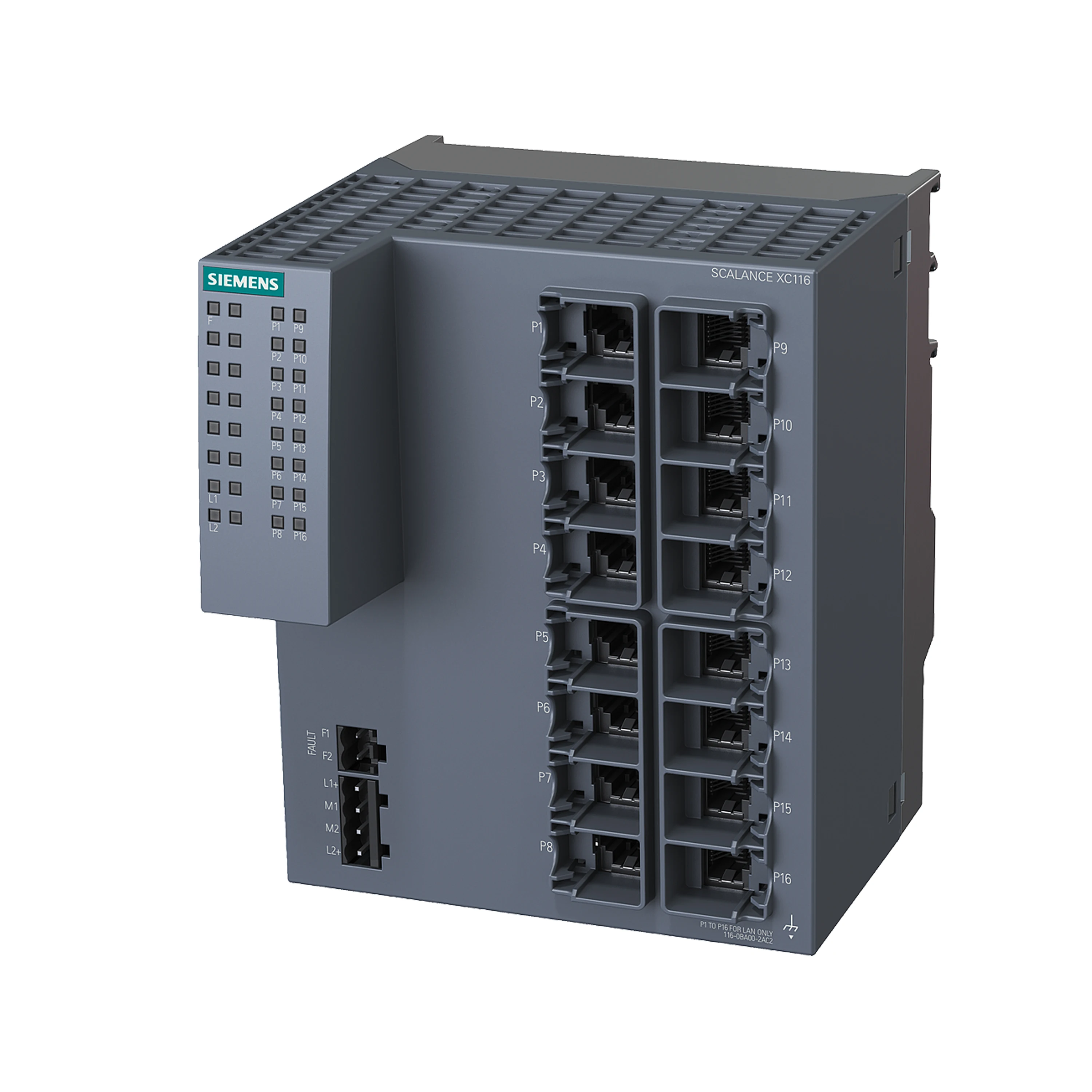

6GK5116 0BA00 2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2
6GK5116-0BA00-2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2
6GK5116-0BA00-2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2
6GK5116-0BA00-2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2
6GK5116-0BA00-2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2
6GK5116-0BA00-2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2

6GK5116 0BA00 2AC2 Siemens SCALANCE XC116 unmanaged IE switch 16 x 10/100 Mbit/s RJ45 ports 6GK51160BA002AC2

Share on (1600945308927):


Price:

Quantity:


Product Overview

Description









Specification


product type designation
SCALANCE XC116
transfer rate
transfer rate
10 Mbit/s, 100 Mbit/s
interfaces / for communication / maximum configuration for modular devices
number of electrical ports / maximum
16
interfaces / for communication / integrated
number of electrical connections
● for network components or terminal equipment
16; RJ45
interfaces / other
number of electrical connections
● for signaling contact
1
● for power supply
1
type of electrical connection
● for signaling contact
2-pole terminal block
● for power supply
4-pole terminal block
signal inputs/outputs
operating voltage / of the signaling contacts
● at DC / rated value
24 V
operational current / of the signaling contacts
● at DC / maximum
0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supply
Yes
type of voltage / 1 / of the supply voltage
DC
● supply voltage / 1 / rated value
24 V
● power loss [W] / 1 / rated value
5.4 W
● consumed current / 1 / at rated supply voltage / maximum
0.45 A
● supply voltage / 1 / rated value
9.6 ... 31.2 V
● type of electrical connection / 1 / for power supply
4-pole terminal block
● product component / 1 / fusing at power supply input
Yes
● fuse protection type / 1 / at input for supply voltage
2.5 A / 125 V
ambient conditions
ambient temperature
● during operation
-40 ... +70 °C
● during storage
-40 ... +85 °C
● during transport
-40 ... +85 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum
95 %
protection class IP
IP20

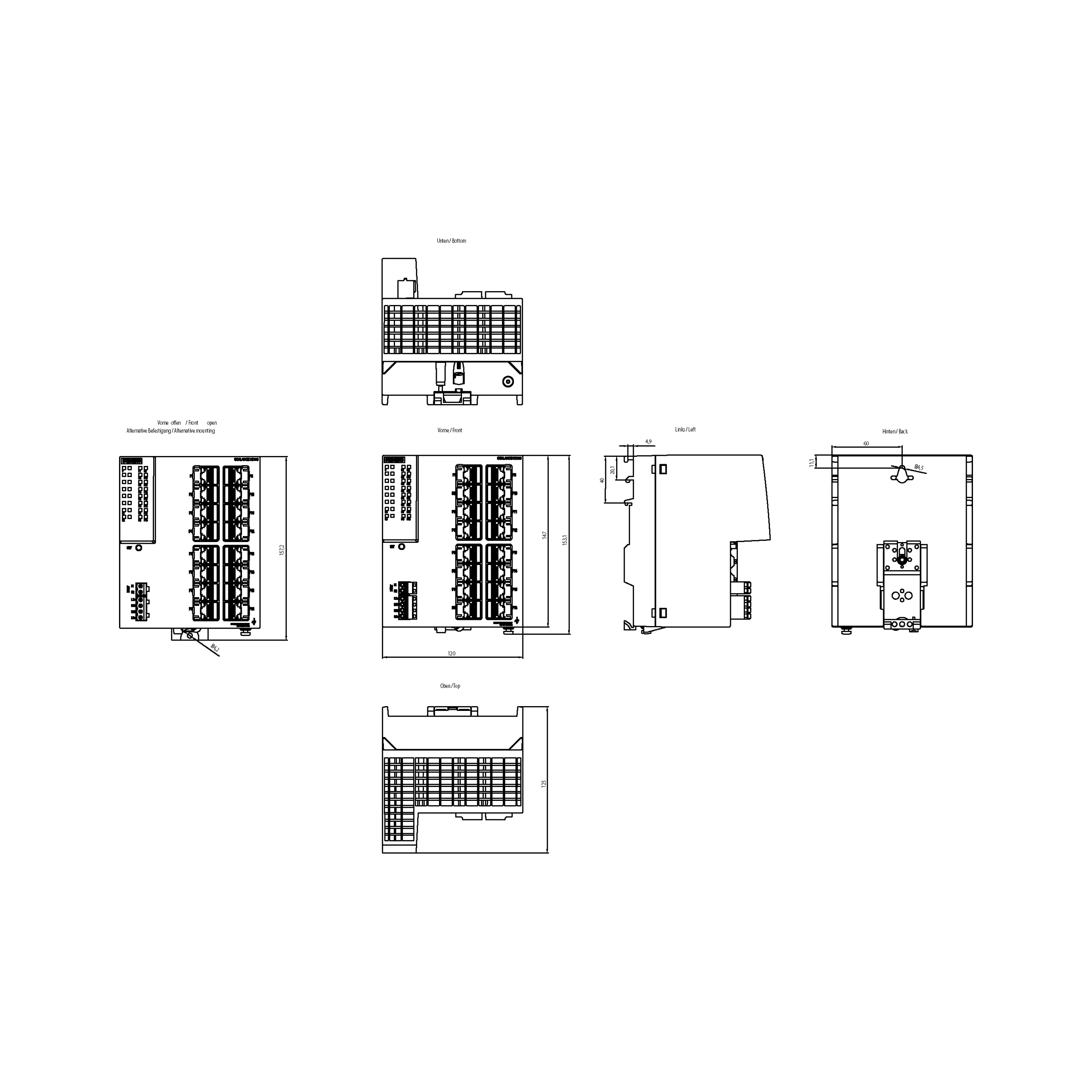

design, dimensions and weights
design
compact
width
120 mm
height
147 mm
depth
125 mm
net weight
0.775 kg
material / of the enclosure
Polycarbonate (PC-GF10)
fastening method
● 35 mm top hat DIN rail mounting
Yes
● wall mounting
Yes
● S7-300 rail mounting
Yes
● S7-1500 rail mounting
Yes
product features, product functions, product components / general
number of automatically learnable MAC addresses
2048
product functions / management, configuration, engineering
product function
● multiport mirroring
No
● CoS
Yes
product function / switch-managed
No
product function
● is supported / identification link
Yes
product functions / redundancy
product function
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network
Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)
No
standards, specifications, approvals
standard
● for safety / from CSA and UL
UL 60950-1, CSA C22.2 No. 60950-1
● for emitted interference
EN 61000-6-4 (Class B)
reference code
● according to IEC 81346-2
KF
● according to IEC 81346-2:2019
KFE
standards, specifications, approvals / CE
certificate of suitability / CE marking
Yes
standards, specifications, approvals / hazardous environments
standard / for hazardous zone
EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010
● from CSA and UL
UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..
certificate of suitability
● CCC / for hazardous zone according to GB standard
Yes
● CCC / for hazardous zone according to GB standard / as marking
Ex nA IIC T4 Gc
standards, specifications, approvals / other
laser protection class
LED Class 1
certificate of suitability
EN 61000-6-2, EN 61000-6-4
● C-Tick
Yes
● KC approval
Yes
● E1 approval
No
● EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1
Yes
standards, specifications, approvals / marine classification
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)
Yes
● French marine classification society (BV)
Yes
● Det Norske Veritas (DNV)
No
● Germanische Lloyd (GL)
No
● DNV GL
Yes
● Lloyds Register of Shipping (LRS)
Yes
● Polski Rejestr Statkow (PRS)
Yes
● Royal Institution of Naval Architects (RINA)
Yes
further information / internet links
internet link
● to web page: selection aid TIA Selection Tool
//www.siemens.com/tia-selection-tool
● to website: Industrial communication
//www.siemens.com/simatic-net
● to website: Industry Mall
https://mall.industry.siemens.com
● to website: Information and Download Center
//www.siemens.com/industry/infocenter
● to website: Image database
//automation.siemens.com/bilddb
● to website: CAx-Download-Manager
//www.siemens.com/cax
● to website: Industry Online Support
https://support.industry.siemens.com
security information
security information
Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions,
machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind,
Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product
updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell
protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party
products that may be in use should also be considered. For more information about industrial security, visit
//www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific
newsletter. For more information, visit //support.automation.siemens.com. (V3.4)
