  • 6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System
6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System

6 Heads H6 Led Light Making Robot From China Pick and Place Machine SMT Equipment Solar System

Share on (1600945315550):


Price:US$ 11’500.00

Quantity:


Product Overview

Description



Product Introduction
Machine is of high quality，with at least one-year warranty, lifetime maintenance.
Software designed and developed by our self. It is English. And we will keep updating it.
Customers can get updated software regularly




Part List




Item
Description
Quantity
Remarks
1
Pick and place machine
1 Set
110/220V
2
IC fixed support
4 Sets
Four M5*8,four M5*6
3
JUKl nozzle
16 Pieces
502*4,503*4,504*4,505*3,506*1
4
Calibration suction nozzle
4 Pieces
5
Power wire
1 Piece
6
Fixed foot
4 Pieces
Diameter 20mm
7
The keyboard and mouse
1 Set
8
Nozzle calibration inkpad
1 Box
9
lubricant
1 Piece
10
Chassis key
1 Piece
11
PC
1 Set
12
17 inch liquid crystal display
1 Set


Specification
Model
H6
Number of placement heads
6(high-accuracy)
Number of feeder positions
64(subject to 8mm feeder)


Number of cameras
8
Mark camera----------------1
Fast recognition camera--6
High-precision camera----1

Number of trays
Support up to 48 non- feeder devices, each material can specify its coordinates within the mounting range, and further expand the
single-machine order receiving capability from the practical aspect
Positioning accuracy
0.01mm
Nozzle buffer range
4.5mm
Maximum Area of PCB
500 × 370mm
Maximum height for components
7mm（can be customized to 20mm）
Maximum moving range of Z axis
20mm
Maximum mounting speed
12000CPH
Average mounting speed
9000-10000CPH
Motor
Imported AC Servo Motor MINAS A6 series
Driver
Imported high-speed DSP driver
XYZ drive guide rail
Taiwan Shangyin high-precision heavy-duty linear guide rail
Applicable mounting range
Suitable for 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc.with lead pitch ≥0.3mm (pin center distance
0.5mm)
PCB entry mode
Three-stage entry automatic connection from left to right,automatic PCB
Programming method
Automatic programming after manually importing files of PCB coordinates
Intelligent alarm
Automatic correction, automatic replacement, shortage alarm
Suction nozzle vacuum source
Japan CKD contains a high-speed vacuum generator with vacuum destruction
Tape feeder
8,12,16,24mm and vibrating feeder(can be attached to the tube chip)
Electronic feeder
Option
Drive mode
2040 grinding screw to ensure motor life and mounting efficiency.
X / Y operation mode
Intelligent curve acceleration and deceler
Angle for Components
0-360°, synchronous rotation during movement
MARK point positioning
Fully automatic (the MARK point can be set arbitrarily)
Operating system
Based on windows xp, win7, software of machine independently developed by OURSELF
Visual display
17-inch industrial control display ratio 4: 3 resolution 1280x1024
Power supply
220/110V 50/60Hz
Average power
600W
Compressed air
0.5-0.6Mpa
Minimum exhaust volume of the air supply source
80-120L / min, the volume is more than 60L
Air source quality requirements
Oil water filter;≥60L,dust filter and air pressure stabilizer etc
Product weight
500KG


Part details
Based on 6 mounting heads +8 cameras+64 feeder positions+ Imported Servo motor+guide screw The positioning is highly developed（PRECISION:0.01MM）
SMT PNP Machine can pick 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc.
With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm.

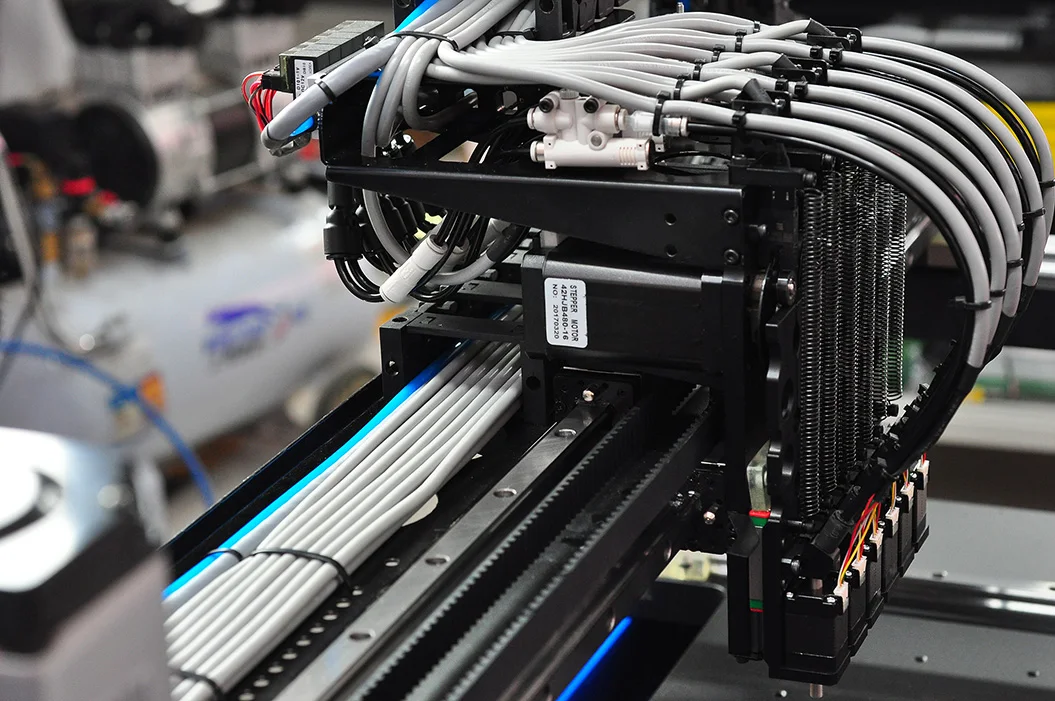

6 Mouting Heads
High-accuracy
8 Cameras
Mark camera----------------1
Fast recognition camera--6
High-precision camera----1

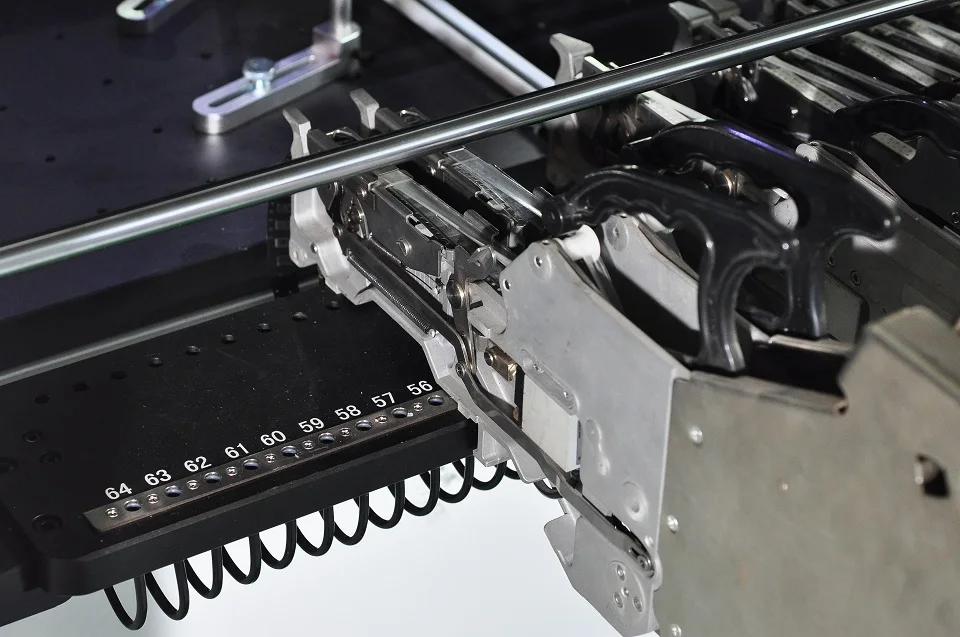

64 Feeder Positions
Subject to 8mm feeder
Electronic feeder Option

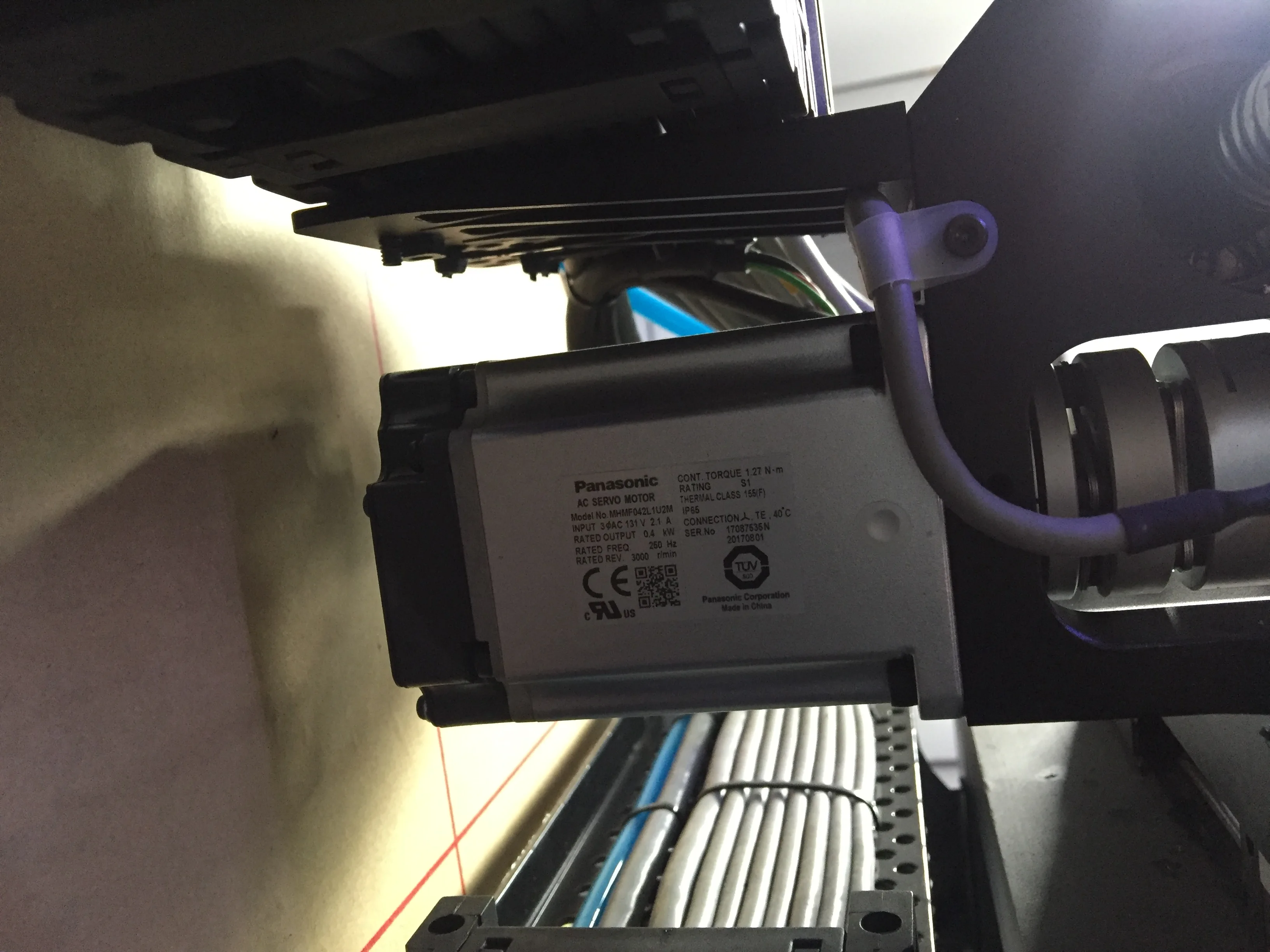

Imported Servo Motor
High precision, strong stability
promise mounting stably all the time

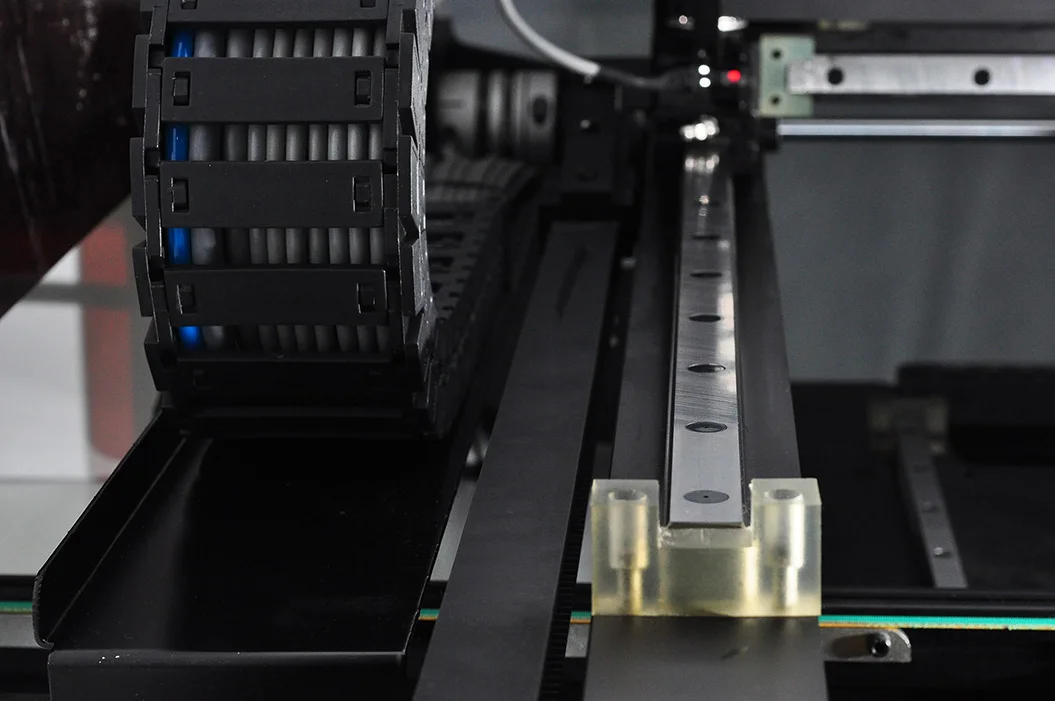

Screw Guider
High precision Quick speed

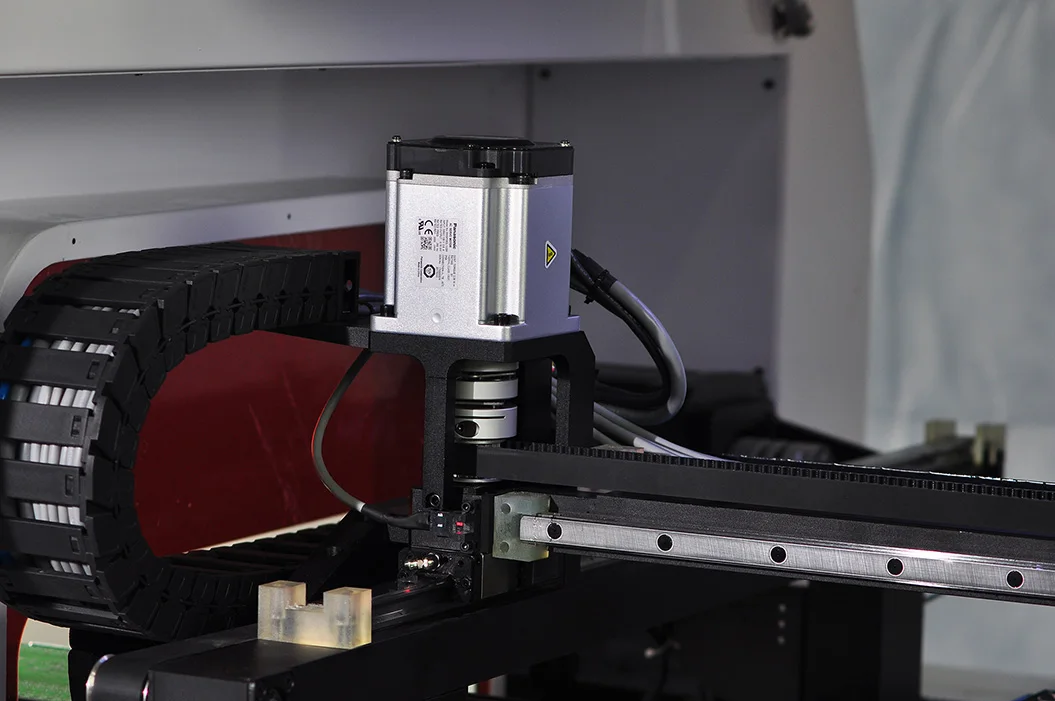

All inner details






Semi-Automatic LED SMT Production Line
Mixer machine+Semi-auto printer+Conveyor+Vertical PNP Machine+Reflow oven






Workshop






CE Approved




Package




FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.

Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation

Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time

Q：Do you have any operation videos to watch?
A：We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange engineers to shoot the specified videos.

Q: What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we
will support this oil)



Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
