Product Overview

Description



Product Description

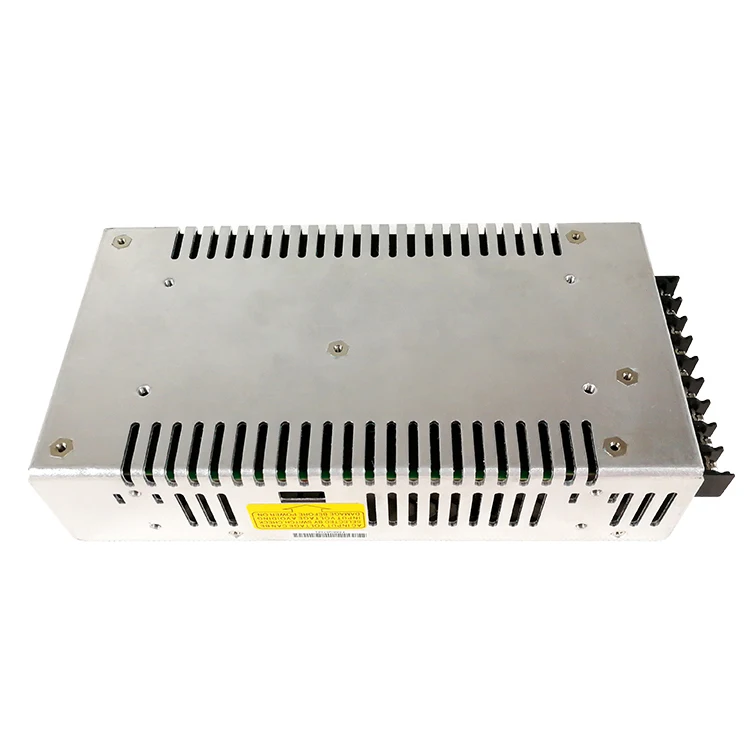

MEAN WELL Switching Power Supply RSP-2000-24V
for diode laser hair removal machine

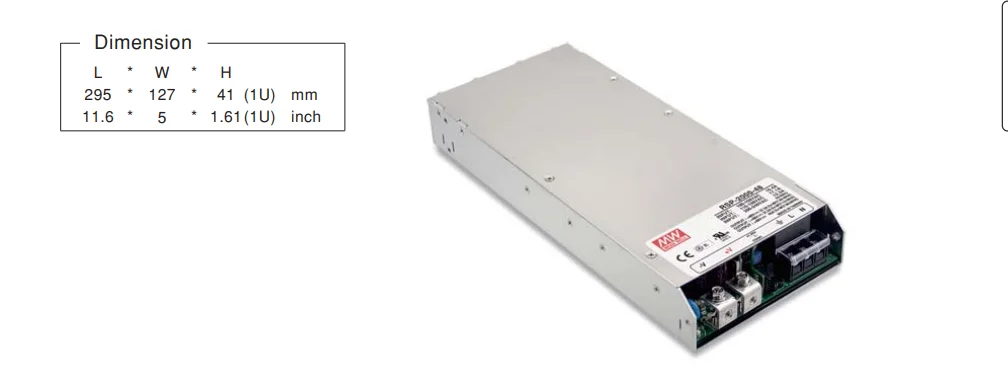

RSP-2000 is a 2kW single output enclosed type AC/DC power supply with 1U low profile. This series operatesfor 90-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70'CMoreover, RSP-2000 provides vast design flexibility by equipping various built-in functions such as theoutput programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Suitable for 10-12bar, single bar 50w or 100w hanlde drive.










Specification


item
value
Brand Name
Mean well
Key Selling Points
High Safety Level
Showroom Location
None
Applicable Industries
Building Material Shops, Construction works
Weight (KG)
3.5KG
APPLICATION
10-12bar, single bar 50w or 100w handle
OUTPUT VOLTAGE
24v
RATED CURRENT
80A
CURRENT RANGE
0 ~ 80A
RATED POWER
1920W
VOLTAGE ADJ. RANGE
21 ~ 28V


Features
·Universal AC input / Full range
·Built-in active PFC function
·High efficiency up to 92%
·Forced air cooling by built-in DC fan
·Output voltage programmable
·Active current sharing up to 8000W (3+1)
·Built-in remote ON-OFF control / remote sense /auxiliary power / DC OK signal / OTP alarm signal
·Protections: Short circuit / Overload / Over voltage/ Over temperature
·Optional conformal coating
·5 years warranty

Applications
·Factory control or automation apparatus
·Test and measurement instrument
·Laser related machine
·Burn-in facility
·Digital broadcasting
·RF application
