Efficient R1000 Reflectorless Trigger Key Zts421L10 Hts521L10 Hi Target Total Station Price
- Category: >>>
- Supplier: Shanghai Apekstool Optoelectronic Technology Co. Ltd.
Share on (1600945337199):
Product Overview
Description
Product Description

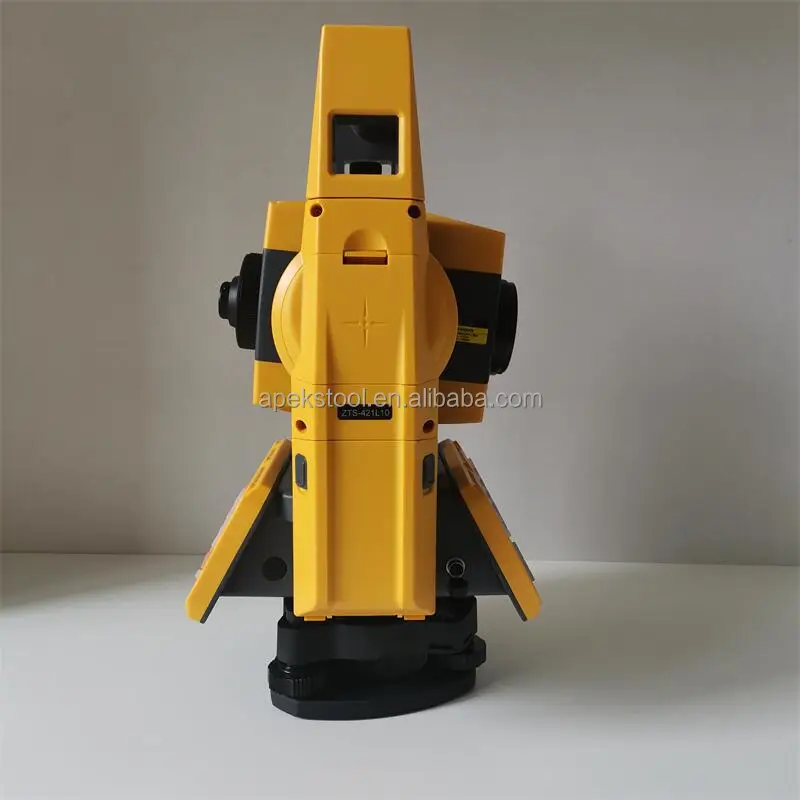

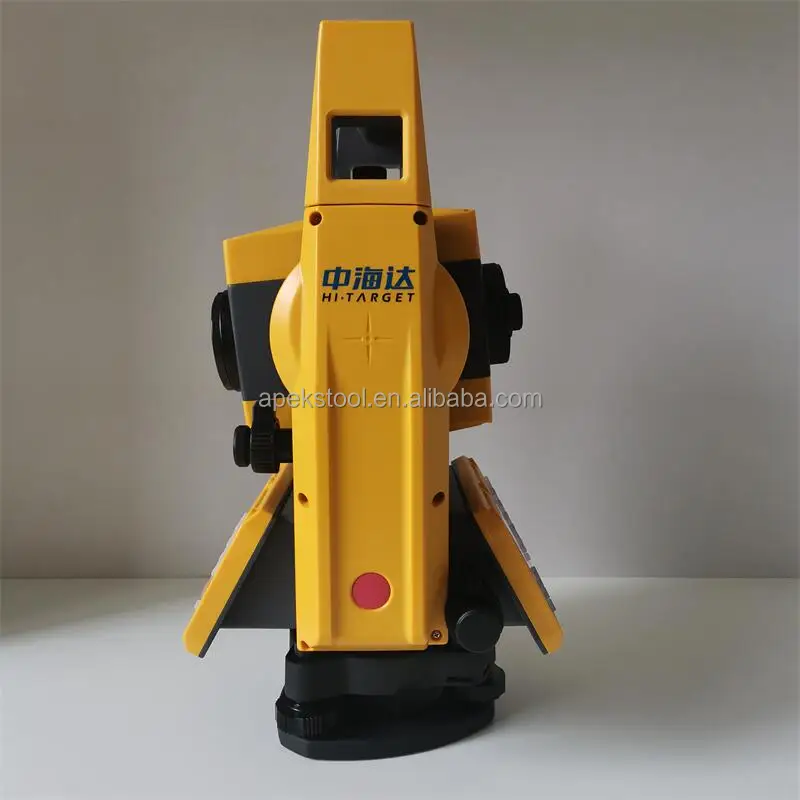

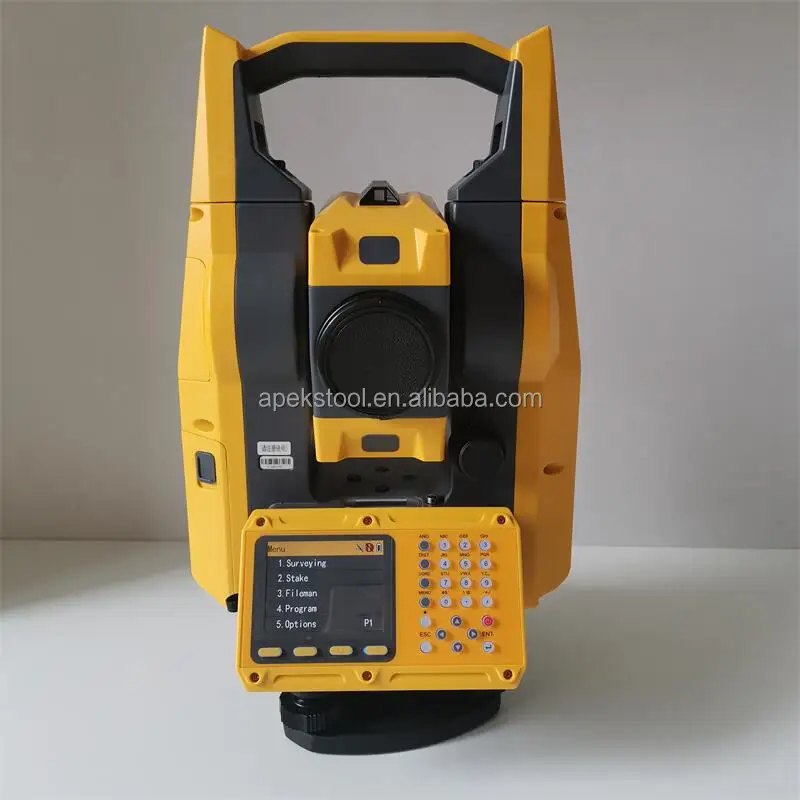

Direct Selling Survey Equipment R1000 Reflectorless Zts421L10 Hts521L10 Hi Target Total Station
*Longer Range and More Stable Precision
ZTS-421L10 has a new optical structure design. It adopts a new ranging algorithm and cooperates with high-quality electronic and optical components. The reflectorless range is up to 1000m with 3+2ppm accuracy. The prism mode range is farther than 6000m with 2+2ppm accuracy.

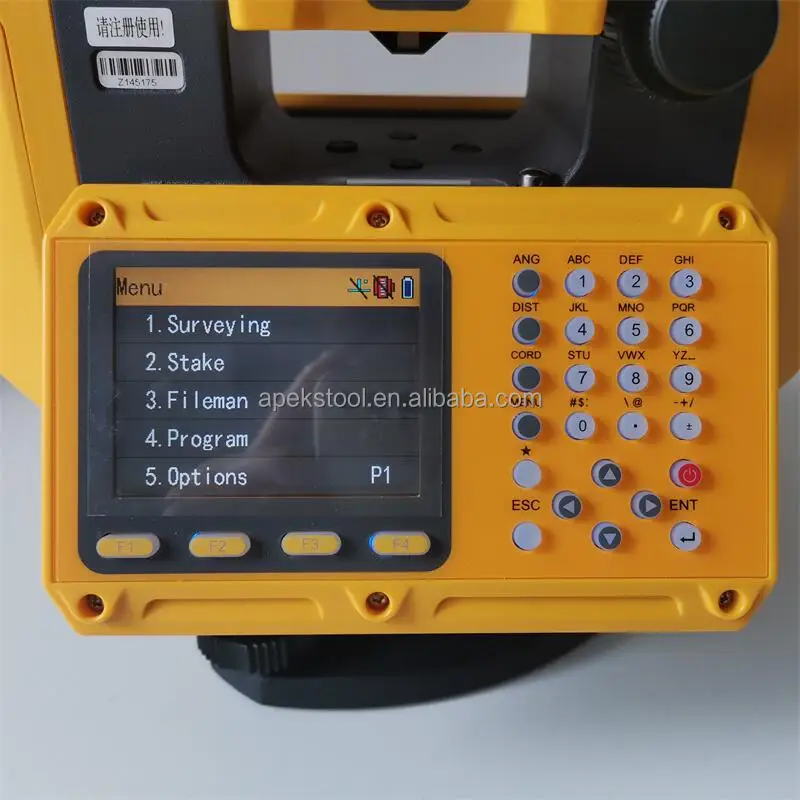

*Colorful display
2.8-inch and 240*320 pixels high-brightness color display is still clearly visible under the strong sunlight. The rubber keys have a backlight display, which makes operation clear in dark environment.
*Trigger Key
The data can be acquired by trigger key with one click, which improves the speed and accuracy of the measurement greatly.
*High Precision and Stability
High-precision bead shafting. Sealed encoder disk.
Specification
Angle Measurement | ||
Measurement Method: | Absolute Encoding | |
Minimum Readout: | 1″ | |
Accuracy | 2" | |
Distance Measurement (with Reflector) | ||
Single prism (General/Good Atmosphere) | 5000m/6000m | |
Accuracy (Fine/Quick/Tracking) | 2mm + 2ppm | |
Measuring Time (Repeat/Tracking) | 0.5s/0.3s | |
Distance Measurement (Reflectorless) | ||
Range (The target is Kodak white board with reflect rate of 90%) | 1000M | |
Accuracy (It may change according to the different reflector conditions) | 3mm+2ppm | |
Measuring Time | 1s | |
Telescope | ||
Magnification | 30X | |
Field of View | 1°30′ (2.7m at 100m) | |
Minimum Focusing Distance | 1.5m | |
Reticle | Light up | |
Compensator | ||
System | Dual-axis liquid tilt sensor | |
Working Range | ±3′ | |
Setting Accuracy | 1″ | |
Communication | ||
Interface | Standard RS232 | |
Internal Data Memory | Approx. 20,000 Points/Standard USB flash drive | |
Wireless communication | Bluetooth | |
Operation | ||
Operation system | English Real-time Operating System | |
Display | 2.8-inch and 240*320 pixels high-brightness color display | |
Keyboard | 2 sides Alphanumeric backlit crystal keyboard | |
Laser Plummet | ||
Type | Laser point, 4 brightness levels adjustment / Optical plummet (optional) | |

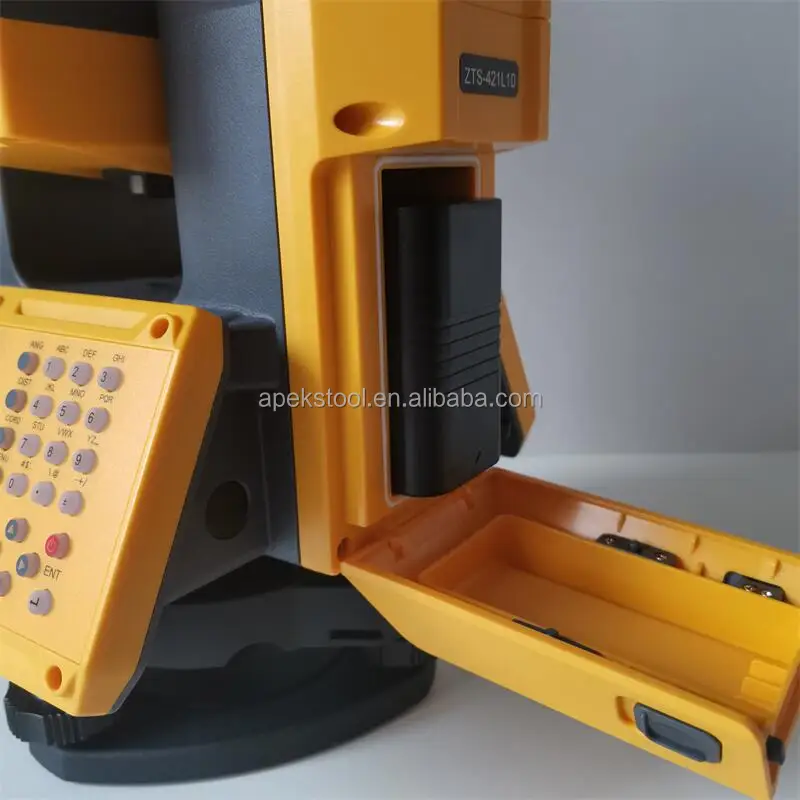

Power Supply | ||
Battery Type | Rechargeable high-energy lithium battery (Type-C for direct charging) | |
Voltage/Capacity | 7.4v, 3000mAh | |
Operating Time | 18-hour (30-second measurement of new battery with 25°C), 36-hour continuous angle measuring | |
Measuring Times | Approx. 30000 times | |
Environmental | ||
Operating Temperature | -20ºC ~+50ºC( -4ºF to +122ºF) | |
Storage Temperature | -40ºC ~+70ºC(-40ºF to +158ºF) | |
Temperature and Air Pressure Input | Automatic sensor | |
Dust&Water Proof (IEC60529 Standard)/Humidity | IP55 | |

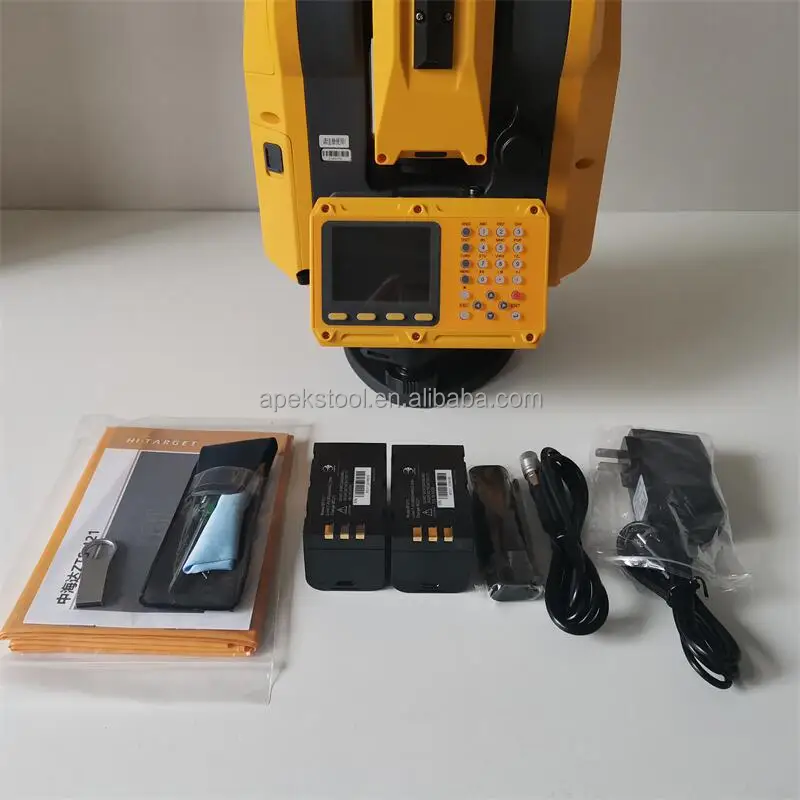

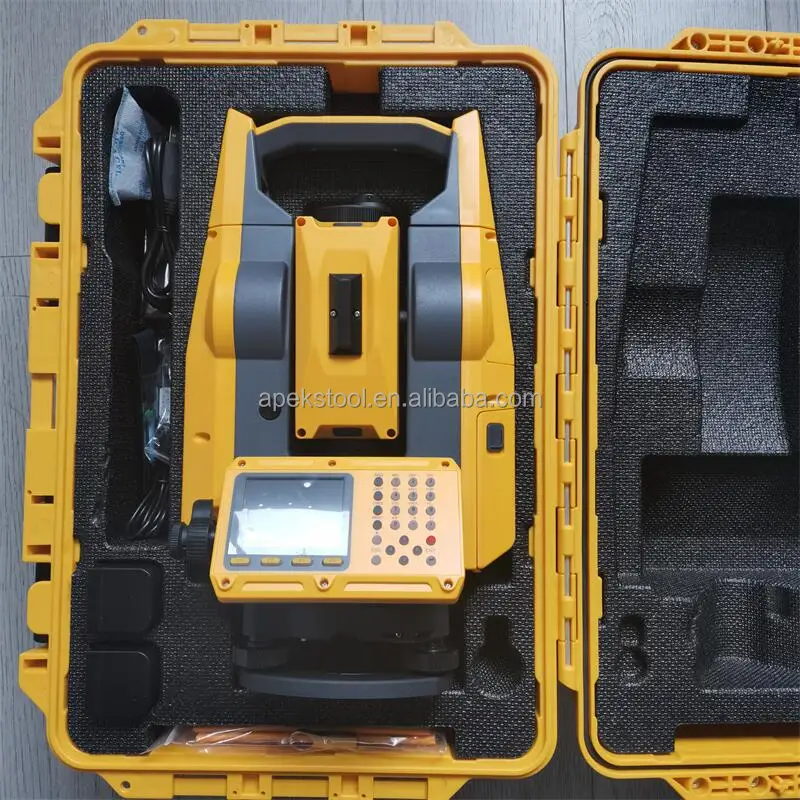

Packages
