Price:$110.00 - $130.00

Quantity:


Product Overview

Description

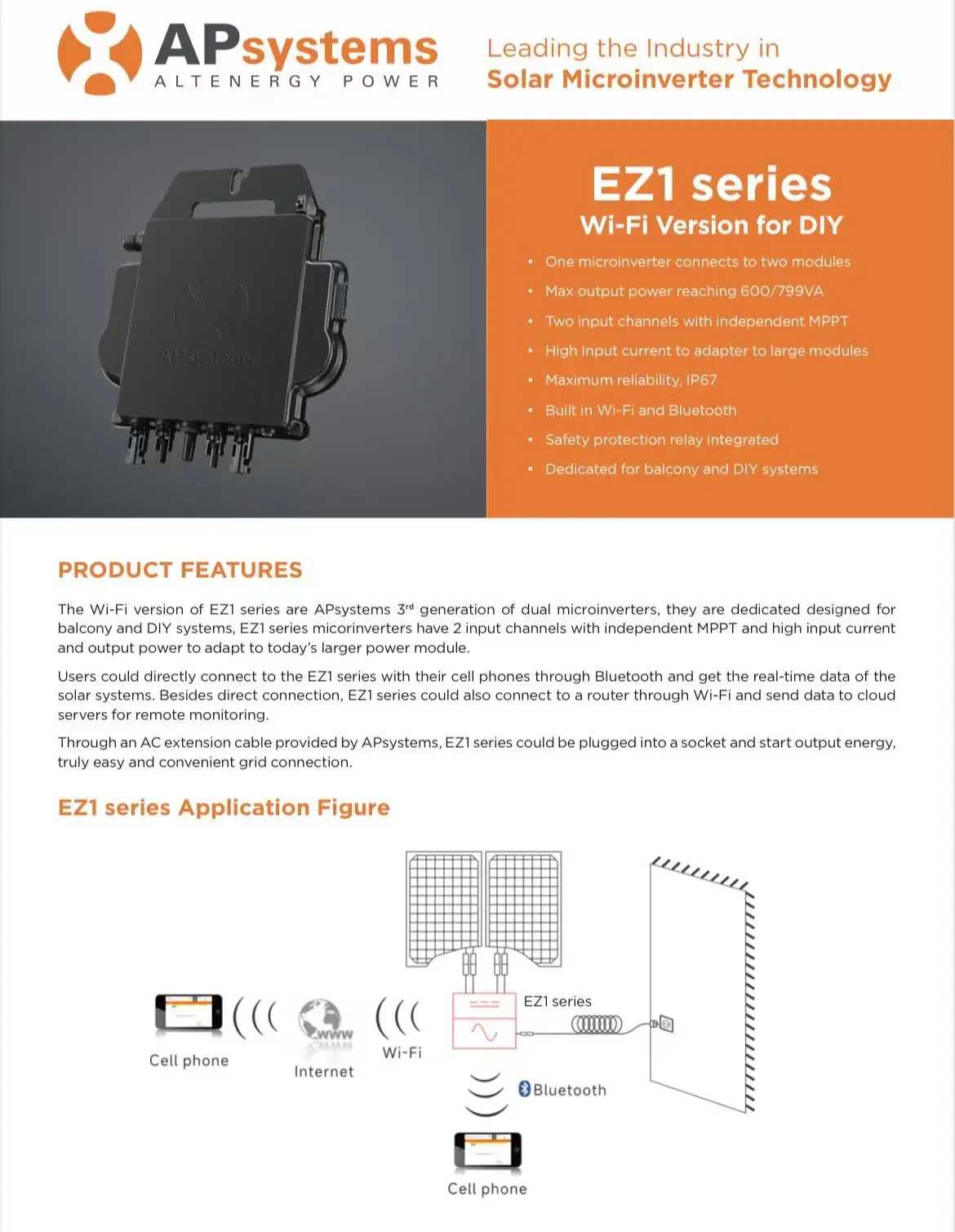

Product Description

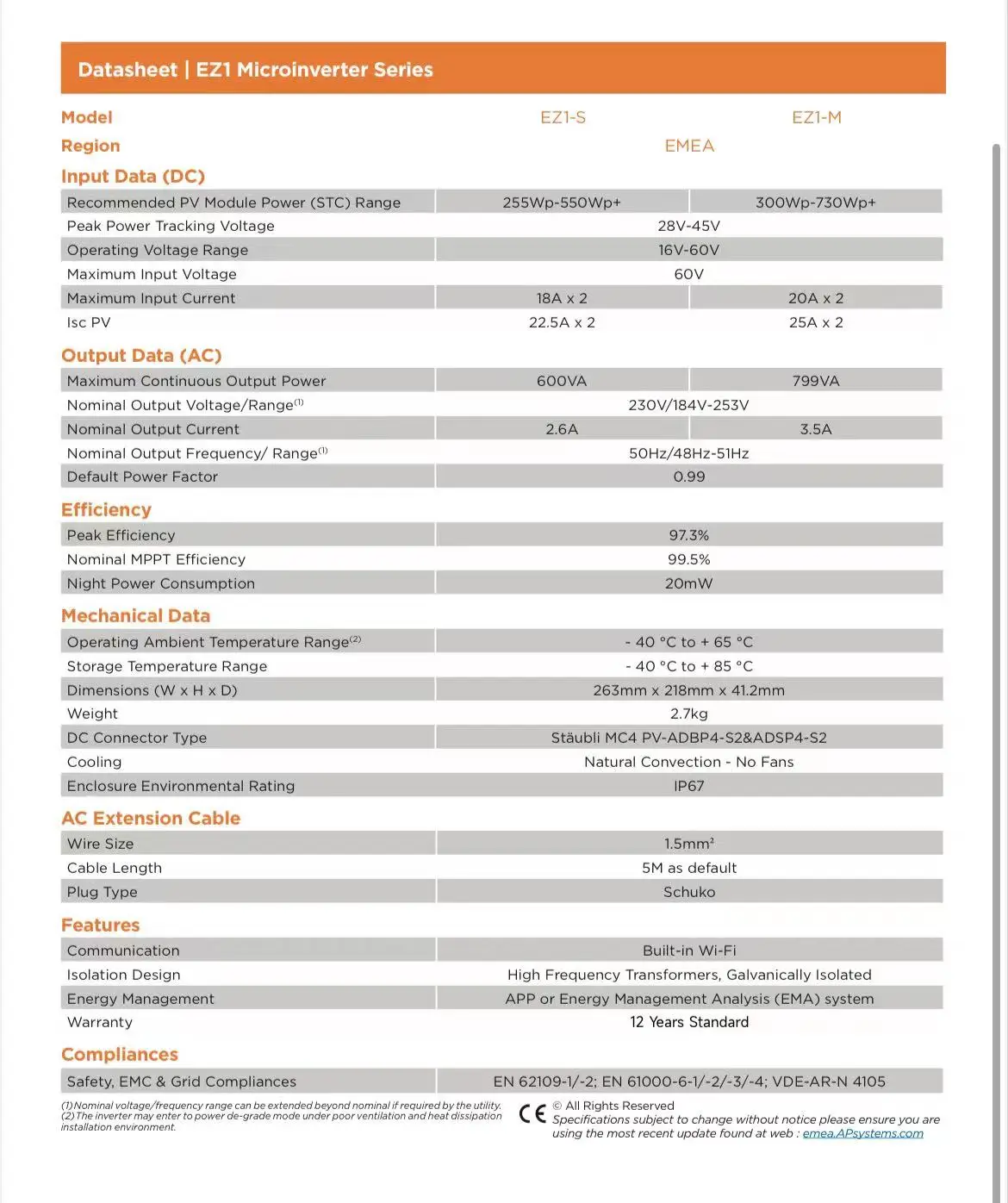

Specification


Model
EZ1-S
EZ1-M
Region
EMEA
Input Data (DC)
Recommended PV Module Power (STC) Range
255Wp-550Wp+
300Wp-730Wp+
Peak Power Tracking Voltage
28V-45V
Operating Voltage Range
16V-60V
Maximum Input Voltage
60V
Maximum Input Current
18A x 2
20A x 2
Isc PV
22.5A x 2
25A x 2
Output Data (AC)
Maximum Continuous Output Power
600VA
600VA(3)/799VA
Nominal Output Voltage/Range(1)
230V/184V-253V
Nominal Output Current
2.6A
2.6A(3)/3.5A
Nominal Output Frequency/ Range(1)
50Hz/48Hz-51Hz
Default Power Factor
0.99
Efficiency
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
20mW
Mechanical Dat
Operating Ambient Temperature Range(2)
- 40 °C to + 65 °C
Storage Temperature Range
- 40 °C to + 85 °C
Dimensions (W x H x D)
263mm x 218mm x 36.5mm
Weight
2.8kg
DC Connector Type
Stäubli MC-4 PV-ADBP4-S2&ADSP4-S2
Cooling
Natural Convection - No Fans
Enclosure Environmental Rating
IP67
Power Cord (Optional)
Wire Size
1.5mm²
Cable Length
5M as default
Plug Type
Schuko
Features
Communication
Built-in Wi-Fi and Bluetooth
Maximum Units Can Be Connected(4)
2
Isolation Design
High Frequency Transformers, Galvanically Isolated
Energy Management
AP EasyPower APP
Warranty
12 Years Standard
Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;
DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;
UNE 217002; NTS; RD647; VDE-AR-N 4105
