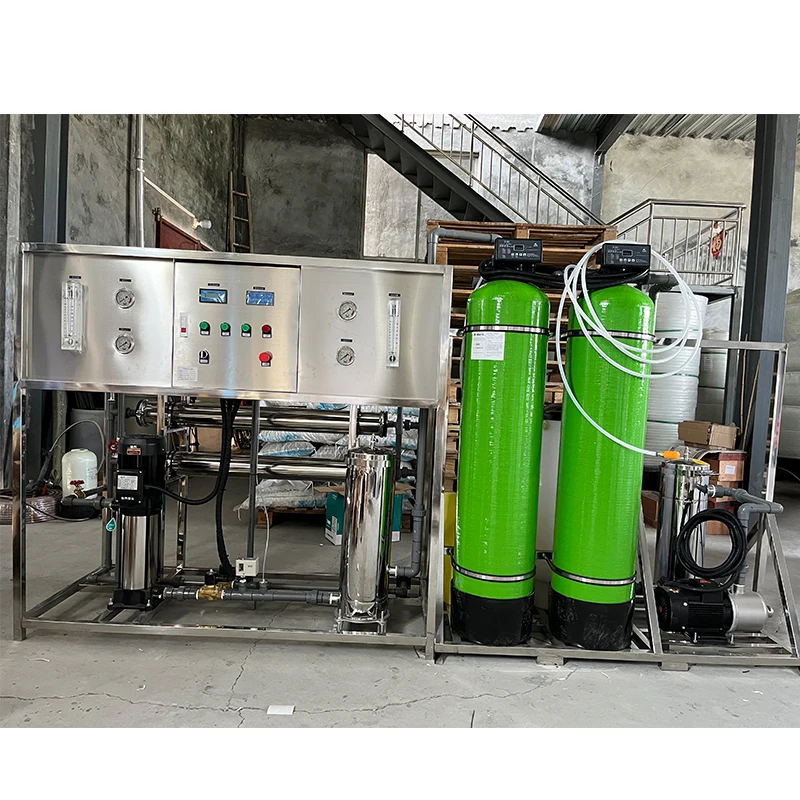

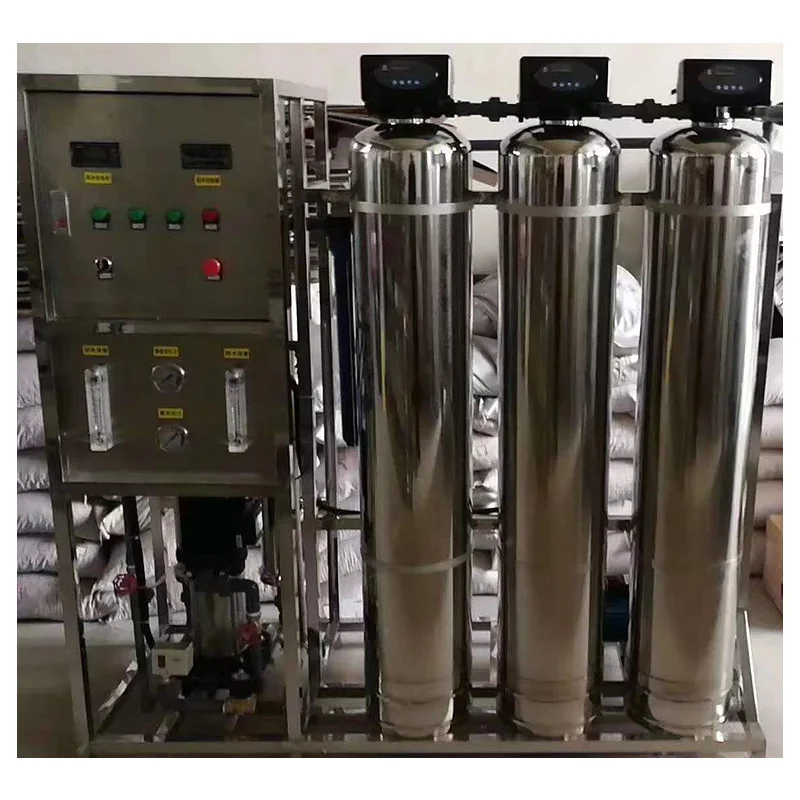

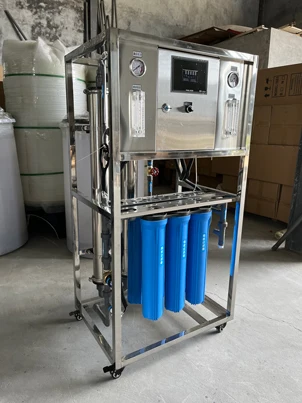

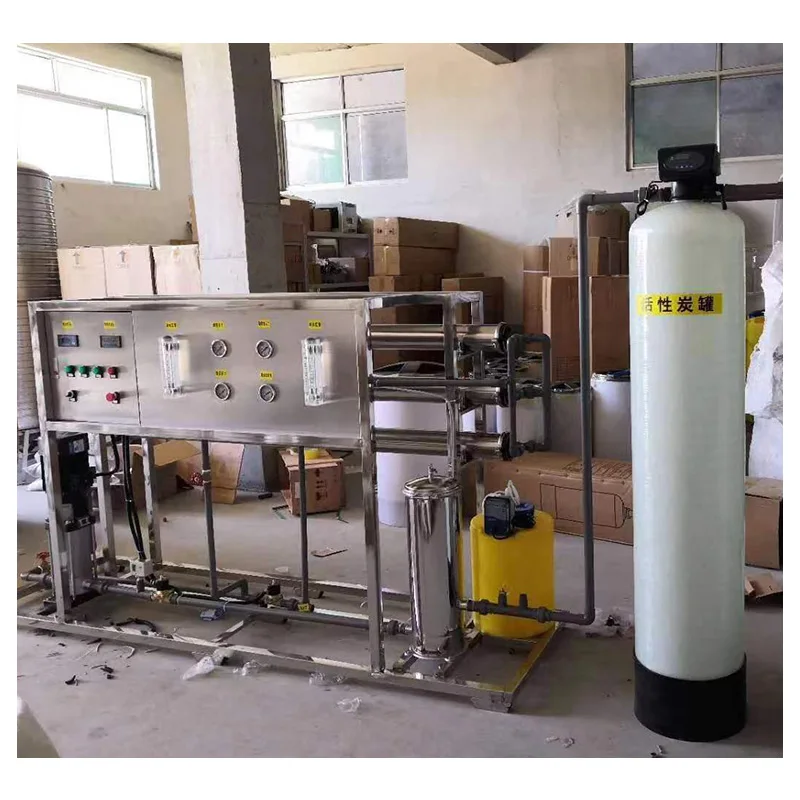

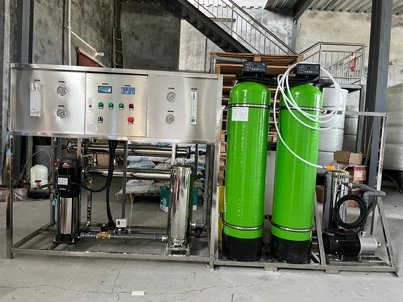

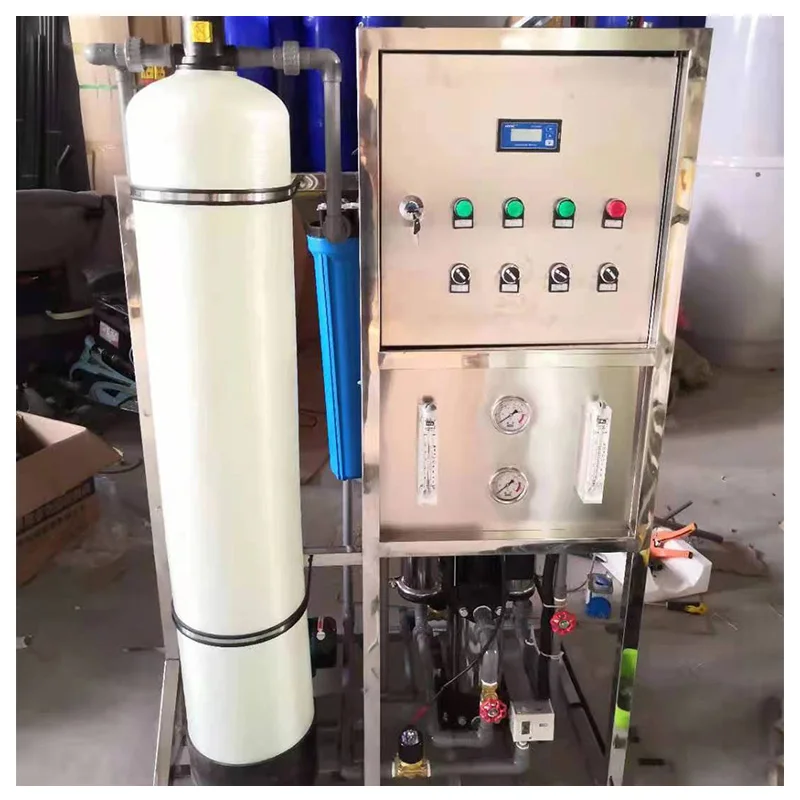

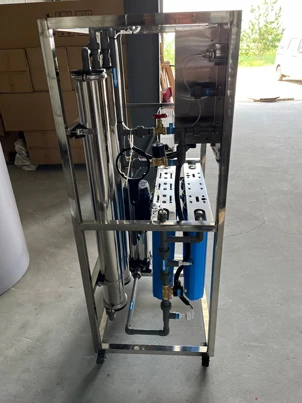

automatic reverse osmosis water filter system uf membrane ro system water filtration system
- Category: >>>
- Supplier: Shandong State Trillion Import & Export Group Co. Ltd.
Share on (1600945340323):
Product Overview
Description
Product Overview
Title goes here.
Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules and larger particles from drinking water. In reverse osmosis, an applied pressure is used to overcome osmotic pressure, a colligative property, that is driven by chemical potential differences of the solvent, a thermodynamic parameter. Reverse osmosis can remove many types of dissolved and suspended species from water, including bacteria, and is used in both industrial processes and the production of potable water. The result is that the solute is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side. To be "selective", this membrane should not allow large molecules or ions through the pores (holes), but should allow smaller components of the solution (such as solvent molecules) to pass freely.
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, submicron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
What is Reverse Osmosis?
Reverse osmosis (R/O) is a water treatment process in which water is forced through a semi-permeable membrane that has very small
holes or "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and
flushed away. In a word, it is a machine to make pure/ultra pure water.
How Do I Know Which Size Unit to Buy?
General guidelines for modeling an RO system to take into consideration are the silt density index (SDI) measurement of the feed
water after pretreatment. Derived from experien- ce, limits on permeate flux and element recovery for different types of waters
are based on correlation of the SDI value with membrane fouling and mineral content with element re-covery, respectfully, for
different types of waters. These ge- neral limits shown in Table 1 below serve as boundary condi-tions when designing a RO system.
A system designed with high permeate flux rates for example is likely to experience higher fouling rates and more frequent
chemical cleanings. Due to high salinity (>36,000 ppm TDS), seawater system de-signs are further limited by the osmotic pressure
and durabi- lity of the membrane elements.
Material of reverse osmosis system?
We have different material for different application. Before choosing RO System and Type please contact with our Pro- fessional
CHUNKE technical service.
1.Tanks: Fiber glass or Stainless Steel 304/316
2. Pipes: U-PVC or stainless steel filter
3. Frame: Stainless Steel 304 or 316
4. Filter Housing: U-PVC or SS304 or SS316
5. Memrane Housing: FRP or SS304 or SS316
Of course, every application is unique and we want to make sure you find the exact solution that you are looking for, so reach out
to CHUNKE professional and ask all the questions you have to find your industrial water filtration solution.

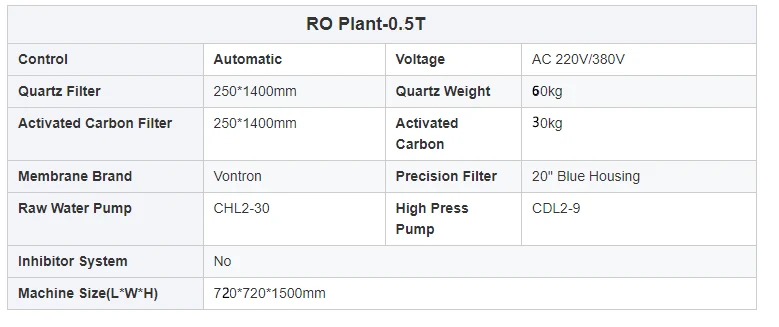

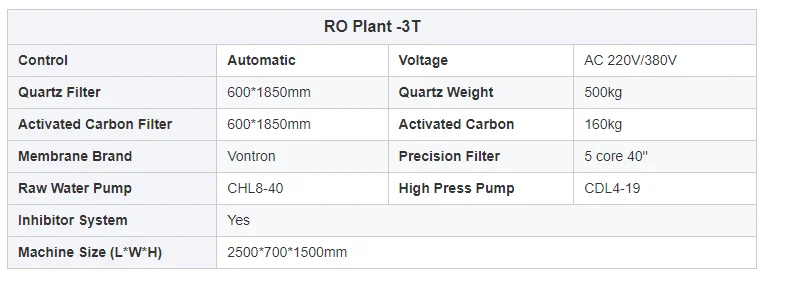

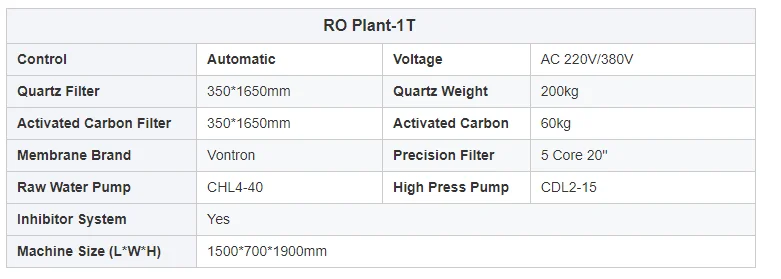

PRODUCT SPECIFICATIONS
item | value |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | Morocco, Ukraine, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 3 years |
Core Components | Pump, PLC |
Place of Origin | China |
Guangdong | |
Brand Name | Tuoqi |
Material | SUS FRP |
Weight | 330kg |
Size | 165x90x180cm |
Power | 5000 |
Warranty | 1 Year |
Productivity | 500L/H |
Weight (KG) | 330kg |
Product name | seawater desalination machine |
Usage | sea water to drink water |
Voltage | 380V/50Hz |
Capacity | 500LPH |
Technology | Reverse Osmosis Technology |

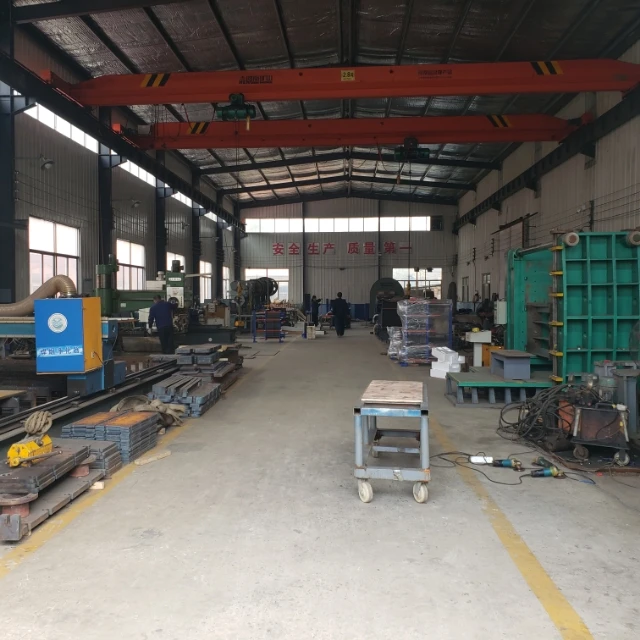

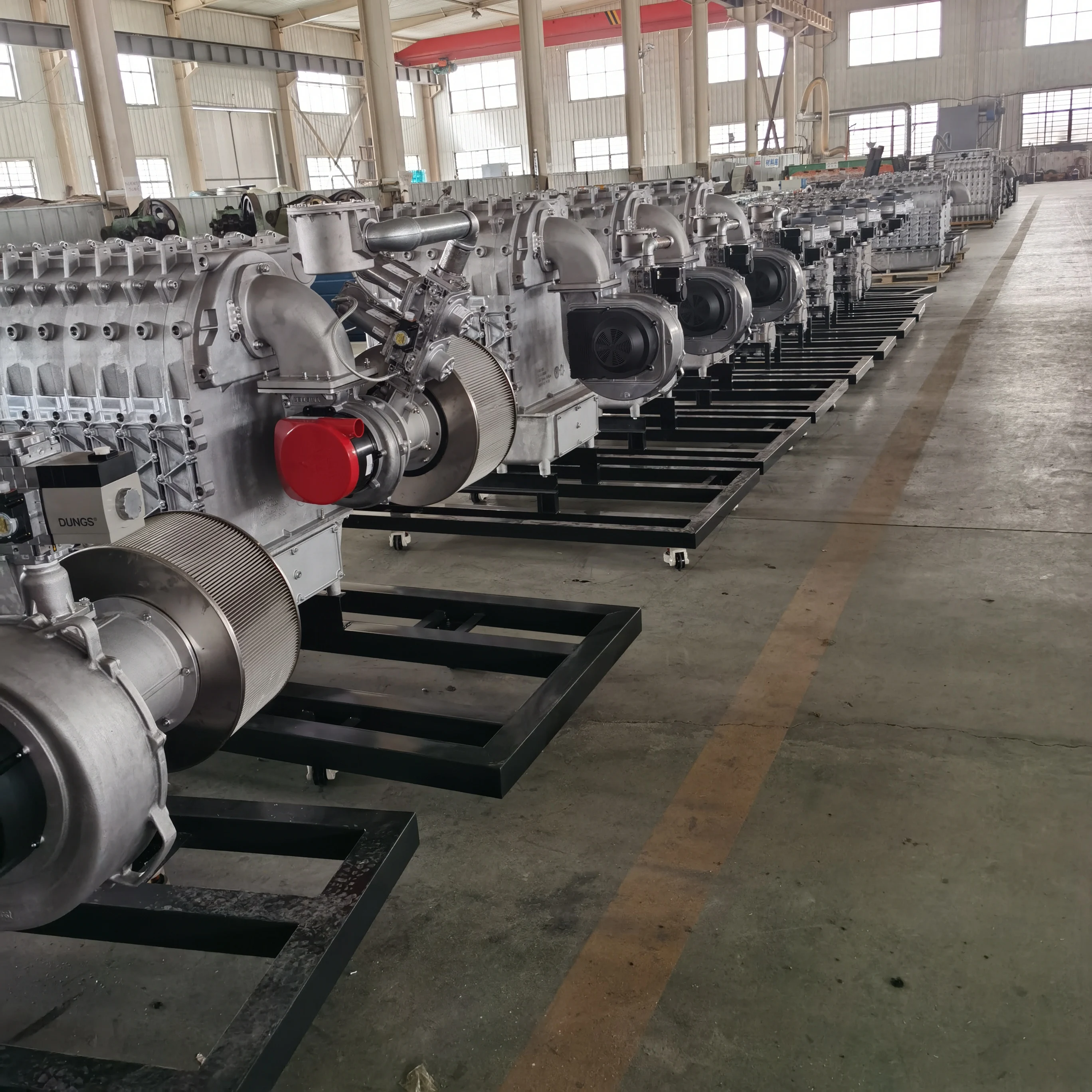

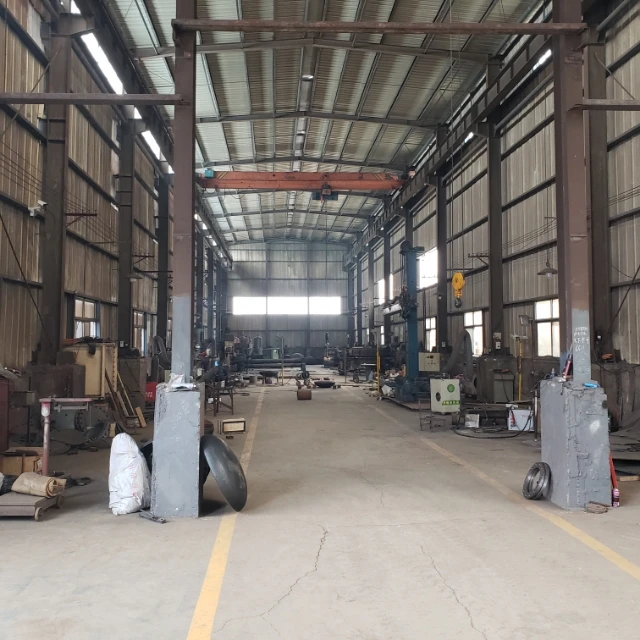

Workshop Pictures
SALES AND SERVICE NETWORK

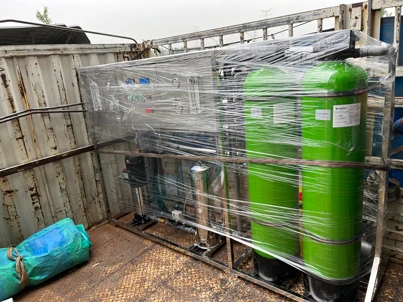

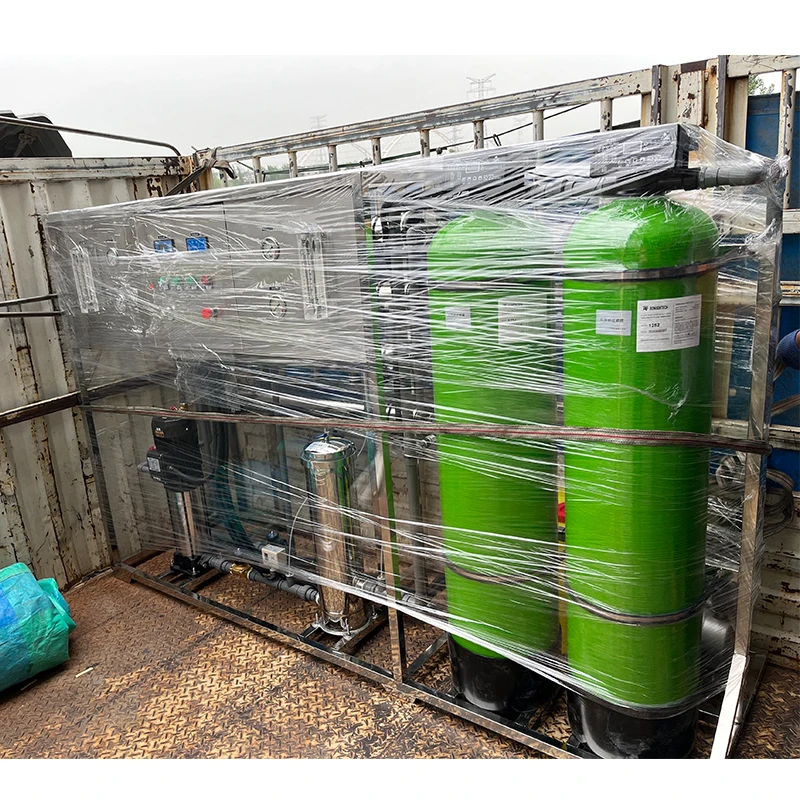

Packing & Delivery
FAQ
Q1: Could you give me your best price?
A1:Definitely, we are a professional manufacturer, so we could give you competitive price.
Q2: How long would the delivery time?
A2: It is based on production season and order quantity.
Q3: How can you guarantee the quality?
A3: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise
life.
That’s why we have lots of big group companies.
Q4: I want to buy your products, how can I make the payment?
A4: We can accept the T/T and western union.
A1:Definitely, we are a professional manufacturer, so we could give you competitive price.
Q2: How long would the delivery time?
A2: It is based on production season and order quantity.
Q3: How can you guarantee the quality?
A3: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise
life.
That’s why we have lots of big group companies.
Q4: I want to buy your products, how can I make the payment?
A4: We can accept the T/T and western union.
