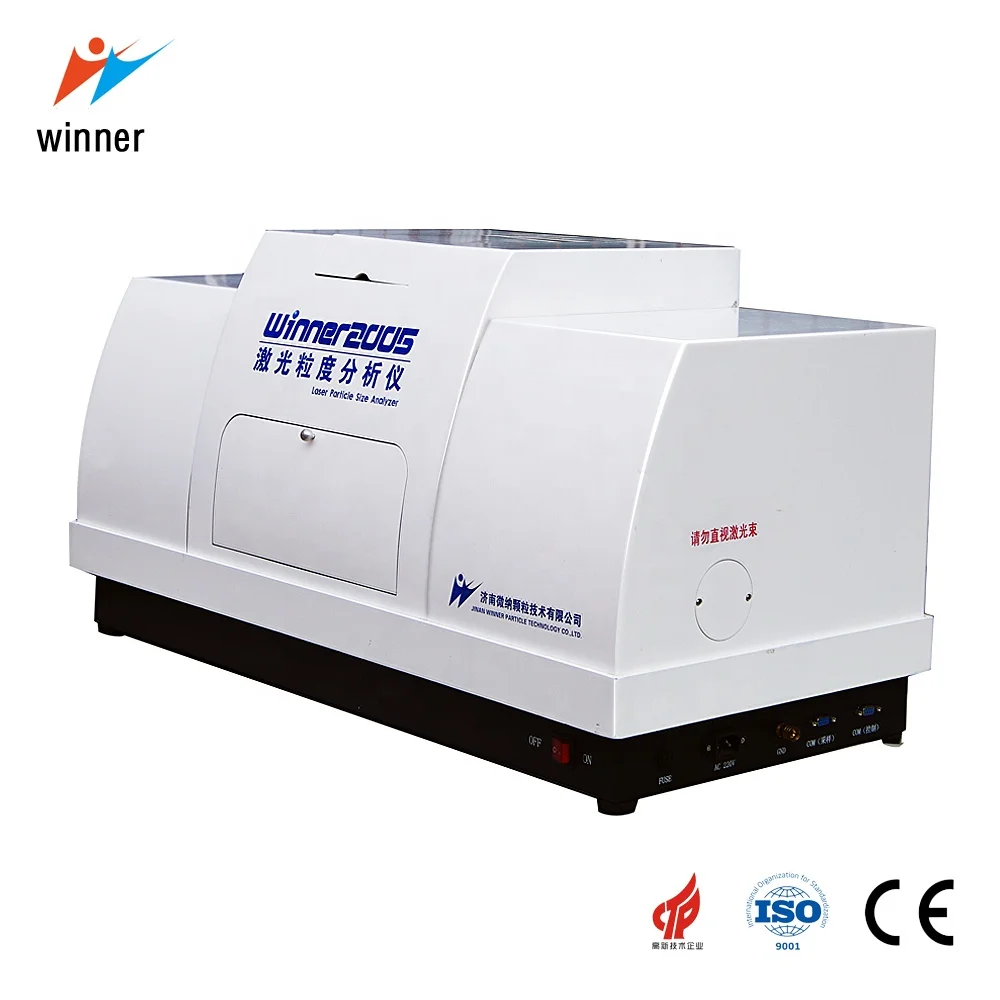

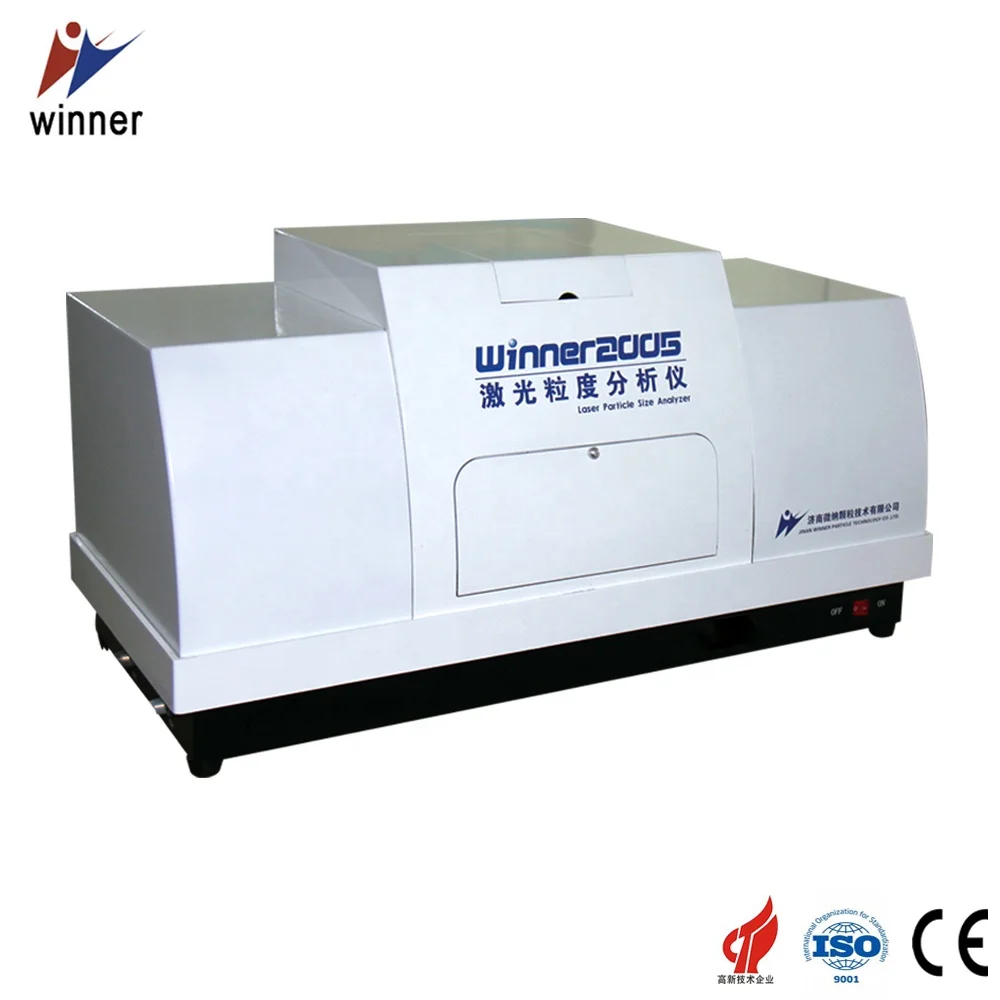

Winner2005 wet wide range laser particle size analyzer adopts fully automatic mode for cement particle size distribution
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (1600945439397):
Product Overview
Description
Winner 2005A/Winner 2005B
Product Description
Winner2005A/B intelligent full automatic laser diffraction particle size analyzer with MIE scattering theory to precisely test the particle size distribution from 0.01/0.1μm to 1000μm. It adopts dual laser beam and built-in sample preparation system, Intelligent operation, very simple to use for engineer, offer accurate and reliable data,built-in side wide-angle detector, make sure get 0.01 micron particles scattering angles.
Main Features
(1) Light path: Adopt converging light Fourier transform light path,measure range expanded from 0.01μm-1000μm.

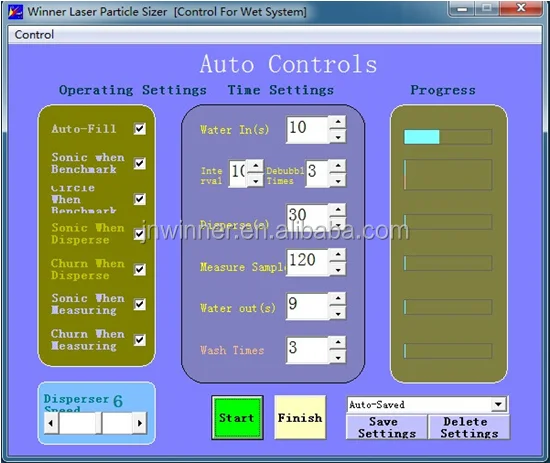

(2)Intelligent full automatic operation mode realize one key test, automatically supply water,ultrasonic dispersion, circulate and drain off water, so it not only could decrease workload, but also get better repeatability after remove human-factors errors.
(3) Automatic Optical path alignment System,
The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.01μm, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.
(4)Full built-in Sample dispersion system,
Auto wet dispersion system,SOP realize one key operation.
set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long outer dispersing system tube, it guarantees the representativeness of test result.
(5) Analysis software:adopt unconstrained free fitting patent technology make particle analysis not be restricted by any functions, truly reflect particle size distribution.
(6) High sensitive photo detectos gathering all the particles scattering signals, ensure the good accuracy.
(7)Output parameters:(D50, D03, D06, D10, D16, D25, D75, D84, D90, D97,D98,set any value, S/V, D[3,2],D[4,3] )
(2)Intelligent full automatic operation mode realize one key test, automatically supply water,ultrasonic dispersion, circulate and drain off water, so it not only could decrease workload, but also get better repeatability after remove human-factors errors.
(3) Automatic Optical path alignment System,
The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.01μm, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.
(4)Full built-in Sample dispersion system,
Auto wet dispersion system,SOP realize one key operation.
set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long outer dispersing system tube, it guarantees the representativeness of test result.
(5) Analysis software:adopt unconstrained free fitting patent technology make particle analysis not be restricted by any functions, truly reflect particle size distribution.
(6) High sensitive photo detectos gathering all the particles scattering signals, ensure the good accuracy.
(7)Output parameters:(D50, D03, D06, D10, D16, D25, D75, D84, D90, D97,D98,set any value, S/V, D[3,2],D[4,3] )
Specification
Model Name | Winner2005A/Winner2005B | ||||
Standard | ISO13320-1:1999，GB/T19077.1-2008，Q/0100JWN001-2013 | ||||
Principle | MIE Scattering Principle | ||||
Size range | 0.01μm-1000μm/0.1μm-1000μm | ||||
Photodetectos | 90pcs/87 pcs | ||||
Accuracy | ≤0.5% (Deviation of D50 on national standard sample) | ||||
Repeatability | ≤0.5% (Deviation of D50 on national standard sample) | ||||
Laser | Semi conductor Laser λ= 636.5nm, p>2mW Service time>25000 hour | ||||
Wet dispersion | Ultrasonic | Frequency:40KHz Power:35W, Time: ≥1S | |||
Agitator | Revolutions Speed: 0-3000RPM (Adjustable) | ||||
Circulation | Rated Flow:8L/min Rated Power:10W | ||||
Sample tank | Volume: 350mL | ||||
Operation mode | Manual and Full automatic | ||||
Optical alignment system | Full automatic optical path alignment system | ||||
Software function | Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. | |||
Statistic Method | Volume Distribution, Quantity Distribution | ||||
Statistic Comparison | Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time. | ||||
User-defined Analysis | Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries | ||||
Test Report | Word, Excel,Photo( Bmp), Text etc | ||||
Multiple-language Support | Multiple language Support | ||||
Intelligent operation | Automatically control water inflow, dispersion,test and analysis.Better Repeatability after remove human-factor | ||||
Report Items | Particle size distribution table&graph, average diameter, Median diameter, SSA, etc. | ||||
Testing speed | <2min/time (including all the procedures) | ||||
Running temperature | 15 ℃ -35 ℃ | ||||
Humidity | <85% | ||||
Outer dimension | L85cm*W39cm*H45cm | ||||
Net weight | 40Kg | ||||

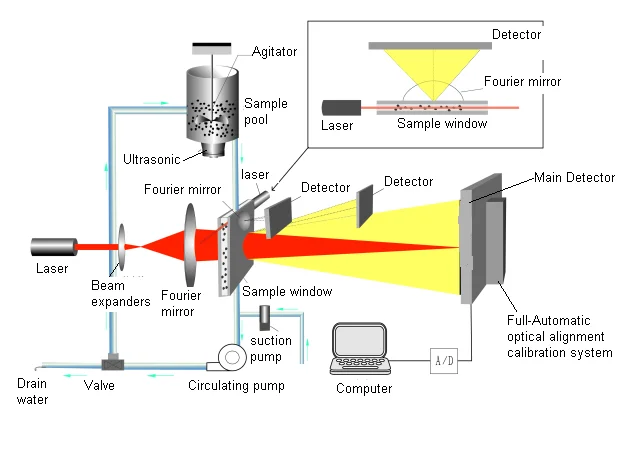

Principle

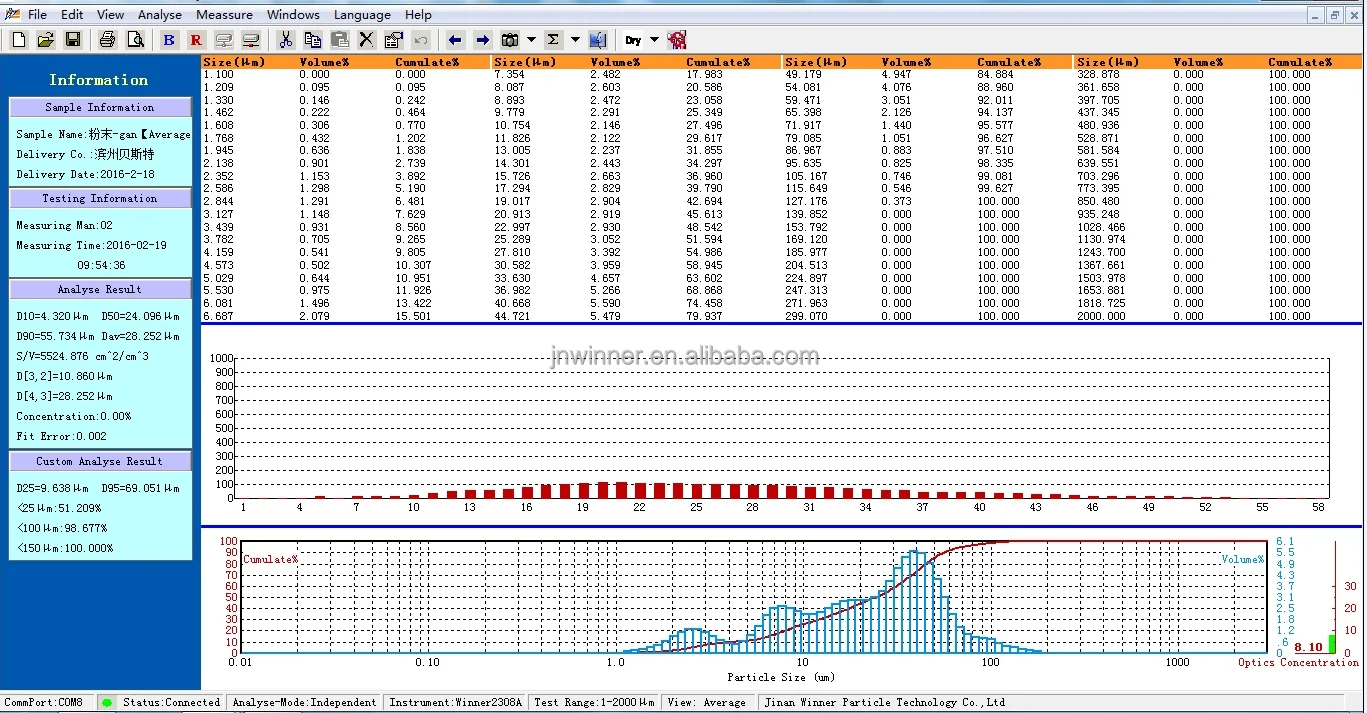

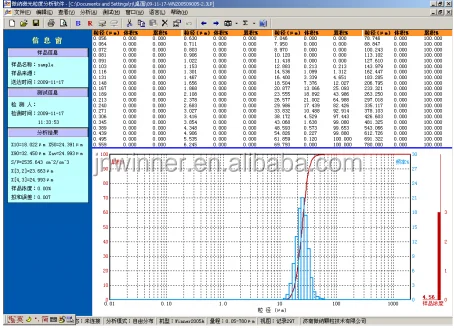

Test Analysis View
Application
Winner2005A/Winner 2005B is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
Company Profile
Jinan Winner Particle Instrument Co., Ltd. have have been specialized in particle size analyzer for more than 30 years, since we undertake National Science Project-particle size analyzer development in 1985.
We are the 1st manufacturer to produce Nano-particle size analyzer in China.
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!
We are the 1st manufacturer to produce Nano-particle size analyzer in China.
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!
Certifications
Exhibition
Our Customers
Our Team
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
We created more than 10 first particle size analysis technology in China!
Our Partners
Recommend Products
Quality Assurance
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After Sale Service
1.Operation demo video CD will be offered.
1.Operation demo video CD will be offered.
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support will be provided for life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
FAQ
Purchase laser particle size analyzer need know points:
(1) What are the commonly used media?
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2) What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant .
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will conjoin dense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2) What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant .
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will conjoin dense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
