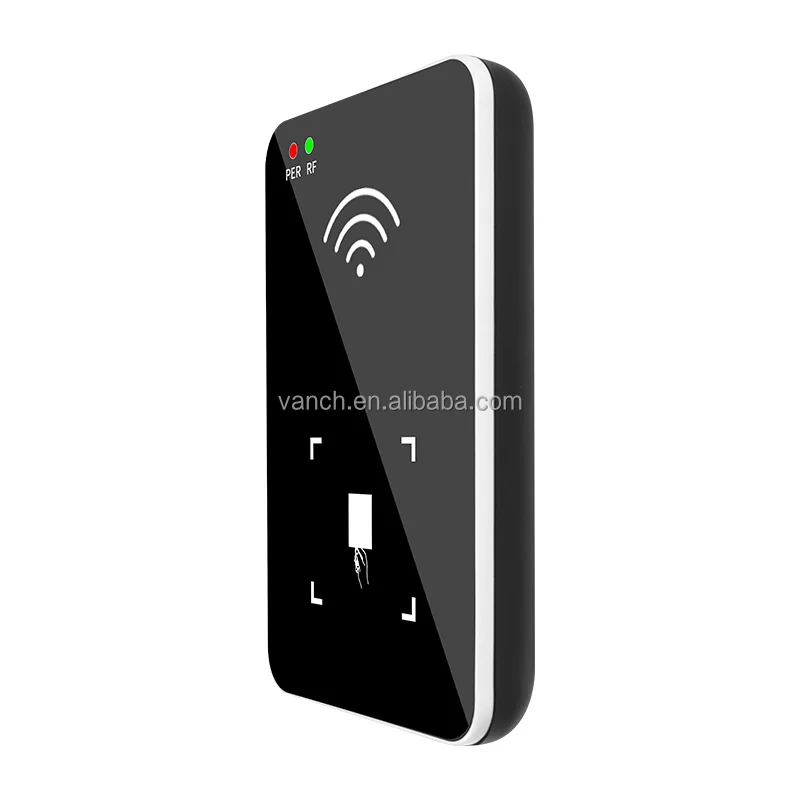

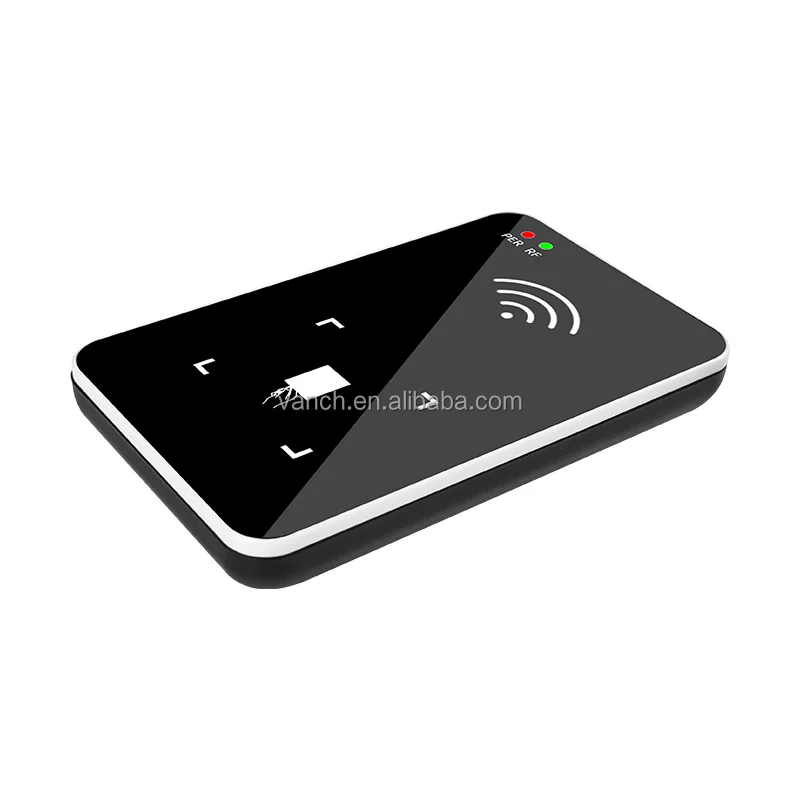

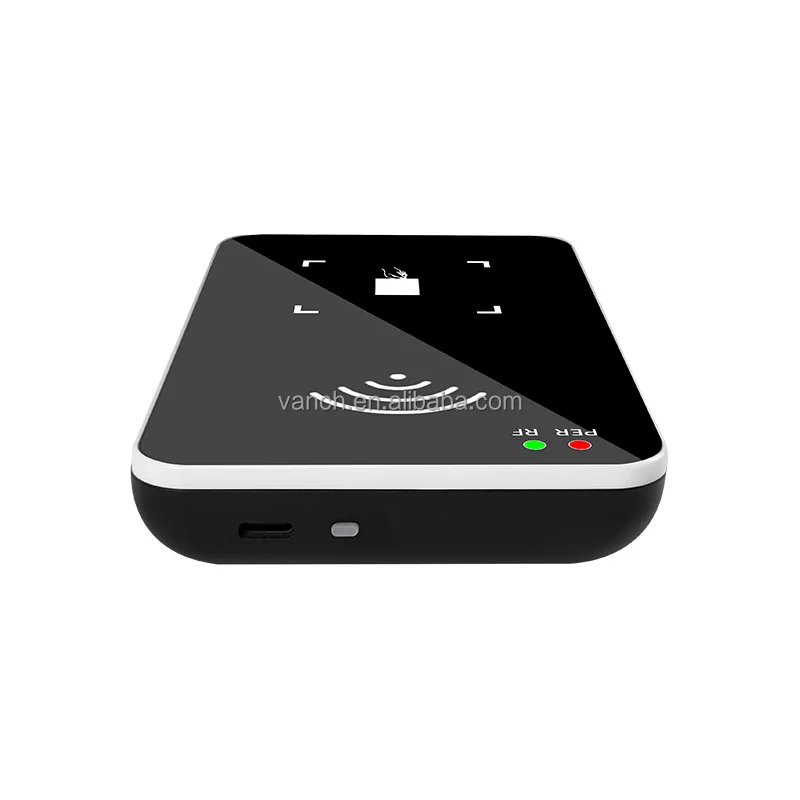

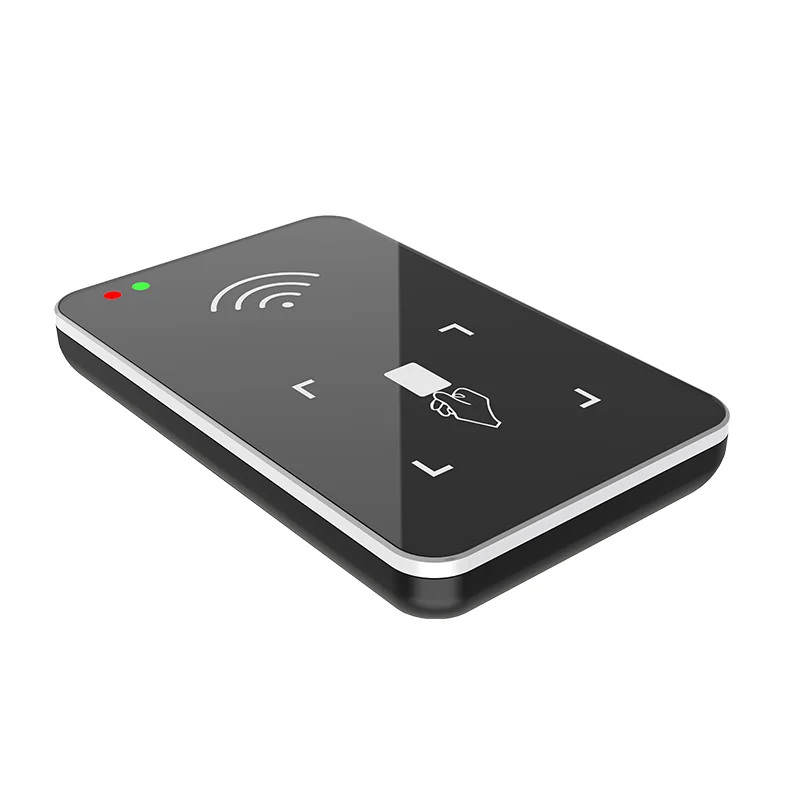

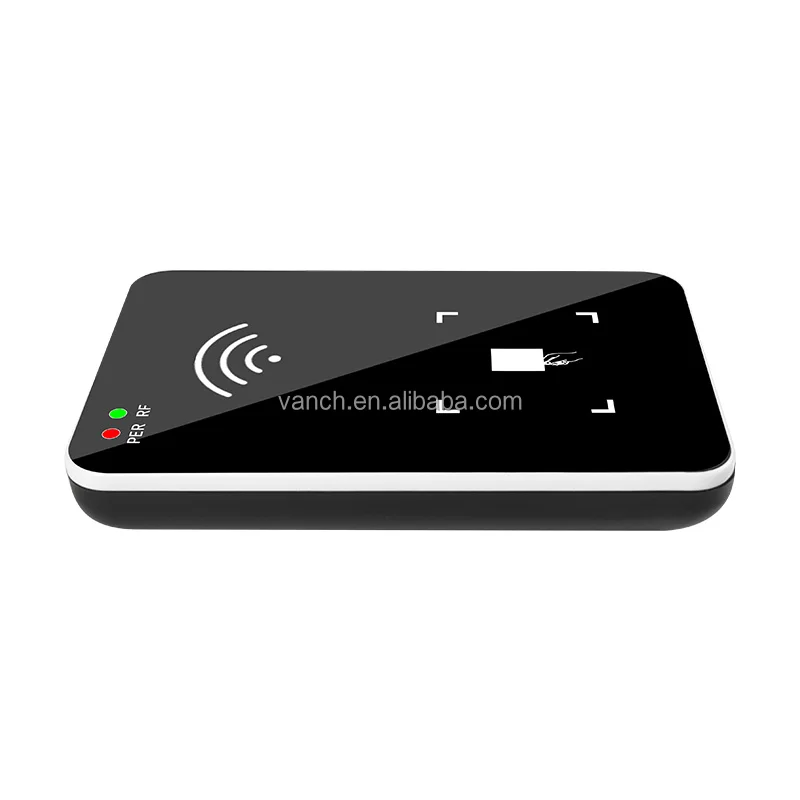

UHF RFID Desktop Read Writer Reader with USB Interface
- Category: >>>
- Supplier: Shenzhen Vanch Intelligent Technology Co. Ltd.
Share on (1600945483434):
Product Overview
Description
Products Description
Specification
Product Model | VD-67S | |
Performance Index | ||
Frequency Range | Working frequency 902-928MHZ or 865-868MHZ (can be adjusted according to different countries or regions) | |
Frequency modulation method | Broad spectrum frequency modulation (FHSS) or fixed frequency, which can be set by software | |
Number of antennas | Built-in double-feed point ceramic antenna | |
Communication Interface | USB | |
RF IC Used | PR9200 | |
Reading distance | Read>100mm, Write>50mm | |
Application software interface | Provide dynamic link library (DLL) to support secondary development | |
Label operation performance | ||
Reading distance | Built-in transceiver antenna, reading distance >30cm, writing distance >10cm | |
Air interface protocol | Support compliance with ISO-18000-6B, ISO-18000-6C (EPC G2) | |
Mechanical electrical performance | ||
size | 139(L)*86(W)*22(H)mm | |
power supply | Computer USB interface for power | |
weight | 120g | |
humidity | 5% to 95%, non-condensing | |
Protection class | IEC IP52 | |
Operating temperature | -20 ºC to 60 ºC | |
storage temperature | -40°C to 80°C | |
Tips: | For more information, please consult online customer service, thank you | ||||||
Application and Cases
FAQ
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
