Fusion Thermal Imaging Night Vision Camera 1024*768 Night Vision Uncooled Thermal Detector Monocular
- Category: >>>
- Supplier: Shaanxi Ireeda Protective Technology Co. Ltd.
Share on (1600945488641):
Product Overview
Description
Products Description

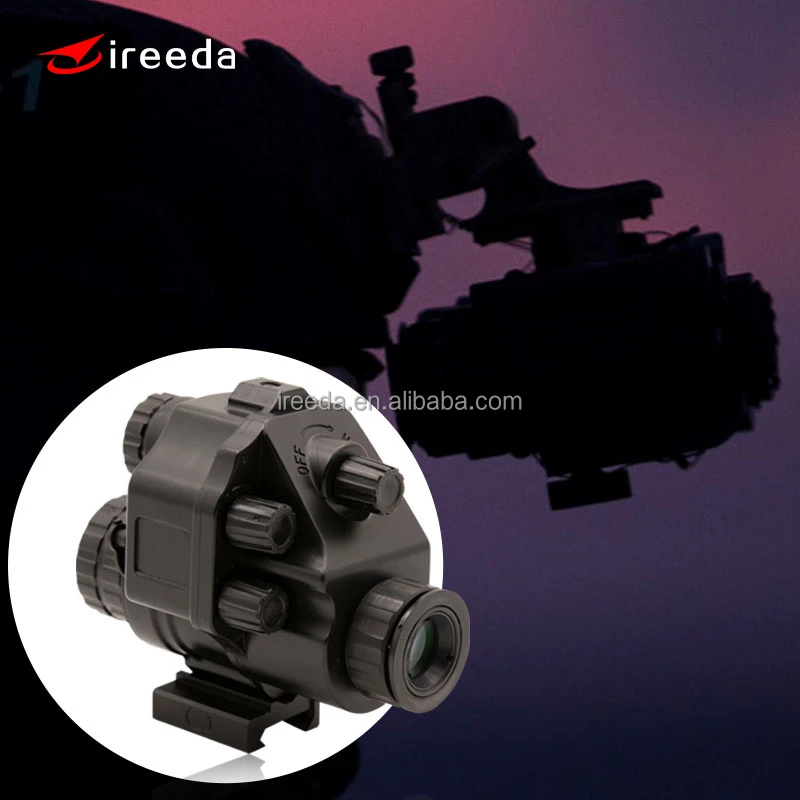

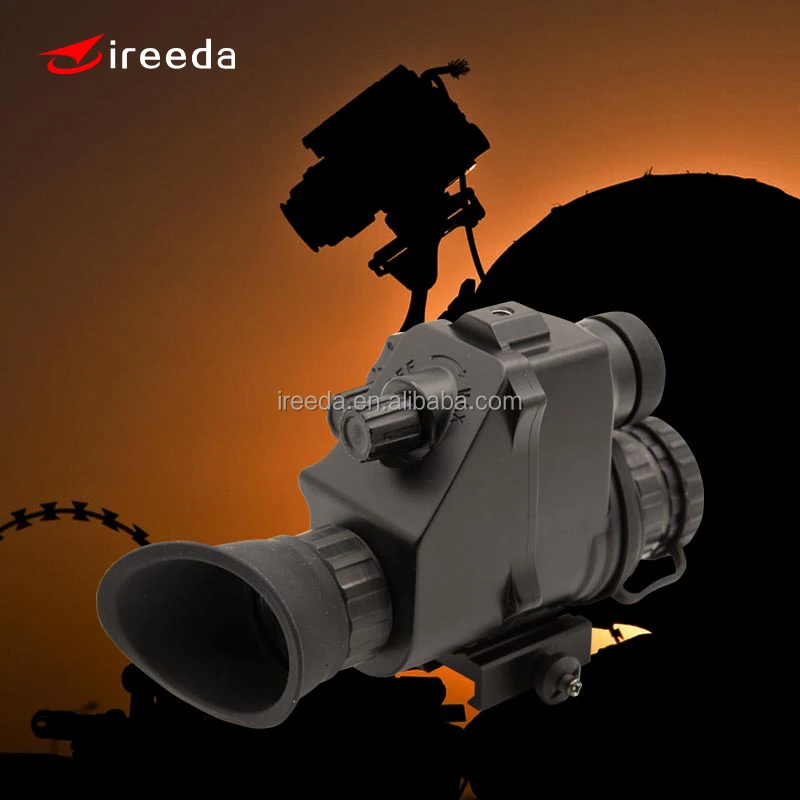

DA-FTNV6 thermal fusion
DA-FTNV6 is a fused night vision thermal monocular, which combines IIT and thermal technology. It can be used for observation and target search in extremely dark environment, night, raining, and other bad weather and adverse confitions, enable to recognize the potential risiks and camouflage.

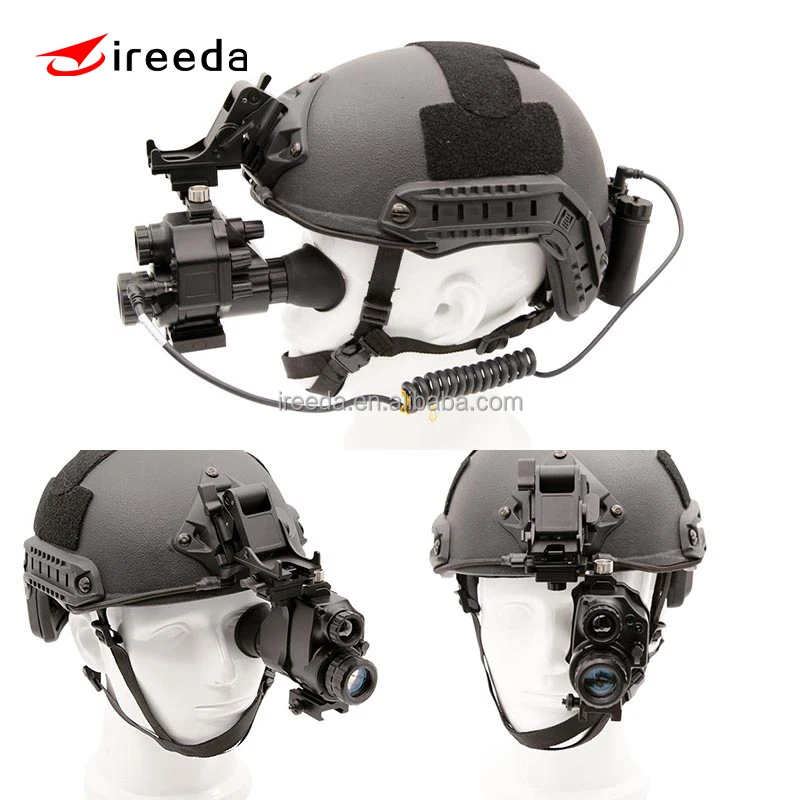

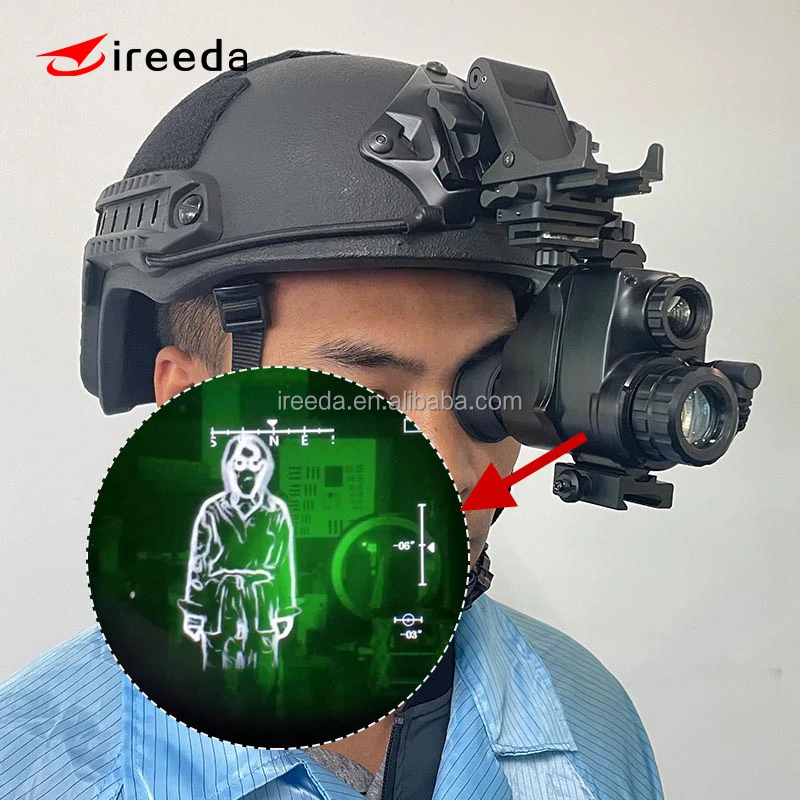

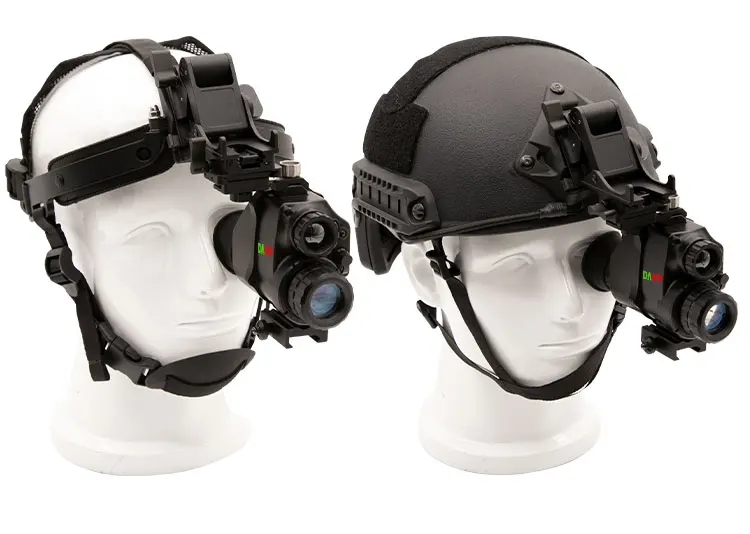

DA-FTNV6 is equipped with a 640x512 resolution( 384x288 resolution), 12μm high-sensitivity thermal detector and Gen2+/EU Gen 3 night vision image intensifier tube. The DA-FTNV6 can be used as a handheld device or mounted on a helmet. And the user-friendly interface and comfortable ergonomic operation control make the equipment very easy to use.

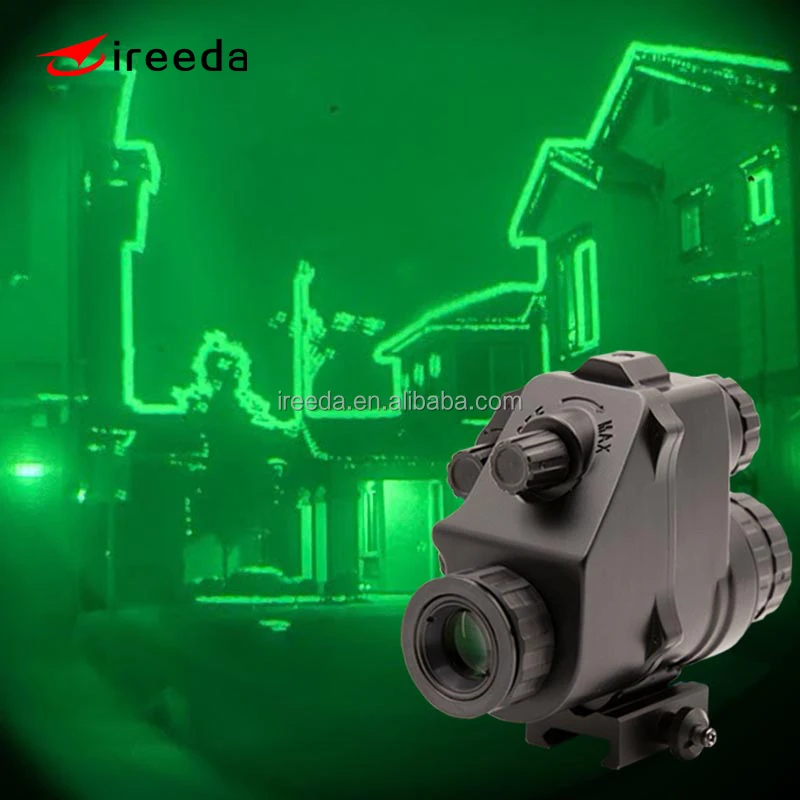

The device offers different image views: thermal, night vision, and enhanced fused images, and can also be easily adapted to different ambient conditions. And also equipped with a manual gain control that adjusts image brightness to provide the highest image quality even in changing light conditions.
Specfication
Low light level | ||||||
Class | Euro.Gen3 | |||||
Resolution | More than 60lp/mm | |||||
FOM | 1300 | 1800 | ||||
Focal length | 26mm | |||||
Focus range | 250mm | |||||
FOV | 40° | |||||
Brightness adjustment | Support | |||||
Thermal Imaging | ||||||
Thermal sensor | 640*512px@12um | |||||
Focal length | 18mm | |||||
FOV | 24°x 18° | |||||
Brightness adjustment | Support | |||||
Contrast adjustment | Support | |||||
Fusion system | ||||||
Model | FNVT6 | |||||
Magnification | 1.0°±5% | |||||
Exit pupil diameter | 7mm | |||||
Eye relief | 20mm | |||||
Diopter | -5，+4 | |||||
Weight(exclude battery) | ≤350g | |||||
Dimension | 124x56x88 | |||||
Power supply | External battery pack(2pcs 18650 lithum batteries) | |||||
Mount | For Tactical helmet； For Weapon Picatinny Rail | |||||
Focus | Manual | |||||
IR illuminator | 940nm | |||||
IP rating | IP67 | |||||
Operation Temp. | -40℃ ,+50℃ | |||||
Fusion Duration | ≥8hrs | |||||
Low-light mode duration | ≥60hrs | |||||
Polarity | White/Black/Red hot;Outline/highlight/thermal | |||||
E-zoom | Support | |||||
Bearing indication | Support | |||||
Pitch indication | Support | |||||
Highlight protection function | Support | |||||

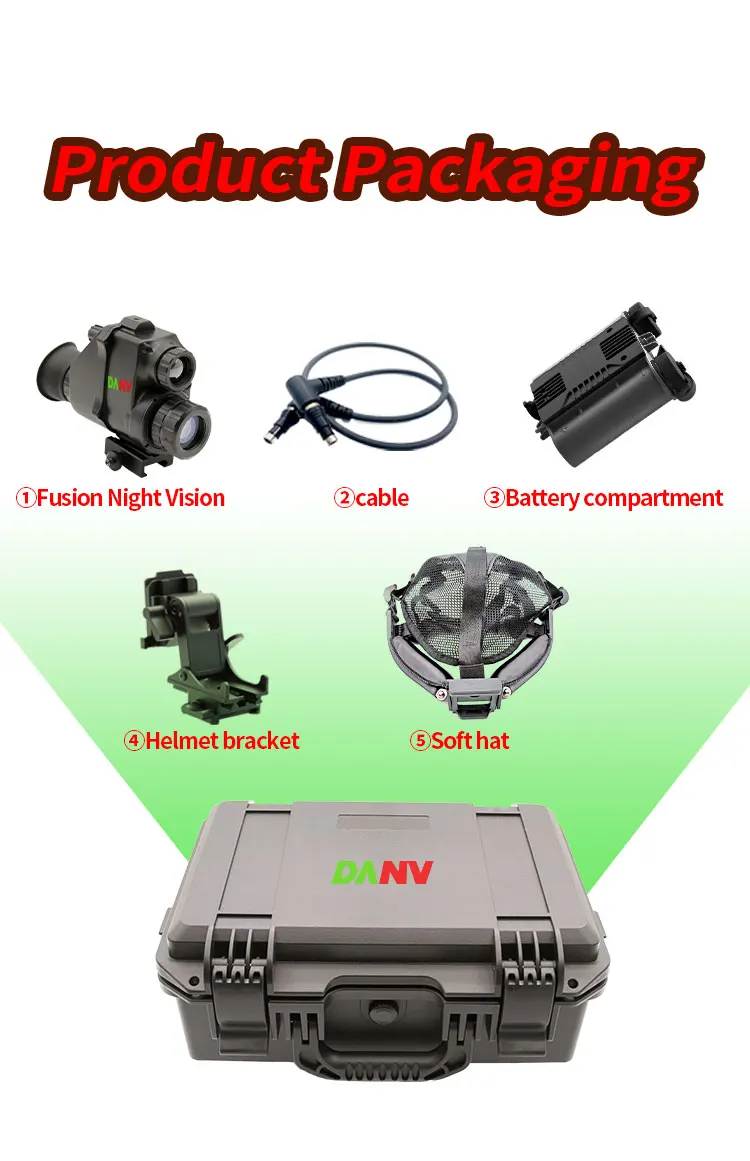

Package & Shipping
FAQ
Q: Are you manufacturer or trader?
Q:What is the lead time of your products?
A: We are a professional manufacturer of night vision, thermal vision and other photoelectric products.
Q:What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.
Q.:What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
Q:What is the shipping method?
A: Usually shipped by express (DHL, FEDEX UPS and etc).
Q:Do you accept OEM or ODM?
A: Yes, our factory definitely provide OEM or ODM service, it depends on the quantity.
Q: How can I placeorder?
A: You can contact us by send inquiry about your order details, or place order online.
Q: How long is the warranty?
A: Most of our products provide the one year warranty.
