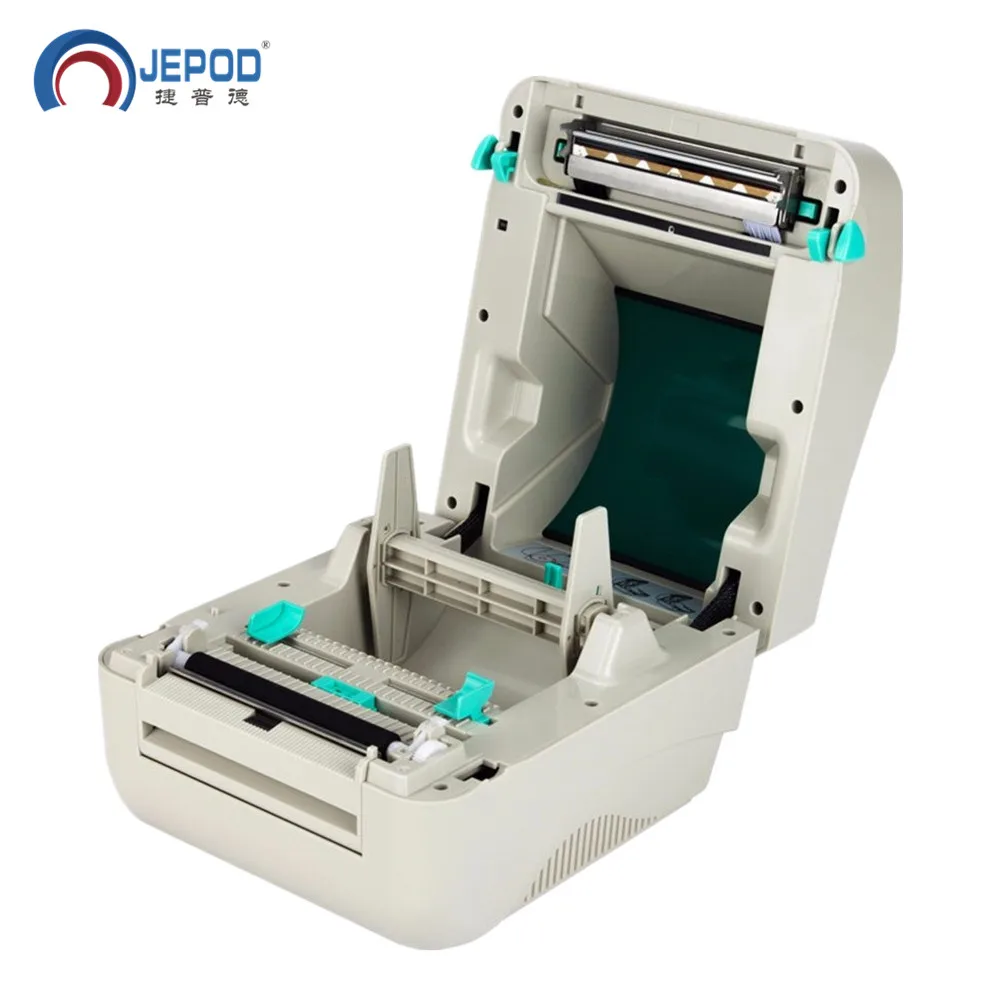

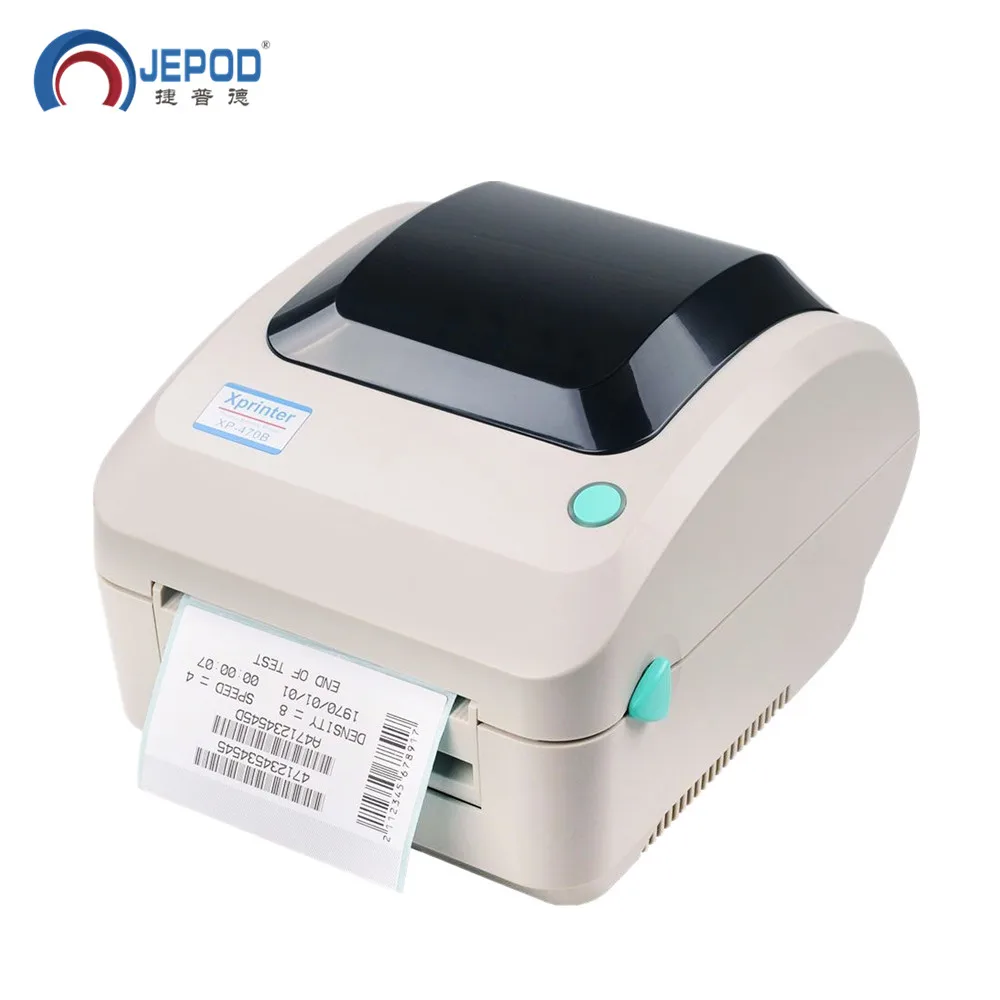

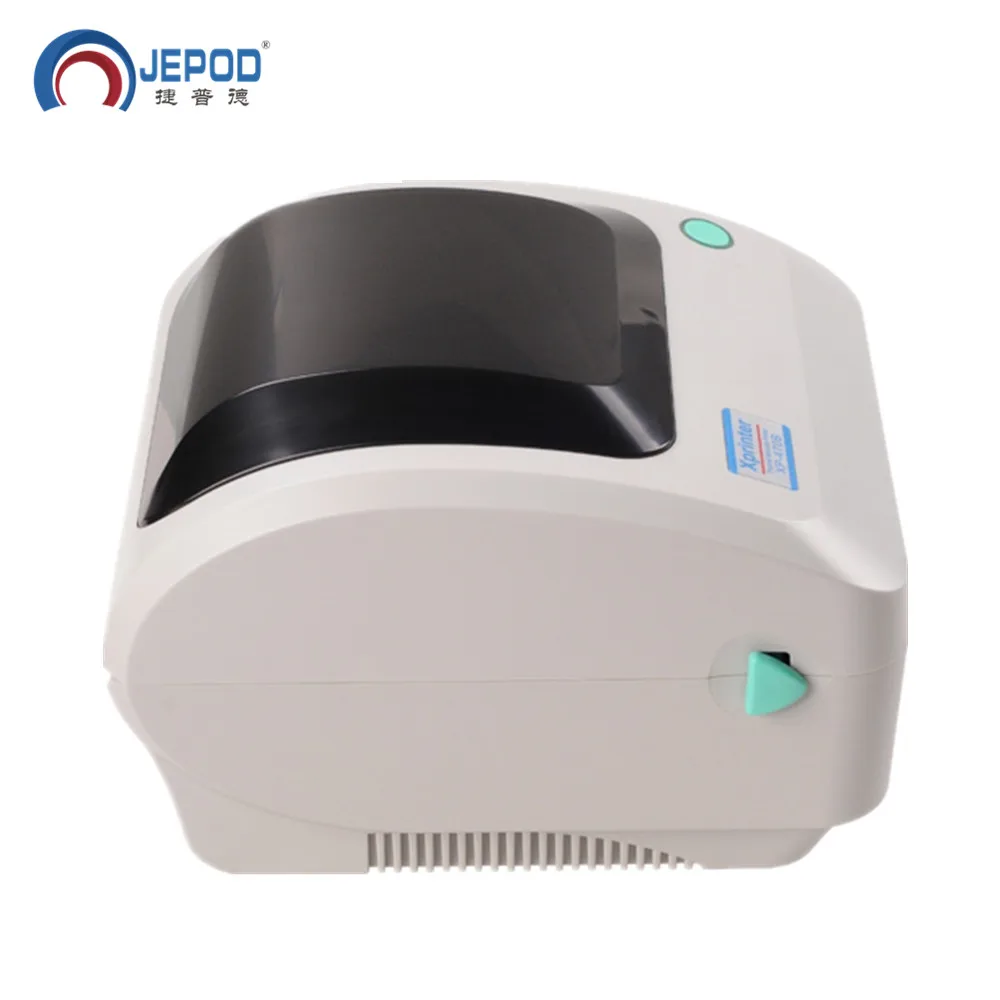

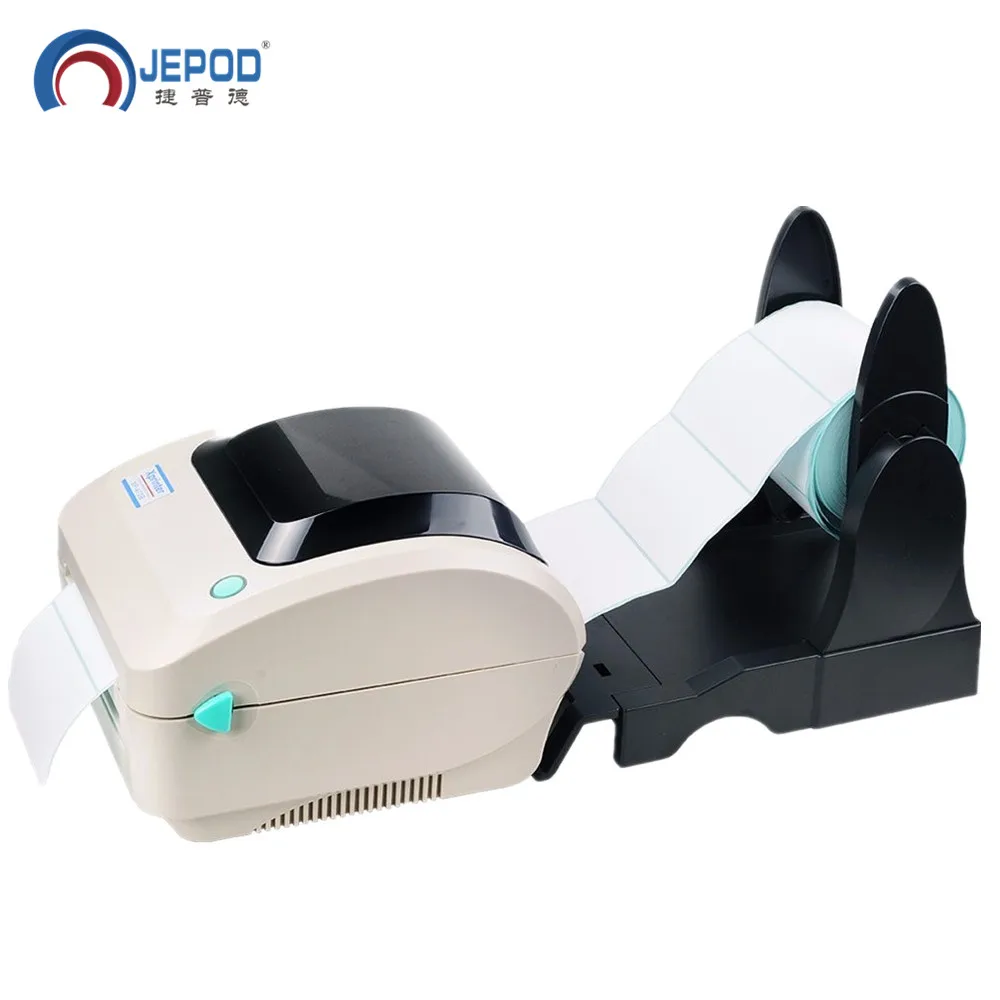

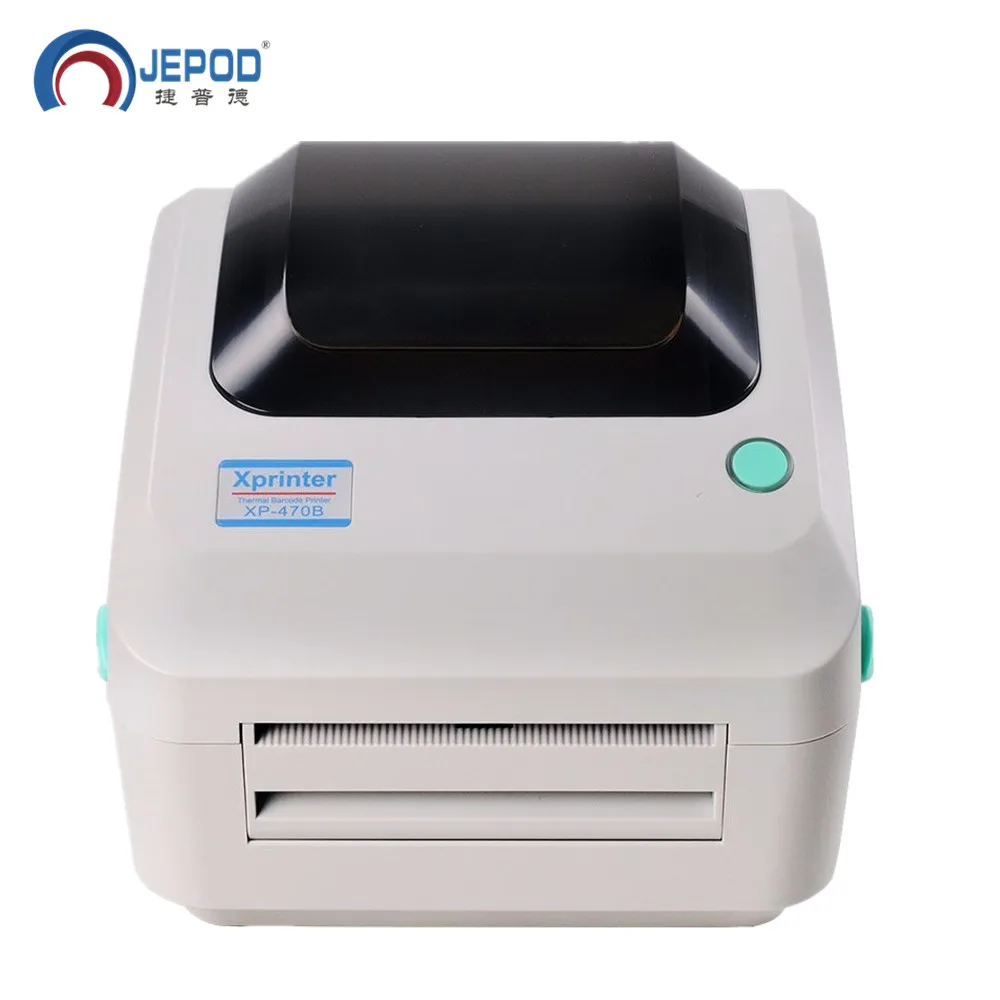

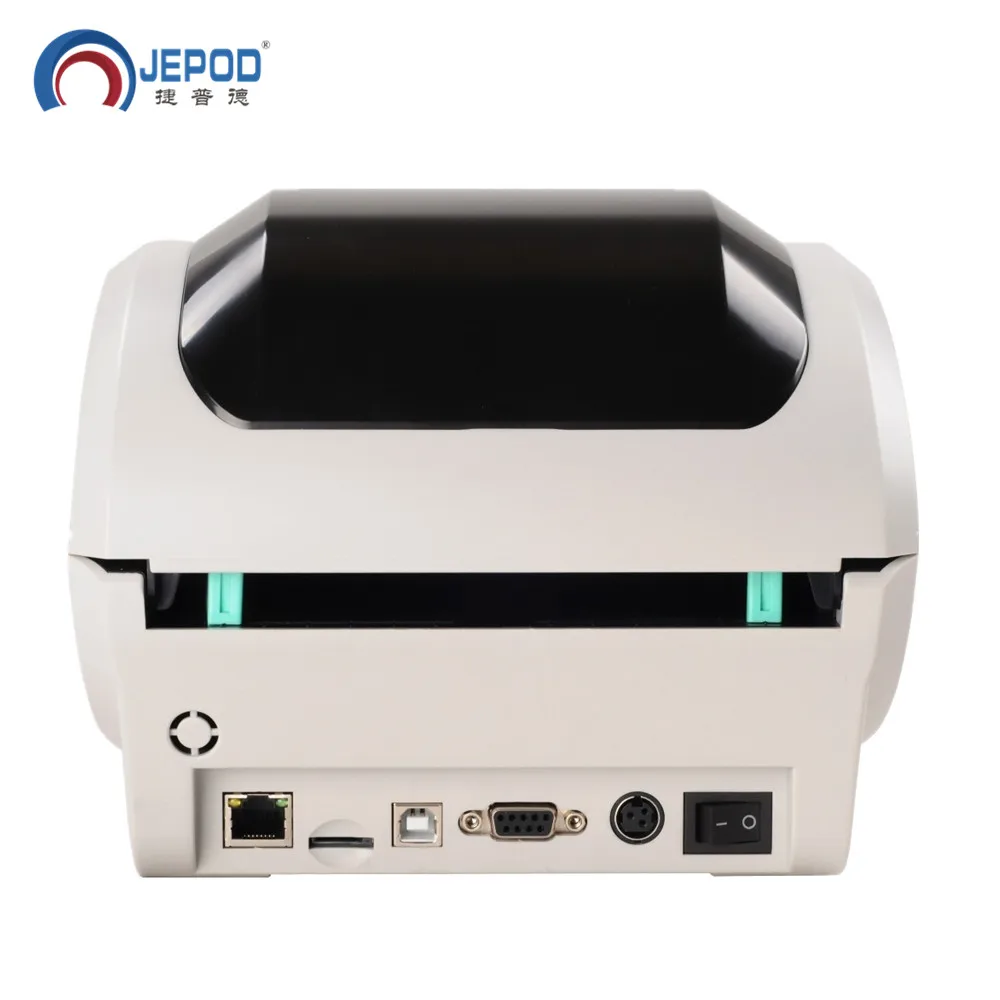

JEPOD XP 470B Desktop 4inch Label Printer USB/BT/LAN/COM Port Wins Linux MAC 22 108mm Thermal Barcode Printer
- Category: >>>
- Supplier: Guangzhou Jepod Electronic Technology Co. Ltd.
Share on (1600945536837):
Product Overview
Description
Product Description
JEPOD XP-470B Desktop 4inch Label Printer USB/BT/LAN/COM Port Wins Linux MAC 22-108mm Thermal Barcode Printer
Printer Model | XP-470B | |||
Printing Features | ||||
Resolution | 203 DPI | |||
Print method | Direct Thermal | |||
Max.print speed | 152 mm(6'')/s Max. | |||
Max.print width | 108 mm (4.25") | |||
Max.print length | 1778 mm (70") | |||
Media | ||||
Media type | Continuous, gap, black mark, fan-fold and punched hole | |||
Media width | 25.4-118mm (1.0”-4.6”) | |||
Media thickness | 0.06 ~ 0.25 mm (2.36 ~ 9.8 mil) | |||
Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") | |||
Label length | 10 ~ 1778 mm (0.39 " ~ 70 ") | |||
Label roll capacity | 127 mm (5“) (External diameter) | |||
Performance Features | ||||
Processor | 32-bit CPU | |||
Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb | |||
Interface | Standard:USB TF card Optional:Serial/Lan/WIFI/Bluetooth | |||
Fonts/Graphics/Symbologies | ||||
Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |||
1D barcode | Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST | |||
2D barcode | PDF-417, Maxicode, DataMatrix, QR code | |||
Rotation | 0°、90°、180°、270° | |||
Emulaion | TSPL、EPL、ZPL、DPL | |||
Physical Features | ||||
Dimension | 240(D) x 212(W) x172(H)mm | |||
Weight | 1.58kg | |||
Reliability | ||||
Warranty | One year | |||
Print head life | 30 km | |||
Software | ||||
Driver | Windows/Linux/Mac | |||
SDK | Windows/Android/iOS | |||
Power adaptor | ||||
Input：AC 100-240V,1.8A, 50-60Hz | ||||
Output：DC 24V, 2.5A, 60W | ||||
Options | ||||
Factory Options | ①Serial ②Lan ③WIFI ④Bluetooth ⑤Peeler ⑥RTC | |||
Dealer Options | ①External paper roll holder and 1 "paper roll ②Extension board for external paper roll holder ③Shipment waybill box | |||
Environmental Conditions | ||||
Operation environment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing | |||
Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing | |||
