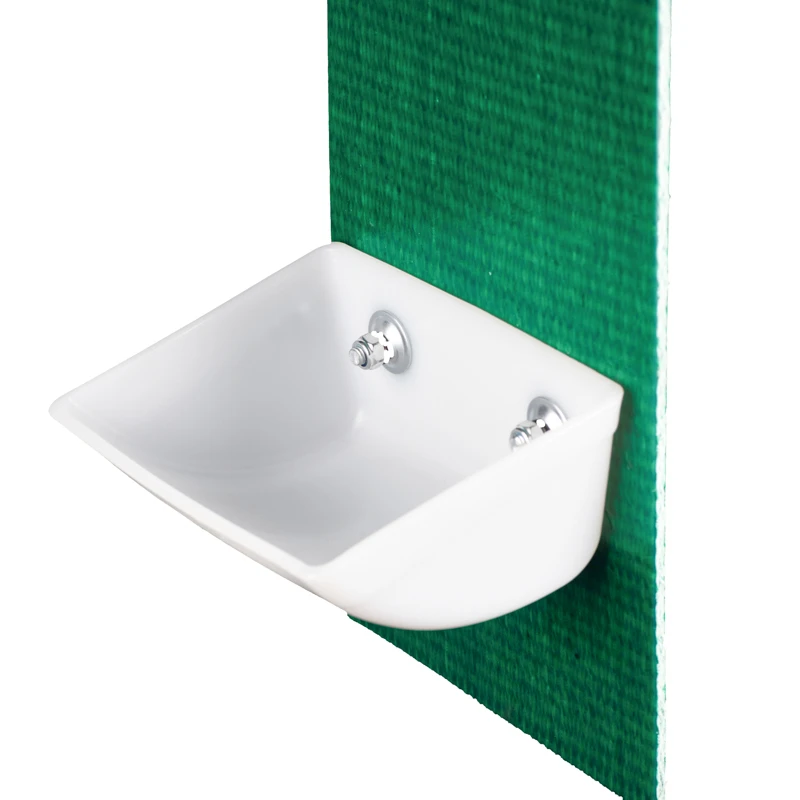

Wear Resistant Elevator Bucket Steep Incline Conveyor Belt
- Category: >>>
- Supplier: Jiangsu Jingwei Conveying Equipment Co. Ltd.
Share on (1600945537241):
Product Overview
Description
Details Images
Product Description

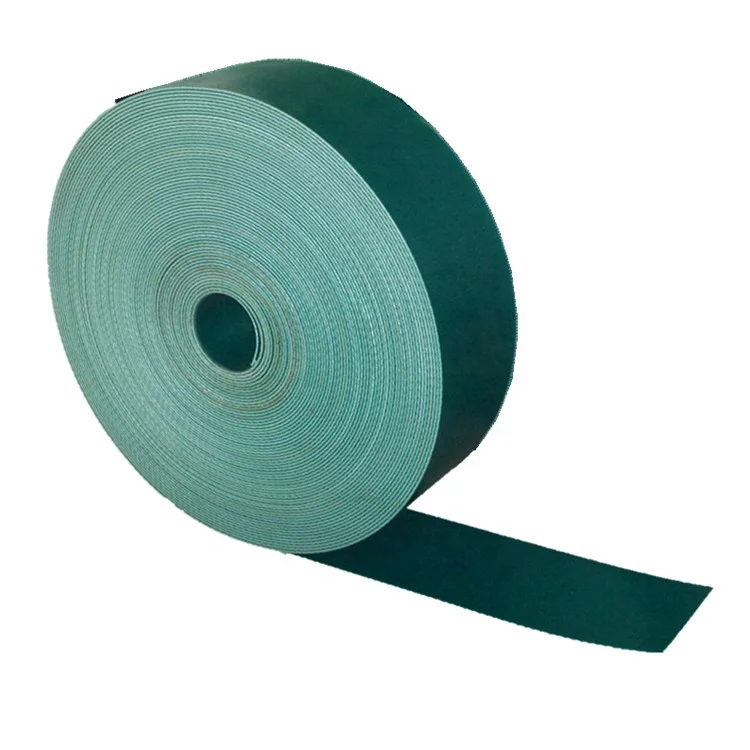

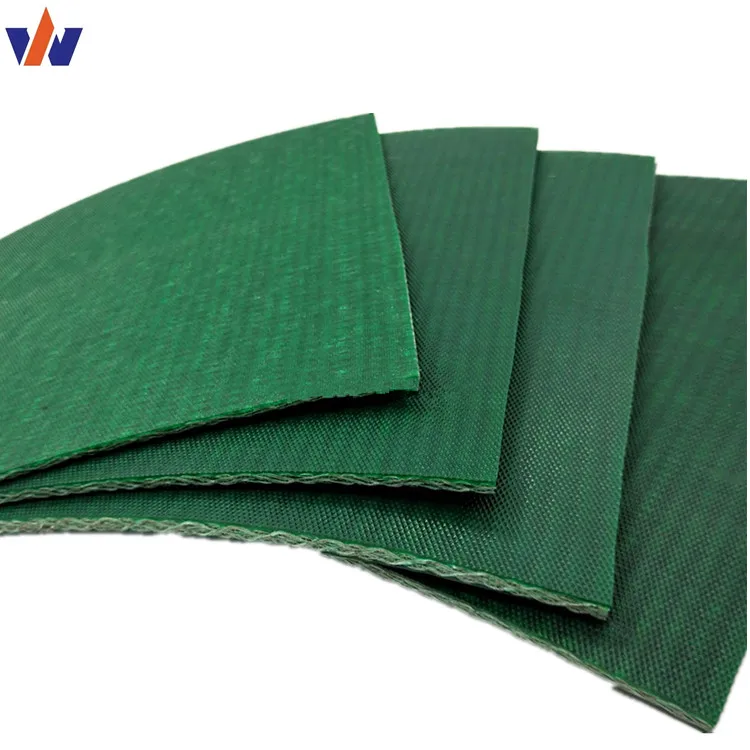

PVC Elevator Belt

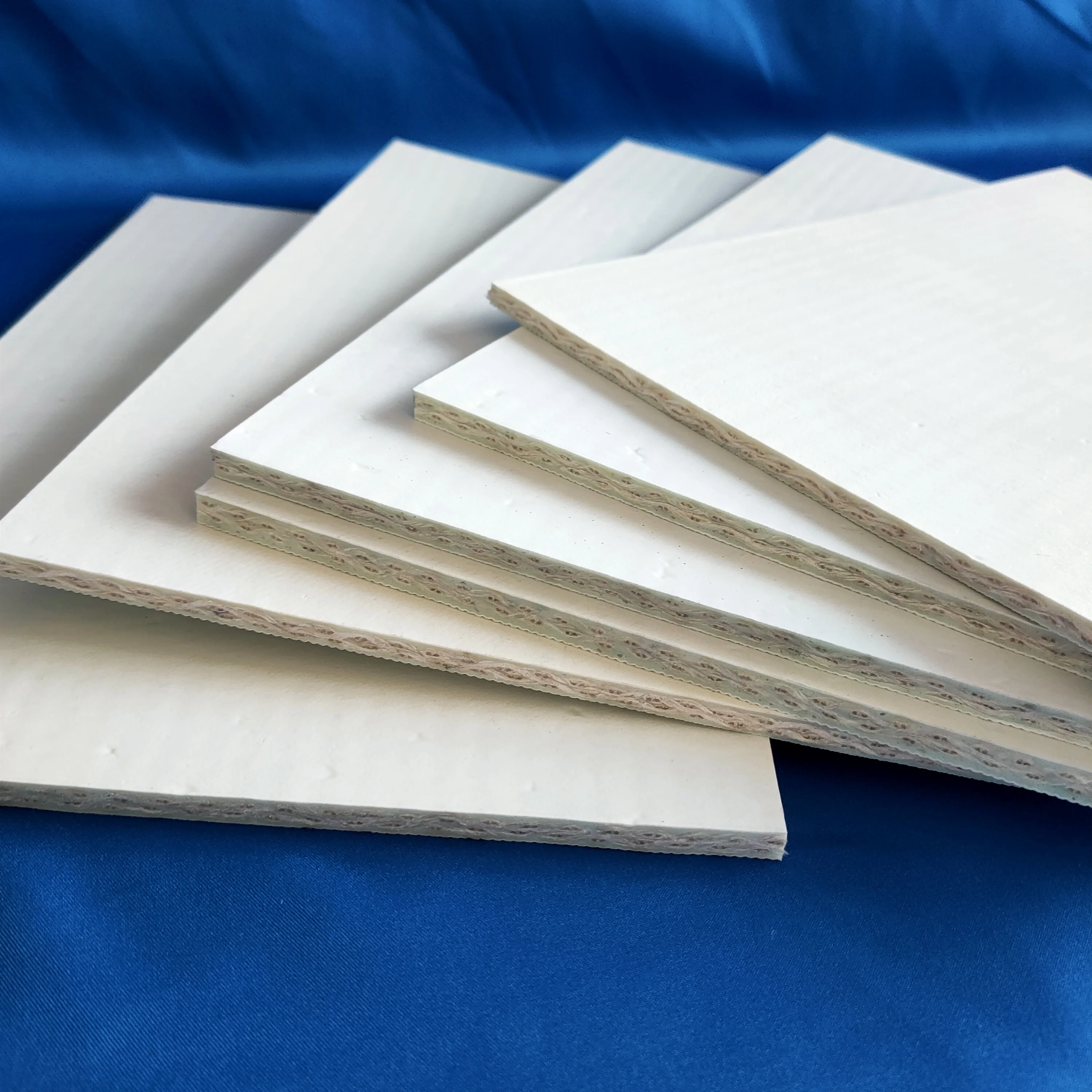

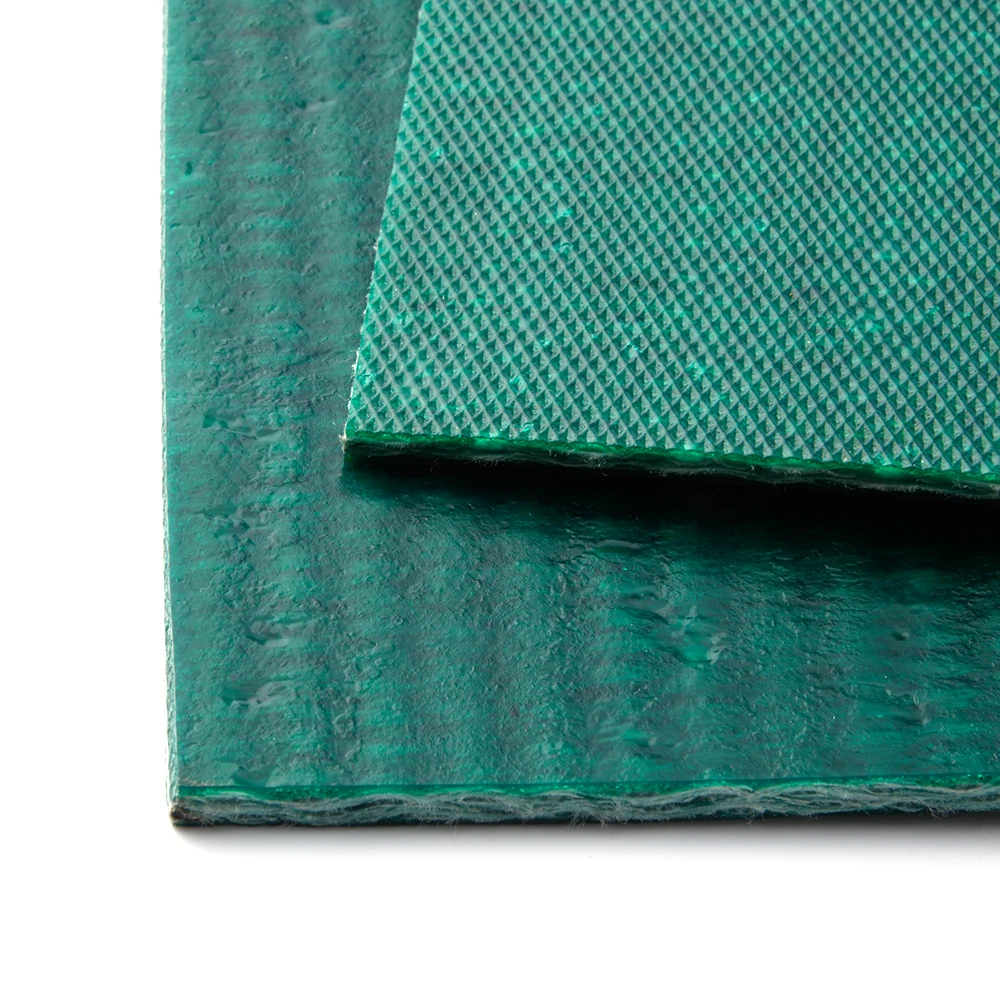

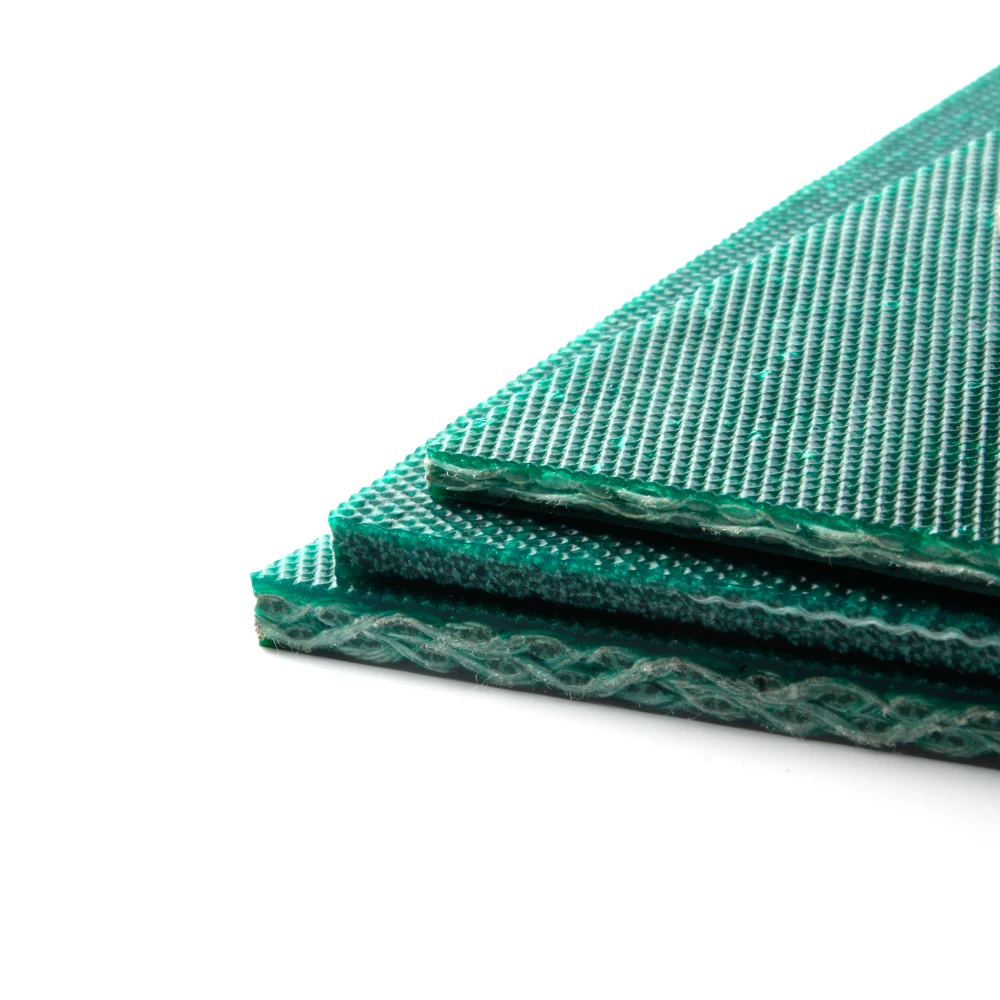

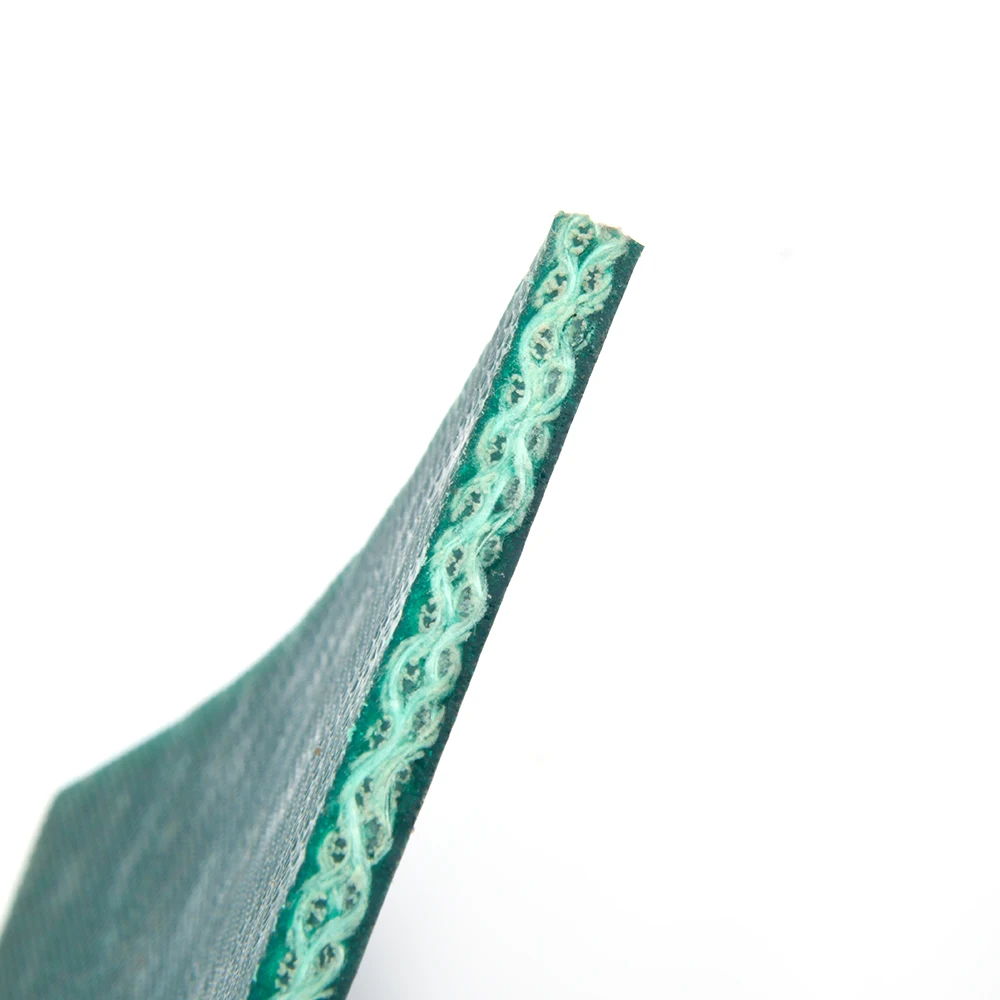

The carcass of PVC belt is solid woven type, interweaved by polyester and cotton. Then put the carcass into impregnated PVC paste resin to plastify under high temperature, also the carcass pressed PVC cover both sides. (One side is smooth cover, the other side that touches with pulley is friction cover). It's fire resistance and anti-static solid woven elevator belt.
Features

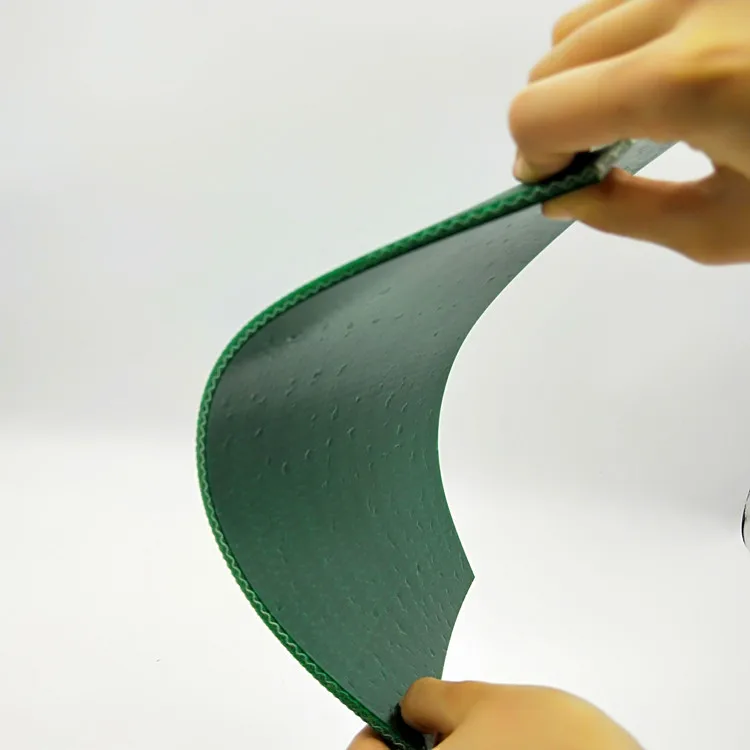

1. PVC elevator belt has solid woven carcass, compared to the rubber elevator belt, it's uniformly stressed o ensure the strong elevating capability. No delaminating occurs under normal operating conditions. Flexibility allows for smoother running along the elevator pulley, keep a good running trail and not easy to off track.
2. Tight woven carcass after dipping in PVC paste resin have the excellent ability of elevating, at the same time, have higher tear resistant performance, can also prevent the bolts pull-through easily, make reliable and secure fixing of the bucket to the belt.
3. PVC belt has better characteristics of resistance to oil and chemical solvent, wear resistance and anti-corrosion.
4. Characteristics of light weight, strong structure, low driving power, fire resistance and anti-static make this belt ideal for using in grain handling applications.
2. Tight woven carcass after dipping in PVC paste resin have the excellent ability of elevating, at the same time, have higher tear resistant performance, can also prevent the bolts pull-through easily, make reliable and secure fixing of the bucket to the belt.
3. PVC belt has better characteristics of resistance to oil and chemical solvent, wear resistance and anti-corrosion.
4. Characteristics of light weight, strong structure, low driving power, fire resistance and anti-static make this belt ideal for using in grain handling applications.
Model | Color | Tensile Strength (N/mm) | Thickness (mm) | Ambient Temperature (℃） | Elongation at rate (%) | Recommended min. dia. of Pulley (Φ) |
PVC480 | 580 | 4.8±0.3 | ≤0.7 | ≥100 | ||
PVC680 | 780 | 6.1±0.3 | ≤0.8 | ≥150 | ||
PVC880 | 980 | 7.2±0.3 | ≤0.9 | ≥250 | ||
PVC1080 | 1180 | 8.3±0.3 | ≤1.0 | ≥350 |
Performance of PVC belt
Item | Index |
Tensile Strength (Mpa) | ≥15 |
Elongation at break (%) | ≥300 |
Abrasion loss (mm3) | ≤100 |
Electric conductivity (MΩ) | ≤300 |
Test Report
Product name: PVC belt/reformed rubber belt | Model: PVC880/800YP | |||||||
Test judgement based on: rubber and plastic bucket elevator HG/T2577-2006 | ||||||||
Test result | ||||||||
Item | Value | Test standard | ||||||
PVC880 | 800YP | |||||||
Whole thickness characteristic | Tensile Strength in Warp (N/mm) | 955 | 800 | GB/T3690-2009 | ||||
Elongation at rated load (%) | 0.70 | 1.6 | GB/T3690-2009 | |||||
Elongation in Wrap (%) | 24 | 24 | GB/T3690-2009 | |||||
Adhesive strength (N/mm) | 9 | 4.5 | GB/T532-2008 | |||||
characteristic | Bolt thought-out resistance (N) | 11250 | 8500 | Test requirements of thought out resistance | ||||
Elongation at Break (%) | 450 | 420 | GB/T3690-2009 | |||||
Abrasion Loss (mm3) | 80 | 150 | GB/T9867-2008 | |||||
Shore hardness (Sha) | 70 | 60-65(rubber) | GB/T531-99 | |||||
Friction factor(with steel) | 0.68 | 0.75 | ISO21182:2005 | |||||
Friction factor(with rubber) | 0.86 | Adsorption>1 | ISO21182:2006 | |||||
Oil resistant(volume expansion rate)% | 3 | 20 | Test method of volume expansion rate | |||||
Acid resistant(volume expansion rate)% | 0.8 | 5.2 | Test method of volume expansion rate | |||||
Low temperature resistant | No delamination and surface tortoise cracks | GB/T7758-2002 | ||||||
Above all, for grain and feed processing, comprehensive performance of PVC belt is more better than the rubber belt, large domestic grain and feed processing enterprises are all used imported equipment of the PVC belt. | ||||||||

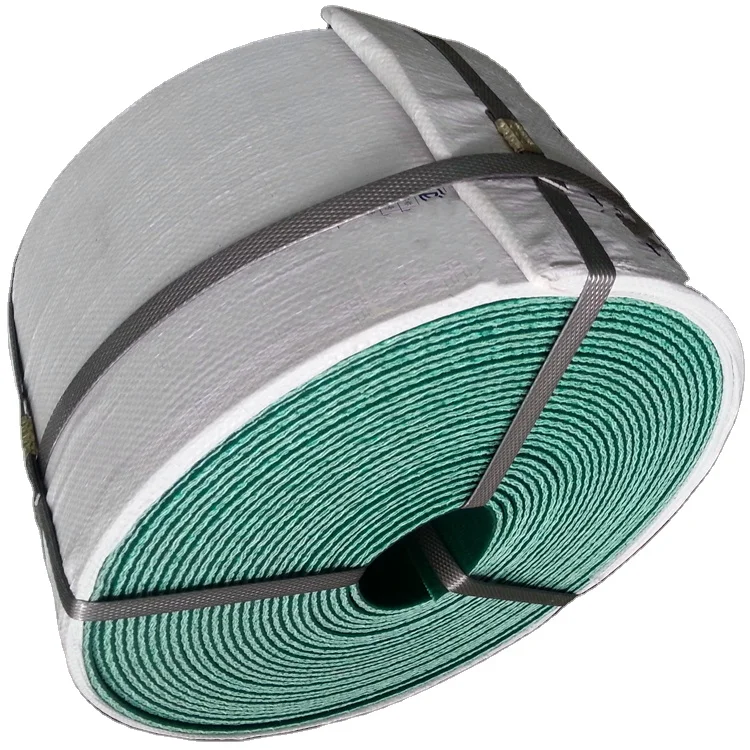

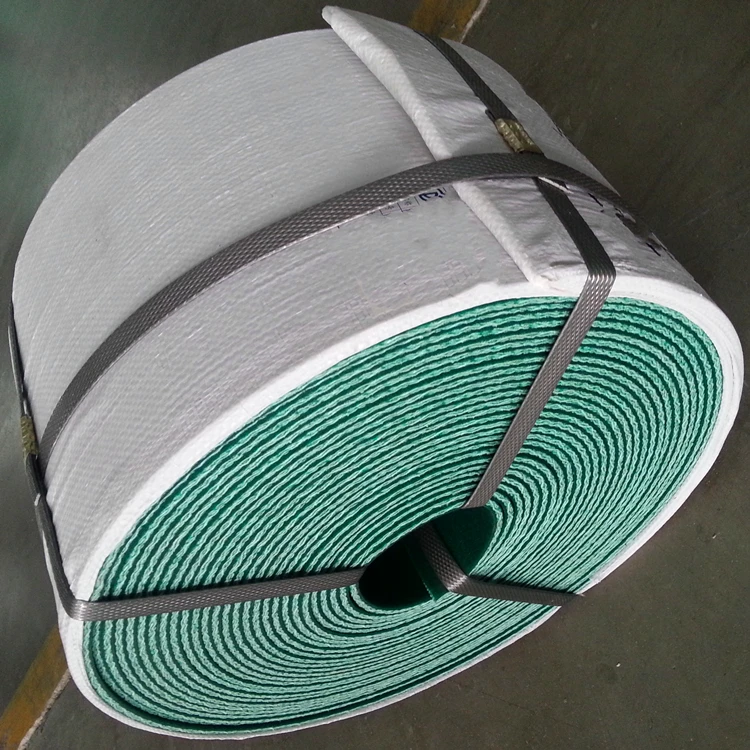

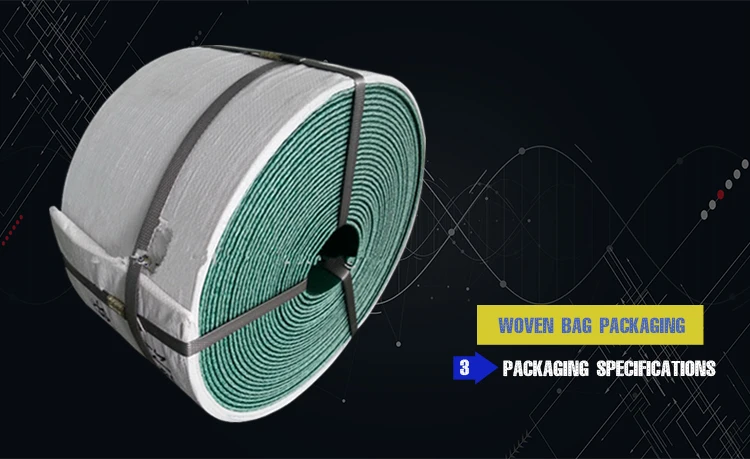

Packing & Delivery
Certifications

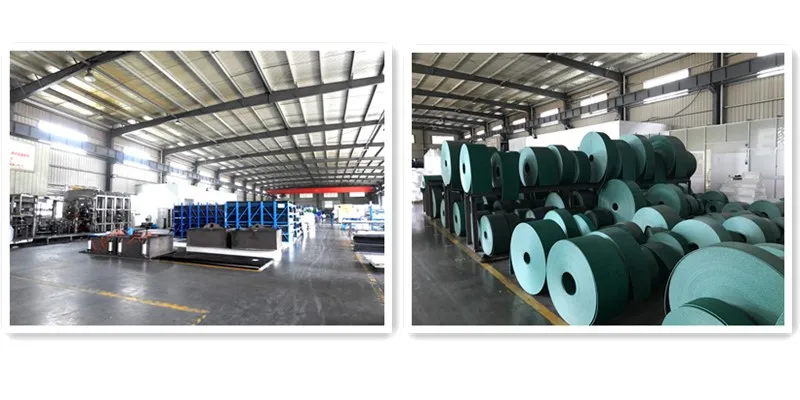

Our Company
