Customized Chamber High Temperature 1700 Degree Small Glass Melting Furnace Machine For Laboratory
- Category: >>>
- Supplier: Wenzhou Shuangming Electrical Technology Co. Ltd.
Share on (1600945573549):
Product Overview
Description
Products Description
CE and UL certified small glass melting furnace machine for laboratory

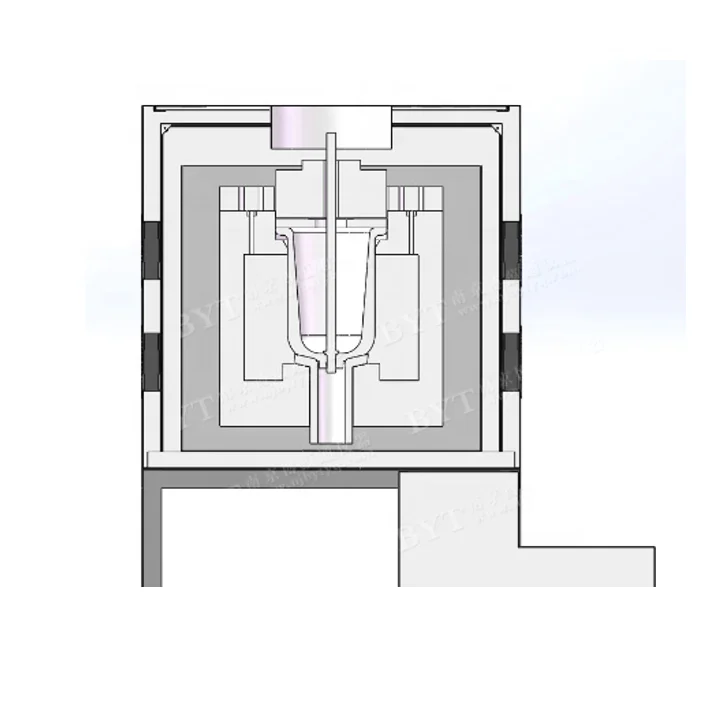

This small glass melting furnace machine is mainly developed for daily laboratory applications, using high-quality furnace materials and stable temperature control system to ensure the reliability of experimental data; The double-layer shell structure, with the furnace made of alumina polycrystalline fiber material, adopts a power regulator to control the current and can limit the flow throughout the entire process, and can be used for feeding and unloading at high temperatures. The crucible in the furnace is made of zirconium quartz material, which is composed of stopper rod, crucible cover, crucible, crucible base, etc; After the glass melts, the stopper can be directly pulled out, and the glass liquid flows out directly from the crucible base. This product has passed UL certification and has established cooperative relationships with multiple universities and laboratories both domestically and internationally.
Feature

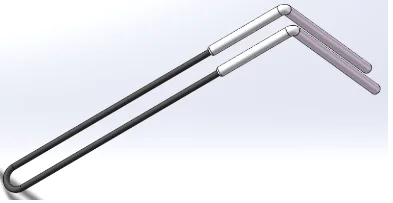

1.Heater
Use a right angle silicon molybdenum rod, with the cold end of the silicon molybdenum rod leading out from the side of the furnace body. There is no silicon molybdenum rod at the top of the furnace, which is convenient for opening the door on the top of the furnace
2.Leakage protector and Miniature circuit breaker
When the circuit experiences overcurrent or leakage, the Miniature circuit breaker will automatically disconnect.

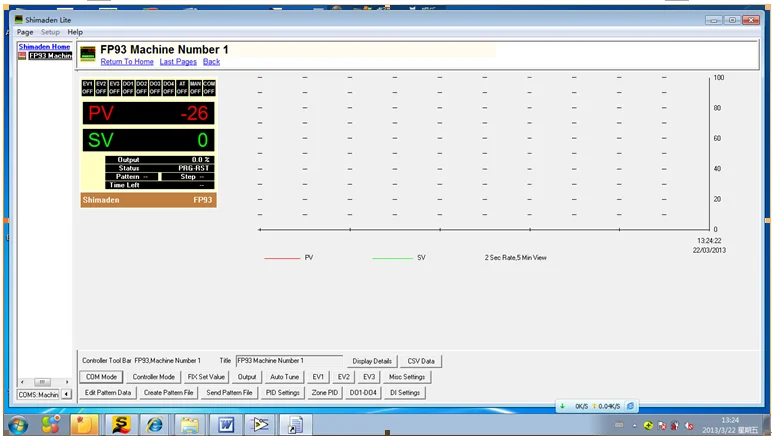

3.Connecting to a computer
Furnace can be equipped with communication interfaces and software, which can directly control various parameters of the furnace through a computer. The PV and SV temperature values on the furnace and the operation of the instrument can be observed from the computer. The actual temperature rise curve of the furnace will be drawn in real-time by the computer, and the temperature data at each time can be saved and loaded at any time.

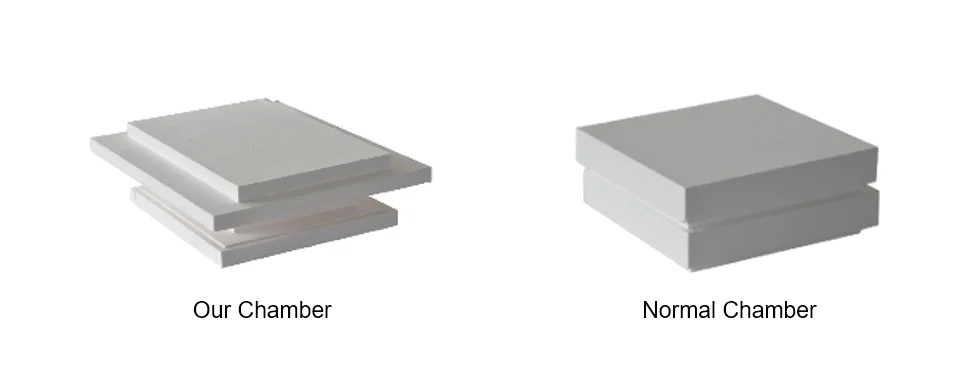

4.Furnace Chamber
Furnace material uses high-quality and high-purity alumina polycrystalline fibers imported from Japan. Its low heat capacity and low thermal conductivity result in less heat dissipation, good insulation, and high reflectivity, ensuring a balanced temperature field. And the alumina wire is thin and long, with high temperature resistance and strong resistance to thermal expansion and contraction.
5.Certification
Our products are produced strictly in accordance with international standards, with approximately 500 machines exported annually and have passed UL certification, ISO certification, and CE certifications.
Parameter
Model | CDO-GM17-13 |
Power | 13KW |
Voltage | 380V/3P |
380VHeater | silicon molybdenum rod |
Capacity | 5L |
Machine Size | 1200*700*1700mm |
Temperature control | Intelligence PID (Brand:YUDIAN/SHIMADEN(optional)/EUROTHERM（optional） |
Max Temperature | 1700℃ |
Working Temperature | 1600℃ |
Heating Rate | ≤10℃ |
Surface Temperature | ≤35 ℃ |
SCR | SEMIKRON |
Related Products

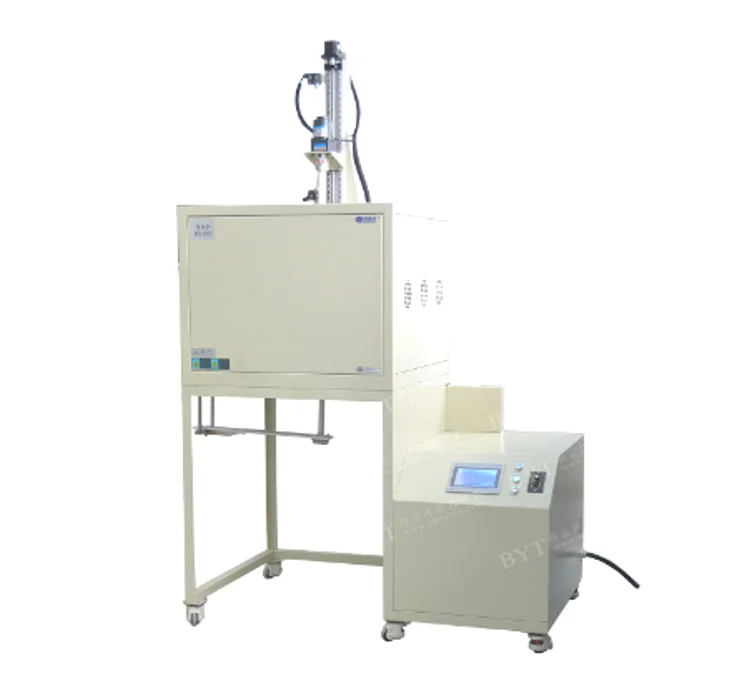

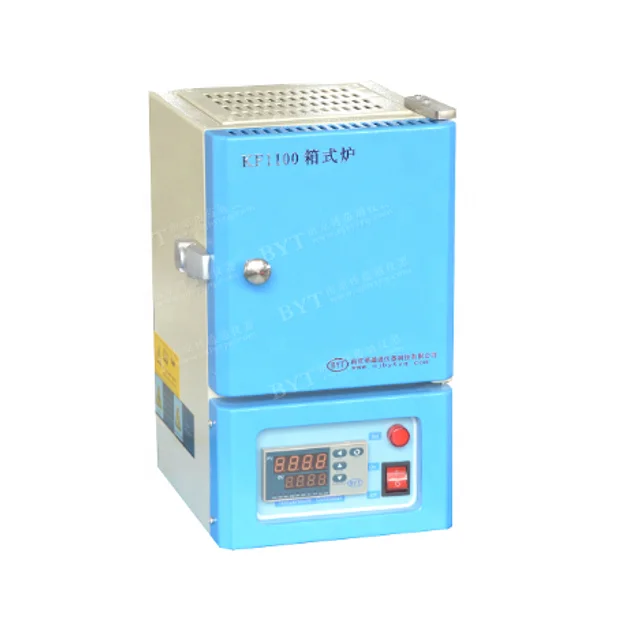

1700℃ Glass melting Furnace Glass Melting Furnace with Agitator 1100℃ Box Furnace
Customer On-site
Furnace in MIT
MIT scientists use our furnace to develop atomic level chips
Furnace in King Saud University

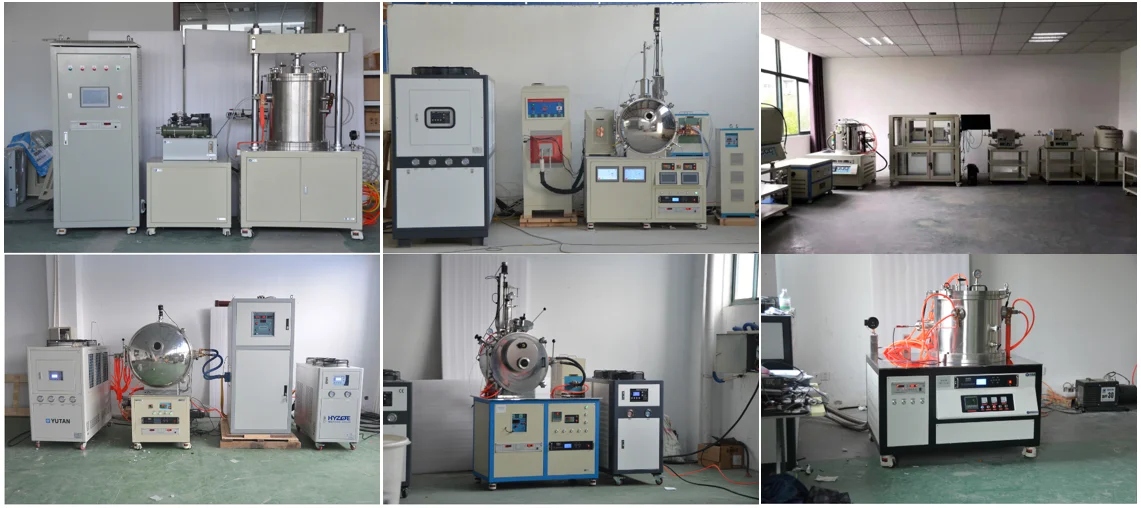

Factory Photo
Packaging & Shipping
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking。
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free. All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you
do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking。
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free. All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you
do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
