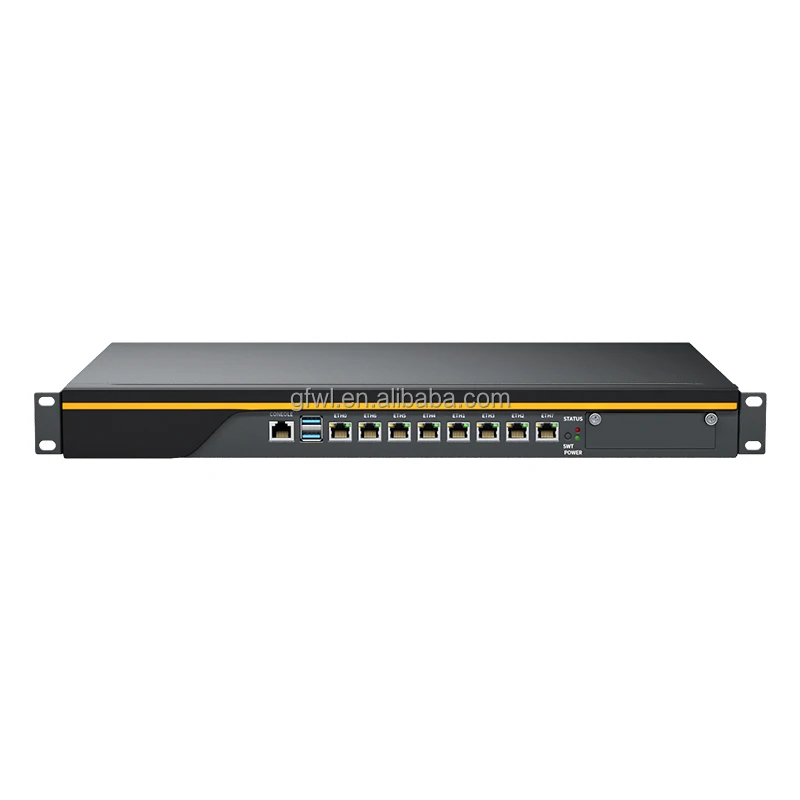

Guanfeng H170 Firewall PC | I7 9700 16GB DDR4 256GB SSD 1 PCIE x 8 1 Mini PCIE 8 Lan | Server 1U Firewall pfSense PC
- Category: >>>
- Supplier: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Share on (1600945604389):
Product Overview
Description
Products Description
Detailed Processor parameter Link:
https://www.intel.com/content/www/us/en/products/sku/191792/intel-core-i79700-processor-12m-cache-up-to-4-70-ghz/specifications.html?wapkw=i7-9700
https://www.intel.com/content/www/us/en/products/sku/191792/intel-core-i79700-processor-12m-cache-up-to-4-70-ghz/specifications.html?wapkw=i7-9700
Product Highlight
- 8*Intel i211 Gigabit RJ45 Ethernet Controllers，2*10G SFP
- 2*DDR4 SO-DIMM 2133/2400/2666 MHz RAM slots, maximum support 64GB.
- Support Storage: 1* SATA 2.5 slot, 1*mSATA, 3*SATA 3.0, 1*CF slot
- Support 1xHD-MI, 4K
- 1*PCIE X8 extension slot, 1xMPCIE wireless slot, support WiFi/3G/4G.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
- 2*DDR4 SO-DIMM 2133/2400/2666 MHz RAM slots, maximum support 64GB.
- Support Storage: 1* SATA 2.5 slot, 1*mSATA, 3*SATA 3.0, 1*CF slot
- Support 1xHD-MI, 4K
- 1*PCIE X8 extension slot, 1xMPCIE wireless slot, support WiFi/3G/4G.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
Brand | Guanfeng | ||||||
Motherboard | H170 | ||||||
CPU | Intel Core i7-9700, 8 core 8 threads, 3.00 Base Frequency, up to 4.70GHz, 12MB Cache, 65W TDP | ||||||
Memory | 2*So-Dimm DDR4 2133/2400/2666 MHz, maximum at 64GB | ||||||
1 * SATA 2.5 inch notebook hard drive bit, direct hard drive and transmission speeds up to 6Gbps | |||||||
1 * MSATA slot, SSD solid state drive with Intel protocol, transmission speeds up to 6Gbps | |||||||
3 * SATA3.0 hard disk interface with a transmission rate of 6Gbps | |||||||
Ethernet Controllers | 8 * Intel WG I211AT Gigabit network card, which supports network wake-up and PXE functions | ||||||
Extension Slots | 1 * PCIE x 8 extended slot, with extended light or electrical ports | ||||||
1 * Mini-PCIE slot, supporting the WIFI/4G module | |||||||

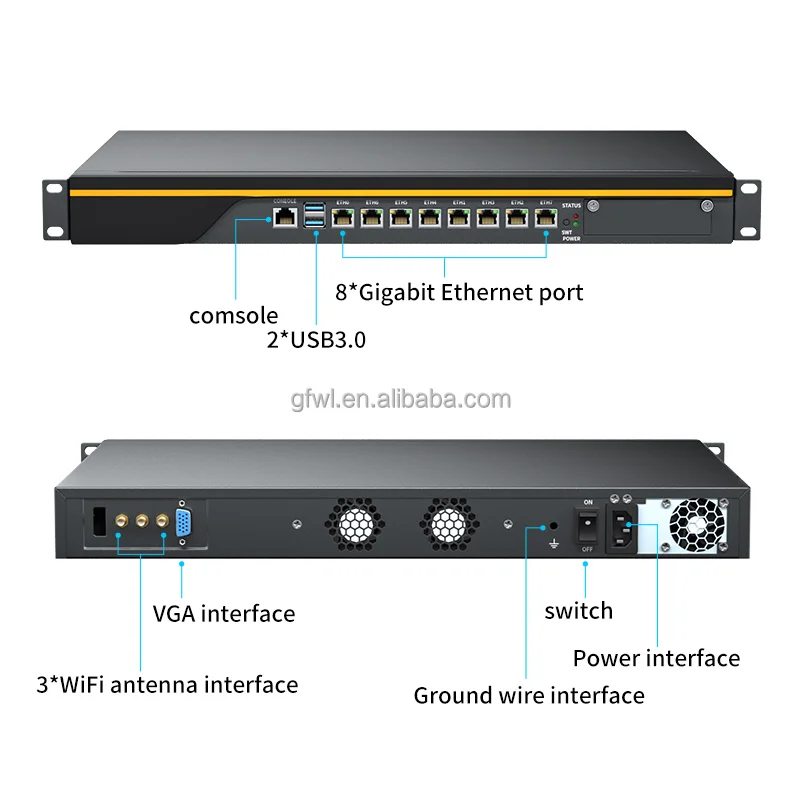

Backplane I/O Interface | 8 * RJ-45 Gigabit network interface | ||||||
2 * USB 3.0 interface, | |||||||
1 * Serial port as defined by the CISCO standard | |||||||
1 * Tap the power-on button | |||||||
1 * Power supply / hard disk indicator light | |||||||
Built-in I/O interface | 1 * HDMI Interface 2 * 8pin | ||||||
1 * RS232 Serial Port 2 * 5Pin | |||||||
1 * Network indicator lamp interface 2 * 16Pin | |||||||
1 * PS/2 Keyboard mouse Interface 1 * 6Pin | |||||||
4 * USB2.0 Interface 2 * 5Pin | |||||||
2 * USB3.0 Interface 2 * 10Pin | |||||||
2 * USB standard interface | |||||||
1 * Front panel switch button and indicator light connector 2 * 5Pin | |||||||
1 * 24pin ATX power supply input | |||||||
1 * 8pin ATX power supply input | |||||||
1 * SIM card seat | |||||||
Fan interface | 1 * 4pin CPU fan interface, 2 * 4pin system fan interface | ||||||
GPIO | N/A （Not Applicable) | ||||||
BIOS | AMI 64Mb Flash ROM | ||||||
Watch-dog | Support for hardware reset function (level 256,0~255 seconds) | ||||||
Power supply type | ATX power supply input | ||||||
Operating temperature | -10℃～60℃ | ||||||
Storage temperature | -20℃～70℃ | ||||||
Working humidity | 5% -95% relative humidity, no condensation | ||||||
Dimensions of motherboard | 280mm x 209mm | ||||||
Customization Services
free.
* MOQ: No MOQ Limitation
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* MOQ: 50 units
* Free remote testing
5. Package customization
* MOQ: 100 units
* Free
6. Motherboards customization
* Please contact us for more details
Laser Print Sample
Packing and Delivery
Length (cm) | Width (cm) | Height (cm) | |
Small Box (1 unit) | 54 | 36 | 15 |
Certifications
FAQ
Q: How many months warranty? Tks you.
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Why Choose Us
Cooperation Partners

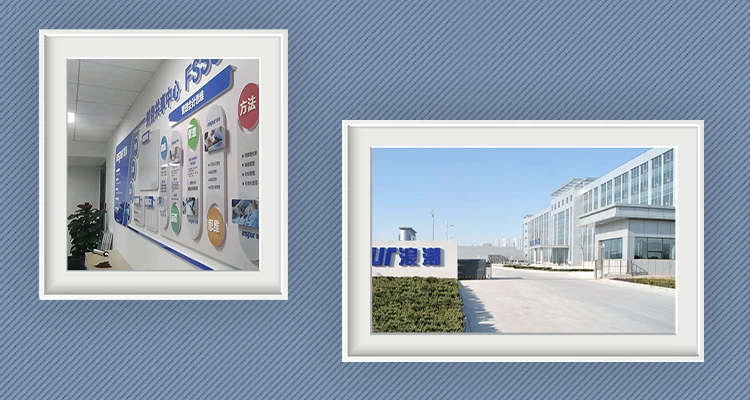

1. Inspur Group
