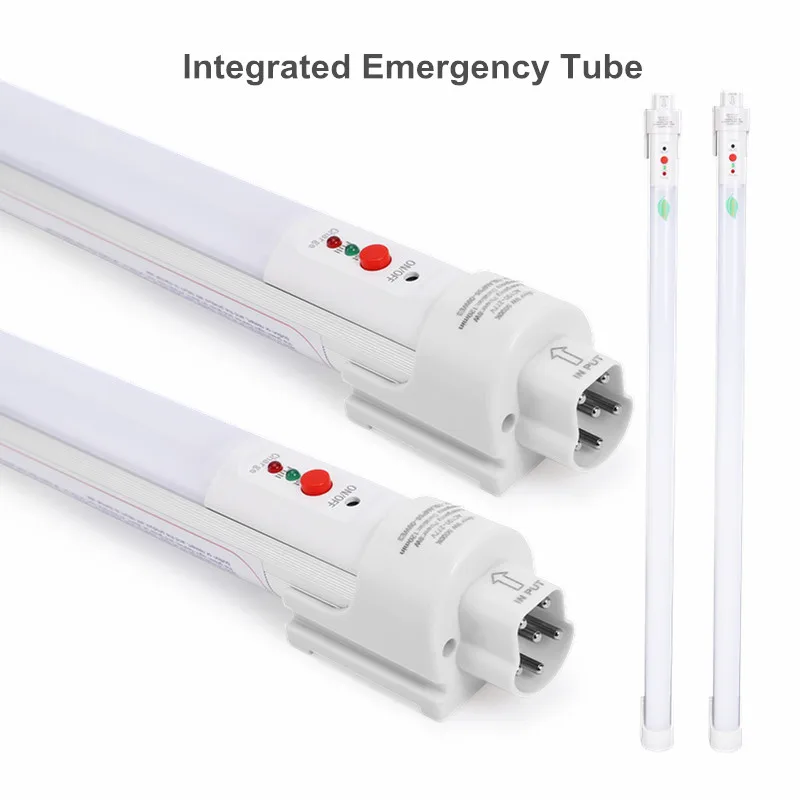

2ft 4ft T8 Emergency light Tube Integrated Connectable Rechargeable light With Internal Battery Backup 2 hours
- Category: >>>
- Supplier: Shenzhen Toplight Lighting Technology Co. Ltd.
Share on (1600945617835):
Product Overview
Description
Advantage:
1. Not only can be used as general lighting, but also are used as emergency lights. One tube with multi - functions.
1. imported LED chips, high luminous efficiency,power and energy more saver.
2. A grade ternary lithium battery, 2*2.6Ah～3Ah, 3.7V Ultra-long emergency time limit, minimum level ≥ 2 hours.
3. Built-in certified emergency power, lifespan, high safety Performance.

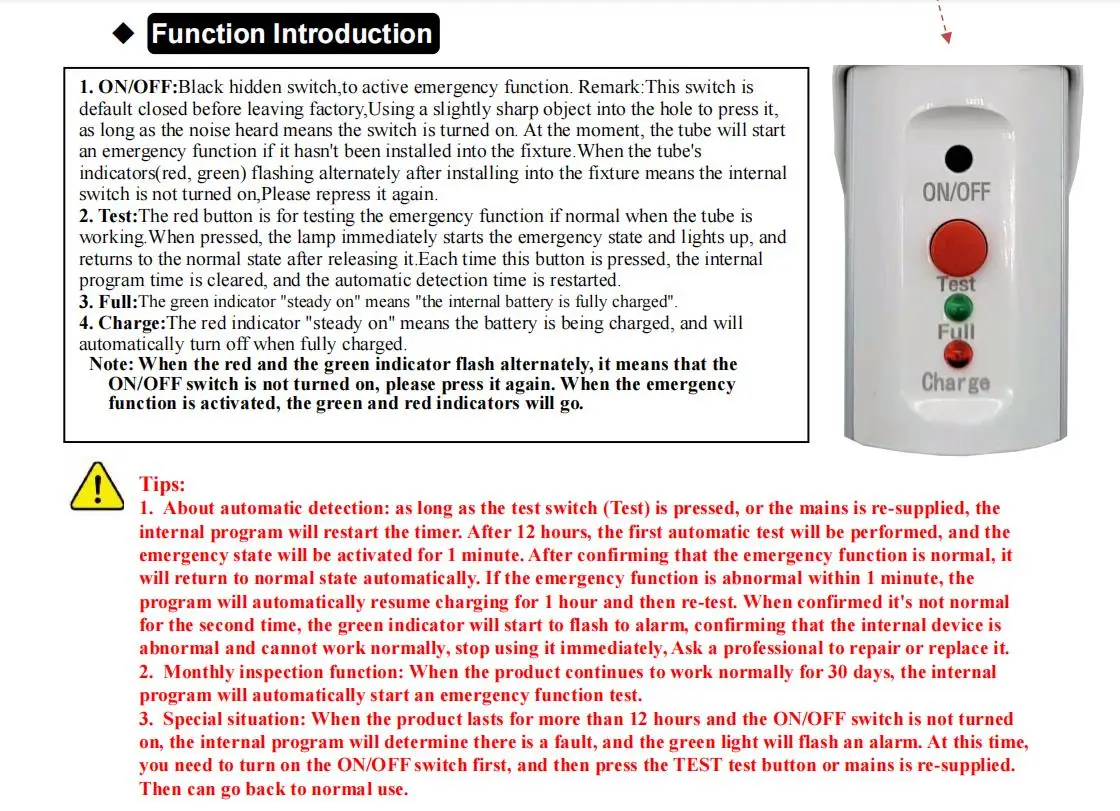

4. With automatic monthly inspection function, fault alarm function, more intelligent .
5. With emergency test button/indicator/battery power switch, appearance coordination,beautiful and textured .
6. 6063 aluminum with high thermal conductivity,high temperature resistant PC.
1. imported LED chips, high luminous efficiency,power and energy more saver.
2. A grade ternary lithium battery, 2*2.6Ah～3Ah, 3.7V Ultra-long emergency time limit, minimum level ≥ 2 hours.
3. Built-in certified emergency power, lifespan, high safety Performance.
4. With automatic monthly inspection function, fault alarm function, more intelligent .
5. With emergency test button/indicator/battery power switch, appearance coordination,beautiful and textured .
6. 6063 aluminum with high thermal conductivity,high temperature resistant PC.
Application of emergency rechargable tube light T8?
1) Corridor and Hall Lighting
2) Staircases
3) Supermarkets, metros & office buildings
4) Schools
5) Factories
6) Hopsitals
7) Fire emergency
8) Emergency Escape Trunk
1) Corridor and Hall Lighting
2) Staircases
3) Supermarkets, metros & office buildings
4) Schools
5) Factories
6) Hopsitals
7) Fire emergency
8) Emergency Escape Trunk
Specification
Model | TP-T58SMD96E3-8W | TP-T8SMD96E3-8W | TP-T58SMD168 E3-14W | TP-T8SMD168E 3-14W | TP-T58SMD210 E3-18W | TP-T8SMD210E 3-18W | |||||||
Electric al parame ters | Input voltage | 100～277VAC | |||||||||||
Alternating current | 0.08A / 100VAC 0.03A / 277VAC | 0.2A / 100VAC 0.05A / 277VAC | 0.2A / 100VAC 0.06A / 277VAC | 0.24A / 100VAC 0.1A / 277VAC | 0.24A/ 100VAC 0.1A/ 277VAC | ||||||||
Working frequency | 50/60Hz | ||||||||||||
rated power | 8W ± 5% | 14W ± 5% | 18W ± 5% | ||||||||||
Emergency power | 8W（fully bright 100%） / 4W(half bright 50%) | 8~10W optional | |||||||||||
Power factor | PF>0.9@100VAC ; 0.84@277VAC | ||||||||||||
Charging time | ≥24 hours | ||||||||||||
Emergency duration | ≥2 hours (Refer to the timetable for optional) | ||||||||||||
Battery Type | LiCoMnNiO2 ternary lithium battery 2* 2.9Ah, 3.7V | LiCoMnNiO2 Ternary lithium battery 2* 2.6AH～3Ah,3.7V | |||||||||||
Light parameter | type of light source | SMD2835 | |||||||||||
Number of light sources | 96PCS | 168PCS | 210PCS | ||||||||||
Luminous flux (at full brightness) | ＞960LM± 5% | ＞1680LM± 5% | ＞2160LM± 5% | ||||||||||
Color temperature | 3000K/4000K/5000K/6000K± 5%（ optional） | ||||||||||||
Color Rendering Index | Ra>80 | ||||||||||||
Led Luminous Efficiency | ＞120LM/W (Fully charged state) | ||||||||||||
Beam angle | 120° | ||||||||||||
Working Life-span | ＞30000 H | ||||||||||||
Material | Aluminum+PC | ||||||||||||
Color lampshade | Milky white / transparent | ||||||||||||
Size | W28.5*H32.5*L563mm | W28.5*H32.5*L603mm | W28.5*H32.5*L1163mm | W28.5*H32.5*L1212mm | W28.5*H32.5*L1163mm | W28.5*H32.5*L1212mm | |||||||
Lamp holder type | G5 | G13 | G5 | G13 | G5 | G13 | |||||||
Temperature | Temperature-18℃~+43℃ humidity 10~85%RH No condensation | ||||||||||||
EMC and safety regulati ons | Safety regulations | PART 15B, BS EN 60598-1:2015+A1:2018 BS EN 60598-2-22:2014BS EN 61347-2-7 IEC/TR62778:2014BS EN 62493:2015 EN IEC 55015 EN61547EN IEC61000-3-2 EN 61000-3-3+A1,EN 62321 Certified | |||||||||||
Stress resistant | 2KV | ||||||||||||
Packaging | Inside the box | Pearl cotton | |||||||||||
N.W. | ≈306g | ≈320g | ≈595g | ≈605g | ≈595g | ≈605g | |||||||
Case pack | 30Pcs/CTN | ||||||||||||
Carton’s Weight | ≈10kg | ≈14kg | ≈19kg | ≈19.5kg | ≈19kg | ≈19.5kg | |||||||
Remark | ※：Contact customer service to provide IES files/integrating sphere reports for each wattage | ※：Contact customer service to provide IES files/integrating sphere reports for each wattag | |||||||||||
Installation
1.Before installation, confirm whether the connected voltage, frequency, etc.are consistent with the product parameters
2.Ensure that the input voltage and frequency are within the specified range before installation.
3.It should be installed by qualified professionals, and ensure that the mains is completely turned off before installation
4.When installing, make sure that the "hidden battery switch button" is in the pressed state, and the traffic lights do not flash alternately
5.No need for starter and ballast, or please confirm that the above components are disconnected; The lamp connection and installation wiring diagram is divided into TYPE-B and TYPE-C,as shown below
6.After installation, please check carefully, and then test it after confirming that it is correct.
2.Ensure that the input voltage and frequency are within the specified range before installation.
3.It should be installed by qualified professionals, and ensure that the mains is completely turned off before installation
4.When installing, make sure that the "hidden battery switch button" is in the pressed state, and the traffic lights do not flash alternately
5.No need for starter and ballast, or please confirm that the above components are disconnected; The lamp connection and installation wiring diagram is divided into TYPE-B and TYPE-C,as shown below
6.After installation, please check carefully, and then test it after confirming that it is correct.

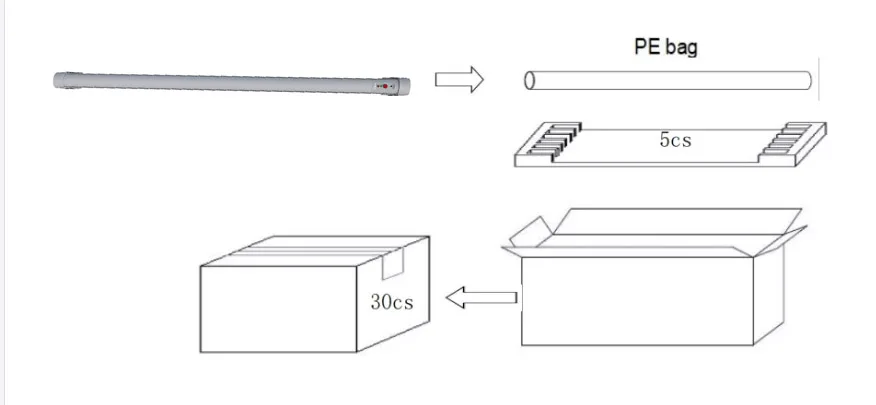

Packing & Delivery
