China Factory Automatic Packaging Tablet Capsule Pill Flat Plate Sealing Alu Pvc Forming Blister Packing Machine Price For Sale
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600945653068):
Product Overview
Description
Simple Description

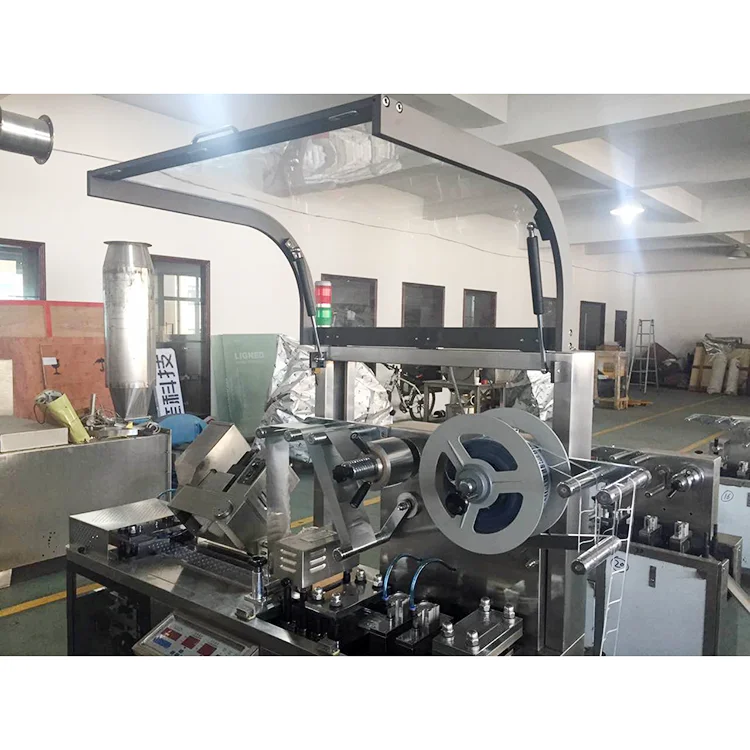

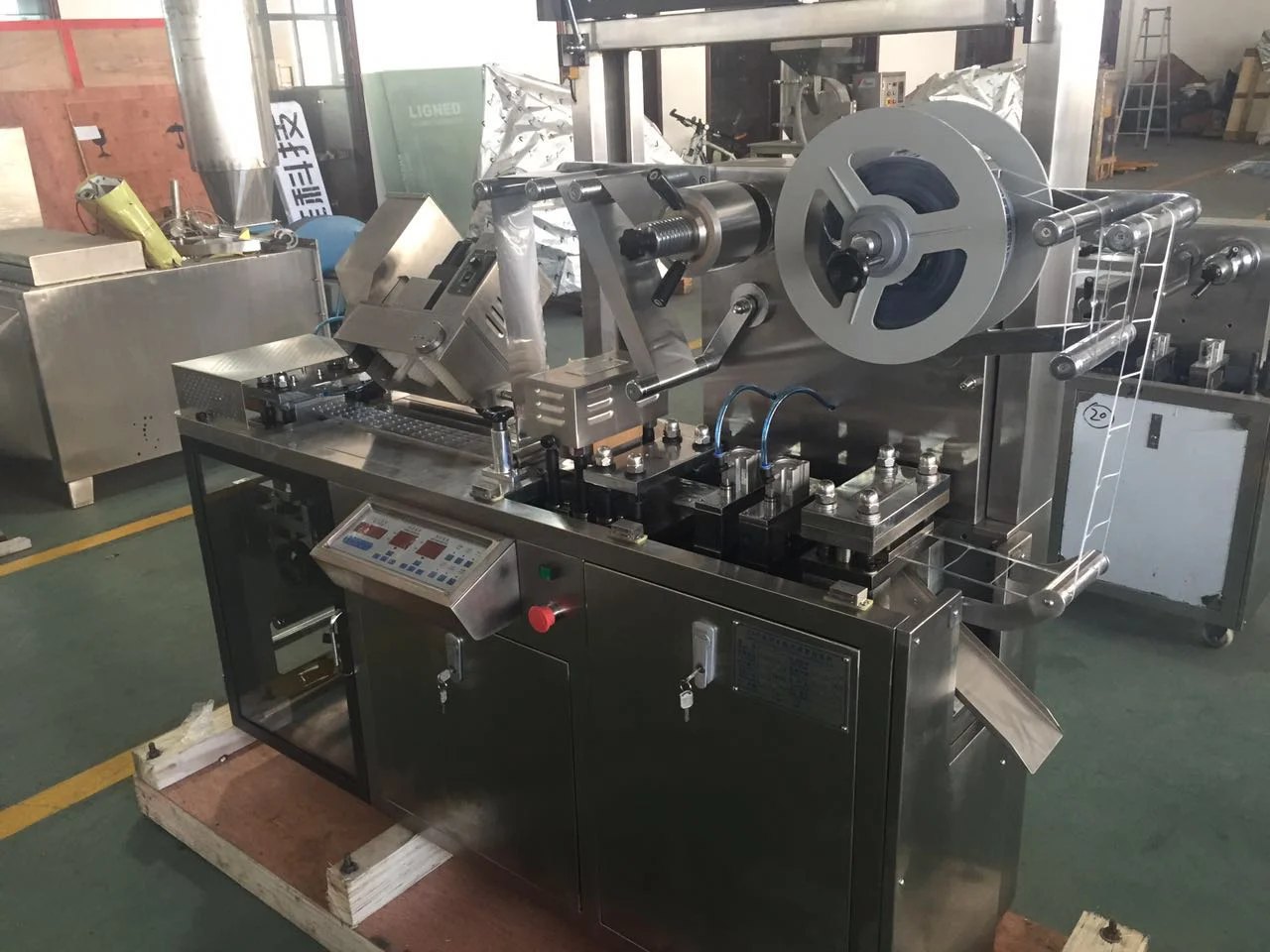

DPP-88 Blister Packing Machine
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small medical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Technical Data
Model | DPP-88 | DPP-140 | DPP-250 | DPP-320 | |||
Blanking frequency（cutting） | 15-40 | 5-50 | 20-40 | 15-45 | |||
Sheet's quantity of one blanking (sheets) | 1 | 1-4 | 1--6 | 1-8 | |||
Capacity (blisters/min) | 15-35 | 5-200 | 5-200 | 30-720 | |||
Adjustable scope of feed travel (mm) | 10-120 | 10-120 | 30-145 | 10-160 | |||
Max Forming depth (mm) PVC | 120 X 110 X 15 | 160 X 120 X 25 | 255 X 145 X 12 | 350 X 120 X 25 | |||
Capacity of air compressor(m3/min) | ≥0.36 | ≥0.22 | ≥0.22 | ≥0.36 | |||
Power supply | 380V /220V, 30Hz, 5.5kw | ||||||
Size(mm) | 1650*500*1100 | 2450*570*1550 | 4200*650*1650 | 4200*650*1650 | |||
Weight (kg) | 650 | 950 | 1500 | 2200 | |||
Usage
--DPP-88 and DPP-120 blister packaging machines are suitable for small and medium-sized production. The machine is used to produce small quality and many kinds of products.
If you have any questions, please contact us, and we will reply to you as soon as possible and provide you with the best medical solutions!
--DPP-140, DPP-250 and DPP-350 blister packaging machines are more suitable for medium and large scale production. The machine is used to produce large quality and single product.
If you have any questions, please contact us, and we will reply to you as soon as possible and provide you with the best medical solutions!
Application

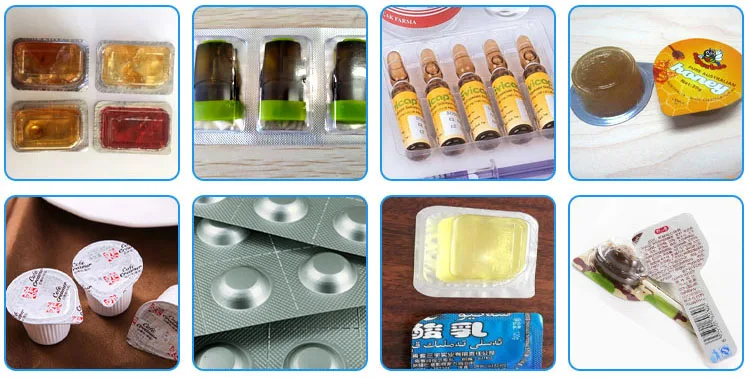

The blister packing machine packing Jam, Oil, Sauce, Candy, Electronic-cigarette, Liquid, Ampoules, injection into aluminum plastic composite panel(ACP) or aluminum plate. The machine is used to produce small quality and many kinds of products.
Features
1. Travel scope can be adjusted.
2. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6. Stepping motor drives and towmaterials.
7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine life.
3. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6. Stepping motor drives and towmaterials.
7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine life.
Product Details

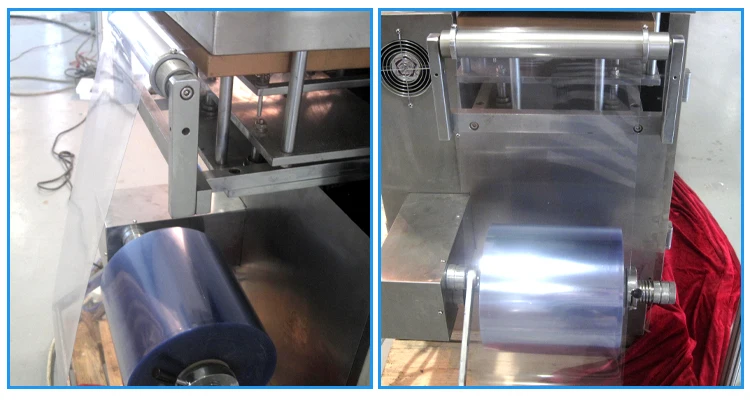

Plastic Preheating and unwind
When the machine run out of Plastic, it will stop automatically

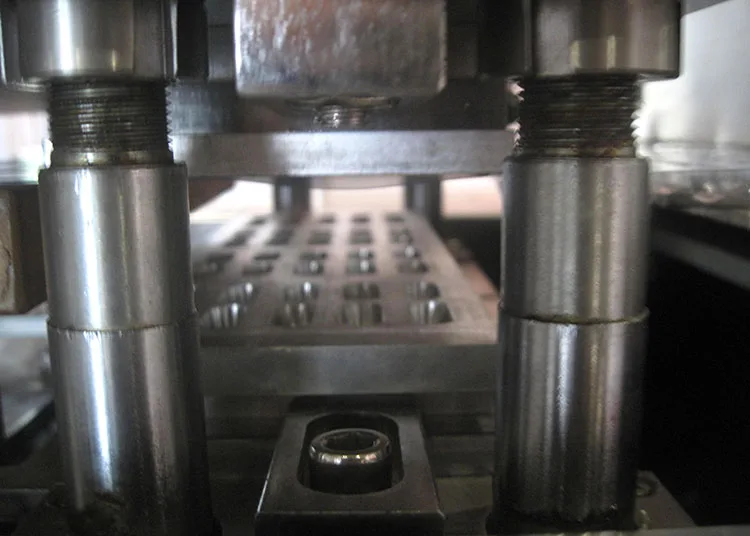

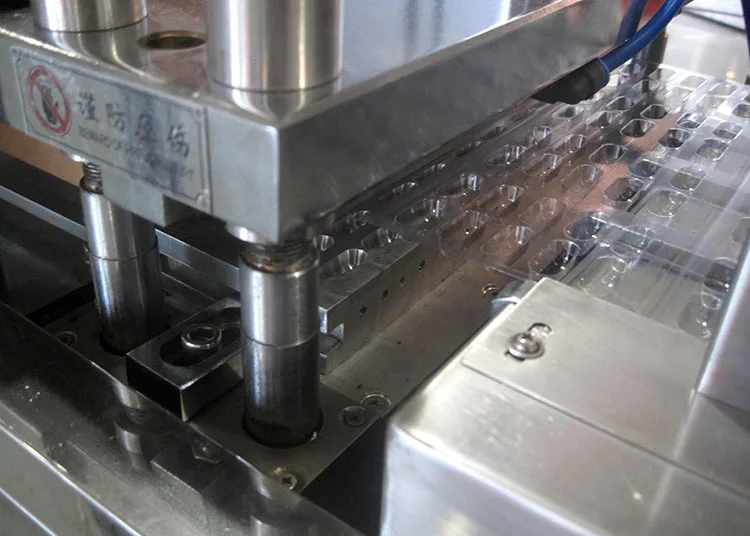

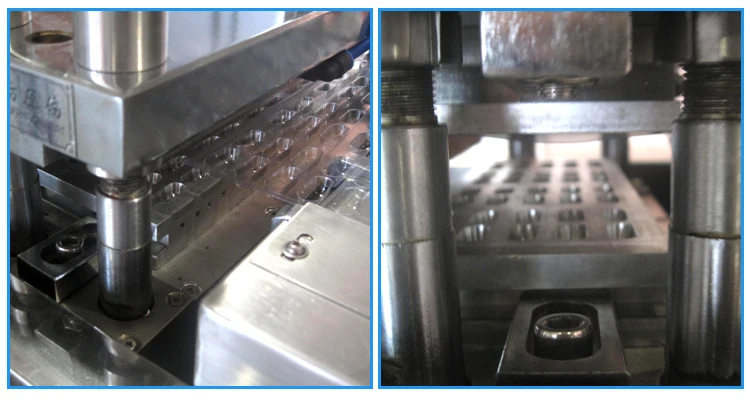

Plastic Blister Forming Station
We use ENCODER for forming, different from other’s cam for forming, cam will be broken when you run it too much time and fast. Mechanical is not always firm enough, So we change Electronic to control the Pneumatic, so this is the real PLC Control one brain machine, easy to adjust.

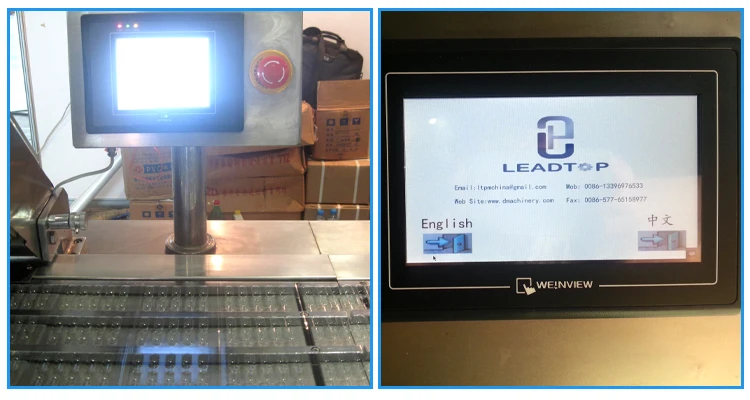

Touch Screen
Touch Screen brand can be required by customer.

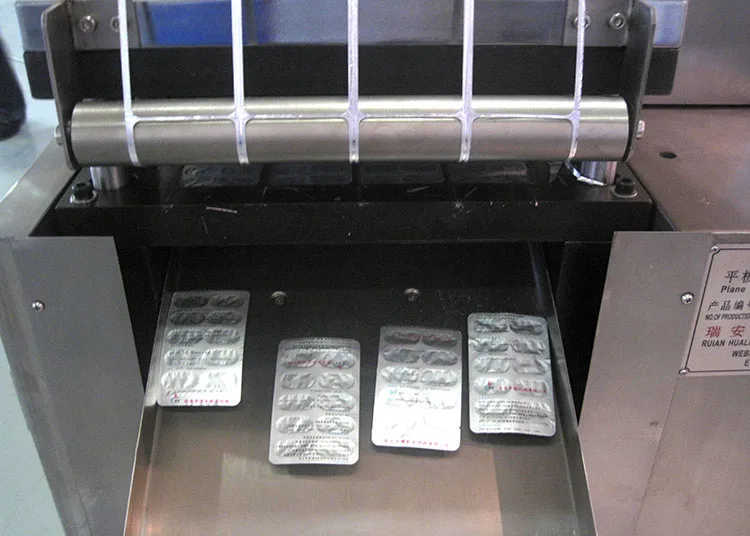

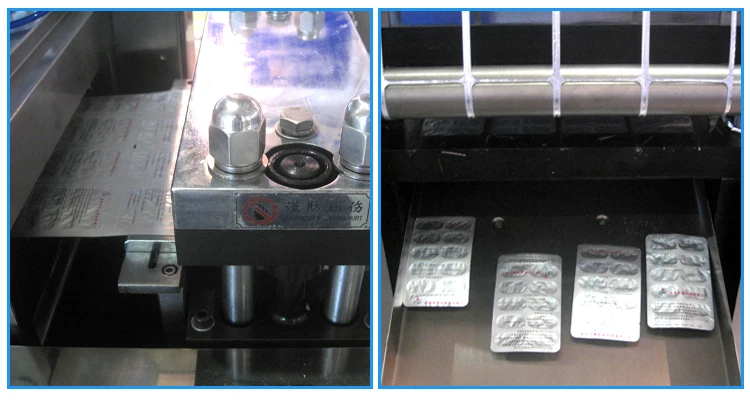

Aluminum Plastic Blister Cutting Station
The machine can cut 55times in one minute.
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
