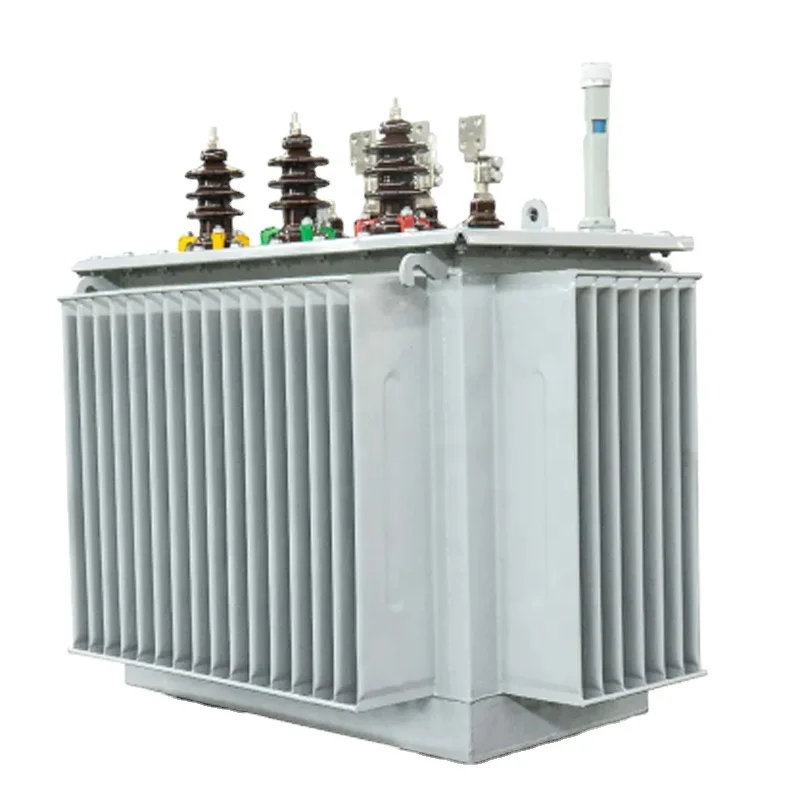

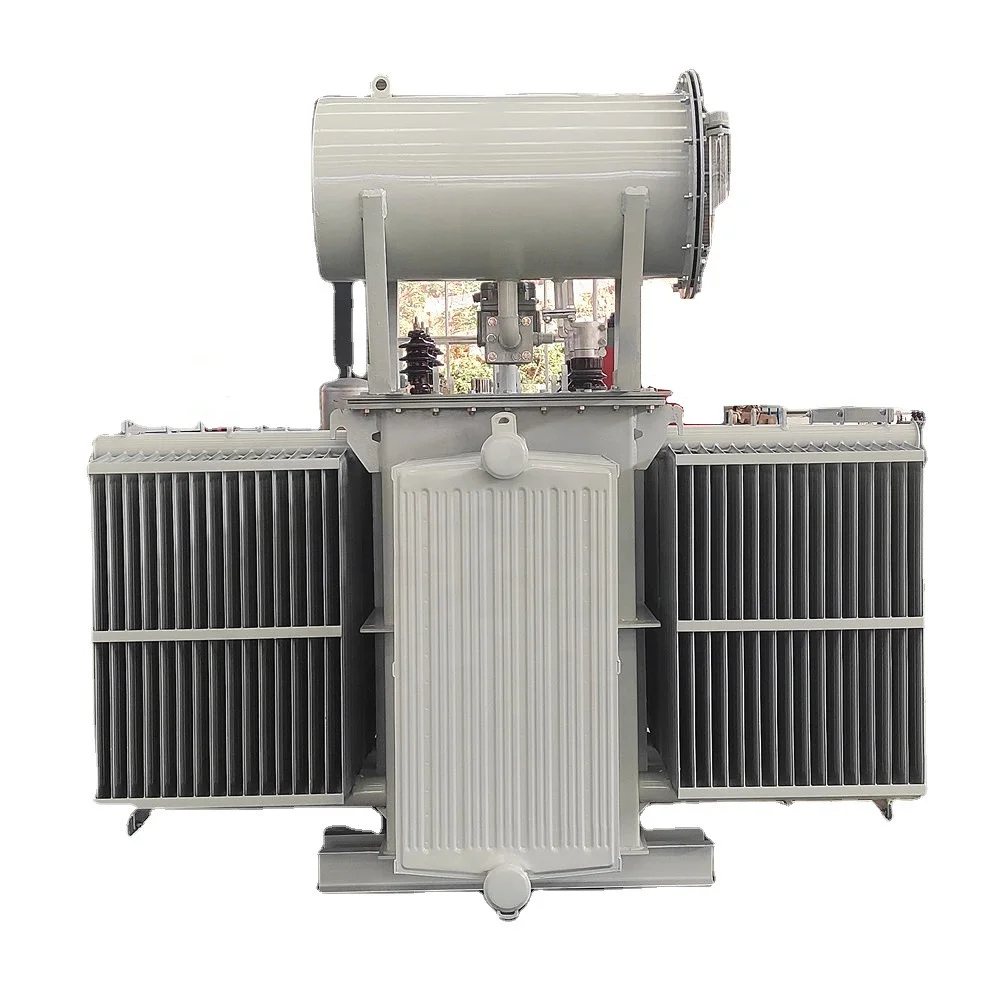

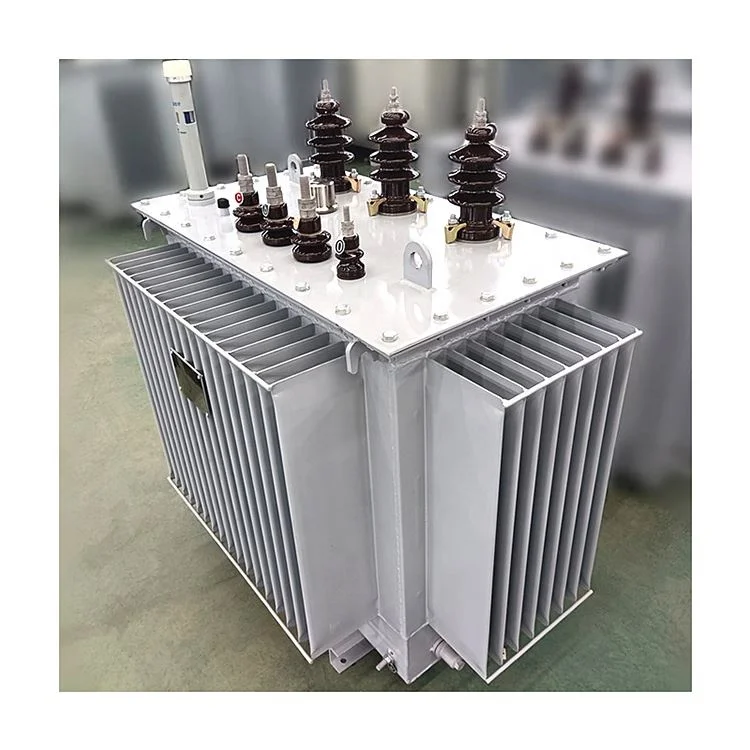

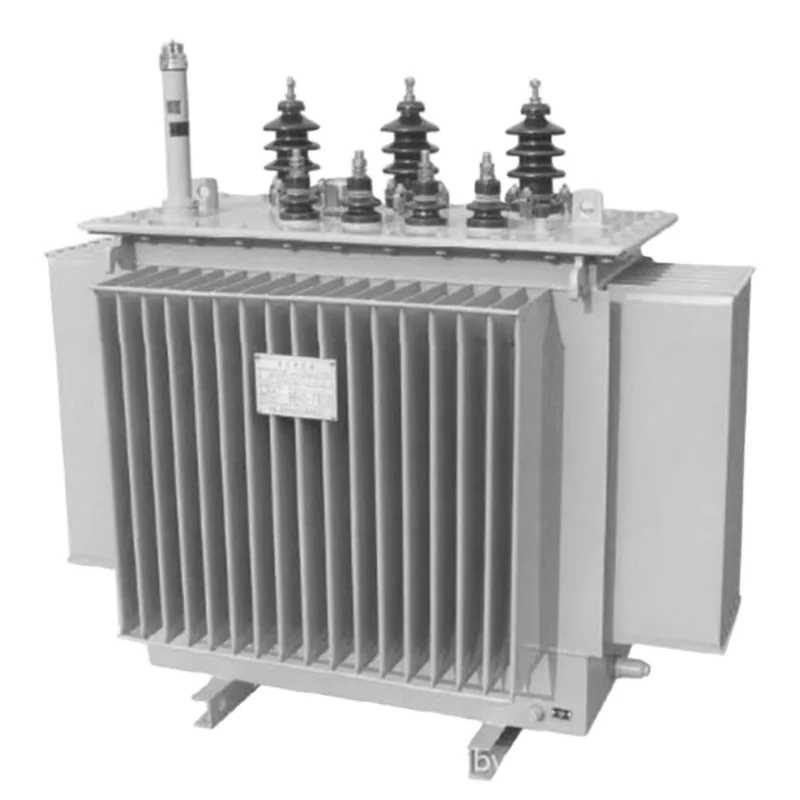

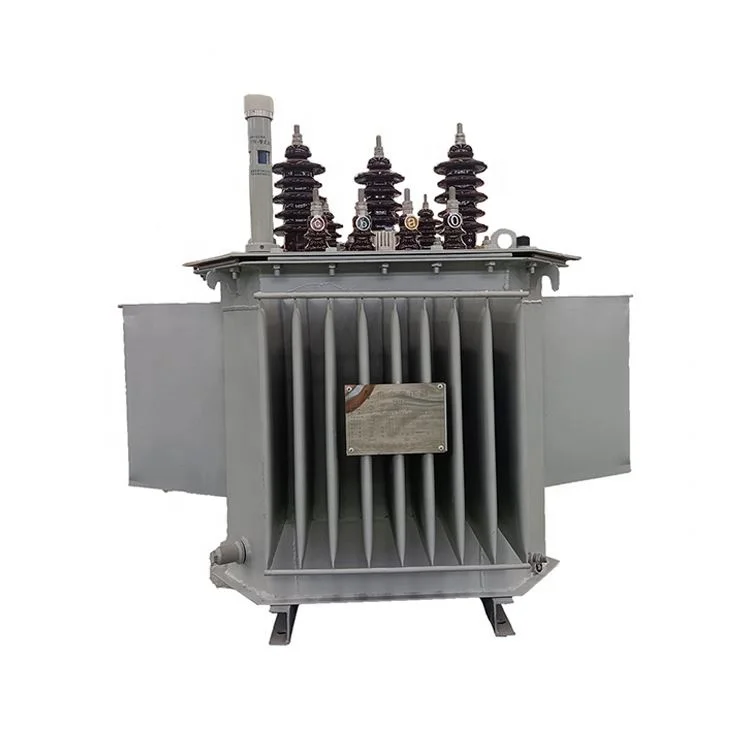

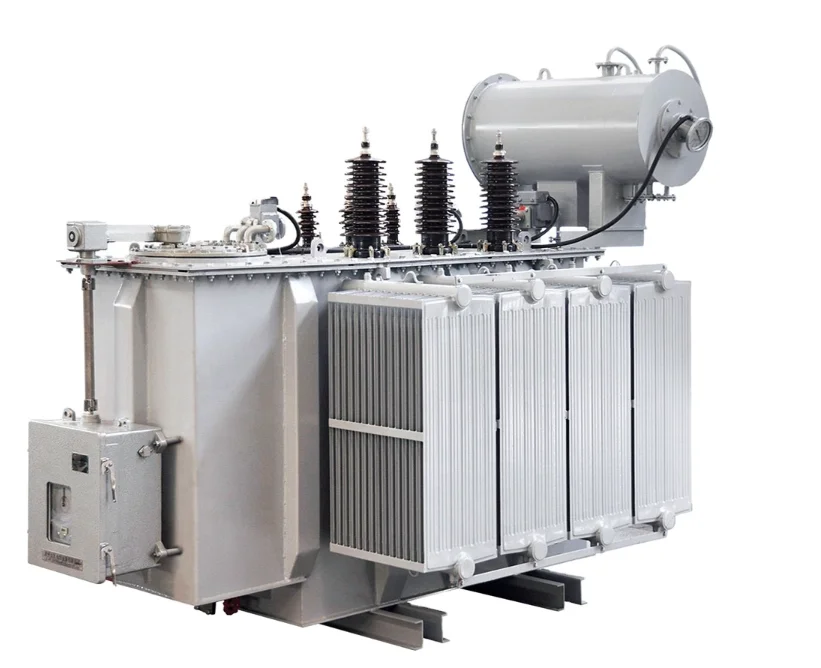

30KV 33KV 35KV 36KV Electrical Three Phase Step Down Oil Immersed Transformer for Power Substation
- Category: >>>
- Supplier: Henan Longjian Electric Power Equipment Co. Ltd.
Share on (1600945665202):
Product Overview
Description
Products Description
The product has the advantages of small loss , low noise and high efficiency , which can achieve good energy saving effect and
reduce pollution .The fully sealed transformer eliminates the need for oil storage tank. The change of oil quantity is
automatically adjusted and compensated by the elasticity of the corrugated board of the corrugated tank.The transformer is
isolated from the air to prevent and slow down the deterioration of oil and insulation aging.
reduce pollution .The fully sealed transformer eliminates the need for oil storage tank. The change of oil quantity is
automatically adjusted and compensated by the elasticity of the corrugated board of the corrugated tank.The transformer is
isolated from the air to prevent and slow down the deterioration of oil and insulation aging.
Rated Power(KVA) | Rated Voltage | Loss(W) | On Load Current | Oil weight | Total weight | Dimension(L*W*H) | ||||
H.V (KV) | L.V(V) | No Load | On Load | KGS | KGS | |||||
30 | 3.3 6.0 6.3 6.6 10 11 13.2 13.8 15 20 22 24 30 33 35 36 | 380 400 415 433 440 | 100 | 600 | 2.1 | 75 | 305 | 750*500*990 | ||
50 | 6.0 | 130 | 870 | 2 | 80 | 405 | 800*480*1030 | |||
63 | 6.3 | 150 | 1040 | 1.9 | 95 | 455 | 830*615*1060 | |||
100 | 6.6 | 200 | 1500 | 1.8 | 120 | 530 | 890*645*1145 | |||
125 | 10 | 240 | 1800 | 1.7 | 130 | 670 | 910*600*1185 | |||
160 | 11 | 280 | 2200 | 1.6 | 140 | 810 | 910*700*1280 | |||
200 | 13.2 | 380 | 340 | 2600 | 1.5 | 160 | 890 | 1000*760*1240 | ||
250 | 15 | 400 | 400 | 3050 | 1.4 | 175 | 1020 | 1285*730*1290 | ||
300 | 20 | 415 | 400 | 3450 | 1.4 | 185 | 1170 | 1280*740*1385 | ||
400 | 22 | 433 | 570 | 4300 | 1.3 | 215 | 1410 | 1310*750*1432 | ||
500 | 24 | 440 | 680 | 5100 | 1.2 | 260 | 1645 | 1365*765*1540 | ||
630 | 30 | 810 | 6200 | 1.1 | 310 | 2070 | 1485*815*1615 | |||
800 | 33 | 980 | 7500 | 1.0 | 370 | 2455 | 1640*930*1590 | |||
1000 | 35 | 1150 | 10300 | 1.0 | 425 | 2800 | 1860*1120*1630 | |||
1250 | 36 | 1360 | 12000 | 0.9 | 480 | 3320 | 1860*1120*1830 | |||
1600 | 1640 | 14500 | 0.8 | 550 | 4175 | 1975*1175*1900 | ||||
Our Company
HENAN LONGJIAN is a professional manufacturer of transformers. It can produce Single phase transformer.Three-phase transformer,
Pad mounted transformers, Dry transformer,Distribution transformer and High voltage transformer. It can meet IEEE/ANSI/DOE/CSA and
IEC standards. Moreover, LONGJIAN has nearly 40 years of transformer export experienc., LONGJIAN transformer have at least
two-year warranty, moreover LONGJIAN have very good after-sales installation service team abroad, so if you have transformer
needs, you can contact us.
Pad mounted transformers, Dry transformer,Distribution transformer and High voltage transformer. It can meet IEEE/ANSI/DOE/CSA and
IEC standards. Moreover, LONGJIAN has nearly 40 years of transformer export experienc., LONGJIAN transformer have at least
two-year warranty, moreover LONGJIAN have very good after-sales installation service team abroad, so if you have transformer
needs, you can contact us.
Certifications
Why Choose us
1.We have passed the national and internationaquality certificates, such asIso9001, ISO14001, OHSAS18001, CCC, CQC, ESAAA Certificate of credit gradeMeanwhile our company have obtained the chinaelectric power construction electric power equipmenmaintain test certificateWe are government cooperate company with theState Grid Corporation of China electric construction.
2.We can provide professional design drawings and technical solutions, local after-sales service team and provide customized
services for you
services for you
Product packaging
Contact Us
FAQ
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies..
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies..
