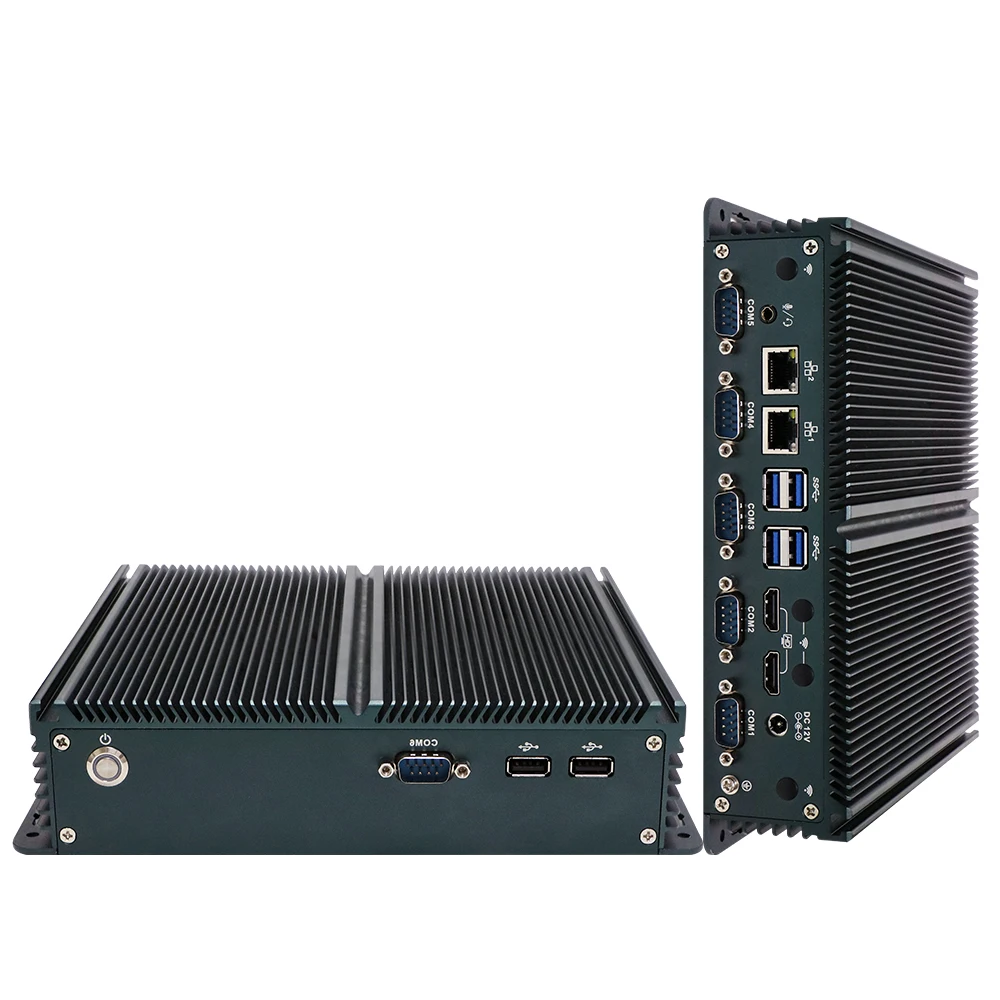

Iwill Fanless RS232 RS485 Com N100 Processor Industrial Desktop Computer PC for Rail traffic
- Category: >>>
- Supplier: Shenzhen Iwill Technology Co. Ltd.
Share on (1600945685142):
Product Overview
Description
Notice: This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.
Iwill Fanless RS232 RS485 Com N100 Processor Industrial Desktop Computer PC for Rail traffic
Product Description

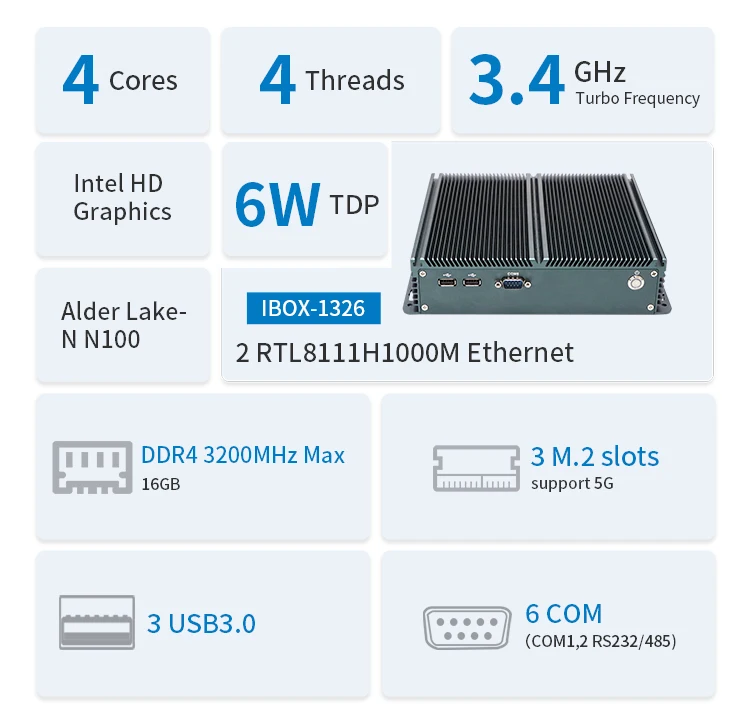

Hightlight:
- Support 2 x HD synchronous/asynchronous dual display output.
- Intel Alder Lake-N100 Processor
- Rich I/O port: 1 Power Button+3 USB3.0+3 USB2.0+6 COM (RS232/485)+ 2 1000M Lan+ DC 12V
- with high quality and stable performance, slim dimension 234*200*54mm
- All aluminum alloy structure, fanless design without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 6 W, save much energy and eco-friendly.
Specification

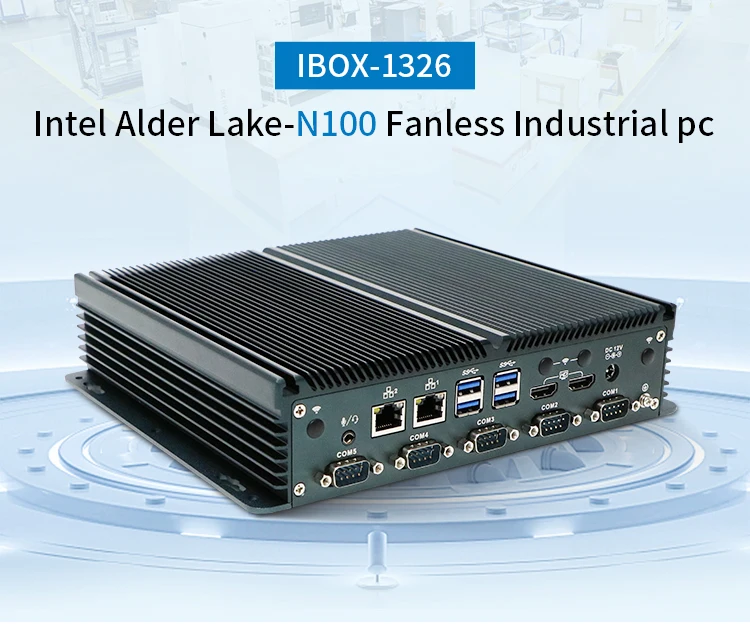

| Model | IBOX-1326 |
| Color | Metallic gray (Color can be customized) |
| Material | High-quality all-aluminum alloy, hard anodized surface |
| Processor | Intel N100 (quad core quad threads, turbo frequency 3.4GHz, 6MB cache) |

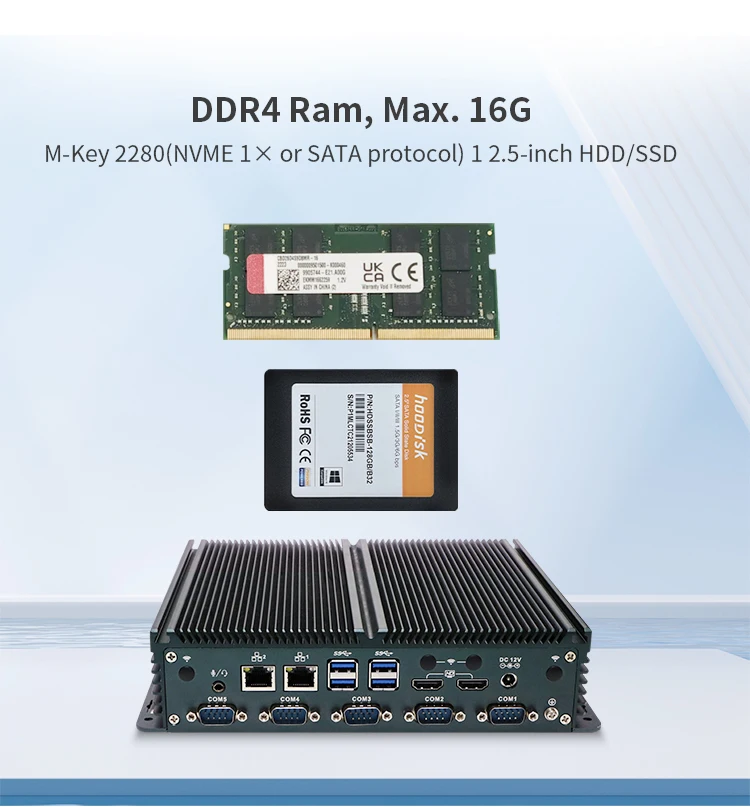

| RAM | 1 DDR4 3200MHz SODIMM memory slot, Max. 16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel HD Graphics |
| Display Port | 2*HD |

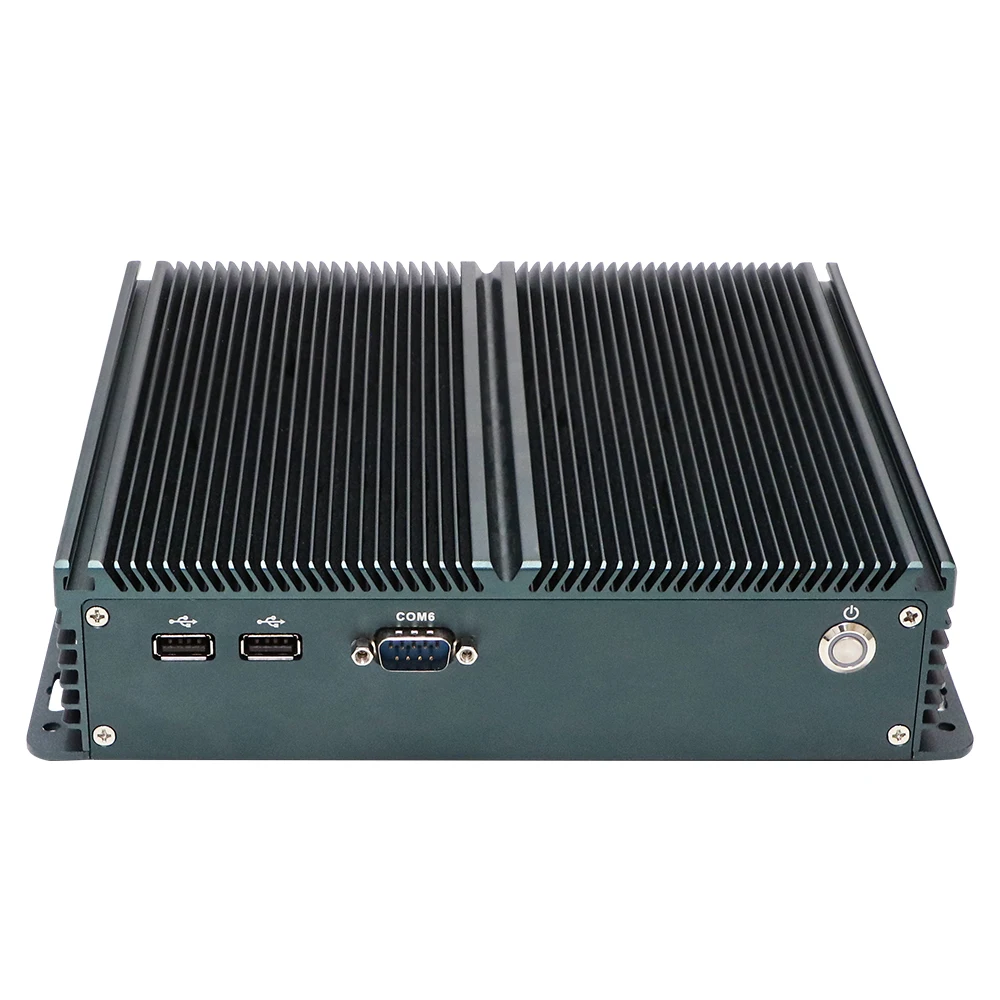

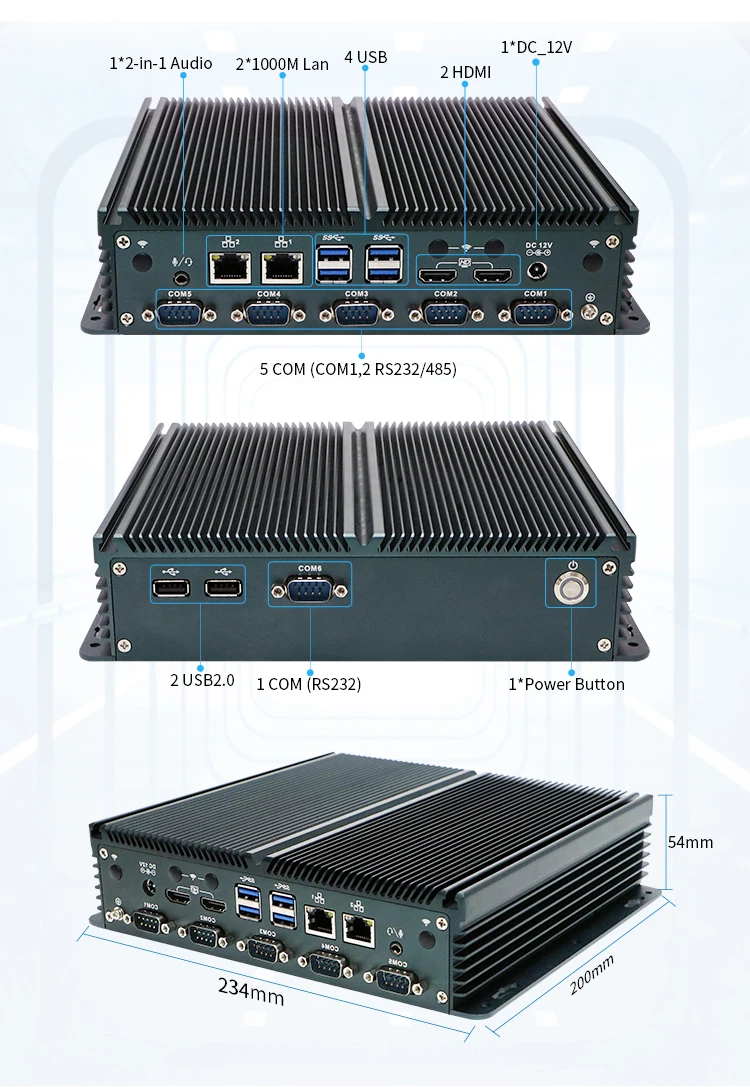

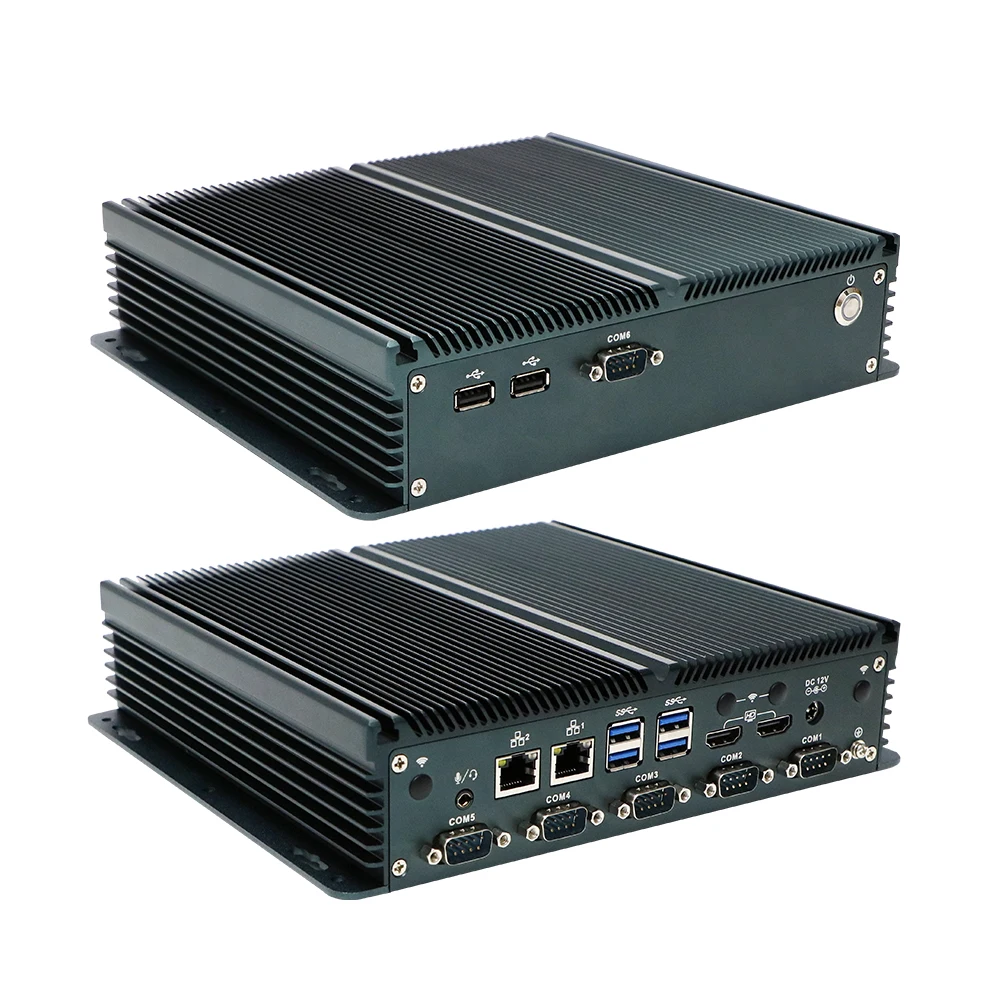

| Front I/O | 1*Power Switch 2 USB2.0 1 COM (RS232) |
| Rear I/O | 1*2-in-1 Audio, 2 10/100/1000M Ethernet, 2 HD,3 USB3.0,1 USB2.0 1 DC, 5 COM (COM1, COM2 optional RS232/485)
|
| Expansion | 1 M.2 M-Key 2280 slot (support NVME 1× or SATA protocol) |
| 1 M.2 E-key slot (support WIFI/BT) | |
| 1 M.2 B-key slot 3042/3052 (support 4G/5G), with SIM card | |
| Scalable interface (standard shipment doesn’t include this interface): 8-way GPIO | |
| Network | 2 RTL8111H 10/100/1000M Ethernet |
| Storage | 1 M-Key 2280 slot (support NVME 1× or SATA protocol), 1 2.5-inch hard disk |
| Input Voltage | DC 12V Input |
| Other Function | Power-on boot, Timing boot, Wake on LAN,PXE boot, Watchdog (level 0-255) |
| Work Temp | 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow |
| Work Humidity | 5% ~ 95% non-condensing |
| Certificates | CE,CCC,FCC Class A,ROHS |
| Dimension | 234*200*54mm |
| Net Weight | 1.98kg[isn't included the wall mount] |
| Application | Industrial automation, Medical, Transportation, Warehousing, E-education etc. |
Product Display
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

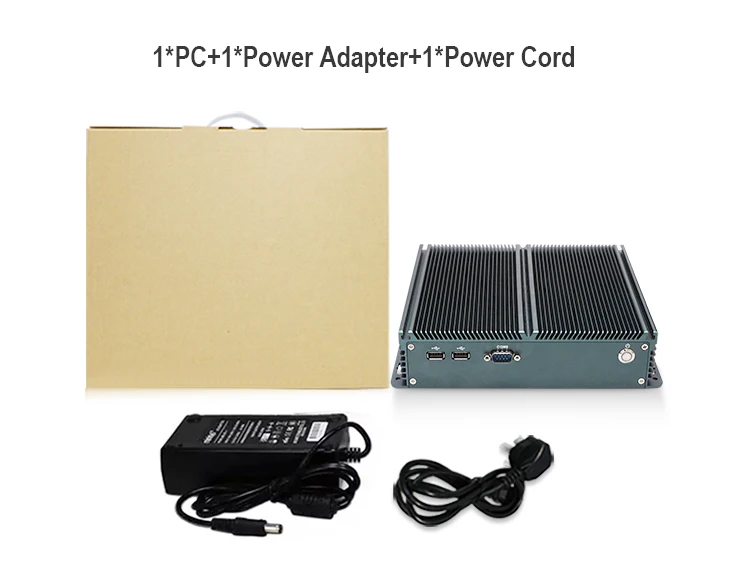

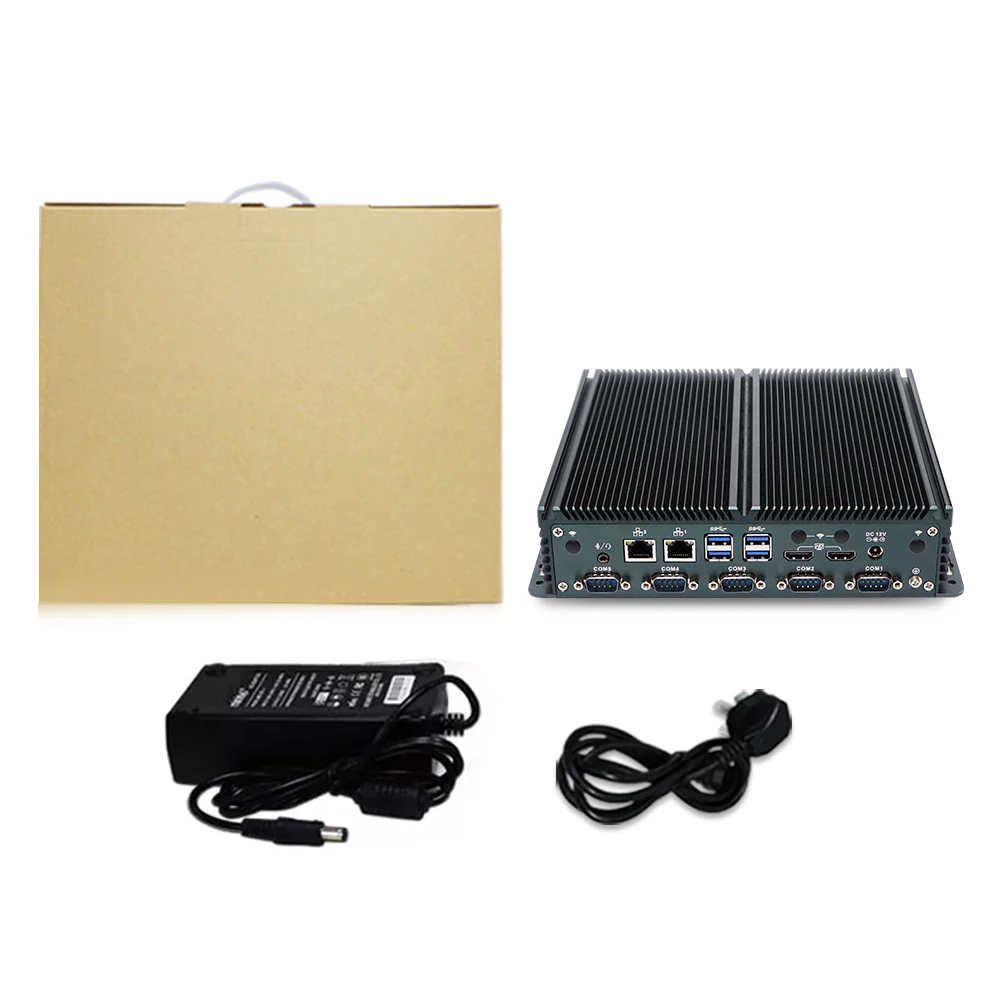

2.Packaging Ways: Each pc for one neutral box, five neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Our Advantages
1. As a professional manufacturer and supplier of mini pc over 15 years,we win our customers with good quality,best service and competitive price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team serve for you diligently
4.Sample order is welcomed and will be delivered within 3 days.
5.We are Alibaba assessed 11 years Gold Supplier and more than 15 years industrial experience.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM service according to your requirements.
8.We provide 36 months maintenance warranty for our products.
About US
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is also a integrated trade and production, resource-based enterprise including R&D, design, production, manufacturing, and sales.Main products cover fanless industrial pc, industrial touch panel pc, embedded fanless computer, mini pc, network server, motherboard, aluminum chassis and etc, and also provides OEM&ODM services.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 15+ years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: you confirm the design draft.
4. We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T, Western Union, PayPal.
Question: What is the Minimum Order Quantity (MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
