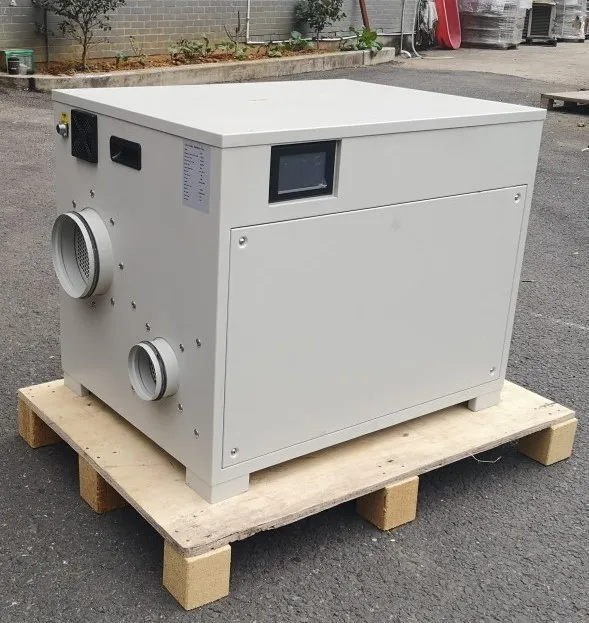

Best Selling Logistics Dehumidifier, Horizontal Type Desiccant Building Dryer

Product Overview

Description

the air under atmospheric pressure. It can continue working right down to -20°C, up to 50°C.

The dehumidification equipment is suitable for:

• Places full of corrosive gas

• HVAC system

• Humidity of less than 35%RH

• Low dew point conditions

• Low temperatures, especially combined with low humidity

• Single pass air flow applications

• Pharmaceutical production, packaging, storage, testing and research

• Process air systems

• Photographic/film archive stores

• Pneumatic conveying of powders

• Pumping stations

• Confectionary production and packing

• Food production

• Clean rooms

• Electronic manufacture

• Cold stores

• Seed storage

• Drying & corrosion prevention inside power station turbines

• Injection moulding machines

• Tank drying



Model		KCDD-2.5	KCDD-3	KCDD-3.5
Dehumidify Capacity(20°C,60%)		2.5kg/h	3kg/h	3.5kg/hr
Power supply		220-240V/60HZ	3N 220V/60HZ	3N 220V/60HZ
Process air flow		420m3/hr	600m3/hr	700m3/hr
Inlet size mm		100	125	125
Reactivation air flow		130m3/hr	200m3/hr	250m3/hr
Outlet size mm		80	80	80
Applied Temperature		-20°C~60°C	-20°C~60°C	-20°C~60°C
Regeneration energy consumption	Steam KG/H	/	/	/
	0.4Mpa	/	/	/
	ELec.	ELec.	ELec.	ELec.
Max power	Steam	/	/	/
	ELec. KW	2.3KW	4.5KW	6.4KW
Power rating		2.0KW	3.8	6
Current		10A	13	21
Application Area		40-70m2	40-80m2	90-120
Dimension		540*780*1070	540*780*1070	540*780*1070
Packing size		580*820*1130mm	580*820*1130mm	580*820*1130mm
Net weight		60kg	78kg	85KG
Gross weight		67kg	86kg	94KG
Primary Filter		G4 efficiency
Desiccant Rotor Brand		Sweden Proflute
