Products Description

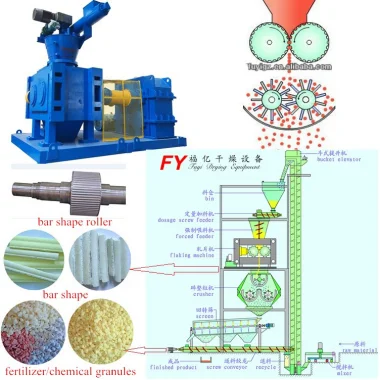

Dry granulation can be conducted under this process: the powder is squeezed between two counter-rotating rollers to produce a continuous sheet or ribbon of materials.

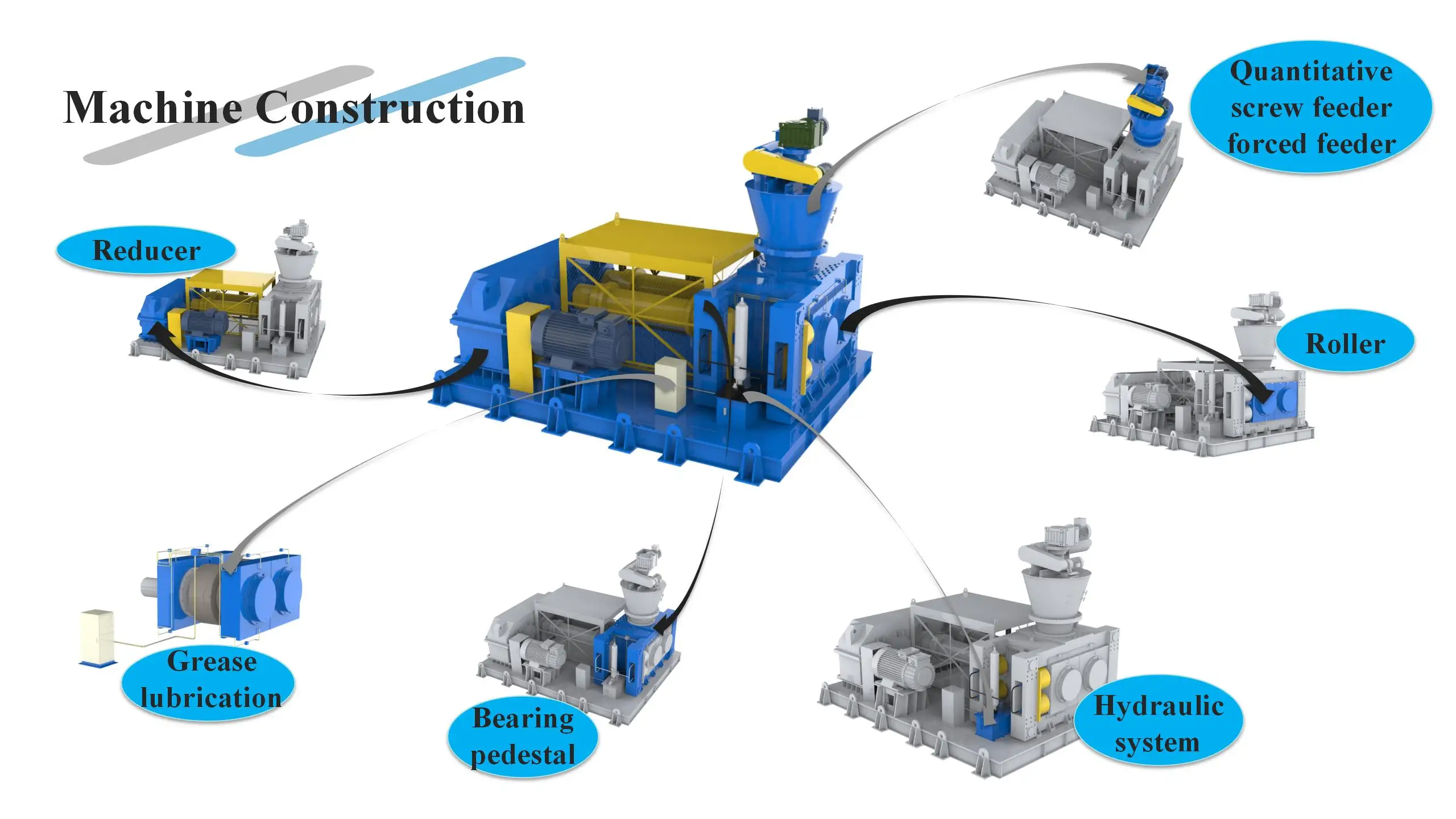

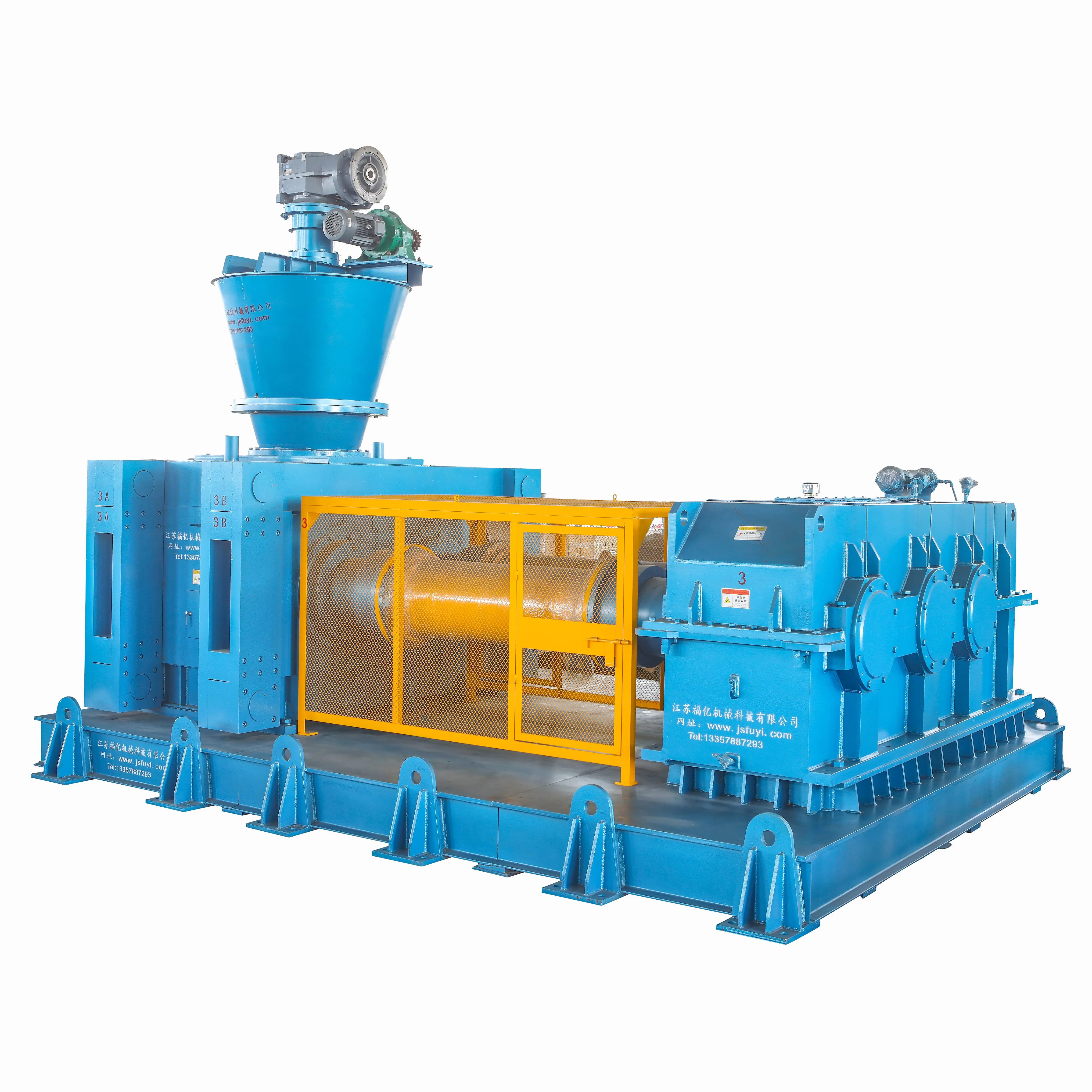

 DH series dry roll press granulator adopts dry rolling technology to compress the powdery materials with moisture content ≤1% into pieces or tablets, then going through the processes of breaking into granules and screening to make the lump materials into granules that meet the requirements of application. Dry roll press granulator mainly depends on the manner of external pressure to force the material going through the gap between two relatively turning rollers to compress into laminar particles. During course of roller pressing, the real density of materials can increase 1.5~3 times thus reaching certain demands of granular strength.




Main Features

1) Granular strength can be adjusted by adjusting the pressure of roller, control strength of final products.

2) Cycle operations to achieve continuous production. High yield of finished products.

3) Materials are force to compress molding by mechanical pressure, without any additives, the product’s purity is guaranteed.

4) Dry powders are granulated directly without follow-up drying process, the existing production process is easy to convergence & transformation.

5) Granular strength is high, compared with other granulating methods, the improvement sof bulk density are significant，especially for the occasion where increase the proportion of product accumulation.

6) A wide range of raw materials can be used, granular strength can be freely adjusted according to different materials.

7) Compact structure, easy maintenance, simple operation, short process, low energy consumption, high efficiency, low failure rate.

8) Control environmental pollution, reduce waste and powder packaging costs, and improve product transport capacity.

9) Feeding device adopts frequency adjustment control, high automation ,one can control multi-machine, has the features of low labor intensity and long term continuous operation,etc.





Technical Parameters of DH series compactor


TECHNICAL PARAMETERS
Model
DH240
DH360
DH450
DH650
DH850
DH1050
DH1500
Roller Diameter (mm)
φ240
φ360
φ450
φ650
φ850
φ1050
φ1500
Valid width(mm)
300
170-230
190-280
290-330
420
500
650
Roller speed(rpm)
50-100
10-25
10-25
10-25
9-16
8.5-14.5
6-13
Extrusion
thickness (mm)
4
8
12
16
25
36
36
Max rolled sheet
output*(kg/h)
/
1300-2300
2500-3500
5000-7000
12000-16000
22000-38000
32000-100000
Final product
output(kg/h)
2000-3000（oblate）
900-1300
1800-2500
3500-4000
6000-8000
12000-16000
15000-50000
Granular size(mm)
3.5/4.2/4.5/5.5/6.5
2-5
2-5
2-5
2-5
2-5
2-5
Main unit
powder(kw)
45
30-37
55-75
90-110
220-250
400
400×2
Total installed
capacity(kw)
55
55
90
175
400
850
1500-1800
Dimension
(L.W.H)
2300×1700×1860
2350×2000×2600
2600×2200×2900
3600×2800×3200
5000×3800×4100
7000×5000×6000
9700×5600×7700
Total weight
(t)
5
7
10
21
46
75-85
120-150

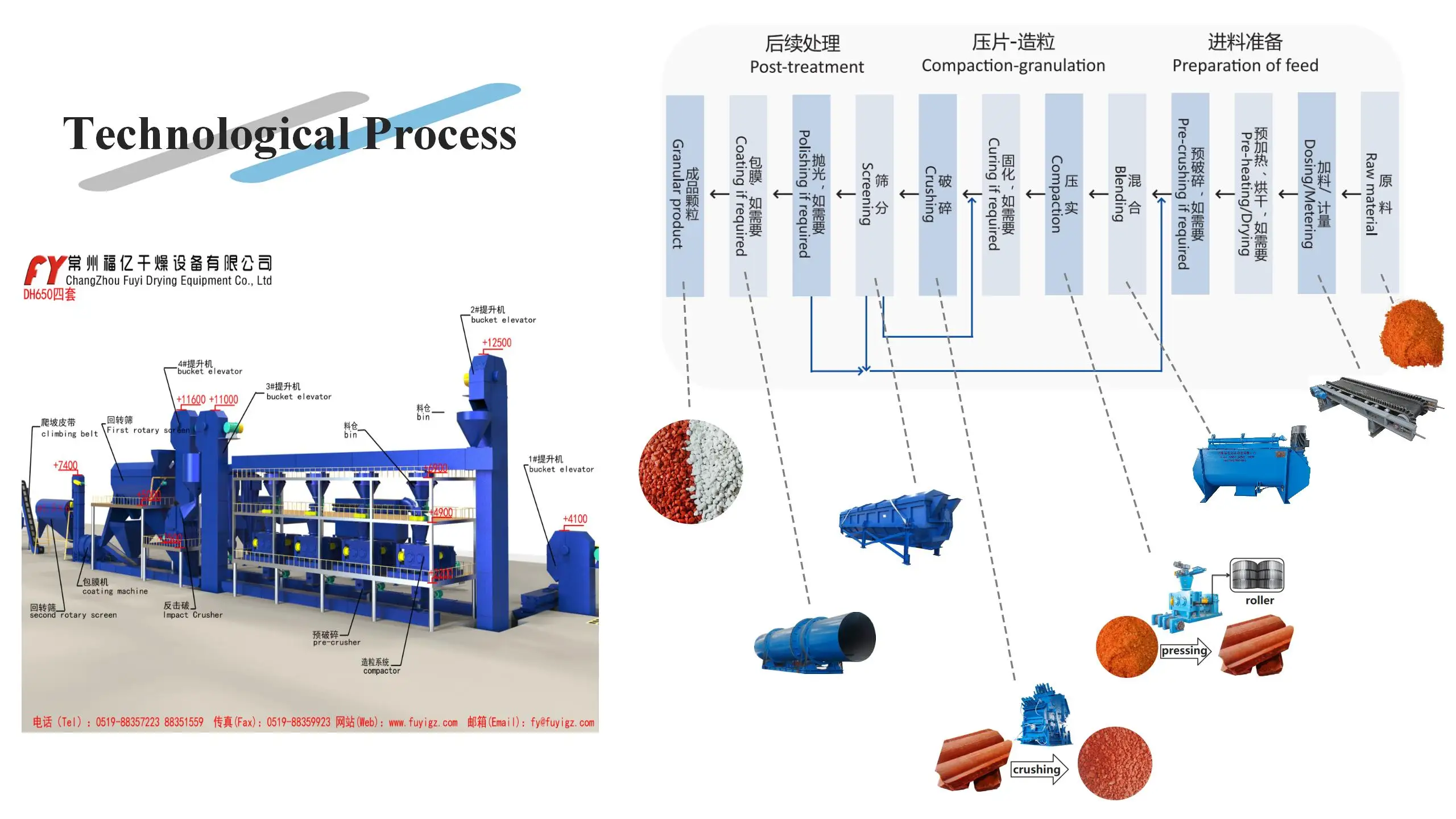

Technology Process

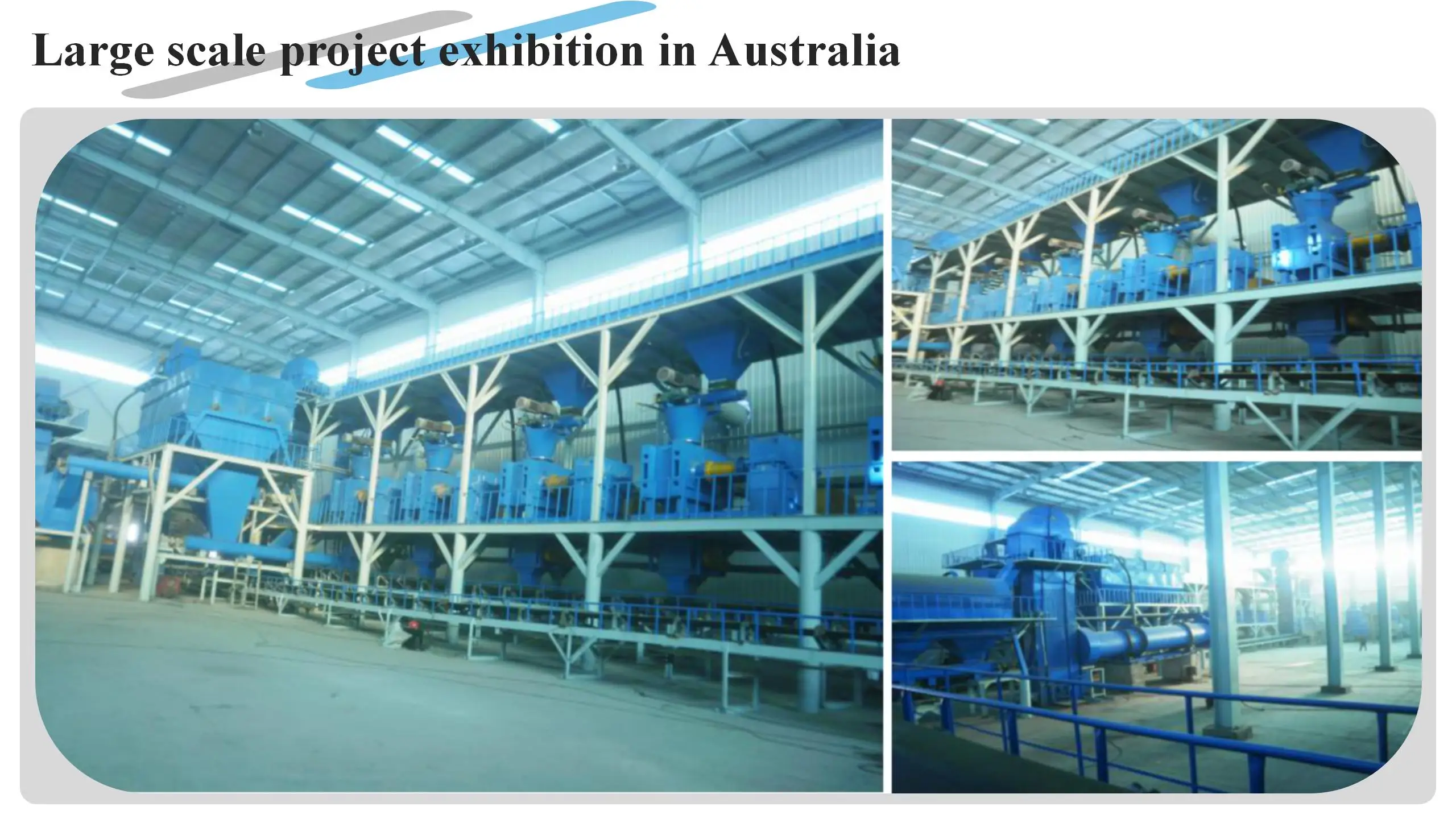

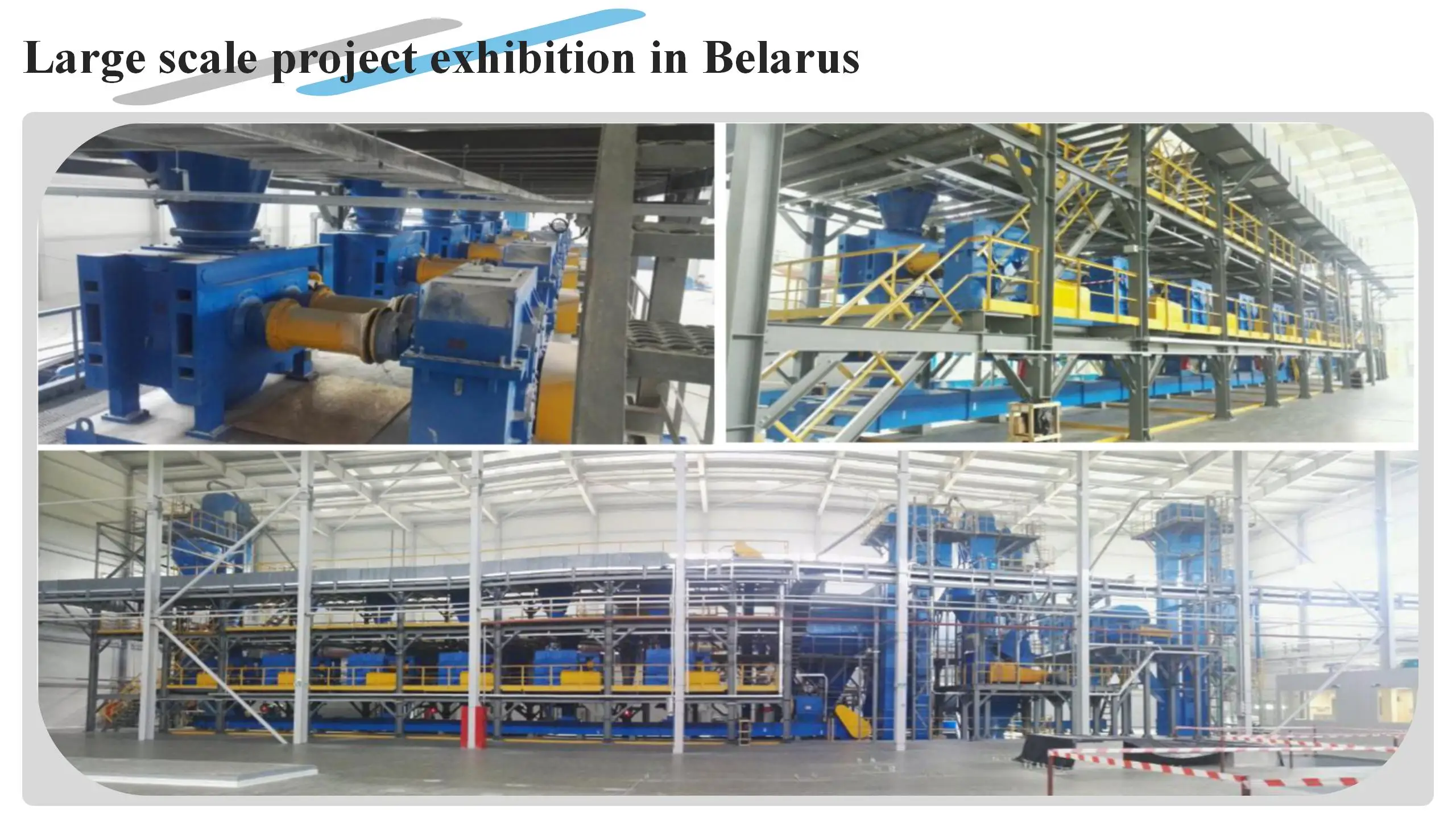

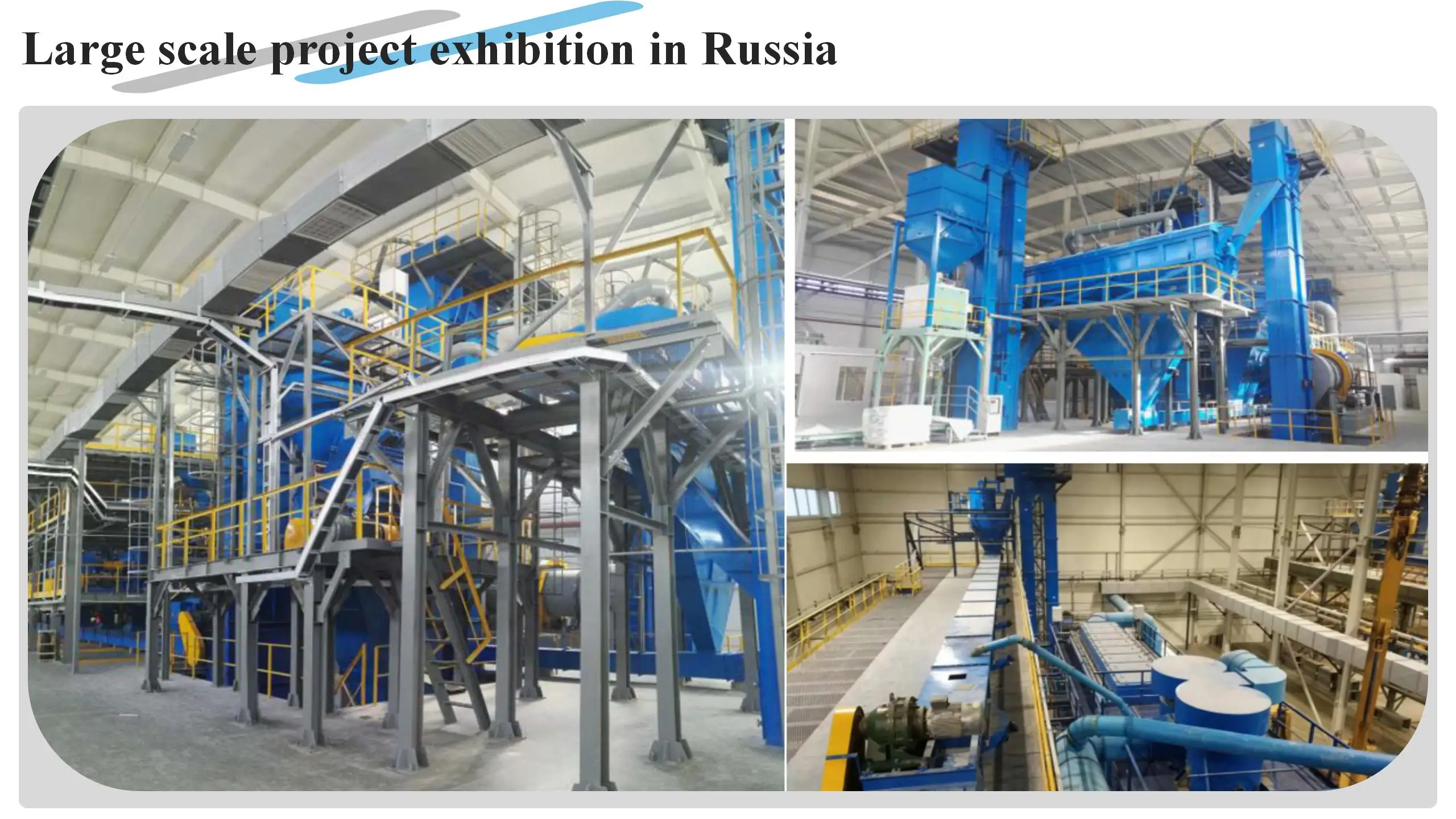

Layout of Fuyi granulating processes
Capacity
7-8 tons/hour
Granulator
2 sets of DH650



Granulating process details
Mainly include mixing system, conveying system, compacting system, crushing, screening, packaging system and dust collecting system.

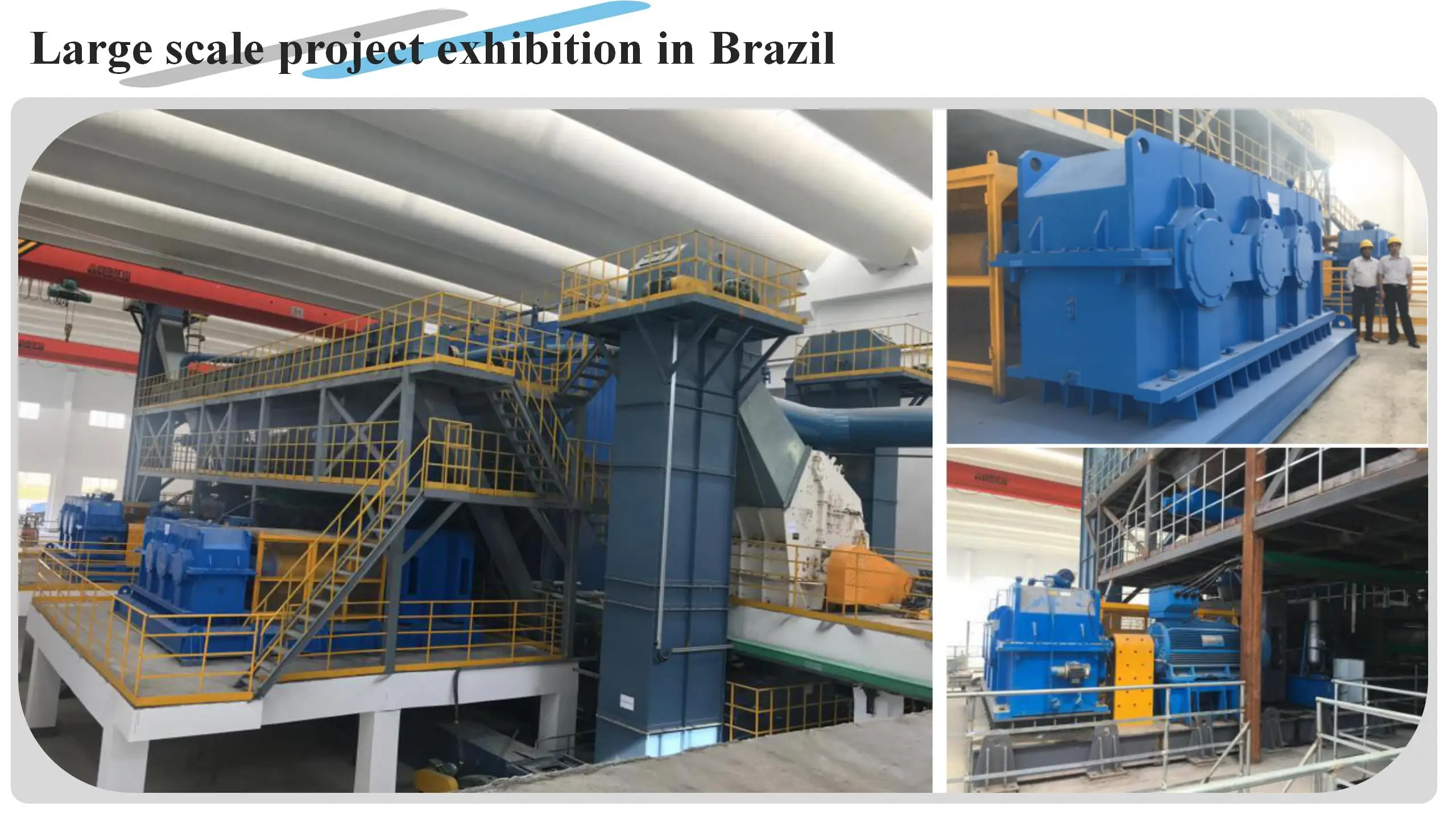

Layout of Fuyi granulating processes
Capacity
10 tons/hour
Granulator
2 sets of DH850



Granulating process details
We can design different diagram for different clients, we need to design the layout according our clients provide us some basic information about the size of their factory, and how do they want to place the equipments. Our target is making the process more simple , more easy, more economic and more effective.

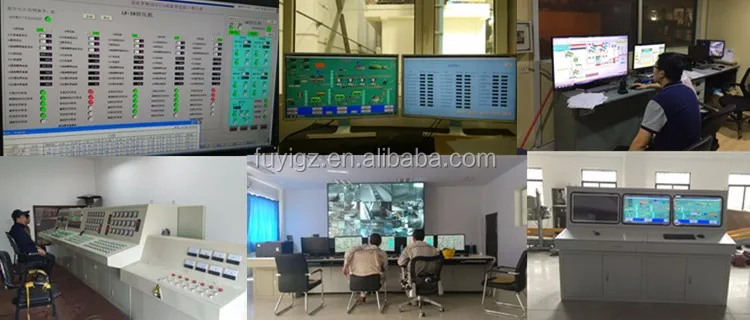

Automatic control


The control system

The control system is used for various fertilizer granualtion plant , including the central control system parts, power cabinet parts, cabinet part of field operations, field actuators (such as motors, solenoid valves, etc.), by PLC completed the control.

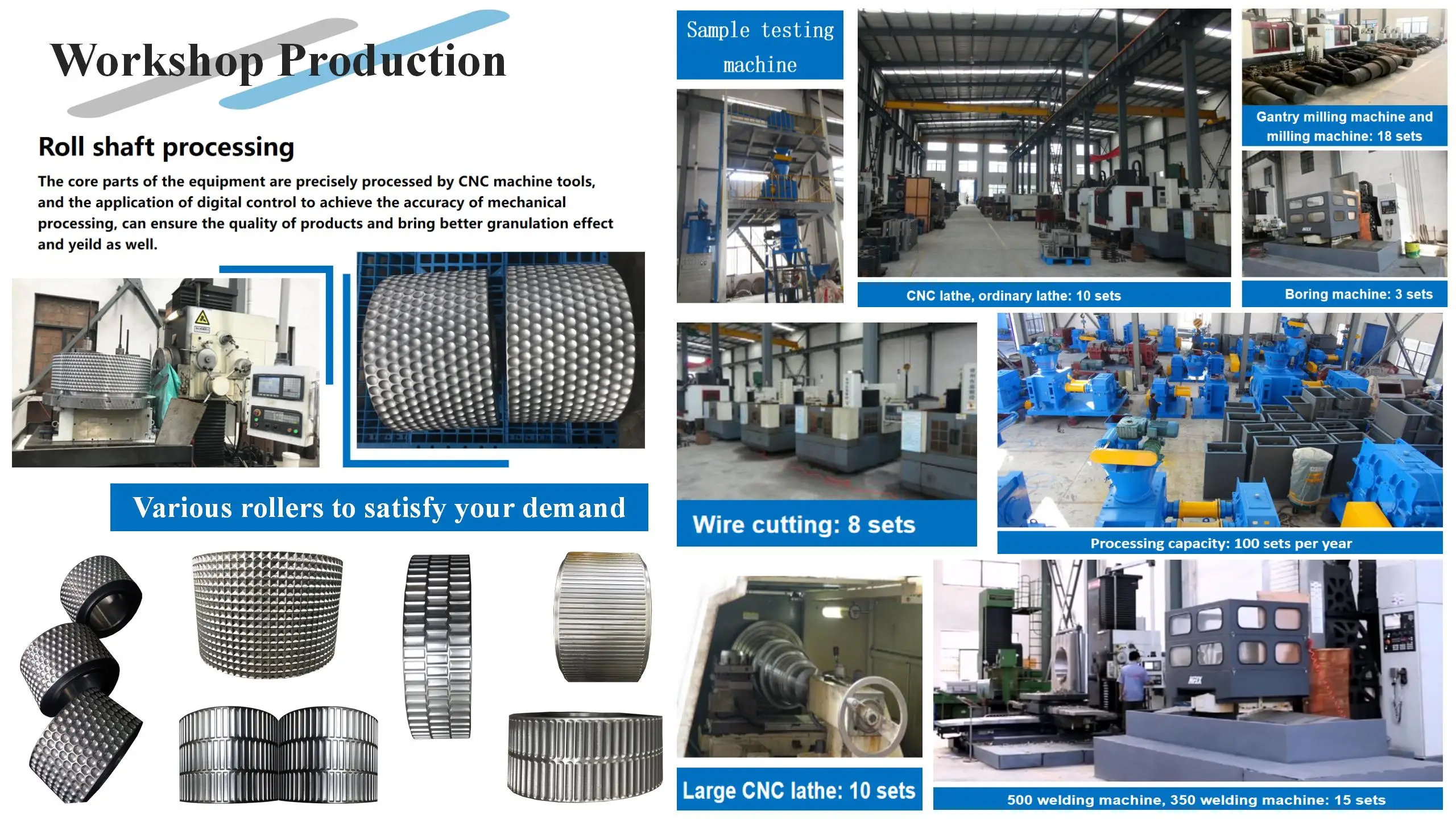

Stock in workshop




Customer visit

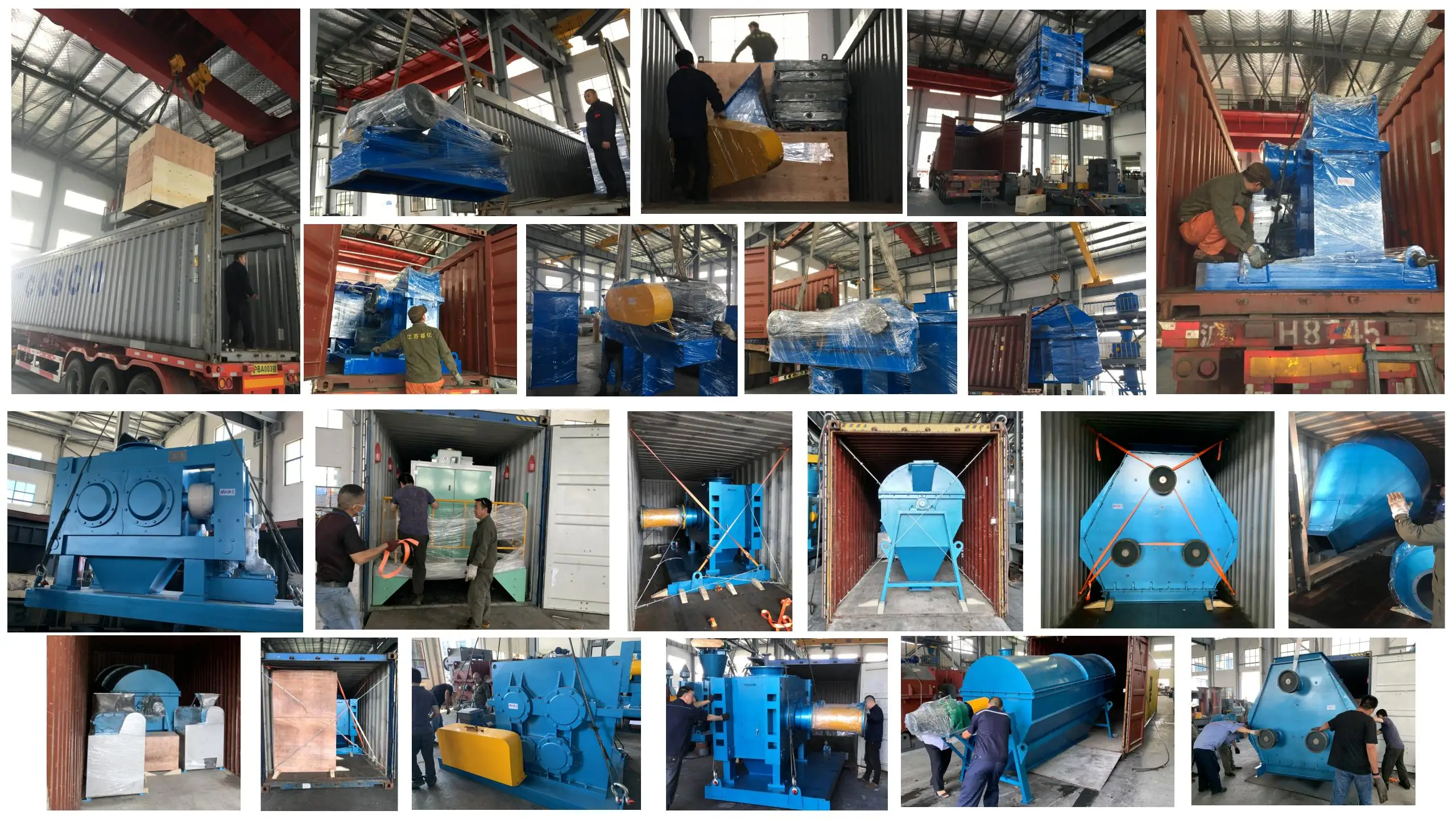

Delivery Time

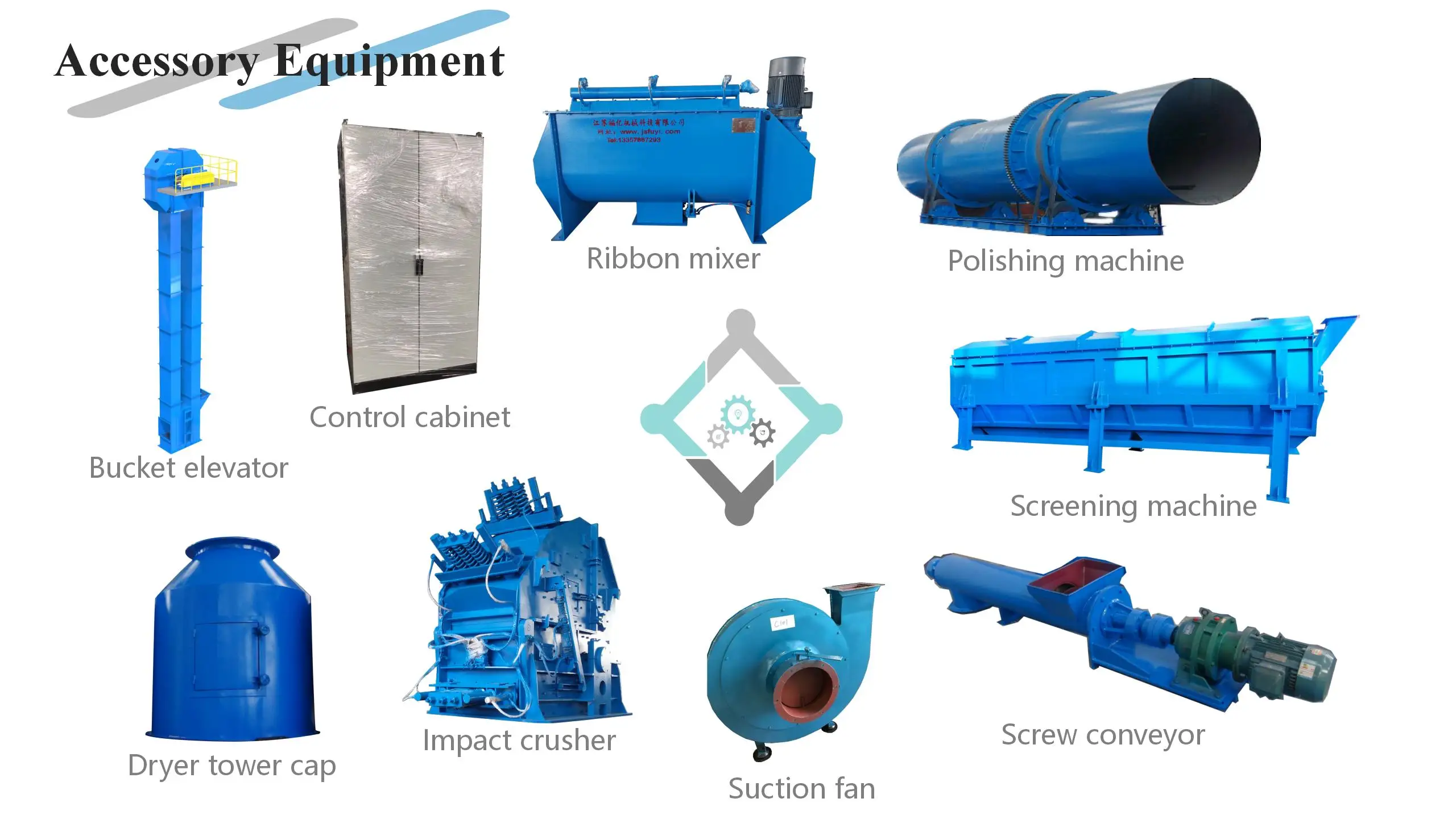

Relation equipment
