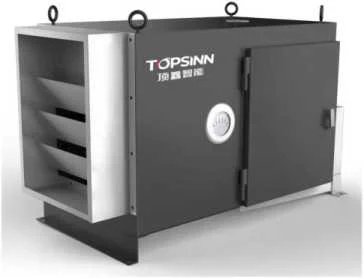

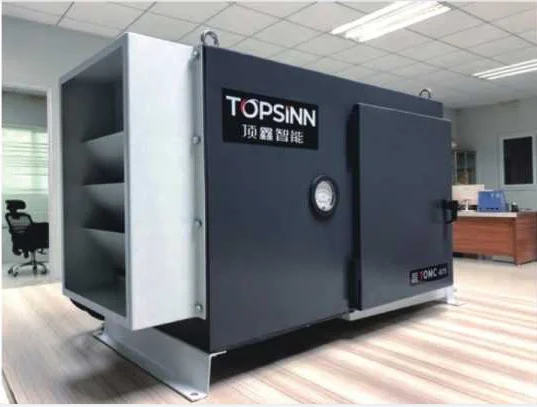

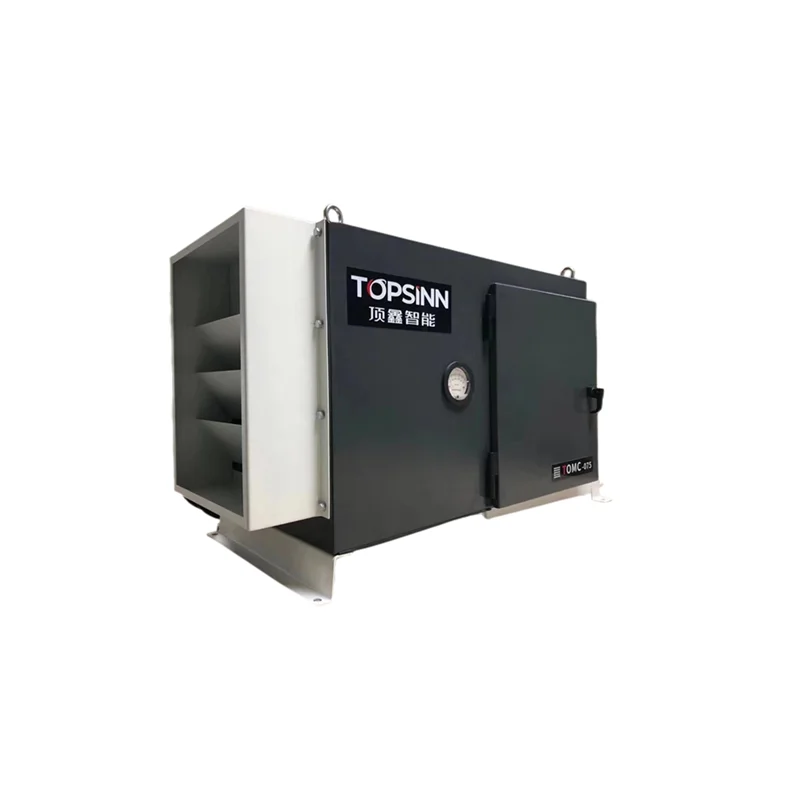

Quality Hepa Filter UV Laser CNC Metal Milling Forging Dust And Smoke Collector Fume Extractor Oil Mist Separator
- Category: >>>
- Supplier: Dongguan Dingxin Intelligent Equipment Co. Ltd.
Share on (1600945869790):
Product Overview
Description
Product Description
Application:
It is used to collect and purify the oil mist of the cutting fluid of the CNC machine tool. The integrated machine body has the advantages of low noise and low vibration.
It is suitable for closed machining cavities such as iron carving machines, machine tools, machining centers etc.
It is suitable for closed machining cavities such as iron carving machines, machine tools, machining centers etc.

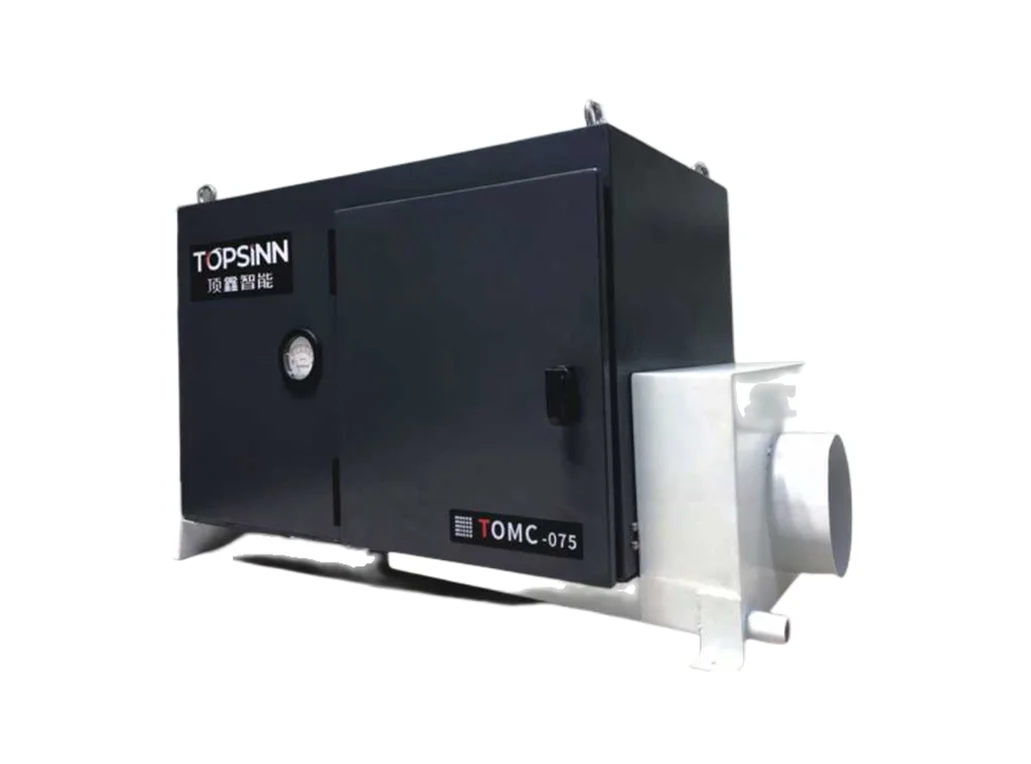

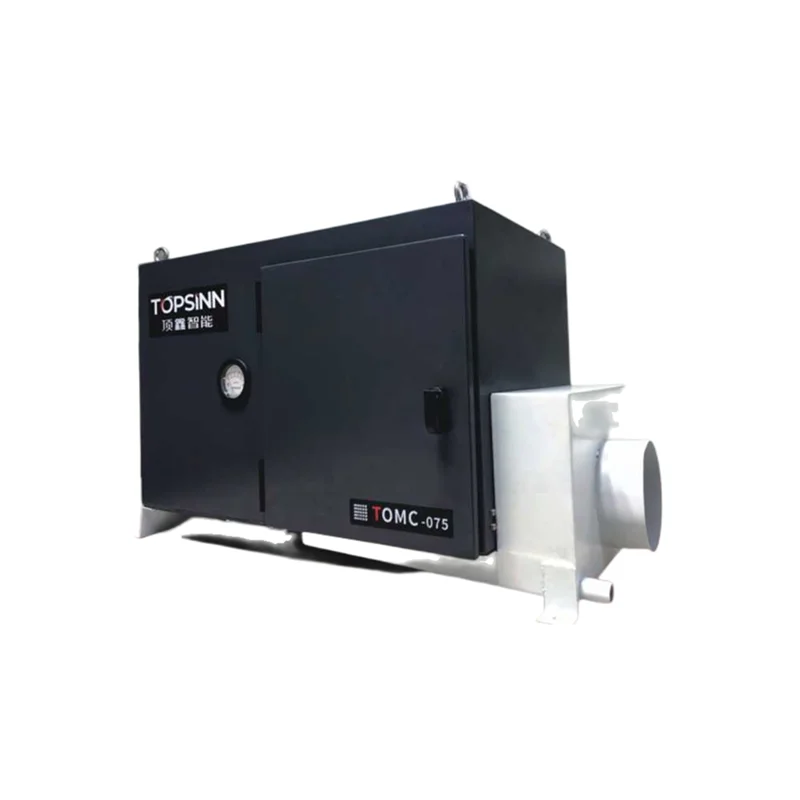

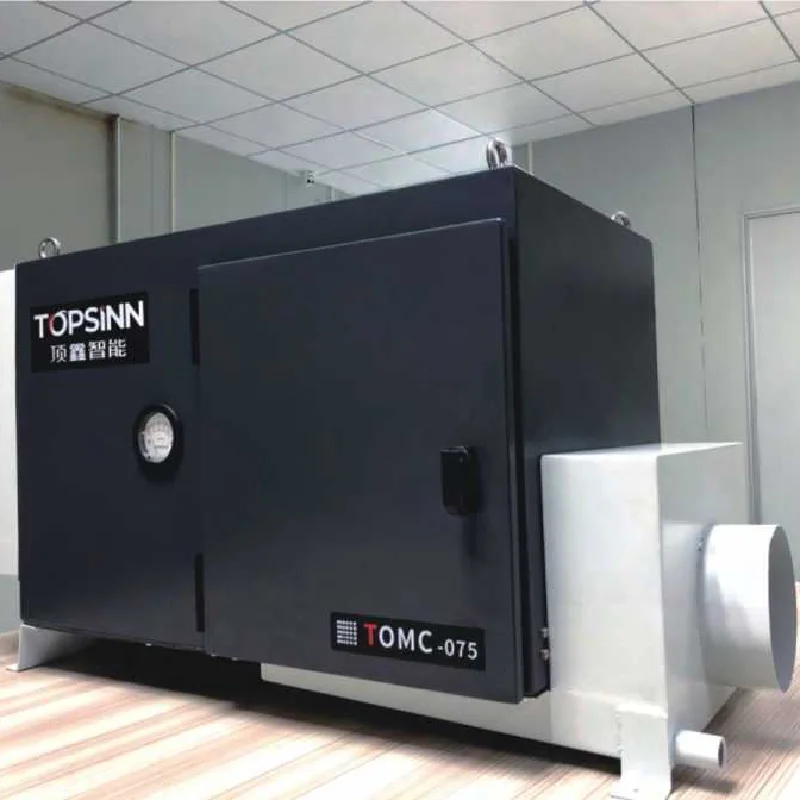

Model | TOMC-037 | TOMC-075 | TOMC-037H | TOMC-075H | ||
Motor Power(kw) | 0.37 | 0.75 | 0.37 | 0.75 | ||
Filtration Efficiency | ≥96% | ≥99% | ||||
Max.Negative Pressure(pa) | 870 | 1600 | 870 | 1600 | ||
Air Inlet Dia.(mm) | 100 | 150 | 100 | 150 | ||
Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | ||
Noise | ≤64dB | ≤74dB | ≤64dB | ≤74dB | ||
Application | 650,850 | more than 850 | 650,850 | more than 850 | ||
Filter Mode | Initial effect plate frame + medium effect filter cartridge | Initial effect plate frame + medium effect filter cartridge + high efficiency box filter element | ||||
Features:
(1)High efficiency custom motor and wind turbine, good dynamic balance and low vibration;
(2)Multi-stage filtration system, good filtering accuracy, convenient and quick replacement;
(3)Pointer differential pressure gauge with sensitive response;
(4)Small size, can be placed on top of the machine tool;
(5)The noise is lower than 75dB;
(6)Separated design of fan filter.
Optional:
Installation of HEPA high efficiency filter.
(2)Multi-stage filtration system, good filtering accuracy, convenient and quick replacement;
(3)Pointer differential pressure gauge with sensitive response;
(4)Small size, can be placed on top of the machine tool;
(5)The noise is lower than 75dB;
(6)Separated design of fan filter.
Optional:
Installation of HEPA high efficiency filter.
WHY?
A.Oil mist can damage electrical switch gear and circuits;
B.Oil mist can lead to potential fire hazards in the coating of ventilation ducts;
C.Environmental laws and regulations and workers' health are getting more and more attention.
B.Oil mist can lead to potential fire hazards in the coating of ventilation ducts;
C.Environmental laws and regulations and workers' health are getting more and more attention.
Working Principle
1.Remove the oil mist at the source;
2.the oil mist in the air can be removed by centrifugation;
3.the collected oil is returned to the machine
4.Clean airreturn to the workplace;
5.by adding afilterto improve the purification efficiency of oil mist.
2.the oil mist in the air can be removed by centrifugation;
3.the collected oil is returned to the machine
4.Clean airreturn to the workplace;
5.by adding afilterto improve the purification efficiency of oil mist.
Specification
item | value |
Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Pressure vessel, Gear, Pump |
Condition | New |
Place of Origin | China |
Guangdong | |
Brand Name | Topsinn |
Voltage | 380/50 |
Power | 0.2-0.75KW |
Dimension(L*W*H) | |
Weight | 75kg |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant, Other |
Machinery Test Report | Provided |
Core Components | Motor |
Place of Origin | Guangdong, China |
Weight | 75 kg |
Product name | Centrigual Oil Mist Collector |
Max.Flow | 390M3/h |
Noise | 64dB |
Showroom Location | None |
Video outgoing | Provided |
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

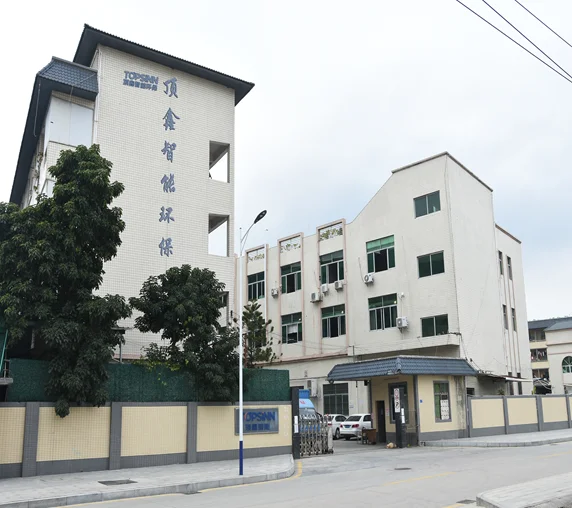

Company Profile

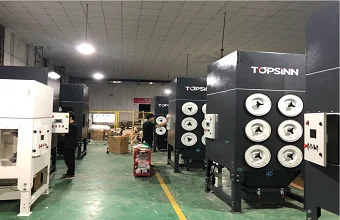

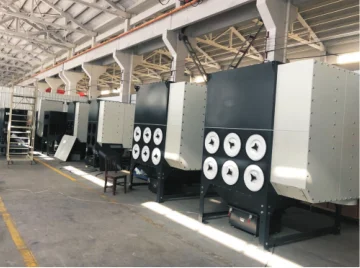

Dongguan TOPSINN Intelligent equipment Co.,Ltd is a high-tech enterprise integrating R&D,production ,sales and service.the headquarter in dongguan city,the pearl river delta economic zone ,the world's manufacturing center .the branch is located in wuxi city,and set up offices in Jinan city and Wuhan city. The workshop covers an area of more than 8,000 square meters, with offices and R & D laboratory more than 1,000 square meters,with more than 60 employees.The core team absorbs more than 20 professional technicians from leading enterprises in the industry.the company has laser cutting machines, CNC cutting, folding, cutting and other sheet metal processing production lines.
TOPSINN is a professional solution provider in the field of
,welding fume purification, grinding and polishing dust collection,metal rust removal ,hand-held welding,CNC oil mist separation,VOCs treatment and effluent treatment.
,welding fume purification, grinding and polishing dust collection,metal rust removal ,hand-held welding,CNC oil mist separation,VOCs treatment and effluent treatment.
Advanced technology,excellent quality and professional service make TOPSINN greatly enhance the market competitiveness and gain wide favour and praise from domestic and aboard customers.
Exhibition
Certifications
If you need any further information, Pls kindly contact us :
TOPSINN-Chesly
Mobile:0086-133 3265 1249 (Wechat/Whatsapp)
Email: Chesly_Topsinn@163.com
TOPSINN-Chesly
Mobile:0086-133 3265 1249 (Wechat/Whatsapp)
Email: Chesly_Topsinn@163.com
