good price 28000L bulk oil tanker semitrailer China manufactured new 2 axles steel gasoline diesel transportation semi trailer
- Category: >>>
- Supplier: Hubei Shengda Automobile Co. Ltd.
Share on (1600945911571):
Product Overview
Description
Products Description

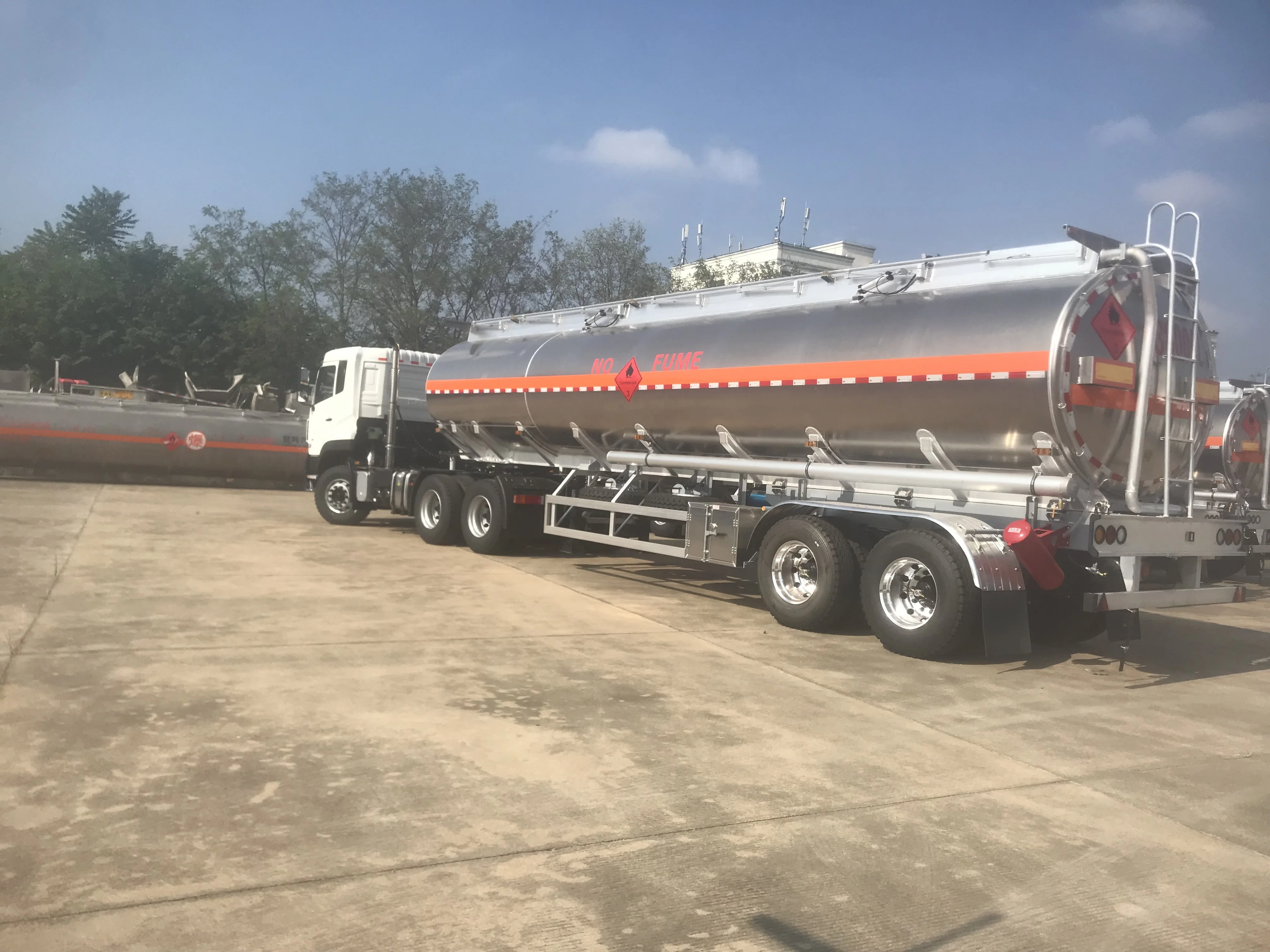

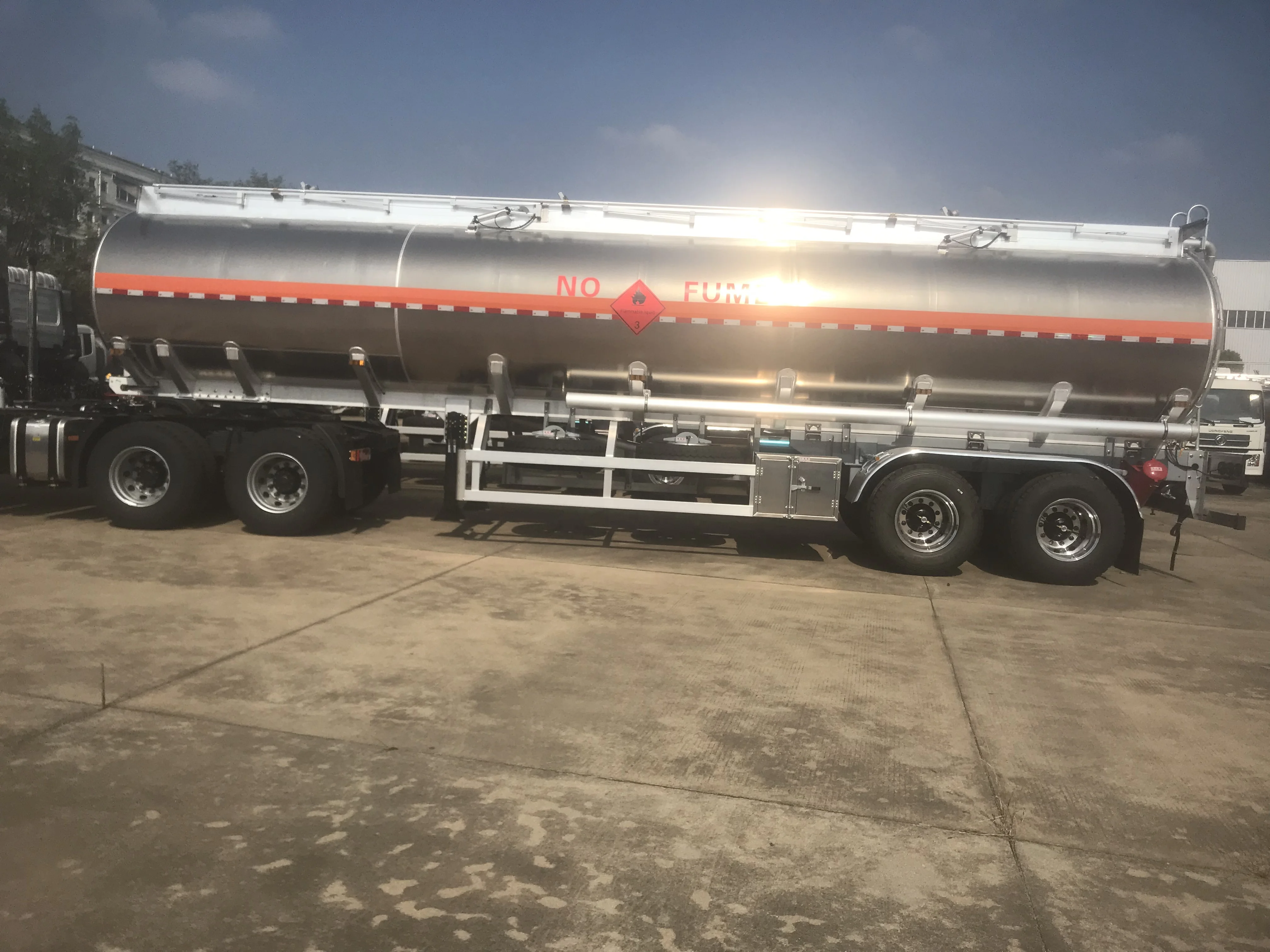

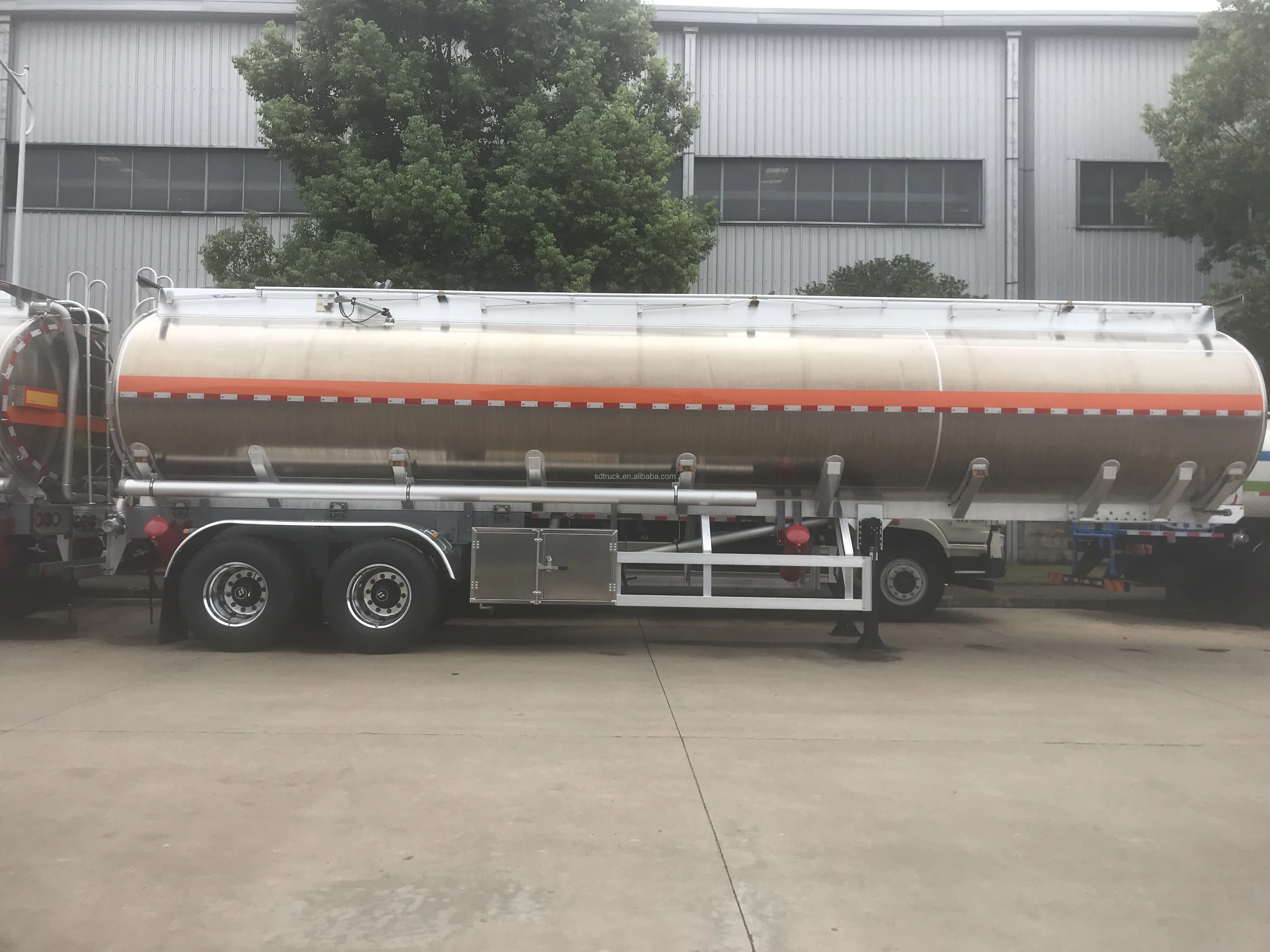

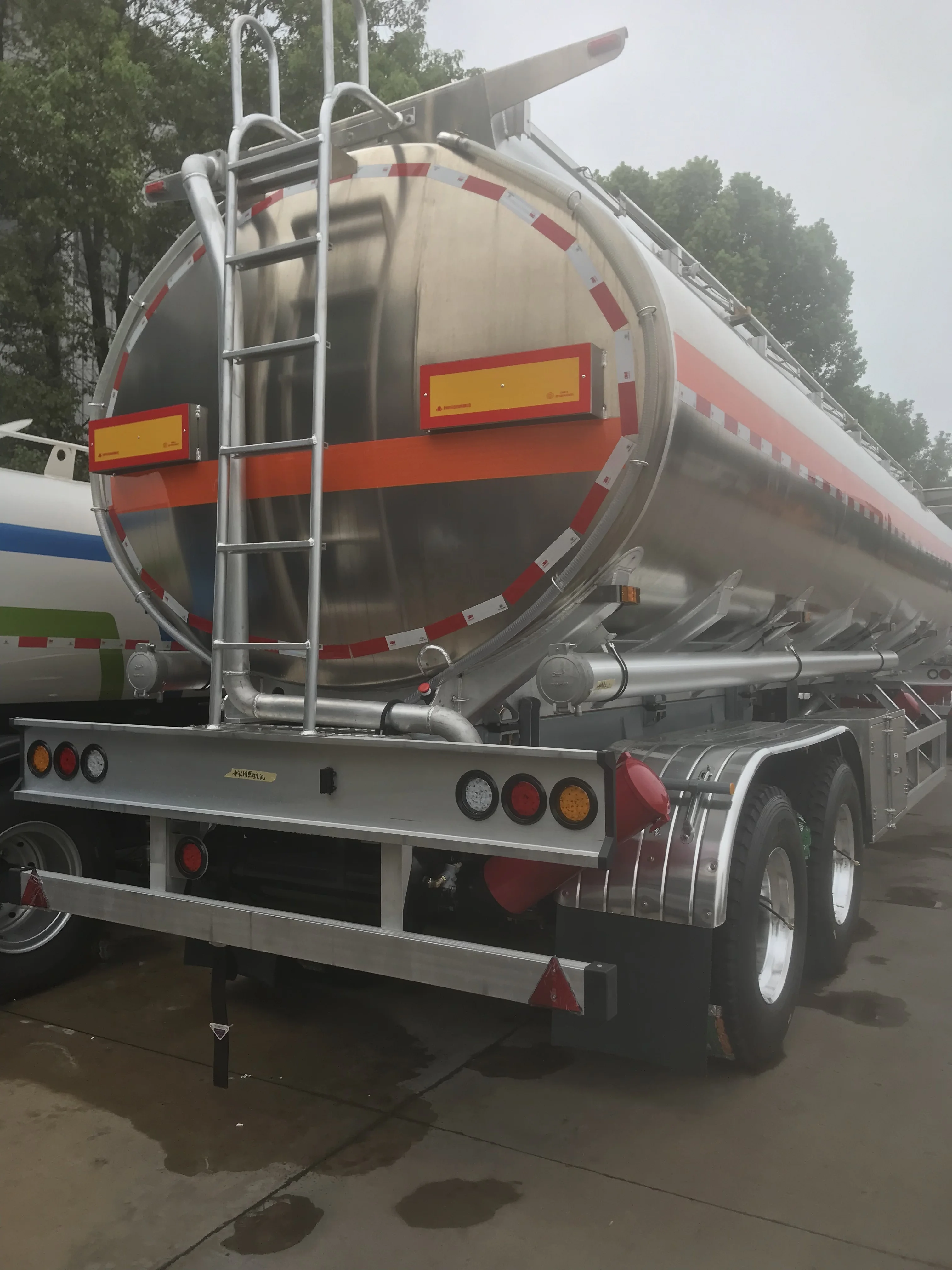

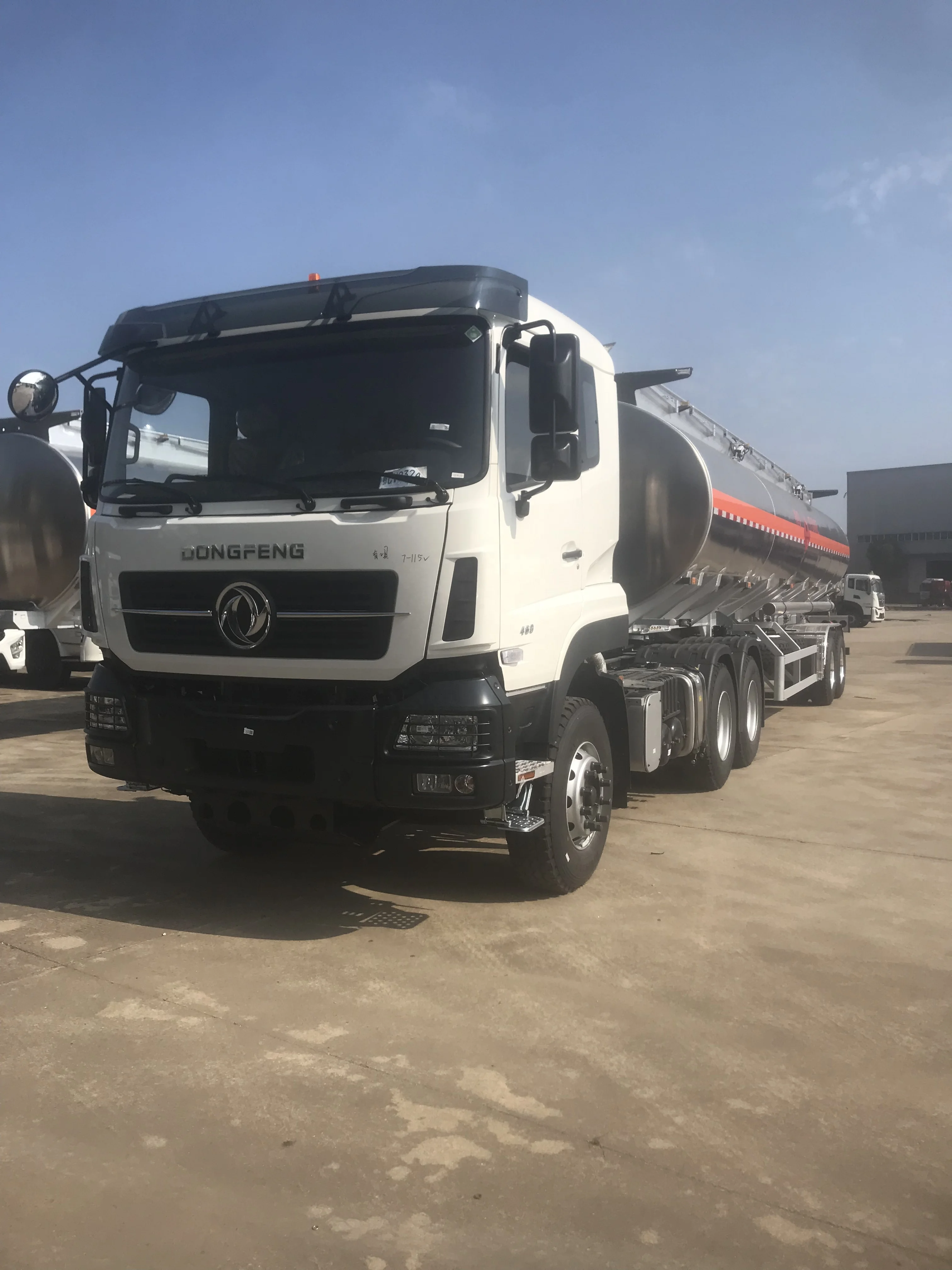

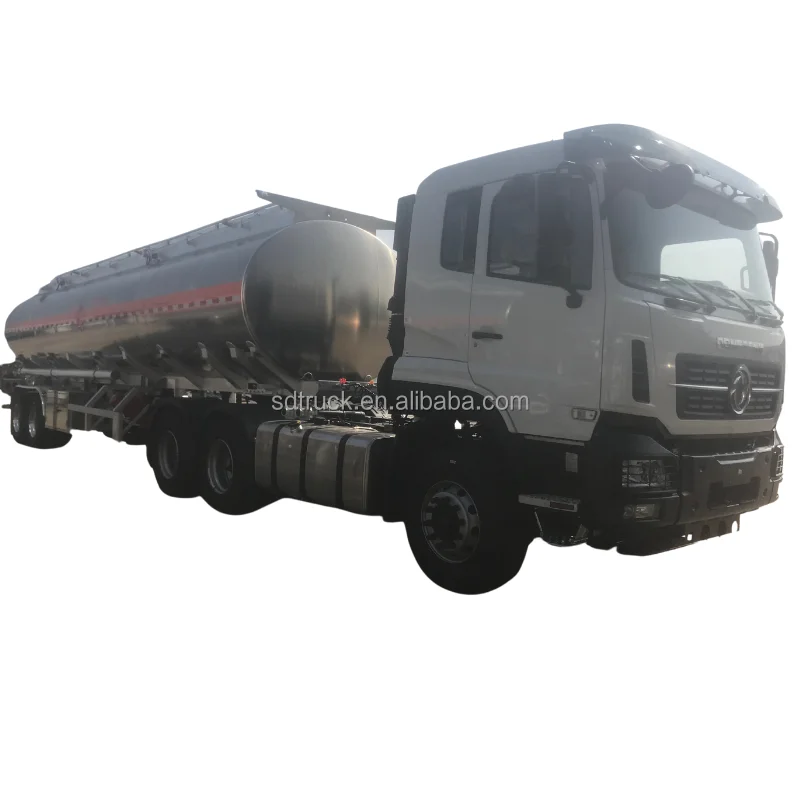

2 axles 28,000Liters double axles steel oil tanker semitrailer for sale
The fuel tanker trailers manufactured by Chusheng Automobile Co., Ltd. are equipped with oil tank, trailer axle, trailer
landing gear leg antistatic device, discharge valve, pipeline system, 2 pcs lockable hose carrier on both sides, spare tire carriers, top acess ladders, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers, ABS, etc. And the capacities of the fuel tanker semitrailers are is from 30000 liters to 60000 liters. We supply tri axle oil tanker trailers and double axle trailers. Also, the tank can be single tank or devided into compartments, the inner of the trailer are mounted with baffles. In loading type, we have manhole loading tanker trailer and bottom loading oil tanker truck.
1> Transport medium: oil, product oil, edible oil, water, alcohol, etc.
2> With multiple baffle plates, the tank has the advantages of high intensity, stability, transporting safety etc.
3> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
4> Computer refueling machine is installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.
landing gear leg antistatic device, discharge valve, pipeline system, 2 pcs lockable hose carrier on both sides, spare tire carriers, top acess ladders, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers, ABS, etc. And the capacities of the fuel tanker semitrailers are is from 30000 liters to 60000 liters. We supply tri axle oil tanker trailers and double axle trailers. Also, the tank can be single tank or devided into compartments, the inner of the trailer are mounted with baffles. In loading type, we have manhole loading tanker trailer and bottom loading oil tanker truck.
1> Transport medium: oil, product oil, edible oil, water, alcohol, etc.
2> With multiple baffle plates, the tank has the advantages of high intensity, stability, transporting safety etc.
3> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
4> Computer refueling machine is installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.
The oil truck semi trailer is also called oil tank trailer, oil tanker semi trailer, fuel tanker semi trailer, fuel trailer, fuel
tanker trailer, fuel tanker semi trailer,etc.The fuel tank trailer is mainly used to transport oil, fuel, gasoline, diesel, etc.
Fuel tanker equipped with oil tank, trailer axle, trailer landing leg, antistatic device, discharge valve, pipeline system, 2 pcs lockable discharging hoses carrier on both side, spare tire carrier, top access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers, ABS, etc.
tanker trailer, fuel tanker semi trailer,etc.The fuel tank trailer is mainly used to transport oil, fuel, gasoline, diesel, etc.
Fuel tanker equipped with oil tank, trailer axle, trailer landing leg, antistatic device, discharge valve, pipeline system, 2 pcs lockable discharging hoses carrier on both side, spare tire carrier, top access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers, ABS, etc.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat/Mob.: 0086 13329899995.
Product Paramenters
CSC9350GYY | ||||||
Design Specification | ||||||
Loading medium | Gasoline/diesel | |||||
Overall dimension(L*W*H)(mm) | 8750×2500×3650 | |||||
Total mass(kg) | 35000 | |||||
Curb mass(kg) | 8400 | |||||
Rated loading capacity (kg) | 26660 | |||||
Tanker | ||||||
Rear tanker volume | 28cbm（28cbm with water） with 5 compartments | |||||
Tanker section | Quasi ellipse | |||||
Tanker wall | carbon steel | |||||
End-heads | carbon steel | |||||
Anti-wave sheet | carbon steel | |||||
pipeline and accessories | ||||||
manholes & NO. | Euro standard aluminum alloy explosion-proof manholes*5(5 compartments | |||||
Bottom loading system | Bottom loading outlet*5 sets | |||||
oil and gas recovery | oil and gas recovery | |||||
Anti-overflow | With Anti-overflowing system | |||||
Safety bottom valve | Aluminum alloy material 4 inch Safety bottom valve*5 | |||||
Discharging valves | Middle and right side | |||||
Accessories | ||||||
Top-mounted rail fence | sectional Elevating fence, tanker top with anti-slip net | |||||
Storage box for hose | Stainless steel material hose storage box*left and right side | |||||
Discharging hose | Yes, 5 sets | |||||
Ladder | Ladder inside the tanker+ exterior part with ladder Tanker | |||||
Tool box | Aluminum alloy tool box | |||||
Spare tires frame | 1 | |||||
mud guard | Yes | |||||
Side Guardrail | Yes | |||||
Rear Bumper | Yes | |||||
Fire protection device | 8kg extinguishers*2 set | |||||
Antistatic device | Yes | |||||
Undercarriage part | ||||||
Axles | 13tons FUWA drum braking axles | |||||
Suspension | Steel | |||||
Tires | 12.00R20 | |||||
Wheel rim | 9.0 wheel rim*8 | |||||
Lifting leg | 28T Single action | |||||
Tracting pin | 90# /50# | |||||
Outriggers | JUST outriggers*2 | |||||
Details Images
Our Advantages

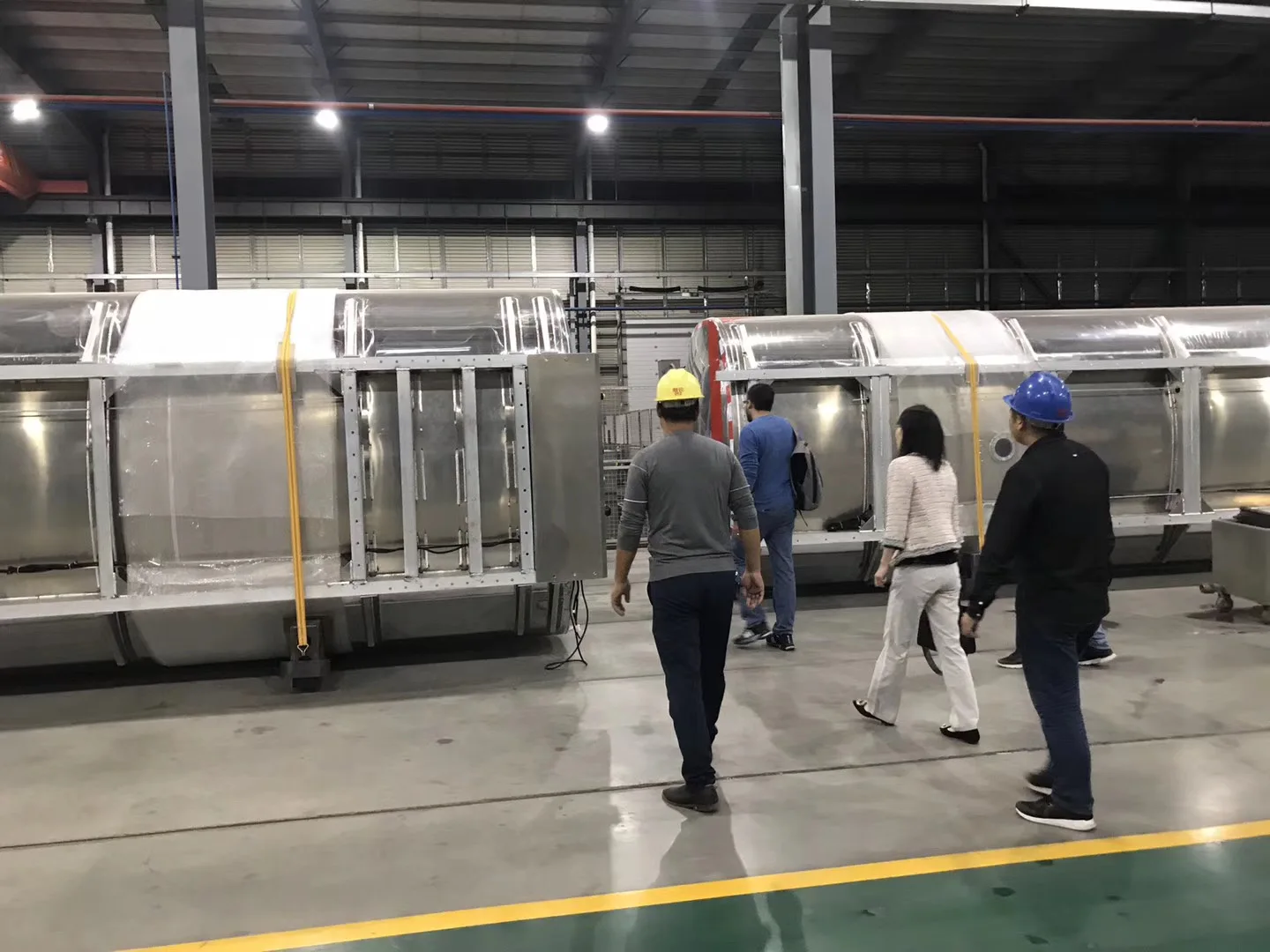

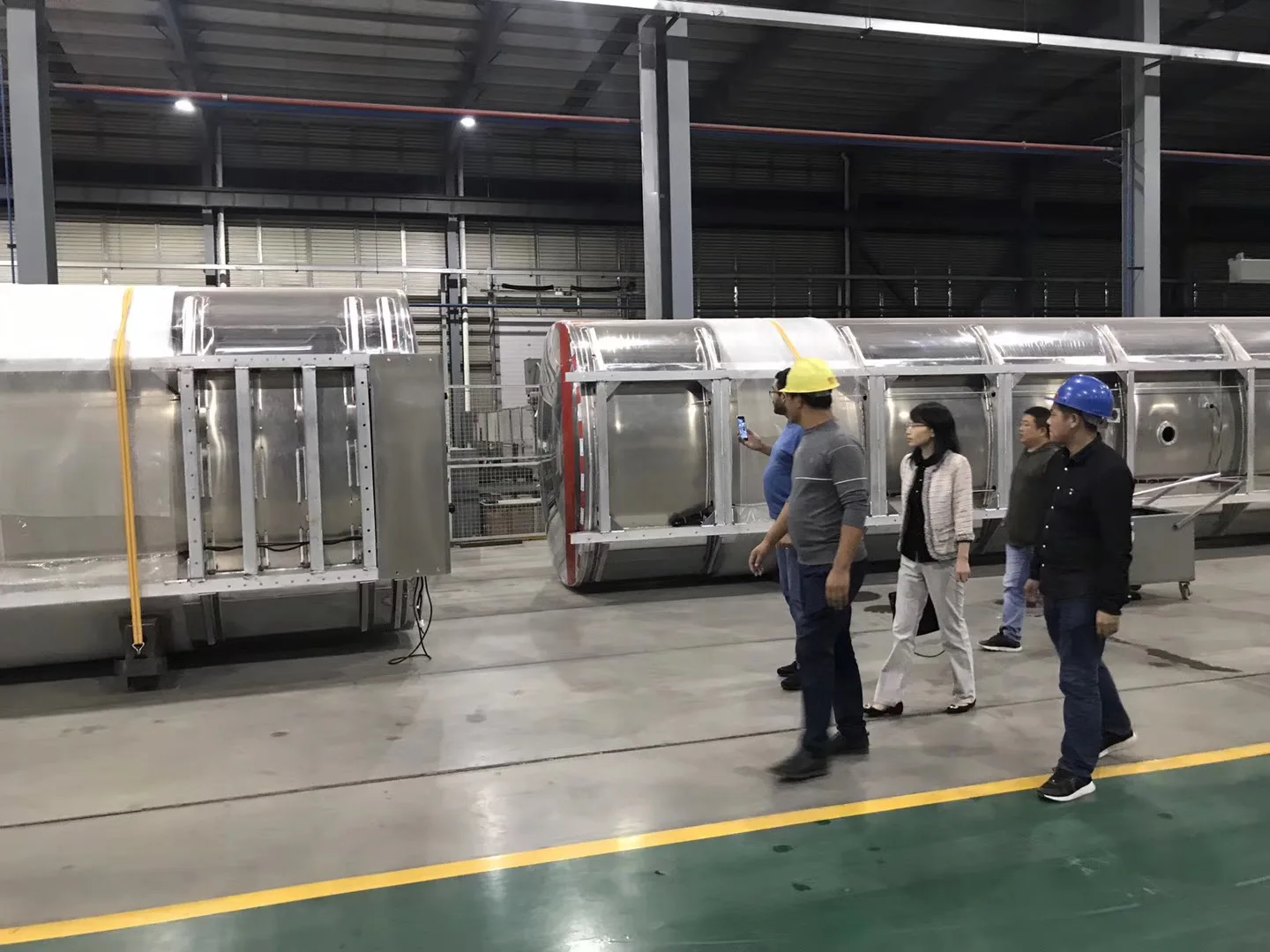

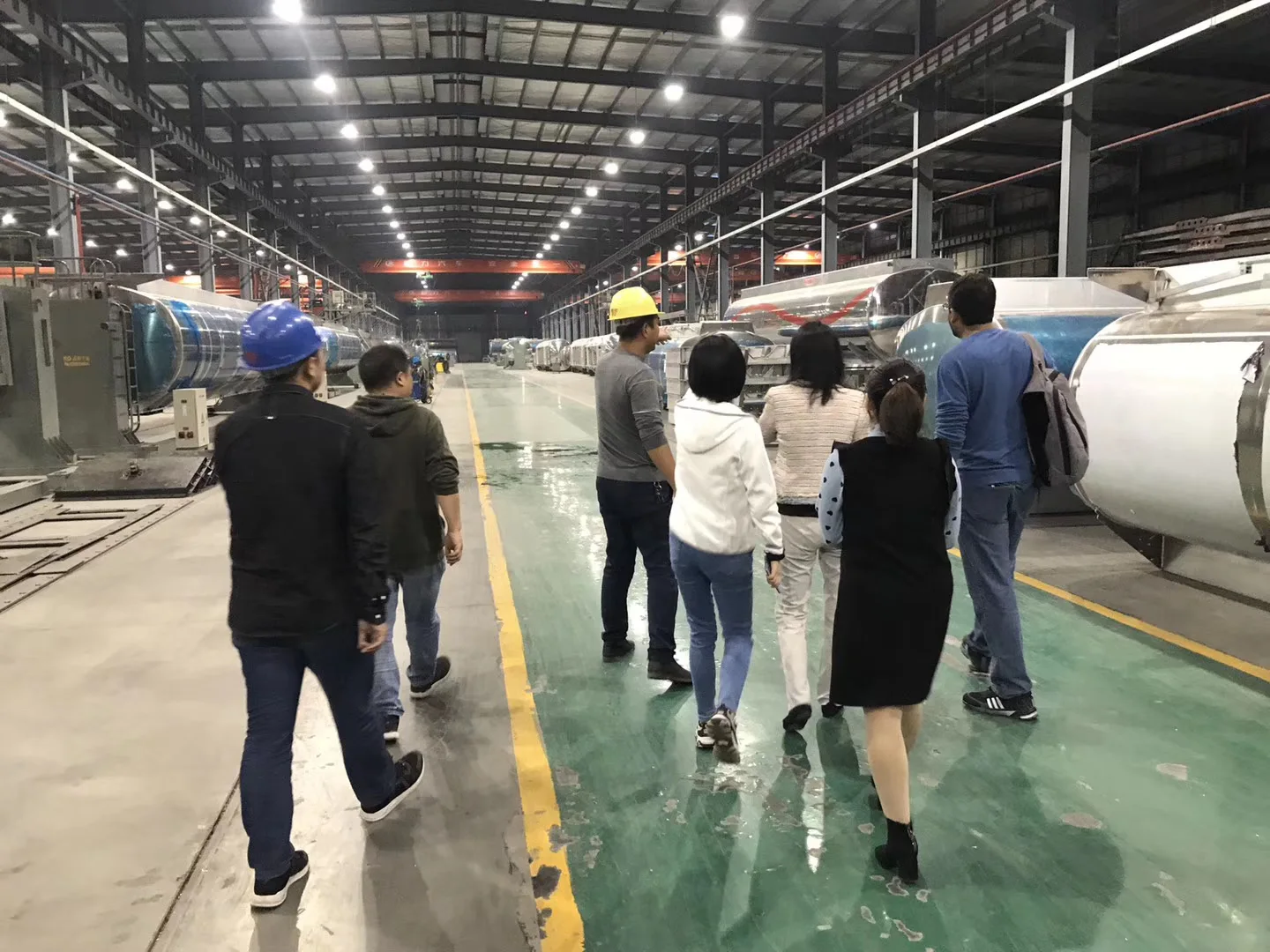

high quality aluminum alloy oil tanker workshop
customized overseas aluminum alloy oil tanker trailer
1. Euro standard tank mouth: also known as manhole cover, installed on the top of the tank. Features built-in breathing and
emergency exhaust. The folding guardrail can be raised or lowered for easy use.
2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve
automatically disconnects the line in an emergency to prevent leaks.
3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.
4. Fuel Dispenser: optional side mounted tanker or built-in tanker.
5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable
performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the
throttle but don't turn off the engine.
6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.
7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.
emergency exhaust. The folding guardrail can be raised or lowered for easy use.
2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve
automatically disconnects the line in an emergency to prevent leaks.
3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.
4. Fuel Dispenser: optional side mounted tanker or built-in tanker.
5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable
performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the
throttle but don't turn off the engine.
6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.
7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.
Customer Photos
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we
keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we
keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
