AMR remote data reading valve control wireless gprs mechanical inline water flow meter
- Category: >>>
- Supplier: Henan Compere Smart Technology Co. Ltd.
Share on (1600945938929):
Product Overview
Description
AMR remote data reading valve control wireless gprs mechanical inline water flow meter
AMR remote data reading valve control wireless gprs mechanical inline water flow meter is used to measure the total volume of water flowing through the water mains, suitable for small industrial water and household water.
Dry structure, meter dial wheel is not affected by water quality.
Dry structure, meter dial wheel is not affected by water quality.
Details Images
Features for AMR remote data reading valve control wireless gprs mechanical inline water flow meter
1. The whole system normally works without any power supply and data is never lost. The power supply is only needed momentarily during meter reading.
2. No initialization setting is required for new and replacement direct reading water meters.
3. In the event of an open circuit or short circuit fault in the signal line, it does not affect the accuracy of the data, and when the line is restored to normal, the collected data remains consistent with the current count value of the water meter.
4. Data acquisition, and in the word wheel into the acquisition absolutely will not produce the phenomenon of misleading code.
5. Not affected by external voltage, power supply, high and low frequency, magnetic field, water pressure and other environmental factors.
6. The sensor is made of rare metals such as palladium/silver/ruthenium, which can ensure the long-term stability and reliability of the sensor.
7. Combined with the upper computer system, a remote automatic meter reading management system can be established to truly realize the automation of meter reading.
8. With its own valve motor, it can remotely control the water meter to open and close the valve.
1. The whole system normally works without any power supply and data is never lost. The power supply is only needed momentarily during meter reading.
2. No initialization setting is required for new and replacement direct reading water meters.
3. In the event of an open circuit or short circuit fault in the signal line, it does not affect the accuracy of the data, and when the line is restored to normal, the collected data remains consistent with the current count value of the water meter.
4. Data acquisition, and in the word wheel into the acquisition absolutely will not produce the phenomenon of misleading code.
5. Not affected by external voltage, power supply, high and low frequency, magnetic field, water pressure and other environmental factors.
6. The sensor is made of rare metals such as palladium/silver/ruthenium, which can ensure the long-term stability and reliability of the sensor.
7. Combined with the upper computer system, a remote automatic meter reading management system can be established to truly realize the automation of meter reading.
8. With its own valve motor, it can remotely control the water meter to open and close the valve.

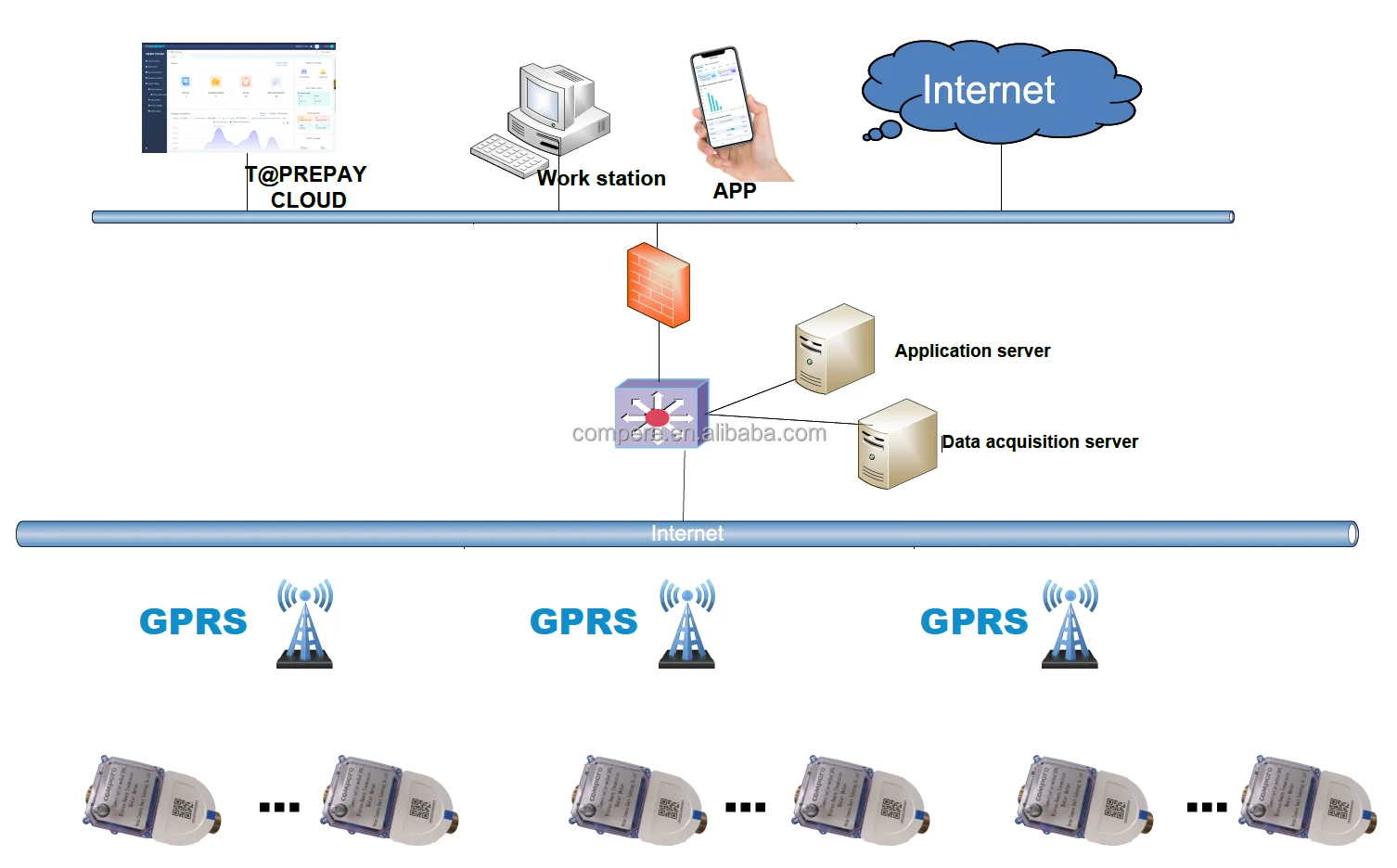

Wireless gprs mechanical inline water flow meter working with T@PREPAY SYSTEM
The gprs water meter can send data to the T@PREPAY prepayment system directly without other communication devices.
Product Paramenters
Model | DN(mm) | Q3/Q1 | Overload flow rate Q4 | Common flow rate Q3 | Demarcation flow rate Q2 | Minimum flow rate Q1 | ||||
（m³/h） | （L/h） | |||||||||
LXSG(R)-15ZF | 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | ||||
LXSG(R)-20ZF | 20 | 5 | 4 | 80 | 50 | |||||
LXSG(R)-25ZF | 25 | 7.87 | 6.3 | 126 | 78.75 | |||||
LXSG(R)-32ZF | 32 | 12.5 | 10 | 200 | 125 | |||||
LXSG(R)-40ZF | 40 | 20 | 16 | 320 | 200 | |||||
Installation size of AMR remote data reading valve control wireless gprs mechanical inline water flow meter
DN/mm | L | W | H | Connected thread | ||||
Horizontal | 15 | 165 | 99 | 115 | R1/2 | G 3/4B | ||
20 | 195 | 99 | 115 | R3/4 | G 1B | |||
25 | 225 | 104 | 120 | R1 | G 1 1/4B | |||
32 | 230 | 104 | 120 | R1 1/4 | G 1 1/2B | |||
40 | 365 | 150 | 200 | R1 1/2 | G2B | |||
