Product Overview

Description

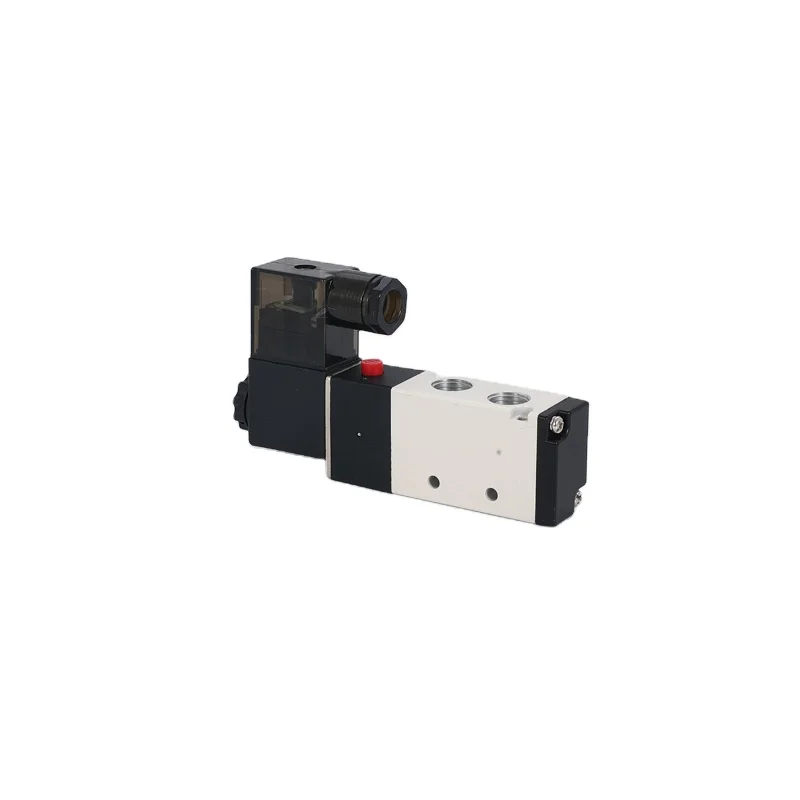

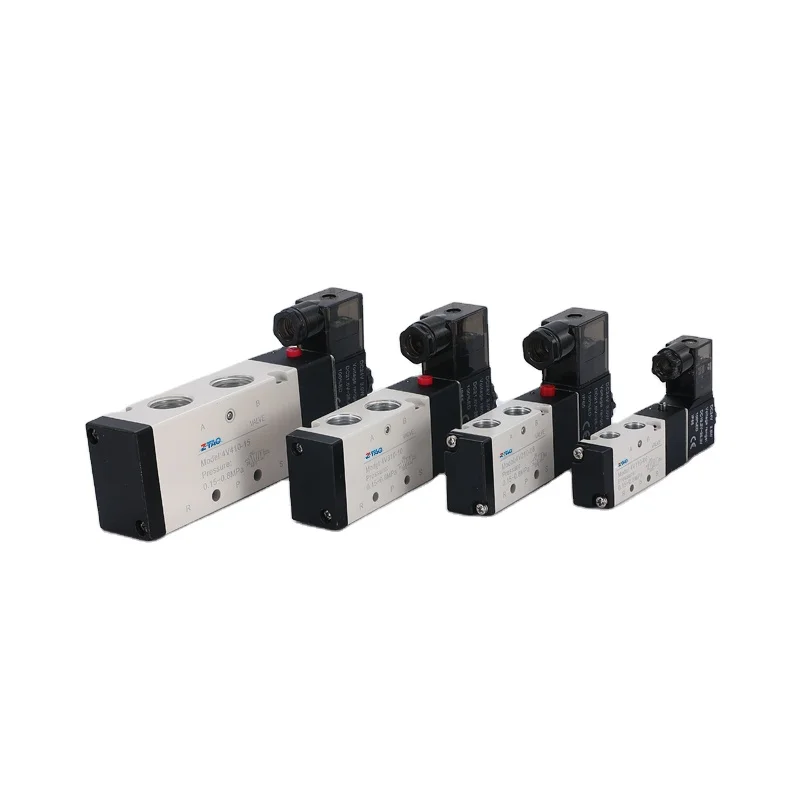

Product Description




Specification


Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Working Medium
Air
Action Mode
Internal Pilot Type
Position
5/2 Port
5/3 Port
5/2 Port
5/3 Port
Effective Sectional Area
14.0mm2
12.0mm2
16.0mm2
16.0mm2
Port Size
Input=Output=Exhaust Port=PT1/8
Input=Output=GT1/4, Exhaust Port=PT1/8
Lubrication
No need
Working Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.2MPa(175psi)
Working Temperature
-20~70℃
Voltage Range
AC:±15%                  DC:±10%
Power Consumption
AC:4.5VA    DC:3.0VA
Insulation Grade
B Level
Protection Class
IP65(DIN40050)
Connecting Type
Plug Type
Max. Operating Frequency
5 Cycle/Sec
3 Cycle/Sec
5 Cycle/Sec
3 Cycle/Sec
Min. Excitation Time
0.05 Sec
Body Material
Aluminum Alloy
Seal Material
NBR


Product Usage














FAQ

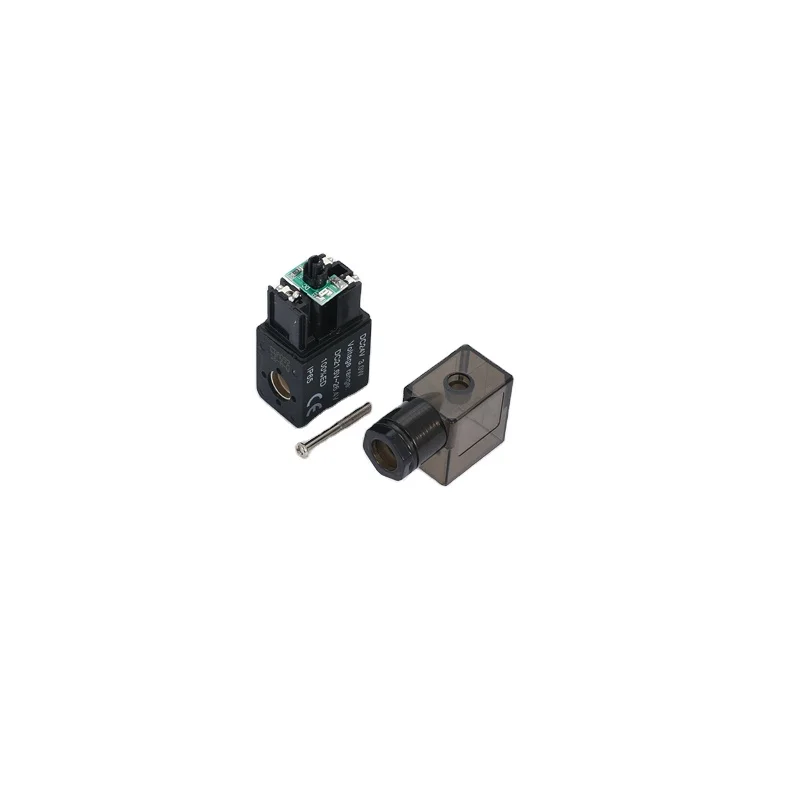

Q: *What is the diameter of the coil hole?
A: * The diameter of the coil hole is 8mm.

Q: Difference between DC24V and AC24V
A: * DC indicates direct current, and AC indicates alternating current.

Q: * The nozzle aperture of 4V210-08?
A: * 2''for entry and exit holes, 1'' for silence holes

Q: * What does a muffler do?
A: * Mufflers reduce noise and dust.

Q: * Can it be powered on for a long time?
A: * Yes, the coil with 100% mark.

Q: * What is the function of the button below the wiring hole?
A: * Manual conversion of air vents.

Q: * Will the coil block the interface?
A: * No, the coil can rotate the direction.

Q: * What is the port aperture of the matching busbar?
A: * Air inlet and outlet and silencer are both 2''.
