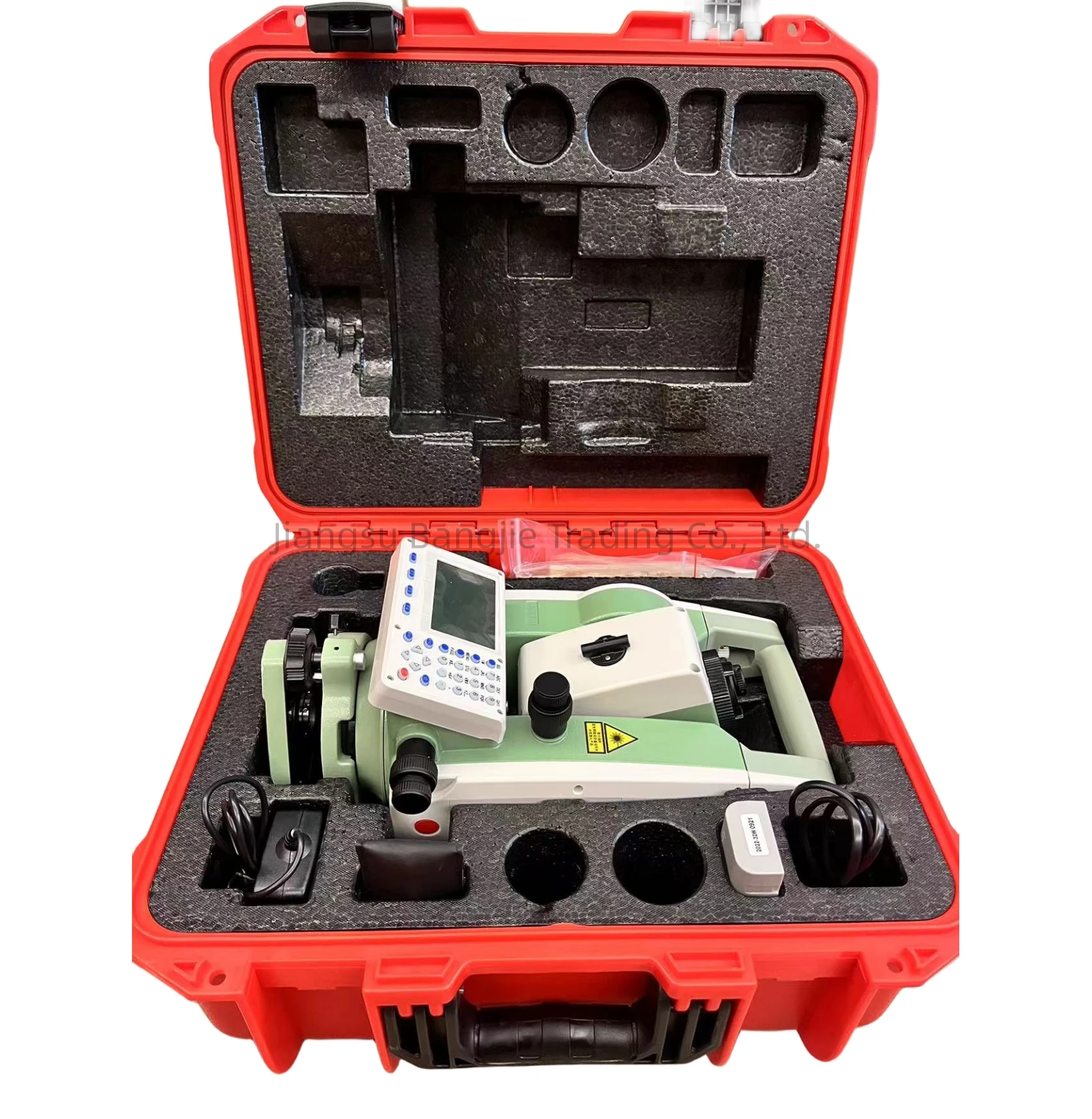

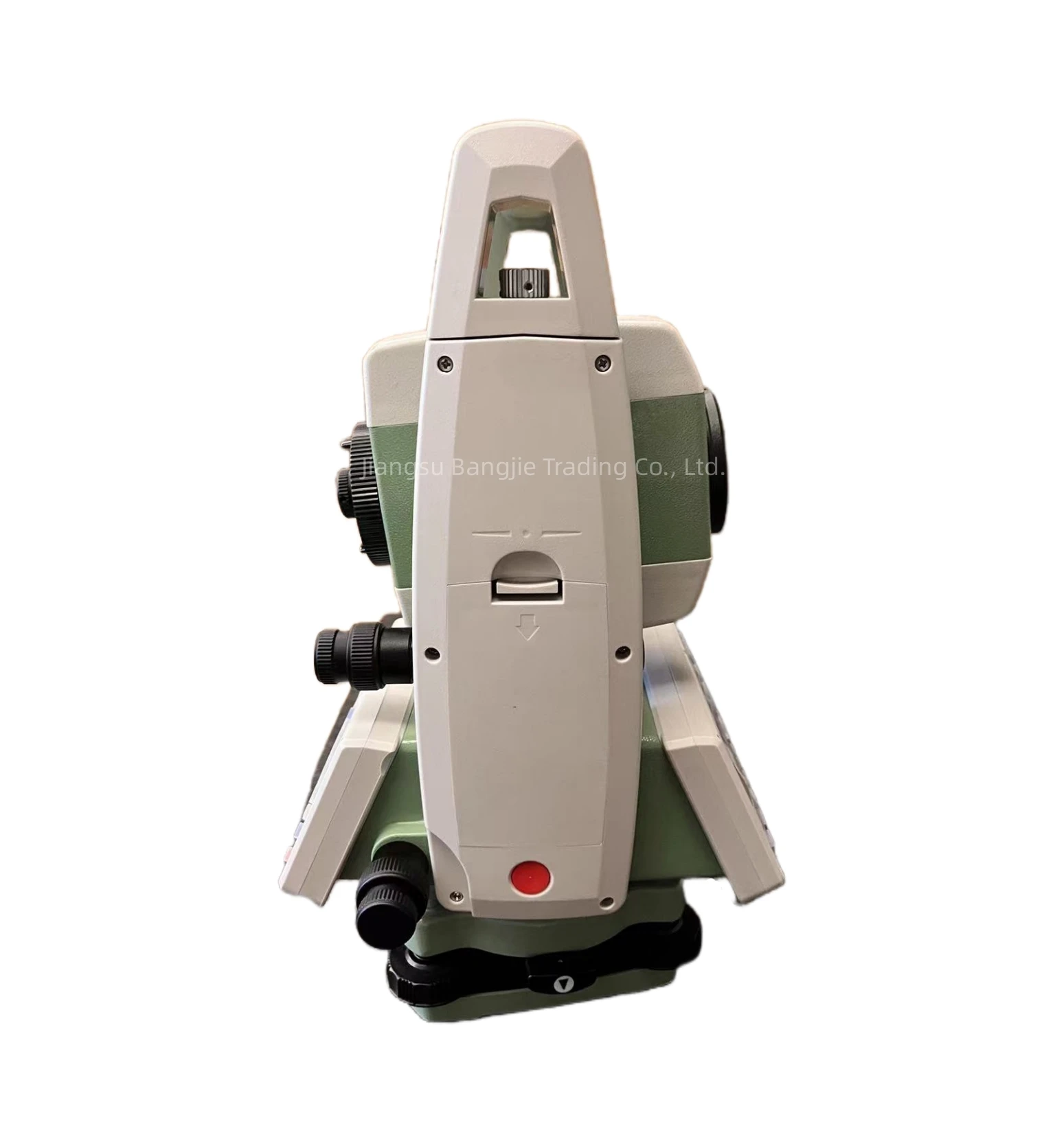

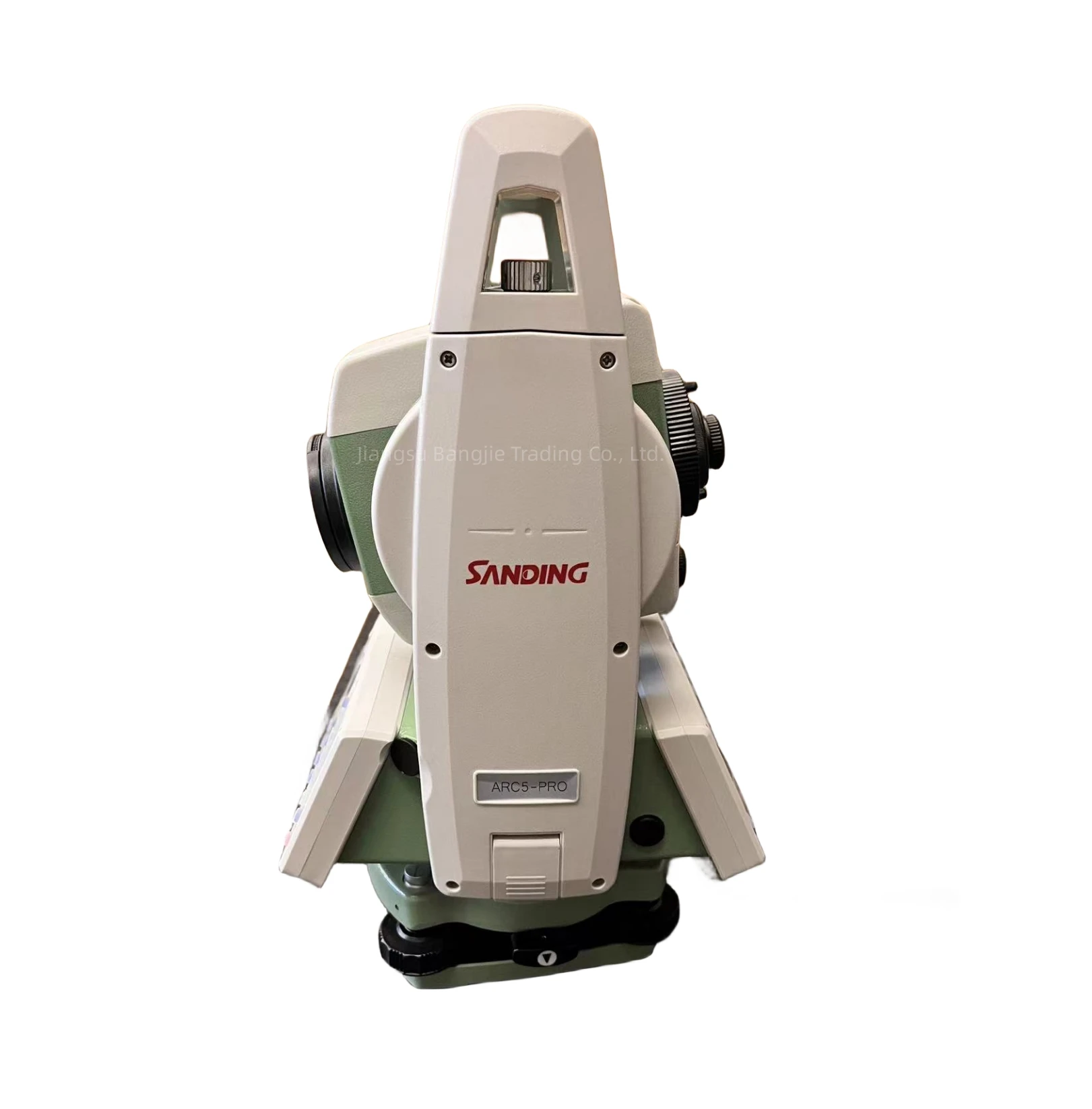

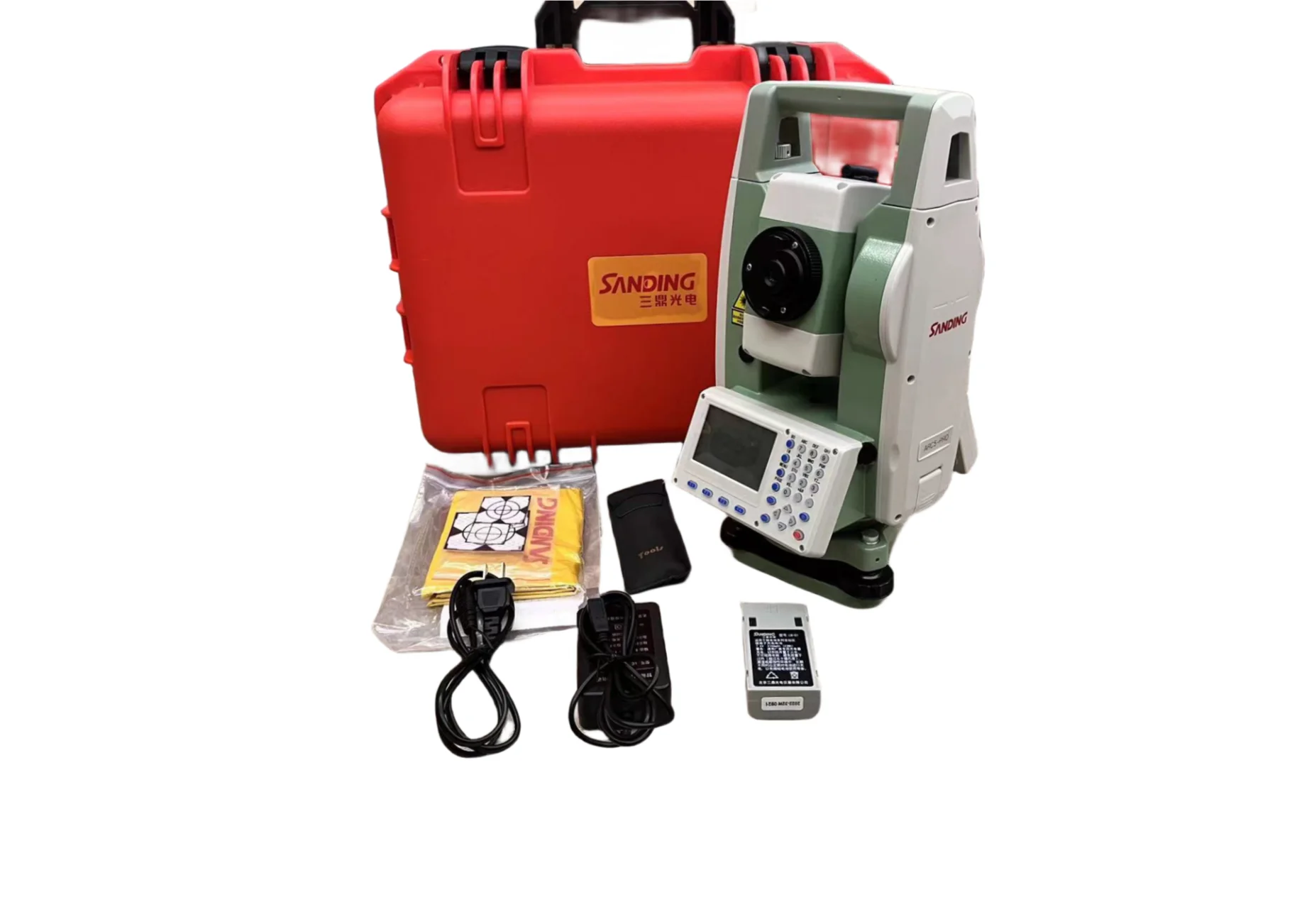

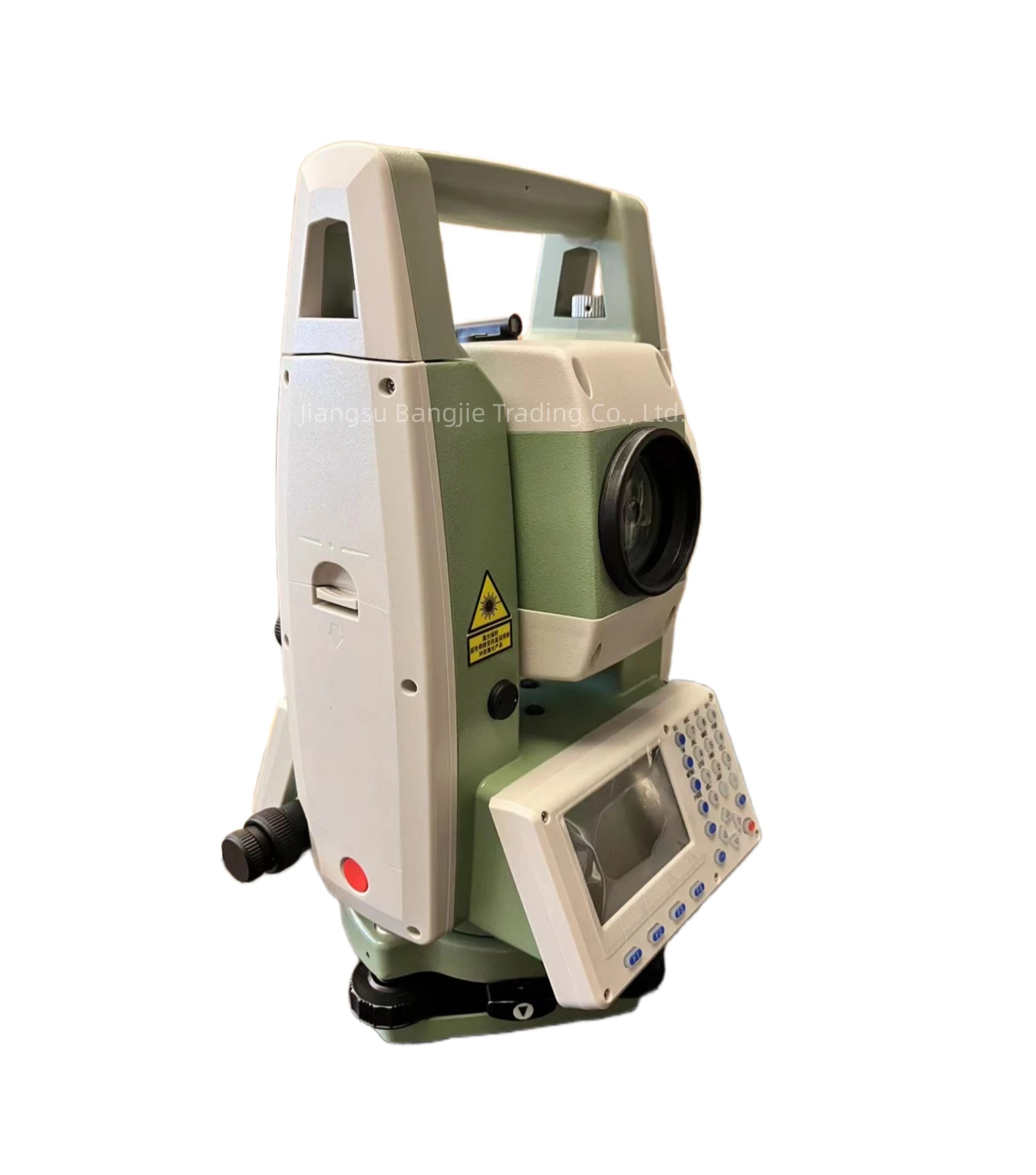

SANDING ARC5 Pro total station 1000m reflectorless EDM with tilt compensator
- Category: >>>
- Supplier: Jiangsu Bangjie Trading Co. Ltd.
Share on (1600945993596):
Product Overview
Description
Product Description
SANDING ARC5 Pro total station 1000m reflectorless EDM with tilt compensator
Production Introduction:
*Trigger key to take measure at any time
*USB flashdrive connection supportable
*Reflectorless range to 1000m
*Dual axis compensator
*Upgraded laser path diagram
*Abundant surveying programs
*Trigger key to take measure at any time
*USB flashdrive connection supportable
*Reflectorless range to 1000m
*Dual axis compensator
*Upgraded laser path diagram
*Abundant surveying programs
DISTANCE MEASUREMENT
100Om reflectorless measuring range covers a most common scale in your field job.With a single prism,you can reach up to 5km quickly with 2mm+2ppm accuracy.
ANGLE MEASUREMENT
Arc 5 Pro adopts an absolute encoding system, which does not require initialization by O set, and delivers a precise and stable angle measurement with up to 2" accuracy.
TILT COMPENSATOR
The dual-axis tilt compensator monitors the inclination of both X and Y axes, and then correct the horizontal and vertical angle reading automatically.
DISPLAY & TRIGGER KEY
A high definition graphic display with 8 lines and 2 sides of alphanumeric keyboards provides clear images and convenient operation, A global key allows you take measure in any screen.
100Om reflectorless measuring range covers a most common scale in your field job.With a single prism,you can reach up to 5km quickly with 2mm+2ppm accuracy.
ANGLE MEASUREMENT
Arc 5 Pro adopts an absolute encoding system, which does not require initialization by O set, and delivers a precise and stable angle measurement with up to 2" accuracy.
TILT COMPENSATOR
The dual-axis tilt compensator monitors the inclination of both X and Y axes, and then correct the horizontal and vertical angle reading automatically.
DISPLAY & TRIGGER KEY
A high definition graphic display with 8 lines and 2 sides of alphanumeric keyboards provides clear images and convenient operation, A global key allows you take measure in any screen.
Specification
TELESCOPE | ||
Tube Length | 154mm | |
Objective Lens Diameter | Telescope: 45mm; EDM: 50mm | |
Magnification | 30X | |
Image | Erect | |
Field of View | 1°30’ | |
Resolving Power | 3” | |
Min. Focus | 1.0m | |
DISTANCE MEASUREMENT | ||
Single Prism | 5000m | |
Non-Prism | 1000m | |
Accuracy -Prism Mode | ±2mm+2ppm | |
Non-Prism Mode | <500m:±2mm+2ppm | |
>500m: ±3mm+2ppm | ||
Measuring time | fine: 1s; tracking: 0.5s | |
Atmospheric Correction | T-P Sensor, Auto Detect and Correct | |
Prism Constant | Manual Input, Auto Correction | |
ANGLE MEASUREMENT | ||
Method | Absolute Encoding | |
Detecting System | H: 2 sides V: 2 sides | |
Min Reading | 0.5”/1”/5”10” selectable | |
Accuracy | 2” | |
Diameter of Circle | 79mm | |
Vertical Angle 0° | Zenith: 0°/Horizontal:0° | |
Unit | 360°/400gon/6400mil | |
DISPLAY | ||
Size | 3.5”; 320*240 Dot Matrix | |
No.of Display | 2 Color Screens | |
Keyboard | Alphanumeric | |
TILT CORRECTION | ||
Tilt Sensor | Dual Axis | |
Method | Liquid Electric | |
Range | ±3′ | |
Setting Unit | 1” | |
LEVEL SENSITIVITY | ||
Plate Level | 30”/2mm | |
circular vial | 10’/2mm | |
OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET) | ||
Image | Erect | |
Magnification | 3X | |
Focusing Range | 0.3m ~ ∞ | |
Field of View | 5° | |
DATA STORAGE INTERFACE | ||
Storage | Internal Memory: 1GB ; Max.SD card:32GB | |
Data Interface | SD-card/Mini USB/RS232C | |
GENERAL | ||
Laser Class *5 -EDM | Class IIIA | |
-Laser Plummet | Class II | |
Working Temperature | -20°C~ + 50°C | |
Battery Type | Rechargeable Lithium Battery | |
Battery Voltage | DC 7.4V | |
Working Time | 8h | |
Water & Dust Proof | IP55 | |
