Magnetic Levitation High Speed Centrifugal blower
High speed magnetic levitation centrifugal blower is one new type blower using magnetic levitation bearing technology and high speed motor technology on the basic of traditional blower. It is in simple blower structure, high efficiency, intelligent, integration, easily operation and maintenance, low operation cost.
It could be widely used in waste water treatment, pneumatic conveying, food, medicine, textile, printing, leather paper, glass production, steel metallurgy, and so on, better performance in energy saving.
Model | Suction Flow(m³/min) | Pressure(Kpa) | Motor Power（kw) |
HMGB55 | 28-19 | 30-50 | 55 |
HMGB75 | 75-35 | 40-115 | 75 |
HMGB90 | 95-40 | 40-115 | 90 |
HMGB132 | 110-55 | 50-115 | 132 |
HMGB150 | 140-70 | 55-115 | 150 |
HMGB200 | 190-100 | 60-115 | 200 |
HMGB300 | 270-140 | 60-115 | 300 |
HMGB350 | 310-160 | 60-115 | 300 |
HMGB400 | 350-140 | 60-115 | 400 |
Key technology
High power high speed permanent magnet synchronous motor
1. Small motor size, light weight and high power density.
2. High motor rotary speed, up to 60,000 rpm.
3. Can achieve stepless speed control
3. Can achieve stepless speed control
1.Maximize impeller efficiency and wide working area
2. High-strength forged aluminum or titanium alloy, which has strong resistance to deformation
3.smaller starting current, wider adjustable range of blower
3.smaller starting current, wider adjustable range of blower
1. NO wear/lubrication for high speed operation.
2. Monitor rotor status and bearing status.
3. Semi-permanent life without maintenance.
Advantages
Comparison Item | Magnetic levitation high-speed centrifugal blower | Gear increasing centrifugal blower |
Bearing type | Magnetic bearing | Lubricant bearings |
Gear booster | No | Have |
Lube oil circulation system | No need | Required, high maintenance costs, and hazardous emissions |
Bearing life | Permanent | Ten years |
Mechanical loss | less than 1% | Power transmission, 10%-12% is proportional to total power |
Motor | Permanent magnet synchronous motor | AC induction motor |
Frequency conversion technology | Use | No |
Starting current | Soft start, no inrush current | Star up high, starting current is 6-10 times of full load working current |
Total system absolute efficiency | 67%-75% | 58%-69% |
Air volume control | Motor speed controlled by inverter | Mechanically driven adjustment of guide vane opening |
Noise | 80-85db | 85-120db |
Maintain | Change the air filter reguarly | Inspection and maintenance of bearings, lubricant circulation systems and cooling systems every three years |
Application field
Company Introduction
Shandong Huadong Blower Co,Ltd
Shandong Huadong Blower Co,Ltd is located at Taiping Industrial Park, Xiuhui town, Zhangqiu City, Shandong Province, China, which is covering 38000 square meters, close to Zhangqiu station of Jiaoji railway in the South and 600 meters away from Jiging highway in the North. We have been an integrated automated machinery enterprises with professional precision machinery manufacturing and excellent aftersales service system.

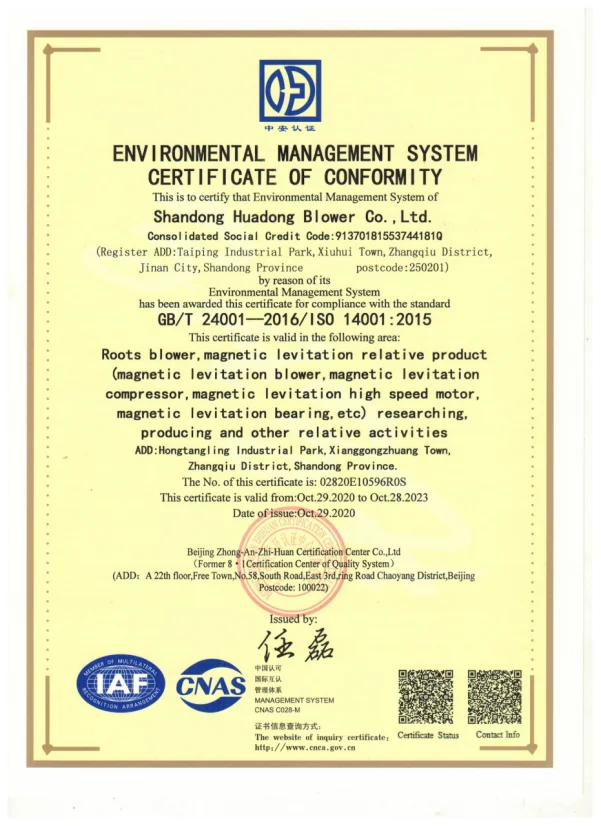

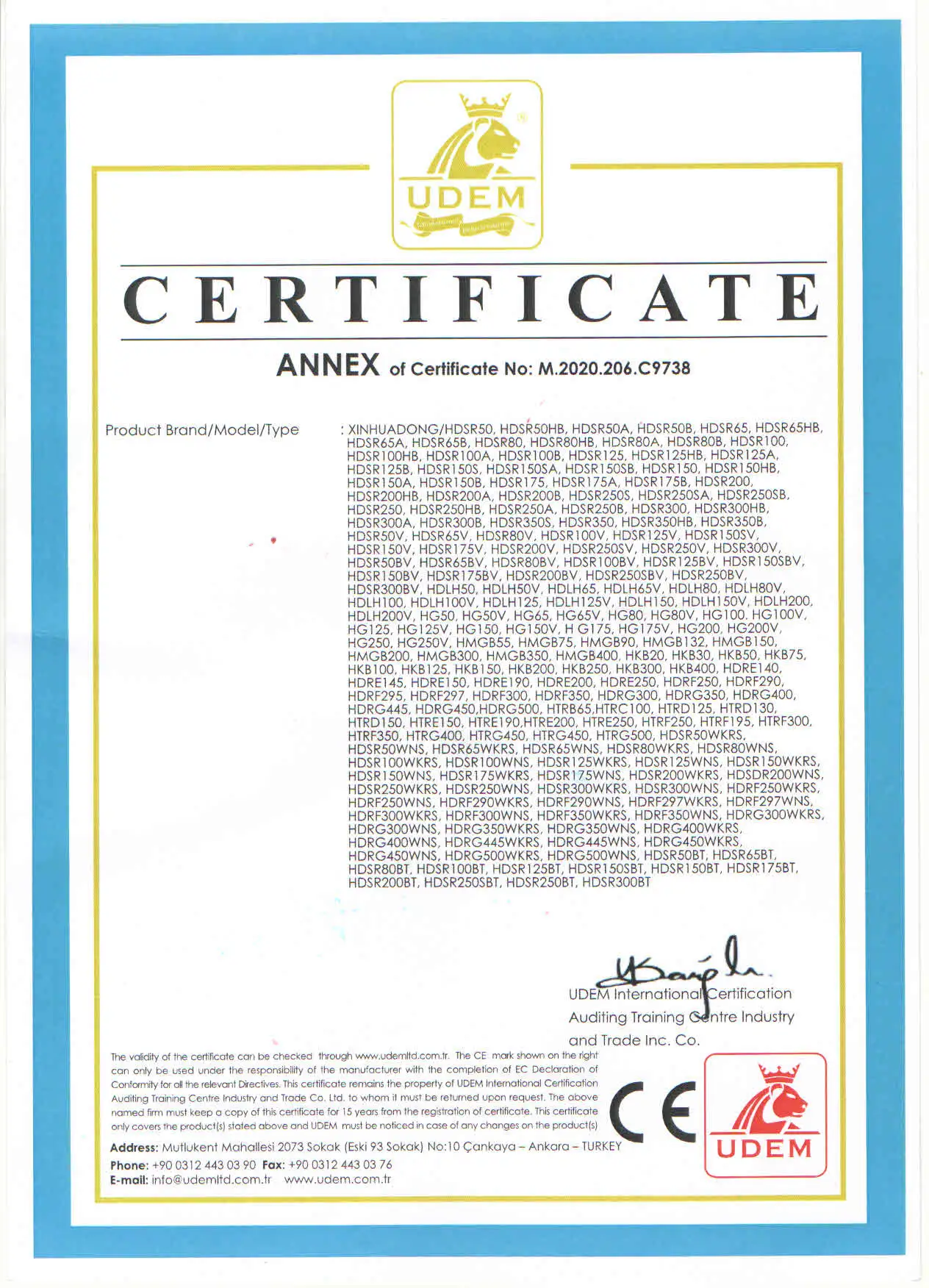

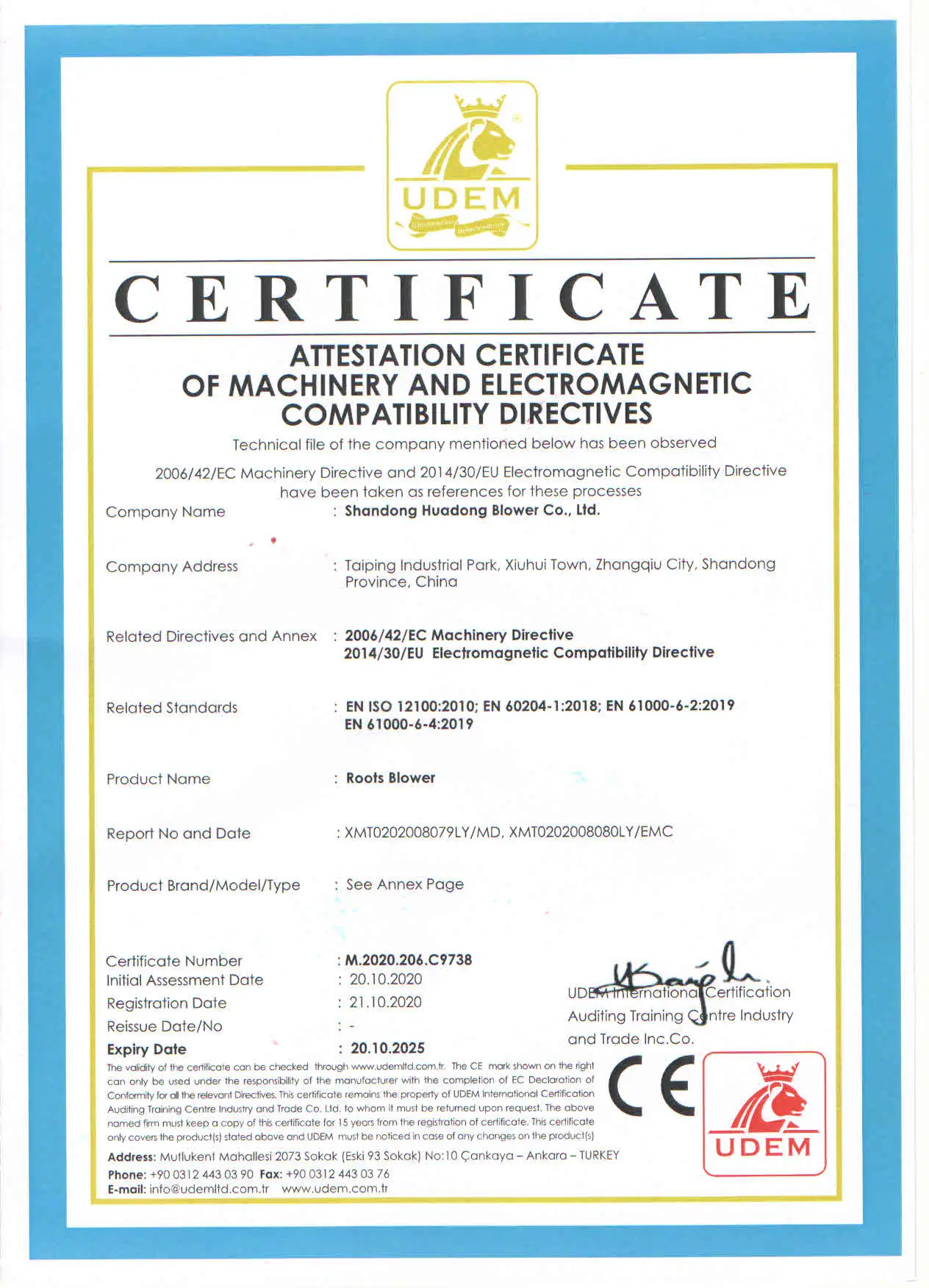

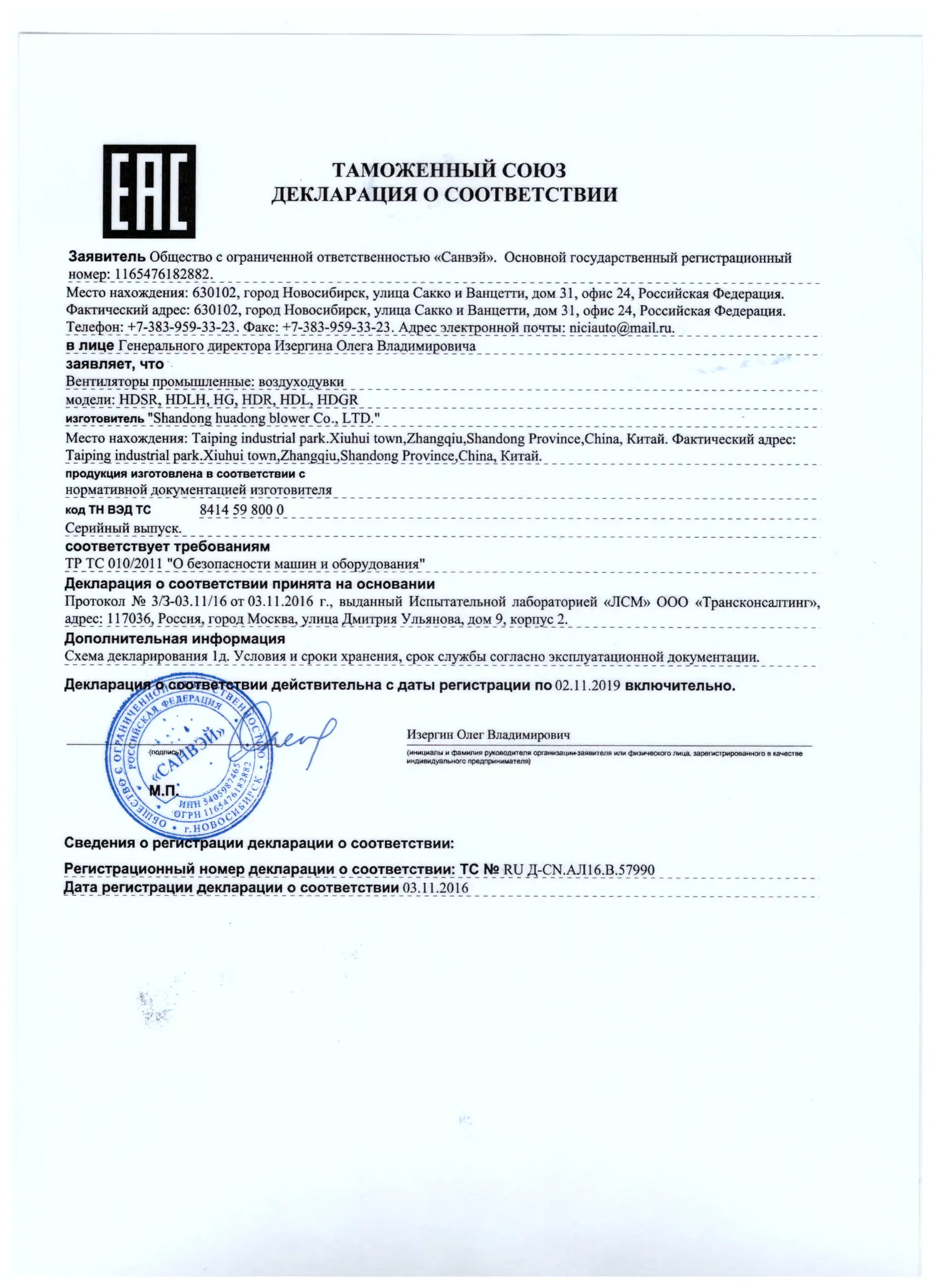

Certifications

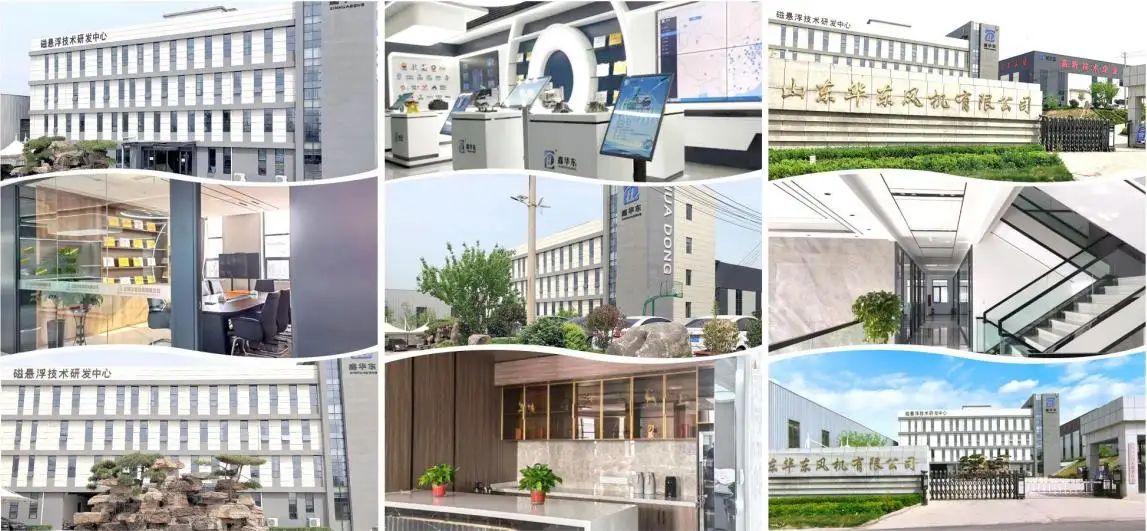

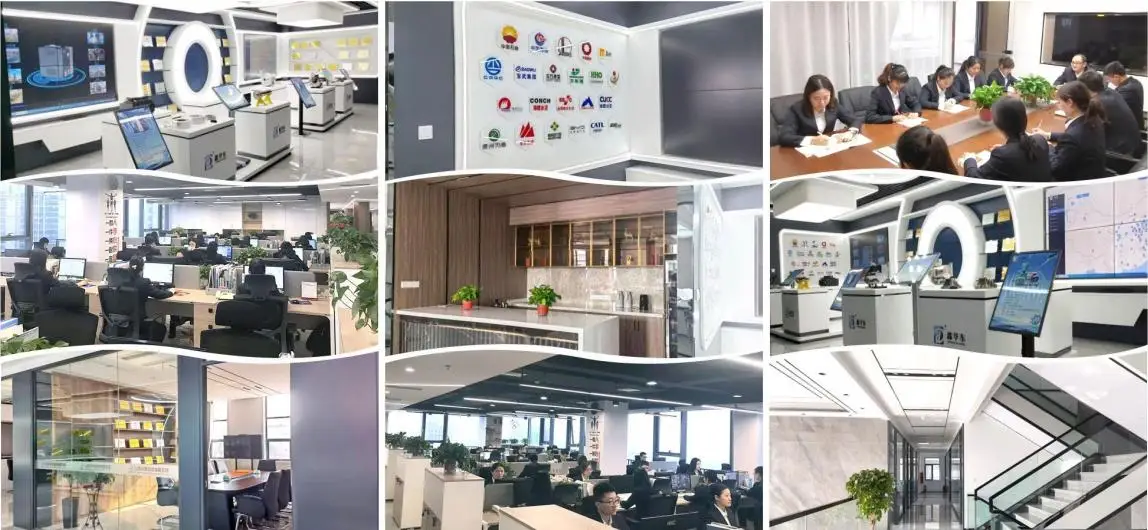

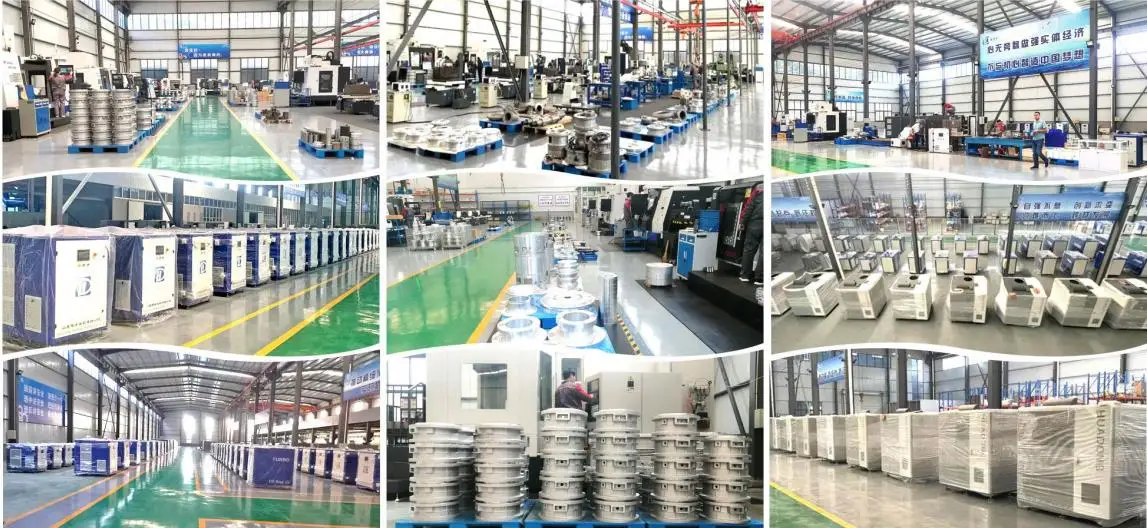

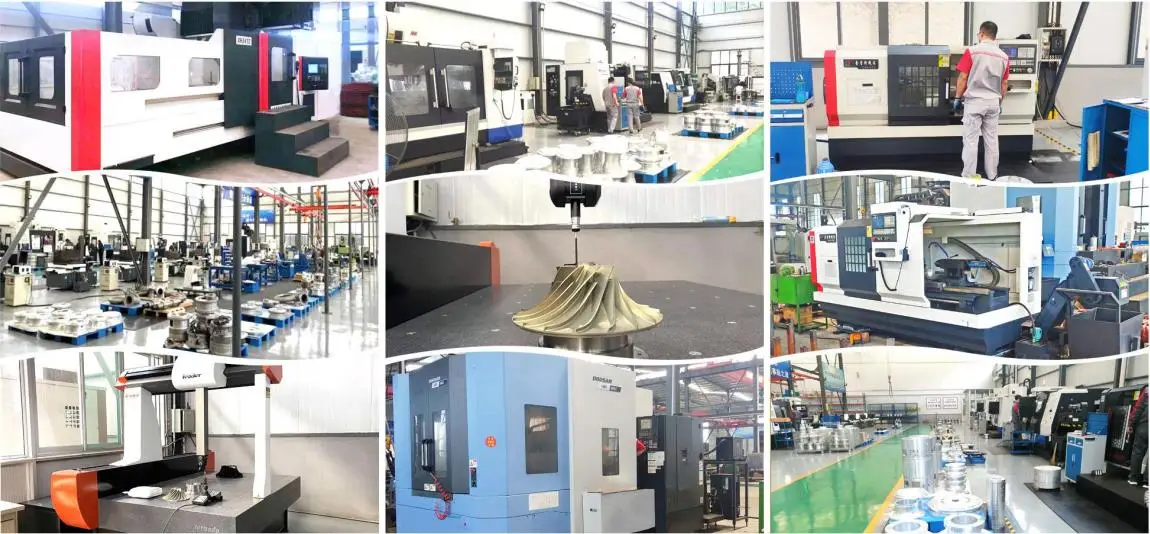

Factory with strength
Customer Supreme, Quality first
29 Years Experience
Recommend Products
Company products include:
HMGB maglev turbo blower,
maglev bearing,
maglev controller
HMGB high speed maglev centrifugal blower,
HMGB maglev turbo vacuum pump,
HKB series air suspension high speed motor,
Air suspension bearing,
Air suspension blower,
MVR steam compressor,
HDL/HDR(RR)two lobe roots blower &vacuum pump.
HDSR/HDLH/HG series three lobe roots blower &vacuum pump,etc.
