1 Ton/h Horizontal Fire Tube Diesel or Natural Gas Fired Italian Burner Steam Boiler With
- Category: >>>
- Supplier: Henan Bolben Boiler Co. Ltd.
Share on (1600945996512):
Product Overview
Description
Company Profile

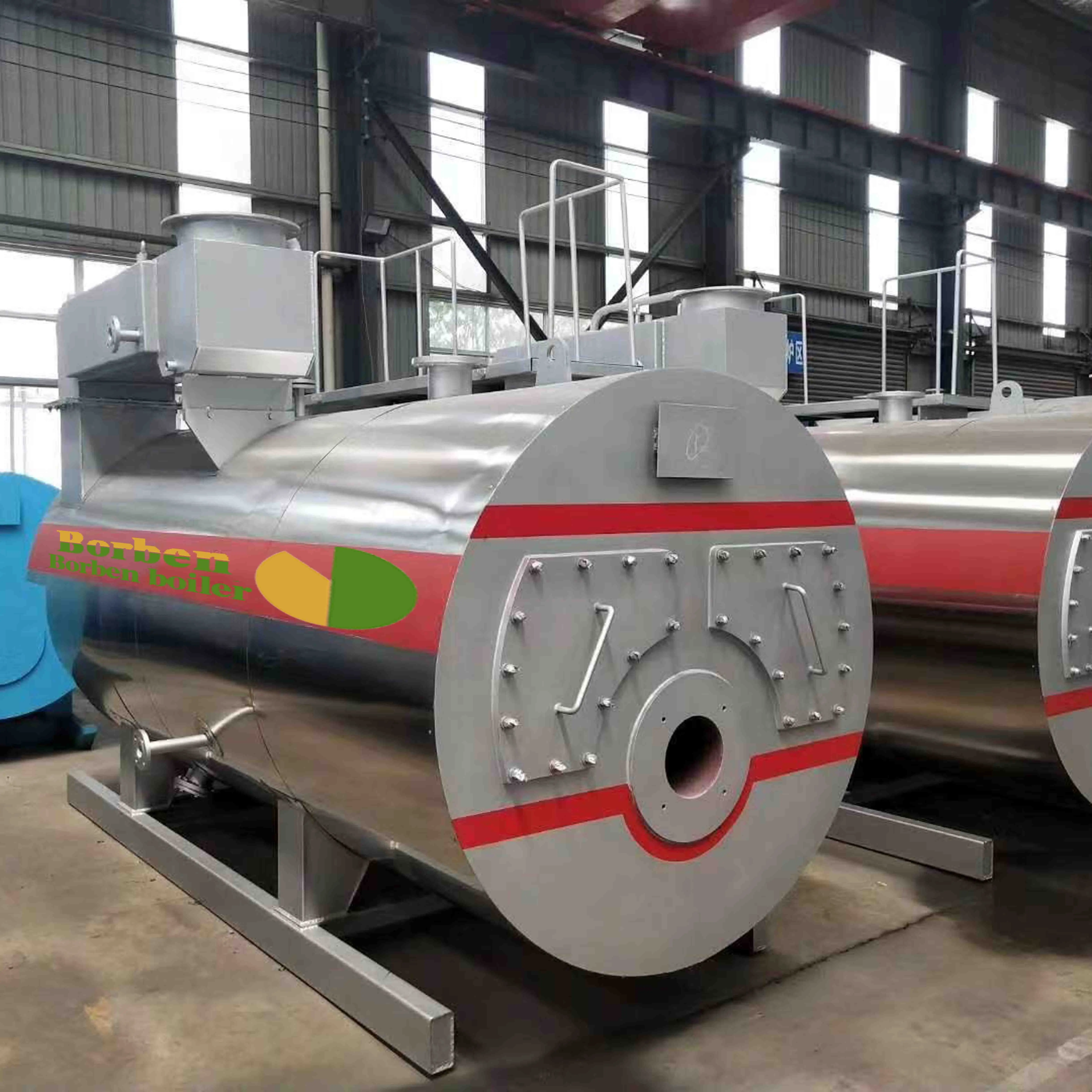

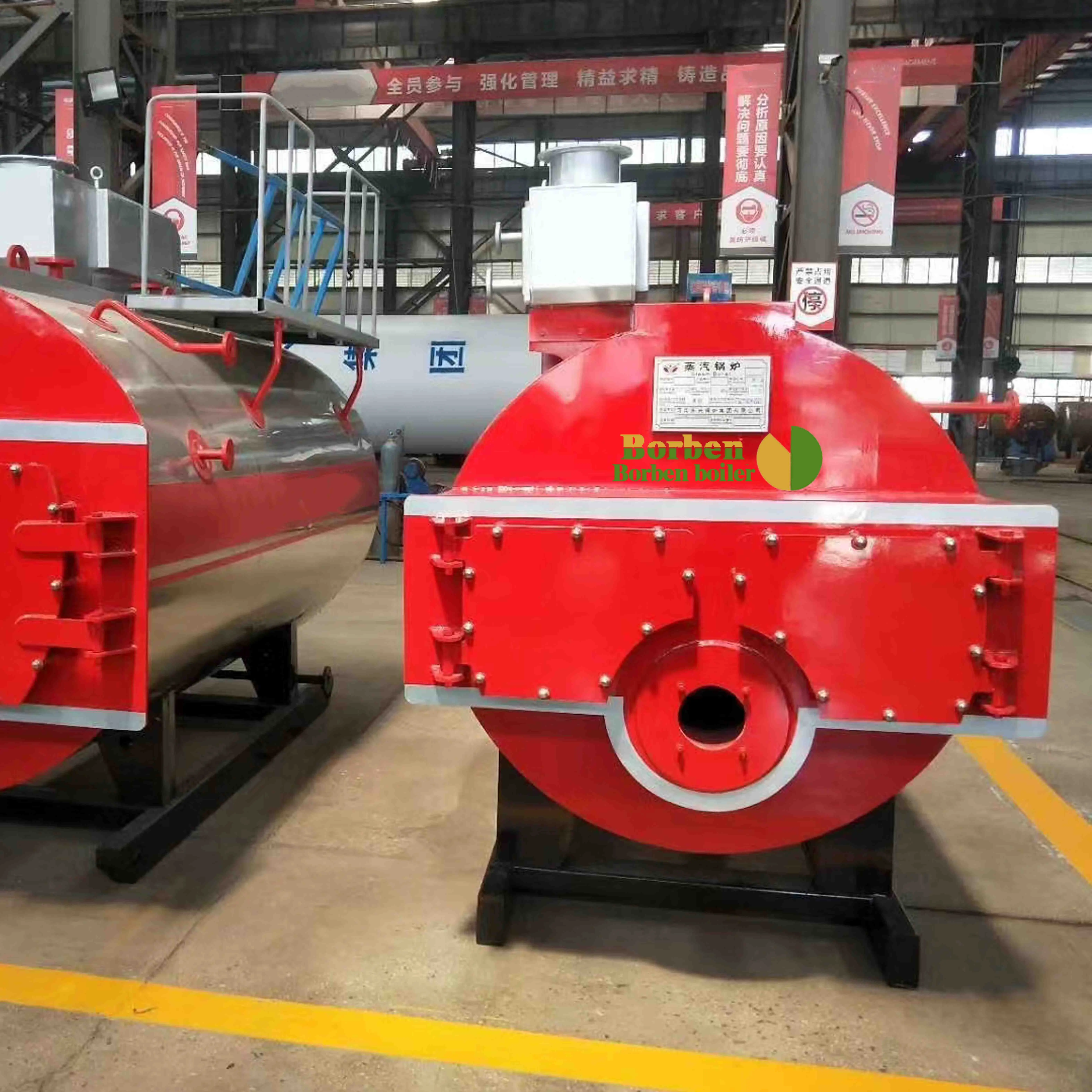

The WNS type ultra-low nitrogen oil-fired gas boiler of Borben is a boiler shell type three return wet back oil-fired gas boiler produced by advanced technology. It is composed of boiler body, connecting flue, deaerator, deaerator, burner, steam water system, instrument, energy saver, condenser and so on. Compared with the old boiler, its most prominent feature is low nitrogen (during the operation of the boiler, nitrogen oxide emissions are greatly reduced, up to a minimum of 18mg/m, in line with national policy requirements). In addition, the boiler has the characteristics of compact structure, beautiful appearance, simple operation, safe and reliable operation, and has been widely used in all walks of life.
WNS type ultra-low nitrogen oil-fired gas boiler adopts all-wet back structure, and the high temperature flue gas is surrounded by water, which solves the cooling and sealing problems of the smoke return chamber, and improves the operating environment of the boiler. The addition of the condenser (made of fin tube) increases the efficiency of the boiler to more than 98% and saves the operating cost. At the same time, the boiler is equipped with leakage protection function, once the control system detects leakage of the electric heating element, the boiler will automatically cut off the power supply, in order to ensure the safety of workers and boilers, and improve the service life of the boiler.
WNS type ultra-low nitrogen oil-fired gas boiler adopts all-wet back structure, and the high temperature flue gas is surrounded by water, which solves the cooling and sealing problems of the smoke return chamber, and improves the operating environment of the boiler. The addition of the condenser (made of fin tube) increases the efficiency of the boiler to more than 98% and saves the operating cost. At the same time, the boiler is equipped with leakage protection function, once the control system detects leakage of the electric heating element, the boiler will automatically cut off the power supply, in order to ensure the safety of workers and boilers, and improve the service life of the boiler.
Borben Group is a large group production of thermal oil carrier and hot water, steam heating boiler equipment enterprises. For more than 30 years, our company has been committed to developing, designing and manufacturing series of oil and gas organic heat carrier furnace/heat exchange oil furnace, electric heating heat exchange oil furnace, oil and gas steam boiler, oil and gas hot water boiler and steam generator, waste heat exchange and other equipment. Sincerely recommend you 0.5-30 tons series gas steam boiler, welcome your consultation!! Steam boiler belongs to special equipment, boiler design, processing, manufacturing, installation and use must accept the supervision of the technical supervision department, the user can only use the steam boiler by obtaining the boiler use certificate. Steam boilers are widely used in hospitals, schools, textile, clothing supermarkets, restaurants, hotels, canteens, restaurants, bathing centers, steam baths, steam rooms, swimming pools, and various factory heating units.
Main features of oil and gas steam boiler:
Main features of oil and gas steam boiler:
1, the overall structure is reasonable, compact, boiler island type, in line with the factory conditions. This product is composed of three parts at the factory; Boiler main engine, chimney and piping system, of which the main engine and chimney parts have been manufactured in the factory, the pipe valves and instruments supporting the main engine have been randomly installed, transported to the site to assemble the main engine and chimney. The air source, power supply and water pipe can be connected on site for test. The installation cycle is greatly shortened, and the product quality can be guaranteed.
2. Advanced design performance.

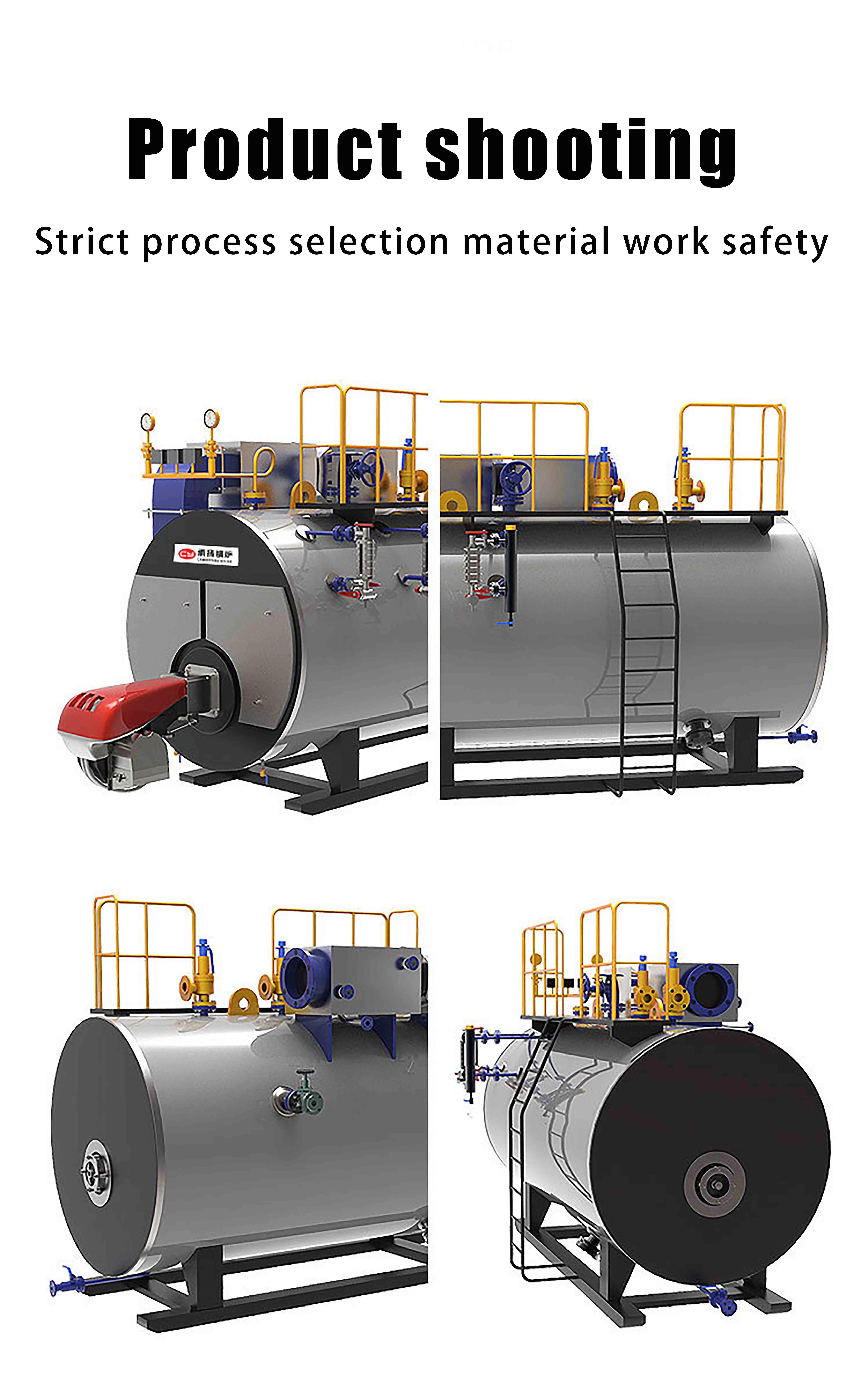

The boiler main engine belongs to the whole structure, the burner is assembled on the front smoke box cover, and the body is mainly arranged with the heating surface and the combustion chamber. It has a reasonable structure, compact, low steel consumption, the furnace bile adopts offset waveform furnace, the insulation layer uses new lightweight heat insulation materials, the outer packaging uses color sheet, and the outline packaging is cuboid, so that the performance, weight, structure size and appearance of the boiler have obvious advanced and beautiful appearance compared with the domestic products with the same capacity.
The boiler water supply equipment is arranged on the boiler base on the right side of the boiler so that it is integrated with the main engine, and there is no need to make another foundation.
3, the water cycle is simple, the structure of the pressure parts is reasonable, and the water quality can be safely operated.
4, complete auxiliary machinery, advanced comprehensive technical performance.
1, the overall structure is reasonable, compact, boiler island type, in line with the factory conditions. This product is composed of three parts at the factory; Boiler main engine, chimney and piping system, of which the main engine and chimney parts have been manufactured in the factory, the pipe valves and instruments supporting the main engine have been randomly installed, transported to the site to assemble the main engine and chimney. The air source, power supply and water pipe can be connected on site for test. The installation cycle is greatly shortened, and the product quality can be guaranteed.
2. Advanced design performance.
The boiler main engine belongs to the whole structure, the burner is assembled on the front smoke box cover, and the body is mainly arranged with the heating surface and the combustion chamber. It has a reasonable structure, compact, low steel consumption, the furnace bile adopts offset waveform furnace, the insulation layer uses new lightweight heat insulation materials, the outer packaging uses color sheet, and the outline packaging is cuboid, so that the performance, weight, structure size and appearance of the boiler have obvious advanced and beautiful appearance compared with the domestic products with the same capacity.
The boiler water supply equipment is arranged on the boiler base on the right side of the boiler so that it is integrated with the main engine, and there is no need to make another foundation.
3, the water cycle is simple, the structure of the pressure parts is reasonable, and the water quality can be safely operated.
4, complete auxiliary machinery, advanced comprehensive technical performance.
Scope of application
Type parameter
Model | Ratd SteamCapacity | Rated Working Pressure | Saturated SleamTemperature | Nitrogen oxides | Design Fuel | Max Transport Weight | Max Transport Dimension (LxWxH) |
unit | (t/h) | (MPa) | (C) | (mg/m3) | (kg) | (mm) | |
WNS1-1.25-YQ | 1 | 18-30 | Natural Gas, Light oil, Heavy oil, Etc. | 5500 | 3300*1800*2000 | ||
WNS2-1.25-YQ | 2 | 18-30 | 7500 | 4000*2000*2950 | |||
WNS3-1.25-YQ | 3 | 18-30 | 8000 | 4350*2200*2600 | |||
WNS4-1.25-YQ | 4 | 1.0 | 184 | 18-30 | 10000 | 4800*2300*2800 | |
WNS6-1.25-YQ | 6 | 1.25 | 194 | 18-30 | 14000 | 5400*2500*2950 | |
WNS8-1.25-YQ | 8 | 1.6 | 204 | 18-30 | 20226 | 6955*2480*2986 | |
WNS10-1.25-YQ | 10 | 2.5 | 225 | 18-30 | 21500 | 6300*2700*3200 | |
WNS12-1.25-YQ | 12 | 18-30 | 23000 | 6700*2700*3200 | |||
WNS15-1.25-YQ | 15 | 18-30 | 27700 | 7365*3200*3508 | |||
WNS20-1.25-YQ | 20 | 18-30 | 30000 | 8050*3750*3960 |
