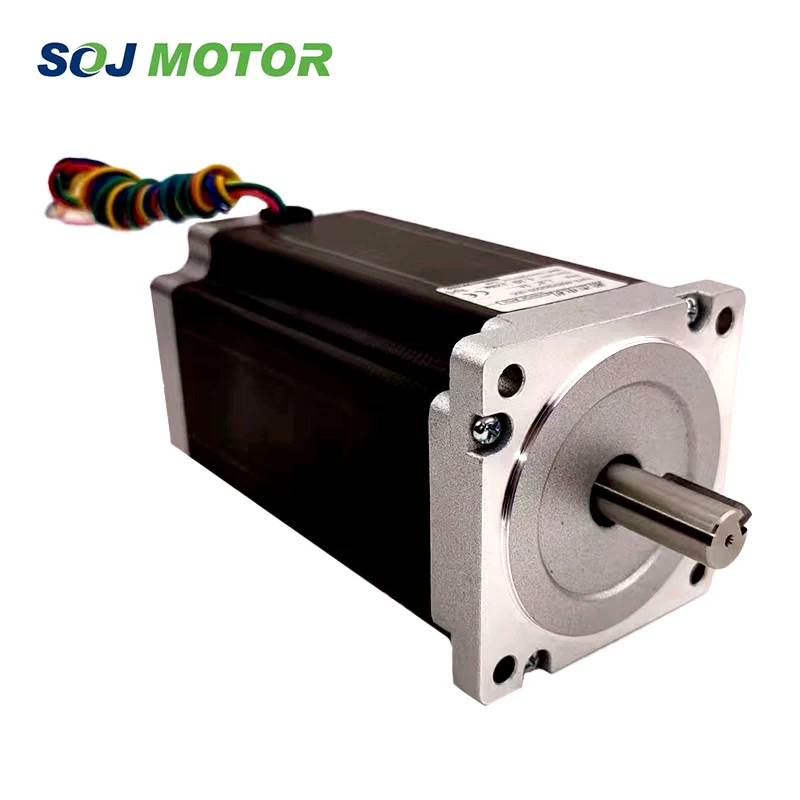

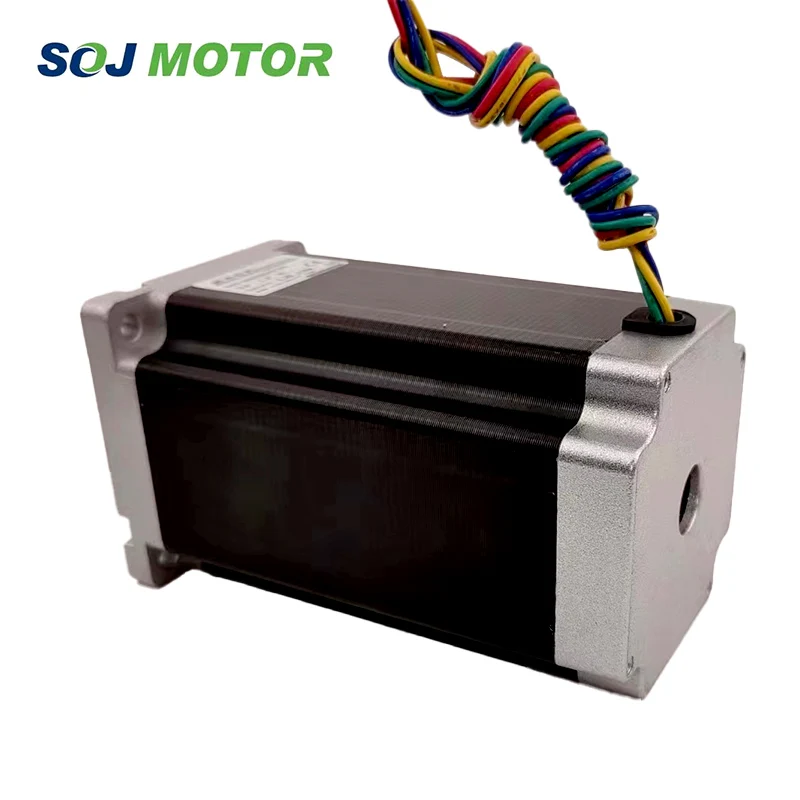

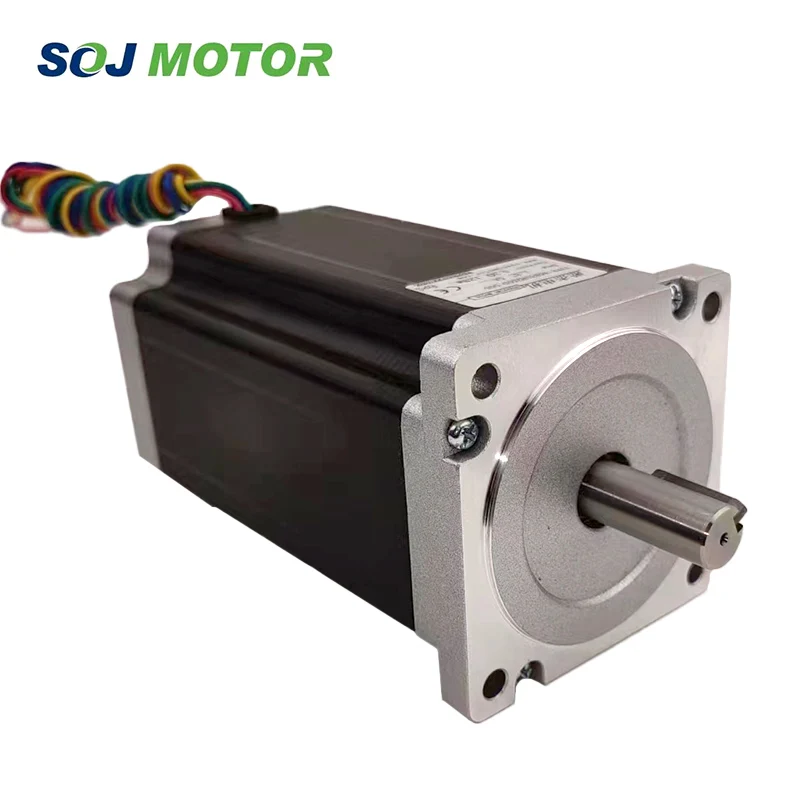

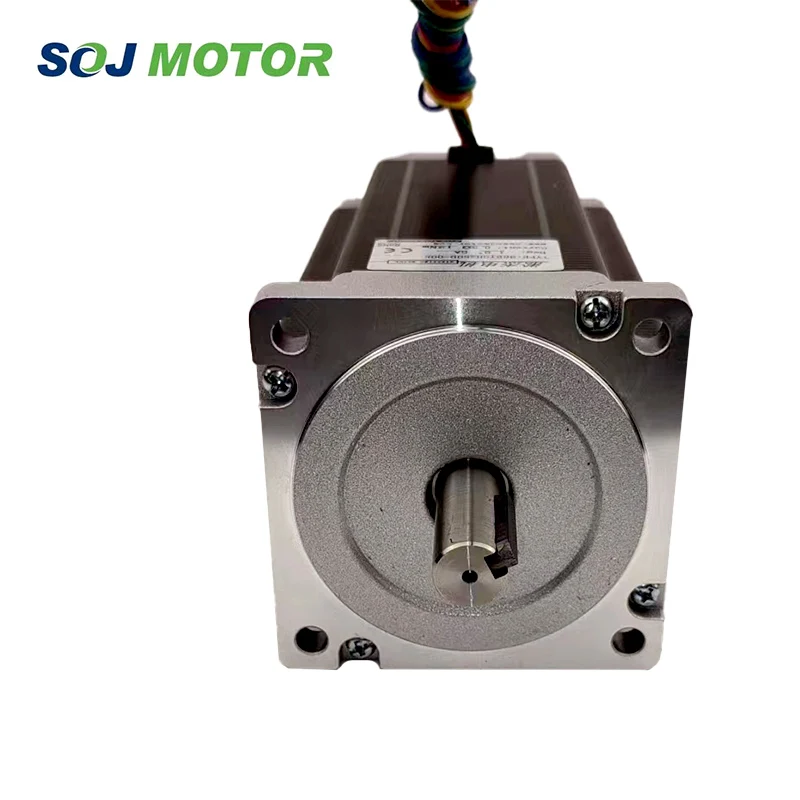

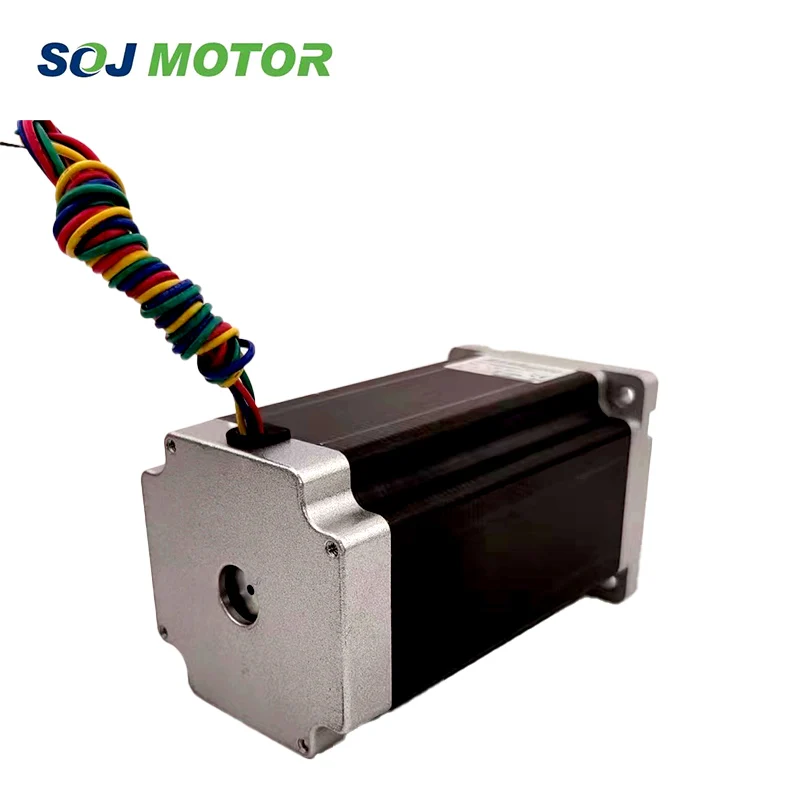

86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable
86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable

86series two phase Stepper motor length98mm 6.8N.m Lead Wire4 Chinese factory customizable

Share on (1600946118151):


Price:US$ 33.40 - US$ 35.40

Quantity:


Product Overview

Description





Products Description


Model
S86BYGH68-400A4
S86BYGH80-600A4
S86BYGH98-400A4
S86BYGH116-600A4
S86BYGH128-500A4
S86BYGH150-600A4
Length L mm
68
80
98
116
128
150
A/Rated
4
6
4
6
5
6
Ω/Phase
0.63
0.38
0.5
0.6
0.6
0.78
mH/Phase
3.2
3.5
4
6.8
5
8.5
Holding Torque kg.cm
3.2N.m
4.5N.m
6.8N.m
8.5N.m
9.0N.m
12N.m
Lead Wire NO.
4
4
4
4
        4
4
weight g
2000
2500
3000
3500
3900
4200


Electrical indicators


Step Accuracy
±5%
85Temperature
85℃ Max
Ambient Temperature Range
-20℃~+50℃
Insulation Resistance
100MΩMin 500VC DC
Dielectric Strength
500V AC 1 minute
