DN10 100 pipe size flowmeter good electromagnetic flowmeter 4 20MA with hart output

Product Overview

Description

High quality 4-20ma  digital  Flowmeter good electromagnetic flowmeter melt pressure sensor pressure sensor TransducerHigh temperature melt pressure sensor



 Description of product melt pressure densor



 MDW500 series of electromagnetic flowmeter can be used to measure the volume flow of conductive fluids in closed pipes. It is widely used in petrochemical industry, ferrous metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, papermaking, medicine, food and other industrial and agricultural production process flow measurement and control. Electromagnetic flowmeter consists of two parts: electromagnetic flow converter and electromagnetic flow sensor. Separation type also needs a special double shielded cable connection converter and sensor. MDW500 series electromagnetic flowmeter are divided into two structure types: integrative type and separated type. It can be used in specified explosion-proof places. Sensor has seven electrodes of different materials and four linings of different materials to be chosen.

Application ♦Petrochemical industry, Ferrous metallurgy ♦Pharmaceutical, food processing, packaging equipment ♦Water treatment, environmental monitoring and control of sewage

Feature♦Not affected by the parameters of fluid density, viscosity, temperature, pressure, electric rate change High precision measurement can be achieved by linear measurement principle ♦Nominal diameter DN6-DN2000 wide coverage, many options for lining and electrodes, which can meet the requirements of measuring a variety of conductive fluids. ♦Converter uses 16-bit embedded microprocessor, full digital processing, fast calculation speed, strong anti-interference ability, reliable and accurate measurement, flow measurement range up to1500: 1 ♦High definition backlight LCD display, full Chinese menu operation, easy to use, simple operation, easy to learn and easy to understand

Technical specifications

1:Maximum velocity:15m/s2:Nominal diameter:DN3,6,10,15,20,25,32,40,50,65,80,100,150,200,250,300,350 400,450,500,600,700,800,900,1000,1200,1400,1600,1800,2000

3:Accuracy:0.5%,0.2%,0.1%4:Nominal pressure:4.0MPA(DN10-150)1.6MPA(DN200-600)1.0MPA(DN700-1200)0.6MPA(DN1400-2000) Other specifications and standards are available upon request.5:Material:Electrode form and materialElectrode form can be divided into standard type, scraper type, removable type, with grounding electrode.Electrode and ground electrode material havestainless steel containing Mo, Hastelloy B,Hastelloy C,titanium,tantalum,Cypress-Incoloy alloy,Stainless steel coated with tungsten carbide total 7 kinds.Flange material:carbon steelGrounding ring material:stainless steelDoor protection ring material:stainless steel,carbon steel.6:Enclosure protection:IP65: IP68:Separate neoprene rubber and polyurethane-liningtransducer only, and does not include explosion-proof construction.7:Explosion-proof standard:DN15-DN600integrative type explosion protection:md II BT4DN15-DN1600split type explosion protection, sensor and converter both installed in the appropriate hazard area md II BT4

DN15-DN1600split type explosion protection, sensor install in the appropriate hazard area, converter install in the safe area:md II BT4

8:Connecting cable: Split electromagnetic flowmeter, sensor and converter are connected by signal cable. The longest cable length should be less than 100MM. Our company provides 10M cable free of charge with the meter, and insufficient parts need to be ordered. 9:Converter performance:Supply power:Single phase alternating current85-265V. 45-63HZ. Power less than 20W:Direct current supply11-40VD ·CConverter Display and Programming Operation: Four membrane keyboards can set and select all parameters, converter can also be programmed by external HART or PC (RS485, RS232), high-definition backlight LCD display, Atc detection, self-diagnosis function. 10:Digital communication:RS485,RS232,MODBUS,REMOTE. have anti-lightning strike design.

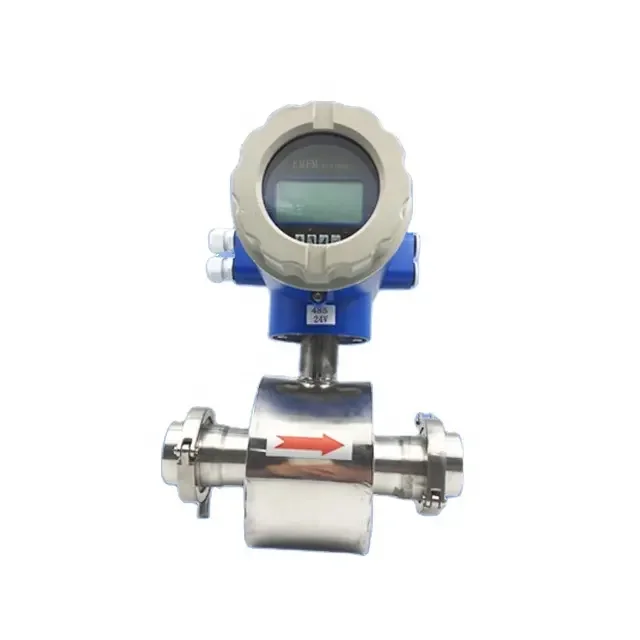

  Product details   sensor for machine

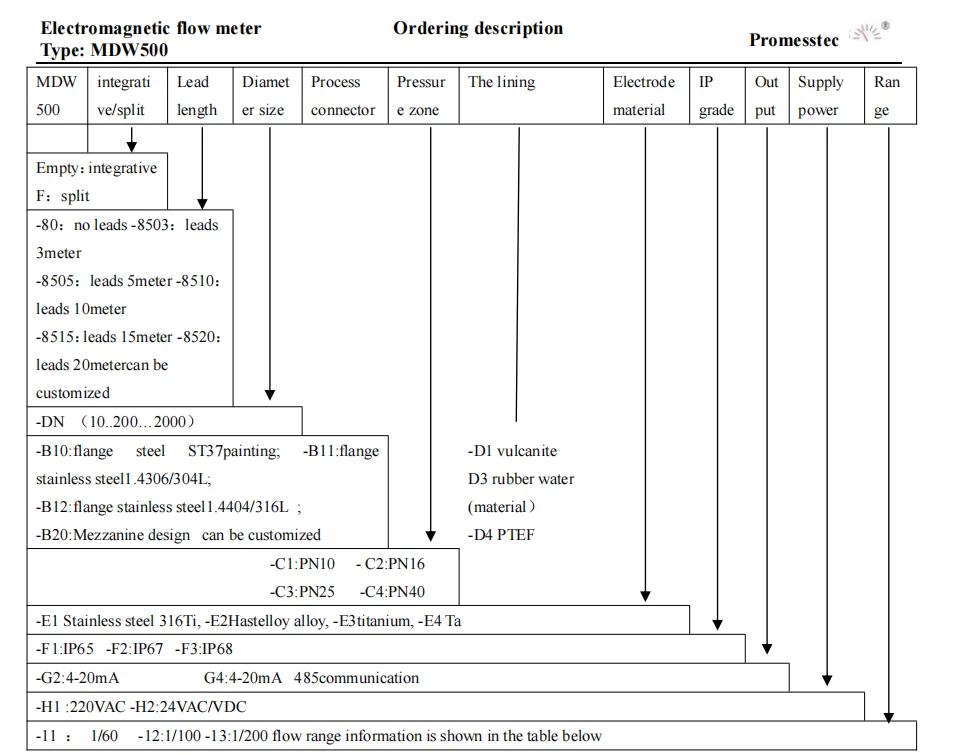

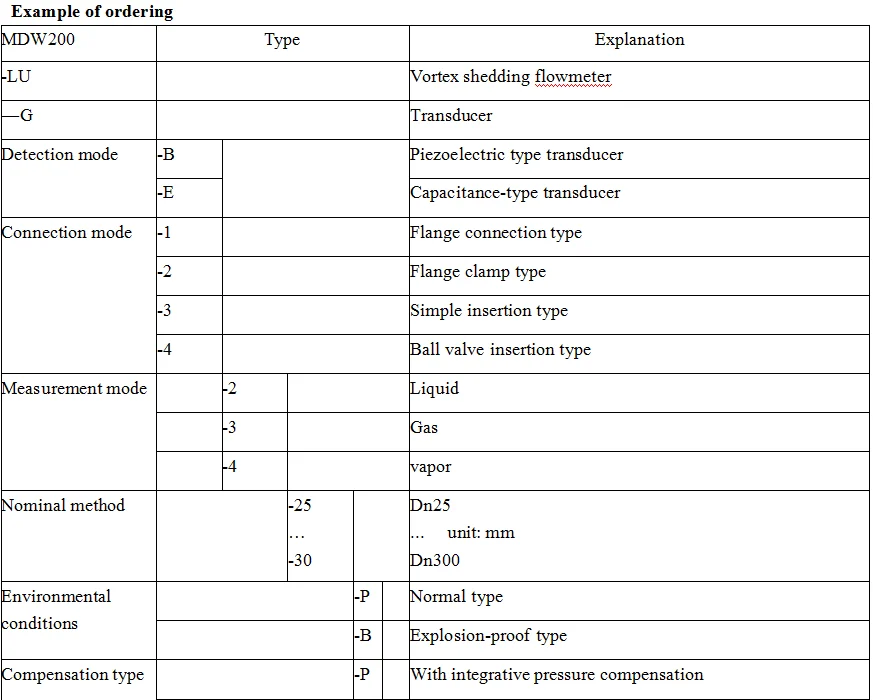

   Example of ordering



  Companyintroduction

Changsha Luosen Automation Technology Co., Ltd. is headquartered in Changsha, Hunan, and the company is based on Promesstec. It is a technology-oriented enterprise specializing in R&D, production and sales services of A.S (automatic sensing technology). Changsha Luosen is committed to building domestic high-tech sensing technology products, combining German core sensing technology with China's localized market demand, contributing its own meager strength to the domestic sensor market, especially in the field of process automation..

Changsha Luosen's clients include Fortune 500 companies, government agencies, integrated divisions and distributors to meet the diverse market needs of manufacturing and industry. Changsha Luosen's products are mainly used in: plastic machinery, chemical fiber machinery, petrochemical, water treatment engineering, power plants, aerospace, air compressors, air conditioners, automobiles, plastics, packaging. Medical, electronics, chemical, rubber, textile and food packaging. All of our customers have a common need: to get reliable products from trusted companies. Our products have been successfully applied in many fields in Italy, the United States, Germany, Canada, the United Kingdom, Austria, Malaysia, India, Pakistan, Singapore, Japan, Australia, etc. This proves that we have reliable products and quality products. service.

Changsha Luosen will continue to attach importance to the reliability, stability and accuracy of its products, helping customers to achieve tangible needs, win-win cooperation and create value
