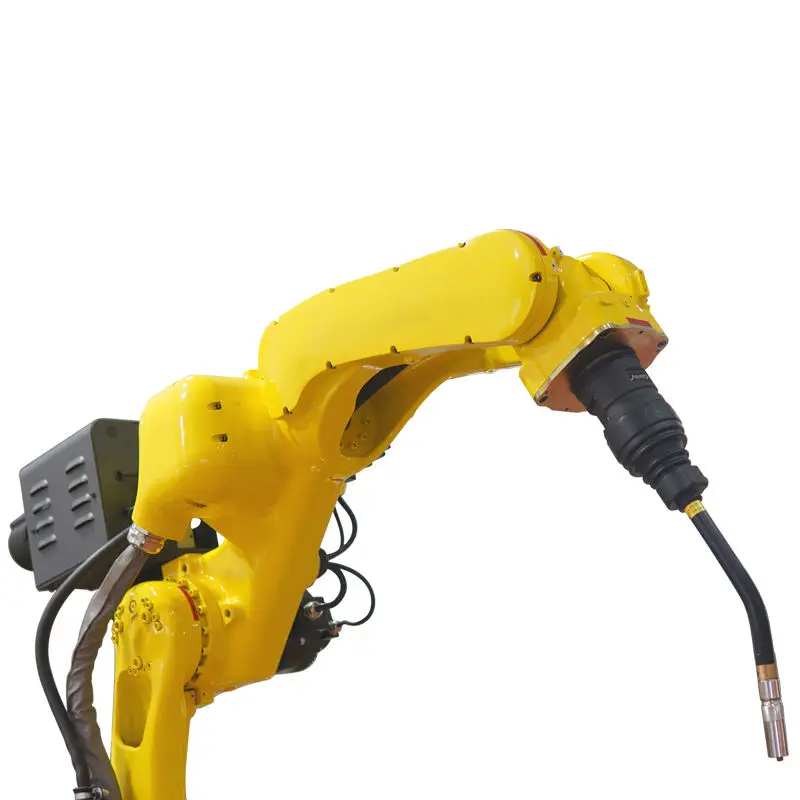

Low cost 6 axis Industrial robot 3 kg Industrial brazo Kuka robotic arm price low other lead the industry robot precio
- Category: >>>
- Supplier: Shanghai Xuanyang International Trade Co. Ltd.
Share on (1600946189735):
Product Overview
Description
Model No. | JX10-1440 | |
Controlled axis | 6-DOF | |
Max payload | 10 kg | |
Max stroke | 1440mm | |
IP Level | J1, J2-IP56; J3, J4, J5, J6-- IP67 | |
Installation mode | Floor type, ceiling type | |
Robot mass | 172 kg | |
Repeatability | ±0.05 mm | |
Welding machines | ● Standard: Aotai NBC-350R (MIG/MAG/CO2) | |
● Optional: Aotai NBC-350RL (low spatter) | ||
● Optional: Aotai NBC-350RL (low spatter) | ||
Welding current | 350A/500A | |
Welding torch | Standard air-cooling torch with built-in anti-collision protection | |
Travel range | ||
J1 axis S | ±160° | |
J2 axis L | +80°~-145° | |
J3 axis U | +145°~-75° | |
J4 axis R | ±190° | |
J5 axis B | +50°~-210° | |
J6 axis T | ±230° | |
Travel speed | ||
J1 axis S | 199.5 ˚/s | |
J2 axis L | 159.3 ˚/s | |
J3 axis U | 199.5 ˚/s | |
J4 axis R | 392 ˚/s | |
J5 axis B | 272 ˚/s | |
J6 axis T | 1000 ˚/s | |
